Weekend fab projects. Transmission skid and exhaust kicker, Viair hard mount

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Pilsner, Jul 27, 2020.

  1. Jul 27, 2020 at 6:53 AM
    #1
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

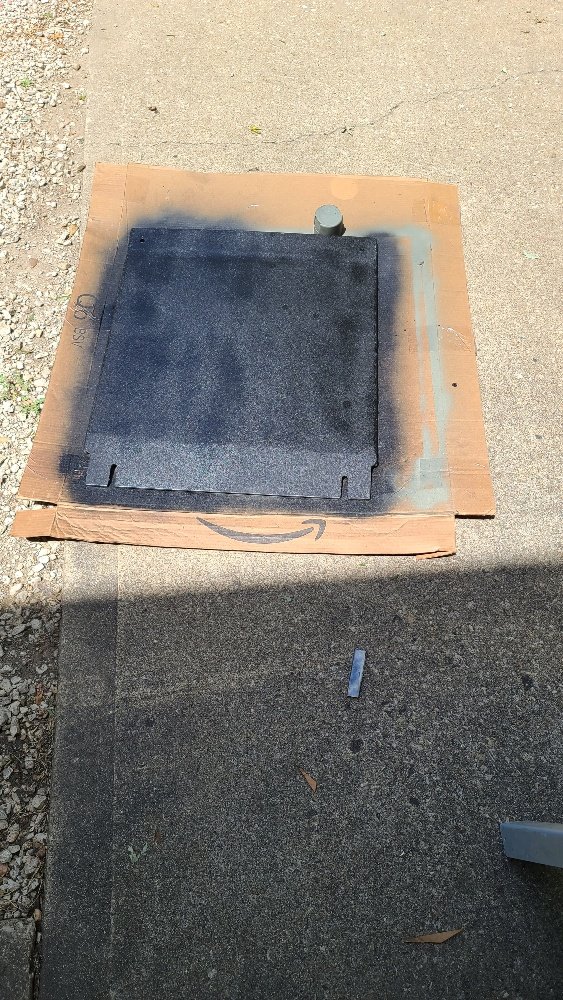

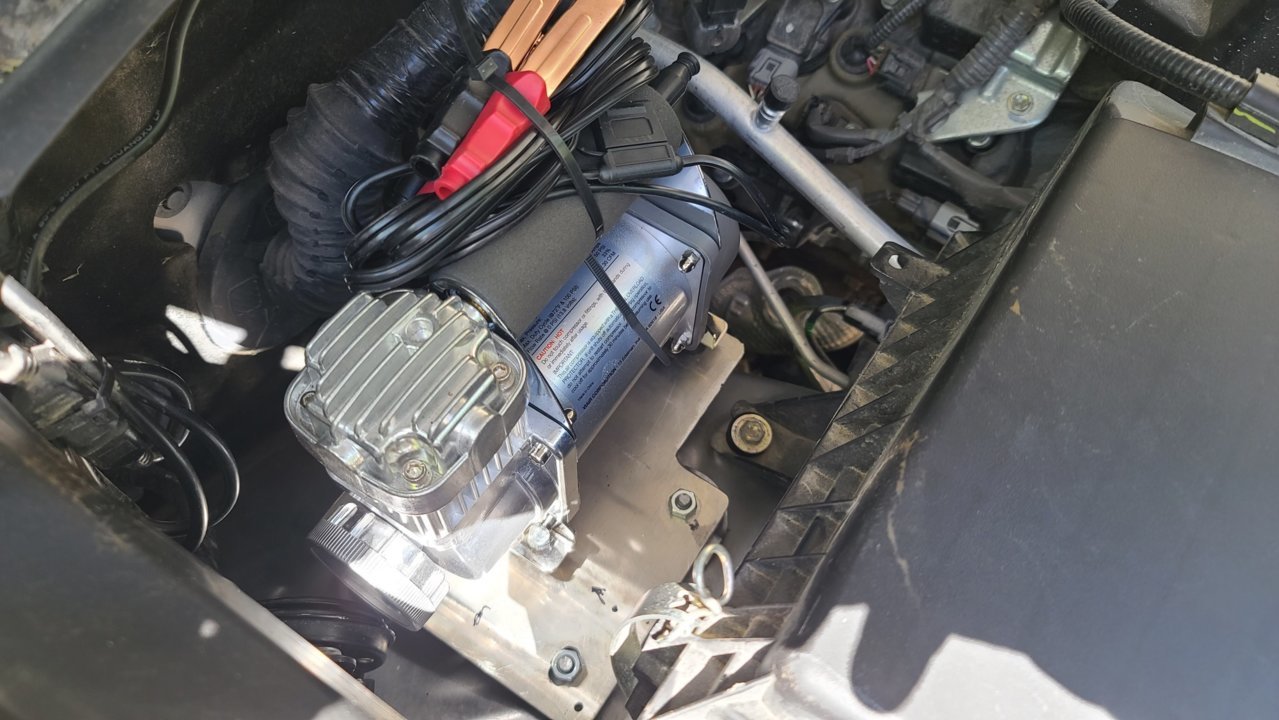

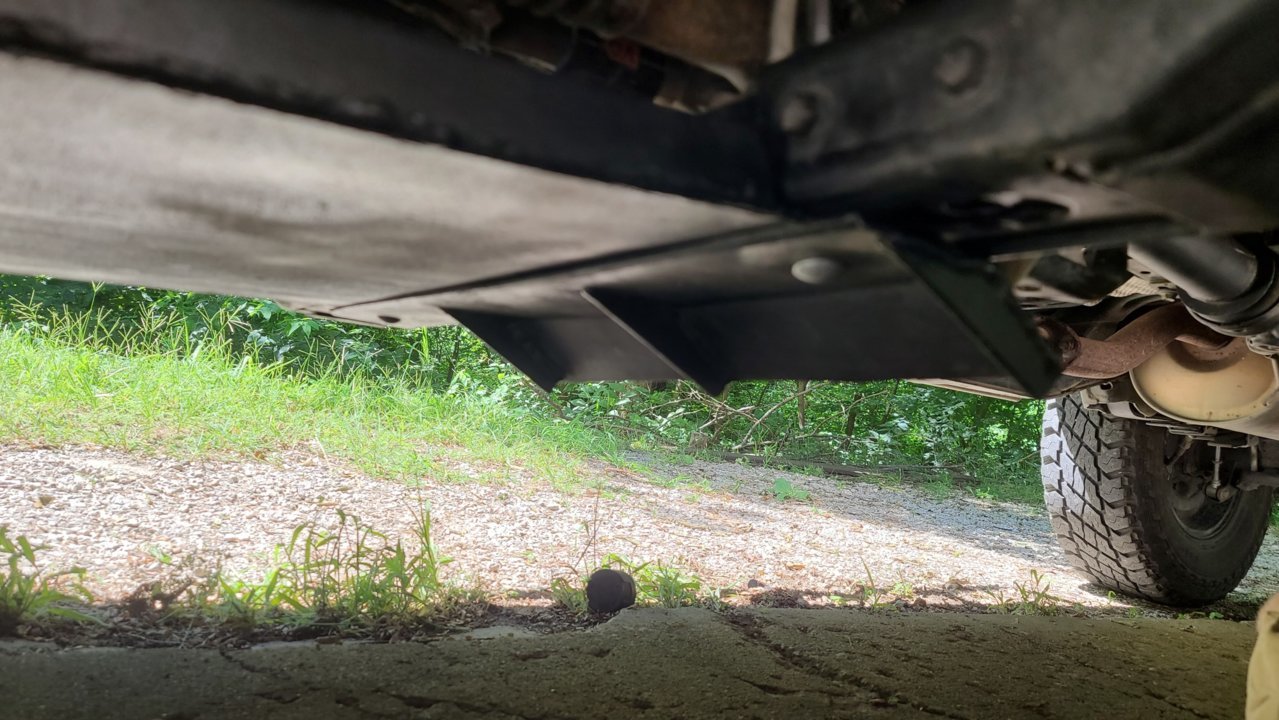

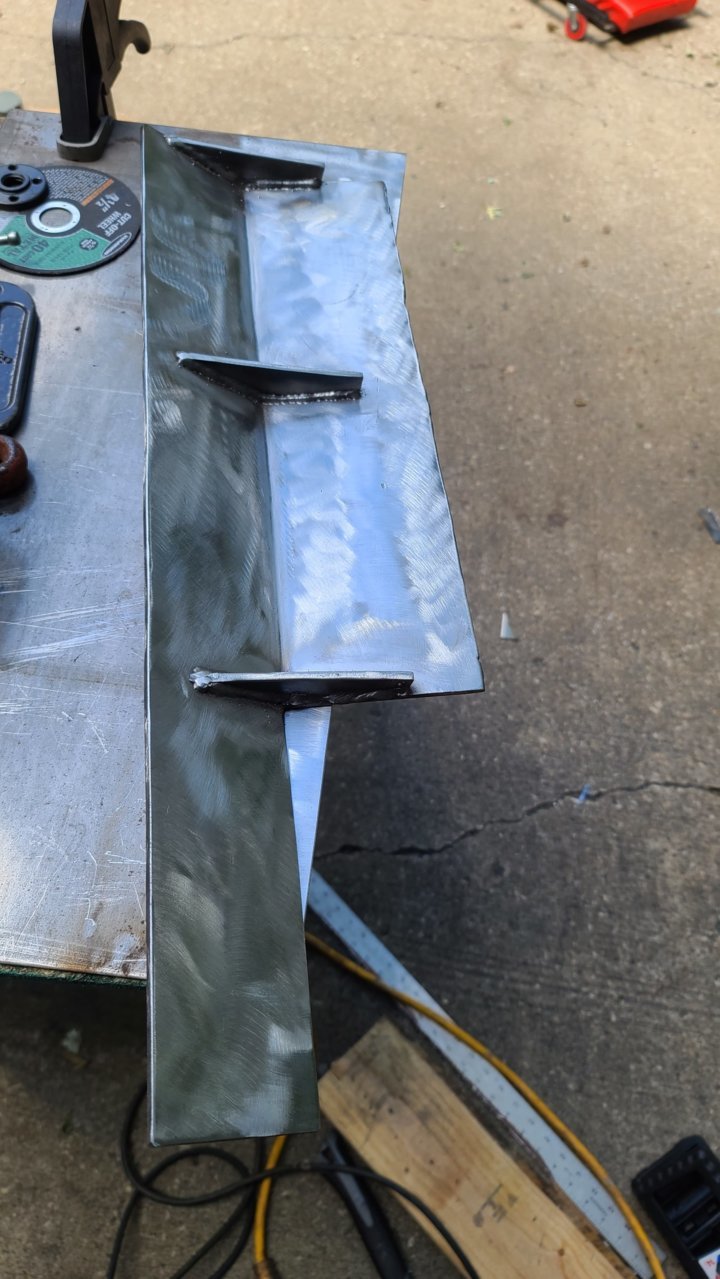

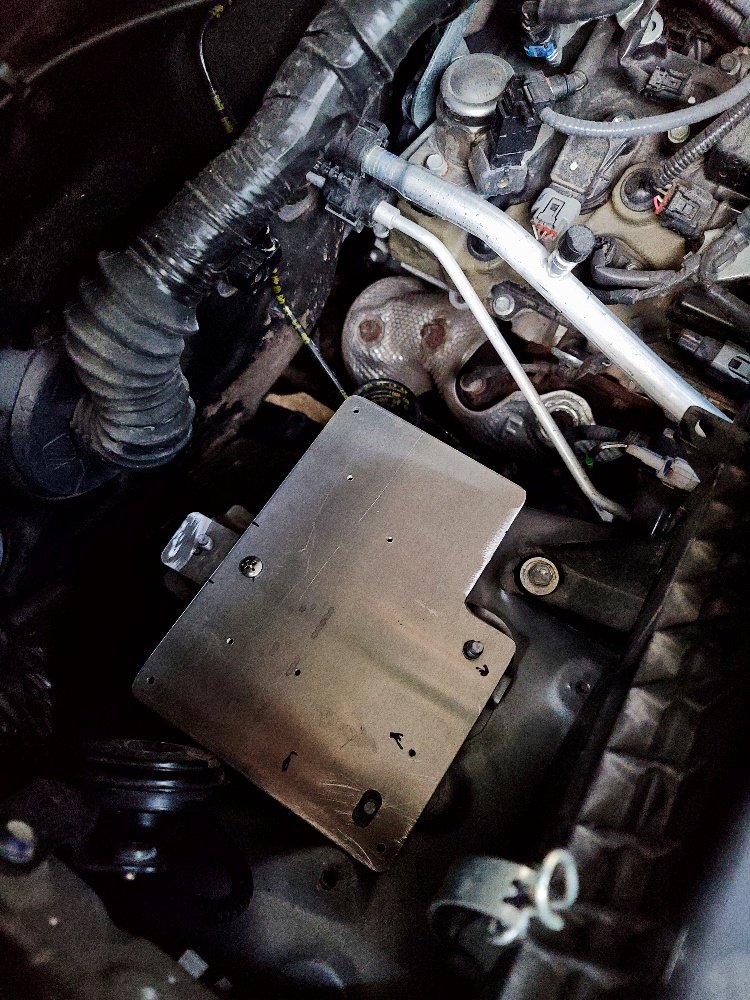

    Was planning a trip to Colorado this spring, but was put on hold with covid. We decided we are going this week, so I was low on time to prepare and couldn't get more skids in time. So I decided to make some stuff this weekend. Viair mount is 1/8 aluminium that I had from another project. The skids are 3/16 a36 that I picked up at the steel yard Friady night. I need to put a couple drain holes in the transmission skid at some point. After making the tranny skid, the exhaust was clearly a problem. It looked like if you slid over something on the front 2 skids, your exhaust would be ripped backwards as you came off the tranny skid. That would be worse than just smashing it, so I make a kicker plate. Not sure how well it will work out, but I'll let you know. I may trim it up another inch or so, still debating. I'm getting a re-route done soon, so I didn't want to build a full skid just to redo it. The Viair mount is done and in, but I didn't have time to hard wire the power in yet. It will also be run to a distribution block with QD fittings and a pressure switch. Leaving in a few days and I have a ton left to do.



    ExplorHer, igc, tonered and 2 others like this.
  2. Jul 27, 2020 at 9:56 AM
    #2
    dubktrd

    dubktrd Well-Known Member

    Joined:
    Nov 2, 2012
    Member:
    #90340
    Messages:
    200
    Gender:
    Male
    Wichita Kansas
    Do you have a picture of the overall skids? Are you using the factory front and adding on?

  3. Jul 27, 2020 at 11:03 AM
    #3
    rdpoe

    rdpoe #2WDFTW

    Joined:
    May 28, 2018
    Member:
    #254789
    Messages:
    1,733
    Gender:
    Male
    First Name:
    Ryan
    Central Kentucky
    Vehicle:
    2019 TRD OR DCLB (Sold), Honda Civic TRD PRO
    wow, nice job!

  4. Jul 27, 2020 at 12:37 PM
    #4
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

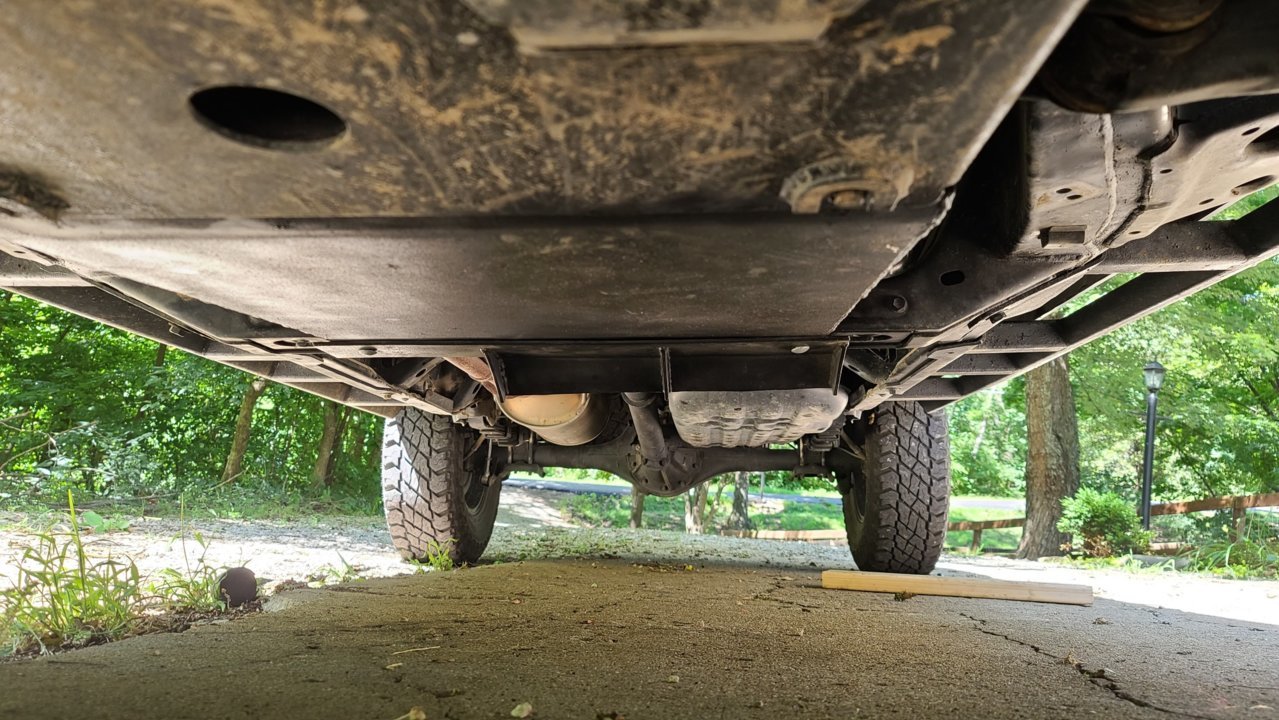

    I have a front RCI skid. That first pic is the rear of the RCI skid back.

    Or did you mean off the truck? I can take a pic from the front end back if that would help.

    Last edited: Jul 27, 2020
  5. Jul 27, 2020 at 12:39 PM
    #5
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

    Thanks man.

  6. Jul 27, 2020 at 1:31 PM
    #6
    blitzkrieg3002

    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    1,217
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4
    That Viar mount is sweet! i want one! how tough was it to fab up?

  7. Jul 27, 2020 at 2:10 PM
    #7
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

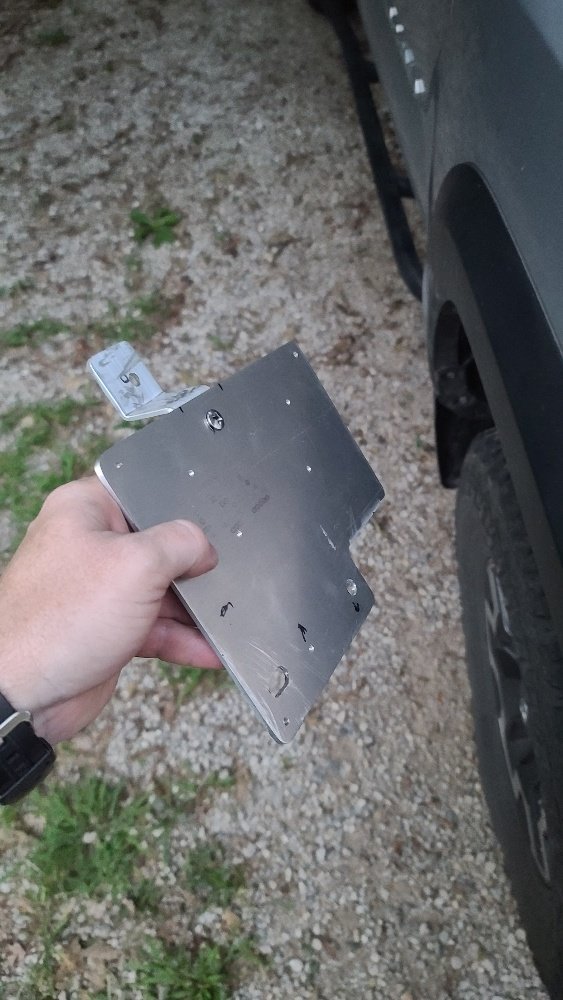

    That was pretty easy. Would have been a lot easier if I had 5052 aluminium handy instead of 6160. 6160 doesn't bend well. It took a few tries to get the bottom offset to bend after heating without cracking. Other than that, it wasn't bad.

  8. Jul 27, 2020 at 11:43 PM
    #8
    dubktrd

    dubktrd Well-Known Member

    Joined:
    Nov 2, 2012
    Member:
    #90340
    Messages:
    200
    Gender:
    Male
    Wichita Kansas
    Yes front and back pictures would be nice thanks in advance

  9. Jul 28, 2020 at 6:28 AM
    #9
    Outdoorsy_Yota

    Outdoorsy_Yota Hella-Known Member

    Joined:
    Jul 13, 2018
    Member:
    #259229
    Messages:
    596
    Gender:
    Male
    First Name:
    duhbondo JIW Local 378
    Bay Area
    Vehicle:
    17 DCLB TRD OR LOL
    the compressor plate is clutch! Awesome job, man!

  10. Jul 28, 2020 at 7:19 AM
    #10
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k
    I'll grab some at lunch or after work.

  11. Jul 28, 2020 at 7:23 AM
    #11
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k
    Appreciate it. I think it will work out pretty well.

  12. Jul 28, 2020 at 7:40 AM
    #12
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,653
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    I plan to do this same thing. Did you go with 3/16?

  13. Jul 28, 2020 at 7:43 AM
    #13
    Technique

    Technique Well-Known Member

    Joined:
    Nov 4, 2017
    Member:
    #235046
    Messages:
    2,923
    Gender:
    Male
    First Name:
    Alex
    Utah
    Vehicle:
    2017 Silver Offroad DCSB
    -285/70/17 Toyo AT3 -Tuned
    How much for the compressor mounting plate :D

  14. Jul 28, 2020 at 8:41 AM
    #14
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

    Yeah 3/16. I think it's plenty strong. No deflection at all when jacking up the truck on it.

  15. Jul 28, 2020 at 8:46 AM
    #15
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,653
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    Imma try n make a front. I don't think it would be too difficult

  16. Jul 28, 2020 at 9:08 AM
    #16
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

    I actually got a few PMs about it. I had no intention of making more, I just couldn't find what I wanted, but I may look into it. Would need to make probably 30+ of them to make it worth the effort depending on what a vendor membership costs, but I may.



    It shouldn't be if you can measure the angles. Plasma makes it go a lot faster if you have one, but don't do it without socks on no matter how hot is it outside...

  17. Jul 28, 2020 at 9:28 AM
    #17
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,653
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    I'm not a fan of plasma unless it's CNC. It's too precise and my cut lines are super wavy haha

  18. Jul 28, 2020 at 9:33 AM
    #18
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

    I clamp a piece of 1" square tube down and my torch has a guide ring that follows the tube. If I cut at the right pace for the metal, it cuts cleaner than my band saw. If I cut by hand though, it looks like a crayon drawing. I just can't do it without a guide.

  19. Jul 28, 2020 at 9:35 AM
    #19
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,653
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR

    Crayon :rofl: I should see if there's any plasma on offerup. Hmm

  20. Jul 28, 2020 at 9:44 AM
    #20
    Pilsner

    Pilsner [OP] Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

    I can cut 2' of 3/16" steel in maybe 30 seconds. I've cut up to 1/2" spring steel, but it wasn't pretty. I don't use it past 3/16" or maybe 1/4" unless I just need to hack something off. It's easier to power up and go than to drag out and fire up a torch, or burn through 2 cut-off wheels.
