Weekend Project: Tacoma LED Bed Lights

Discussion in '3rd Gen. Tacomas (2016-2023)' started by ChrisK7UND, Jul 15, 2017.

  1. Jul 15, 2017 at 1:45 PM
    #1
    ChrisK7UND

    ChrisK7UND [OP] Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    547
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat
    Well, I finally got around to installing the factory LED kit to the bed of my Tacoma. For those of you that have a cover, you know how hard it is to see under there at night. I took my time and tried hard to make it look professional.

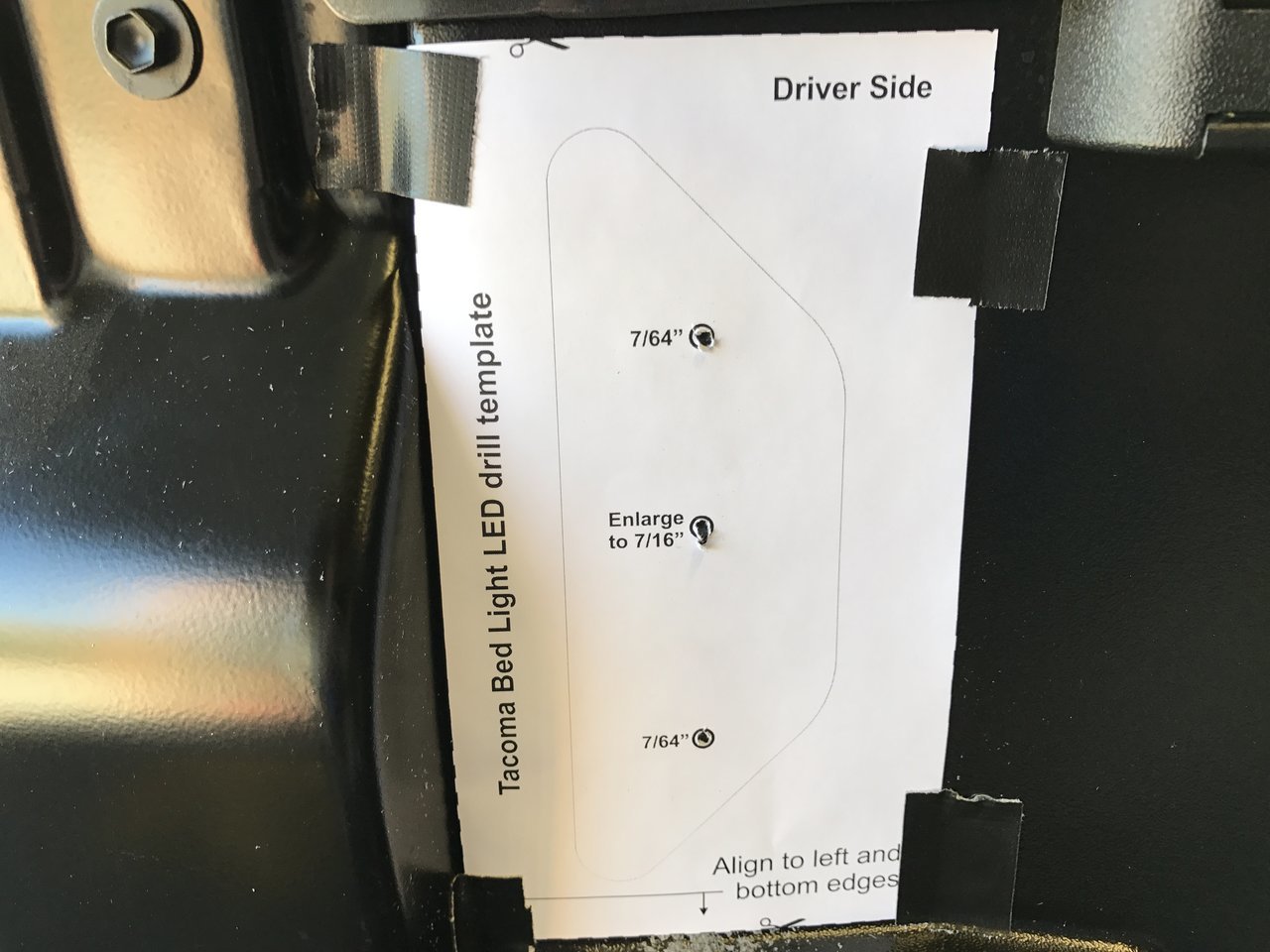

    Using the instructions, you cut out the template and place as described.

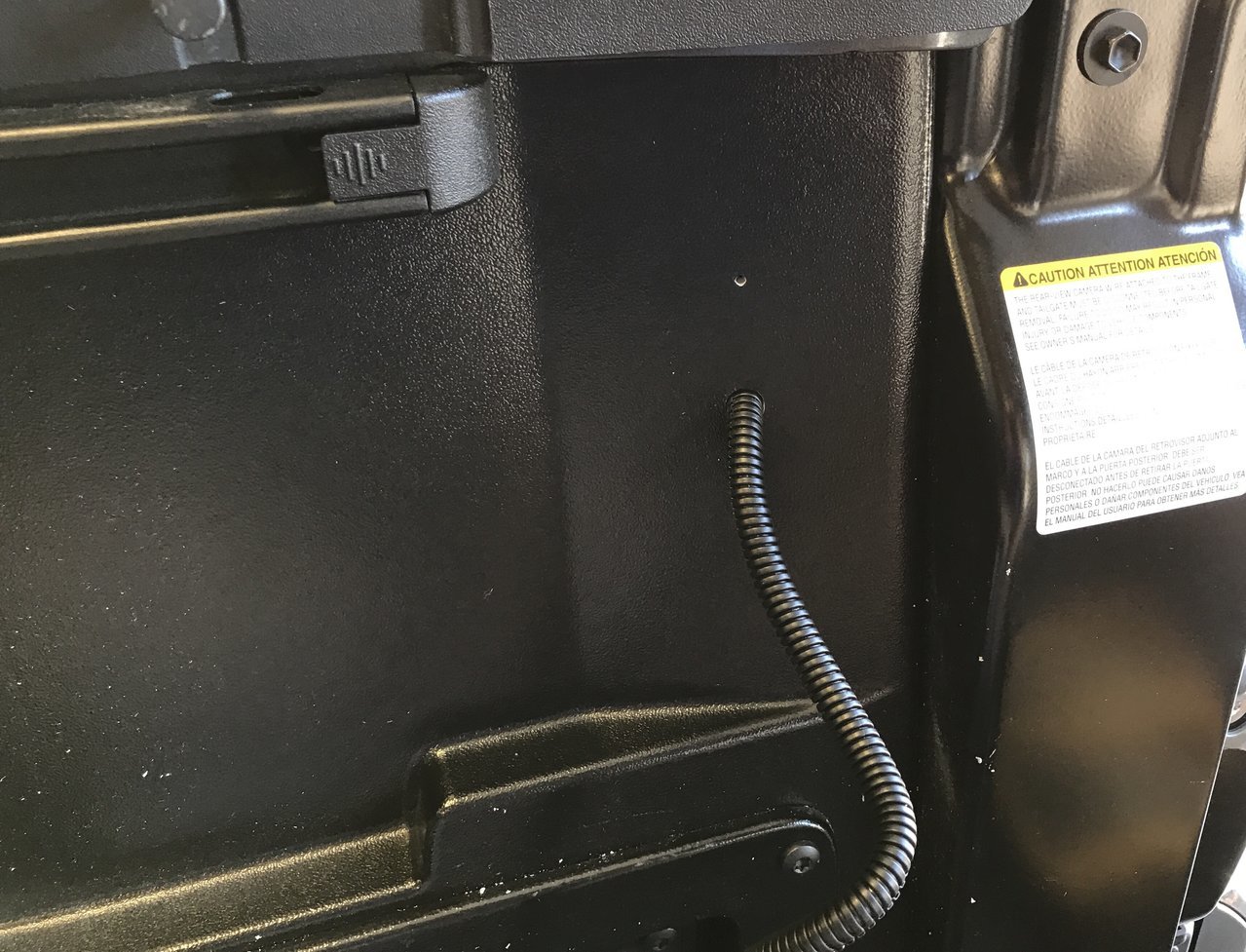

    Next, drill the holes and run the wires through the larger 7/16 hole.

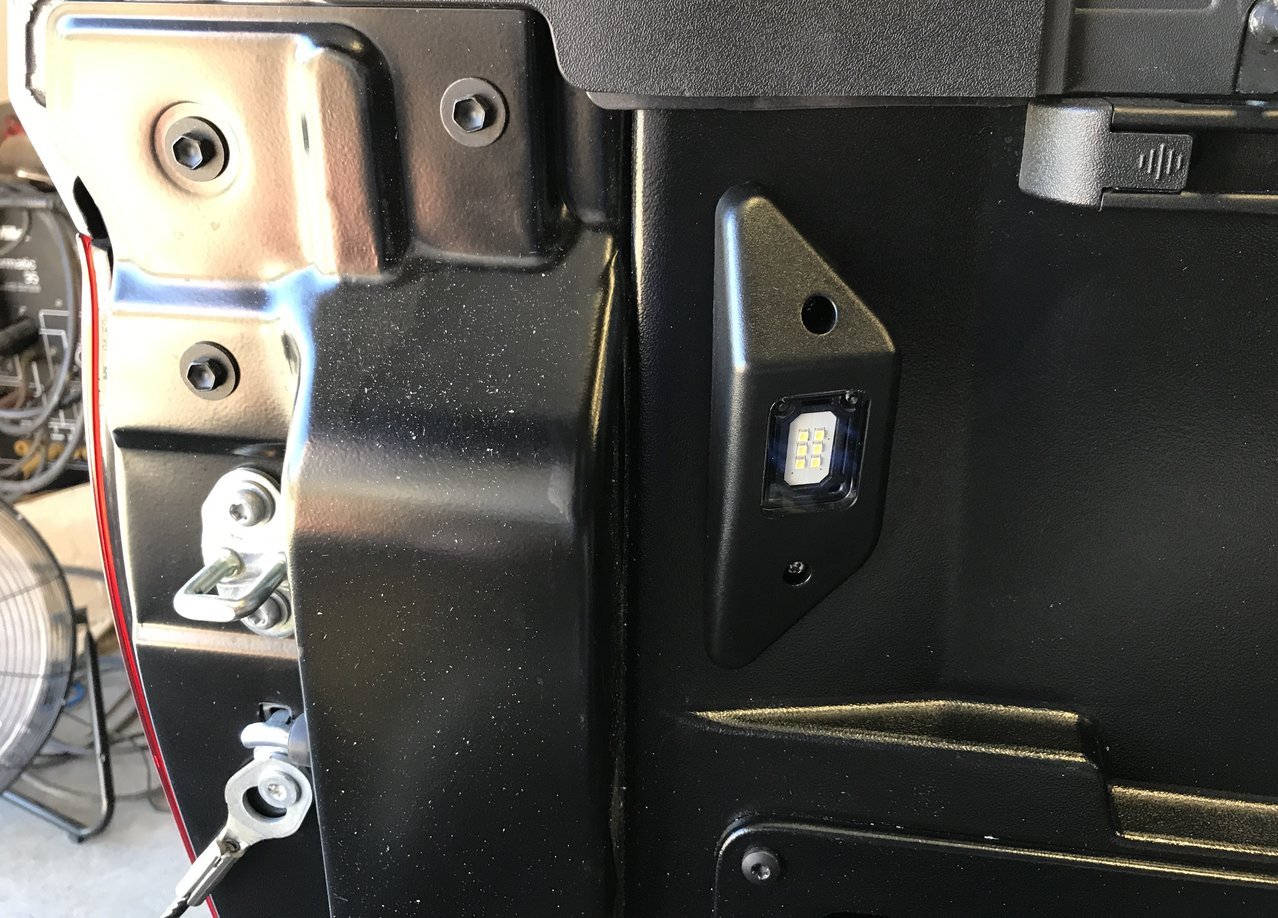

    Secure the LED lights and housings with supplied screws being careful not to overtighten.

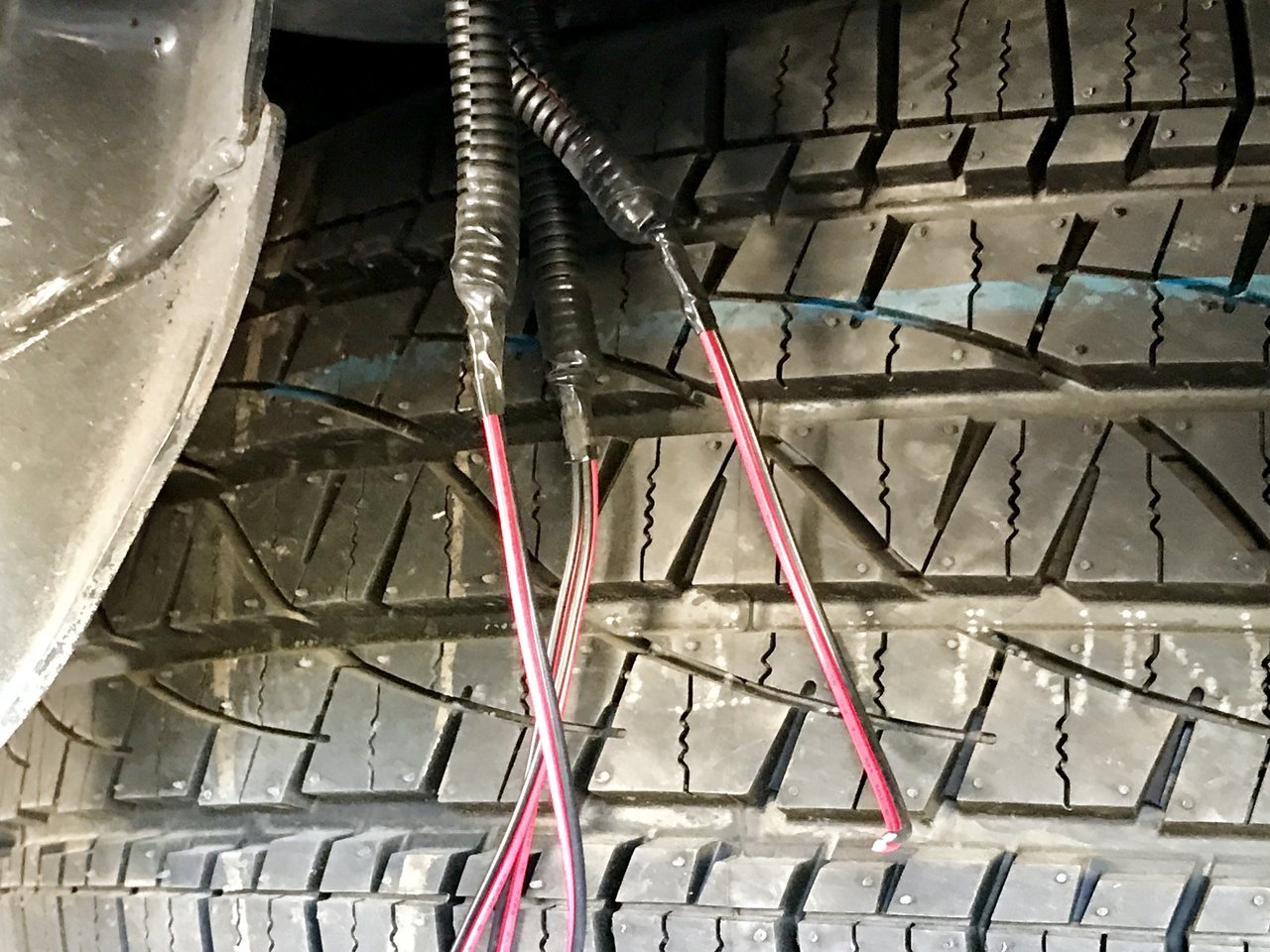

    Here is where I diverted from the instructions. I am not a fan of all the extra wire and connectors etc. I cut and soldered everything near the spare tire. You will have a hard time finding the added lights from stock harness.

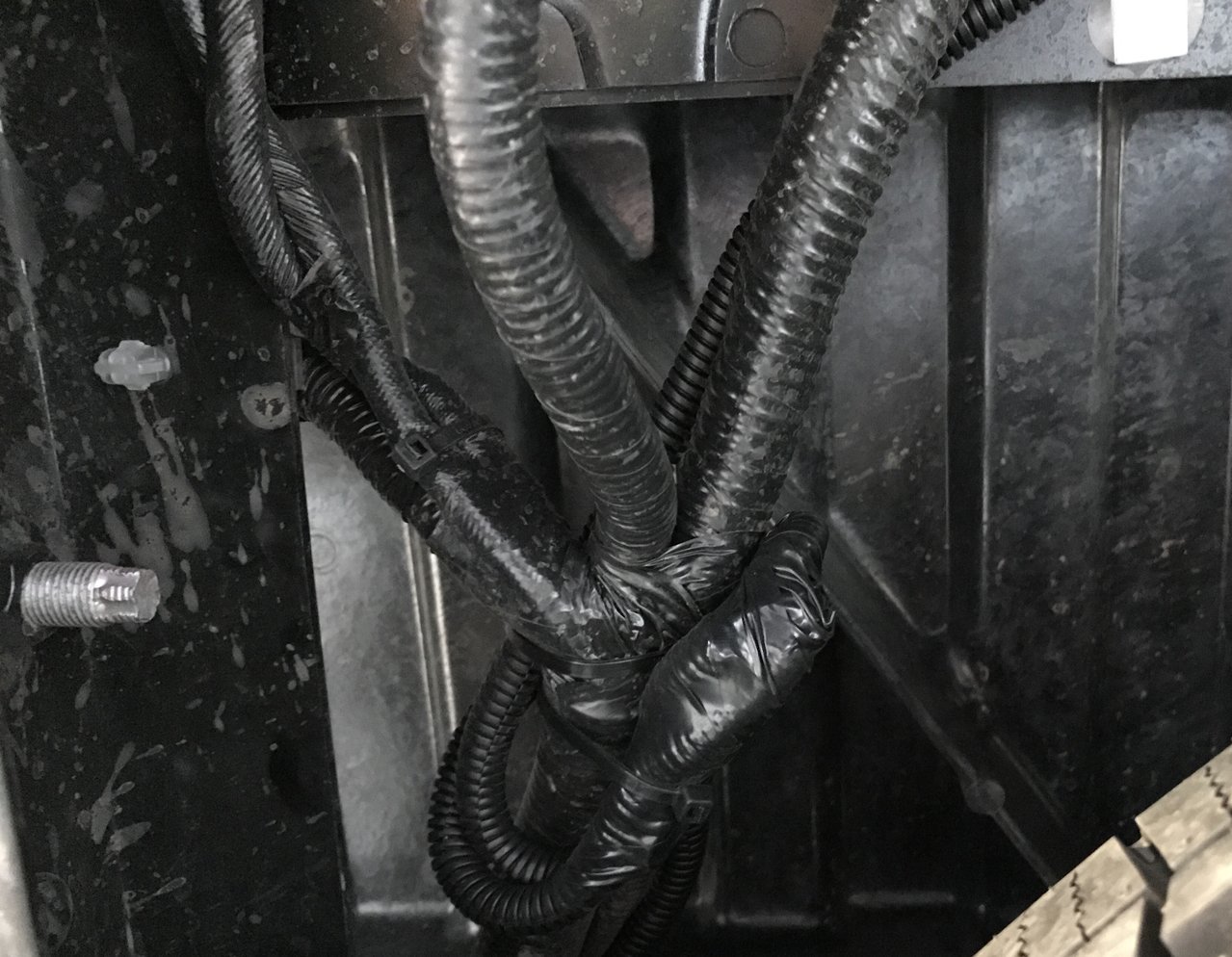

    Sealed up

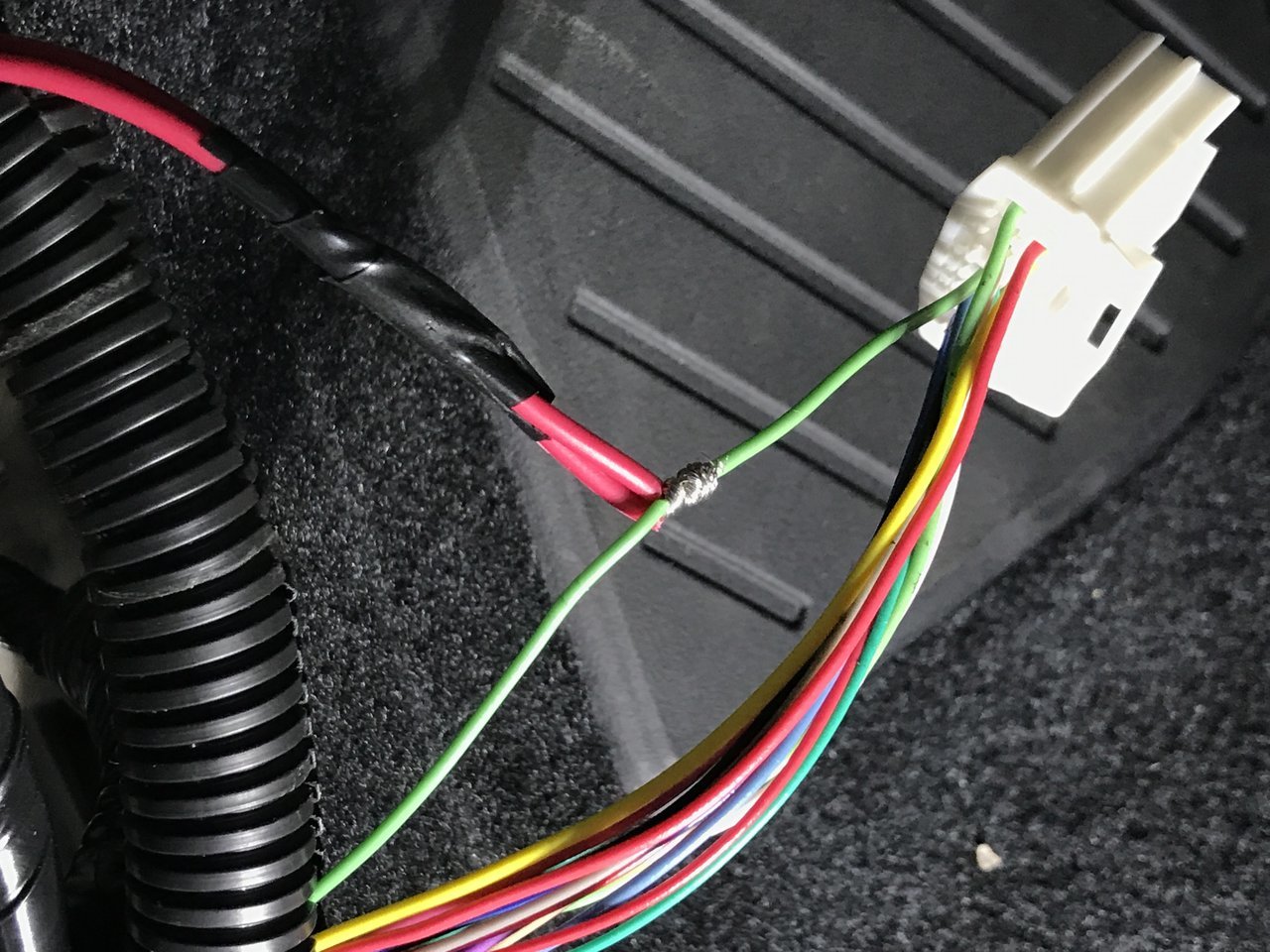

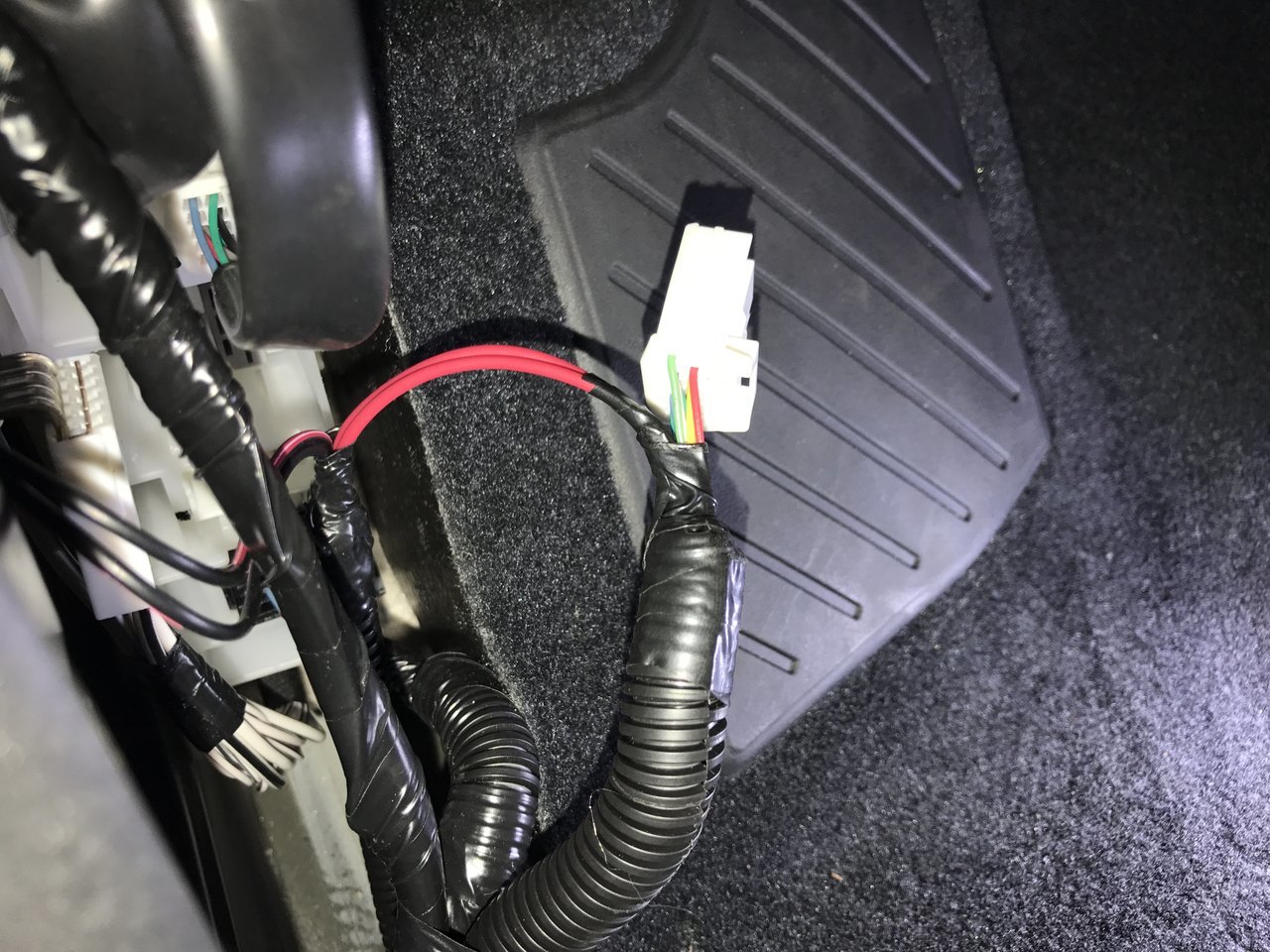

    Last but not least, make the connection to the factory harness to tie into the cargo circuit. Again, I soldered and taped the connections vs. the wire clip that came with the kit. I don't trust those. I soldered and taped the connections at the kick panel.


    Wires put back in their loom

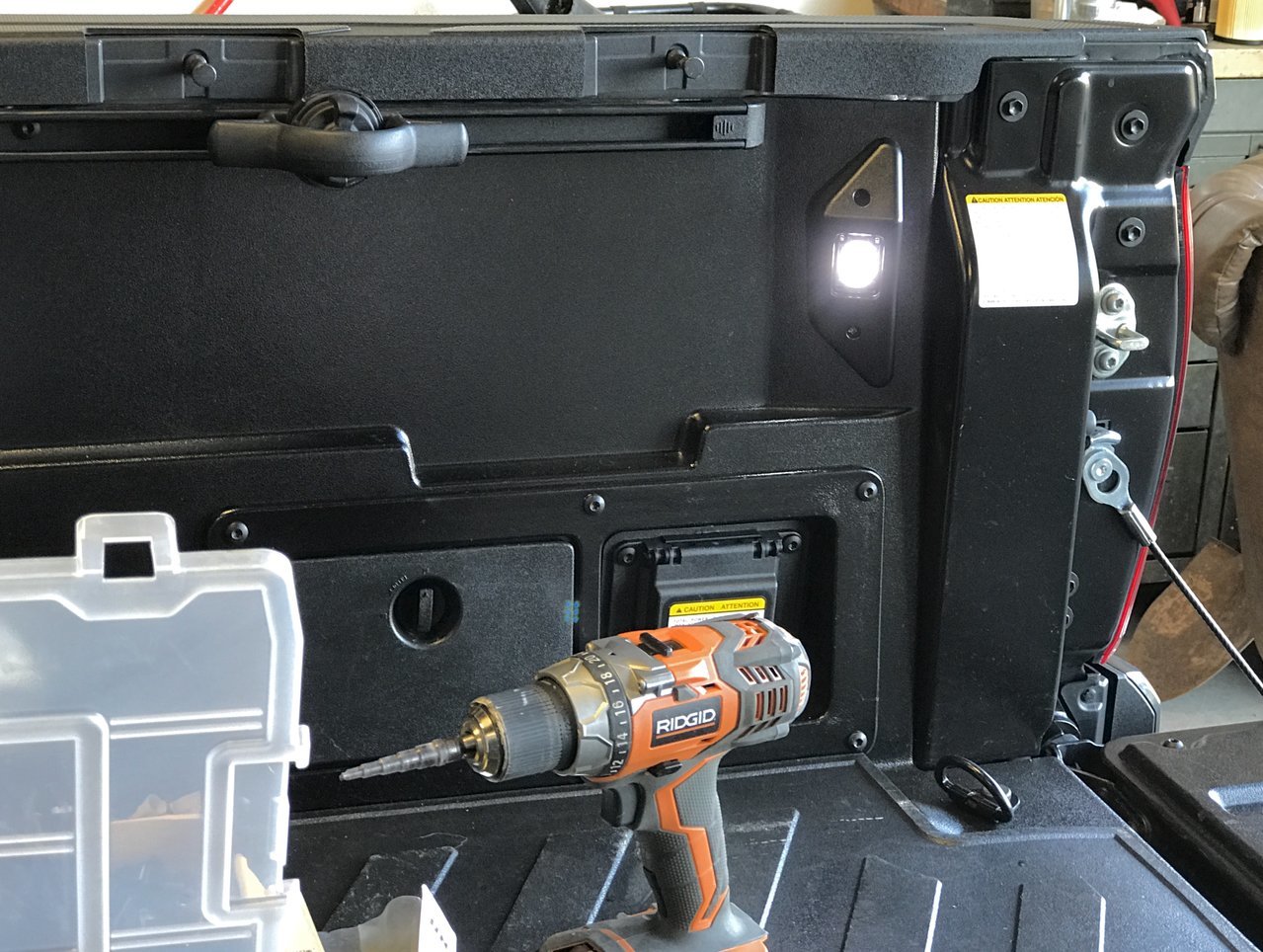

    The finished product. Overall I am very pleased with these lights.

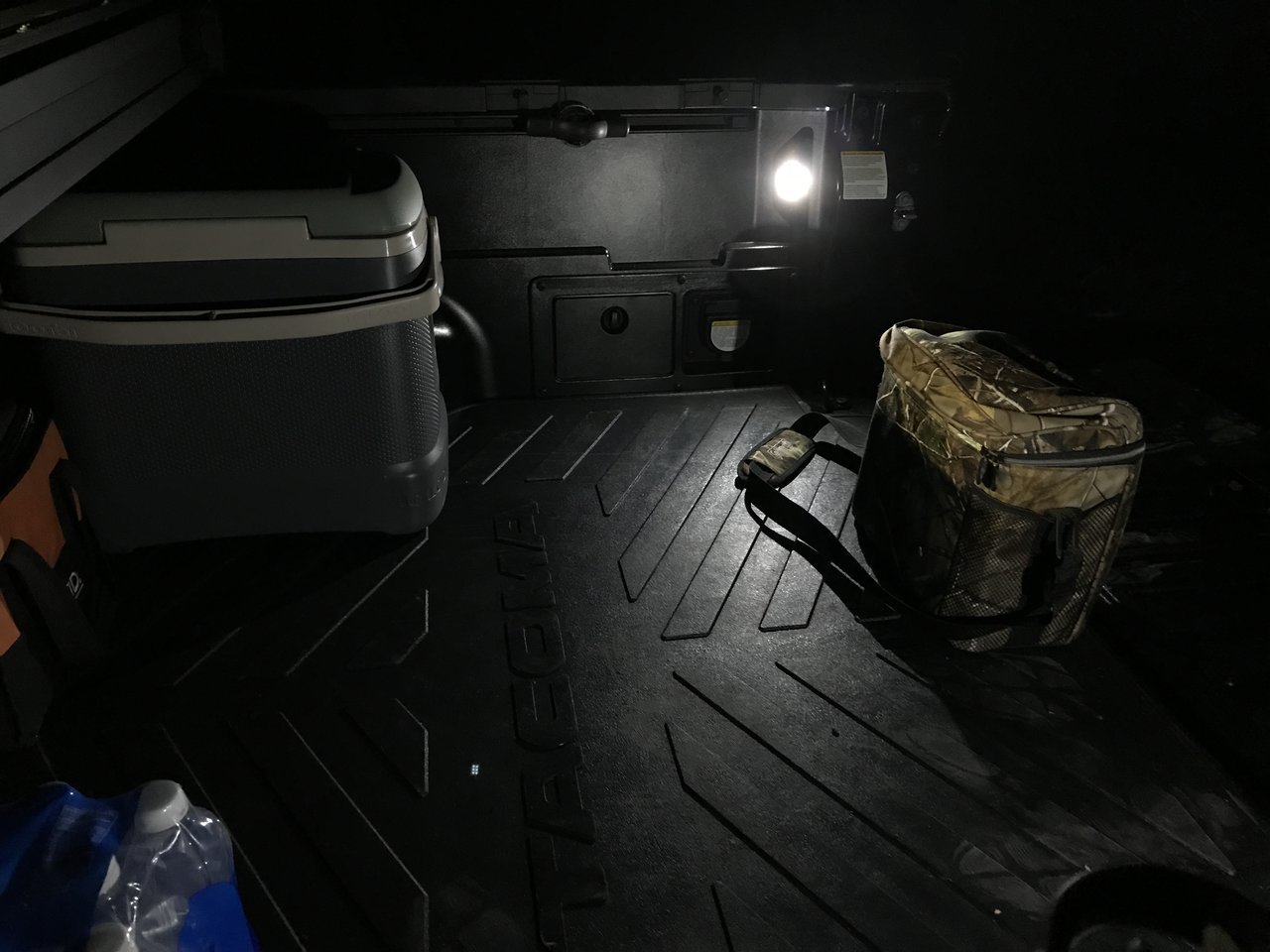

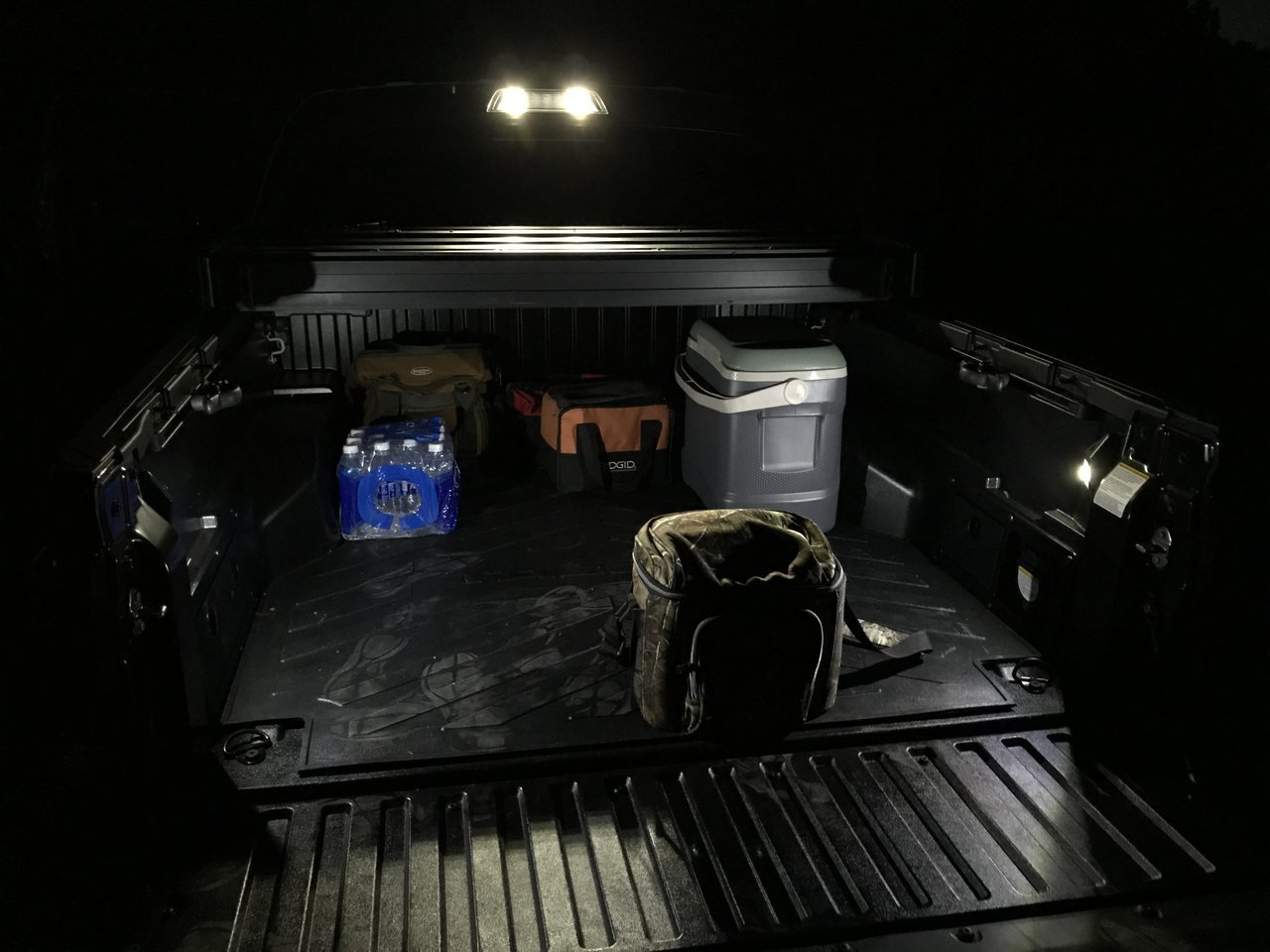

    Some night shots


    Another angle


  2. Jul 15, 2017 at 3:29 PM
    #2
    BrotherBudro

    BrotherBudro Well-Known Member

    Joined:
    May 12, 2012
    Member:
    #78690
    Messages:
    496
    Gender:
    Male
    First Name:
    David
    Nashville
    Vehicle:
    2017 SR5 Access Cab, V6 4X4
    Leer 100XR, Dual Battery, Dog Platform, Sleeping Platform, Ham, CB, Light Bar, Rear Lights,
    First time I'm seeing these. How do you turn them on/off? Does the key have to be in the ignition?

  3. Jul 15, 2017 at 3:33 PM
    #3
    CRCs Reality

    CRCs Reality Well-Known Member

    Joined:
    Feb 8, 2017
    Member:
    #210005
    Messages:
    306
    Gender:
    Male
    Pittsburgh-Ish
    Vehicle:
    2017 DCSB TRD Sport (OVTuned)
    That's a nice kit, source?

  4. Jul 15, 2017 at 3:38 PM
    #4
    ChrisK7UND

    ChrisK7UND [OP] Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    547
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat
    The kit comes with instructions to tie into the cargo light circuit. So when you open the door, unlock the truck or use the cargo switch they come on.

  5. Jul 15, 2017 at 3:39 PM
    #5
    ChrisK7UND

    ChrisK7UND [OP] Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    547
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat
    This site contains affiliate links for which the site may be compensated.
    #5
    CRCs Reality[QUOTED] likes this.
  6. Jul 15, 2017 at 3:40 PM
    #6
    motodude95

    motodude95 Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219814
    Messages:
    1,303
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2012 MGM TRD Sport DCLB, OME 886s, 33s
    Yeah any link to these? Also how did you get the lights to turn on like that on the third brake light?

  7. Jul 15, 2017 at 3:47 PM
    #7
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,587
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it
    These are South East Toyota add ons.
    Not quite OEM, but oem quality and designed for the Tacoma.

    I have these and MattGeckos under the rail lights.

  8. Jul 15, 2017 at 5:49 PM
    #8
    Bama_fan01

    Bama_fan01 Active Member

    Joined:
    May 22, 2017
    Member:
    #219684
    Messages:
    37
    Gender:
    Male
    First Name:
    Don
    Vehicle:
    2016 White Tacoma 4x4
    Those look sharp. I put them on my Amazon wish list...probably going to be my next Taco project!

  9. Jul 15, 2017 at 5:55 PM
    #9
    TurdOR89

    TurdOR89 Well-Known Member

    Joined:
    Jun 1, 2017
    Member:
    #220485
    Messages:
    285
    Gender:
    Male
    Vehicle:
    2017 Black TRD OFF ROAD DOUBLE CAB LONG BED
    I'm also installing mine tomorrow.

  10. Jul 15, 2017 at 8:58 PM
    #10
    mlevinson

    mlevinson Well-Known Member

    Joined:
    Jun 10, 2009
    Member:
    #18258
    Messages:
    339
    Gender:
    Male
    Raleigh, NC
    Vehicle:
    2017 TRD Off-Road
    These were installed on my truck when I bought it. I didn't really want them when I saw them listed as a dealer installed option, but I'm glad I have them now. They do a great job of lighting up the bed.

  11. Jul 15, 2017 at 10:15 PM
    #11
    ChrisK7UND

    ChrisK7UND [OP] Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    547
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat
    The TRD Sport model has the cargo lights integrated into the 3rd brake light. Not sure what other models do.

  12. Jul 16, 2017 at 12:08 AM
    #12
    motodude95

    motodude95 Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219814
    Messages:
    1,303
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2012 MGM TRD Sport DCLB, OME 886s, 33s
    Do you turn it on somehow? I have a TRD sport. No idea how my cargo lights turn on though.

  13. Jul 17, 2017 at 6:52 PM
    #13
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    11,732
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    I know they're LEDs, but what number is that wire going to the rear has it been verified that it can handle the load? I'm sure it can, but I figured I'd ask.

  14. Jul 17, 2017 at 7:03 PM
    #14
    ChrisK7UND

    ChrisK7UND [OP] Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    547
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat
    Looks like 16ga. I think these draw like 700 miliamps. No worries and it's tied to the cargo fuse circuit.

    m603holden likes this.
  15. Jul 17, 2017 at 8:11 PM
    #15
    mrkabc

    mrkabc Mall Crawler with a Locker

    Joined:
    Jun 9, 2014
    Member:
    #131627
    Messages:
    1,641
    Gender:
    Male
    First Name:
    Art
    Corona, CA
    Vehicle:
    2017 MGM DCSB TRD OR
    Morimoto XB LED Head & Fog Lights, Cali Raised Stealth Light bar, OEM Roof Rack, Homelink Compass Mirror, Power Tailgate Lock, LED bed lights, MESO mirrors, gashole, switch panel & Stage 2 tails, PRO grille. Where's the mall?
    My kit has been sitting on the bench since January! Thanks for motivating me. :)

    Where do I find the wire in the kick panel?

    9TRDTCO likes this.
  16. Jul 17, 2017 at 9:58 PM
    #16
    ChrisK7UND

    ChrisK7UND [OP] Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    547
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat
    The directions in the PDF worked fine for finding the wire. It really is an easy project. Hardest part was running the wire along the frame honestly.

    GPsevinSixx likes this.
  17. Jul 19, 2017 at 6:12 PM
    #17
    Bama_fan01

    Bama_fan01 Active Member

    Joined:
    May 22, 2017
    Member:
    #219684
    Messages:
    37
    Gender:
    Male
    First Name:
    Don
    Vehicle:
    2016 White Tacoma 4x4
    I got my light kit today. Ordered from Amazon, and they were shipped from Daytona Toyota...there were no instructions at all in the box! Anyone have a link to where I can download the PDF?

  18. Jul 19, 2017 at 7:04 PM
    #18
    ChrisK7UND

    ChrisK7UND [OP] Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197268
    Messages:
    547
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    2017 Tacoma TRD Sport Double-Cab
    LED Interior Bulbs, Hondo Garage Phone Mount, Tacoma Bed Mat
    Tibetan Nomad likes this.
  19. Jul 20, 2017 at 4:02 PM
    #19
    Bama_fan01

    Bama_fan01 Active Member

    Joined:
    May 22, 2017
    Member:
    #219684
    Messages:
    37
    Gender:
    Male
    First Name:
    Don
    Vehicle:
    2016 White Tacoma 4x4
  20. Jul 20, 2017 at 8:43 PM
    #20
    JS760

    JS760 Well-Known Member

    Joined:
    Jul 19, 2015
    Member:
    #159768
    Messages:
    1,510
    Gender:
    Male
    San Diego
    Vehicle:
    2017 DC Sport
    Definitely the hardest part. Big PITA
