Westin Driving light wiring question

Discussion in 'Lighting' started by jammdogg, Aug 24, 2010.

  1. Aug 24, 2010 at 10:07 PM
    #1
    jammdogg

    jammdogg [OP] Well-Known Member

    Joined:
    Jun 17, 2009
    Member:
    #18600
    Messages:
    859
    Gender:
    Male
    First Name:
    James
    Hillsboro, OR
    Vehicle:
    13 Spruce Mica DCLB
    6" ProComp lift on 35 MT's. ARB Bumper.
    I recently purchased a Westin Bull Bar, and it came with a free set of driving lights. I am in the process of wiring it all up, and I have a question regarding the switch.

    There are three wires coming from the switch assembly, White, Black and Yellow.

    The black wire is ground. The white wire goes to the relay. It says to connect the yellow wire to the parking lamp wire.

    My questions are: What wire is the parking lamp wire under the dash? What is connecting to this wire going to accomplish? (is it for power?) Can I connect in an alternate way? (IE: tap into a fuse?)

    Appreciate it!

    James

  2. Aug 25, 2010 at 9:17 AM
    #2
    jammdogg

    jammdogg [OP] Well-Known Member

    Joined:
    Jun 17, 2009
    Member:
    #18600
    Messages:
    859
    Gender:
    Male
    First Name:
    James
    Hillsboro, OR
    Vehicle:
    13 Spruce Mica DCLB
    6" ProComp lift on 35 MT's. ARB Bumper.
    Morning bump:

  3. Aug 25, 2010 at 9:23 AM
    #3
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,591
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    4Runner Trail
    you need to run the yellow to the parking lamp hot wire under the hood ( not sure of one in the dash). This gives your switch power only when the parking lights/headlights are on. This is a law in most areas, "your not supposed to have driving lights hardwired so they can be used without tail lights/parking lights."

  4. Aug 25, 2010 at 10:21 AM
    #4
    jammdogg

    jammdogg [OP] Well-Known Member

    Joined:
    Jun 17, 2009
    Member:
    #18600
    Messages:
    859
    Gender:
    Male
    First Name:
    James
    Hillsboro, OR
    Vehicle:
    13 Spruce Mica DCLB
    6" ProComp lift on 35 MT's. ARB Bumper.
    Thanks Dark,

    So the parking lights are the same as running lights?

    This will be interesting, as the yellow wire is about 3 ft long, and is connected to the switch under the dash.

    James

  5. Aug 25, 2010 at 11:31 AM
    #5
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,591
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    4Runner Trail
    Your parking lights are the little yellow lights on the outer edge of both driver and passenger side headlight housing. flick the headlight switch one notch and they will turn on. Get a barrel connector and add on to the 3ft yellow wire to go out the main harness grommet under the driver side dash on the firewall.

  6. Aug 25, 2010 at 2:41 PM
    #6
    jammdogg

    jammdogg [OP] Well-Known Member

    Joined:
    Jun 17, 2009
    Member:
    #18600
    Messages:
    859
    Gender:
    Male
    First Name:
    James
    Hillsboro, OR
    Vehicle:
    13 Spruce Mica DCLB
    6" ProComp lift on 35 MT's. ARB Bumper.
    Got it. Can do, and appreciate it.

    James

  7. Dec 22, 2014 at 9:34 AM
    #7
    faganstwist

    faganstwist Member

    Joined:
    Nov 3, 2014
    Member:
    #141606
    Messages:
    6
    Gender:
    Male
    Traverse City
    Vehicle:
    SR5 Tacoma 2015
    I have also have the westin lights and need a copy of the installation instructions. Could someone please upload a copy?

  8. Dec 28, 2014 at 10:53 AM
    #8
    faganstwist

    faganstwist Member

    Joined:
    Nov 3, 2014
    Member:
    #141606
    Messages:
    6
    Gender:
    Male
    Traverse City
    Vehicle:
    SR5 Tacoma 2015

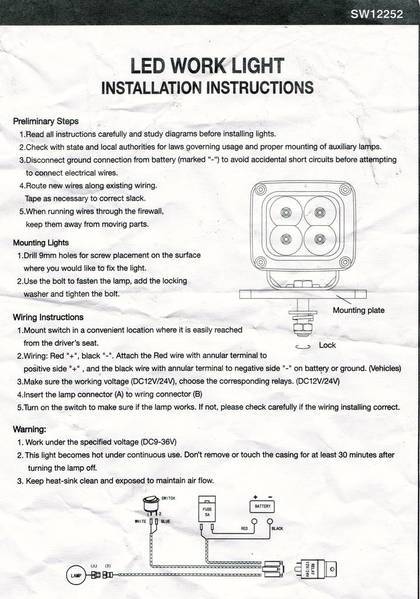

    I just got my Westin Quadrant lights through the bull bar rebate offer. I've attached a copy of the instructions they provided, showing both the + and - power wires attached to the battery. [​IMG]
