What harness for 3rd gen non-jbl to tap high level outputs

Discussion in 'Audio & Video' started by Taco_Fisher, Apr 27, 2021.

  1. Apr 27, 2021 at 7:39 AM
    #1
    Taco_Fisher

    #1
    Taco_Fisher [OP] Well-Known Member

    Joined:
    Apr 11, 2021
    Member:
    #362325
    Messages:
    194
    Gender:
    Male
    First Name:
    Carl
    Cape Coral, FL
    Vehicle:
    '18 TRD Sport
    KDMax v6 Scorpion AT+ 265/70/17 Audio Control and Image Dynamics audio Coming soon: all the mods!
    Is there a passthrough harness that I can use to tap high level outputs from the factory radio without splicing into the factory wires?

    Every harness I find is to go from the factory plug to an aftermarket headunit. I need the opposite of that. Something that plugs into the factory radio and gives me a T harness or similar to pull front and rear high level outputs to go to my LCQ-1.

    Thanks.

    Taco_Fisher, Apr 27, 2021
    #1
  2. Apr 27, 2021 at 7:43 AM
    #2
    destin_meeks

    #2
    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    You’ll need to build one.
    $8 Metra 70-1761 Radio Wiring Harness For Toyota 87-Up Power 4 Speaker
    Metra 70-1761 and
    $13 71-1761 87 - 94 Toyota Vehicle Harness
    71-1761 parts

    destin_meeks, Apr 27, 2021
    #2
    wdissident likes this.
  3. Apr 27, 2021 at 7:51 AM
    #3
    Taco_Fisher

    #3
    Taco_Fisher [OP] Well-Known Member

    Joined:
    Apr 11, 2021
    Member:
    #362325
    Messages:
    194
    Gender:
    Male
    First Name:
    Carl
    Cape Coral, FL
    Vehicle:
    '18 TRD Sport
    KDMax v6 Scorpion AT+ 265/70/17 Audio Control and Image Dynamics audio Coming soon: all the mods!
    Taco_Fisher, Apr 27, 2021
    #3
  4. Apr 27, 2021 at 7:52 AM
    #4
    Taco_Fisher

    #4
    Taco_Fisher [OP] Well-Known Member

    Joined:
    Apr 11, 2021
    Member:
    #362325
    Messages:
    194
    Gender:
    Male
    First Name:
    Carl
    Cape Coral, FL
    Vehicle:
    '18 TRD Sport
    KDMax v6 Scorpion AT+ 265/70/17 Audio Control and Image Dynamics audio Coming soon: all the mods!
    All the fit checkers say that doesn't fit which was what was throwing me. Not sure why.

    Taco_Fisher, Apr 27, 2021
    #4
  5. Apr 27, 2021 at 9:17 AM
    #5
    destin_meeks

    #5
    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Most places won’t tell you info for the 71 parts, because they’re not expecting you to keep the factory radio. Those are the male sides of the harness and typically only used by installers to repair cut/damaged factory wiring

    destin_meeks, Apr 27, 2021
    #5
  6. Apr 27, 2021 at 10:06 AM
    #6
    Taco_Fisher

    #6
    Taco_Fisher [OP] Well-Known Member

    Joined:
    Apr 11, 2021
    Member:
    #362325
    Messages:
    194
    Gender:
    Male
    First Name:
    Carl
    Cape Coral, FL
    Vehicle:
    '18 TRD Sport
    KDMax v6 Scorpion AT+ 265/70/17 Audio Control and Image Dynamics audio Coming soon: all the mods!
    It's funny. I did find that Metra's site straight up says they work but when you look at anything from Crutchfield to Amazon they all say "does not fit"

    This should work perfectly though for what I need. Ordered a pair and I should have them tomorrow to wire up.

    Taco_Fisher, Apr 27, 2021
    #6
  7. May 6, 2021 at 7:08 PM
    #7
    vietjdmboi

    #7
    vietjdmboi Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165979
    Messages:
    408
    Gender:
    Male
    First Name:
    Hieu
    Orange County
    Vehicle:
    '18 Tacoma TRD Off-Road

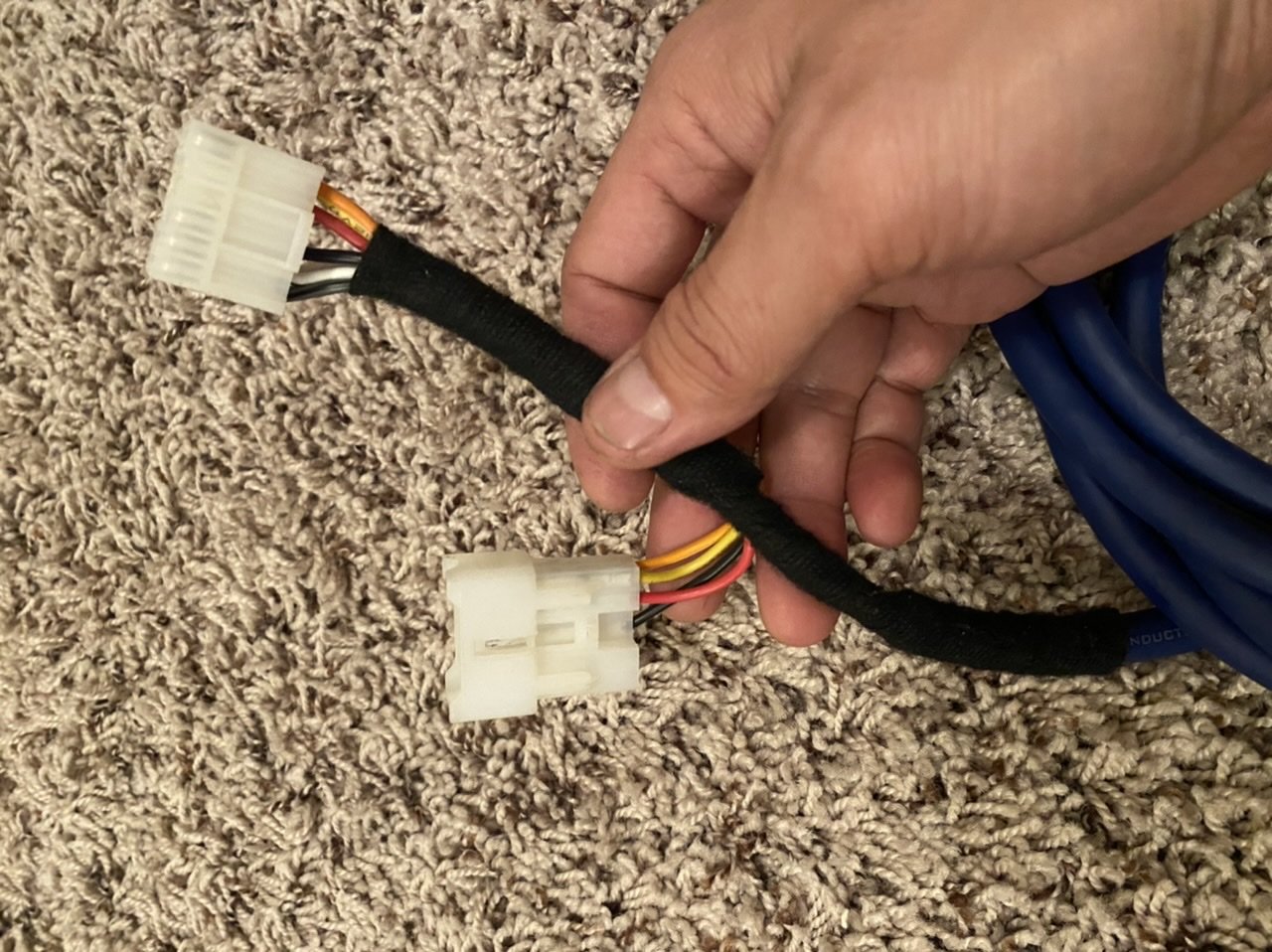

    You need a complete harness? I have one for sale.


    vietjdmboi, May 6, 2021
    #7
  8. May 6, 2021 at 7:16 PM
    #8
    stealthmode

    #8
    stealthmode Well-Known Member

    Joined:
    Dec 7, 2014
    Member:
    #143869
    Messages:
    2,496
    Gender:
    Male
    Alberta
    Vehicle:
    2016 Short N Stubby Bed- MGM
    Front and Rear lifts Tires ECGS bushing Lots of other crap +HP sticker
    I'm subbed cuz I wanna know how these wire up.

    :pccoffee:

    stealthmode, May 6, 2021
    #8
  9. Jun 17, 2022 at 10:59 AM
    #9
    BIGW0RM

    #9
    BIGW0RM Well-Known Member

    Joined:
    Sep 11, 2021
    Member:
    #376793
    Messages:
    169
    BIGW0RM, Jun 17, 2022
    #9
  10. Jun 17, 2022 at 4:02 PM
    #10
    destin_meeks

    #10
    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    No, the harness changed in ‘20

    destin_meeks, Jun 17, 2022
    #10
    BIGW0RM[QUOTED] likes this.
  11. Jun 22, 2022 at 8:41 AM
    #11
    Alex2028

    #11
    Alex2028 Active Member

    Joined:
    Apr 3, 2021
    Member:
    #361556
    Messages:
    25
    Gender:
    Male
    First Name:
    Alex
    I have a 21 OR non JBL and I used the metra 70-1765 and 71-1765.

    Alex2028, Jun 22, 2022
    #11
    cpofb and BIGW0RM like this.
  12. Jun 22, 2022 at 10:12 AM
    #12
    BIGW0RM

    #12
    BIGW0RM Well-Known Member

    Joined:
    Sep 11, 2021
    Member:
    #376793
    Messages:
    169
    Thank you! I saw that information posted somewhere on this forum and could not find it. I appreciate your post! TY!

    BIGW0RM, Jun 22, 2022
    #12
