What Have You Done To Your 3rd Gen Today?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by hamiltonuh60, Nov 4, 2015.

  1. Sep 29, 2018 at 1:03 PM
    BSK

    BSK Keyboard not responding. Press any key to continue

    Joined:
    Apr 3, 2018
    Member:
    #249320
    Messages:
    778
    Vehicle:
    Trabant 501 Kombi
    Cigarette Lighter Delete
    finally found the time to continue the saga of my truck

    @Canyonero was paying it forward and send me his two roof weather strip moulding strips free of charge from the Islands of Hawaii to VA. Finally found the time to reinstall them today:


    HUGE THANKS AGAIN TO CANYONERO FOR HELPING A BROTHER OUT!

    Also decided to go ahead and install a homelink interior mirror sourced on ebay with the 10pin connector. Truck came stock with autodimming and 12 pin.

    Installation is fairly straight forward and took some patients and a little bit of tinkering. Do yourself a favor and get the release tools:

    The mirror ordered was 60$ on ebay:

    Stock 12pin auto dimming pin out is shown here:

    Homelink 10pin is here:

    For people searching the interior rearview mirror wire colors below is a chart which I was never able to find on the boards here:

    Original 12pin | Homelink 10pin | Wire color
    3 Ground | 3 or 8 | Black/White
    6 12v ignition | 6 | Pink/Red
    10 12v constant | 10 | Blue

    You will need to slide down the white color square retention block on the connector after releasing it from the mirror to pull the connector cables out. Use the pin release tools in the smallest connector holes to release the pin. Then pull HARD to release; pulling out one pin and reinserting it into the other connector so you only have one cable exposed. You can do this with the battery connected or disconnect the battery and do all three at the same time.

    Existing auto dimming 12 pin connector

    12pin and 10pin side by side

    The "block" shown in both connectors that hold the cable connectors inside the housing. Left white rectangular will need to pushed down by like 2mm and both sides to release the connector once the pin release tool is inserted.

    Release tool pushed all the way in

    Swap your wires with the above chart plug in your replacement mirror and enjoy the savings knowing that you didn't have to spend 140$ on a plug and play mirror. Remember that the smooth side of the cable connector always goes with it facing up.

    Next project will be to install the stock Tacoma Sport front diffuser

    Last edited: Sep 29, 2018
    This site contains affiliate links for which the site may be compensated.
  2. Sep 29, 2018 at 1:29 PM
    ACEkraut

    ACEkraut Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    4,233
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
    Who did you buy them from?

  3. Sep 29, 2018 at 1:37 PM
    Rooster OG

    Rooster OG Well-Known Member

    Joined:
    Nov 17, 2017
    Member:
    #236265
    Messages:
    222
    Gender:
    Male
    First Name:
    Tom
    Northern California
    Vehicle:
    Cement 2018 TRD Off Road M/T

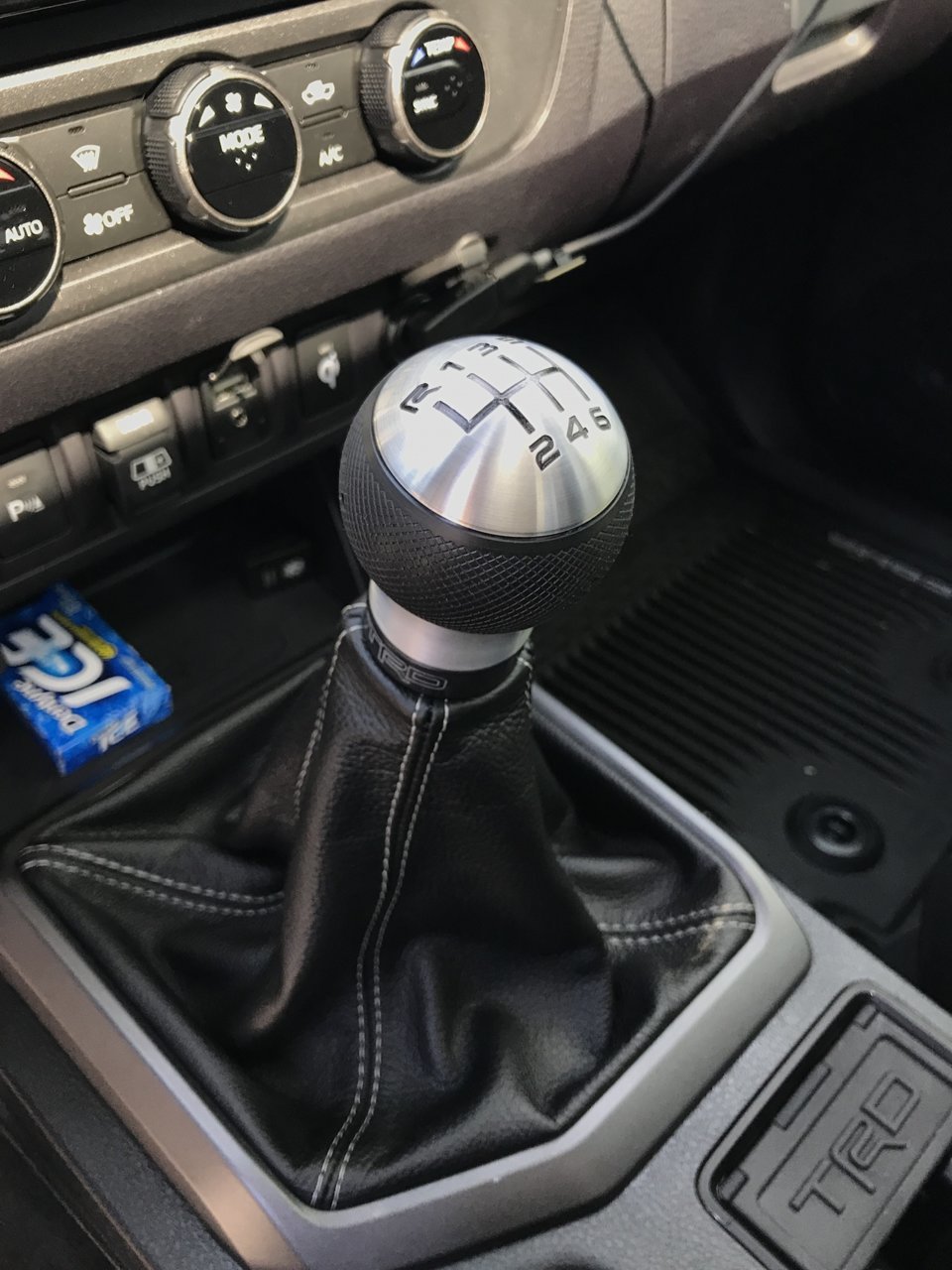

    I got my new boot and shifter installed! I’m really happy with the look and feel, it’s a nice upgrade.


    JDSmith, SilverII, Intrepid and 16 others like this.
  4. Sep 29, 2018 at 1:39 PM
    Jakoda

    Jakoda beep boop

    Joined:
    Feb 16, 2017
    Member:
    #210747
    Messages:
    364
    Gender:
    Male
    First Name:
    Jackson
    SoCal
    Vehicle:
    2017 TRDOR DCSB
    Bunch O Shit
    dang look at that sexy coin box

  5. Sep 29, 2018 at 2:04 PM
    Beemaster

    Beemaster Well-Known Member

    Joined:
    Oct 25, 2016
    Member:
    #200682
    Messages:
    284
    Gender:
    Male
    First Name:
    Stanley
    California
    Vehicle:
    2016 Silver Tacoma TRD Sport 4x4 6MT
    Where did you get the boot and shifter knob? Looks awesome man!!!

    KTJO 4x4 and Rooster OG[QUOTED] like this.
  6. Sep 29, 2018 at 2:12 PM
    Mistaken

    Mistaken Well-Known Member

    Joined:
    Jan 11, 2015
    Member:
    #146159
    Messages:
    97
    Gender:
    Male
    Seattle
    Vehicle:
    Tacoma TRD PRO
    Just the wheels. :thumbsup:

  7. Sep 29, 2018 at 2:39 PM
    Sn4rlax

    Sn4rlax Well-Known Member

    Joined:
    Aug 12, 2018
    Member:
    #262614
    Messages:
    205
    Vehicle:
    2016 Red Taco 4x4 V6

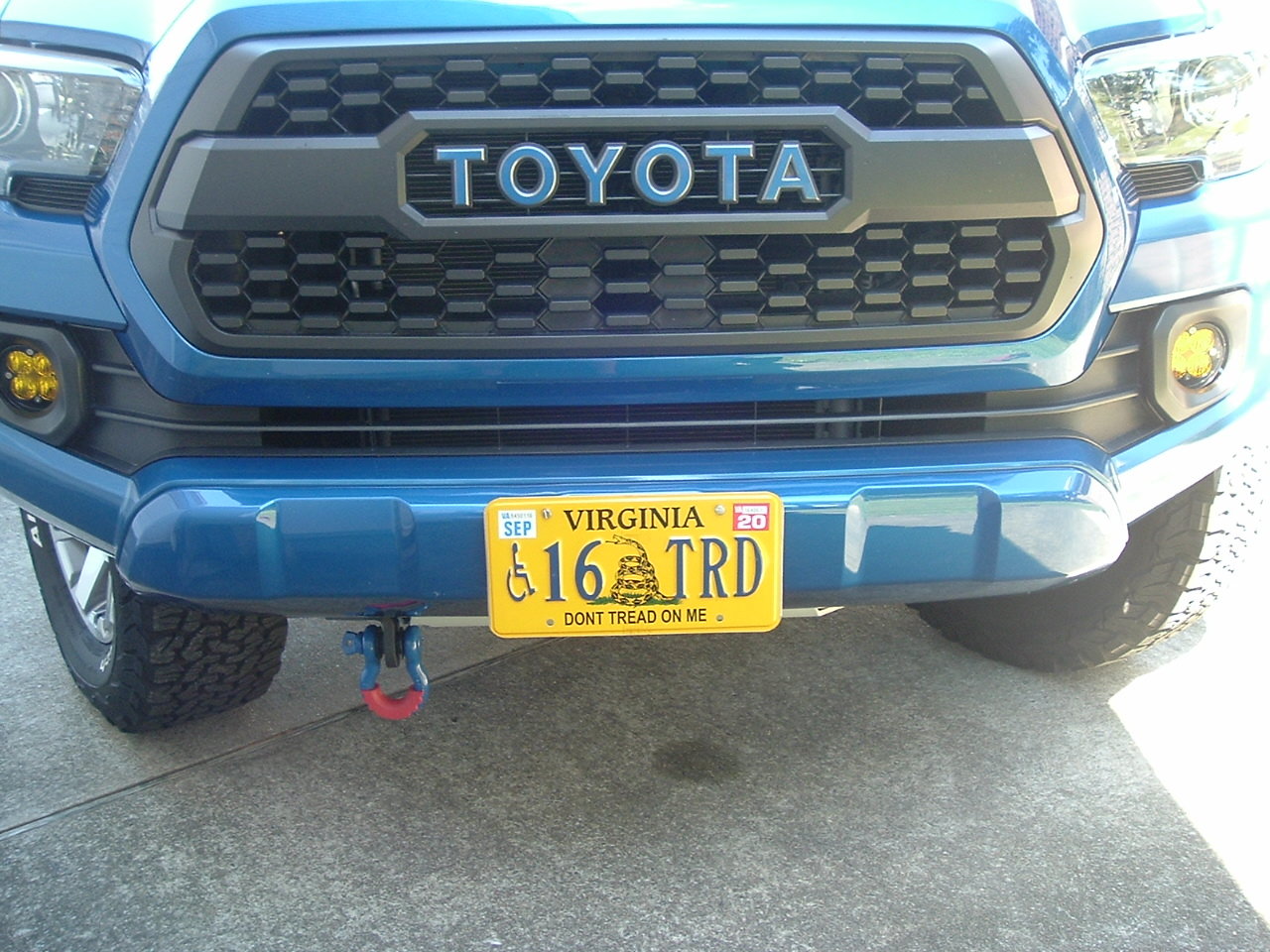

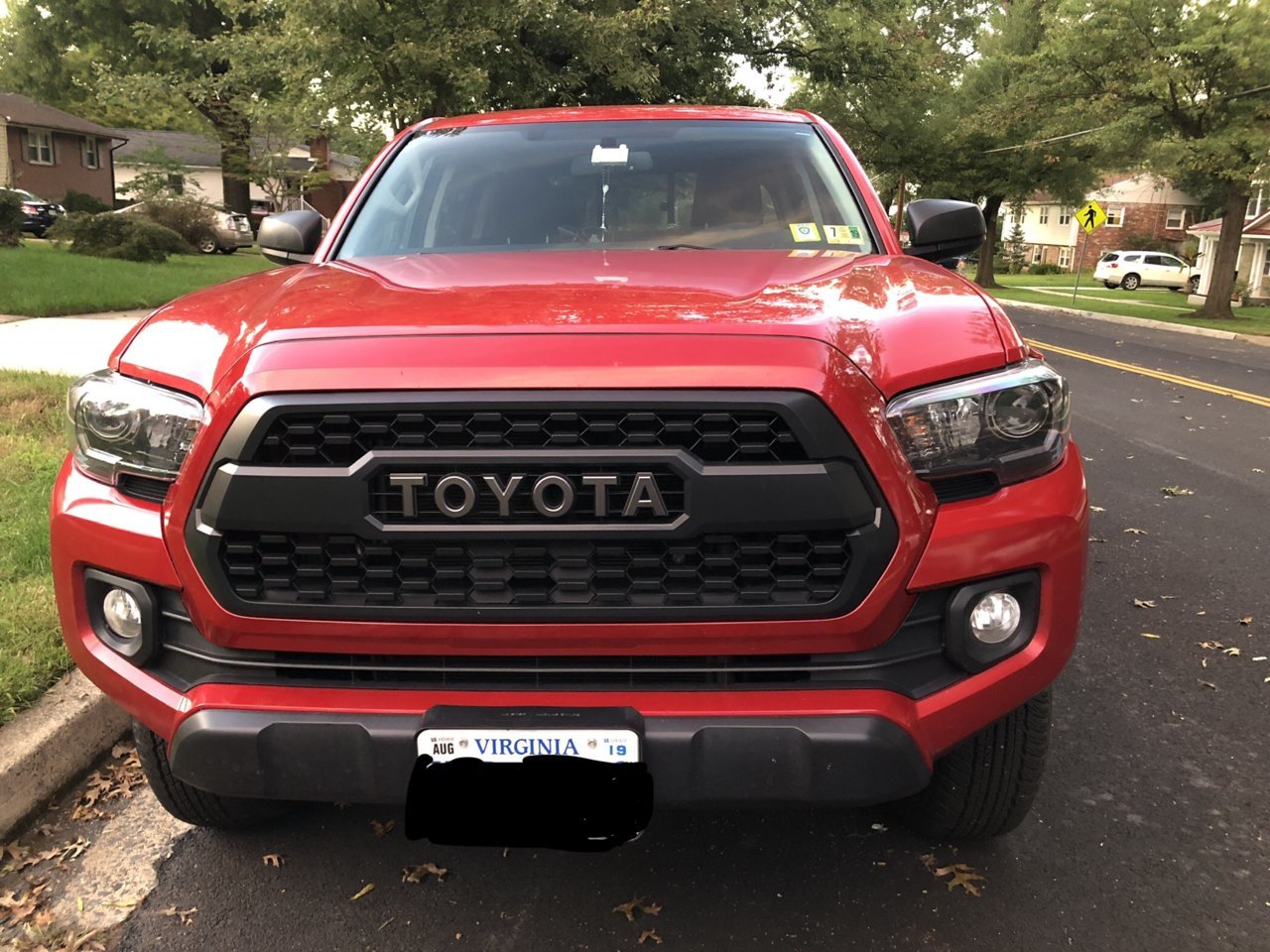

    New TRD Pro Grille. And installed my new 12volt Remote Start kit. Ready for winter this year.


    SilverII, MCCM, Intrepid and 5 others like this.
  8. Sep 29, 2018 at 3:01 PM
    Doogle

    Doogle Well-Known Member

    Joined:
    Nov 20, 2016
    Member:
    #202922
    Messages:
    429
    Gender:
    Male
    First Name:
    Jonathan
    Vehicle:
    2017 Black Tacoma Dbl Cab

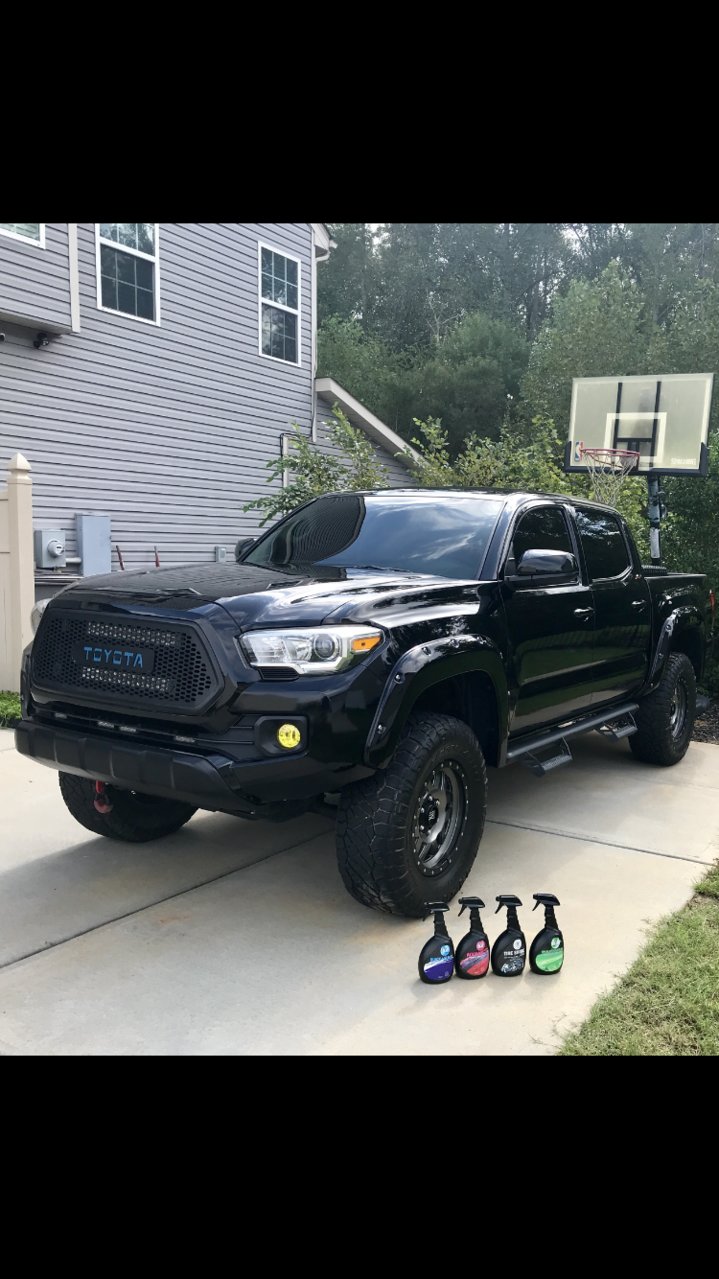

    Shout out to my neighbor Frankie DeFoe with CroftgateUSA FOR introducing me to his car care products!!!


  9. Sep 29, 2018 at 3:13 PM
    Rooster OG

    Rooster OG Well-Known Member

    Joined:
    Nov 17, 2017
    Member:
    #236265
    Messages:
    222
    Gender:
    Male
    First Name:
    Tom
    Northern California
    Vehicle:
    Cement 2018 TRD Off Road M/T
    KTJO 4x4 and pescadoman66 like this.
  10. Sep 29, 2018 at 3:34 PM
    dmc1

    dmc1 Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195423
    Messages:
    103
    Gender:
    Male
    SC
    Vehicle:
    2017 TRD OR SBDC
    Can you share the details on your remote starter kit?

    BankrupTaco likes this.
  11. Sep 29, 2018 at 3:40 PM
    My Name is Rahl

    My Name is Rahl Well-Known Member

    Joined:
    Jul 5, 2018
    Member:
    #258370
    Messages:
    22,008

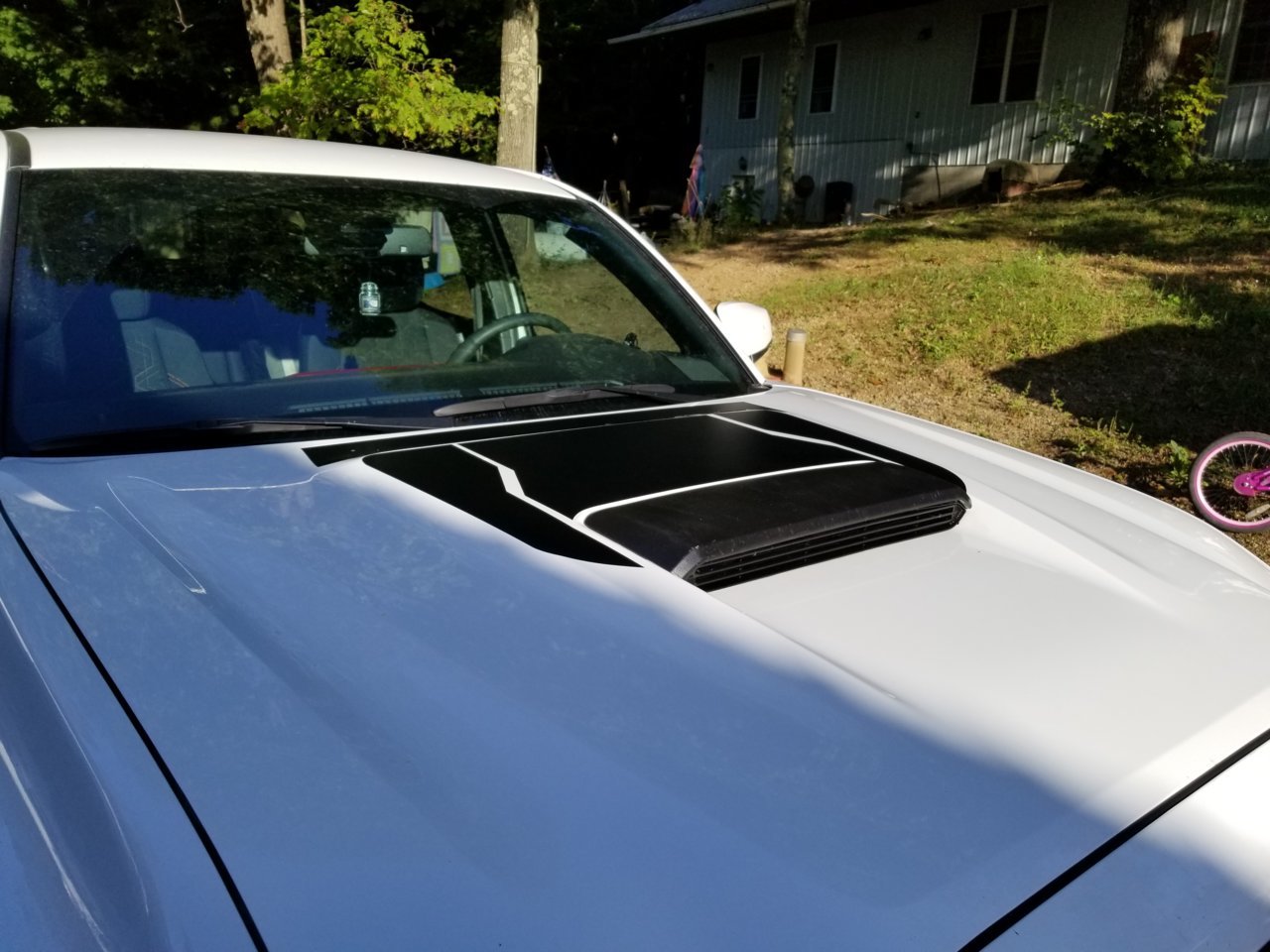

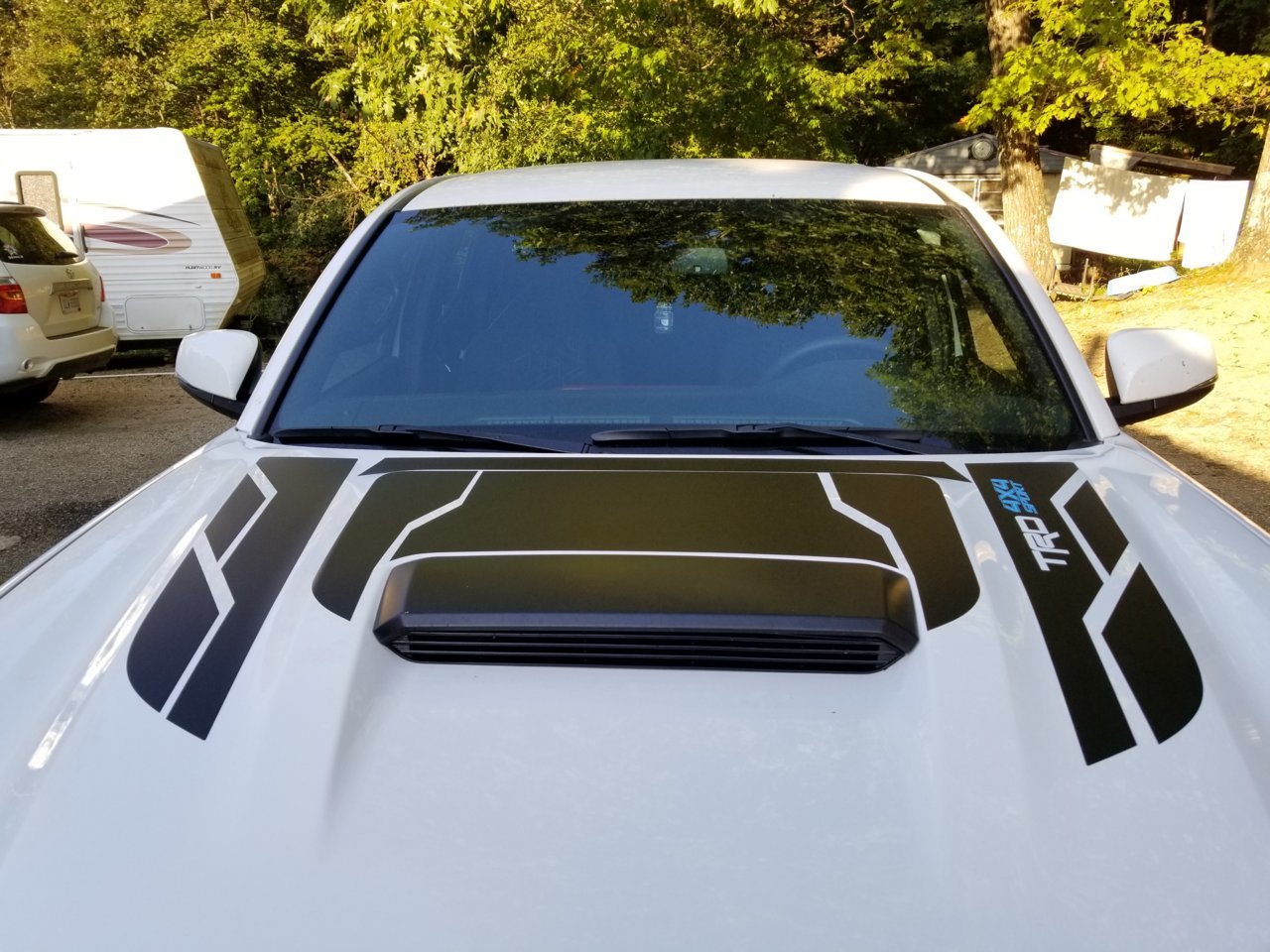

    Put on a hood decal from Importdesigns. 20180929_173048.jpg 20180929_175639.jpg

    SilverII, Intrepid, Dctaconny and 6 others like this.
  12. Sep 29, 2018 at 3:42 PM
    -40

    -40 Well-Known Member

    Joined:
    Jul 26, 2015
    Member:
    #160383
    Messages:
    1,057
    Gender:
    Male
    North Dakota
    Vehicle:
    01 DC Camburg LT & 17 OR OME BP-51
    1 st Gen TRD Supercharger. URD 7th Inj. Camburg 4x4 LT Kit. Tundra Brakes. 3rd Gen just get’n started, OME BP51 Dakar HD, Camburg UCA & various armor.

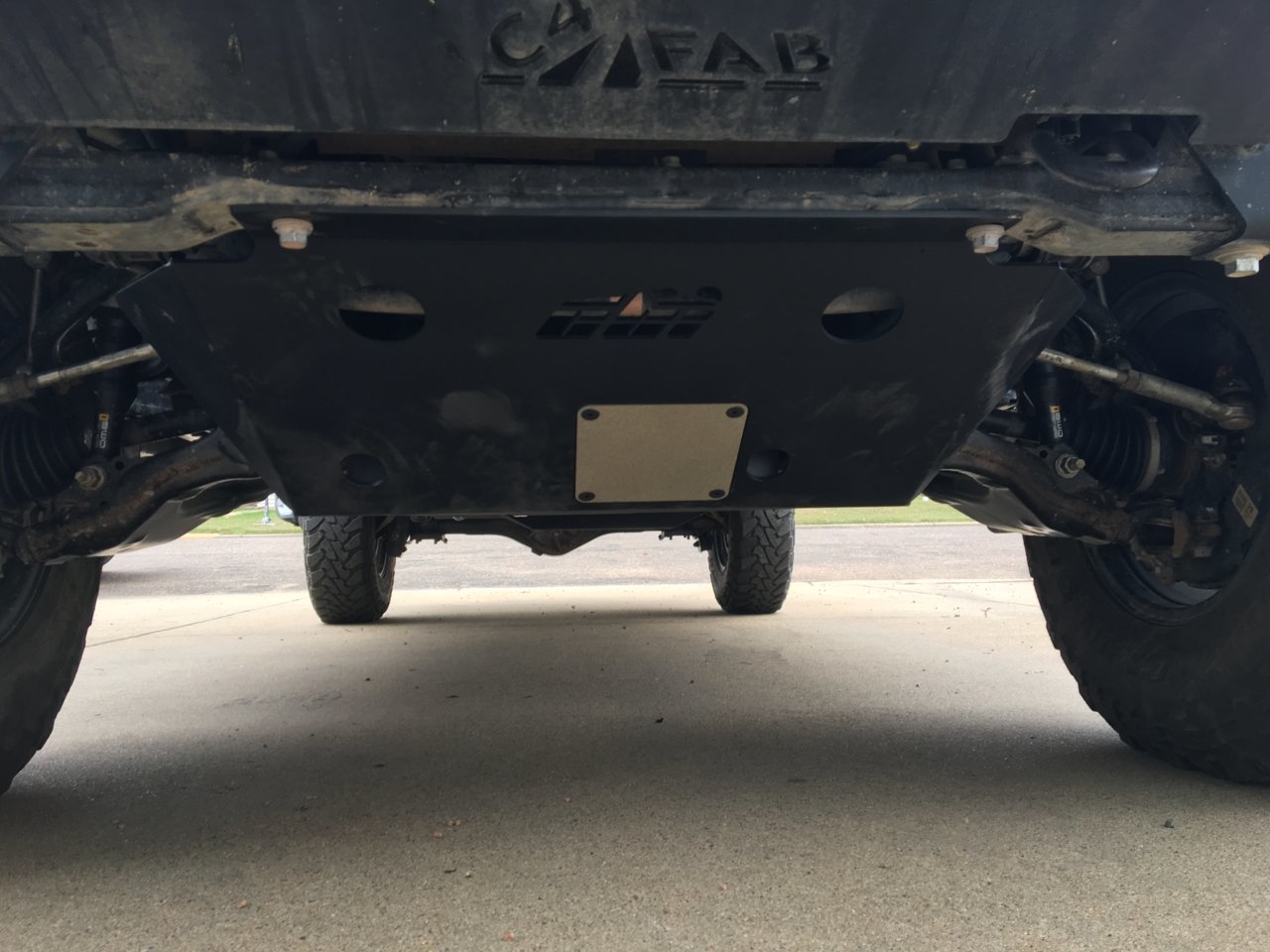

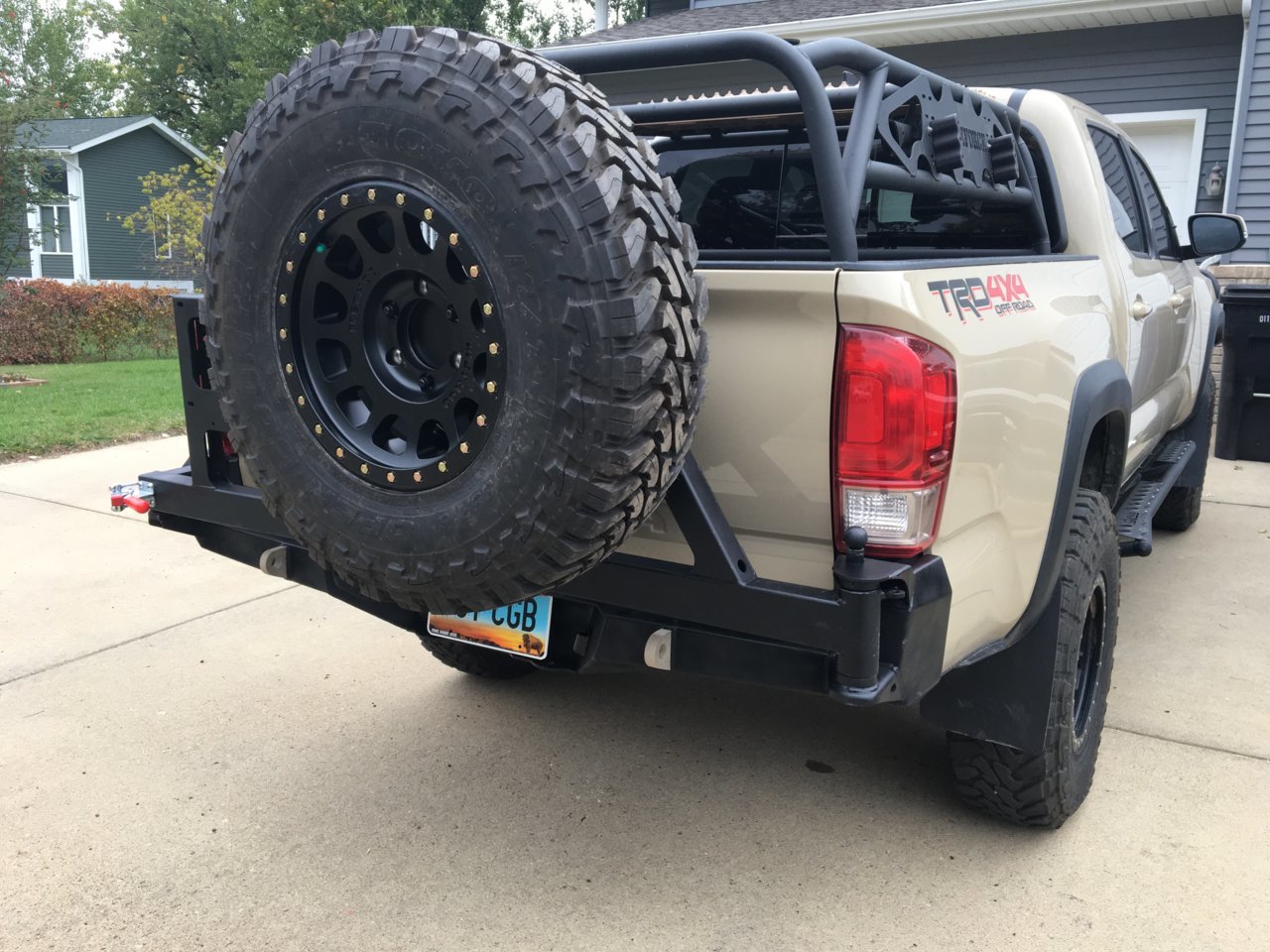

    Installed the cbi bumper and skids.

  13. Sep 29, 2018 at 3:43 PM
    turbosmitty

    turbosmitty Well-Known Member

    Joined:
    Nov 1, 2016
    Member:
    #201288
    Messages:
    380
    Gender:
    Male
    Vegas
    Vehicle:
    2017 Tacoma TRD OR

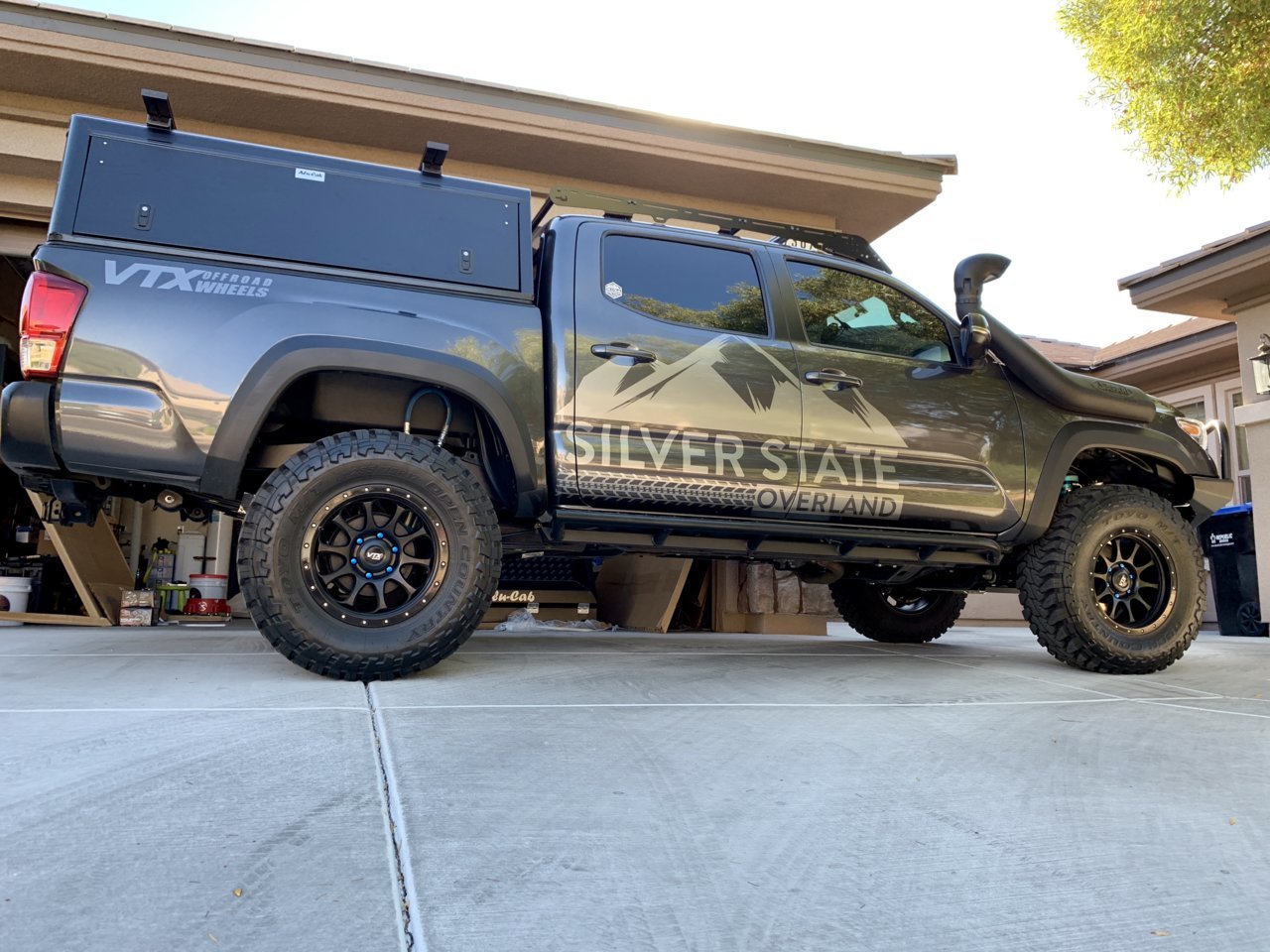

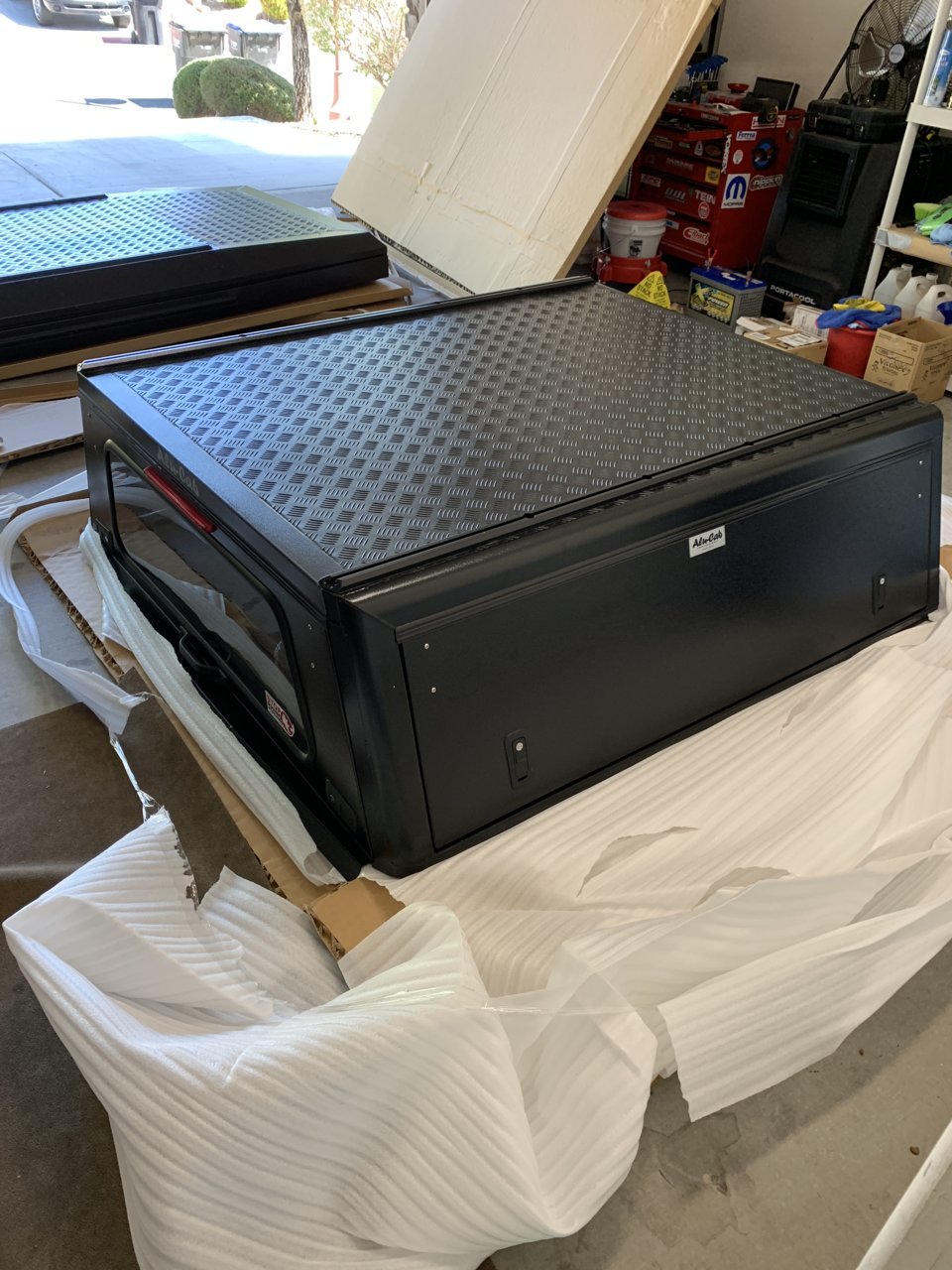

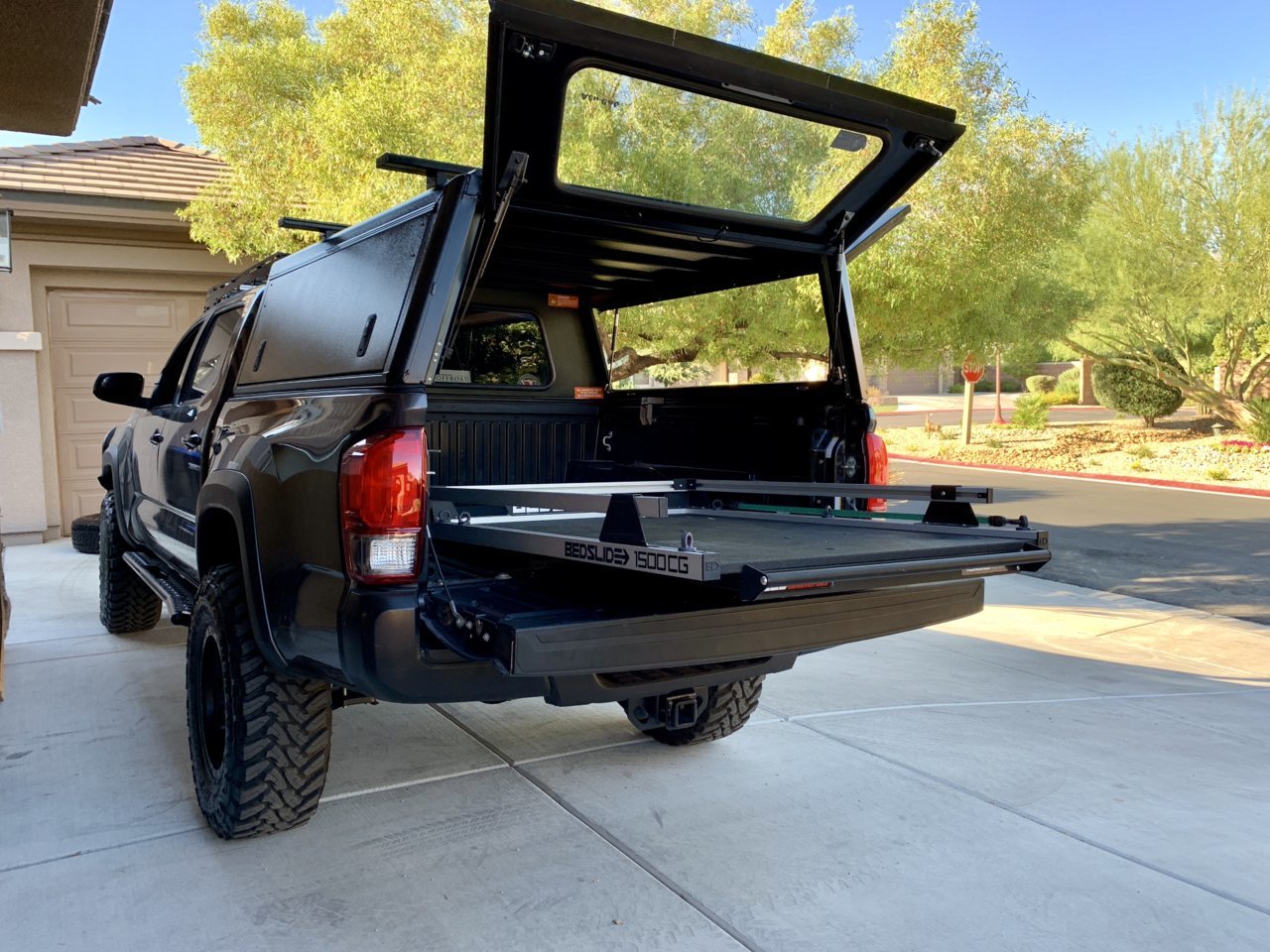

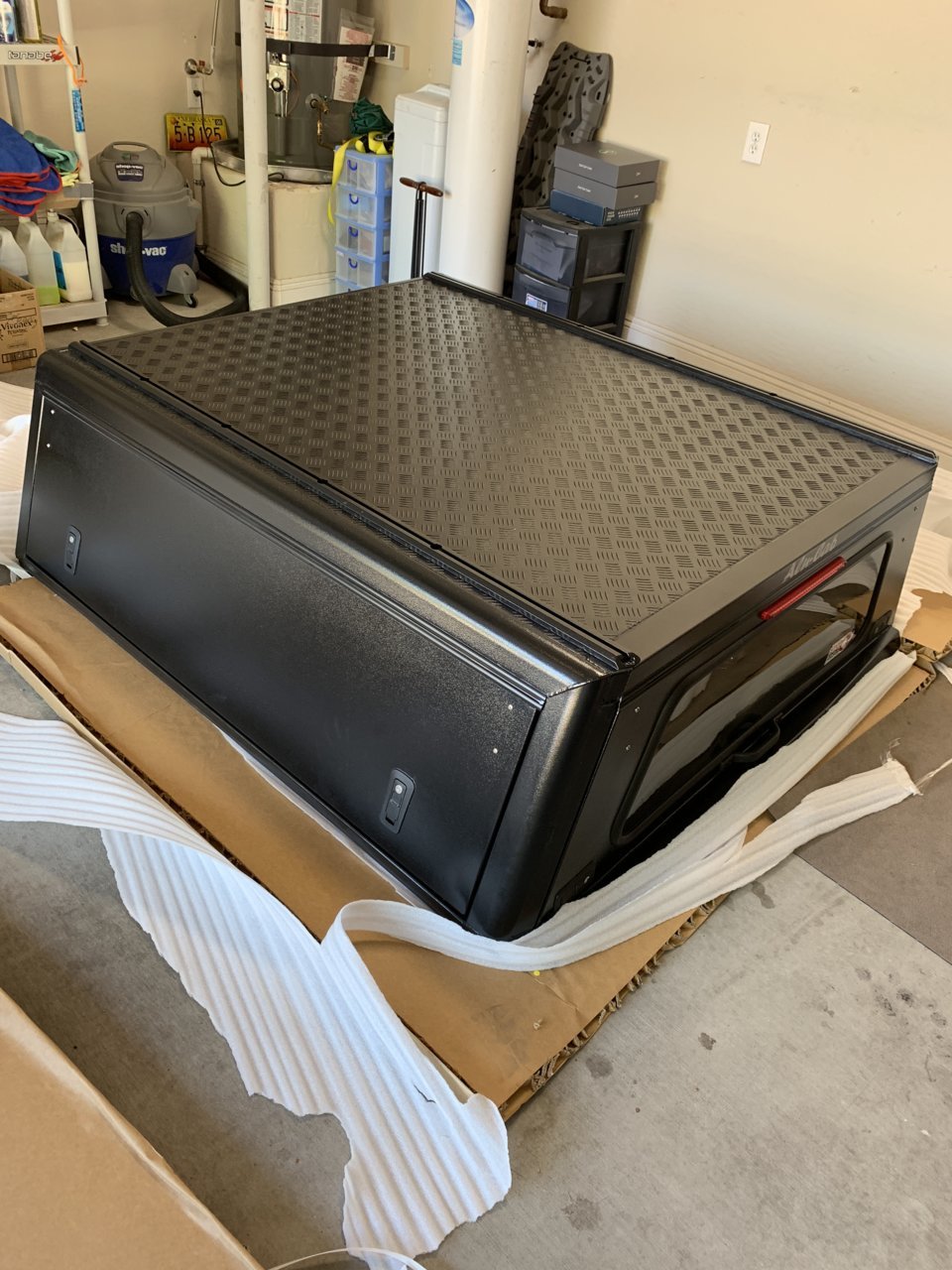

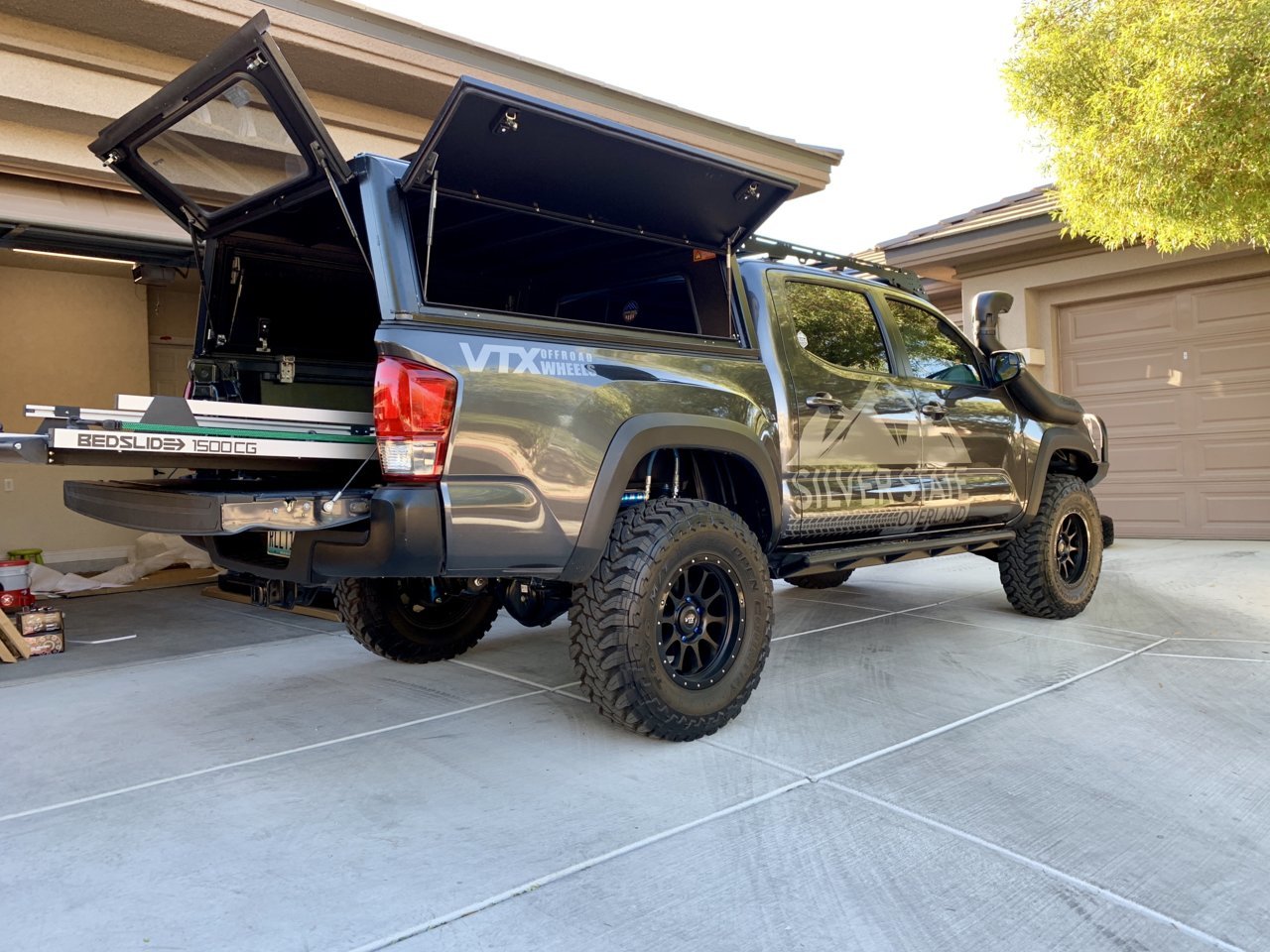

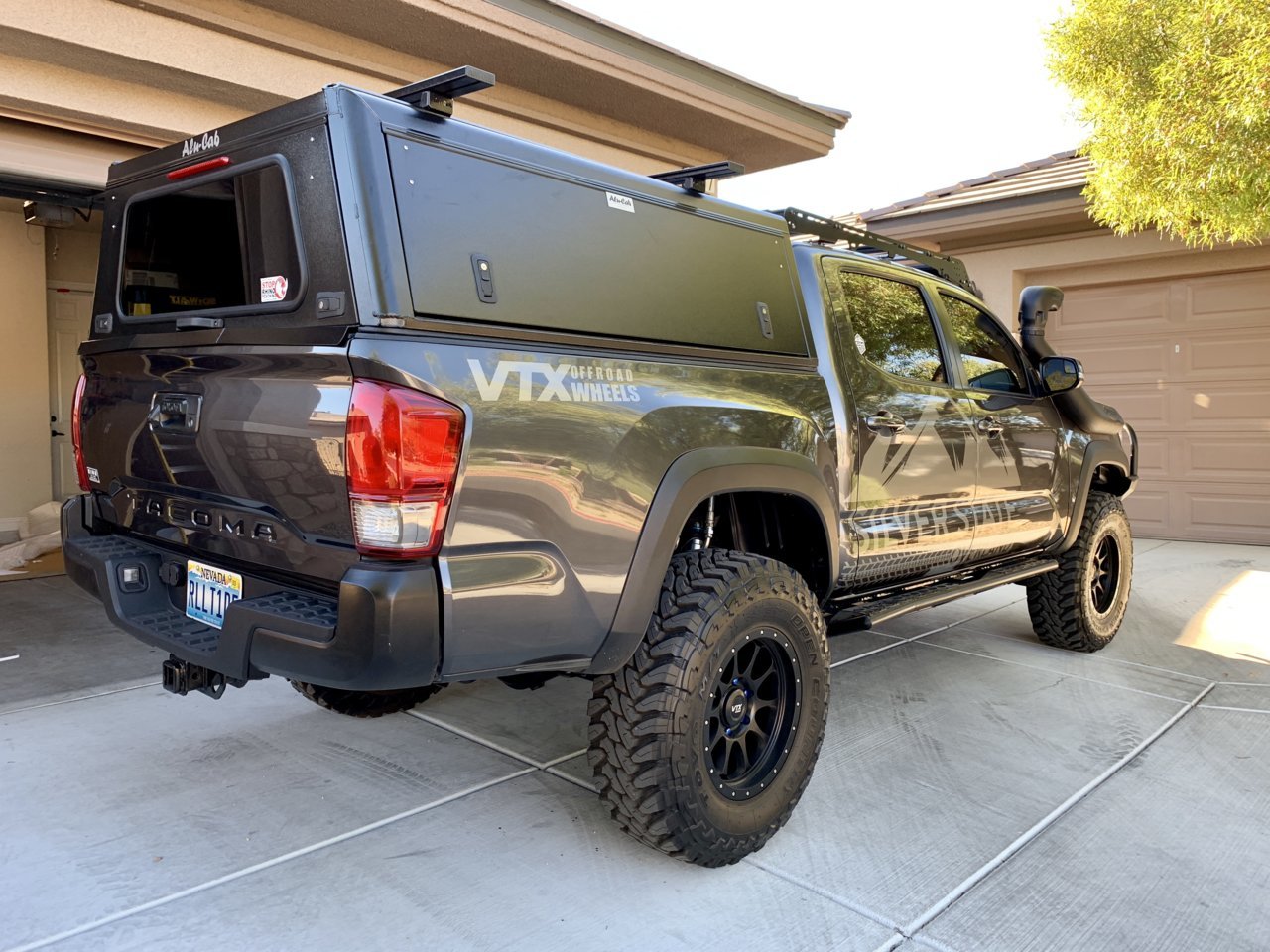

    Picked up new alu-cab canopy from Rin at Ok4wd

    EDEB9844-5B27-4A02-A7C9-5FCC95B96274.jpg 8C52F682-F431-4F22-86F4-197BF946000C.jpg A5E0495C-A8DE-4134-A6EB-9989DB093D93.jpg 97F0119E-6EDF-45CE-96F8-AA96B0E2AB22.jpg 59959EAE-7F38-4EEE-8548-20FC67AD51D2.jpg E1968CA2-C1BC-49F9-A61C-9AF5B8C9FE0C.jpg

  14. Sep 29, 2018 at 3:45 PM
    Hddiesel308

    Hddiesel308 Well-Known Member

    Joined:
    Aug 30, 2018
    Member:
    #264652
    Messages:
    412
    Indy/UP Mich
    Vehicle:
    '18 TRD O/R Cement-DCLB
    87 fuel added as needed.

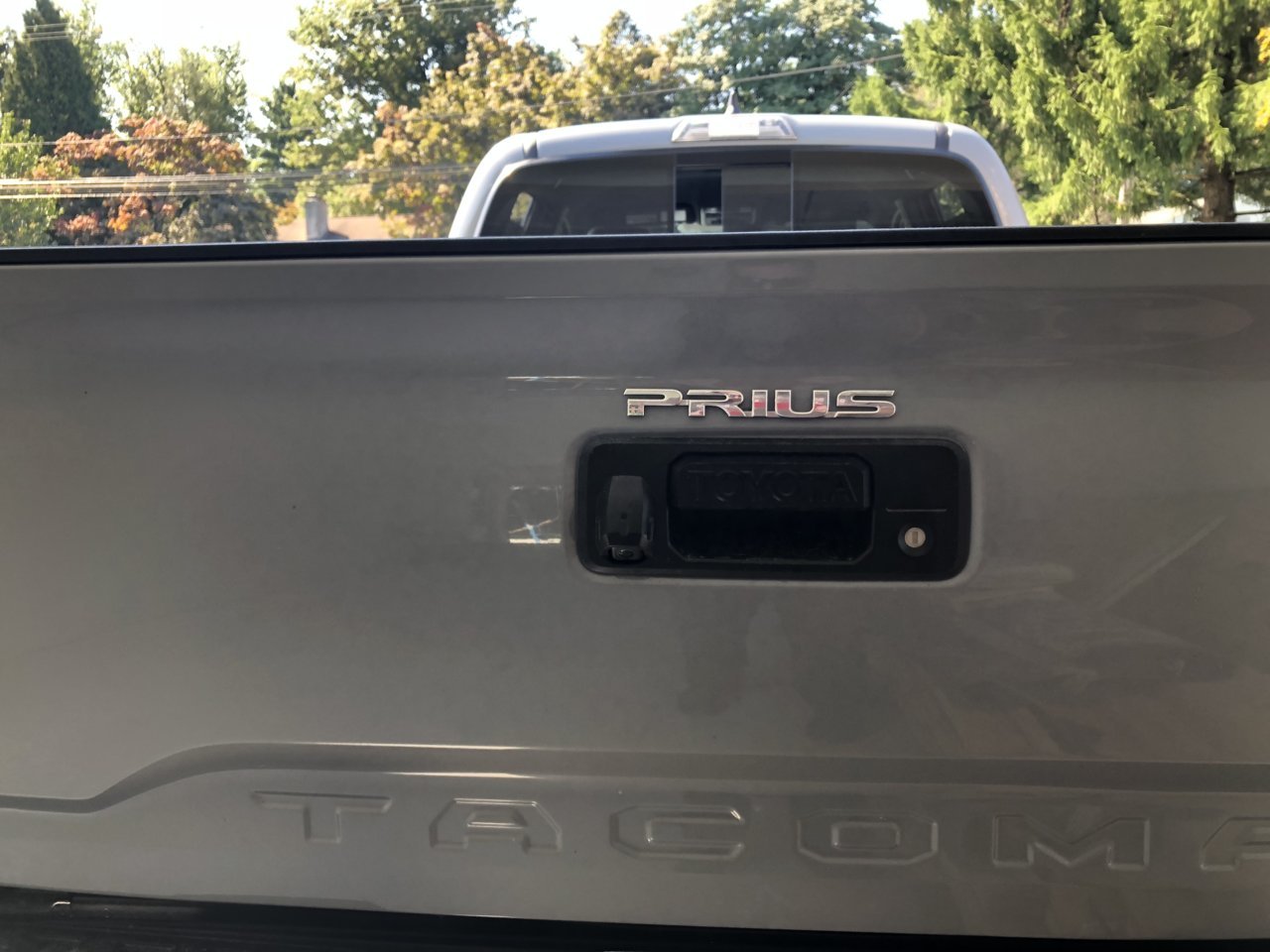

    Debadged. Badged. Mudflaps from red hound.

    Pics to come.


    SilverII, Intrepid, Dctaconny and 5 others like this.
  15. Sep 29, 2018 at 3:48 PM
    Sn4rlax

    Sn4rlax Well-Known Member

    Joined:
    Aug 12, 2018
    Member:
    #262614
    Messages:
    205
    Vehicle:
    2016 Red Taco 4x4 V6
    https://www.12volt.solutions/produc...te-start-h-key?rq=yr_2016~mk_toyota~md_tacoma

    Great solution, if you want a deal PM me. I’ll give you a number to a guy there, gave me an awesome price I couldn’t refuse. Took an hour for me to install, but that’s cause I had to drive to ACE hardware for wire strippers. If you have push start, they have one 100% plug n play.

    dmc1[QUOTED] and honey like this.
  16. Sep 29, 2018 at 4:26 PM
    Cappy

    Cappy Well-Known Member

    Joined:
    Mar 5, 2018
    Member:
    #246396
    Messages:
    2,341
    Gender:
    Male
    First Name:
    John
    Georgia

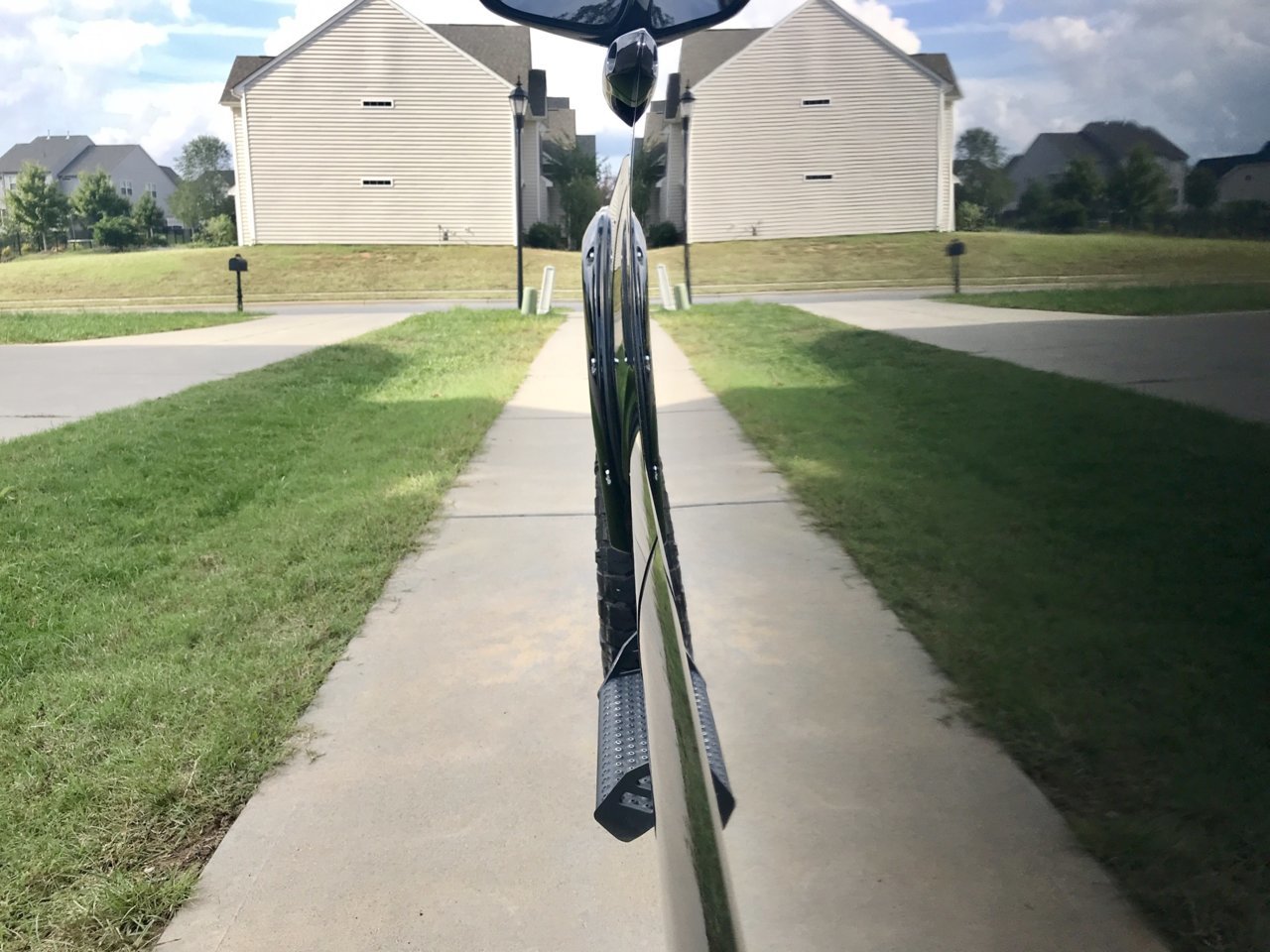

    Damn...looks like a mirror. Nice

    Doogle[QUOTED] likes this.
  17. Sep 29, 2018 at 4:42 PM
    BoggerBret

    BoggerBret Wolfknive

    Joined:
    Sep 7, 2014
    Member:
    #137795
    Messages:
    116
    Gender:
    Male
    First Name:
    Bret
    Gualala CA/ Kona HI
    Vehicle:
    2018 DCLB TRD Sport 4X4 White
    3' ready lift, 285 feds, 2'' wheel spacer.

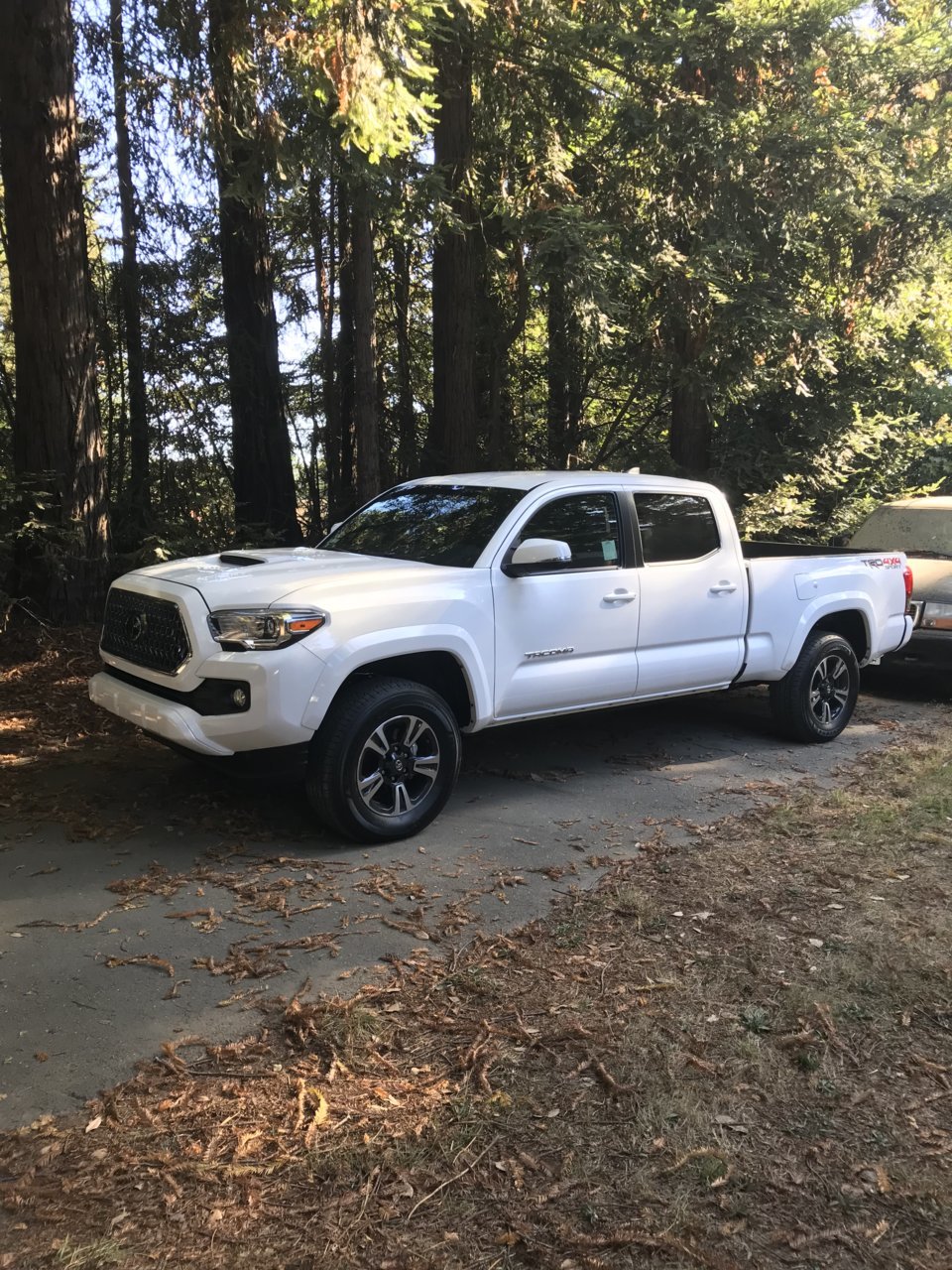

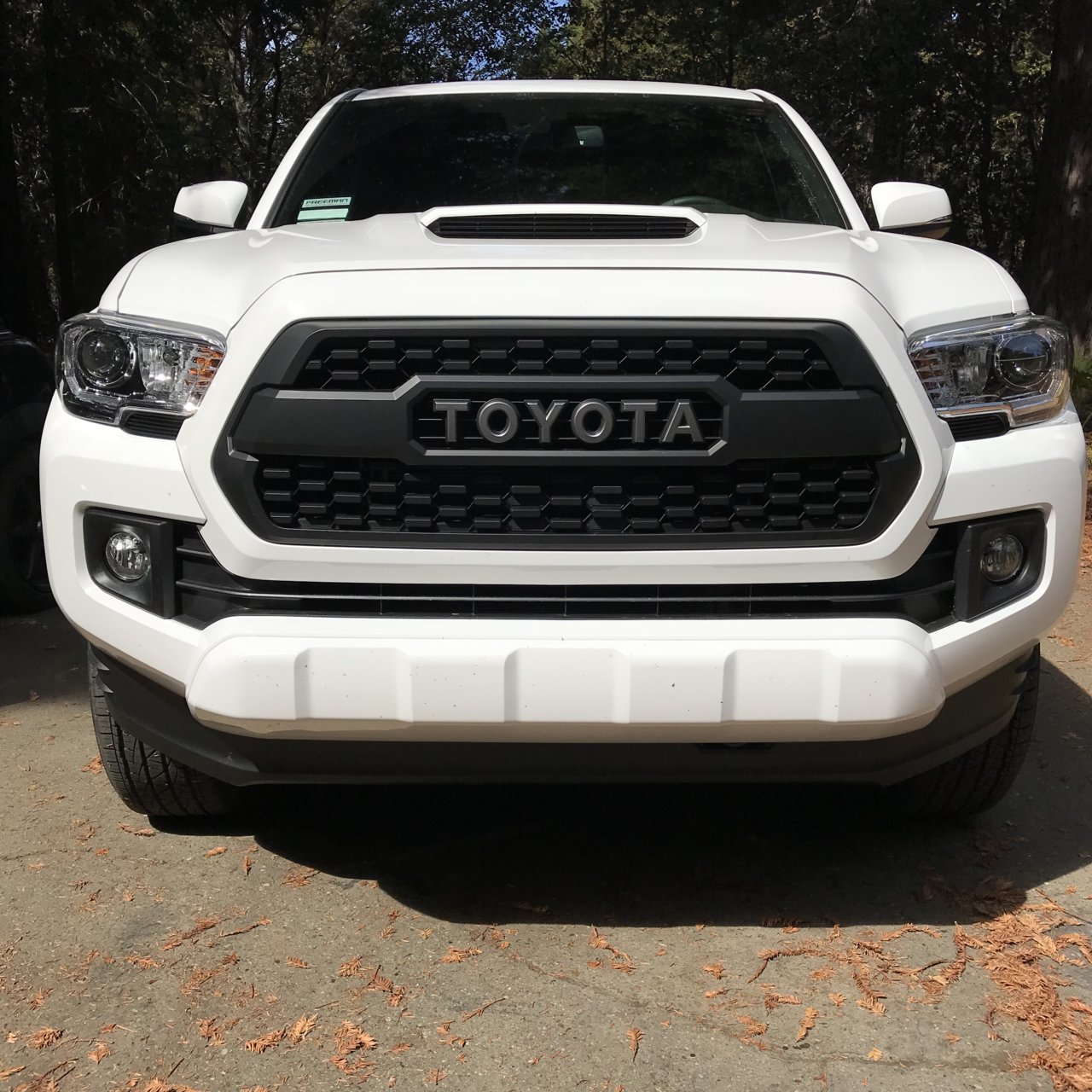

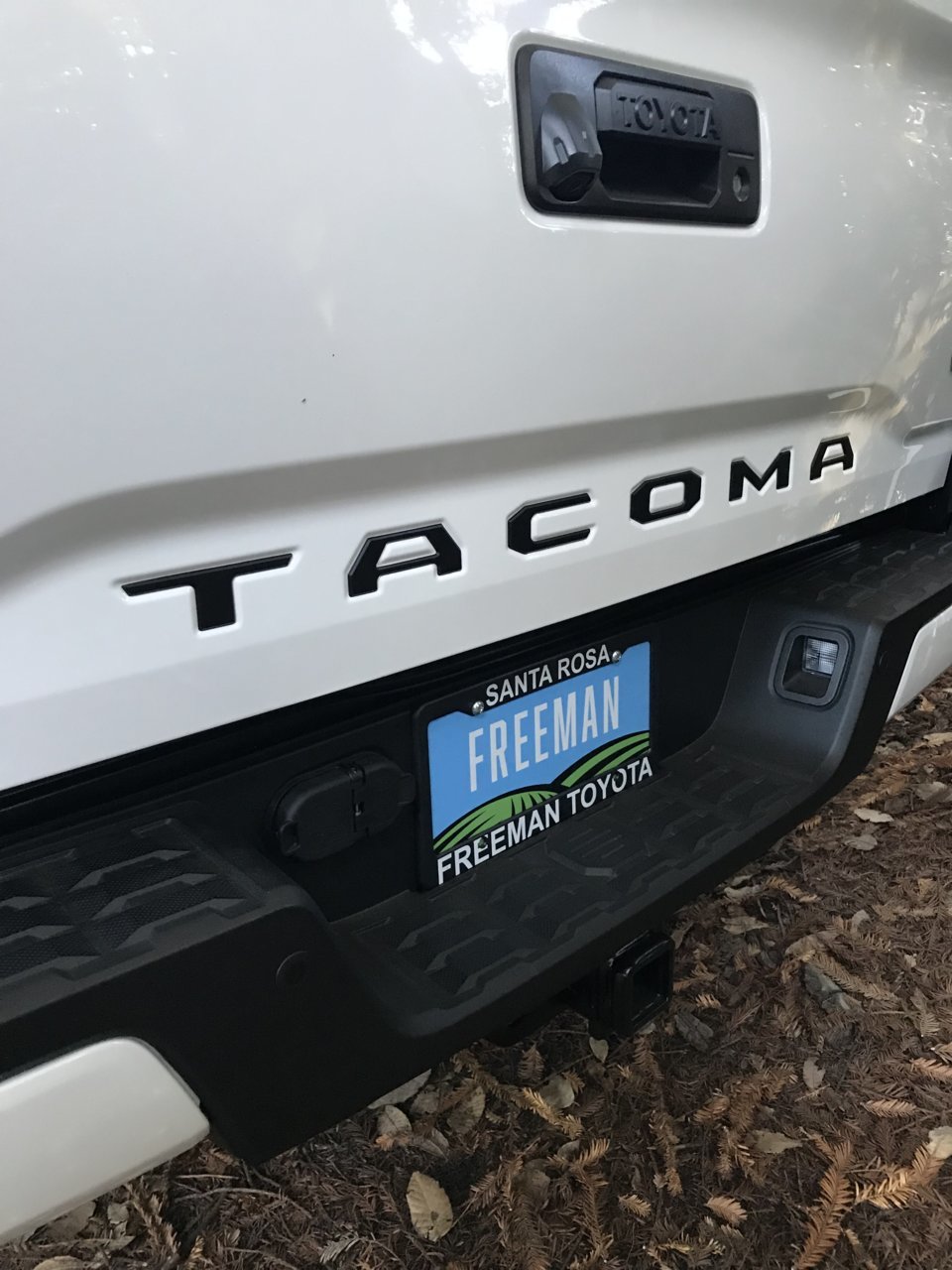

    So I picked this up 2 weeks ago, first new truck. Here’s a couple things beside the husky floor mats. And lift is sitting waiting on tires then the lift goes on. CB56103A-879C-432D-AAB9-02E45BDF9FB2.jpg9775FEB5-7110-4145-BE34-20471DCF9347.jpg60B4ABD9-9701-419E-BD8C-D19C8739D5AF.jpg

    SilverII, Intrepid, Dctaconny and 7 others like this.
  18. Sep 29, 2018 at 4:57 PM
    pescadoman66

    pescadoman66 Pescadoman66

    Joined:
    Aug 25, 2014
    Member:
    #136910
    Messages:
    417
    Gender:
    Male
    First Name:
    CJ
    Livermore, CA
    Vehicle:
    2017 TRD OR 4X4 Pro Wannabee Stormtrooper
    Tacoma Pro Front Grille Tailgate Letters Console Organizer Clazzio Seat Covers TRD front Grille Emblem Westin Drop Steps Front Widow Tint Tow Strap LED lights Sunshade Prinsu Rack BackFlip Cover rack accessories crutchfield speakers Front Tweeter speakers Tuffy box sound deadening mat Westin LED light bar Led switch Light bar bracket TRD Pro Tail lights TRD Pro Wheels BF Goodrich KO2 tires from America's Tire Old Man Emu Lift Coils - Coil Selection: 2887 Bilstein 5160 Rear Shock with Reservoir Bilstein 5100 Adjustable Front Struts HeadStrong 3 leaf progressive Add-a-leafs JBA UCA's Low Range OFF-Road 1.25" Cast aluminum blocks in the rear
    Damn your killing me @Rooster OG. I wasn’t planning on buying anything more lately but now I see that sexy shifter and I want one. Where did you purchase that and does the boot come with any color stitching although I like the white. Livermore here!!!!

  19. Sep 29, 2018 at 4:57 PM
    Ruminator

    Ruminator Chairman of the Bored

    Joined:
    Feb 13, 2018
    Member:
    #244300
    Messages:
    2,117
    Gender:
    Male
    First Name:
    Mark
    Northern Illinois, USA
    Vehicle:
    2017 Red TRD-Sport, ACLB, MT!!!
    Alright doll-face, c'mon and bore me!
    I see they don't rule out a manual transmission, but say "contact us". Any idea what that's about?

  20. Sep 29, 2018 at 4:57 PM
    Johnsg

    Johnsg Member

    Joined:
    Mar 7, 2018
    Member:
    #246640
    Messages:
    23
    Gender:
    Male
    Vehicle:
    2018 Toyota Tacoma off road

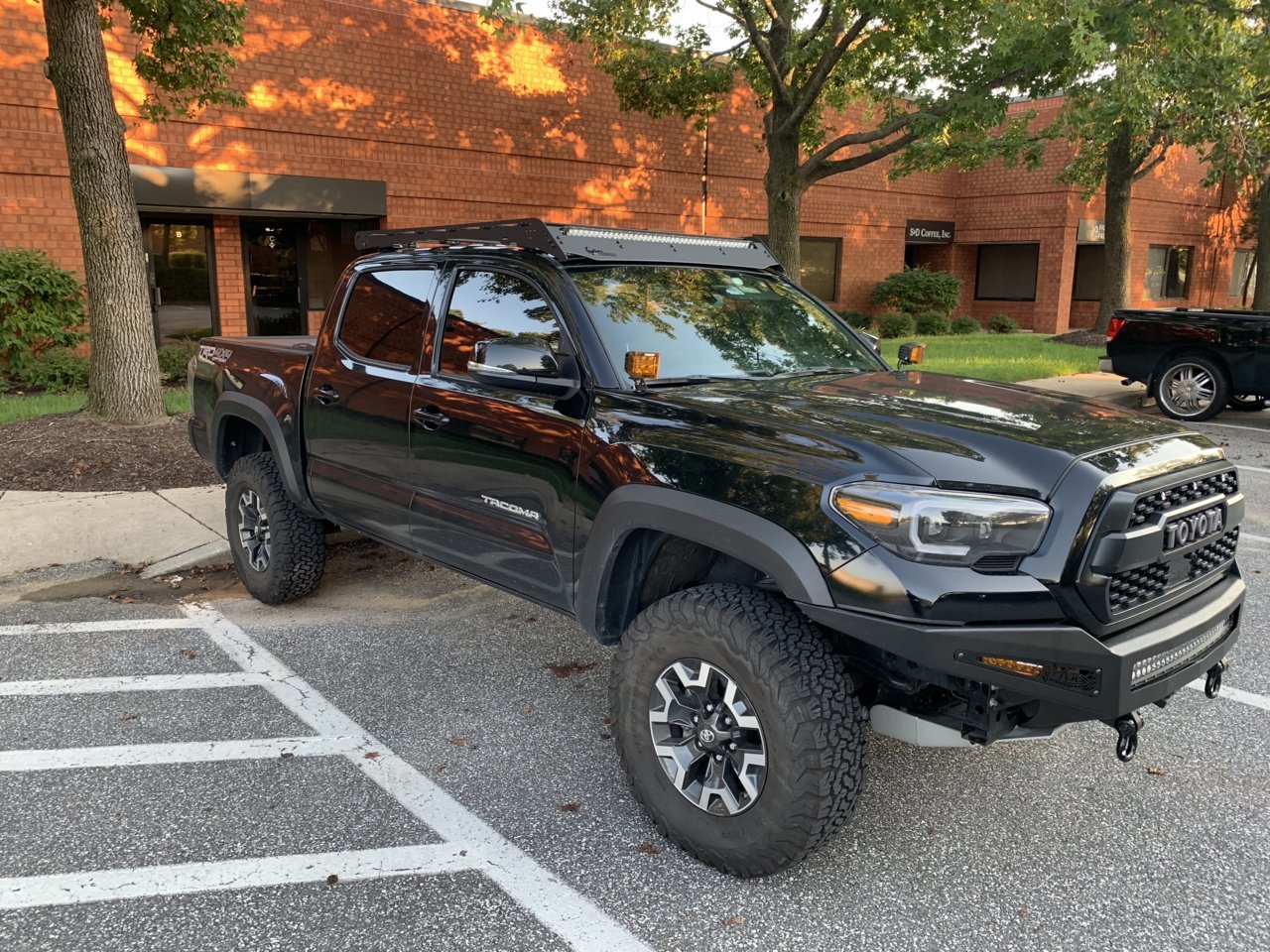

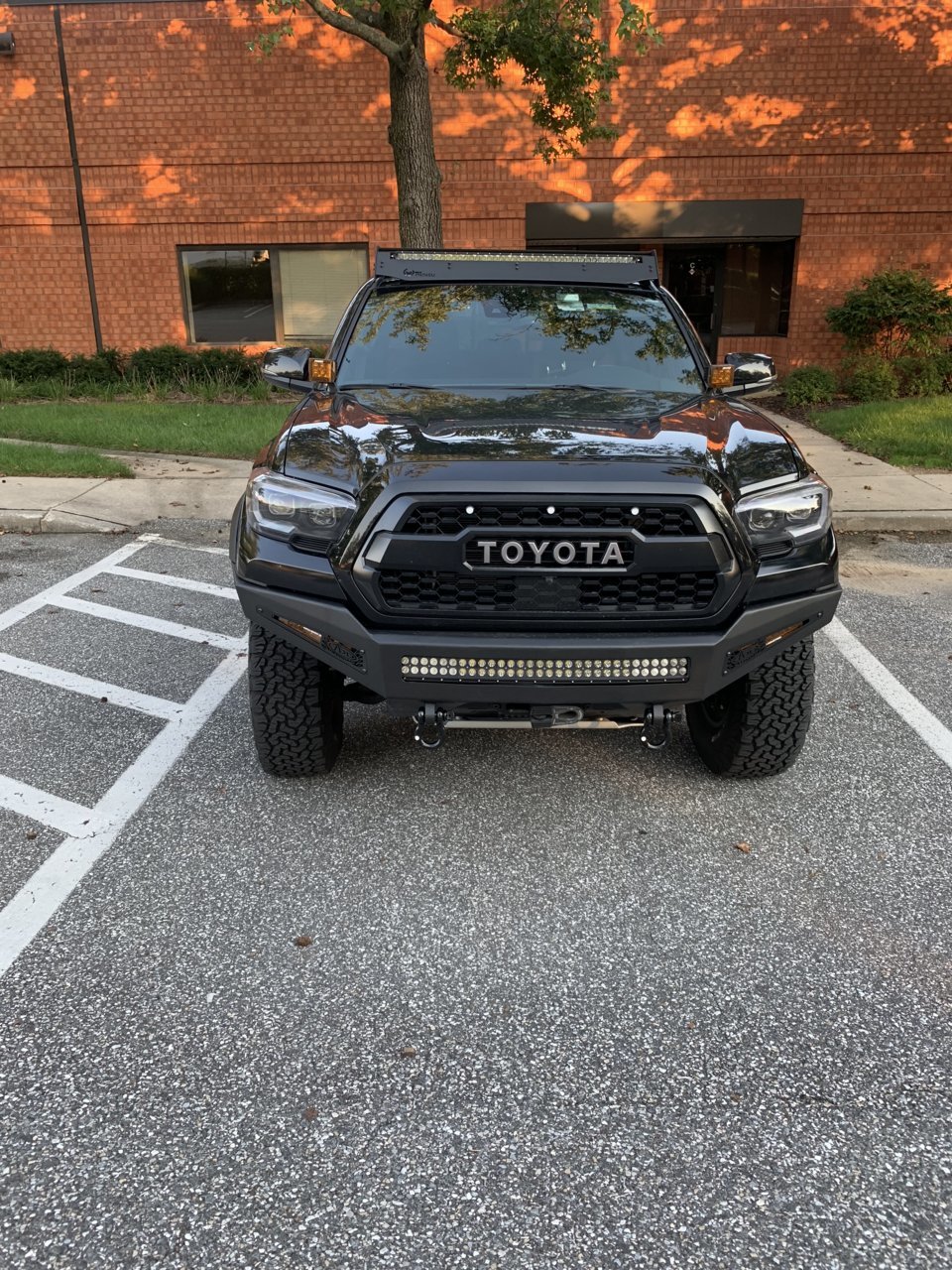

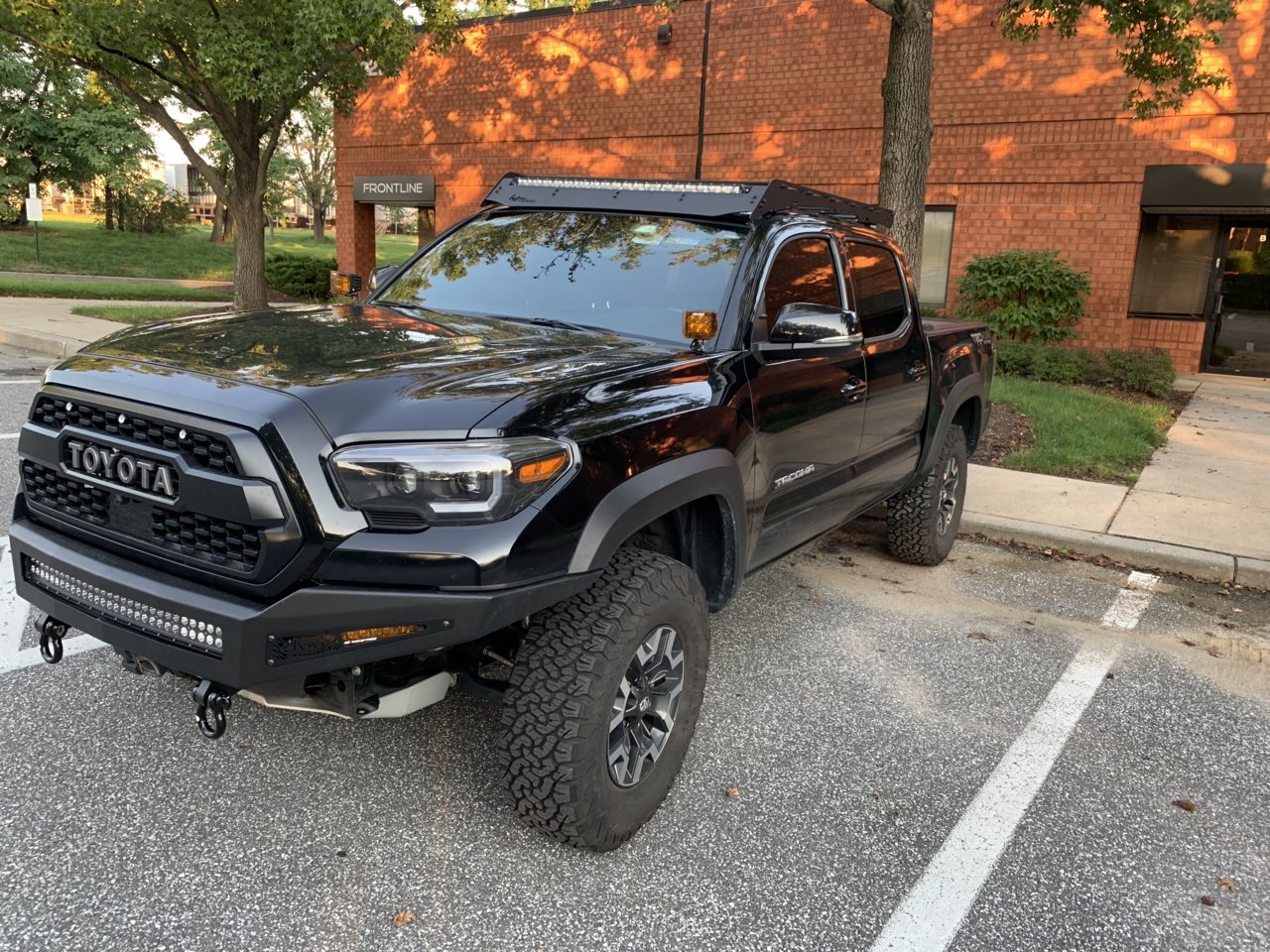

    611DA60A-CDFD-43AA-AD37-81891AEE3A4C.jpg 5E1E4123-8BCC-4055-B0BA-3E49F050D42D.jpg 5C1F9B3E-32C1-4F5F-B456-B4A1215AB436.jpg Finally got most of my truck done!

    -Prinsu rack with 40 inch light bar
    -Addictive desert design honey batter bumper with warn winch with factor 55 expert link
    -Bed mounted arb compressor with updown air to deflate and in flat all tires at the same time.
    -Switch pro


    Next is
    c4 fab overland bumper
    Vudoo rack
    Rock rails
    Skids

    SilverII, Intrepid, Dctaconny and 7 others like this.
