What Have You Done To Your 3rd Gen Today?

I’m GUESSING here but I would think Yellow = Red2. It’s possible it will be trial and error unless someone has used this switch. At least without having it on hand to disassemble or test. Black will be ground. One will go to relay, one to an illum source and one to a fuse tap. If that makes sense at all.



I'll take a wild guess and say green is ground.



get them done, @no vtec 4me
he has a page dedicated to them. https://www.tacomaworld.com/threads/retrofit-and-bhlm-headlights.565466/



Why is that your guess? I know in low voltage application green is ground, but typically with 12v applications it’s black.

Not to mention the description screen shot I posted only confirms black is neg pole and all others are positive.

Posted again for ref.


Considering most Chinese parts are similarly sourced and black is negative. I would guess Yellow=Red2, Green=Red1, Red=Green. It’s only an educated GUESS at best based off a couple assumptions and one known quantity.

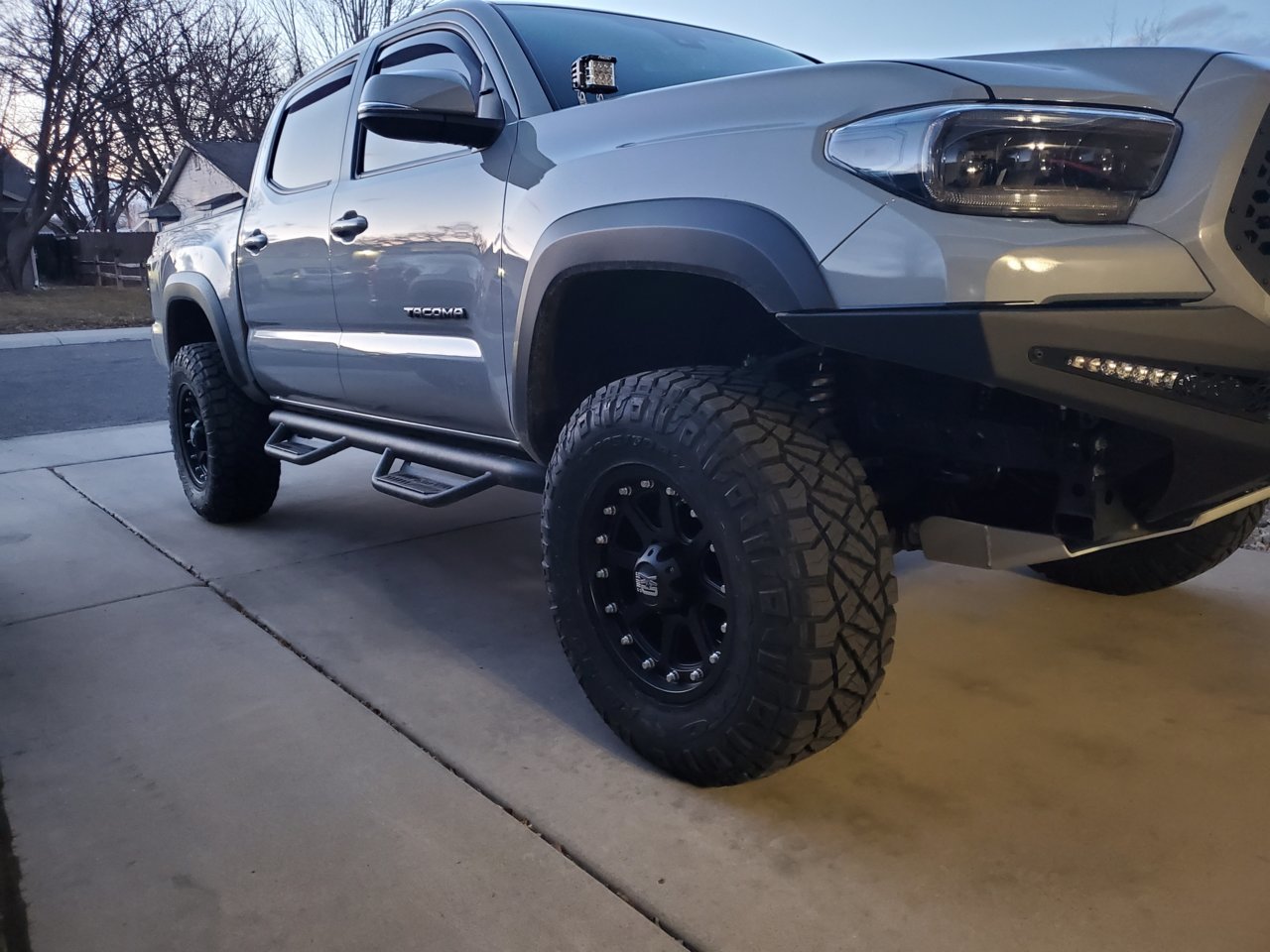

Getting ready to stuff some meaty 30 inch tires. I hope I wont rub.



Swab the back of them (where it contacts the disc/drum) with some anti-sieze next time.



Looks like that’s San Onofre nuclear power plant. If that’s the plant you were referring to?



wish they had that when I was carrying around an atv



None so far. Not a single "error" message. And it is fully-operational. Been on for about a month or so. Only rain (and lots of it). No snow or ice (yet).



That would be correct! Photo taken on Camp Pendleton, where I work.

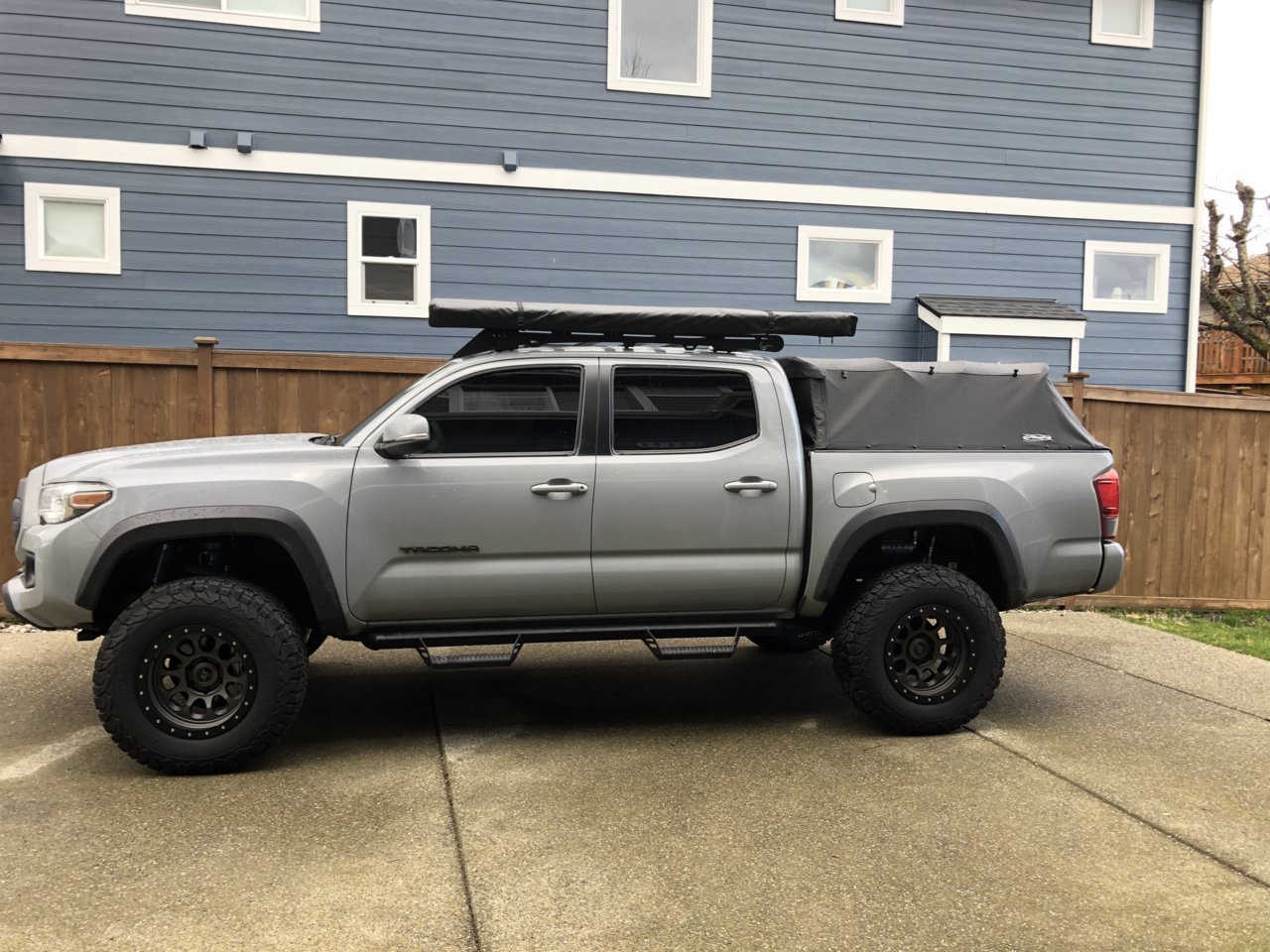

Test fit the new awning on my prinsu for camping this spring

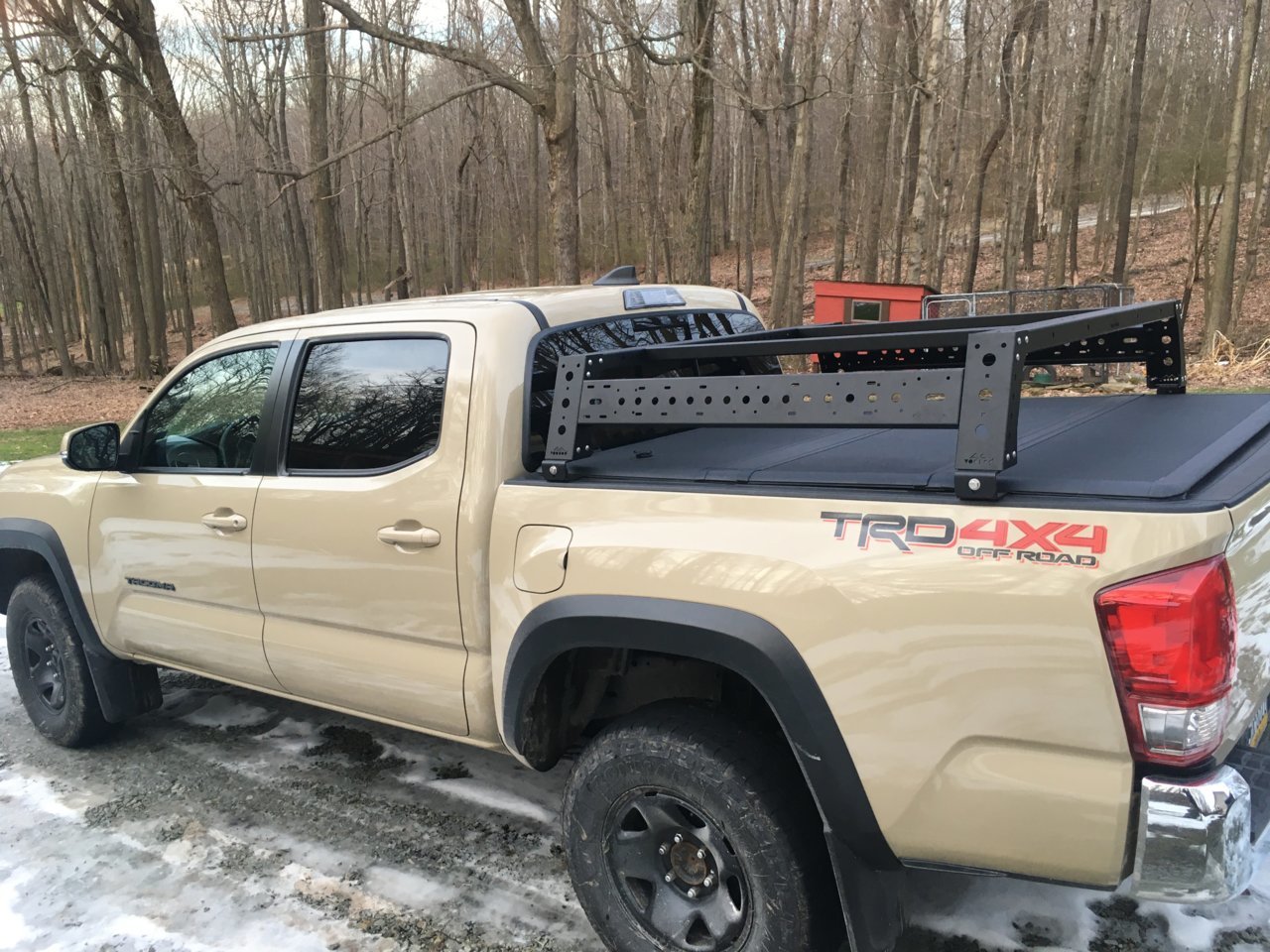

Got my rack installed. KB Voodoo Taco Max 10”. With Bakflip/Encore tonneau brackets.

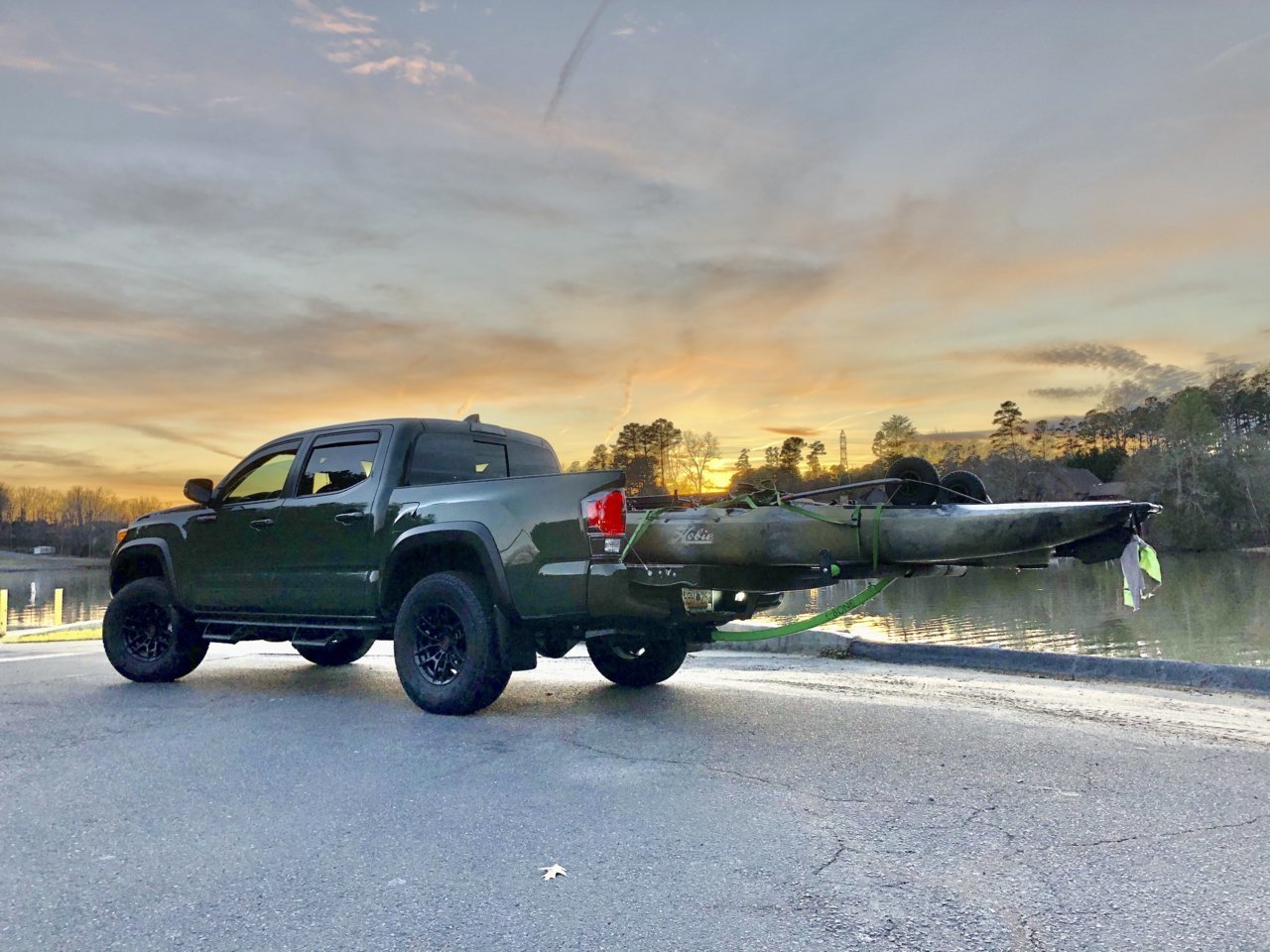

Got to take my Tacoma to the lake today with my hobie.



That one leaf in the foreground is so wabi-sabi.



Very good looking build



So I’m just curious, and not trying to be a dick, but I’m hoping you meant more like 35” tires?

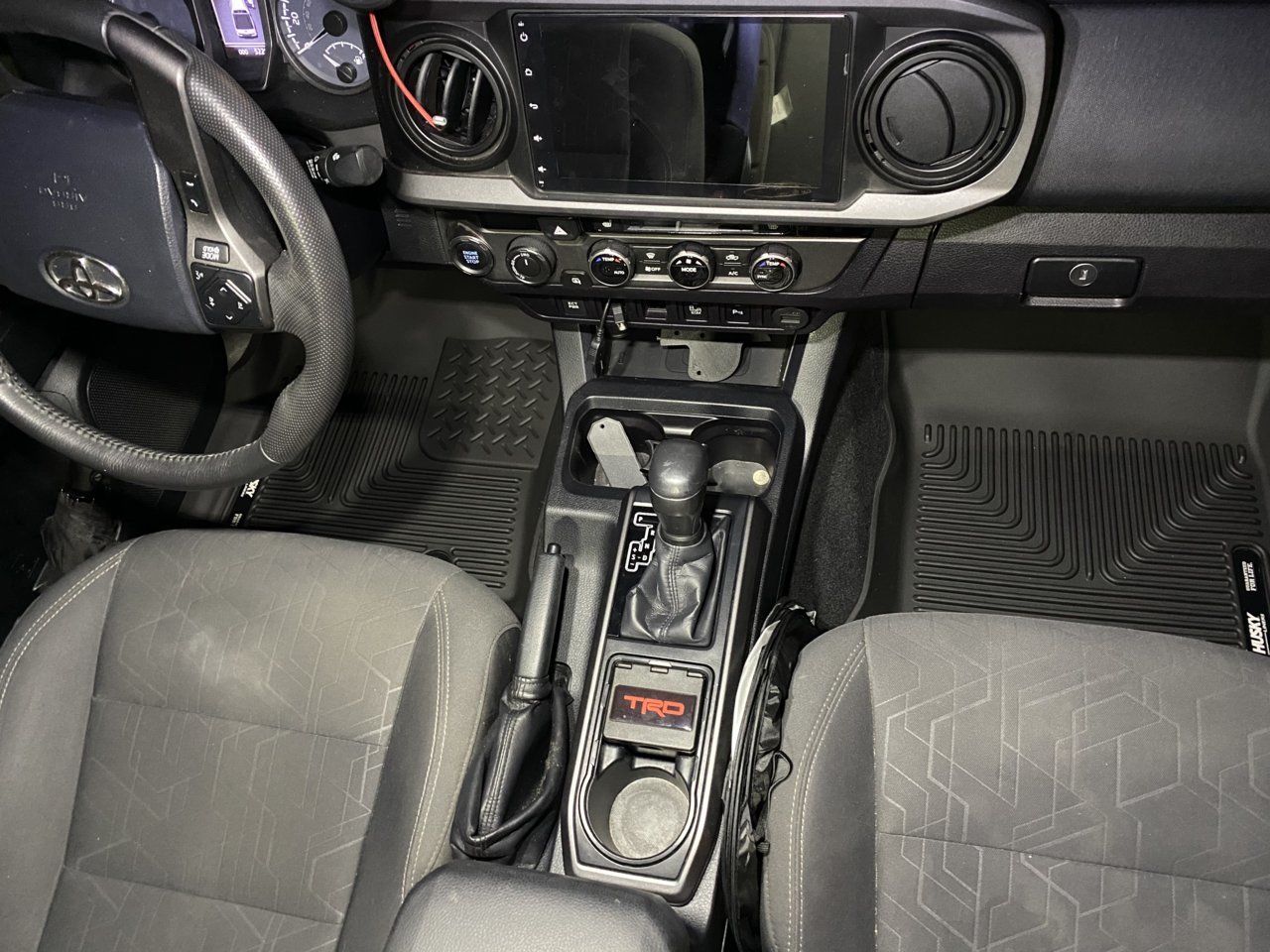

what head unit is that? looks super clean



Was wondering how my PA14 would fit in the back. Is that a 12 or a 14?



I purchased it.



Welcome to the forum from Eastern North Carolina

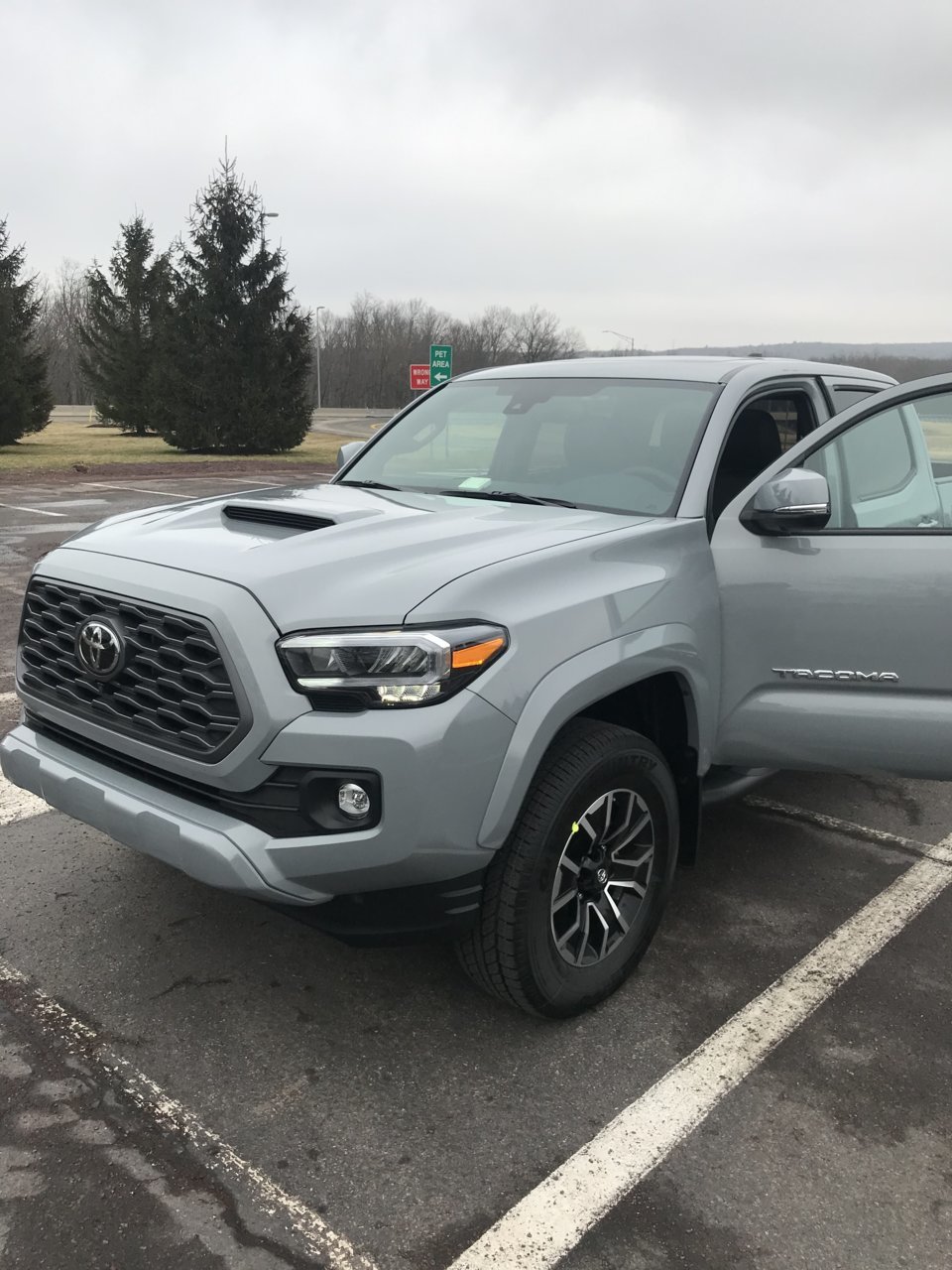

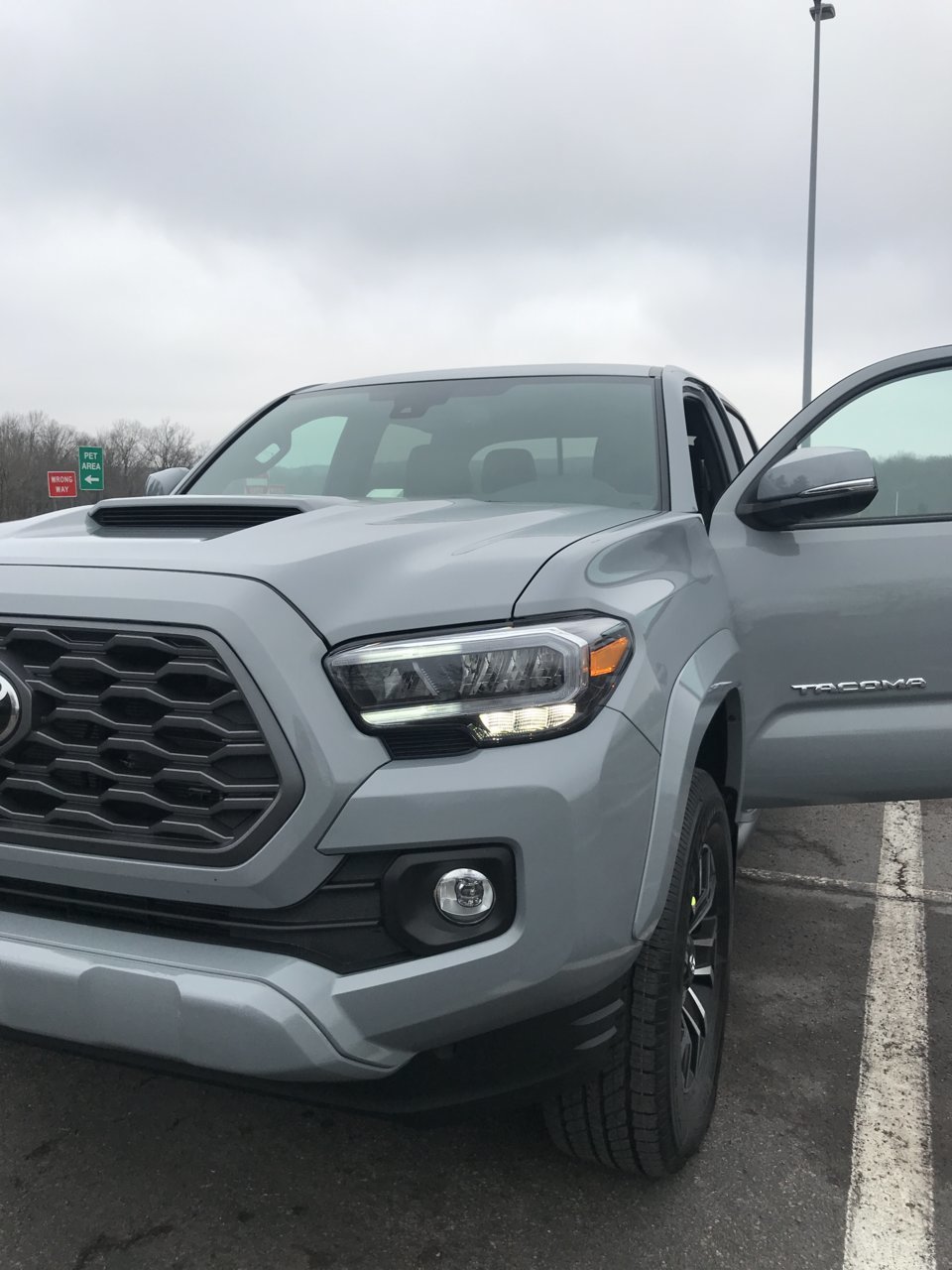

Enjoy the new truck !
