What have you done to your Tacoma today? 1st Gen Edition

Looks like a good setup for me. So you welded the plate on the inside correct? Still pretty stable too? If you know the measurements, how far out are the lower mounts from the back of the brake drum? I looked at boxrockets setup too but I didn't like it because his mounts were pushed in towards the center a little too far.

I really need to invest in a welder...



Applied the Rain-X to the windshield and side mirrors. Now I've got original Rain-X, their washer fluid, and their Latitude wipers. Looking forward to the next rain storm so I can see how well their stuff can "outsmart the elements".



So youre relocating for 10" shocks? Why not just ubolt flip and weld lowers and use the stock uppers on the frame? Thats what I did



Is that a plastic key?



Yeah but if I'm gonna relocate I'm gonna do it to maximize travel and get off the stock mounts even though it still will be the same location as the uppermounts as in a cross member up top directly where the driver side top mount is now. Make sense?



Just finished the interior on my 96! Went from grey to a black, I'll get pictures taken when it quits rainin!



Yeah, plate is about 4" wide IIRC and welded on the inside of the frame. I've had CBI frame plates on the outside for a while too. What do you mean pretty stable? That crossmember is not going anywhere.

As far as the axle mounting, if you look at your axle this is some kind of line/mold, they're just outside of that. When I redo it shortly, I'll probably move them further out.

Boxrocket's setup was shit for anything other than flexing IMO, and even then, not a proper solution. He was still limited to the 8" of vertical travel or whatever the OME rear shocks had, and only moved them inboard because the shock travel is then less than wheel travel for flexing. Decreasing all other aspects of shock performance, just to gain a little flex makes no sense to me. Similar approach to angling the shocks in at a ridiculous angle.

Anyways, I've tried half-assing it too, in the end you only waste time. Break down your leaf pack, cycle, measure travel, setup shocks and bumps accordingly. My setup works, but there's a reason I'm about to redo it...



I burned a bunch of plastic at Amazon




Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Negative Bus & Cover
$38.89


uxcell® Car Sound Deadener Application Rolling Wheel Roller 5cm x 3.5cm
$4.01

Noico Liner 37.5 Sqft Heat & Cool Automotive Insulation Pad, Foam Self-adhesive Sound Deadening and Dampening Mat for Cars & Trucks (1/6'' or 157 Mil
$55.00


Mictuning Universal Rocker Style Car USB Charger - with Green LED Light Dual USB Power Socket for Rocker Switch Panel
$12.80

2

Auxbeam 3" LED Light Bar 20w LED Pods Fog Lights Square Cube Lights Spot Beam Driving Light for Offroad Truck 4WD SUV ATV UTV Waterproof (4D Projector Hyperspot)

2 of Auxbeam 4 Inch 20W PHILIPS Square LED Fog Light Spotlight (4D Projector Hyperspot)
$28.99

2

Auxbeam 5" 10W LED Light Bar Flood LEDs Work Light for Pickup Offroad SUV ATV Vehicles Car

2 of Auxbeam® 5" 10W Led Work Light Bar Flood PHILIPS LEDs for Pickup Offroad SUV ATV Vehicles Car Ford f150
$15.99

IWISS Cable Lug Crimper Crimping Tool Ratchet Crimp Hand Electrician Pliers Wire Cable 6-50mm²(AWG 10-1/0)
$28.80


2 of Noico Black 80 Mil X 36 Sq Ft Self-adhesive Foil & Butyl Sound Deadening Under Carpet and Mat, Replace Oem, Automotive Audio Deadener & Dampening Insu
$63.90


Cal-Hawk CAPCFM Assorted Car Truck Mini Fuse 5,7.5,10,15,20,25,30 Amp
$6.25


TMS Mass Loaded Vinyl 4' X 10' 40 Square Feet 1 Lb MLV Acoustic Barrier
$119.00


Mictuning Universal [12 ft 2 Lights] Copper Off Road Led Bar Wiring Harness On/Off Rocker Switch - FOG LIGHTS Green
$15.90




Pico 4239C 4 AWG Battery Cable 3/8" Tubular Lug Ring / Eye Terminals 15 Per Package
$10.49


Crimp Supply Ultra-Flexible Car Battery/Welding Cable - 4 Gauge, (20 Feet Red/20 Feet Black) - and 5 Copper Lugs
$41.15


Bussmann (CB185-100) 100 Amp Type III Circuit Breaker
$25.50



Moeller Marine Battery Tray (One 24-Series Battery)
$15.



Pico 8148PT 18 Gauge 2 Conductor Parallel Primary Wire 25' per Package
$6.39


I dont want to open the doors up twice, so I will deaden/etc, then put the Polks in.
I will do the rest of the work after the doors some time.

I ordered Paranoid Fabrication 4x ashtray switch holder.

I also ordered 4 OSRAM bulbs from Susquehenna motorsports.



As in when loaded is the truck pretty stable with the shocks like that right now? Yeah I didn't like his solution. And I want them to be as close to the wheels as possible. But what do you mean break down the meatpacking and then measure? Leave like one leaf on or??



Do you have them like | | and angled back some?

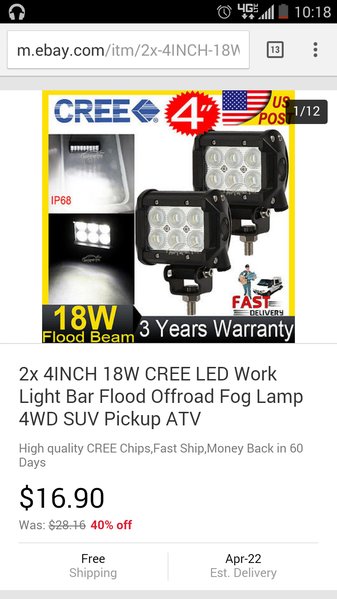

Relentless rear all welded and grinded. Now to paint or powder coat or line-x/bedline? Also gonna install some flood light pods.



Not a fan of that. Feel like it would be too unstable



Take the pack apart to just have the main leaf, put a block of wood or something between the main leaf and axle housing to represent the other leafs you took out( so the measuements are accurate to when the full pack is in). Then you can see the full drop and compression of the leaf back. Full compression will be when the leaf start to go negative arch. If you have dakars you can go a tad negative since they are designed to be somewhat flat and cycle between positive and negative.you can then see how far the axle when droop and how much it will compress. These measurements will determine the shock length relative to its position.

Have you ever thought about going to the outside of frame. That will be the most stable.



I understand that now Thanks. I'll have to read up on getting actual measurements though!



Yeah I dont think dakars are as stiff as deavers but I could be wrong!



I thought it was the other way around



Turned out really good! I always got all my stuff powder coated except for my steps/sliders. Ended being about the same price to have it all powder coated compared to bedlining them myself.



Very helpful! I will look into his build also! Only things is dakars will go more negative than most others.



Thanks! Have got a quote to have it powder coated for around $100. Thinking of paint maybe as well. Way easier to touch up when it gets roughed up/scratched



$100 bucks is a pretty good deal if you ask me. Just touch it up with spray paint on a foam brush or leave the marks. Shows its not a show truck
