What have you done to your Tacoma today? 1st Gen Edition

Discussion in '1st Gen. Tacomas (1995-2004)' started by SlimDigg, Feb 7, 2011.

  1. Jan 23, 2018 at 7:24 PM
    QMEDJoe

    QMEDJoe Proverbs 3:5-6

    Joined:
    Nov 4, 2014
    Member:
    #141714
    Messages:
    1,789
    Gender:
    Male
    First Name:
    Joe
    Fleetwood NC
    Vehicle:
    2003 black DLX Tacoma,5VZ-FE,5 speed,4x4.
    Fox 2.0 Coilovers in the front and Fox 2.0’s in the rear, Total Chaos UCA’s, Allpro expo leafs, K&N cold air intake, TRD headers,Magnaflow catback exhaust,URD short throw shifter, switched out my 60/40 bench seat for some Tacoma Limited seats, Replaced the vinyl shift boot for a black leather one, completely soundproofed the cab w/ Frost King. Replaced stock radio with a Pioneer AVH series head unit. Focal component system w/a 10" sub powered by 2 Alpine amps.Weathertech floor mats. Line-X'd the bed. SCS Ray 10’s, Installed an A.R.E MX series camper shell.
    I just got them put on today. Tomorrow I’ll be driving to New Orleans from Dallas so I’ll have a little bit more feel for them during and after the trip but from the drive home from 4WD it was noticeably better than what I had.

    LukeCC likes this.
  2. Jan 23, 2018 at 7:41 PM
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    31,406
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California — SFSU
    Vehicle:
    1998 PreRunner 4x4 Conversion
    4x4 Conversion Power Door Retrofit '85 DeVille Horns
    My front differential never came with a breather and I wanted to extend my rear one up to the gas tank filler cap.

    I totally forgot, which one is which?


    Totally confused on how the top one works. It's just a hallow tube with no cap on it. I believe the top one is for the rear.

  3. Jan 23, 2018 at 7:44 PM
    Lux

    Lux @jamesgrouss

    Joined:
    Sep 15, 2014
    Member:
    #138357
    Messages:
    2,824
    Gender:
    Male
    First Name:
    Jim
    NJ
    Vehicle:
    2001 tacoma sr5 4x4
    OME 3" lift 881 coils, Dakar's 33" General Grabber AT2's TG low profile front bumper
    Well the bottom one is threaded so that wouldn't work. Never seen the top one before, mine just looked like both of those combined lol

    you're going to want 90930-03136, which has a nipple for the hose and a closed breather like the bottom one.

  4. Jan 23, 2018 at 7:48 PM
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    31,406
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California — SFSU
    Vehicle:
    1998 PreRunner 4x4 Conversion
    4x4 Conversion Power Door Retrofit '85 DeVille Horns
    Totally should have done my research before ordering. Darn.

  5. Jan 23, 2018 at 7:49 PM
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    74,809
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.

    have you ever set gears before? DO you have extra washer plates for the rear?

    You need a 90 degree micrometer for the front. Its a major bitch to get it set right. I HIGHLY recommend having a pro do them if you never have. NOT a first time project or even an intermediate one.

    top tube goes in the clamshell. Then a small piece of tube runs to a hard line on the diff.

    as seen here:

    [​IMG]Front Locker-11.jpg by Monte Nickles Photos, on Flickr


    the blue tube is covering most of it.


    Or you can see it here in the middle.

    [​IMG]Front Locker.jpg by Monte Nickles Photos, on Flickr



    The bottom...not sure. I mean its the actual breather. But i didn't think it threaded in. But there is a tube that is supposed to run up the driver wheel well that the tcase and front diff breather mount to.

    Speedytech7 likes this.
  6. Jan 23, 2018 at 7:51 PM
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    31,406
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California — SFSU
    Vehicle:
    1998 PreRunner 4x4 Conversion
    4x4 Conversion Power Door Retrofit '85 DeVille Horns
    How did I not see that... I completely did not realize that's what that looked like. I was looking for the actual breather cap that terminates that line.

    Guess I'm making another order, lol. Think I can still make use of the bottom one?

  7. Jan 23, 2018 at 7:54 PM
    Lux

    Lux @jamesgrouss

    Joined:
    Sep 15, 2014
    Member:
    #138357
    Messages:
    2,824
    Gender:
    Male
    First Name:
    Jim
    NJ
    Vehicle:
    2001 tacoma sr5 4x4
    OME 3" lift 881 coils, Dakar's 33" General Grabber AT2's TG low profile front bumper
    The bottom is just the stock breather that does thread into the rear diff, its not necessary to extend the front breather any right? Its already about as high as the intake if Im not mistaken.

  8. Jan 23, 2018 at 7:55 PM
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    4,763
    Gender:
    Male
    documentation?

  9. Jan 23, 2018 at 7:56 PM
    Lux

    Lux @jamesgrouss

    Joined:
    Sep 15, 2014
    Member:
    #138357
    Messages:
    2,824
    Gender:
    Male
    First Name:
    Jim
    NJ
    Vehicle:
    2001 tacoma sr5 4x4
    OME 3" lift 881 coils, Dakar's 33" General Grabber AT2's TG low profile front bumper
    All you need is 90404-51319 and 90930-03136 for the rear diff

    SwampYota likes this.
  10. Jan 23, 2018 at 8:07 PM
    JKO1998

    JKO1998 Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156578
    Messages:
    22,771
    Gender:
    Male
    Utah
    Vehicle:
    Cement 99 3.4 V6 4x4 Silver 02 3.4 V6 4x4
    Has anyone ever had a problem with the stock rear breather being rusted and breaking off when trying to swap it out? I’ve had bad luck with that and imagine it’d be a pain to fix.

    Last edited: Jan 23, 2018
    Adude likes this.
  11. Jan 23, 2018 at 8:13 PM
    kmcmahon5

    kmcmahon5 Well-Known Member

    Joined:
    Jul 6, 2016
    Member:
    #191381
    Messages:
    213
    Gender:
    Male
    B.C.
    Vehicle:
    1996 Tacoma, 1989 pickup

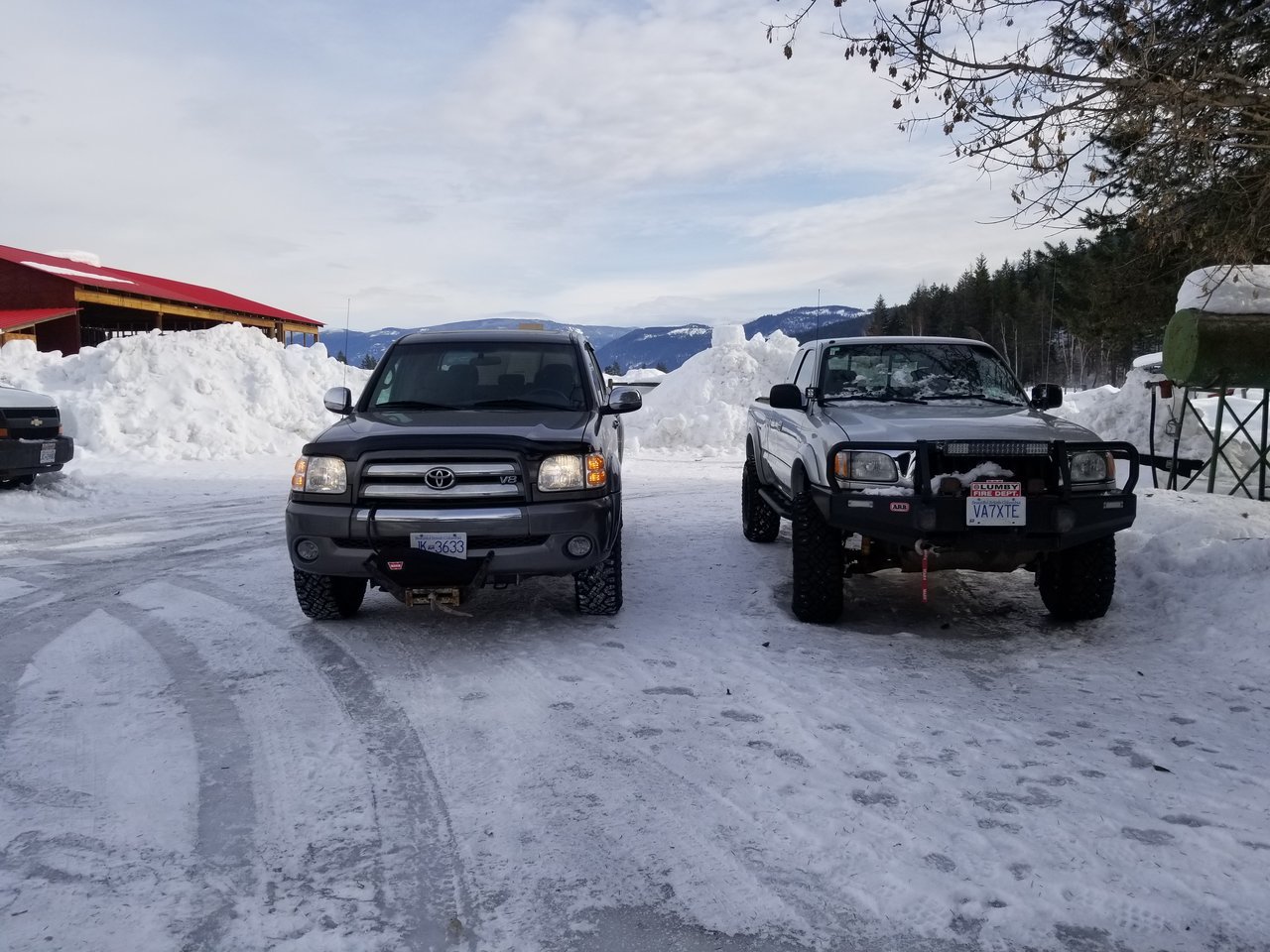

    [​IMG]Untitled by kyle mcmahon, on Flickr

    Finally got some time today to upload a few pics from last weekends trip. So I've got Dakars and 5100s and the ride is pretty shitty. What would you guys recommend to upgrade? 5125s and maybe relocating my shocks? Still have some axle wrap too that I'd like to fix.

    BYJOSHCOOK and SwampYota like this.
  12. Jan 23, 2018 at 8:21 PM
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    74,809
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    It's pretty high. So not really. Can help to swap to a nice filter vs a 1 way check valve so it won't puke up fluid all the time.

  13. Jan 23, 2018 at 8:39 PM
    tymeson

    tymeson Snappin necks cashin checks

    Joined:
    Jun 25, 2017
    Member:
    #222342
    Messages:
    2,561
    Gender:
    Male
    First Name:
    Steven
    N Phoenix
    Vehicle:
    03 Gold Prerunner
    Would it be easy to add a locker to my Prerunner? It's not a TRD so I have a plain ol' Prerunner

  14. Jan 23, 2018 at 8:42 PM
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    74,809
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    That's a loaded question.

    You can add several kinds to it.

    By yourself?

    Ehhh...

    Not the easiest thing. Some are some are definitely not.

    That said. Adding 4wd will be much more beneficial then a locker.

    tymeson likes this.
  15. Jan 23, 2018 at 8:48 PM
    tymeson

    tymeson Snappin necks cashin checks

    Joined:
    Jun 25, 2017
    Member:
    #222342
    Messages:
    2,561
    Gender:
    Male
    First Name:
    Steven
    N Phoenix
    Vehicle:
    03 Gold Prerunner
    I don't wanna add the 4WD just yet maybe in the future... Just want something for xtra help if I ever need it... Might pay someone to do it.. what are the different kinds of lockers that they have?

  16. Jan 23, 2018 at 9:17 PM
    QMEDJoe

    QMEDJoe Proverbs 3:5-6

    Joined:
    Nov 4, 2014
    Member:
    #141714
    Messages:
    1,789
    Gender:
    Male
    First Name:
    Joe
    Fleetwood NC
    Vehicle:
    2003 black DLX Tacoma,5VZ-FE,5 speed,4x4.
    Fox 2.0 Coilovers in the front and Fox 2.0’s in the rear, Total Chaos UCA’s, Allpro expo leafs, K&N cold air intake, TRD headers,Magnaflow catback exhaust,URD short throw shifter, switched out my 60/40 bench seat for some Tacoma Limited seats, Replaced the vinyl shift boot for a black leather one, completely soundproofed the cab w/ Frost King. Replaced stock radio with a Pioneer AVH series head unit. Focal component system w/a 10" sub powered by 2 Alpine amps.Weathertech floor mats. Line-X'd the bed. SCS Ray 10’s, Installed an A.R.E MX series camper shell.
    If that happened I would have to be s conspiracy theorist and say Toyota had someone sabotage it! :rolleyes:

    BartMaster1234 likes this.
  17. Jan 23, 2018 at 9:35 PM
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    74,809
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.
    There are a few. Auto locker/mechanical basically replace the spider gear or the full ring carier. These require no wiring and no activation from a switch or anything. Most work when you are applying power, the diff is locked. As in if you are pressing the accelerator, it's locked. If you are coasting its not locked. Kind of handy as you never have to worry about if it is on or off. However, you have to change your driving habits on asphalt a bit otherwise you chirp the tires and bind through all the corners. Detroit makes probably the nices version of this and Lockright is the cheapest option and fairely easy to install as well.

    Selectable lockers are lockers you have a switch in the cab and push a button to lock it. There are two main kinds, air locker and electronic. The stock OEM e locker Toyota sold with the truck uses an external actuator to slide a pin in to lock the diff. Its not always instantaneous and can be finicky to get unlocked occasionally. The external actuator can also corrode. This diff is NOT compatible with your open diff housing. It uses a totally separate housing with a different mounting pattern and the ring gear is ever so slightly smaller then your open diff and there are other difference. To run this you have to find a complete axle. If you do, it swaps right over and then you just wire up a switch, all elocker housings are 4.10 ratio.

    Harrop released a new elocker last year. Basically they took the design that Eaton and Toyota developed for the 3rd gen tacomas and made one for our diffs as well. It uses an internal electro magnet to do the locking. Is always instant and very strong. Has a neat feature where if the direction is reverse, it temporally unlocks to relieve axle bind. As in if your climbing a hill, and can't make it and roll backwards a bit to give it another go, it unlocks for a split second saving your axles from a lot of stress. This locker is cream of the crop right now and also...really expensive. 1350 bucks for just the locker, not installed. It's not super popular because of the price.

    Arb makes the air lockers that fit in our trucks. This takes either an air compressor or CO2 to actuate the locker. You run an air line to the diff and the pressure slides the mechanism over to lock it. The RD129 is the model for your rear diff and usually runs around 900 bucks but you can find them on sale for around 800 often. Harrop argues that theirs are cheaper as you don't need OBA...but i argue that you should have OBA anyways so its a better investment. Air lines can get ripped off though and leak.


    Either way, the ARB is a tried and true one and the Harrop would be baller. Im a big fan of selectable lockers as the truck drives normal unless you decide to lock it. Plus your open diff, also know as the Toyota "8.4" diff(its still an 8'' ring, but due to it being slightly larger then the 8'' elocker, the name kinda stuck to differentiate between the two), is a stronger diff due to the pinion bearings and the ring gear caps.




    Whew.


    That was long. Hope thats a little helpful. That's kinda the basic run down.

  18. Jan 23, 2018 at 10:19 PM
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    4,763
    Gender:
    Male
    Sometimes.............things just happen all at once....bam! 4wd setup bam! rear elocker setup.

    Fernando and Blackdawg like this.
  19. Jan 23, 2018 at 10:21 PM
    Duty Bootie

    Duty Bootie Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142154
    Messages:
    70
    Gender:
    Male
    First Name:
    Richard
    Vancouver Island
    Vehicle:
    96 Taco Bush Truck - Now in Restoration
    Well I brought mine home today from the paint shop......
    So 6-7 months after my daughter had an accident in my totally awesome but a little tatty Tacoma……Its finally back home with me where it belongs…….
    Box off frame stripped, treated and painted. New Passenger rocker, door, new to me rust free box and tailgate, new front fenders……Now all I have to do is re-assemble.

    [​IMG]Taco's Home[/url] by Rah Images-Photography, on Flickr[/IMG]

    [​IMG]FGPT[/url] by Rah Images-Photography, on Flickr[/IMG]

    [​IMG]FGPT 2[/url] by Rah Images-Photography, on Flickr[/IMG]

    Cid, QMEDJoe, Snowman and 9 others like this.
  20. Jan 23, 2018 at 10:24 PM
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    74,809
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    The Trifecta of Taco's
    ALL OF THEM!...Then some more.

    Looks good! It an SX?
