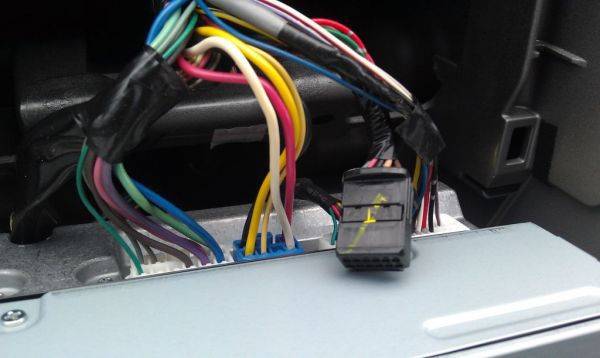

What is the black plug in the back of the factory stereo? (2011 TRD OR DC)

Discussion in 'Audio & Video' started by ezatnova, Jun 17, 2013.

  1. Jun 18, 2013 at 4:40 PM
    #21
    2012tacolover

    2012tacolover Well-Known Member

    Joined:
    Dec 23, 2012
    Member:
    #93607
    Messages:
    1,919
    Gender:
    Male
    First Name:
    Norm
    CA/AL
    Vehicle:
    White PreRunner TRD Sport DCSB
    Tinted Windows, Black Nerf Bars, LED Dome & Map Lights, Snugtop Xtra-Vision, WeatherTech Digitalfit front and rear, trimmed Front Mud Flaps, BFG A/T KO's, Matt123 White Skid, Devil Horn Emblem Wet Okole front and rear seat covers! Future Stuff: Lift and new Wheels! :)
  2. Jun 18, 2013 at 6:47 PM
    #22
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    11,161
    Gender:
    Male
    First Name:
    Murph
    Columbus, Ga
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
  3. Jun 18, 2013 at 6:58 PM
    #23
    ribby95

    ribby95 Member

    Joined:
    Jun 5, 2013
    Member:
    #105631
    Messages:
    19
    Gender:
    Male
    Baja Edition
    Some stock HU come with a stereo upgrade port (usually subwoofer w/amp). From the looks of the wires, it defiantly has something to do with sound. (always the slight chance it could be something else.) Some of these plugs also tie into other sensors. I have almost the exact same plug on my f150 stock hu and it was for a line driver for a subwoofer with built in amp. ill try and do some digging with a couple of installers I know and see what they say. If you have local shop just stop by and im sure they can test it and tell you exactly what it goes to. Hope this helps.

  4. Jun 18, 2013 at 7:08 PM
    #24
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    11,161
    Gender:
    Male
    First Name:
    Murph
    Columbus, Ga
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
    Are all your speakers working? They must be cause when I installed my Kenwood all mine hooked up to the two right connections and the two left ones were left open. I lost my steering wheel controls though. So it must be the big white connection for the steering wheel controls.

  5. Jun 18, 2013 at 8:59 PM
    #25
    ezatnova

    ezatnova [OP] Artax

    Joined:
    Nov 15, 2010
    Member:
    #46186
    Messages:
    171
    Gender:
    Male
    West Chester, PA
    Vehicle:
    11 DC TRD OR
    Hankook Dynapro 265/75/16, Icon Progressive AAL, 5100's @ 1.75, derped badges
    Thank you guys for the links. I haven't found an answer from that info yet.

    To the last question, yes, I believe all the speakers do work when it's unplugged. I messed with the fade and balance and it seemed like sound could be isolated to each area just fine. I did hear the separate tweeters too.

    Hopefully we're getting close to an answer. I can't be the only one with this plug, or the only one who will try to install an iPod kit and run into this port having a plug already, so hopefully when we get an answer, it will help some others down the line, as well.

  6. Jun 18, 2013 at 10:20 PM
    #26
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Well the taped wires I mentioned earlier are absolutely 100% the "shield" or "-" side of an RCA, now weather its audio or video I couldn't tell you. But I can say that the only thing on a stock radio that would use that type of input is either the AUX port down below, or the camera input, or the bluetooth mic, or usb. If both those still work, its possible that its not audio or video and instead just a ground for whatever source it goes to.

    If it a 2011 non-JBL, the only plugs or sources you should have are the following:

    Power
    6 speaker audio
    SAT Radio tuner
    SAT Radio antenna
    AM/FM antenna
    Bluetooth input/output (microphone included)
    Steering controls
    USB (if you have it)
    And that's all I can think of... Someone add something if I missed it.

    If all those still work (be sure to check Bluetooth mic) then the plug probably isn't used.

  7. Jun 19, 2013 at 4:19 AM
    #27
    ezatnova

    ezatnova [OP] Artax

    Joined:
    Nov 15, 2010
    Member:
    #46186
    Messages:
    171
    Gender:
    Male
    West Chester, PA
    Vehicle:
    11 DC TRD OR
    Hankook Dynapro 265/75/16, Icon Progressive AAL, 5100's @ 1.75, derped badges
    Thanks ProForce.

    I do not have Bluetooth buttons/mic in the truck.

    I also do not have USB (I wish I did, so I could skip this whole darn ipod kit!).

    I am 99% sure all 6 speakers work with the black plug out. I made an effort to listen to the tweeters themselves too.

    The camera and the Aux port are both confirmed working with the plug out.

    I don't understand what the unit/car has for XM Satellite very well, so this is one of the possible areas where it could be related. I was under the impression that in this radio/year, the Sat receiver was integrated into the head unit, meaning that there wouldn't need to be anything plugged into the head unit to make Sat work. Also, and this could be key, the XM Preview channel 001 works FINE with the black plug out too! So strange.

    Lastly, I looked at that black wrapped wire you mentioned a little closer. As I think you are already saying, it definitely is a thicker, twisted strand, bare metal wire that is wrapped in a type of tape. It's different from the other 11 wires in the thing that have normal colored dipped coating, and I believe are solid and not twisted strand.



  8. Jun 19, 2013 at 4:55 AM
    #28
    gym_jamz

    gym_jamz All I Do Is Nguyen

    Joined:
    Jul 10, 2012
    Member:
    #82308
    Messages:
    1,865
    Gender:
    Male
    First Name:
    Jimmy
    Gainesville, GA
    Vehicle:
    12' Peerunner
    I did some researching (VERY bored at work) and I have an answer for you. That black wire you disconnected is a R9 wire. R9? R9 is the "Radio Option Connector"
    How do I know? I attached the wiring diagram (in .txt format) for 2005-2008 Standard to 2011 JBL radio diagrams. You have a non-jbl radio (86120-04200) and from the diagram, that connector is called R9. Open the file, scroll down a little to see what R9 is! :D Beers on you :cheers:


    Attached Files:

    Last edited: Jun 19, 2013
  9. Jun 19, 2013 at 5:04 AM
    #29
    ezatnova

    ezatnova [OP] Artax

    Joined:
    Nov 15, 2010
    Member:
    #46186
    Messages:
    171
    Gender:
    Male
    West Chester, PA
    Vehicle:
    11 DC TRD OR
    Hankook Dynapro 265/75/16, Icon Progressive AAL, 5100's @ 1.75, derped badges
    j.nguyen, now we are getting somewhere. I'm about to pour you a frosty cold one (it's never too early, right?), but now I just want to know what the heck is plugged IN to my "radio option connector"! That's what seems to be empty on most other people's radios. What am I disconnecting by unplugging that R9, or what might I have that I don't realize (just bought the truck last week, used). It isn't something hacked and aftermarket. Those 12 wires go right into the factory loom out of the stereo.

    Thanks :thumbsup:

  10. Jun 19, 2013 at 6:03 AM
    #30
    gym_jamz

    gym_jamz All I Do Is Nguyen

    Joined:
    Jul 10, 2012
    Member:
    #82308
    Messages:
    1,865
    Gender:
    Male
    First Name:
    Jimmy
    Gainesville, GA
    Vehicle:
    12' Peerunner
    If it's free, I'll take it! I can research and google all day, but I am not an expert in wiring. Hopefully someone can chime in and help ya!

  11. Jun 19, 2013 at 10:41 AM
    #31
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    OP, your correct that XM is built in, that's why the sat antenna plugs right into the head unit. There is nothing else that this plug could be used for. Since the diagrams state its a "radio option" that would make complete sense, hence the reason your iPod connection goes there. But whatever is plugged in there obviously doesn't lead to anything. Its definitely 100% OEM and not a dealer add on, its factory. Probably just a plug that was on the harness and not used. Just like trucks without fog lights can remove the blank and have the wires and plug plugged into the blank. Its a standard harness. I'm guessing it was something to do with Bluetooth.

    My professional opinion would be to go ahead and disconnect it and leave it out. I can guarantee it won't cause any issues with the truck and if you eventually notice something not working that's audio related then you probably know why lol. I'd plug in the iPod and call it a day!

  12. Jun 19, 2013 at 11:12 AM
    #32
    ezatnova

    ezatnova [OP] Artax

    Joined:
    Nov 15, 2010
    Member:
    #46186
    Messages:
    171
    Gender:
    Male
    West Chester, PA
    Vehicle:
    11 DC TRD OR
    Hankook Dynapro 265/75/16, Icon Progressive AAL, 5100's @ 1.75, derped badges
    Thanks. I agree. Sure jsut seems strange though that there's a plug in there, vs everyone else acting like theirs is empty.

    I'm going to keep hunting, and maybe someone who has been in this situation before me can comfirm something 100%, whether it's a blank, or a pre-wire, or what. You'd think those 12 wires have to go somewhere and do something!

    Anyway, if I can get a GTA ipod kit that works (first one sounded awful and had tons of static, so it's getting exchanged), then I'll try to keep an eye out for what that black plug might be. Worst case, there's $15 Y plugs on ebay, so I could put the black one back in, and add the ipod plug too.


  13. Jul 4, 2013 at 5:30 AM
    #33
    Dragons Taco

    Dragons Taco Well-Known Member

    Joined:
    Jan 19, 2012
    Member:
    #70993
    Messages:
    1,791
    Gender:
    Male
    First Name:
    Derek
    Cary/Raleigh NC
    Vehicle:
    06 Black TRD-S 4WD 4D 6SPD and MINE!
    Can ya spell Tonneau
    Looking at the doc j.nguyen posted, the pin descriptions are interesting. Last time that I remember seeing CD audio descriptions like that was on a Cd-drive on a computer for the analog audio output. Along with the ACC and B+ to power something, could it be a patch for an audio processor or Crossover? Seems antiquated to me, but does the CD work with it unplugged? Id check on mine, but my 2006 doesnt come close to yours on features.

  14. Jul 4, 2013 at 5:43 AM
    #34
    ezatnova

    ezatnova [OP] Artax

    Joined:
    Nov 15, 2010
    Member:
    #46186
    Messages:
    171
    Gender:
    Male
    West Chester, PA
    Vehicle:
    11 DC TRD OR
    Hankook Dynapro 265/75/16, Icon Progressive AAL, 5100's @ 1.75, derped badges
    Thanks Dragons. The CD plater (6 disc built in to the head unit) does work fine when that's unplugged. The mystery is still open for solving!

  15. Jul 22, 2013 at 7:25 AM
    #35
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    115
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with Speed override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339
    anyone closer to solving this problem?

  16. Jul 22, 2013 at 7:35 AM
    #36
    ezatnova

    ezatnova [OP] Artax

    Joined:
    Nov 15, 2010
    Member:
    #46186
    Messages:
    171
    Gender:
    Male
    West Chester, PA
    Vehicle:
    11 DC TRD OR
    Hankook Dynapro 265/75/16, Icon Progressive AAL, 5100's @ 1.75, derped badges
    Ha, nothing definitive yet. The best "guess" so far (from my Toyota mechanic friend) is that it's some pre-wiring for Bluetooth that doesn't go anywhere. Seems odd to me.

  17. Jul 22, 2013 at 1:15 PM
    #37
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    115
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with Speed override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339
    i also am confused by this plug although it is not black in my 2012
    and it does not seem to have any essential function wtf? it sure is confusing

    IS THIS perhaps the usb input wiring connector? my 2012 has this plug with lots of wires into it but no other explanation...

    Last edited: Jul 24, 2013
  18. Sep 12, 2013 at 1:10 PM
    #38
    Taco Guy11

    Taco Guy11 Well-Known Member

    Joined:
    Jul 16, 2011
    Member:
    #59978
    Messages:
    1,931
    Gender:
    Male
    First Name:
    Joe
    Western Maryland
    Vehicle:
    2011 TRD Sport
    5100's, Eibachs, Light Racing UCAs, ATO Rear bumper and ifs skid, Lights, Tonno Cover, TJM Front Bumper and Slider not sure of the brand.
    subbed for the wiring diagram

  19. Jun 13, 2014 at 4:56 AM
    #39
    DEEVON911

    DEEVON911 Semi-pro

    Joined:
    Apr 11, 2010
    Member:
    #35030
    Messages:
    12,131
    Gender:
    Male
    First Name:
    Dave
    Bethel Park, PA. Burb of the Burgh.
    Vehicle:
    2010 MGM Mostly Stock Off-Road 4x4
    TRD Cat-back Exhaust. Semi-Debadged. Shorty 8 in. Antenna. Weathertech vent visors. TRD FJ Cruiser Center Cap Wheel Mod. Nitto Terra Grapplers. Inverter tapped into for outlet in cab. Tacomaworld sticker which adds 5 hp.
    Bump...

    I ran into this issue yesterday as I was installing my iPod interface too. I thought it was the satellite radio, but after reading this thread, obviously not. Also nothing seems to be affected with mine unplugged. I don't have the Bluetooth either. I'm guessing that's what it could be. I wish someone knew to put my mind at ease. LOL. OP, you still around, and have you had any adverse affects from it being disconnected?
    [​IMG]

  20. Jun 13, 2014 at 5:33 AM
    #40
    DrFunker

    DrFunker PhD, DVM, MPH, MS, MMA, Esq, XYZ, 123, blahblah

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    2,712
    Gender:
    Male
    First Name:
    Dr. (I just play one on TV)
    NorthEast
    Vehicle:
    11-DC-SB-OR
    The Gray Ghost
    really?:rolleyes:
