What is the small 4 pin wiring connector that is attached to the rear light wireing harness for ?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Taco1961, Jan 21, 2018.

  1. Jan 21, 2018 at 1:12 PM
    #1
    Taco1961

    #1
    Taco1961 [OP] Member

    Joined:
    Jun 28, 2017
    Member:
    #222609
    Messages:
    15
    Gender:
    Male
    South Mississippi
    Vehicle:
    2016 Tacoma sr
    Bull bar,keyless entry, nerf bars
    What is the unused wiring connector on the rear light wireing harness for? It's on the driver side above where the trailer light plug goes.

    Taco1961, Jan 21, 2018
    #1
  2. Jan 21, 2018 at 1:19 PM
    #2
    koditten

    #2
    koditten Well-Known Member

    Joined:
    Sep 8, 2013
    Member:
    #112077
    Messages:
    19,683
    Gender:
    Male
    First Name:
    Kirk
    Central Michigan
    Vehicle:
    04 trd x-cab 4 x 4 3.4l
    Reserected from the dead.
    Did you buy new? If no, previous owner could had a bed cap with a third brake light.

    koditten, Jan 21, 2018
    #2
  3. Jan 21, 2018 at 1:22 PM
    #3
    Taco1961

    #3
    Taco1961 [OP] Member

    Joined:
    Jun 28, 2017
    Member:
    #222609
    Messages:
    15
    Gender:
    Male
    South Mississippi
    Vehicle:
    2016 Tacoma sr
    Bull bar,keyless entry, nerf bars
    Bought it new . Hoping it was for trailer light connector.

    Taco1961, Jan 21, 2018
    #3
  4. Jan 21, 2018 at 1:23 PM
    #4
    Taco1961

    #4
    Taco1961 [OP] Member

    Joined:
    Jun 28, 2017
    Member:
    #222609
    Messages:
    15
    Gender:
    Male
    South Mississippi
    Vehicle:
    2016 Tacoma sr
    Bull bar,keyless entry, nerf bars
    It's definitely factory

    Taco1961, Jan 21, 2018
    #4
  5. Jan 21, 2018 at 1:24 PM
    #5
    jake72

    #5
    jake72 Well-Known Member

    Joined:
    Jul 7, 2012
    Member:
    #82099
    Messages:
    2,564
    Gender:
    Male
    First Name:
    Jake
    N.E. PA
    Vehicle:
    2019 trd off-road dcsb mt
    You have the 7 pin and 4 pin connection if that's what your talking about

    jake72, Jan 21, 2018
    #5
  6. Jan 21, 2018 at 1:26 PM
    #6
    Taco1961

    #6
    Taco1961 [OP] Member

    Joined:
    Jun 28, 2017
    Member:
    #222609
    Messages:
    15
    Gender:
    Male
    South Mississippi
    Vehicle:
    2016 Tacoma sr
    Bull bar,keyless entry, nerf bars
    Would a picture help?

    Taco1961, Jan 21, 2018
    #6
  7. Jan 21, 2018 at 1:26 PM
    #7
    Mtn Mike

    #7
    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    754
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    Trucks with the tow package come with two different trailer connectors; the round 7 pin connector for trailers with brakes and hot lead, and the flat 4 pin connector for trailers with just lights. Are you looking at the 4 pin trailer connector?

    Mtn Mike, Jan 21, 2018
    #7
  8. Jan 21, 2018 at 1:30 PM
    #8
    Taco1961

    #8
    Taco1961 [OP] Member

    Joined:
    Jun 28, 2017
    Member:
    #222609
    Messages:
    15
    Gender:
    Male
    South Mississippi
    Vehicle:
    2016 Tacoma sr
    Bull bar,keyless entry, nerf bars

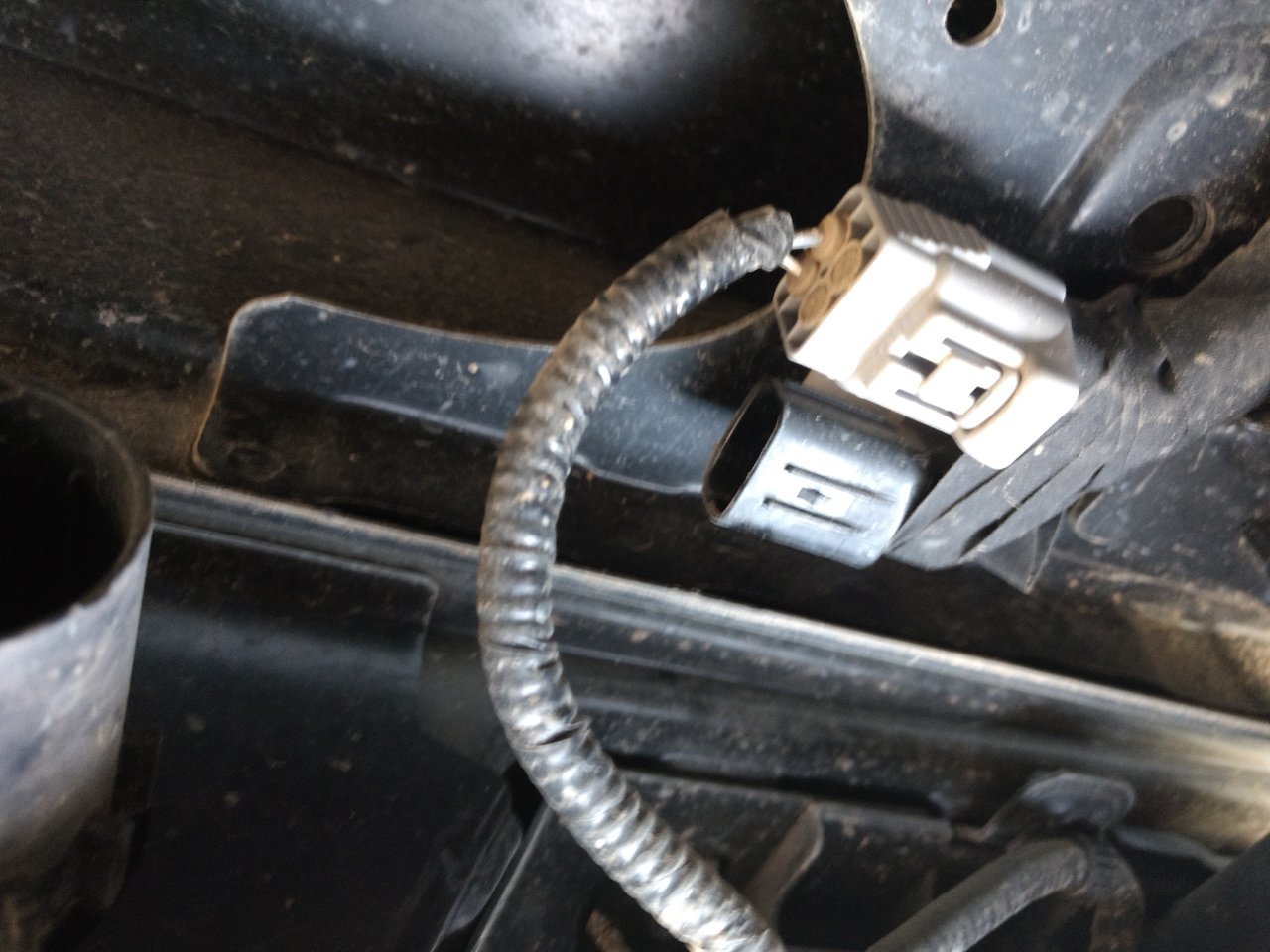

    No the gray oneIMG_20180121_152755873.jpg

    Taco1961, Jan 21, 2018
    #8
  9. Jan 21, 2018 at 1:39 PM
    #9
    Taco1961

    #9
    Taco1961 [OP] Member

    Joined:
    Jun 28, 2017
    Member:
    #222609
    Messages:
    15
    Gender:
    Male
    South Mississippi
    Vehicle:
    2016 Tacoma sr
    Bull bar,keyless entry, nerf bars
    It's under the truck

    Taco1961, Jan 21, 2018
    #9
  10. Jan 21, 2018 at 1:41 PM
    #10
    Pickupman2007

    #10
    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    586
    Gender:
    Male
    First Name:
    Kenneth
    Murfreesboro, TN
    Vehicle:
    2022 Rivian R1T
    2020 Tacoma: Morimoto xB LED Headlights & fogs, MESO Total Tail S1, Fortin Evo One Remote Start, OEM Audio Plus System 500Q,, Redarc trailer brake controller, Carplay2Air wireless adapter, Custom shift knob, Electric tailgate lock, Chrome tailgate inserts, Limited fog light bezels, 2018 TRDOR Grill, Chrome door handle covers
    Pickupman2007, Jan 21, 2018
    #10
  11. Jan 21, 2018 at 1:53 PM
    #11
    Taco1961

    #11
    Taco1961 [OP] Member

    Joined:
    Jun 28, 2017
    Member:
    #222609
    Messages:
    15
    Gender:
    Male
    South Mississippi
    Vehicle:
    2016 Tacoma sr
    Bull bar,keyless entry, nerf bars
    Thanks man

    Taco1961, Jan 21, 2018
    #11
  12. Jan 21, 2018 at 4:20 PM
    #12
    ICU1

    #12
    ICU1 Well-Known Member

    Joined:
    Sep 3, 2016
    Member:
    #196340
    Messages:
    4,544
    Gender:
    Male
    It’s for the TRD coffee maker

    ICU1, Jan 21, 2018
    #12
    kgilly, 3Sons, 2005 TRD Sport and 2 others like this.
  13. Jan 22, 2018 at 6:57 AM
    #13
    3Sons

    #13
    3Sons Member

    Joined:
    Jul 3, 2017
    Member:
    #223053
    Messages:
    11
    Gender:
    Male
    OHIO
    Vehicle:
    '17 DCSB TRD Sport 6Speed BBP
    Man I wanted the coffee maker but my dealership was out of them. I got the TRD electric blanket though.

    3Sons, Jan 22, 2018
    #13
  14. Feb 11, 2018 at 4:31 AM
    #14
    ddsrph

    #14
    ddsrph Member

    Joined:
    Feb 11, 2018
    Member:
    #244075
    Messages:
    21
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2018 4x4 access cab
    I have the same problem/question as Taco 1961. Please look at photo in post #8 above. I have the unused connector on my 2018 access cab truck. I want to
    add wiring for trailer lights and have purchased a kit from etrailer.
    There are no connectors behind the tail light assemblies as the directions describe. The only breaks in the truck harness are underneath like in photo. Is the connector next to the black unused connector where I T in?
    I have the
    $89 Tekonsha 118685 Tekonsha T-One® T-Connector Harness, 4-Way Flat, Compatible with Select Toyota Tacoma
    Tekonsha 118685 kit.
    Thanks
    JM

    ddsrph, Feb 11, 2018
    #14
  15. Feb 11, 2018 at 5:56 AM
    #15
    Harvo

    #15
    Harvo Hanging On !!!

    Joined:
    Apr 6, 2017
    Member:
    #215586
    Messages:
    957
    Gender:
    Male
    Vehicle:
    17' TRD Offroad DCSB
    SpiderTrax, RCI Sliders, Warn bumper, Smittybuilt winch, Ridge Grapplers...
    Turn on your hazards and check the plug with a meter.

    Harvo, Feb 11, 2018
    #15
  16. Feb 11, 2018 at 6:05 AM
    #16
    ddsrph

    #16
    ddsrph Member

    Joined:
    Feb 11, 2018
    Member:
    #244075
    Messages:
    21
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2018 4x4 access cab
    Good idea, will try this morning. Also did anyone find out what the grey unused connector was for?

    ddsrph, Feb 11, 2018
    #16
  17. Feb 11, 2018 at 6:42 AM
    #17
    Pickupman2007

    #17
    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    586
    Gender:
    Male
    First Name:
    Kenneth
    Murfreesboro, TN
    Vehicle:
    2022 Rivian R1T
    2020 Tacoma: Morimoto xB LED Headlights & fogs, MESO Total Tail S1, Fortin Evo One Remote Start, OEM Audio Plus System 500Q,, Redarc trailer brake controller, Carplay2Air wireless adapter, Custom shift knob, Electric tailgate lock, Chrome tailgate inserts, Limited fog light bezels, 2018 TRDOR Grill, Chrome door handle covers
    The connectors behind the tail light should be directly on the bulb sockets at the end of the harness. They might look like part of the socket if you don’t look close.


    Pickupman2007, Feb 11, 2018
    #17
  18. Feb 11, 2018 at 7:12 AM
    #18
    ddsrph

    #18
    ddsrph Member

    Joined:
    Feb 11, 2018
    Member:
    #244075
    Messages:
    21
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    2018 4x4 access cab
    Thanks that's were I was going wrong. I expected the connectors to be further down the harness.
    JM

    ddsrph, Feb 11, 2018
    #18
