What is this connector?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Versus78, May 16, 2020.

  1. May 16, 2020 at 1:59 PM
    #1
    Versus78

    #1
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport
    Hi guys,

    I was just routing a cable in the cab and noticed that 2 pins connector, on the drivers side.

    Is it supposed to be plugged somewhere?

    I have a 2016 Trd Sport, DBL Cab. automatic transmission.


    Versus78, May 16, 2020
    #1
  2. May 16, 2020 at 2:00 PM
    #2
    Skydvrr

    #2
    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    12,653
    First Name:
    Nick
    YMH
    Vehicle:
    Black '17 OR
    That's the 10+ HP button! Where's this at? Driver's kick panel?

    Skydvrr, May 16, 2020
    #2
    GillyLink likes this.
  3. May 16, 2020 at 3:11 PM
    #3
    Versus78

    #3
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport

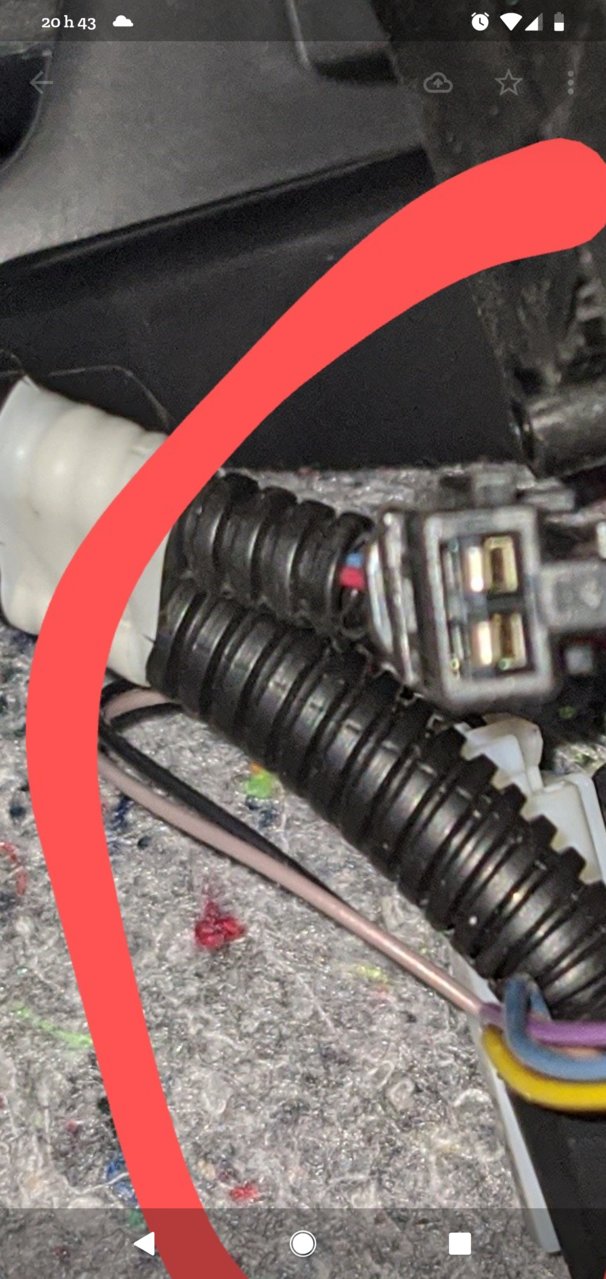

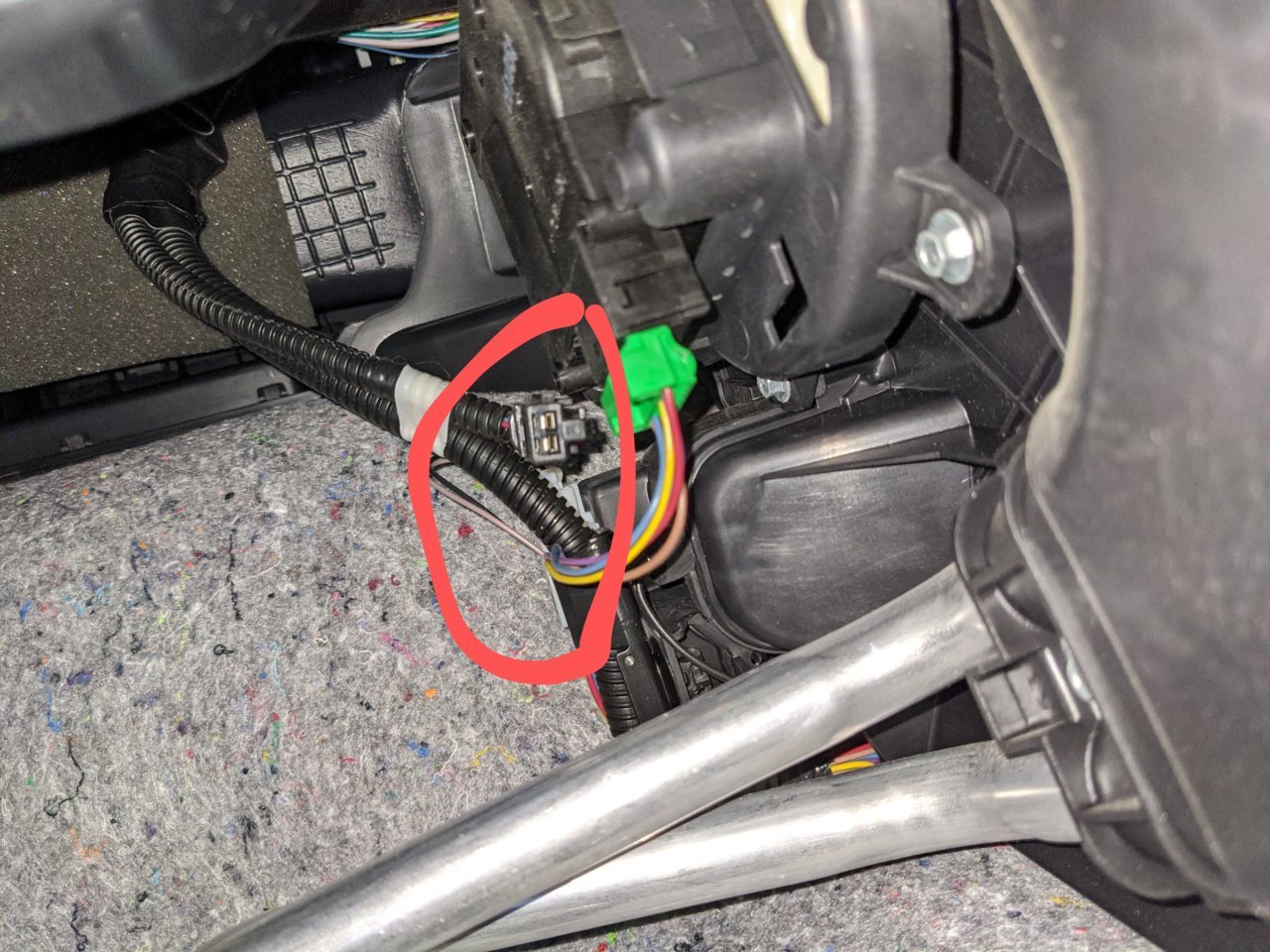

    Actually it just up and right from the accelerator, I think the green connector goes to a blower motor/vent control for climate control. Tubing is for Air-conditioning I guess... There doesn't seem to have any other accessories I can connect this connector to... And all accessories are working.

    I'm just wondering what it's for ...

    Versus78, May 16, 2020
    #3
  4. May 16, 2020 at 3:13 PM
    #4
    OMGitsme

    #4
    OMGitsme Well-Known Member

    Joined:
    Feb 8, 2019
    Member:
    #282305
    Messages:
    2,401
    Gender:
    Male
    Vehicle:
    Sold
    Crawl control. You don't have it. :rofl:

    OMGitsme, May 16, 2020
    #4
    Bleep100 likes this.
  5. May 16, 2020 at 3:18 PM
    #5
    Versus78

    #5
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport
    Damn!! :)

    Versus78, May 16, 2020
    #5
  6. May 16, 2020 at 5:20 PM
    #6
    caribe makaira

    #6
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    caribe makaira, May 16, 2020
    #6
    Versus78[QUOTED][OP] likes this.
  7. May 16, 2020 at 5:31 PM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OP, what color are the wires to the 2 pin connector?
    Rouge et bleu?

    caribe makaira, May 16, 2020
    #7
  8. May 16, 2020 at 5:42 PM
    #8
    Versus78

    #8
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport
    Yes!

    Rouge et bleu!


    Versus78, May 16, 2020
    #8
  9. May 16, 2020 at 5:44 PM
    #9
    caribe makaira

    #9
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Il semble que ce soit un système que votre véhicule ne possède pas ...

    caribe makaira, May 16, 2020
    #9
  10. May 16, 2020 at 5:47 PM
    #10
    Versus78

    #10
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport

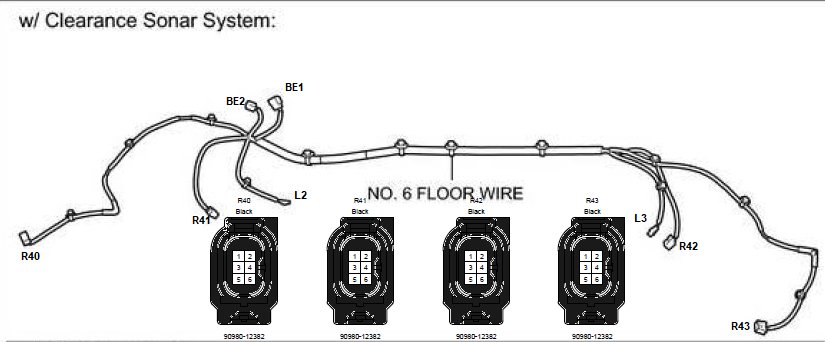

    I'm curious about what is a "clearance warning ECU". Like one poster replied, it might be related to the "crawl mode" of the Trd Offroad?

    Would it be possible to have a copy of your diagram?

    Versus78, May 16, 2020
    #10
  11. May 16, 2020 at 5:50 PM
    #11
    caribe makaira

    #11
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

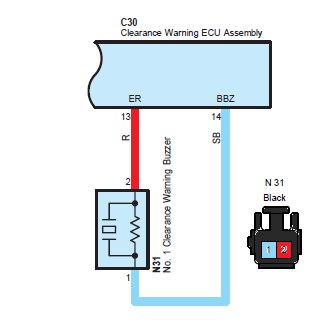

    It is the little round things on the rear bumper...it gets louder as the vehicle approaches a possible collision while moving slowly...


    Attached Files:

    caribe makaira, May 16, 2020
    #11
    Skydvrr and Versus78[OP] like this.
  12. May 16, 2020 at 6:00 PM
    #12
    Versus78

    #12
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport
    Ok I don't have that option. Makes sense :)

    Thank you!!

    Versus78, May 16, 2020
    #12
  13. May 16, 2020 at 6:01 PM
    #13
    caribe makaira

    #13
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    :thumbsup:

    caribe makaira, May 16, 2020
    #13
  14. May 16, 2020 at 6:04 PM
    #14
    caribe makaira

    #14
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

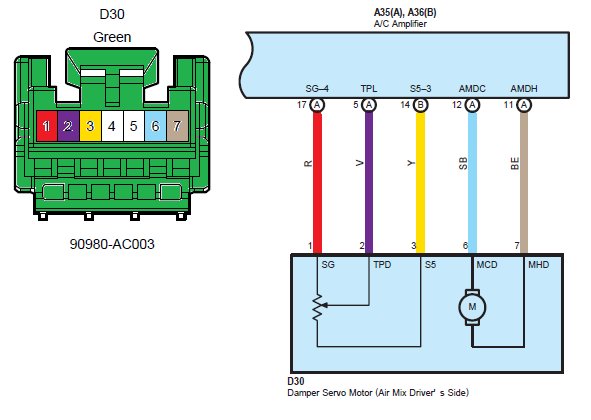

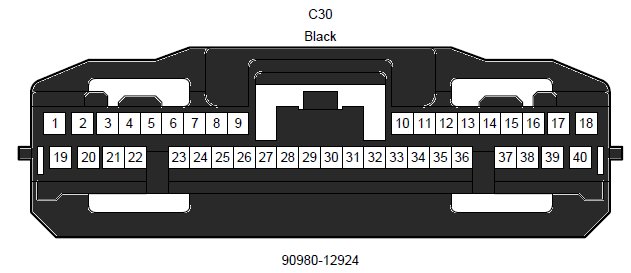

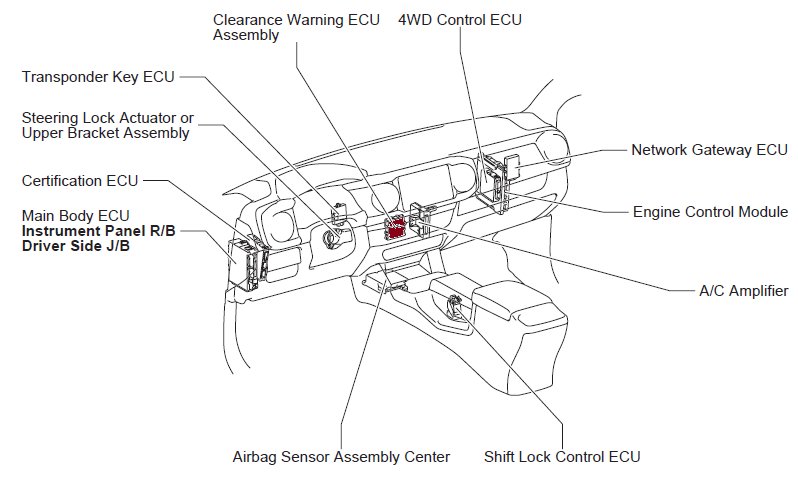

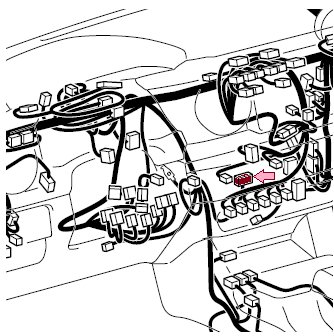

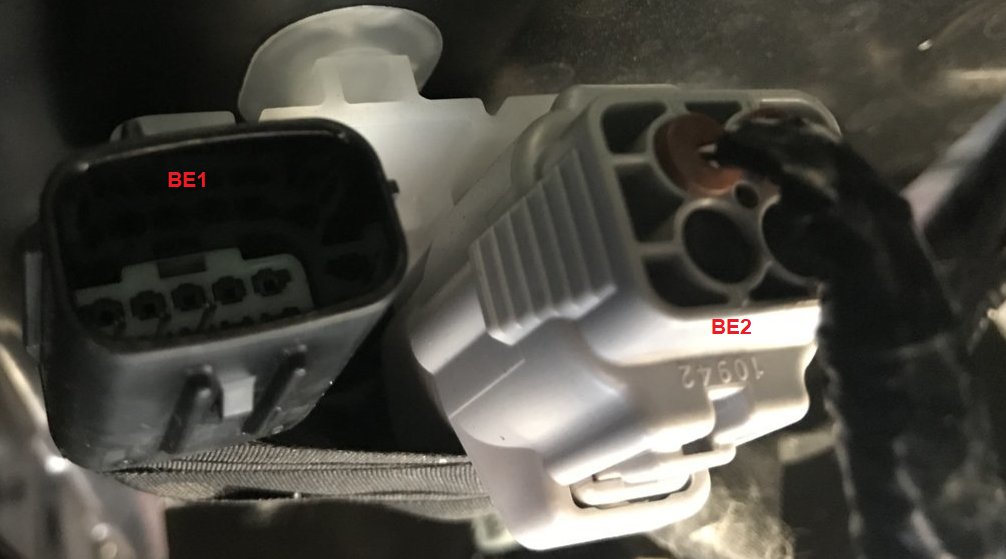

    Follow the wire to the center console area, see if you have this connector:
    It should be behind the center console switches, below the head unit.



    Last edited: May 16, 2020
    caribe makaira, May 16, 2020
    #14
  15. May 16, 2020 at 6:13 PM
    #15
    caribe makaira

    #15
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,


    caribe makaira, May 16, 2020
    #15
  16. May 16, 2020 at 6:25 PM
    #16
    Versus78

    #16
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport
    Thank you ! That's good information. You seem to know the electrical of that truck pretty good. :)

    I don't have issues with the system.. I was routing a coax cable for Ham radio installation in my truck and when I was zip-tying the cable I noticed that connector. From what I understand about the diagram that connector would be to connect the buzzer if I had the sensors installed in my bumper...

    Versus78, May 16, 2020
    #16
  17. May 16, 2020 at 6:37 PM
    #17
    caribe makaira

    #17
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You are correct...
    :thumbsup:

    caribe makaira, May 16, 2020
    #17
  18. May 16, 2020 at 6:49 PM
    #18
    STrooper

    #18
    STrooper For HIS glory!

    Joined:
    Jan 27, 2019
    Member:
    #280870
    Messages:
    2,131
    Gender:
    Male
    First Name:
    Jack
    NC
    Vehicle:
    2018 TRD Sport QuickSand / 2020 TRD Sport Cement!
    So the other question is, would it be possible to install an actual bumper sensor since your truck is pre-wired? I wonder if mine has the same connector, mine is a 18 Sport.

    STrooper, May 16, 2020
    #18
  19. May 16, 2020 at 6:56 PM
    #19
    Versus78

    #19
    Versus78 [OP] Member

    Joined:
    Mar 23, 2019
    Member:
    #287630
    Messages:
    16
    Gender:
    Male
    First Name:
    Sébastien
    Vehicle:
    2016 Tacoma, TRD Sport
    Well, I don't want to tear down my console but I am assuming that the cable is pre-installed but the clearance ECU isnt there either...

    Versus78, May 16, 2020
    #19
