What is this wiring harness?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by novataco, Aug 21, 2020.

  1. Aug 21, 2020 at 9:17 AM
    #1
    novataco

    #1
    novataco [OP] Well-Known Member

    Joined:
    Jul 15, 2008
    Member:
    #7953
    Messages:
    502
    Gender:
    Male
    NOLA
    Vehicle:
    06 Sport V6 auto
    Aries bull bar, Lund grill screen, blackened h/l, Weathertech plastic all over, Access LE tonneau, window tint, tube steps, DF-Toy aux adapter, cig plug always on, console vault, hitch step, 1700 watt in-cab inverter and dual battery (in-progress), Delta bike hitch mounts

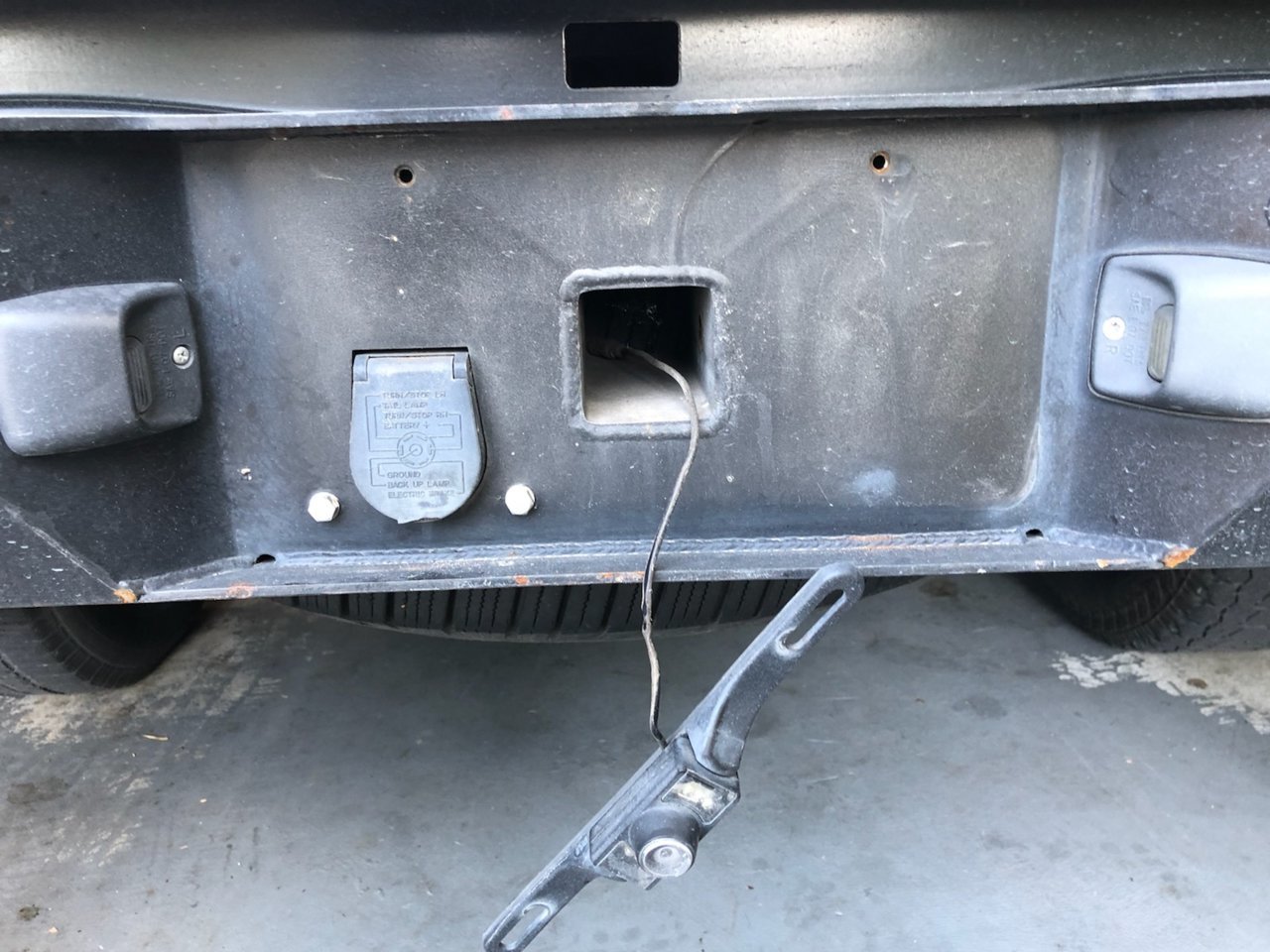

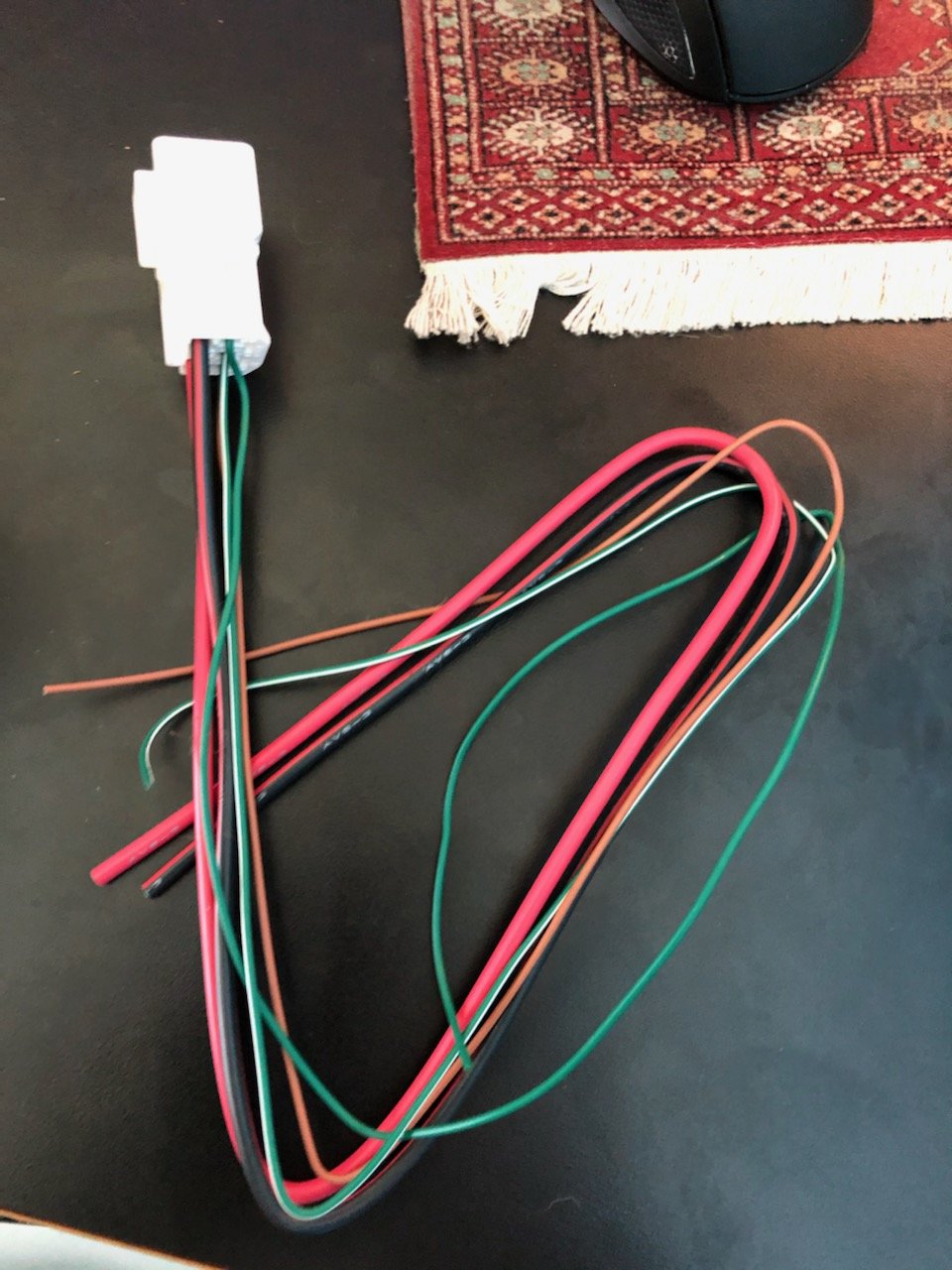

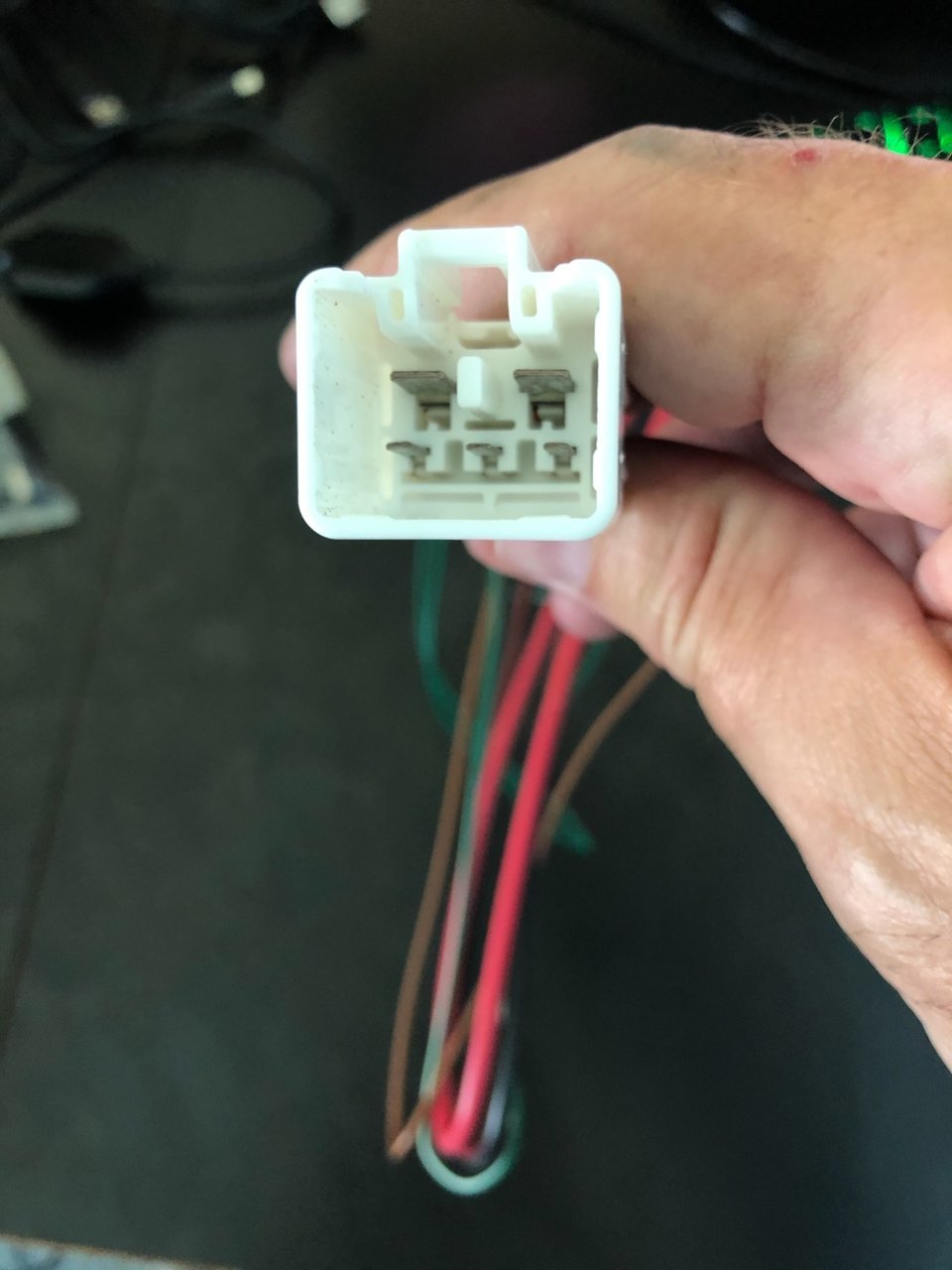

    It was in my glove box of my 2006 TRD Sport since it was new. Maybe related to the stereo? Thanks!


    novataco, Aug 21, 2020
    #1
  2. Aug 21, 2020 at 9:24 AM
    #2
    jmaack

    #2
    jmaack Well-Known Member

    Joined:
    Jun 9, 2014
    Member:
    #131634
    Messages:
    4,894
    Gender:
    Male
    First Name:
    Justin
    Helena Alabama
    Vehicle:
    Skewped hood silver 4runner
    Ome, Sqeak free dakars, arms, skids, sliders.
    brake controller connector.

    jmaack, Aug 21, 2020
    #2
  3. Aug 21, 2020 at 11:21 AM
    #3
    novataco

    #3
    novataco [OP] Well-Known Member

    Joined:
    Jul 15, 2008
    Member:
    #7953
    Messages:
    502
    Gender:
    Male
    NOLA
    Vehicle:
    06 Sport V6 auto
    Aries bull bar, Lund grill screen, blackened h/l, Weathertech plastic all over, Access LE tonneau, window tint, tube steps, DF-Toy aux adapter, cig plug always on, console vault, hitch step, 1700 watt in-cab inverter and dual battery (in-progress), Delta bike hitch mounts
    I have the tow package so isn't the brake controller included in the round 7 pin connector?


    novataco, Aug 21, 2020
    #3
  4. Aug 21, 2020 at 11:34 AM
    #4
    4x4Runner

    #4
    4x4Runner Sam’s gone, man. Moderator

    Joined:
    Sep 9, 2006
    Member:
    #7
    Messages:
    25,216
    Gender:
    Male
    First Name:
    Drunken Sailor
    Not north, not south, not west, mostly east
    Vehicle:
    1WD
    nuttin fancy
    It’s the trailer brake harness. Think it would connect to a connector back behind the drivers side kick plate by the left foot.

    4x4Runner, Aug 21, 2020
    #4
  5. Aug 21, 2020 at 11:42 AM
    #5
    BKinzey

    #5
    BKinzey Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186211
    Messages:
    1,492
    Gender:
    Male
    First Name:
    Beauford
    Hollywierd, CA
    Vehicle:
    2015 White Tacoma Access Cab TRD Off Road 4x4 V6
    RCI aluminum front skid, SnugTop, Sliders, bedside supports, LED interior, CaliRaised fogs & brackets, rear diff breather mod, DIY bed platform
    Trailer Brake Jumper Harness.

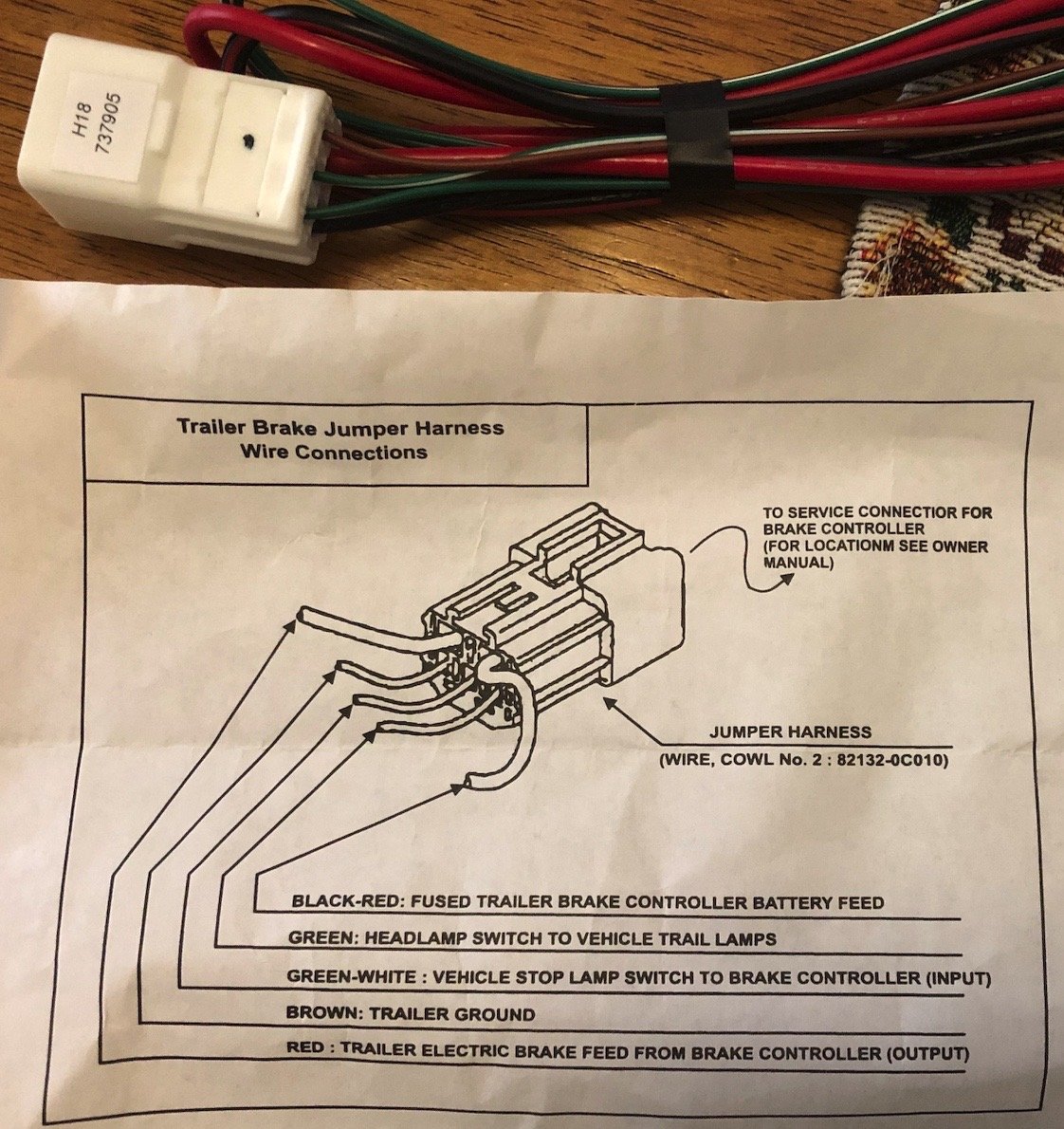

    Mine has a wiring diagram.Trailer Brake WH.jpg

    BKinzey, Aug 21, 2020
    #5
  6. Aug 21, 2020 at 11:49 AM
    #6
    Muddinfun

    #6
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,489
    Your truck is all prewired for a trailer brake controller, but there's no controller. Having that pigtail simplifies the controller install. You just connect that pigtail to the controller, find the matching connector by the kick panel, plug it in, mount the controller and you're done.

    Muddinfun, Aug 21, 2020
    #6
  7. Aug 21, 2020 at 11:53 AM
    #7
    BKinzey

    #7
    BKinzey Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186211
    Messages:
    1,492
    Gender:
    Male
    First Name:
    Beauford
    Hollywierd, CA
    Vehicle:
    2015 White Tacoma Access Cab TRD Off Road 4x4 V6
    RCI aluminum front skid, SnugTop, Sliders, bedside supports, LED interior, CaliRaised fogs & brackets, rear diff breather mod, DIY bed platform
    I forgot I had one and bought a prewired adaptor, from eTrailer I think. It was cheap, $12? And no muss, no fuss.

    BKinzey, Aug 21, 2020
    #7
