Discussion in '1st Gen. Tacomas (1995-2004)' started by ProjectEric2.0, Feb 28, 2019.

  1. Feb 28, 2019 at 2:52 AM
    #1
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows

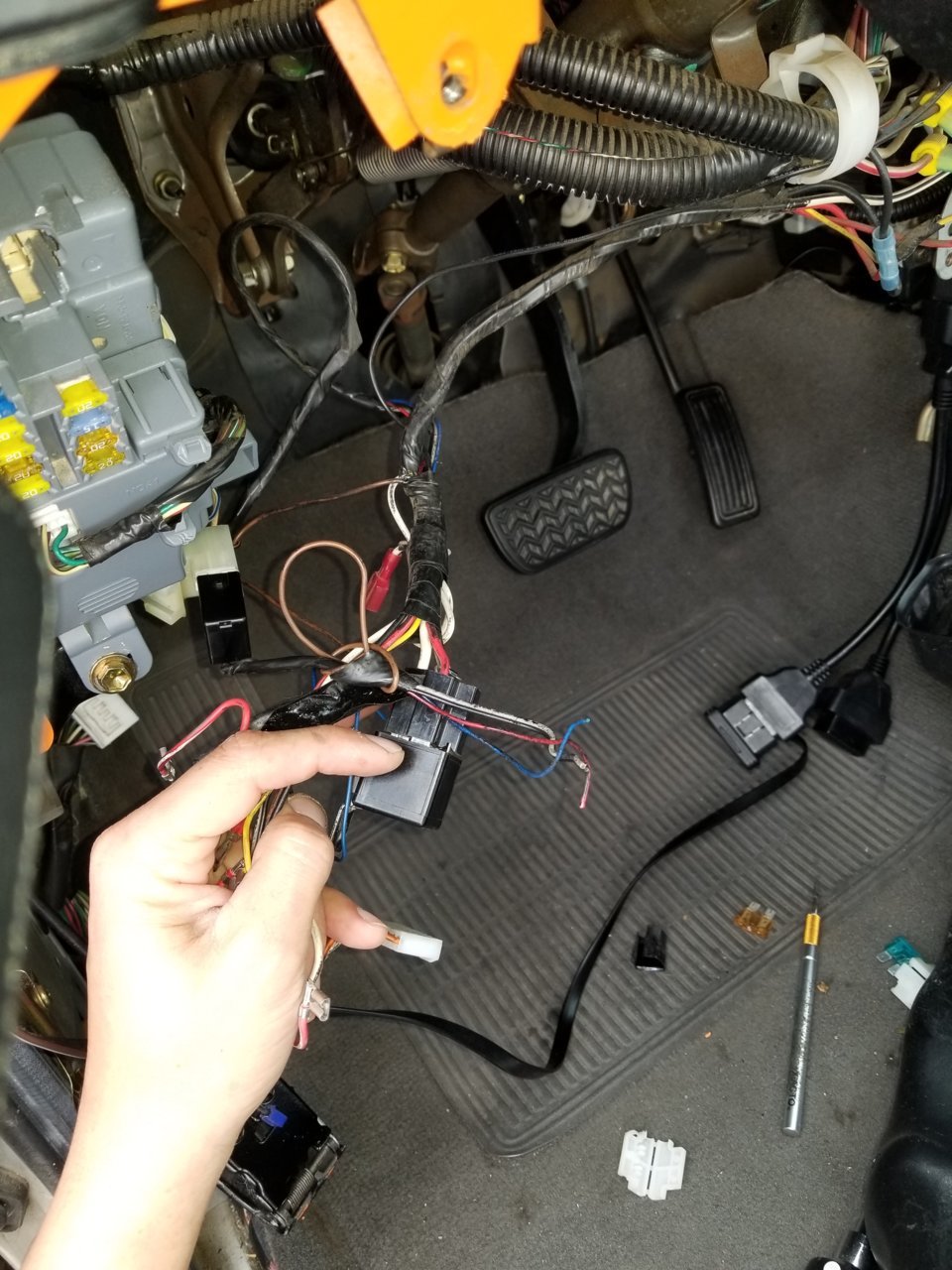

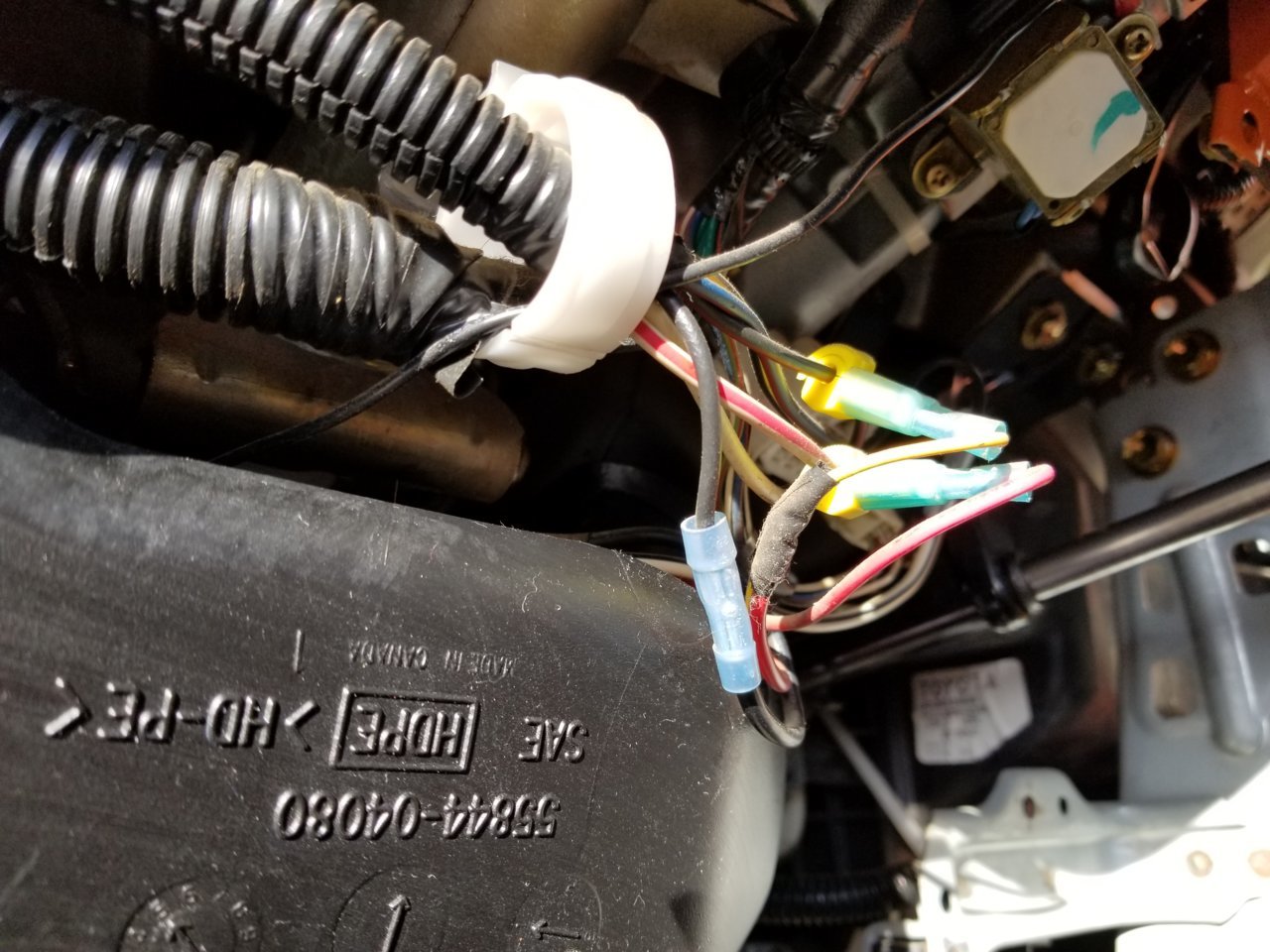

    I see an inline fuse. Dont know what these wires are for. Help. This is under steering wheel. 2003 tacoma reg cab 2.4 engine automatic


  2. Feb 28, 2019 at 3:19 AM
    #2
    Wsteven

    Wsteven Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260806
    Messages:
    894
    Gender:
    Male
    Vehicle:
    2018 Tacoma TRD Pro
    Working on them
    Not enough information from that one photo outside the fact that it is Not OEM and it is very messy work we can see 2 inline fuses there your best bet is someone installed something there and removed it before selling. That plug on the left side (far left) is OEM the plug hanging down is not.

  3. Feb 28, 2019 at 3:28 AM
    #3
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,744
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Looks like an old alarm or keyless entry harness. The relay is probably interfacing the starter or ignition wire.

    Last edited: Feb 28, 2019
  4. Feb 28, 2019 at 4:03 AM
    #4
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    Is that for power windows or something. The oem plug?

  5. Feb 28, 2019 at 4:06 AM
    #5
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows

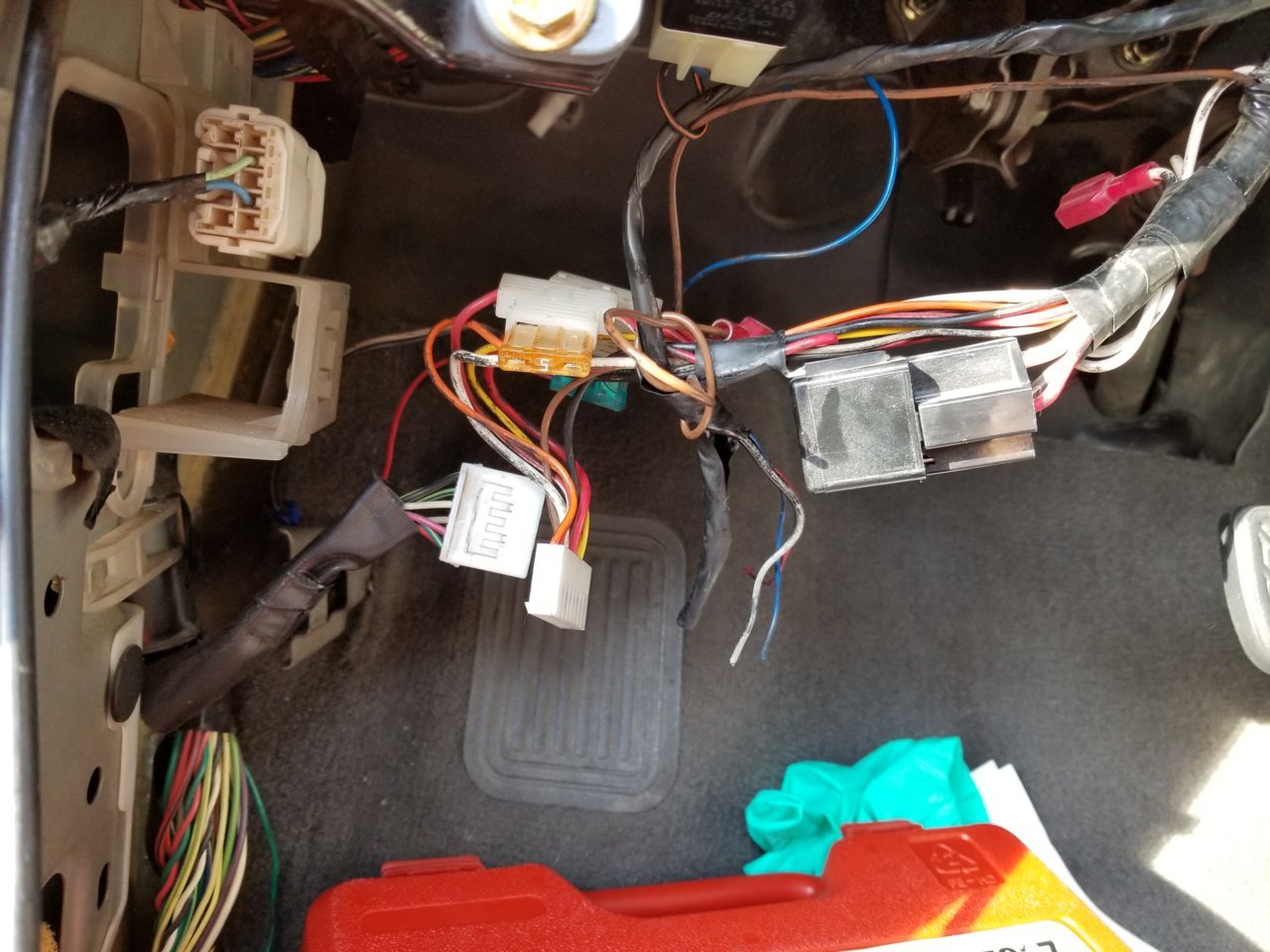

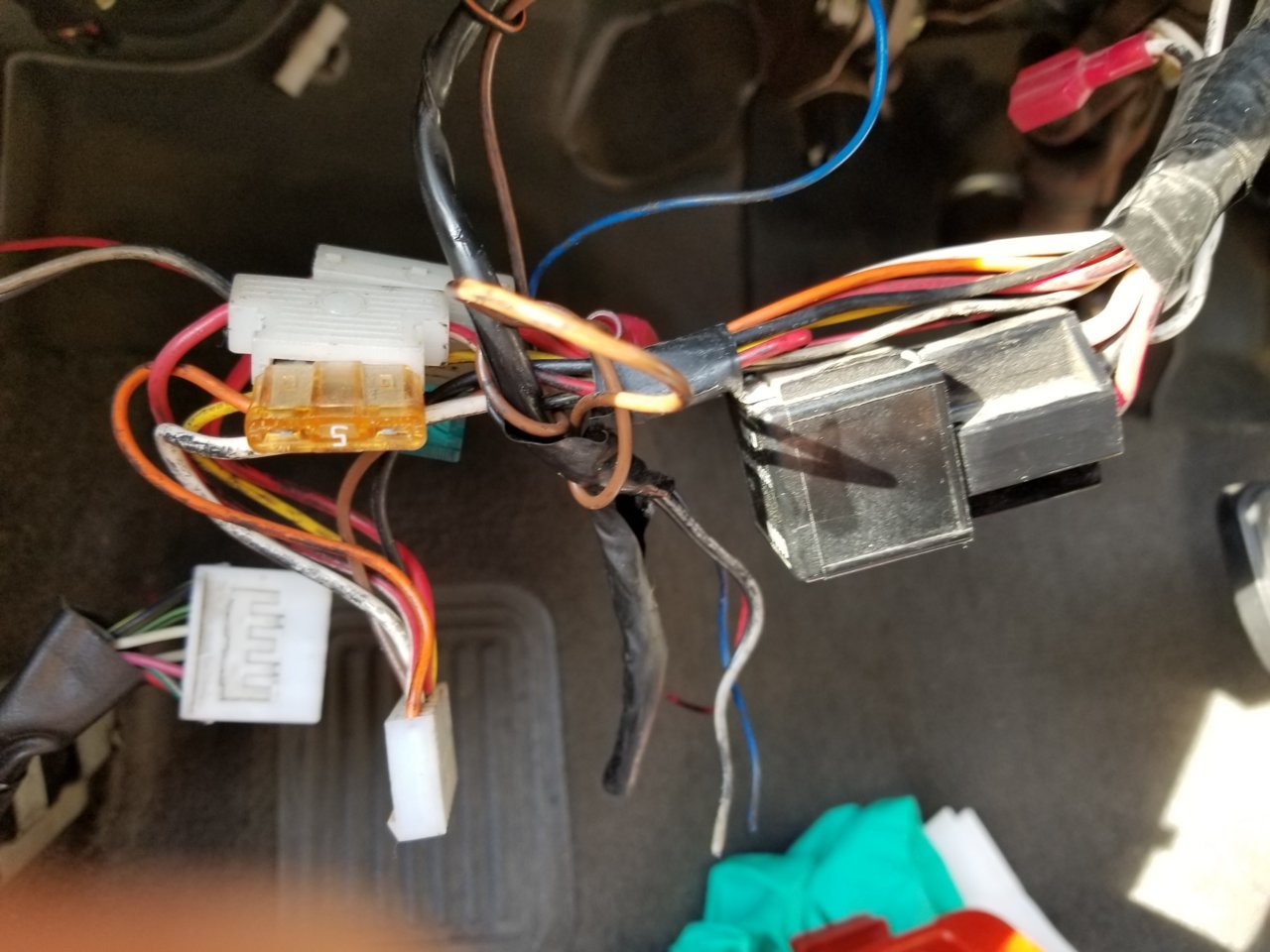

    More pics if it helps. Any links so i can research this?


  6. Feb 28, 2019 at 4:07 AM
    #6
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    I just want to put wiring back to stock. Do wiring mods once i know about them

  7. Feb 28, 2019 at 4:18 AM
    #7
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,744
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Definitely an alarm. The got what looks to be the starter wire interfaced (cut) black wire. They are tapped into the white/red which is 12v. The black/red is ignition input.

    Just remove it all. And connect your starred wire back to normal. They are probably tied into the parking light (white wire from alarm harness) circuit, door ajar (usually green or purple on the harness), the black is a ground wire, brown is siren/horn output.

    Other wires probably for the door locks but doesn’t look like they are the standard colors (usually green and blue).

    You won’t do any harm removing it all. Just be sure to reconnect that thick black starter wire going to the key cylinder or the truck won’t start

    TheFatWorm likes this.
  8. Feb 28, 2019 at 4:44 AM
    #8
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    This is over my head. I dont have power lock nor power windows. Ok at least this is a start. I'll look at videos on how to add an alarm and power locks to get a better idea visually. Thank you sooooo much! This site is great. By black wire you mean the one wrapped in black tape?

  9. Feb 28, 2019 at 5:17 AM
    #9
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,744
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Ok, didn’t know you didn’t have power locks and windows, that doesn’t matter just will be less wires that they had to tap into. That entire harness that is dangling was for an alarm. Just follow all the wires and remove them from the source (where they tap into the factory wiring. Then tap any bare wires back up. Those taps they used on the ignition wires, are called t-tap’s. You can remove them as well with a pick or flat head screw driver. They basically clamp around the wire and pierce it with 2 prongs. If the metal piece is there once you take the plastic piece off just use some pliers to pull it off the wire.

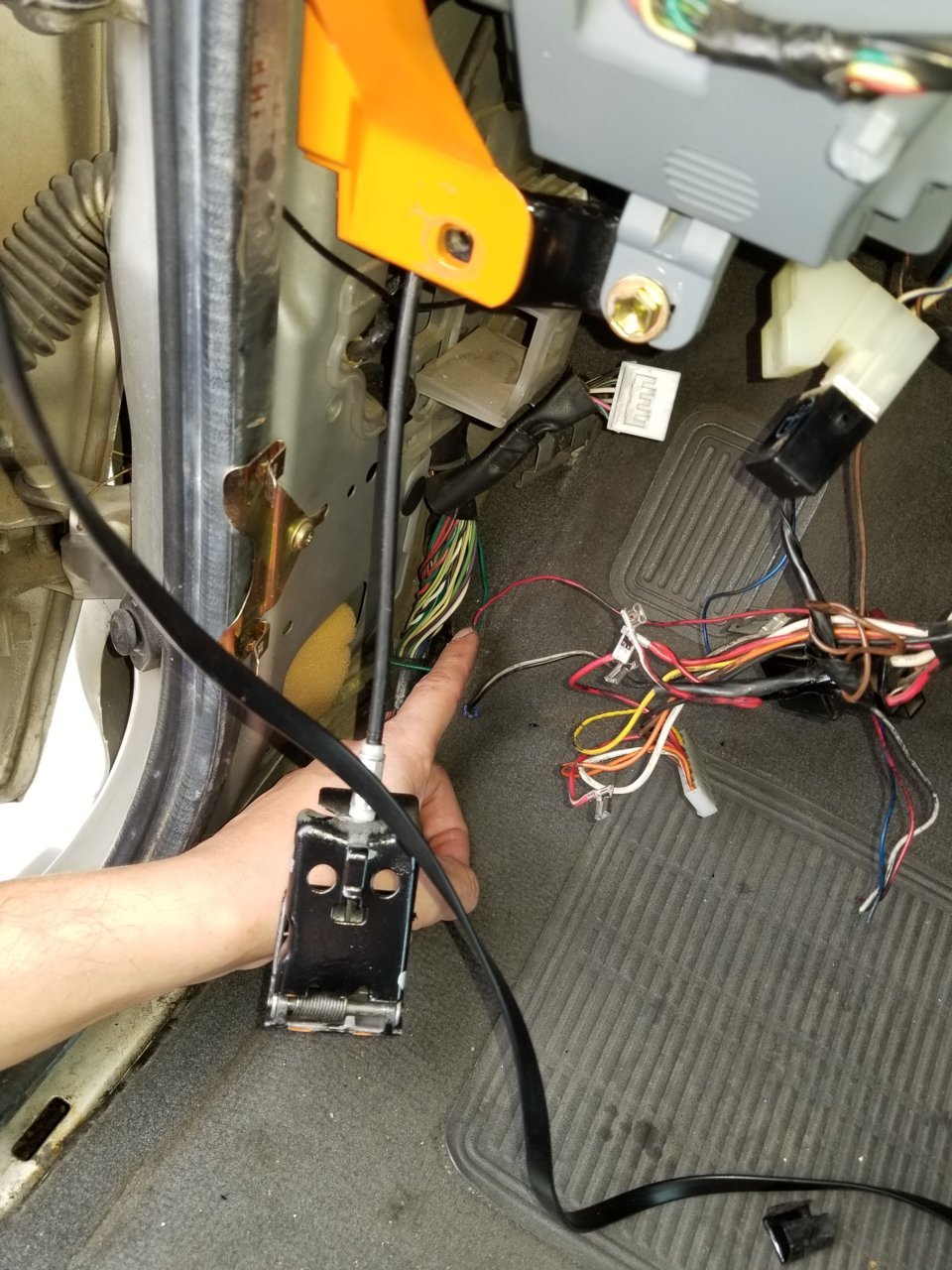

    As for the black (starter) wire, I circled it in an attachment below. You’ll need to cut the butt connector off both ends where they cut it and tied into it. Then you will need to reconnect it either using another butt connector or solder it back together. It’s important to have a good connection on this wire as it provides power to the relay/solenoid that powers the starter motor. You may have to buy or use a piece of the wire they used to tie into that wire to extend it, so to speak, if it’s too short to connect. Or just try to pull on the side that’s running away from the key cylinder and you may get a little slack.


  10. Feb 28, 2019 at 6:09 AM
    #10
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    Thanks for clarifying black wire by circling on it. I have no power on sockets even when i changed fuse so thought these wires were probably the issue. Thank you lawfarin

    Lawfarin likes this.
  11. Feb 28, 2019 at 6:54 AM
    #11
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,744
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    That red wire that’s tapped into that thick white/red should have 12v on it. Unless that T-tap is fried or not plugged in correctly.

    It’s hard to see exactly what’s going on as I’m sure they have crossed wires and change some of the colors. On that alarm harness the red wire is usually 12v constant and the yellow is usually 12v ignition (switched). Just snip then out one at a time so you don’t short anything out and you’ll be ok.

    TheFatWorm likes this.
  12. Feb 28, 2019 at 7:56 AM
    #12
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    4,041
    Gender:
    Male
    lafarin is correct... that relay is for starter disable. Every alarm I have removed has had only one wire cut and that is the starter disable wire and the relay wired in between.

    TheFatWorm and Lawfarin like this.
  13. Mar 2, 2019 at 12:29 PM
    #13
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    Ok Ive re-read while looking at the wires up close. So wires dangling from lower dash is trash. Follow the source yo ignition switch and disconnect all taps. Then reconnect starter wire (black) then all done right?

  14. Mar 2, 2019 at 12:36 PM
    #14
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows

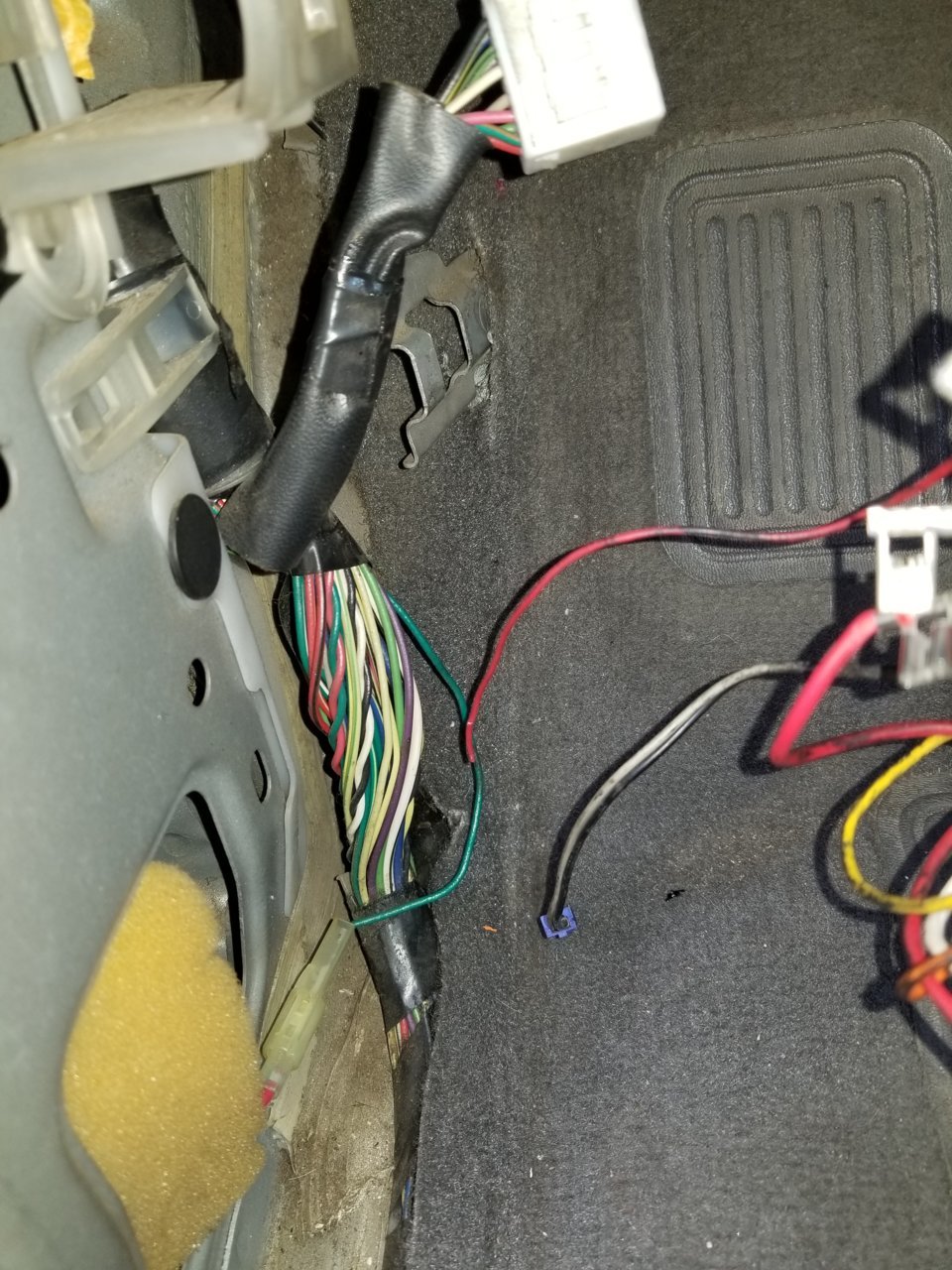

    Ok lets start with liwer dash wires. This is just yhe alarm harness that i can trash right? Even that relay? (See pic 1)

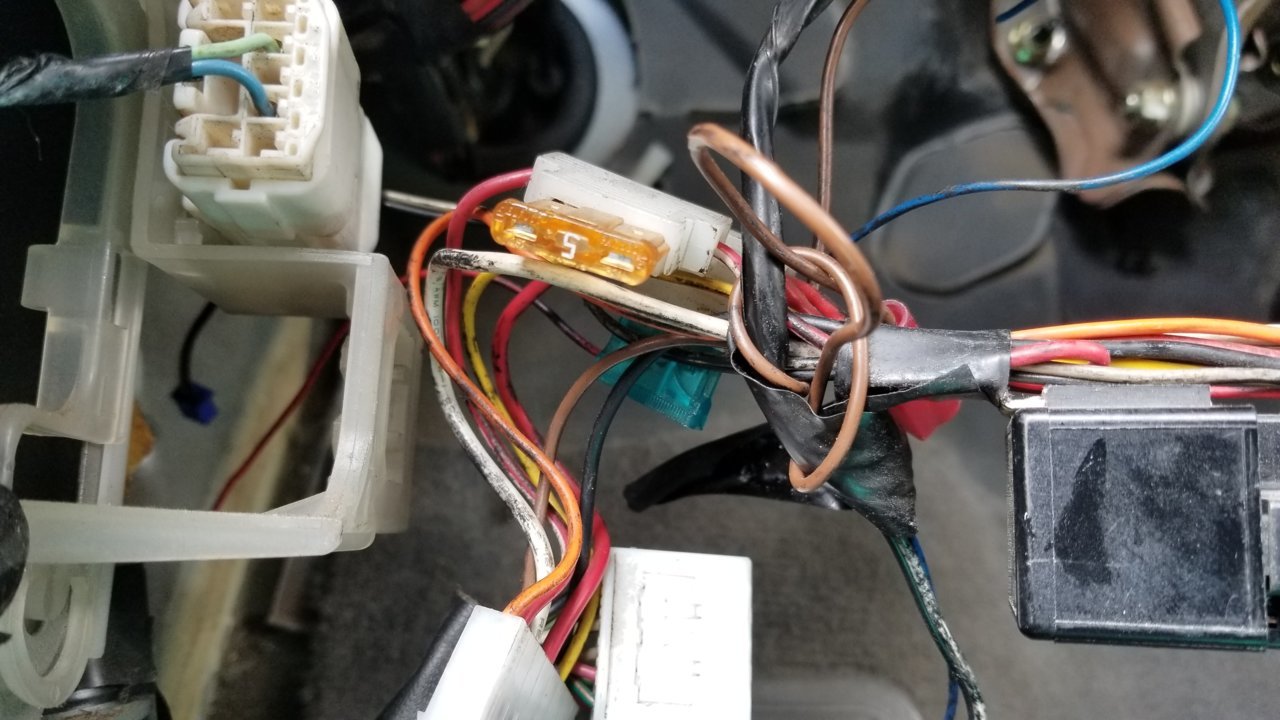

    It is not connected/tapped to this relay behind fuse box (pic 2)


  15. Mar 2, 2019 at 12:38 PM
    #15
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows

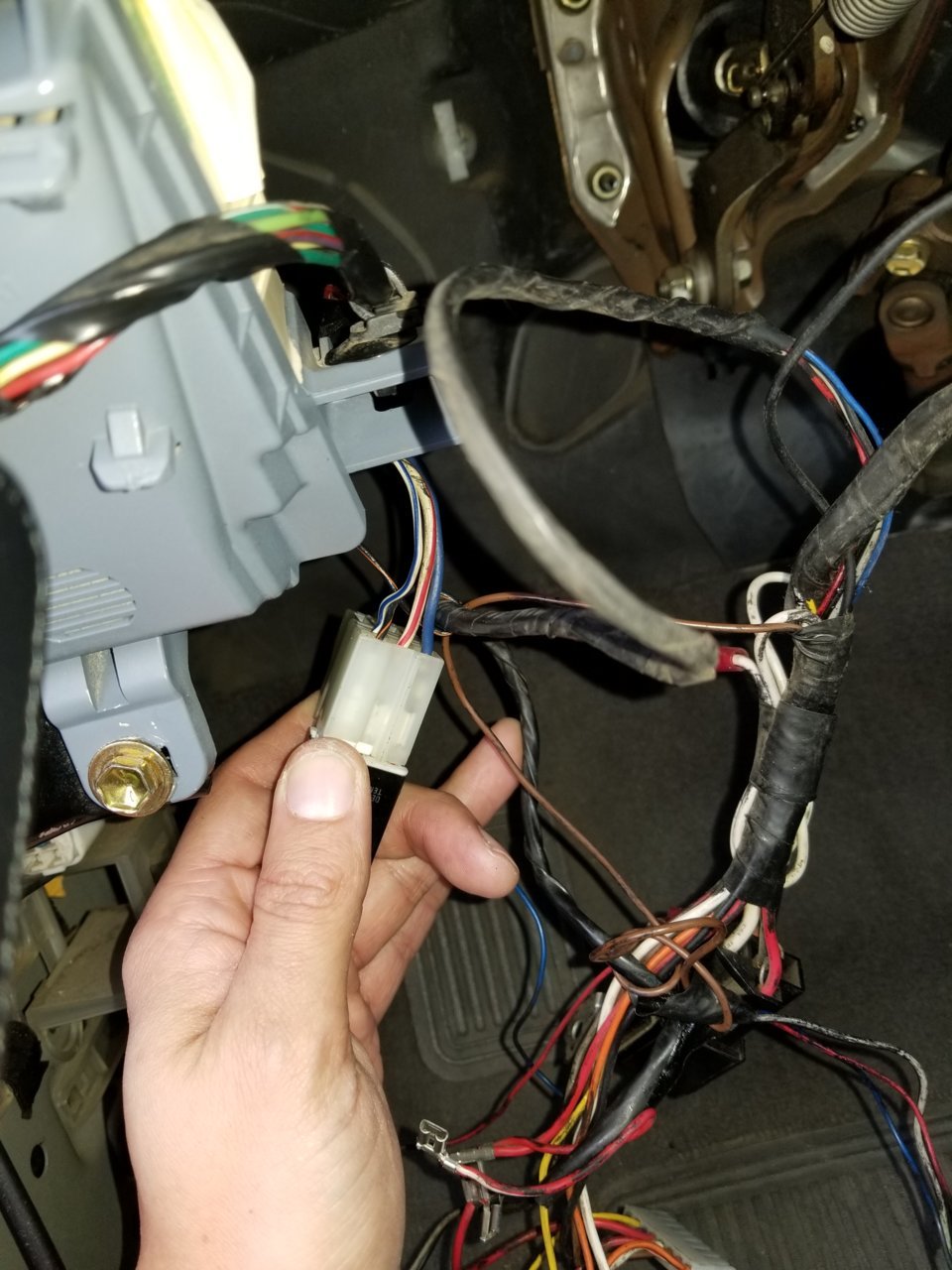

    Is this the purple wire you spoke of?


  16. Mar 2, 2019 at 12:41 PM
    #16
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows

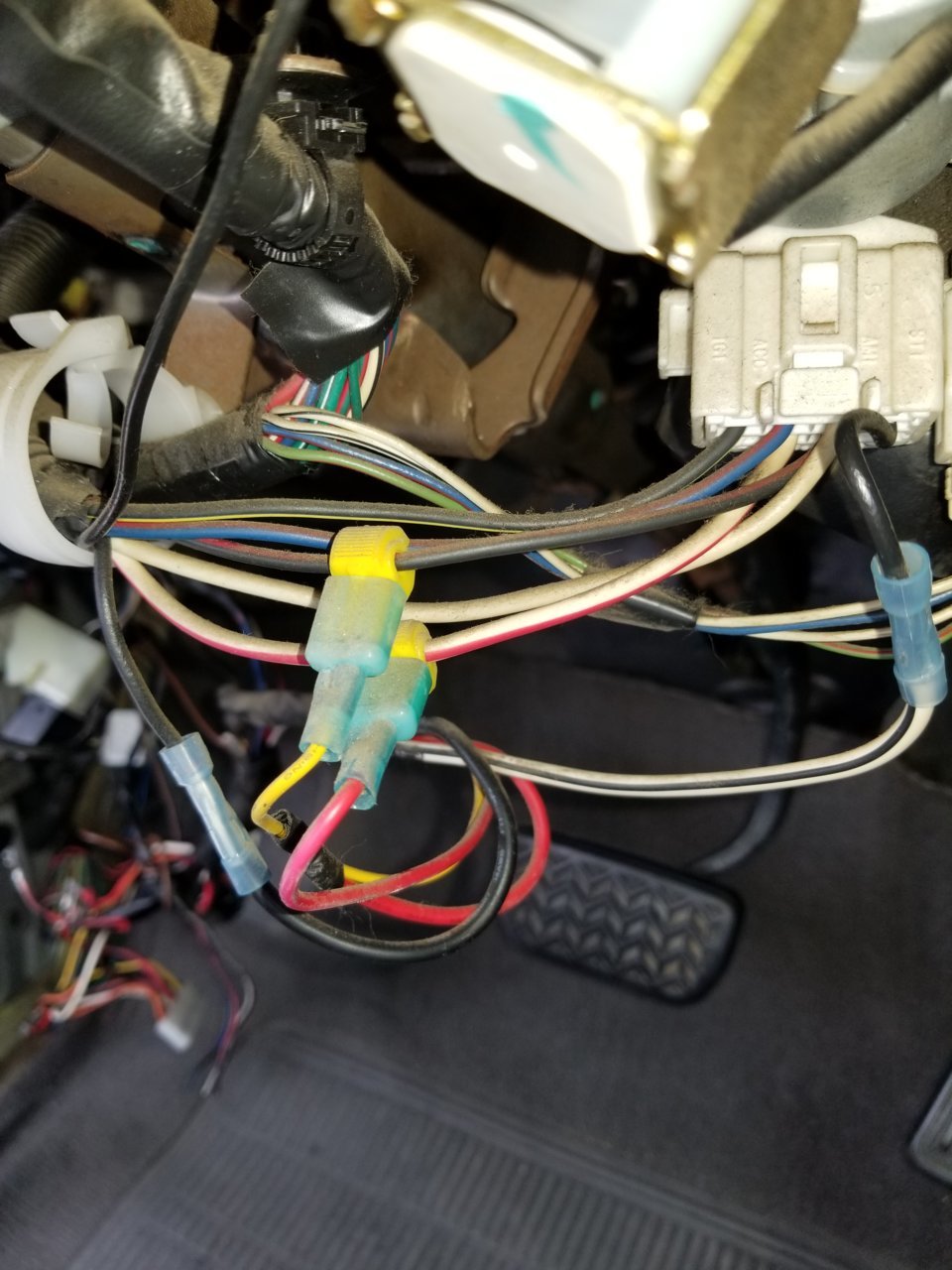

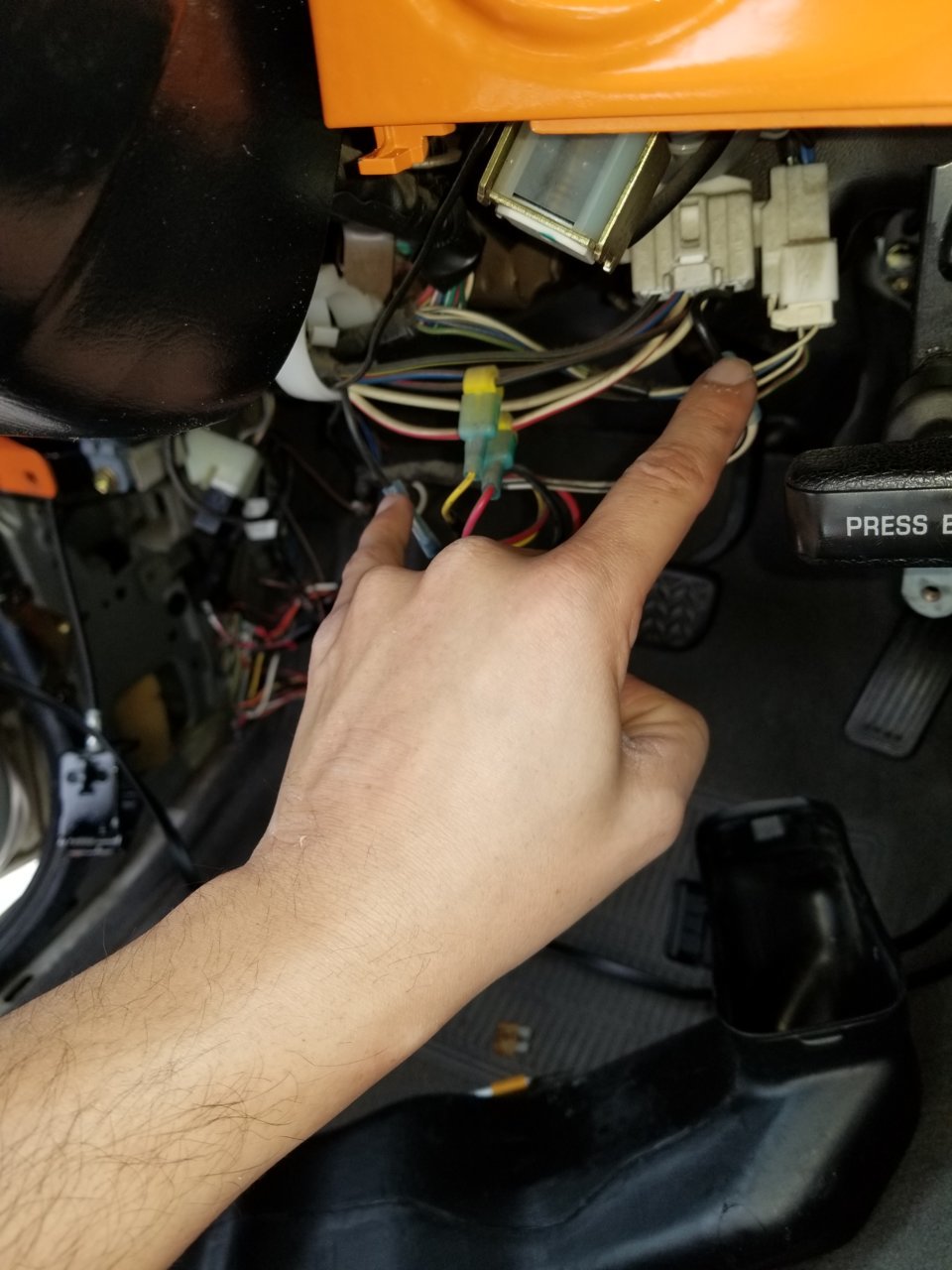

    Wires by ignition. Untap blue taps then reconnect black wires to where im pointing? (See pic)

    Pic 2 is zoomed in


  17. Mar 2, 2019 at 12:42 PM
    #17
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    Glam see my questions to lafarin. Confirm im correct to proceed? Thank you

  18. Mar 2, 2019 at 12:48 PM
    #18
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    That oem is probably for power windows right? I have base model which everythi ng is manual. I plan to add power windows and locks.

  19. Mar 2, 2019 at 1:06 PM
    #19
    ProjectEric2.0

    ProjectEric2.0 [OP] Well-Known Member

    Joined:
    Feb 12, 2019
    Member:
    #282745
    Messages:
    130
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2003 toyota tacoma 2wd standard cab 2.4L
    Interior paint, LED lights, speedometer projector, tinted windows
    Also is this ground wire from alarm or its part of oem connection?


  20. Mar 2, 2019 at 2:17 PM
    #20
    Lawfarin

    Lawfarin Who me?

    Joined:
    Oct 25, 2015
    Member:
    #167659
    Messages:
    7,744
    Gender:
    Male
    First Name:
    Beetle Juice
    NY
    Yep. Unplug the taps. Remove that ground. That’s for the aftermarket wiring too. Then cut those butt connected out that run to the black wire and reconnect the black wire back together. Again you might have to extended the wire a little. If so maybe just leave the butt connectors in there and cut the wire a few inches after them with a new butt connector (together)
