Wheel offset information

Discussion in '3rd Gen. Tacomas (2016-2023)' started by justinlj93, Jan 9, 2019.

  1. Jan 9, 2019 at 10:55 AM
    #1
    justinlj93

    #1
    justinlj93 [OP] Well-Known Member

    Joined:
    May 2, 2018
    Member:
    #252312
    Messages:
    66
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 MGM Tacoma TRD off road 4x4
    Hello all, was just wanting to know what the minimum wheel offset would be needed to clear the stock UCAs running 285/75 tires. Thanks.

    justinlj93, Jan 9, 2019
    #1
  2. Jan 9, 2019 at 1:25 PM
    #2
    Hookedup

    #2
    Hookedup Well-Known Member

    Joined:
    Jun 27, 2014
    Member:
    #132830
    Messages:
    773
    Gender:
    Male
    First Name:
    Chris
    SOFLO
    Vehicle:
    2012 DCSB SPORT/ 2019 OR DCSB
    FOX 2.5 DSC/ICON RXT/SPC UCA
    Can’t tell you exactly.. it depends on wheel size too.. i have 285s 18x9 with a (5” BS 0 Offset) with stock UCAs (2nd Gen) it’s a close fit but no rubbing.

    Hookedup, Jan 9, 2019
    #2
  3. Jan 9, 2019 at 1:28 PM
    #3
    EatSleepTacos

    #3
    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,834
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner

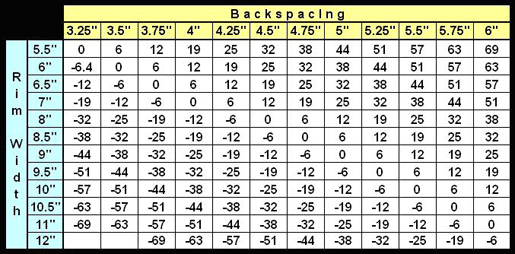

    Backspacing is the number you're looking for. 4.5" BS is the recommendation to clear 285s. You can use an online calculator to input the offset and wheel width to get the backspacing.

    EatSleepTacos, Jan 9, 2019
    #3
    Hookedup likes this.
  4. Jan 9, 2019 at 1:44 PM
    #4
    splitbolt

    #4
    splitbolt Voodoo Witch Doctor

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    7,858
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    ^What they said...

    splitbolt, Jan 9, 2019
    #4
    justinlj93[OP] likes this.
  5. Jan 10, 2019 at 1:46 PM
    #5
    justinlj93

    #5
    justinlj93 [OP] Well-Known Member

    Joined:
    May 2, 2018
    Member:
    #252312
    Messages:
    66
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 MGM Tacoma TRD off road 4x4
    sorry about that shouldve mentioned my wheel size. 16"x8" -15mm

    justinlj93, Jan 10, 2019
    #5
  6. Jan 10, 2019 at 1:59 PM
    #6
    jerryb1984

    #6
    jerryb1984 Well-Known Member

    Joined:
    Oct 6, 2018
    Member:
    #268494
    Messages:
    459
    Gender:
    Male
    First Name:
    Jerry
    Vehicle:
    2018 DCLB TRD OFF ROAD
    16x8 FUEL BEAST 265 75 16 FALKEN WILDPEAK AT3 Tyger step sides 20% tint front to match factory tint bilstein 5100s on third notch PRO grill
    Those will work. You already have the wheels?

    jerryb1984, Jan 10, 2019
    #6
    Hookedup likes this.
