Where Form Meets Function. Steveo27’s Bolt-on Thread (Camping/Fishing/Weekend Exploring Build)

Discussion in '2nd Gen. Builds (2005-2015)' started by steveo27, Aug 21, 2013.

  1. Aug 21, 2013 at 8:57 PM
    #1
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    I'm Steve. I'm from Pittsburgh.

    This is my "build" thread for my 2011 TRD Off Road Tacoma.



    This is where form meets function.


    I bought this truck as a daily driver with intentions of keeping it stock. That didn't last long.


    When I was truck shopping, I fell in love with the look of the TRD Sport trucks. Color matched parts, big 5 spoke wheels. I initially wanted a Speedway Blue V6, 6 speed manual, long bed, access cab, 4wd truck.


    After months of looking, I was never able to find one.


    I did however find a TRD Off Road with all those features, except it was silver. Initially I wasnt super keen on the color, but I bought it because it basically had everything else I was looking for in the price range I was looking to spend in the mileage range I was comfortable with.


    I purchased the truck in July of 2013 from a local Ford dealer off their used car lot. It was a one owner 44k mile truck for under 27,000$.



    It wasn't until after I bought the truck I realized the trade off I made buying an Off Road over a Sport by giving up the color matched parts and big 5 spoke wheels I got Atrac and a locking rear differential.


    Anyways....


    - Long story short. Here's whats going on with the truck -


    The initial plan for this truck started off pretty simple


    1. Keep it basically stock so its super reliable, but change a few things to make it look a little bit more like a TRD Sport - 17" Sport wheels, painted handles and mirrors, ect.


    That didn't last long. The new plan was to


    2. Upgrade some things to make it more practical and capable off road on camping, fishing and hunting trips - small lift to handle forest roads.


    As much as I wanted to go nuts on the truck, I couldnt. I already have a full on built show car for that stuff...

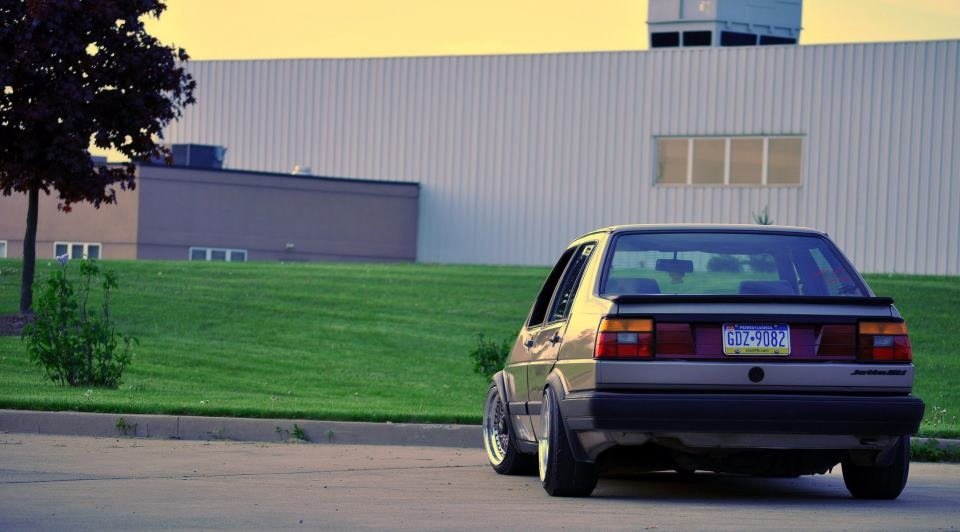

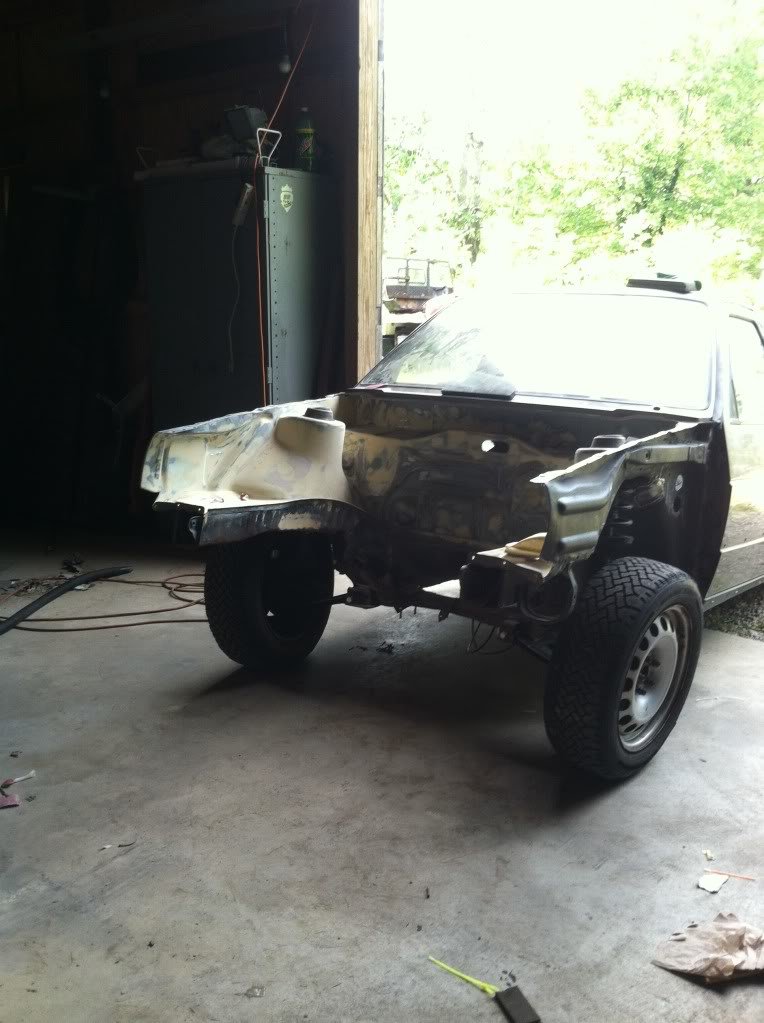

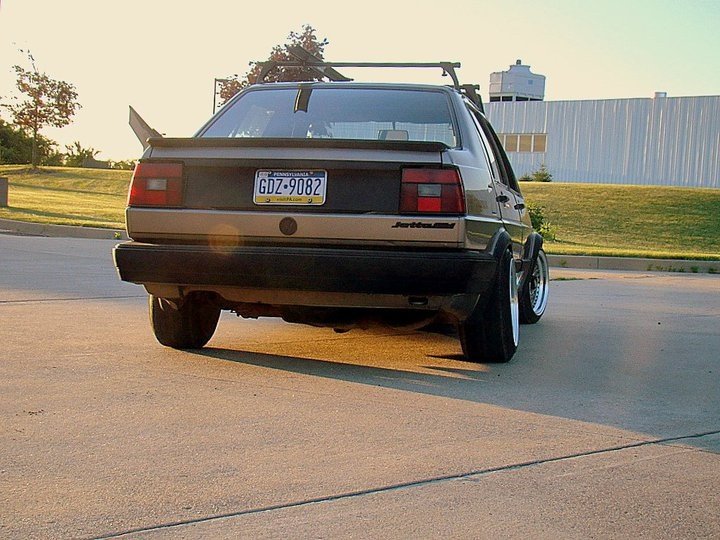

    Its a '92 VW Jetta. I've been dicking with it since 2005


    [​IMG]

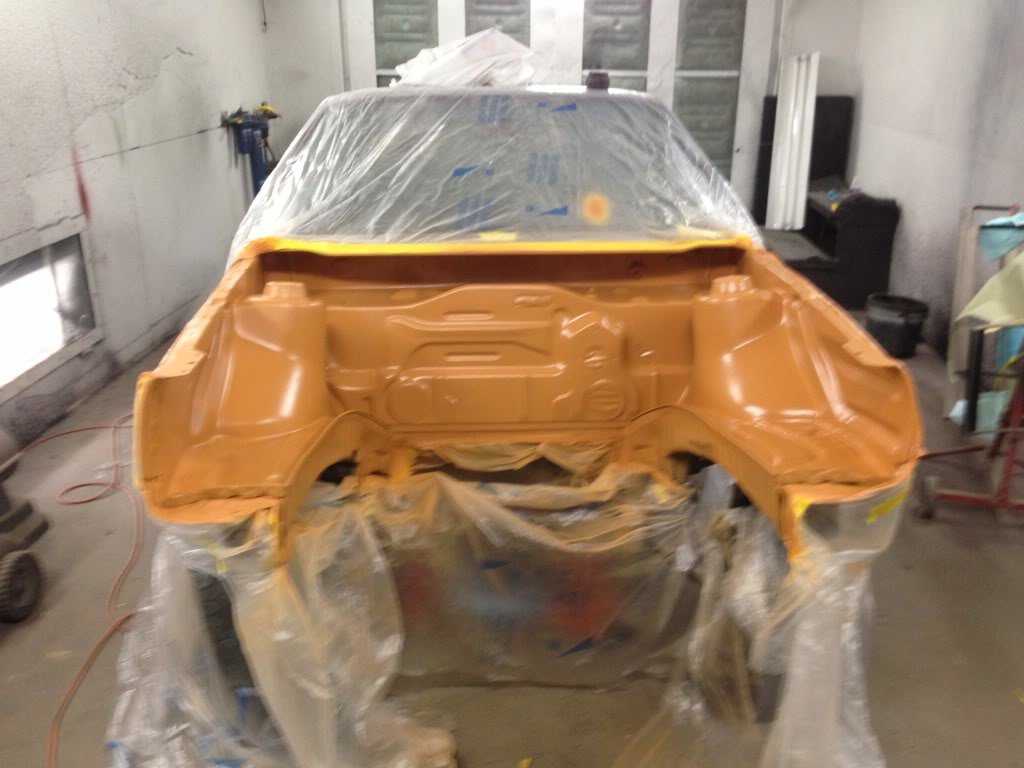

    and this is my ex's '99.5 VW Jetta. I did all the work to it as well



    [​IMG]






    So here's the problem with liking to tinker with stuff, you cant leave anything alone. After building those 2 cars, I knew I couldn't leave this truck stock or almost stock for long.


    It was just impossible.




    I left it basically stock for the first year or so just adding small things.


    The current plan for the truck is


    3. To make it 100% capable both on and off road. I want to be able to drive it daily back and forth to work during the week, then be able to head to the mountains for an extended weekend of camping/fishing/hunting/exploring all while being able to live out of the truck comfortably.


    The goal is to modify the truck by only adding what I need while keeping it as simple and OEM looking as possible. I want the add ons to look like they could have came on the truck from the factory instead of an after thought.





    I like doing these kinda threads to keep track of stuff and post pictures.




    Here is a list of the modifications as well as a list of future modifications.




    - MODIFICATIONS -



    - Current Mods -



    Front Suspension

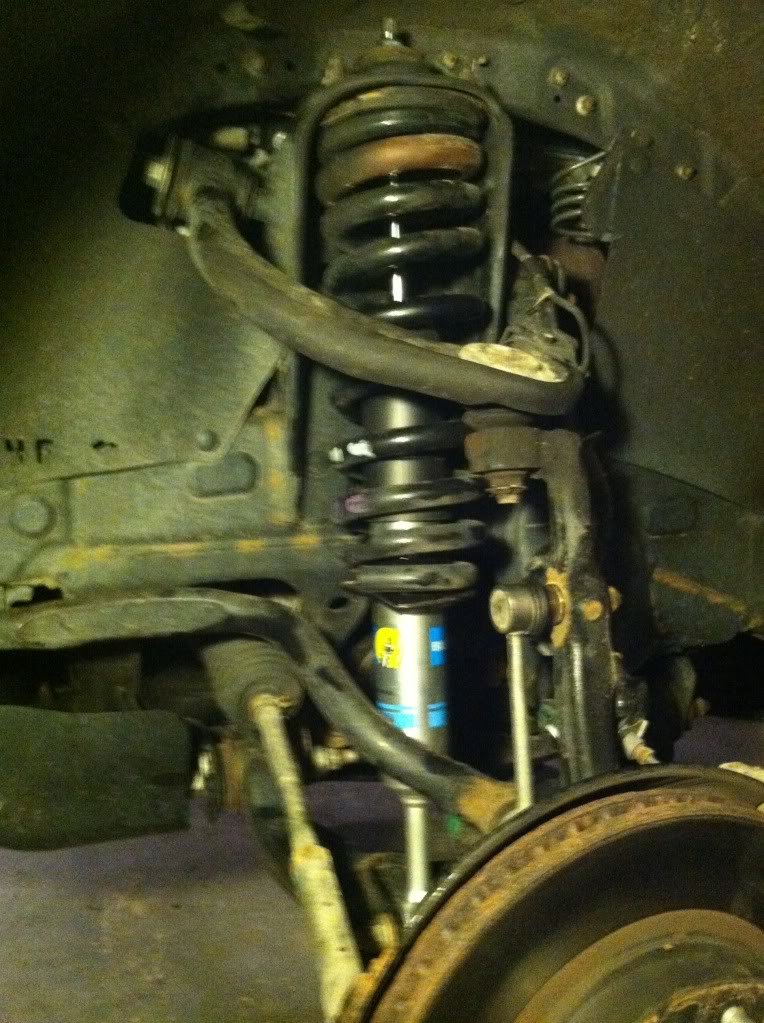

    - Bilstein 5100s set at .85 -
    - Toytec Eibach #620 springs -
    - 3/8” Wheeler's Off Road top plate spacers (both sides) -
    - SPC upper control arms w/ updated grease-able ball joints & Spec bushings -
    - ECGS clam shell bushing -
    - Sway bar relocation brackets -



    Rear Suspension

    - Wheeler's Off Road Progressive 3 leaf add-a-leaf -
    -1/2" blocks -
    - OEM TSB 4 leaf leaf springs -
    - Bilstein 5100s -
    - Extended rear breather -
    - Firestone Ride Rites w/ extended lower mounts -



    Brakes

    - Painted front calipers -
    - Powerstop drilled/slotted front rotors -
    - Powerstop Z36 front pads -



    Wheels & Tires

    - 285/75/16 Goodyear Wrangler Duratracs -
    - 16x8" et-10 Level 8 MK6 wheels -
    - TRD center caps -
    - Chrome lug nuts -



    Interior

    - Painted radio bezel -
    - Painted dashboard bezel -
    - Painted HVAC bezel -
    - Black Plastdip'd gauge cluster trim -
    - Black Plastdip'd tweeter trim -
    - Black Plastdip'd window switch bezels -
    - Matte black wrapped cup holder -
    - Rear headrest delete -
    - Rear seat delete platform -
    - Black Weathertech front and rear floor liners -
    - TRD Off Road cloth floor mats -
    - Constant 12v socket mounted in back side of center console -
    - Lighted constant 12v socket mounted inside center console -
    - Constant 12v dual USB socket mounted inside center console -
    - "Anytime locker" rear locker modification w/ push switch -
    - Center console lock -
    - D cell LED Maglite mounted to driver side lower seat panel -
    - Center console mounted 4Runner 120v/400w outlet -
    - Grey/black Coverking Neosupreme seat covers -
    - Driver / passenger heated seat retrofit -
    - Blue Sea ML-ACR switch -
    - Peak DBI dual battery monitor -
    - Ebay HVAC knobs tinted red -
    - Ebay 4wd knob tinted red -
    - 1/2" driver side & passenger side seat spacers -
    - Molle pouch first aid kit -
    - Console organizer -
    - Console mount pistol holster -
    - Grid It console lid organizer -
    - Ultra Gauge w/ red gel filter-


    Exterior

    - Color matched Satoshi grille w/ HomerTaco mesh -
    - TRD aluminum skid plate -
    - Trimmed front mudflaps -
    - Trimmed rear Pre Runner mudflaps -
    - Debadged tailgate -
    - Debadged door emblems -
    - OEM TRD Sport side view mirrors -
    - Painted door handles -
    - Poly radiator support bushings -
    - Relocated trailer harness plug -
    - OEM flat running boards -
    - Matte black vinyl wrapped roof -
    - Rhino Rack feet & cross bars -
    - Prinsu inspired DIY fairing w/ light bar cut out -
    - DIY Uninstrut cab rack -
    - Trimmed front flares -


    Bed / Shell / Recovery

    - Leer XR100 shell (painted Black Sand Metallic) -
    - Rhino Rack HD tracks and crossbars -
    - Ebay 6'x8' awning on DIY mounts -
    - Power Pop & Lock tailgate lock -
    - EZ-Down tailgate assist -
    - Electric tailgate popper w/ interior release button -

    - Additional bed rail D rings -
    - Bed rail mount shovel w/ Quickfists -
    - Bed rail mount Fiskar axe w/ Quickfists -
    - OEM bed mat w/ security bolt -
    - 2 12v Constant sockets -
    - 3 Constant dual USB sockets -
    - 12v socket wired to bed light controller for awning lights -
    - Volt meter (to monitor house battery) -
    - Bed mounted bottle opener -
    - 3.5 gallon Rotopax Fuelpax w/ custom mount -
    - Bed rail mount X-Bull Recovery Boards -
    - RF wireless dimmer for bed/shell lights -
    - Dual cup holders -
    - DIY bed slide -
    - Amazon tire plug kit -
    - Smittybilt recovery strap -
    - Bed mount quick disconnect air fitting from compressor -
    - Smittybilt receiver & shackle -


    Interior Lighting

    - LED map lights (driver side red, passenger side white) -
    - LED dome light -
    - LED center console lighting -
    - Red LED lighted 4wd indicator -
    - Red LED under dash lighting -
    - Red LED bulbs in interior switches -
    - LED glove box lights -
    - Additional over head LED lights -
    - Red LED door handle lighting -
    - Red LED ambient overhead lighting -
    - All switches / HVAC panel converted to red LEDs -
    - Red LED lit cup holders -
    - Red gel filter on compass -



    Exterior Lighting

    - Bi-xenon retrofits -
    - Morimoto mini D2S 4.0 projectors -
    - Apollo 3 shrouds -
    - Morimoto 35w XB ballasts -
    - Morimoto MotoControl bi-xenon H4 harness -
    - Morimoto 4500k XB bulbs -
    - SuperbrightLEDs 100mm amber LED halos (shroud back lighting) -
    - Amber LED demon eyes -
    - Daytime running lights converted to parking lights -
    - LED rear turn signals (red) -
    - LED front turn signals -
    - LED front corner marker lights -
    - LED license plate lights -
    - LED reverse bulbs -
    - LED 3rd brake light -
    - Yellow Laminex tinted fog lights -
    - Nokya Hyper Yellow fog light bulbs -
    - Any time fog light modification -
    - LED bed lighting -
    - LED under hood lighting -
    - LED Puddle lighting in side view mirrors -
    - LED under door puddle lights -
    - Raptor style grille LED lighting -
    - LED rear under bumper lights -
    - LED overhead lighting in the Leer shell -
    - Tinted LED shell 3rd brake light -


    Off Road Lighting

    - 30" LED light bar behind bumper -
    - Quad LED auxiliary reverse lights pods -
    - CBI ditch light brackets w/ "side shooter" pods -
    - Cab rack mounted 40" single row LED light bar -
    - Hella 500 Black Magic’s behind Satoshi on custom mount w/ yellow LED bulbs -



    Engine / Trans / Under Hood

    - K&N panel filter -
    - Blue Sea System 6 circuit fuse block w/ negative bus -
    - 100 amp Bussman circuit breaker -
    - TRD exhaust -
    - Modified MV50 compressor w/ custom mount -
    - Dual battery set up using Blue Sea ML-ACR -
    - Catch can -



    Entertainment

    - Full '14 non JBL headunit w/ navigation retrofit -
    - Dashboard mounted USB/3.5mm socket -
    - Infinity Primus 9603is door speakers w/ baffles -
    - Retrofit'd rear access cab door speakers w/ 6.5" MB Quartz speakers -
    - Bluetooth/voice command steering wheel controls -




    - Future Mods -



    Front Suspension

    - Up rated bump stops -
    - Possible cab mount chop -
    - CV boot slide mod -


    Rear Suspension

    - Bilstein 5160s or 5125s -
    - Aftermarket spring pack (undecided) -
    - Daystar cradles -



    Brakes

    - Extended front & rear brake lines -


    Wheels / Tires

    - Full size spare -


    Interior

    - Lighted key ring -
    - Black "All Weather" flooring -
    - Passenger side floor mounted fire extinguisher -
    - Design & install iPhone / iPad mini mount -
    - Salex glove box organizer -



    Exterior

    - Heated mirror retrofit -


    Bed / Shell / Recovery

    - Portable DIY Onboard water pump -
    - DIY Unistrut cap rack -
    - DIY road / camp / solar shower -
    - Finish OBA by relocating switch to bed -
    - 4 switch switch panel -
    - “Driver side rack light” switch -
    - “Passenger side rack light” switch -
    - “Compressor” switch -
    - “12v power” switch -



    Interior Lighting

    - Convert passenger airbag indicator to red -


    Exterior Lighting

    - DONE -


    Off Road Lighting

    - Shell rack side light pods -


    Engine / Trans / Under Hood

    - Snorkel -


    Entertainment

    - 4 channel amplifier for door speakers -
    - Under seat sealed / powered sub woofer -






    Anyways, on the "build"

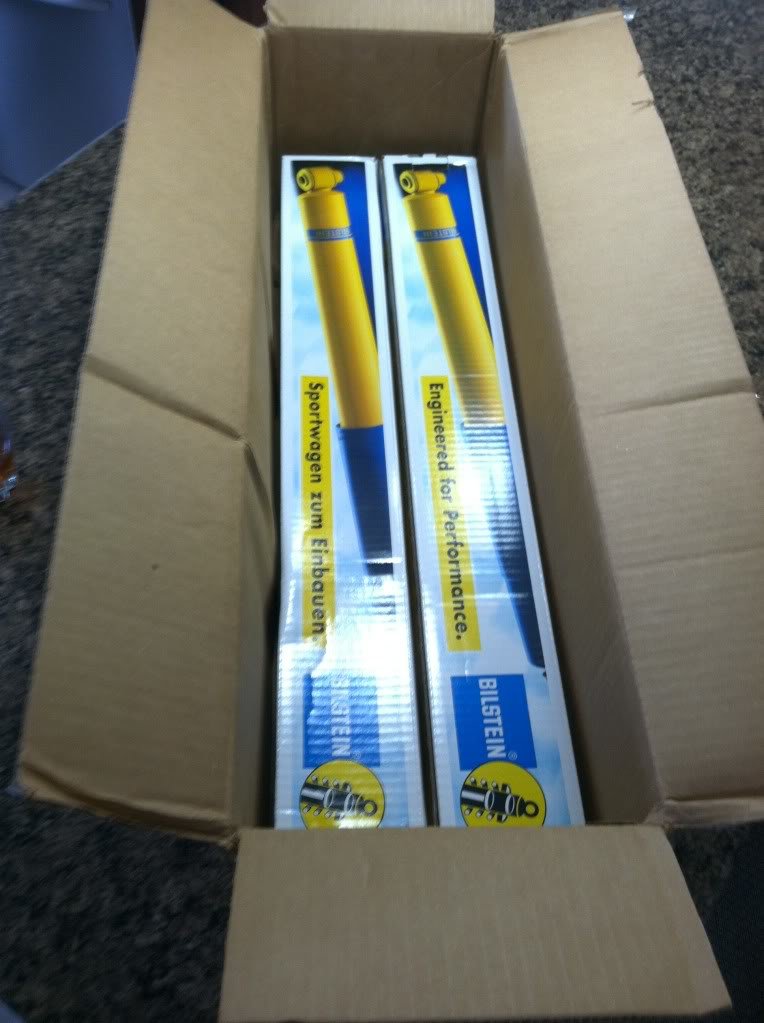

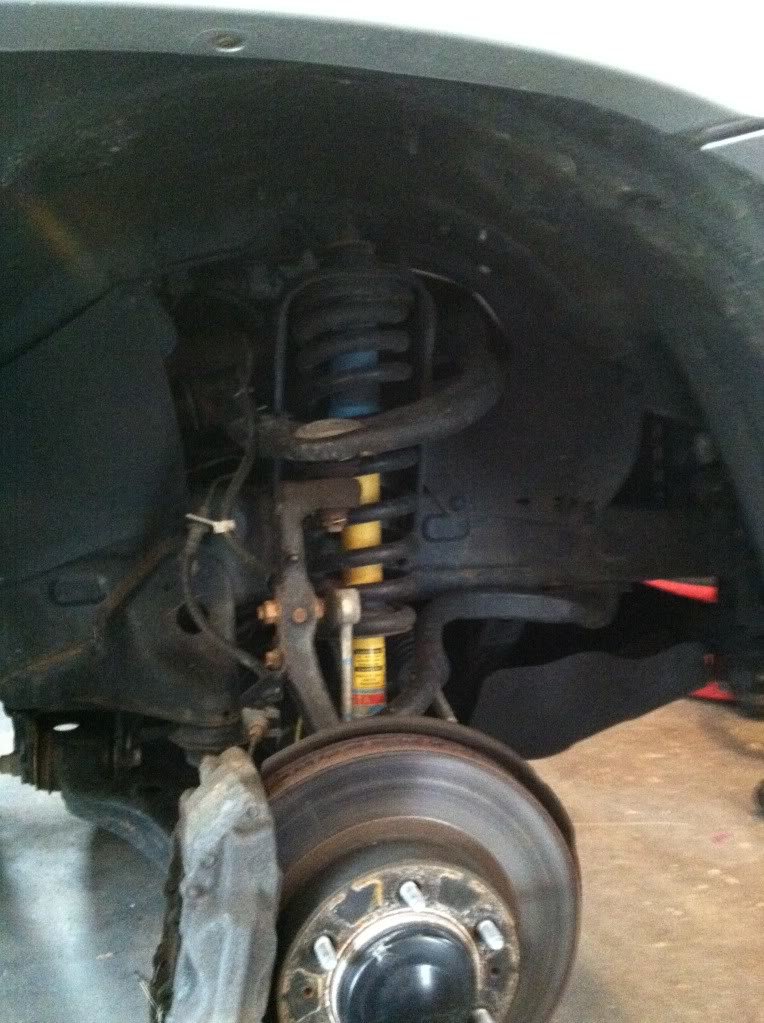

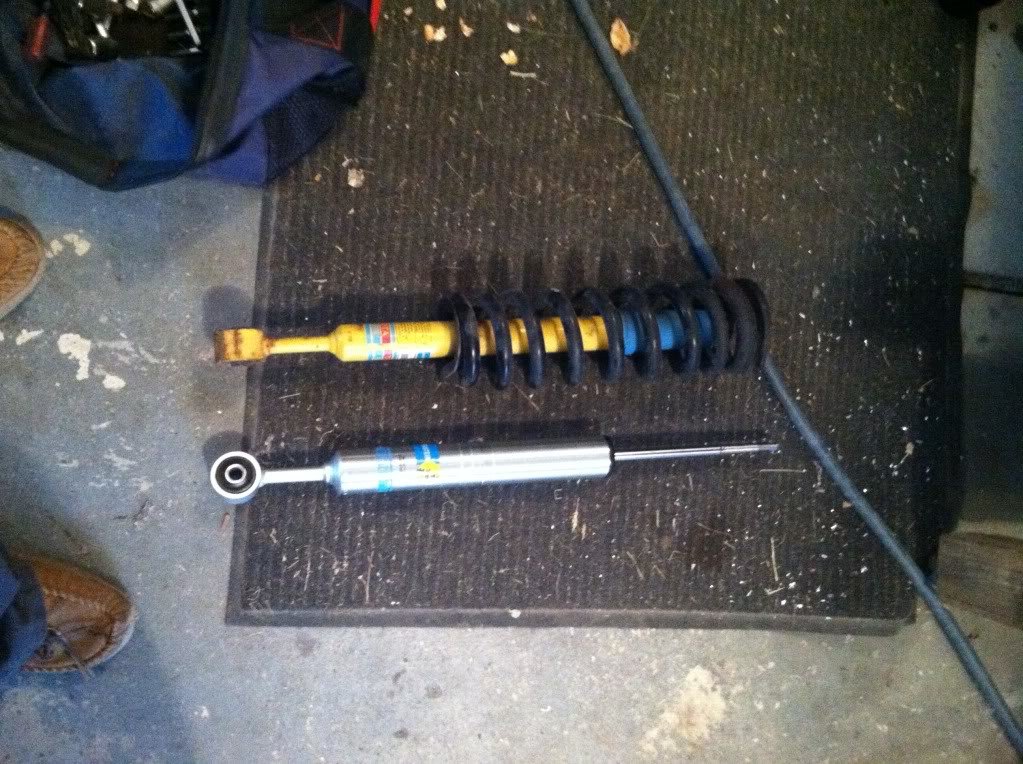

    The Front Bilsteins are are currently on a UPS truck somewhere in the Mid West. And I have 2 more bed rail hold downs in the mail as well.




    Now on to some pictures -

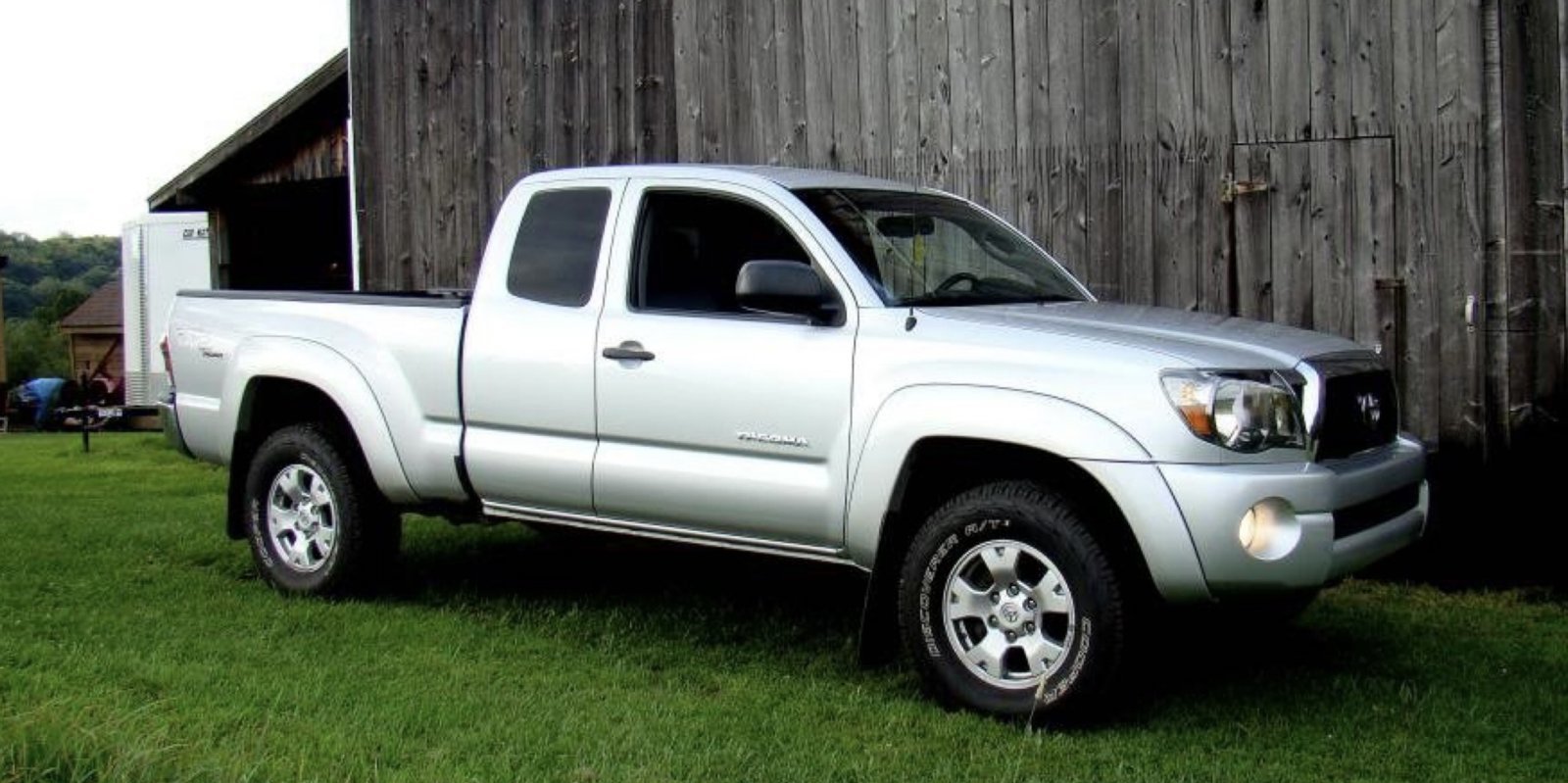

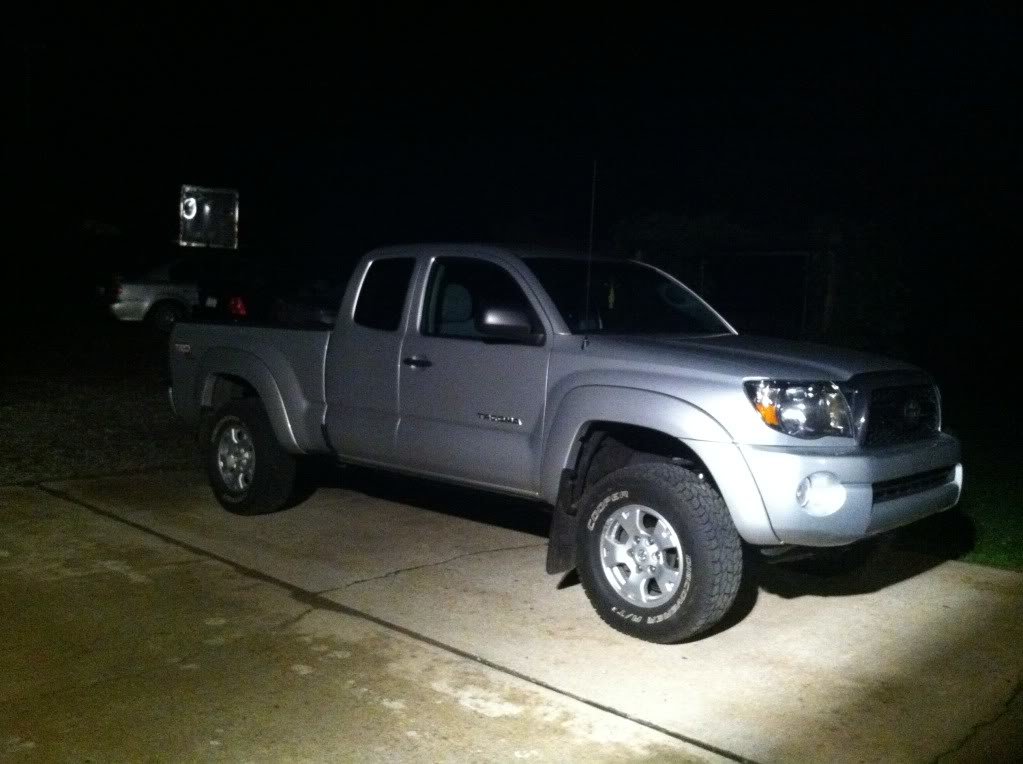

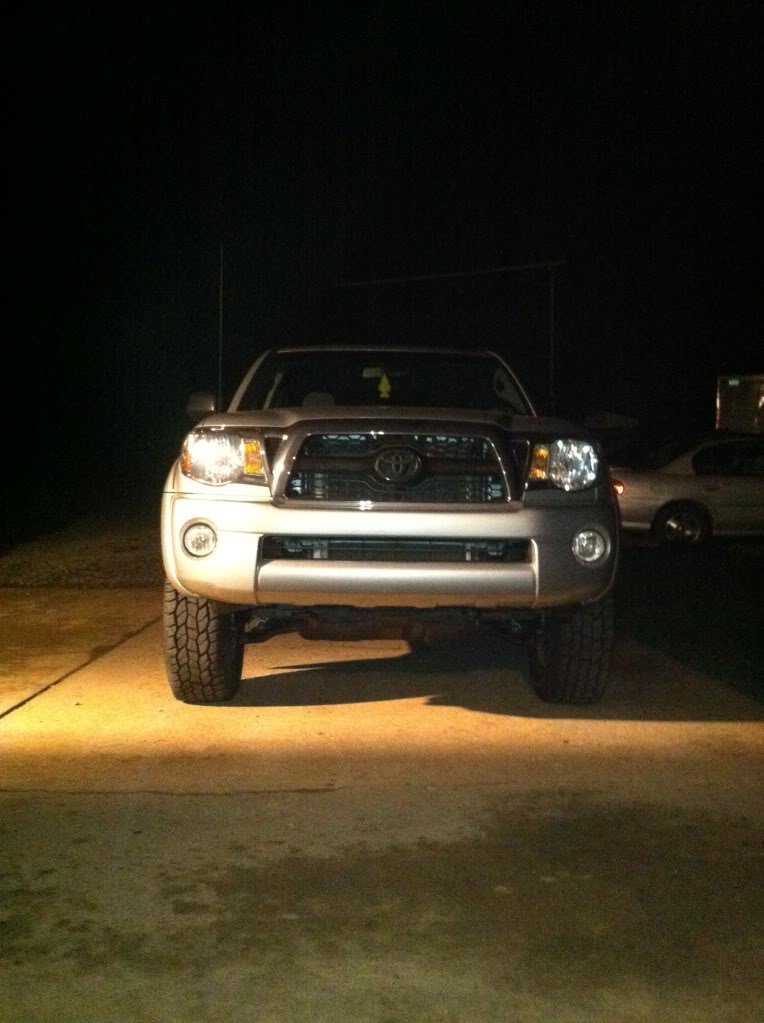

    Here's how the truck sat when I bought it

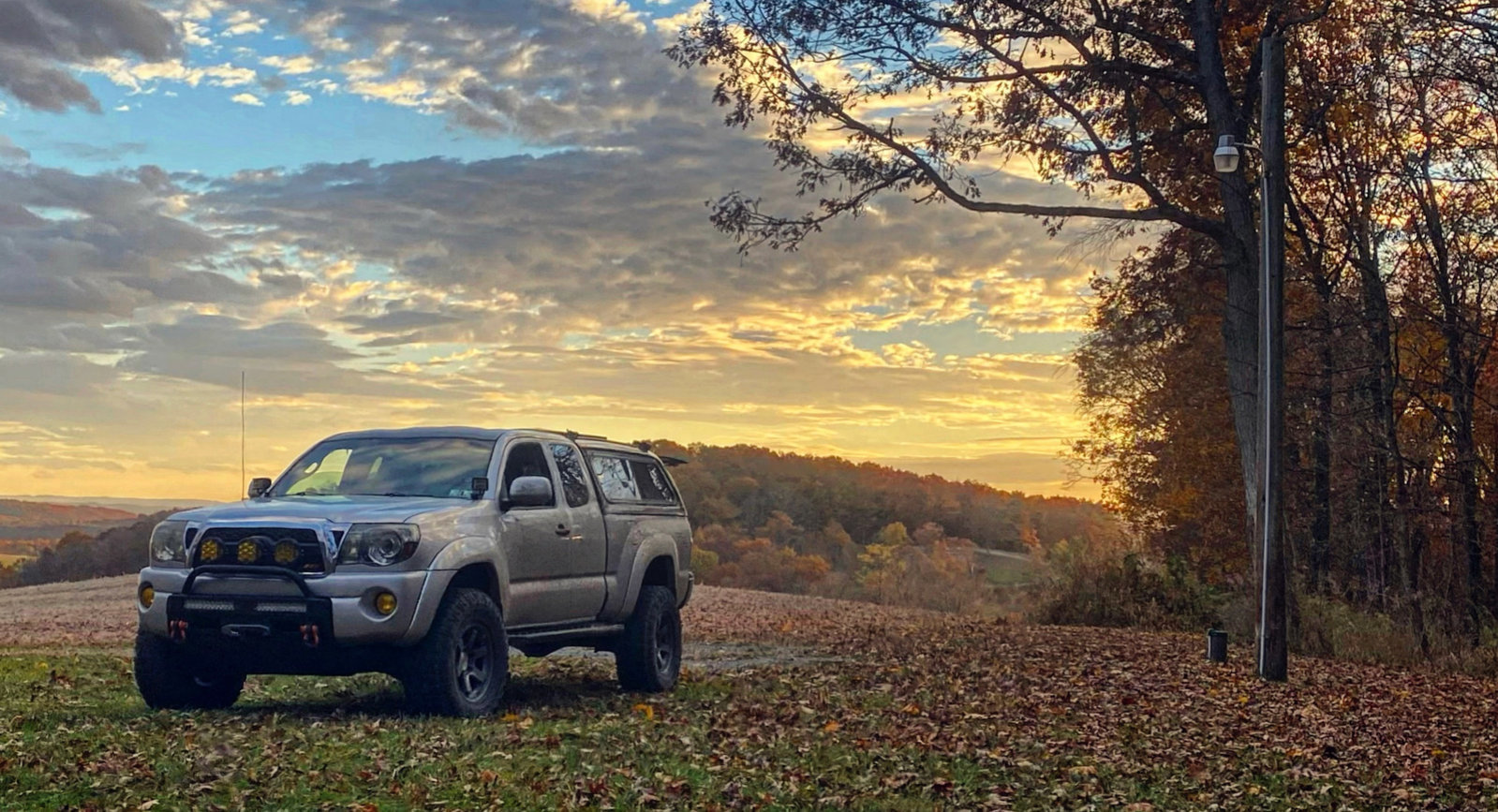

    And here's the truck today (as of 2/5/19)

    [​IMG]


    I will try to update this thread when anything fun and/or exciting happen.



    :beer:​

    Last edited: Mar 17, 2019 at 8:24 PM
  2. Aug 22, 2013 at 7:23 AM
    #2
    HighTQCummins

    HighTQCummins Instagram: stormtrooptaco

    Joined:
    Feb 12, 2012
    Member:
    #72687
    Messages:
    431
    Gender:
    Male
    First Name:
    Hank
    SE PA
    Vehicle:
    '12 SW DCSB Sport
    5% all around, derp'd wheels, FMS40, 30" E-Series, 55w 6k bi's, 35w 5k fogs
    definately lookin foward to this thread, you VAG guys are all meticulous as hell, guessin this will be much of the same.

    i too know a thing or two about VW's, my ex was all into them and stuff (lowered mk4 gti) and i went to countless shows. dub n' rub, waterfest, H20i (im going again this year)

  3. Aug 22, 2013 at 8:46 AM
    #3
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    :beer: Thanks.

    But this thread/build won't be anything near the intensity VW stuff is. I'm gonna go easy on this one since the MK2 is still my main focus.

    What part of SEPA are you from? I have a TON of friends out there who are into Volkswagens.


    We'll be at H2O in the GF's MK4 Jetta. This year will be my 7th year in a row now.

  4. Aug 22, 2013 at 9:16 AM
    #4
    HighTQCummins

    HighTQCummins Instagram: stormtrooptaco

    Joined:
    Feb 12, 2012
    Member:
    #72687
    Messages:
    431
    Gender:
    Male
    First Name:
    Hank
    SE PA
    Vehicle:
    '12 SW DCSB Sport
    5% all around, derp'd wheels, FMS40, 30" E-Series, 55w 6k bi's, 35w 5k fogs
    valley forge/kop/phoenixville area

    last year was my first year there, but I had a damn good time, definitely not gonna miss it this year

  5. Aug 22, 2013 at 1:13 PM
    #5
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Cool. I've got some friends in Allentown, Emmaus, and Philly

  6. Aug 22, 2013 at 1:21 PM
    #6
    BAMFTACO

    BAMFTACO Another day another beer

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    10,918
    Gender:
    Male
    First Name:
    Juan
    Woodlandland hills , CA
    Vehicle:
    2007 Tacoma AC Prerunner
    Kings bruh
    I like the 92 jetta that thing is bad ass

  7. Aug 22, 2013 at 1:46 PM
    #7
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Thanks. Heres a few more pics of it -



    And heres how it currently sits -


  8. Aug 26, 2013 at 7:40 PM
    #8
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    These showed up today :

    [​IMG]

    Should be going on sometime this week :thumbup:


    And in other news, after spending an assload of time, the engine bay in the Jetta is ready for for polyester spray filler.

    Last edited: Aug 26, 2013
  9. Aug 27, 2013 at 5:57 AM
    #9
    danteisme

    danteisme Well-Known Member

    Joined:
    Jan 14, 2008
    Member:
    #4248
    Messages:
    1,623
    Gender:
    Male
    South Western PA
    Vehicle:
    06 DCSB Sport, 96 Integra GSR
    That car looks familiar, were you on Pittspeed?

  10. Aug 27, 2013 at 6:15 AM
    #10
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Yes, I was. I've been good friends with Nick (Starboy) for years.

  11. Aug 27, 2013 at 6:19 AM
    #11
    danteisme

    danteisme Well-Known Member

    Joined:
    Jan 14, 2008
    Member:
    #4248
    Messages:
    1,623
    Gender:
    Male
    South Western PA
    Vehicle:
    06 DCSB Sport, 96 Integra GSR
    i was on there for a good while. Can't say i've been on there recently much though. i probably havent posted anything on there in well over a year.

    This is what i had when i was on there, never should have sold this car.

  12. Aug 27, 2013 at 6:42 AM
    #12
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    :thumbup:

    I havent been on there in atleast 3 years now.

    Cant say I remember that car. What part of PGH are you from?

    :beer:

  13. Aug 27, 2013 at 6:47 AM
    #13
    danteisme

    danteisme Well-Known Member

    Joined:
    Jan 14, 2008
    Member:
    #4248
    Messages:
    1,623
    Gender:
    Male
    South Western PA
    Vehicle:
    06 DCSB Sport, 96 Integra GSR
    about 40 minutes or so north east of Pittsburgh, small town of Vandergrift

  14. Aug 27, 2013 at 6:56 AM
    #14
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Funny. I'm from Upper Burrell. Small world

  15. Aug 28, 2013 at 7:50 PM
    #15
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Finally got around to installing these -



    Before -


    From the ground to the fender its about 34 1/4"


    During -


    After -



    From the ground to the fender its about 37" now.

    I set them at 1.75" and they came up almost 3". I'm hoping they settle out a little bit. If not. no biggy.

    I don't have any good pics since it was dark when i finished the instal.



    I'm really impressed with the ride quality of the 5100s.

    I need to order the rear add a leafs now that I have the fronts sorted out.


    ALso, I'll snap some better pictures in the daylight when I get a chance

    :beer:

  16. Sep 2, 2013 at 9:09 PM
    #16
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    The 5100s have been on the fronts for a few days now.

    [​IMG]

    I love em.

    The front end feels so much tighter now. Doing 75mph on the highway is no longer scary. It doesn't feel like its going to roll over any more.

    I'm super happy I went with these over those stupid spring spacers.

    Anyways, I ordered the rear springs today. I ended up going with the Wheelers progressive 3 leaf add-a-leaf. Eventually I plan on replacing the rear shocks with 5100s as well.

    And in other news, the engine bay in the Jetta finally got primered this weekend.


    :beer:

  17. Sep 5, 2013 at 1:14 PM
    #17
    jetta.the.hut

    jetta.the.hut B4nn3d

    Joined:
    Aug 8, 2013
    Member:
    #110077
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Aren
    Aberdeen,NC
    Vehicle:
    10 PreRunner SR5
    you suck GTFO,Newb!





    lol,I would have never thought i'd see you on another forum, how have you been? I was searching wheelers and this thread popped up. Jetta looks good man, mine was sold,gutted and auto-x rebuilt by a guy up in boone.

  18. Sep 5, 2013 at 1:52 PM
    #18
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Woah!


    Im good. Whats goin on? :beer:

  19. Sep 5, 2013 at 4:51 PM
    #19
    jetta.the.hut

    jetta.the.hut B4nn3d

    Joined:
    Aug 8, 2013
    Member:
    #110077
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Aren
    Aberdeen,NC
    Vehicle:
    10 PreRunner SR5
    Not much dude got my tacoma in June, getting ready to put a old man emu lift kit on mine. So what's going back in jetta, didn't you have a VR6 in it? I miss mine and wish I could have drove it with the built 16v. If I ever get another ne I'm doing ITB's.

    Your truck looks good, is it a prerunner trd or 4x4?

  20. Sep 6, 2013 at 5:45 AM
    #20
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,168
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    :thumbup:

    Its getting another 12v for the time being. I havent driven mine in 2 years. I miss it.


Products Discussed in

To Top
