where should this plug go to?

Discussion in '1st Gen. Tacomas (1995-2004)' started by devinzz1, Apr 23, 2015.

Page 1 of 2
  1. Apr 23, 2015 at 1:00 PM
    #1
    devinzz1

    #1
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,

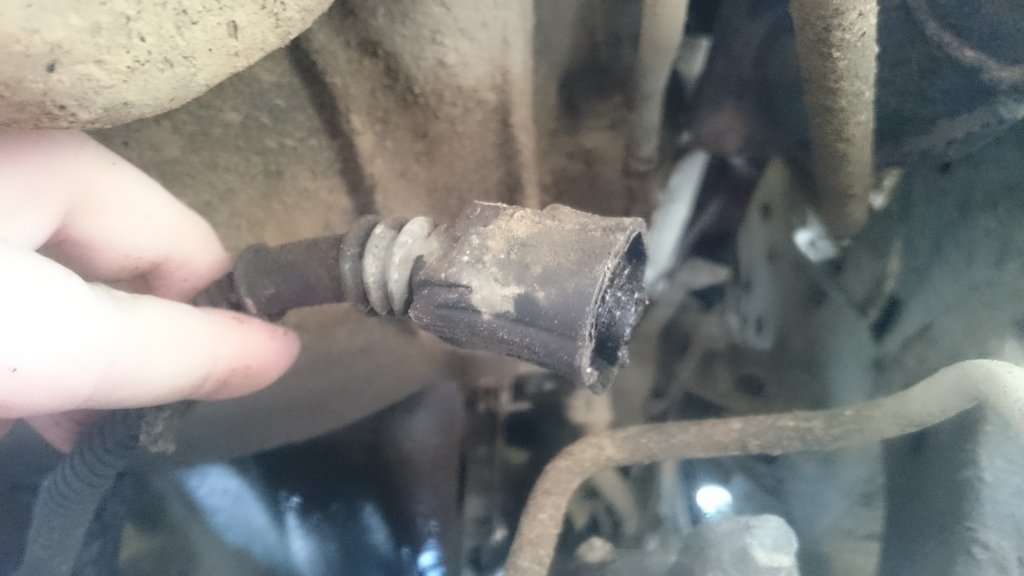

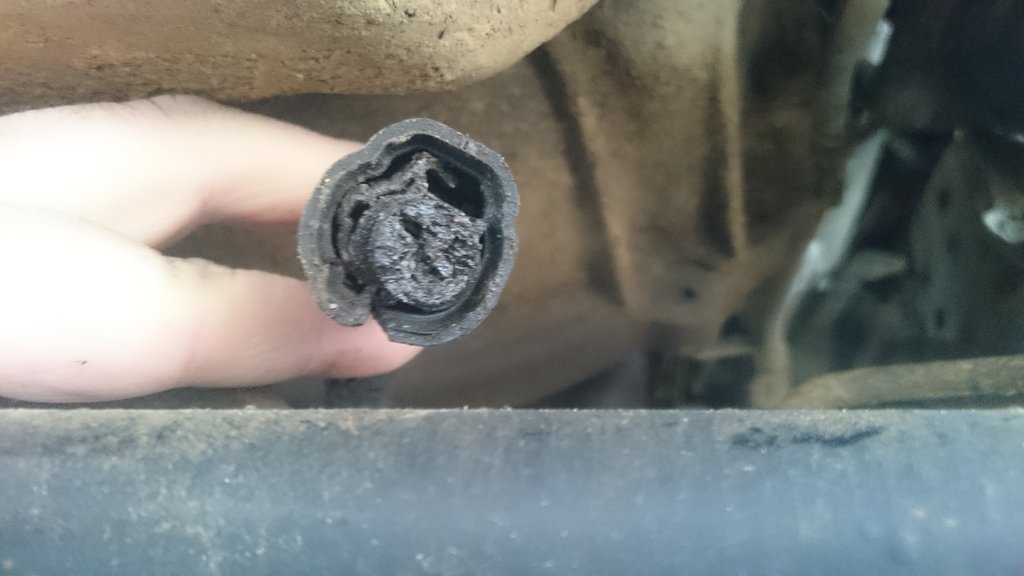

    Found this connector hanging on the sway bar. Loom splits off from diff actuator. DSC_0375_zpsbrbvjapa_1f1776bd3ec2bd871bac818e0a779dedc96fad60.jpg



    devinzz1, Apr 23, 2015
    #1
  2. Apr 23, 2015 at 2:23 PM
    #2
    Dirty Pool

    #2
    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,325
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears

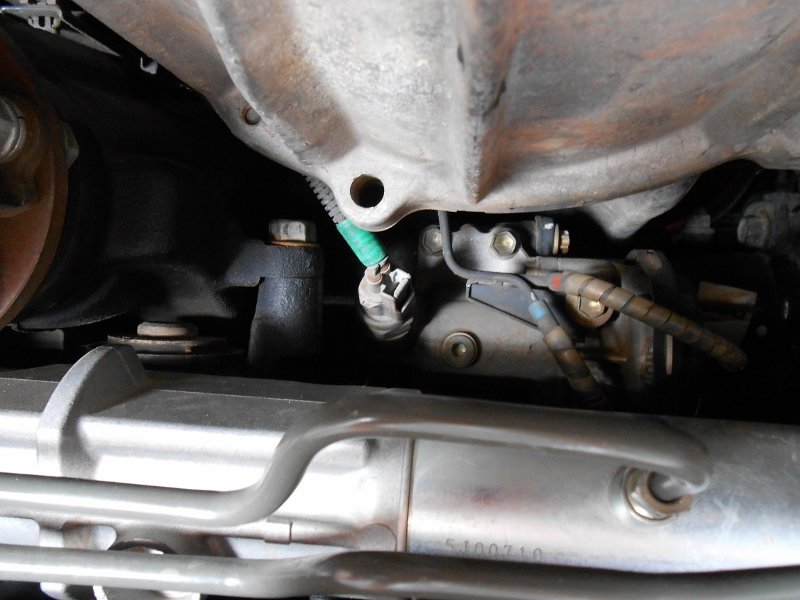

    Does your 4wd indicator light up? Looks like the wires to the 4WD (ADD condition) switch.
    The plug looks slightly different, but this shot is a 99.

    Dirty Pool, Apr 23, 2015
    #2
  3. Apr 23, 2015 at 2:36 PM
    #3
    devinzz1

    #3
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    Light works yes. The loom comes down and splits. One connector goes into the actuator like the one u have pictured and this one is where it is. I have no signs of anything not working.

    devinzz1, Apr 23, 2015
    #3
  4. Apr 23, 2015 at 2:45 PM
    #4
    Dirty Pool

    #4
    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,325
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Well, ya got me. Mine does not split or combine with anything all the way back to the alternator. Check all around your auto trans. Maybe state if it's a 4 or V6.

    Dirty Pool, Apr 23, 2015
    #4
  5. Apr 23, 2015 at 3:38 PM
    #5
    devinzz1

    #5
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    96 v6 auto. push button 4x4 I looked around for a bit and didnt see anything.

    devinzz1, Apr 23, 2015
    #5
  6. Apr 23, 2015 at 3:41 PM
    #6
    devinzz1

    #6
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,

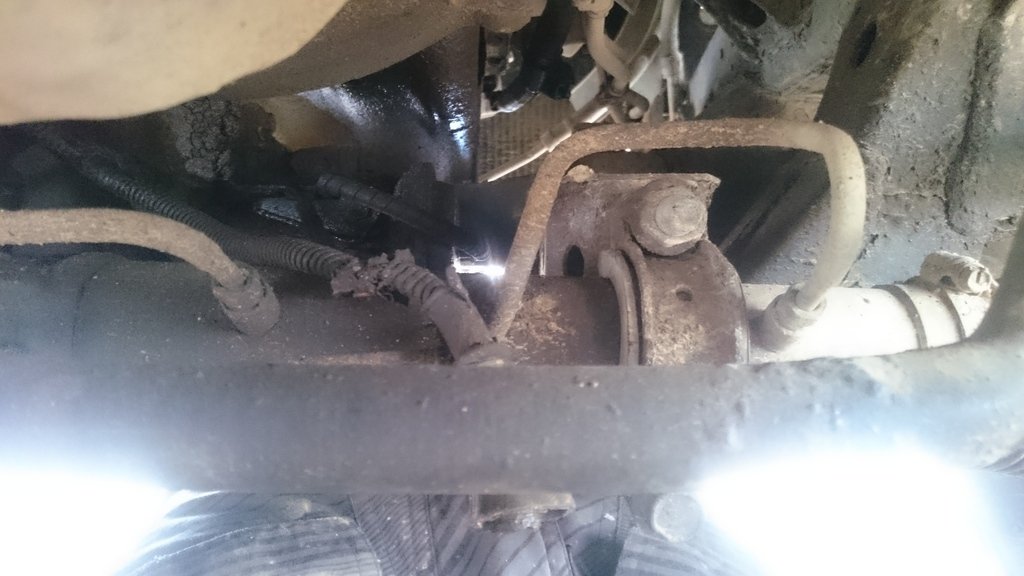

    See where it splits.

    devinzz1, Apr 23, 2015
    #6
  7. Apr 24, 2015 at 7:25 AM
    #7
    frizzman

    #7
    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    5,348
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    check the FSM? wiring diagram might help :notsure:

    frizzman, Apr 24, 2015
    #7
  8. Apr 24, 2015 at 8:05 AM
    #8
    tan4x4

    #8
    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,807
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    Could it be ABS-related?
    I don't have ABS myself, so not sure what the connectors look like.

    tan4x4, Apr 24, 2015
    #8
  9. Apr 24, 2015 at 8:08 AM
    #9
    devinzz1

    #9
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    I dont have one.

    devinzz1, Apr 24, 2015
    #9
  10. Apr 24, 2015 at 8:10 AM
    #10
    devinzz1

    #10
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    My abs seems to kick in and work fine in icy conditions. Abs light isnt on the dash either. It almost looks like at some point it got hot and melted a bit.

    devinzz1, Apr 24, 2015
    #10
  11. Apr 24, 2015 at 10:52 AM
    #11
    Dirty Pool

    #11
    Dirty Pool FLIES ON THE FRIES, KETCHUPS WATERED DOWN

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    2,325
    Gender:
    Male
    59.4 Miles, 56.67° NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD
    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears
    Do you have the EGR system? That plug looks kinda melted and has more of a "boot/insulation" than the average sensor/switch. All that EGR stuff is around the rear of the V6. None of my FSM cover the early V6 EGR systems so I'm no help there.

    Dirty Pool, Apr 24, 2015
    #11
  12. Apr 24, 2015 at 1:26 PM
    #12
    devinzz1

    #12
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    No egr. Im gona crawl under and have another look...

    devinzz1, Apr 24, 2015
    #12
  13. Apr 24, 2015 at 4:27 PM
    #13
    devinzz1

    #13
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,

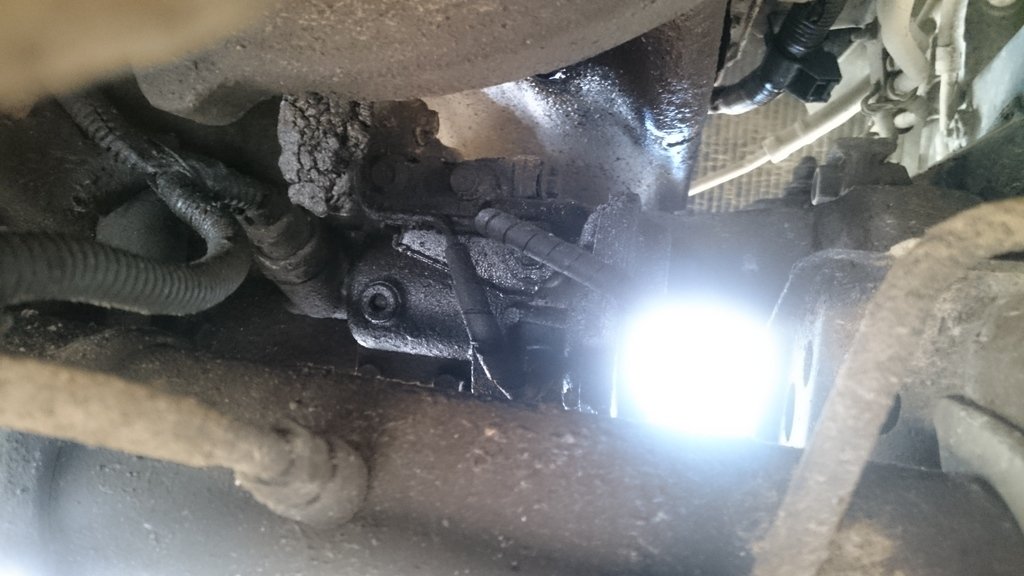

    had another look. Looks like whatever it was plugged into is actually snapped off and in the connector. Wire colors are green/red and green/yellow

    devinzz1, Apr 24, 2015
    #13
  14. Apr 24, 2015 at 4:53 PM
    #14
    Madjik_Man

    #14
    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    19,725
    Gender:
    Male
    Colorado Front Range
    Vehicle:
    1998 Ext Cab 3.4 4x4 TRD 5MT, 2004 DC 3.4 4x4 TRD
    I can send you a link to the 98-2000 FSM, if you think that would help.

    You have ABS in a 96?

    Madjik_Man, Apr 24, 2015
    #14
  15. Apr 24, 2015 at 5:03 PM
    #15
    Madjik_Man

    #15
    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    19,725
    Gender:
    Male
    Colorado Front Range
    Vehicle:
    1998 Ext Cab 3.4 4x4 TRD 5MT, 2004 DC 3.4 4x4 TRD
    When I first saw this pic I was going to comment on how it looked like it got burned/melted off somehow.

    Then I saw this:

    Screenshot_2015-04-24-20-14-27_zps80idr2_7de95fd45a927e4386181b27c34b5d13121c17f5.jpg

    And realized there might have been a good chance :eek:

    Madjik_Man, Apr 24, 2015
    #15
  16. Apr 24, 2015 at 5:37 PM
    #16
    devinzz1

    #16
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    Yes. Was that not available in 96?

    devinzz1, Apr 24, 2015
    #16
  17. Apr 24, 2015 at 5:42 PM
    #17
    devinzz1

    #17
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    That was the first time ive done that all the time ive ownes it. Found conector before this.

    devinzz1, Apr 24, 2015
    #17
  18. Apr 24, 2015 at 6:19 PM
    #18
    Madjik_Man

    #18
    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    19,725
    Gender:
    Male
    Colorado Front Range
    Vehicle:
    1998 Ext Cab 3.4 4x4 TRD 5MT, 2004 DC 3.4 4x4 TRD
    I'm probably wrong, but I thought 2000 was the first year with ABS.

    Madjik_Man, Apr 24, 2015
    #18
  19. Apr 25, 2015 at 2:51 AM
    #19
    devinzz1

    #19
    devinzz1 [OP] Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    7,014
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    dont think someone would go through trouble of adding entire abs system and even axle.. DSC_0375_zpslwt4ci9l_0adcf345047e56933d00747a69b87043c7177074.jpg

    devinzz1, Apr 25, 2015
    #19
  20. Apr 25, 2015 at 8:35 AM
    #20
    Southern01Taco

    #20
    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,957
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5
    I don't think they started abs till 03.


    OP, check around on the transmission. The rubber boot looks like something you would find on the trans. Also check the o2 sensors.

    Southern01Taco, Apr 25, 2015
    #20
Page 1 of 2

Products Discussed in

Mobil 1 104361 75W-90 Synthetic Gear Lube - 1 Quart (Pack of 2)
$27.88
Air Intake Snorkel Kit Fit For 2005-2015 Toyota Tacoma With 4L Right Petrol intake air snorkel kit high performance system compatible kit Replacement black Rotational Molding (2005-2015)
$73.00
NOCO Boost GB40: 1000A UltraSafe Jump Starter – 12V Lithium Battery Booster Pack, Portable Jump Box, Power Bank & Jumper Cables - for 6.0L Gas and 3.0L Diesel Engines
$91.21
M6 Black Acorn Cap Nuts, Stainless Steel 304 (18-8) Black Coating Acorn Nuts, 20Pcs-Pack
$8.49
Magnefine 3/8" Magnetic Inline Transmission/Power Steering Filter
$25.95
Aisin VST-001 Bulk Vacuum Switch Valve - Green
$36.04
HitchHammer Bumper Guard (HitchHammer 11.5" Wide)
$59.95
Rexka 12pcs Transfer & Differential Service Gasket Kit Compatible with Toyota Lexus 4Runner Land Cruiser Tundra Tacoma FJ Cruiser Highlander RAV4 Sequoia Sienna 1215710010 9043024003 90430A0003
$5.99
Veepeak OBDCheck BLE Bluetooth OBD II Scanner Car Check Engine Light Code Reader, Auto Dual Mode Bluetooth Diagnostic Scan Tool for iOS & Android
$31.98
OEMTOOLS No-Spill Coolant Funnel Kit, 15 Piece Fluid and Oil Funnel Set, Allows Access To Hard-To-Reach Radiators
$24.99
Ford Genuine Fluid XT-M5-QS Full Synthetic Manual Transmission Fluid - 1 Quart, Black
$32.58
Spicer 5-1330X U-Joint Kit 1330/SPL25 Series (OSR)
$27.95
Mobil Synthetic, SAE Grade : 75W-90, 1 gal. Jug 122035-1 Each
$49.90
PRIMEWELD CUT60 60Amp Non-Touch Pilot Arc PT60 Torch Plasma Cutter 110V/220V Dual Voltage 3 Year Warranty
$699.00
ATP Automotive AT-205 Re-Seal Stops Leaks, 8 Ounce Bottle
$21.11
iCrimp Open Barrel Terminal Crimping Tool for Molex Style DELPHI AMP TYCO Deutsch Terminals Crimper, Molex Crimping Tool,24-14 AWG
$17.98
ARB RD129 Air Locking Differential
$1,109.99
Permatex 25228 The Right Stuff 90 Minute Black Gasket Maker, 3 oz, 1 Count (Pack of 1)
$12.16
Brock Replacement Air Cleaner Box Compatible with 99-04 Tacoma Pickup Truck 6 cyl 1770007060
$105.30
Supreme Suspensions - 1.5"-2" Rear Add-A-Leaf Lift Kit for 1995-2023 Toyota Tacoma - 21.5" Short AAL Set with Isolator Pads and Square Bend U-Bolts
$189.89
SEM 39103 Black Original Flexible Bumper Coater Aerosol - 12 oz.
$23.99
Siless Liner 157 (4 mm) mil 36 sqft Car Sound Deadening Closed Cell Foam & Heat Insulation mat - PE Foam Sound Deadener Material & Heat Barrier
$44.95
RLB-HILON Headlight Clip Compatible with Toyota Tacoma Prerunner & 4WD 1998 1999 2000 Year, for Lower Headlight Panel Retainer Clips, for 53245-04010 2PCS
$13.49
Coobeast Bolt Extractor Set Heavy Duty, 13Pcs Bolt Extractor Kit with 3/8" Adapter, Stripped Lug Nut Remover, Easy Out Bolt Remover Set for Rusted, Rounded, Damaged Nuts Screws
$19.98
Fuel Tank Skid Plate Cover Compatible with 1995.5-2004 Toyota Tacoma 15 and 18 Gallon Tanks Powder Coated Steel Gas Tank Skid Plate
$169.50
Motul 7100 4T 10W-40 Synthetic Oil 4 Liters (104092)
$52.50
Thread Gauge Tool,Portable Screw Pitch Gauge,Bolt Size and Thread Gauge Identifier,Standard Screw Size and Thread Gauge Checker for Engineering Craft and Industrial Management Use
$4.70
WIX Racing Filters Air Filter Panel
$28.50
500Pcs Connector Terminal Pin Wire Harness Pins Automotive Auto Car Electrical Connector Pins Motorcycle ATV 1/1.5/1.8/2.2/2.8/3.5mm
$17.98
Buyers Products 1703349 Black Steel Underbody Truck Box with T-Handle Latch, 14 x 12 x 18", Contractor Toolbox For Organization And Storage, Job Tool Chest
$264.00
INKBIRD Meat Thermometer Wireless, Smart Bluetooth Meat Thermometer, IP67 Waterproof Wireless Meat Probe with Rechargeable Box for Outdoor Grill Smoker BBQ Rotisserie iOS & Android App
$47.99
OTC 5609 Cylinder Leakage Tester Kit , Black
$107.99
55 Deg Imperial+60 Metric Thread Pitch Gauge Measure Screw 58 Pieces. Practical and Attractive
$2.70
Fox 2.0 Performance Coil-Over Front Pair compatible with 2005-2016 Toyota Tacoma
$1,022.09
3M Marine Adhesive Sealant 5200 (06500) Permanent Bonding and Sealing for Boats and RVs Above and Below the Waterline Waterproof Repair, White, 10 fl oz Cartridge
$22.40
Switch Pros SP-9100 8-Switch Panel Power System With Concealed Mounting Hardware
$659.00
50W 6Ohm LED Load Resistors for LED Turn Signal Lights or LED License Plate Lights (Fix Hyper Flash, Warning Cancellor)
$9.99
ATP Automotive B-101 Automatic Transmission Filter Kit
$9.99
uxcell US Plug AC 125V 15A Panel Mount Outlet Power Socket Black
$9.99
Plews 55001 Lubrimatic Fluid Quart Pump, Fits Standard Quart Bottles
$9.99
CRC 05078 Throttle Body and Air-Intake Cleaner - 12 Wt Oz.
$9.99
Allstar Performance ALL76232 Universal Two Wire Connector with 12" Loop
$3.49
To Top
