Where to buy OEM TRD Pro grill

Discussion in '3rd Gen. Tacomas (2016-2023)' started by rybern, Sep 21, 2022.

  1. Sep 21, 2022 at 6:41 PM
    #1
    rybern

    rybern [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215281
    Messages:
    2,326
    Gender:
    Male
    First Name:
    Ryan
    N Alabama
    Vehicle:
    2023 TRD OR & 2000 SR5
    5100's & 3AAL, 265/70r17 Toyo AT3
    I purchased a PT228-35200-AA grill from Conicelli Toyota(online). They said that Toyota will only sell PT228-35200-AA as a service replacement. As a result, my order has been cancelled and refunded.

    I have a 2022 TRD OR on order and my dealer said I'm next in line for a silver or MGM TRD OR Premium DCSB. So I'm wanting to go ahead and purchase the grill insert. I'd really like to go with OEM and already have the garnish. I also don't really want to spend $400 on an Ebay one. Conicelli sells them for $174(+tax and shipping).

    This site contains affiliate links for which the site may be compensated.
    #1
  2. Sep 21, 2022 at 7:08 PM
    #2
    AZPhys13

    AZPhys13 Well-Known Member

    Joined:
    Dec 12, 2020
    Member:
    #349448
    Messages:
    419
    Vehicle:
    2021 TRD OR DCLB - MGM
  3. Sep 21, 2022 at 7:13 PM
    #3
    rybern

    rybern [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215281
    Messages:
    2,326
    Gender:
    Male
    First Name:
    Ryan
    N Alabama
    Vehicle:
    2023 TRD OR & 2000 SR5
    5100's & 3AAL, 265/70r17 Toyo AT3
    Thank you very much. I just placed an order at toyotapartsdeal. Price is similar to Conicelli. Hopefully it will process without issue.

    AZPhys13[QUOTED] likes this.
  4. Sep 21, 2022 at 8:14 PM
    #4
    John317

    John317 Well-Known Member

    Joined:
    Mar 29, 2021
    Member:
    #360993
    Messages:
    96
    Gender:
    Male
    So Cal
    Vehicle:
    2021 TRD Sport DCSB Silver Sky Metallic
    I first tried ordering from Toyotapartsdeal, they never asked for a VIN, but they cancelled the order after a day due to being "backordered" with no ETA. I tried a few other sites that didn't require a VIN, same story all cancelled.

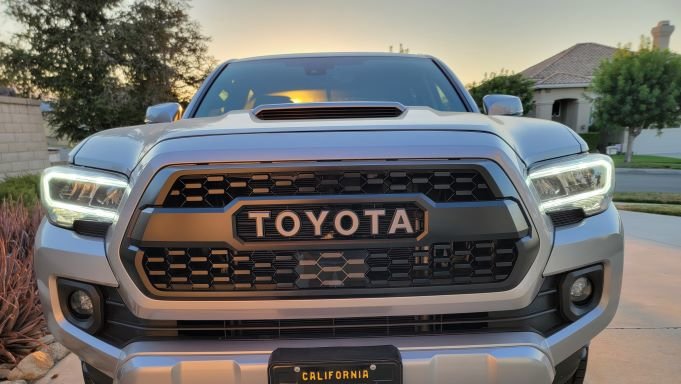

    I ordered the PT228-35180 grille for my 2021 from Lowe Toyota. they required a TRD Pro VIN, I found a used one for sale online, and copy/pasted.

    Chose to go with this one because I didn't want a front camera cutout and wanted silver letters.


    Last edited: Sep 21, 2022
  5. Sep 22, 2022 at 2:41 AM
    #5
    VaToy

    VaToy Life Long Member

    Joined:
    Mar 26, 2018
    Member:
    #248467
    Messages:
    4,597
    Gender:
    Male
    Parts Unknown
    Vehicle:
    2018 TRD DCLB Sport 4x4 Silver Sky
    Bilsteins 5100s on the top setting, 4runner Gray TRD Pro Sema wheels, 285/70/17 Toyo AT3s, Sumo Bump stops, TRD exhaust, ECGS Clamshell bushing, 1/4 shim for the lean and one inch rear block, OEM Pro grill and garnish OEM TRD Skid plate, TRD CAI, Demon Brackets, Rigid Industries Pro fog lights, OEM Trail Rails sidebars, Diode Dynamics LED SL1 high and low beam lights, OEM Roof racks, Clazzio leather heated seats, Remote Start, TRD Pro shift knob, tinted windows, Rockford Fosgate 4 channel amp for the headunit and sub and amp combo, OEM Puddle lights, OEM tailgate lock, OEM bed mat, LED interior lights, OEM blackout kit for letters, JLT catch can, upgraded 27F toyota True Start battery, Vleds led tail light kit with Pro tail lights, OEM Rave4 side mirrors with convex spotters,just to name a few mods.
    Have the dealership do a local search and see if anyone has it in stock. I did this back in 2018 and scored mine for about $200 and $45 for the garnish. I had to drive an hour to get it.

  6. Sep 22, 2022 at 3:26 AM
    #6
    rybern

    rybern [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215281
    Messages:
    2,326
    Gender:
    Male
    First Name:
    Ryan
    N Alabama
    Vehicle:
    2023 TRD OR & 2000 SR5
    5100's & 3AAL, 265/70r17 Toyo AT3
    Thanks for the advise. I'll keep that in mind.

    Looks great. I plan to add the front camera so I kind of wanted the new version. I appreciate the response. I thought the one I ordered has silver letters..... maybe they are grey. :notsure:

  7. Sep 22, 2022 at 5:38 AM
    #7
    FL_TRD Sport

    FL_TRD Sport Suffering from Severe Wallet Drain

    Joined:
    May 30, 2021
    Member:
    #367208
    Messages:
    3,603
    Gender:
    Male
    First Name:
    Hector
    Port St. Lucie, FL
    Vehicle:
    2021 TRD Sport MGM DCLB (Sold)
    KDMax Pro 10.0, Form Lighting Tail Lights, and more

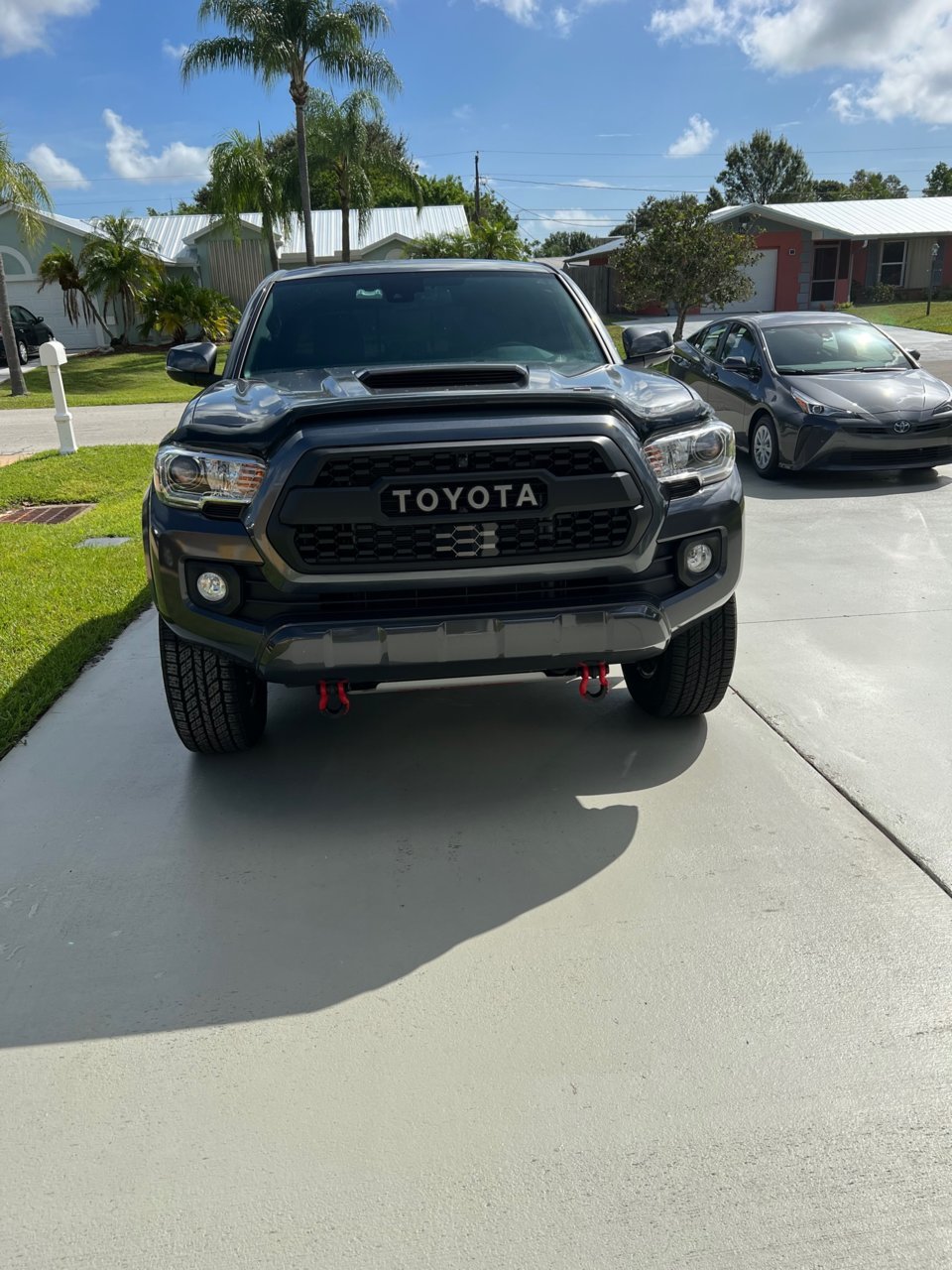

    My understanding is there are two "different" OEM pro grilles. One is the one that actually comes with the Pro truck. That one has the grey Toyota lettering and usually requires a pro VIN to order (as people have noted, there are exceptions to that rule). The other is the pro grille that comes with the TRD lift kit. That one is all black including the letters, no one fusses about the VIN, and can be purchased separately from the lift kit.

    If you have a front facing camera the only options I know of are the OEM grille or Taco Vinyl's version that you can order with the garnish and front facing camera bracket. I went with the latter and it was all plug and play, and no issues with the TSS sensor or adaptive cruise. I chose theirs over OEM because my reading showed that some folks had to trim the camera bracket or buy one from Toyota to get it to work while Taco Vinyl's was good to go as delivered.


    Cody901 and EL Taco Verde like this.
  8. Sep 22, 2022 at 6:11 AM
    #8
    TacoTime55

    TacoTime55 TT58

    Joined:
    Sep 28, 2021
    Member:
    #378314
    Messages:
    7,671
    Gender:
    Male
    First Name:
    Ed
    Delaware
    Vehicle:
    2021 Midnight Black TRD Sport AT/DCSB
    OTT Tune, LED HLs&Fogs,TRDSkid, TalonCAT
    I would of liked to have bought OEM grill last year but instead I went with EmpyreOffRoad's grill/garnish/smoked amber raptor lights.

    Install took me a while but I did it last month.

    I recently tested the "Automatic High Beams" (the push button is on the left side) and engaged the high beams and it worked like a charm.

    The first TSS test I did was for the DRCC and LDA functions at highway speeds--everything worked as advertised with no errors.

  9. Sep 22, 2022 at 6:31 AM
    #9
    Siblue

    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,115
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    Here is a timeline of the part numbers as I remember it from first having a 3rd gen in 2016 up until 2022.
    • PT228-35170 SILVER TOYOTA First available part with 17 in the PN stating the year(no pro's in 2016). This is the $500 version that anyone can buy that was intended for 16-17MY without TSS. In the beginning this part number was packaged poorly, many shipped with broken clips. I remember paying full price when this first released.
    • PT228-35180 SILVER TOYOTA Number change with 18 with an empty spot in lower grill for TSS. Garnish 531413-35060 was only around $68 when first available. 18 PN I believed sold for around $200 but Toyota started to control purchases and requesting VIN along with this order. I think we got away with the $68 OEM TSS garnish until 2019 or 2020, which is now almost $300.
    • PT228-35200-AA SILVER TOYOTA Number change with 20 as pro came standard with a front camera. Not sure the reasoning with adding AA to the end of the part number. Still around $200 but parts controlled by requesting VIN. Garnishes are no longer $68 by the time this new version released and cheap TSS garnishes alternatives populated our web search.
    • PT228-35200-20 BLACK TOYOTA This is the TRD lift kit replacement part number and sells for $135. I don't know of anyone successfully purchasing without the lift kit with those beautiful fog blanks. I'd buy this to mount on my garage wall if I could.
    • PT228-35220-AA BRONZE TOYOTA Number change with 22 as standard issue with 2022 Trail Edition same mold as 35180(no camera) just with bronze lettering. Around $200 and PN is not controlled by Toyota.

  10. Sep 22, 2022 at 6:35 AM
    #10
    SDTaco4x4

    SDTaco4x4 Well-Known Member

    Joined:
    Aug 20, 2015
    Member:
    #162275
    Messages:
    3,067
    Gender:
    Male
    San Diego
    Vehicle:
    2016 Black TRD Sport 4x4
    I just went to my dealership and bought one at the parts center.

    82nd_Devil and stftaco like this.
  11. Sep 22, 2022 at 7:19 AM
    #11
    rybern

    rybern [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215281
    Messages:
    2,326
    Gender:
    Male
    First Name:
    Ryan
    N Alabama
    Vehicle:
    2023 TRD OR & 2000 SR5
    5100's & 3AAL, 265/70r17 Toyo AT3
    I appreciate the response and explanation.

    I didn't realize that the TRD lift kit grill didn't have the silver or grey letters. I just looked at a listing for the kit and see that the grill does in fact have the black letters like you said. I like the grey(or silver) letters so I'm happy about that.

    TacoVinyl is my 2nd choice because I've read some good thing about them.

    FL_TRD Sport likes this.
  12. Sep 22, 2022 at 7:55 AM
    #12
    hypecat

    hypecat Well-Known Member

    Joined:
    Jan 4, 2022
    Member:
    #386328
    Messages:
    77
    Gender:
    Male
  13. Sep 22, 2022 at 8:01 AM
    #13
    FL_TRD Sport

    FL_TRD Sport Suffering from Severe Wallet Drain

    Joined:
    May 30, 2021
    Member:
    #367208
    Messages:
    3,603
    Gender:
    Male
    First Name:
    Hector
    Port St. Lucie, FL
    Vehicle:
    2021 TRD Sport MGM DCLB (Sold)
    KDMax Pro 10.0, Form Lighting Tail Lights, and more
  14. Sep 22, 2022 at 8:14 AM
    #14
    ekjstth

    ekjstth Member

    Joined:
    Sep 1, 2022
    Member:
    #404888
    Messages:
    21
    Gender:
    Male
    Michigan
    Vehicle:
    '19 OR DCSB
    TSmalls89, KeNnETT and gr8-wrx like this.
  15. Sep 22, 2022 at 8:51 AM
    #15
    TacoTime55

    TacoTime55 TT58

    Joined:
    Sep 28, 2021
    Member:
    #378314
    Messages:
    7,671
    Gender:
    Male
    First Name:
    Ed
    Delaware
    Vehicle:
    2021 Midnight Black TRD Sport AT/DCSB
    OTT Tune, LED HLs&Fogs,TRDSkid, TalonCAT
  16. Sep 22, 2022 at 1:19 PM
    #16
    Kyebasse

    Kyebasse Jd

    Joined:
    Jul 11, 2021
    Member:
    #371009
    Messages:
    616
    Gender:
    Male
    First Name:
    K
    Vehicle:
    21 Tacoma TRD Off-road
    Don't know why people just get one from Amazon. Everything is the same people. Both the toyota or the Amazon one is just plastic.

    TS4x4 and Bagman like this.
  17. Sep 22, 2022 at 1:22 PM
    #17
    Elliott07

    Elliott07 Well-Known Member

    Joined:
    May 3, 2022
    Member:
    #396435
    Messages:
    74
    Gender:
    Male
    First Name:
    Elliott
    Vehicle:
    2017 Super White Tacoma
    Kings, headlights and taillights, 3rd break light, antenna, methods17”, Falken at3 33”, dirt king Long travel, TRD pro grille, Baja designs, custom faves skid plate, fiberglass fenders, archive garage towers.
    Go to the dealership and go to theirs parts section or you can order from a certain website

  18. Sep 22, 2022 at 4:30 PM
    #18
    rybern

    rybern [OP] Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215281
    Messages:
    2,326
    Gender:
    Male
    First Name:
    Ryan
    N Alabama
    Vehicle:
    2023 TRD OR & 2000 SR5
    5100's & 3AAL, 265/70r17 Toyo AT3
    With that logic, you should just buy a Kia.... Kia and Toyota are just metal and plastic. ;)

    MikeyMcFly likes this.
  19. Sep 22, 2022 at 4:36 PM
    #19
    Martian__

    Martian__ Well-Known Member

    Joined:
    May 15, 2018
    Member:
    #253566
    Messages:
    734
    Southern California
    This needs to be saved, pinned or whatever we call it now. I’ve been looking for a thread that had this information for a while.

    jneutron and MrMustacho like this.
  20. Sep 22, 2022 at 4:40 PM
    #20
    Siblue

    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,115
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    25 Tundra TRD pro
    Thanks, I was just ranting early this morning.
