Where to tap in for Trailer Lights?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by whttaco2whl, May 20, 2021.

  1. Jan 6, 2022 at 2:09 PM
    #21
    EdableDonut

    EdableDonut Well-Known Member

    Joined:
    Dec 25, 2021
    Member:
    #385488
    Messages:
    55
    Gender:
    Male
    First Name:
    Raymond
    Vehicle:
    09 white Tacoma,
    None. 220k miles, just did a major brake/ suspension overhaul to keep him on the road.

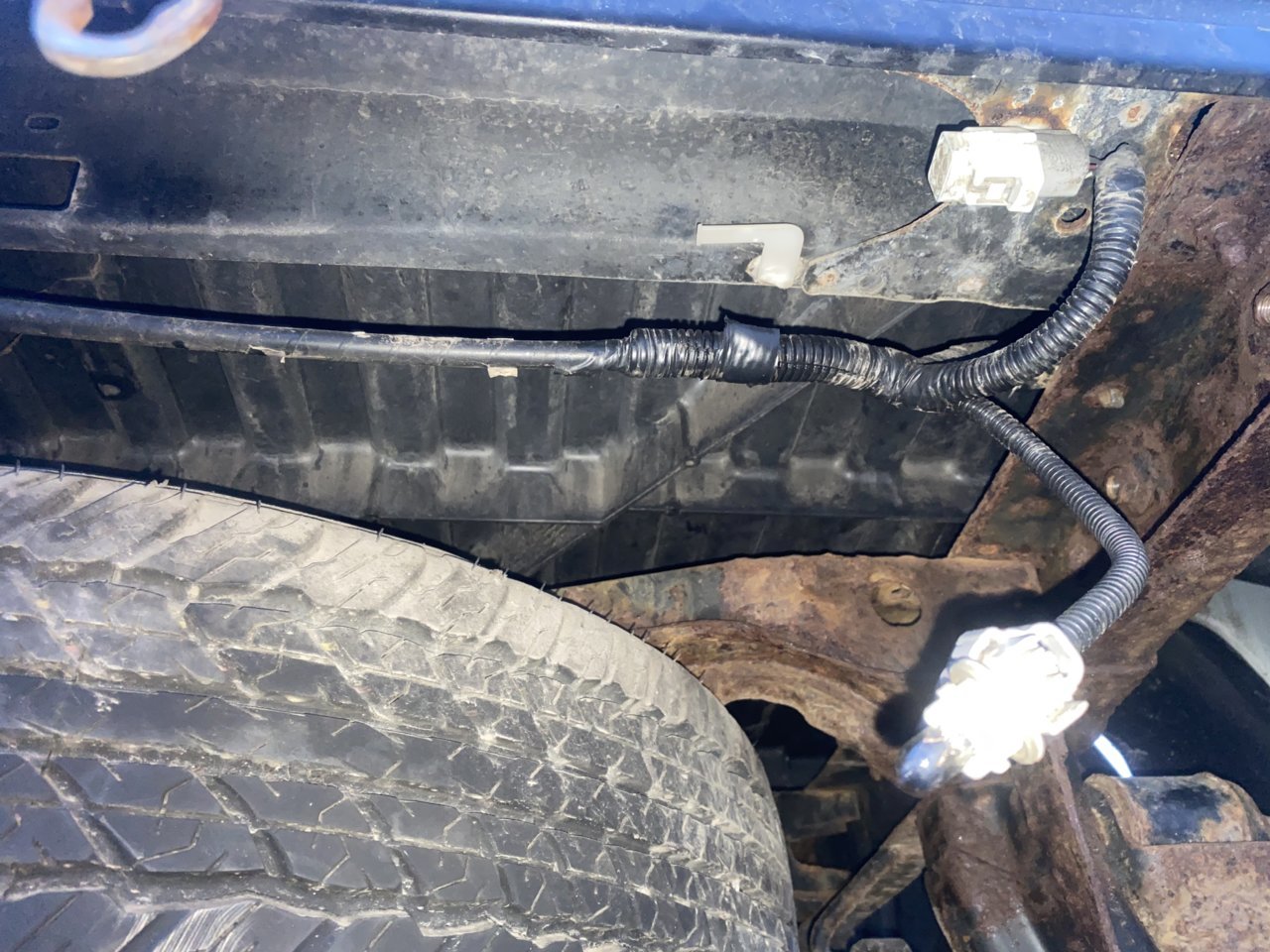

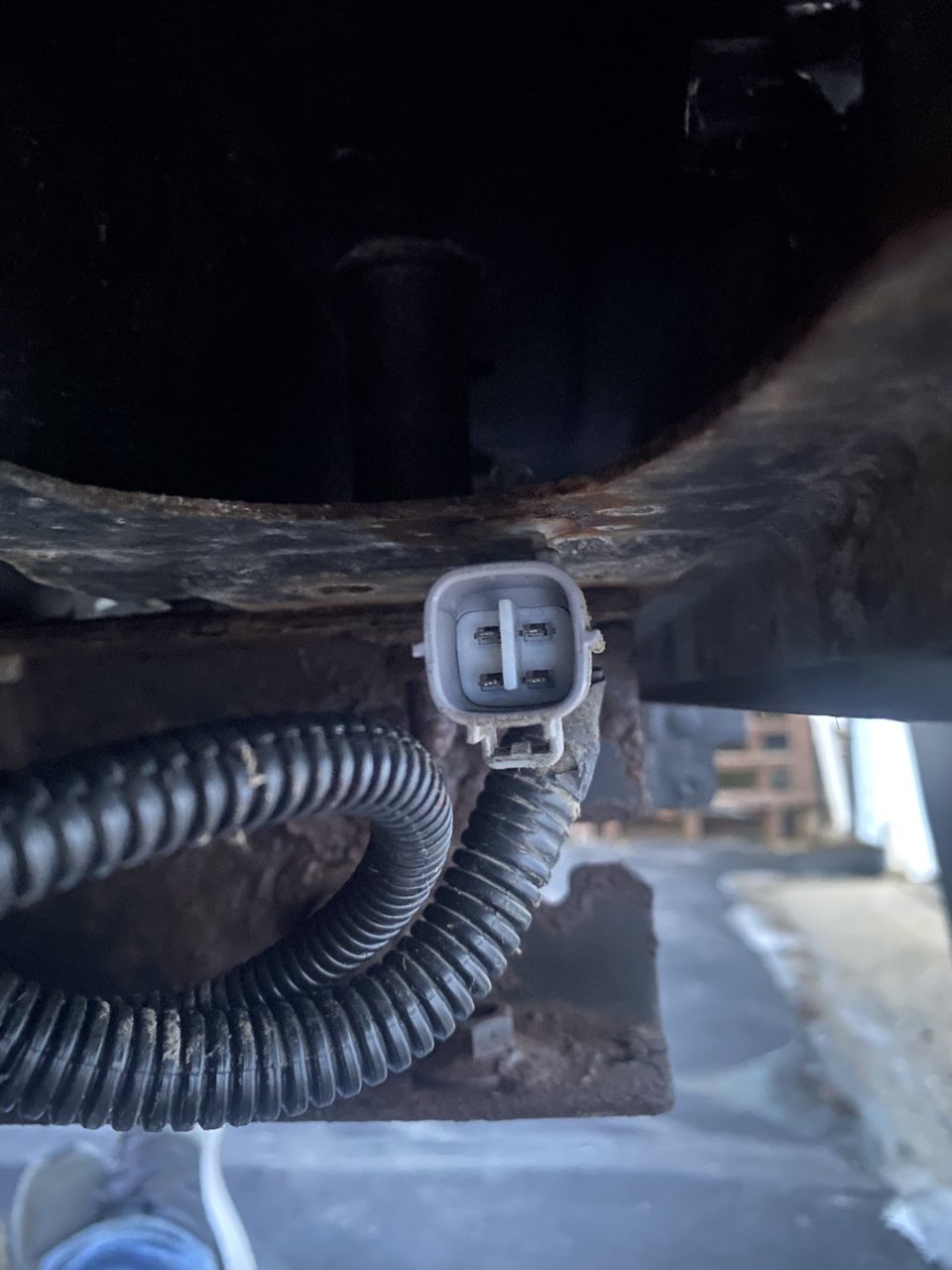

    so I took a few photos it’s a 4 pin:
    Red/white/black/blue (NOTE: in the first photo I have taken out the white end cap)


  2. Jan 6, 2022 at 2:13 PM
    #22
    EdableDonut

    EdableDonut Well-Known Member

    Joined:
    Dec 25, 2021
    Member:
    #385488
    Messages:
    55
    Gender:
    Male
    First Name:
    Raymond
    Vehicle:
    09 white Tacoma,
    None. 220k miles, just did a major brake/ suspension overhaul to keep him on the road.
    LArger image sry for noob mistake


  3. Jan 6, 2022 at 4:28 PM
    #23
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    12,820
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    That connector I believe is for the backup camera which I'm asuming you don't have since its blank.

  4. Jan 6, 2022 at 4:33 PM
    #24
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    12,820
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    The connector for the trailer plug if you have it would be on the drivers side and would have 8 pins.
    It looks like the pins are there for the towing tail relay but the relay is not installed, I cant make out anything else.
    Does your truck have DRL?

  5. Jan 6, 2022 at 4:34 PM
    #25
    EdableDonut

    EdableDonut Well-Known Member

    Joined:
    Dec 25, 2021
    Member:
    #385488
    Messages:
    55
    Gender:
    Male
    First Name:
    Raymond
    Vehicle:
    09 white Tacoma,
    None. 220k miles, just did a major brake/ suspension overhaul to keep him on the road.

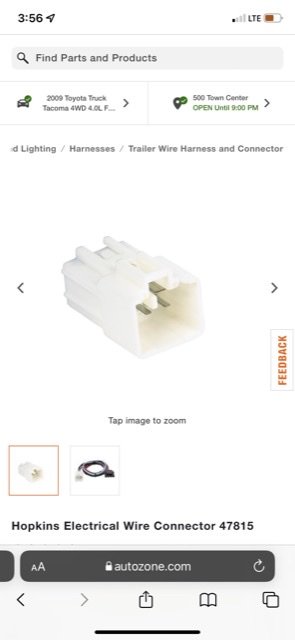

    I looked around and autozone shows a 4 pin
    “Hopkins Electrical Wire Connector 47815 “ that connects to a Hopkins 7pin connector?
    Has anyone tried?

    Edit: NO DRL (day time running lights) they are blanks


  6. Jan 6, 2022 at 4:37 PM
    #26
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    12,820
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Thats the adapter harness to install a trailer brake controller, not for lighting.

  7. Jan 6, 2022 at 5:00 PM
    #27
    Poison_Dart_

    Poison_Dart_ Member

    Joined:
    Dec 26, 2021
    Member:
    #385541
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2022 Tacoma SR TSS Off-road

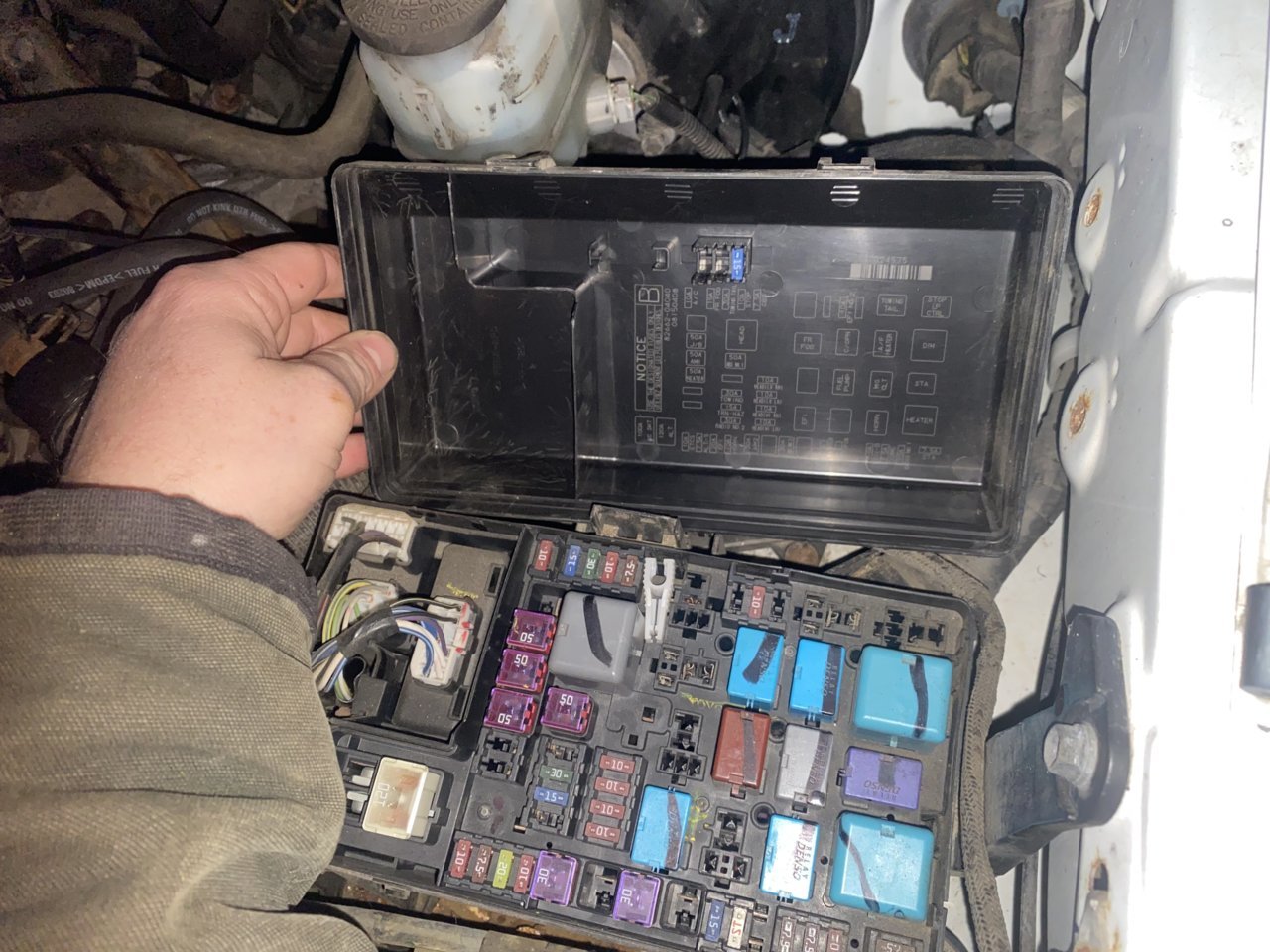

    Thanks I was looking in the fuse box a couple days ago for the fog lights and I saw the tow relay and fuse are there so I will have to look under the truck to see if I can dig up the connector you spoke of.

  8. Jul 13, 2022 at 5:00 PM
    #28
    Ddiogo

    Ddiogo Member

    Joined:
    Jul 13, 2022
    Member:
    #401296
    Messages:
    12
    Gender:
    Male
    First Name:
    Dimitri
    Vehicle:
    ‘22 Tacoma SR5 Acess Cab

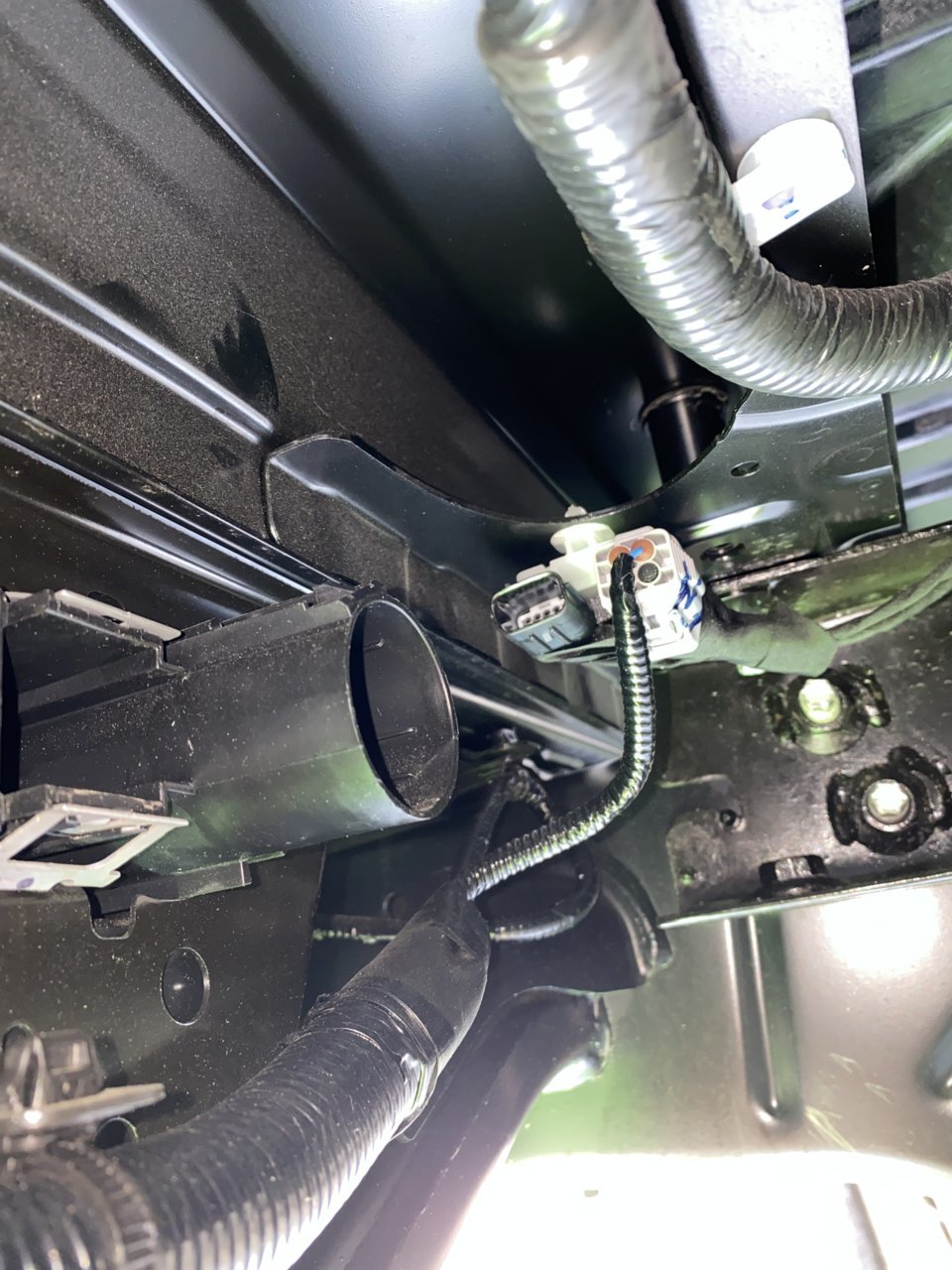

    Is this the one you’re talking of?

    Tacomuncher21 likes this.
  9. Jul 13, 2022 at 8:19 PM
    #29
    blu92in99

    blu92in99 Hates everyone, equally

    Joined:
    Aug 8, 2017
    Member:
    #226282
    Messages:
    1,159
    Gender:
    Male
    Elk Grove, Ca
    That's the one!

  10. Jul 14, 2022 at 3:09 AM
    #30
    Ddiogo

    Ddiogo Member

    Joined:
    Jul 13, 2022
    Member:
    #401296
    Messages:
    12
    Gender:
    Male
    First Name:
    Dimitri
    Vehicle:
    ‘22 Tacoma SR5 Acess Cab
    So what connector will I need to plug into this? I ordered the oem bumper 7 pin just need a harness to connect the Two

    Tacomuncher21 likes this.
