Which ARB Air Compressor

Discussion in '2nd Gen. Tacomas' started by bjmoose, Dec 13, 2010.

  1. bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,505
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    I took some pics as I installed it, but somehow either my iPhone or my computer ended up eating up half of 'em, so I didn't have enough snaps to do a really satisfying install thread.

    I've got the 4 banger, so I mounted the compressor on the driver side fender, right behind the fuse box, using some thick rubber washers and grommets to provide some vibration isolation between the compressor and the body.

    I had to have ARB USA send me two separate parts - the air solenoid for the locker didn't hold pressure, and the Y valve for the add-on tire inflation kit was improperly threaded. :mad:

    As a result, my locker works, but I still haven't gotten around to installing the Y valve and tire inflation kit. So I can't really report on how well it works for airing up tires.

    My expectation is it'll be just roughly about as fast as my VIAIR 400 - around 3 minutes a tire or a little less (285/70R17.)

    It wasn't easy to find a good switched power line behind the dash - I used the most current wiring diagram off of toyotaowners.com ($15 fee for two days of access.)

    My most convenient power source was a tiny 22ga wire, so I brought in an unswitched power line from the battery and added a little solenoid there, behind the dash, and hooked the output of the solenoid as my "switched" power into the ARB air harness. That's probably total overkill, but I've had aftermarket stereo electronics fry a car computer before, and so I'm super paranoid about the whole thing.

    The dash lighting wiring doesn't work exactly the same as ARB's harness expects (they expect variable input voltage to ground) so if you want to wire up the lights with variable lighting levels, you have to do a tiny bit more work (wire into both a positive source and negative return, not just a positive source and then to ground.)

    Now, I *HATE* cutting factory wires, so after waffling for a while and I eventually decided I'd rather have unlit buttons than make necessary two additional cuts and crimps.

    On the tacoma "basic" model, there are three empty switch blanks right where things like factory Locker and atrac switches would go, so those made a great place to put the ARB compressor and locker switches.

    Anyhow, since then, ARB has now introduced an even newer continuous duty air compressor, so you'll want to check that one out as well.

  2. Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,545
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    I also want to install right behind the fuse box. Did your computer eat that pic? Would like to see it.

  3. bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,505
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    I can take a new pic "as installed." Obviously that won't show the mounting holes.

  4. pAP

    pAP ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb
    Thanks for getting back. Ill have to set a day aside to get this done. Thanks for the tips!

    I was eying up the CKMTA12. You can run air tools off it! :cool:Not sure how big it is or if it will fit under the hood.

    Pap

  5. Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,545
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    Perfect, I'm just curious how well it fits there.

    the new constant duty is 2x as big as the heavy duty. Also pulls lots of power. I have had a Large OBA system, now downsizing to make things more sensible.

  6. bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,505
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Holy Carp! That thing looks way capable, but there's no way it's fitting under the hood. :eek:

  7. pAP

    pAP ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb
    Ha! yea.. little too pricey for the limited air tool usage I would get out of it. The CKMA12 will be perfect for my needs.

    Pap

  8. bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,505
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Here you go.

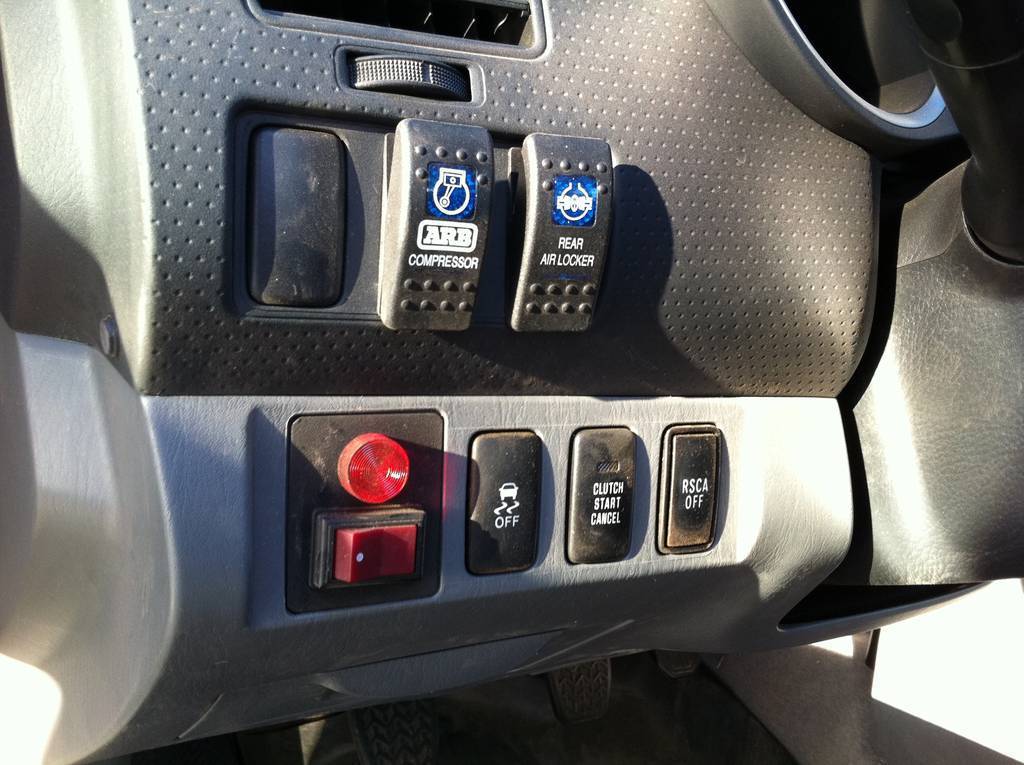

    Dash switches.
    [​IMG]

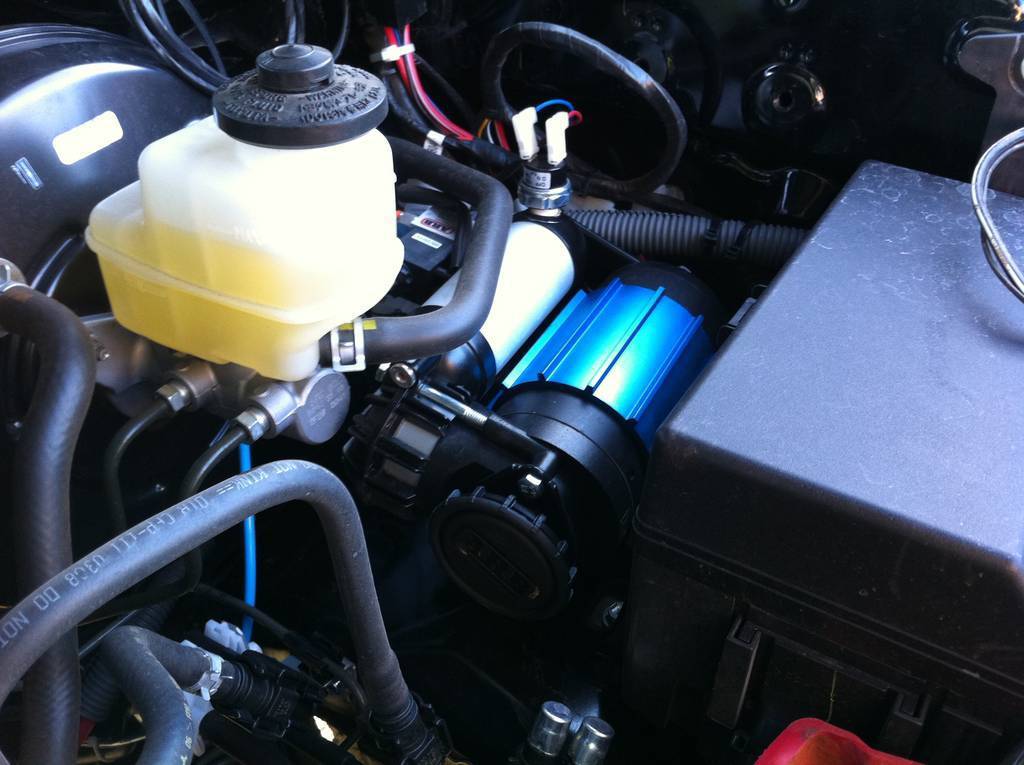

    Taken from the driver side - Front of truck is left side of pic:
    [​IMG]

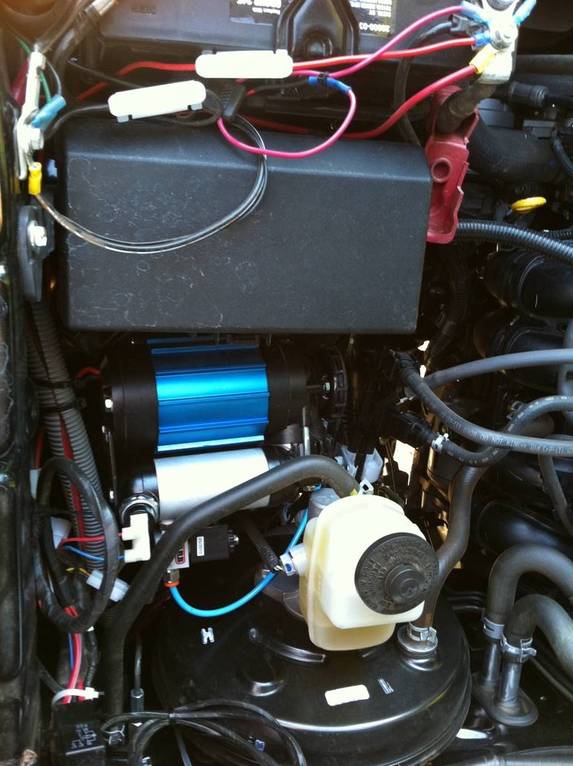

    Taken from above the engine bay - Front of truck is right side of pic:
    [​IMG]

  9. sandman427

    sandman427 KR FAB

    Joined:
    Mar 9, 2009
    Member:
    #14497
    Messages:
    5,916
    Gender:
    Male
    First Name:
    Amir
    WAY THE HELL OUT THERE, So Cal
    Vehicle:
    BAMF TACO!!
    2 ten inch kicker cvt subs, pioneer deck and alpine 1000 watt class D amp, and flowmaster exhaust, 4 inch camburg lift spindles and my coilover is adjusted to 1" (5inch total) in front and 3" All Pro leafs, KING off road racing reservoir shocks and coil-overs, KR FAB CUSTOM BUMPER with three 9" HELLA 4000 Race LIGHTS , HID headlights with rigid amber LEDs , "KR Fabrication" custom built bumper, sliders and tiregate, Full size spare with matching rim, custom bed bar with two amber off road lights, cb radio, also BHLM (thanks Ray), and debagged
    [​IMG]

    [​IMG]

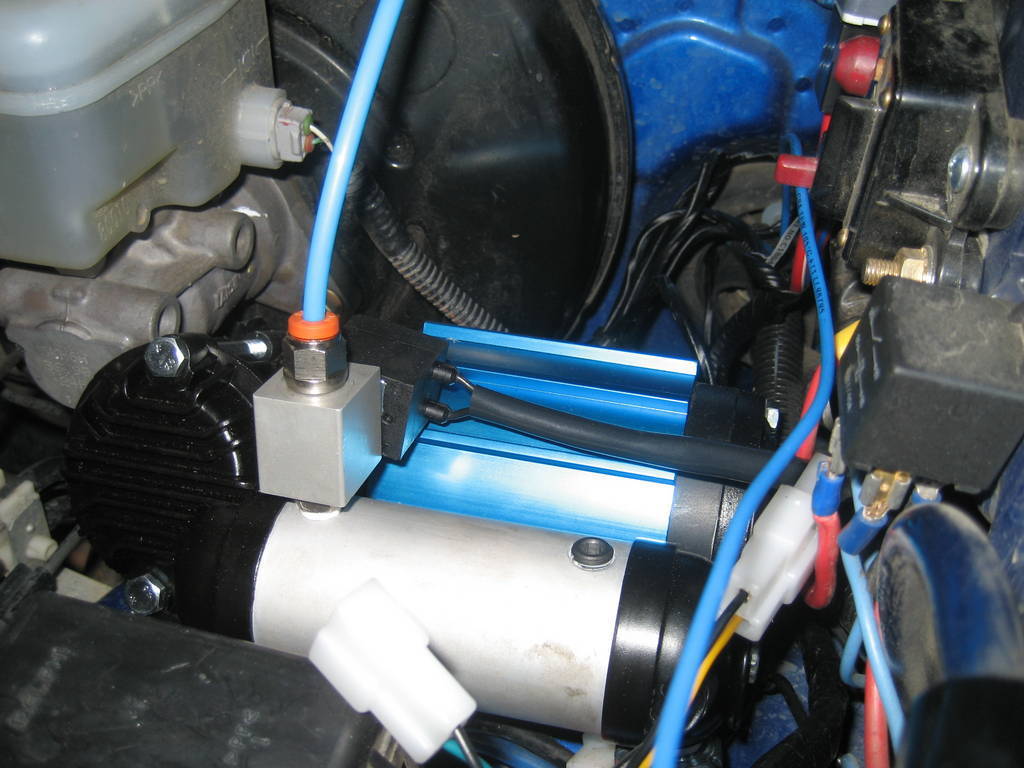

    here is mine...

  10. Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,545
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    hmmm lot tighter fit than I thought!
    Thats what she said.

  11. JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,545
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    subbed for summer spending... :cool:

  12. Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,545
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
  13. bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,505
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    And now I've installed the front as well.

    [​IMG]

    When I initially installed the switches, I wanted to splice into as few factory wires as possible. So I didn't wire up the switch lights to the instrument light dimmer circuit.

    I figured - I don't wheel at night - why do I need the switches lit?

    Well, over time, I've figured out that I *do* DRIVE at night, and sometimes want to adjust the air vent on the driver side. And I don't want to accidentally engage the compressor or locker! So it's helpful to have those switches lit so that I can *AVOID* accidentally engaging them in the dark.

    So I spliced into GREEN (not "light green") and GREEN/WHITE wires off of the instrument panel rheostat to get my positive and negative leads for the three ARB switches' background lights. Naturally these are wired in PARALLEL not in SERIES. (And if you don't know what that means, I respectfully suggest you that you FIND OUT before you start cutting and tapping in to your factory wires)

  14. bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,505
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Another note - when I first installed - I had a problem with the locker air solenoid releasing pressure when it wasn't supposed to. So I had ARB send me a new one.

    The same damn thing happened this time! So I figured it had to be me; nobody is that unlucky. So I pulled the little stainless dust cap filters from the ends of the air solenoids and cycled the switches again and again to blow them out. Eventually, the system held air reliably.

    I figure one of two things was going on:

    1. I'm obsessive about leaks. So I use a lot of teflon tape. As I installed and reinstalled the threaded connectors, it's possible a couple shreds of teflon tape got into the air tank and then got drawn into/stuck into the air solenoid, causing it not to close all the way and be unable to hold pressure.

    2. I'm obsessive about leaks. So I check for leaks with lots of soapy water. It's likely that some soapy water got into the air solenoid - and it's possible that the soapy mixture somehow prevented the valve from sealing shut relaibly so again, it blew at high pressure.

    At any rate, after I cycled the valves twenty times or so, they were holding reliably.

  15. Brunes

    Brunes abides. Thor

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,803
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    So yeah...Another blast form the past (not too far back tho)

    How tight are those switches to get into the dash in the blanks to the left of the steering wheel??

    Did you have to take out dash material to get them to fit?? Any photos of the wiring??

  16. n0rth

    n0rth Well-Known Member

    Joined:
    Jun 27, 2010
    Member:
    #39486
    Messages:
    1,066
    Gender:
    Male
    First Name:
    J.W.
    Idaho
    Vehicle:
    09 Tacoma 4X4 SR5
    2009 Tacoma Access Cab SR5, 4wd, 2.7L URD S/C, 4:88's ARB lockers, 36x9.8r16 Radial TSL
    You will need to work the blanks with a dremel to get them to fit on the switch panel.

  17. Brunes

    Brunes abides. Thor

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,803
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    Yeah...I peeked and thought that was gunna be the case...A little, a lot??

  18. n0rth

    n0rth Well-Known Member

    Joined:
    Jun 27, 2010
    Member:
    #39486
    Messages:
    1,066
    Gender:
    Male
    First Name:
    J.W.
    Idaho
    Vehicle:
    09 Tacoma 4X4 SR5
    2009 Tacoma Access Cab SR5, 4wd, 2.7L URD S/C, 4:88's ARB lockers, 36x9.8r16 Radial TSL
    It wasn't too much, maybe 10 min. to open all 3 of blanks up when I first took it apart I was like they'll fit no problem until I actually did a test fit. I did the same thing a few weeks ago when wiring up the ADD switch in the blanks below the stereo so it isn't much material to remove to get a good fit.

  19. bjmoose

    bjmoose [OP] Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,505
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio

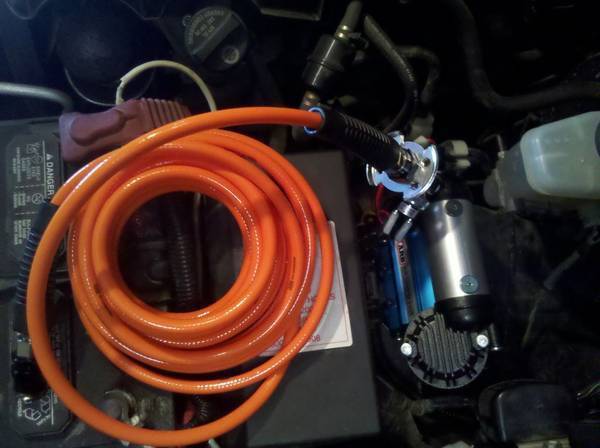

    Just sent one photo to TW live.

    Hot glue to hold the switches in place.

    Custom wires for the switch lighting since factory panel dim is on the ground side not the positive side.

    Pull dash lights from two wires in the dash dimmer that is RIGHT THERE as that's far and away easiest access.

    I also spliced into that for switched power.

    Use wiring diagram from NorCal ttora to see which three wires to cut into.

    Extra care cause they're like 22 gauge skinny.

  20. Brunes

    Brunes abides. Thor

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,803
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    Okay-I gotta find some time to play with the truck now. And get in the mood to do some wiring....
    Saw your photo- That was a great start. I'll check out TTORA for that wiring too. I'm just running two switches for Fogs and Offroad Lights (For now- Compressor/Locker will be later)
