Why does my shock look wrong?

Discussion in '1st Gen. Tacomas (1995-2004)' started by yourrealdad, Jun 20, 2020.

  1. Jun 20, 2020 at 9:03 AM
    #1
    yourrealdad

    yourrealdad [OP] Well-Known Member

    Joined:
    Aug 13, 2015
    Member:
    #161668
    Messages:
    249
    Colorado
    Vehicle:
    2007 Red Tacoma DCLB TRD Sport 4x4
    I just installed a Bilstein F4-Be5-D559-T0. It is the driver's side rear shock. It matches the shock I just took off. I have a Skyjacker 2.5" leaf spring.

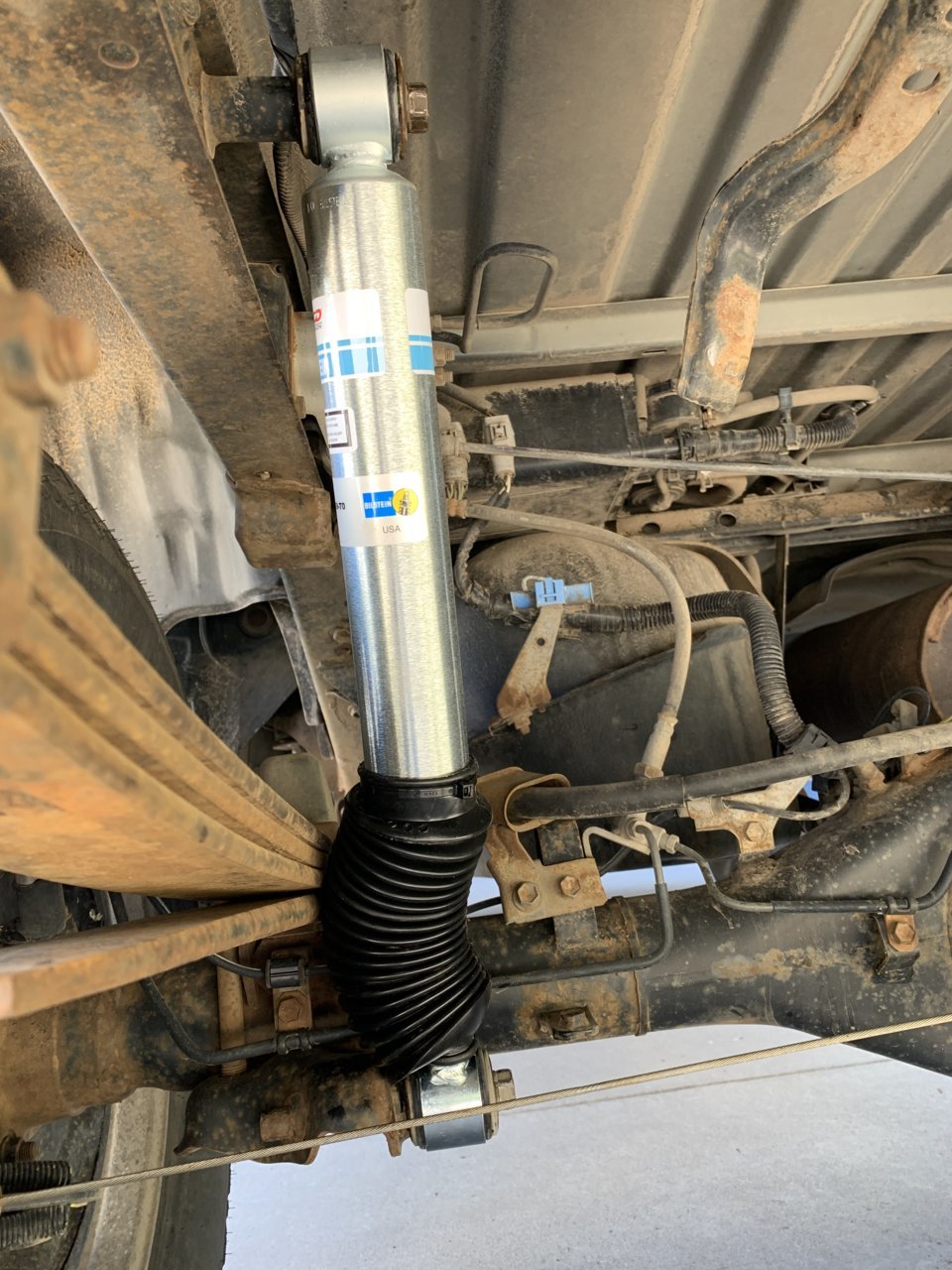

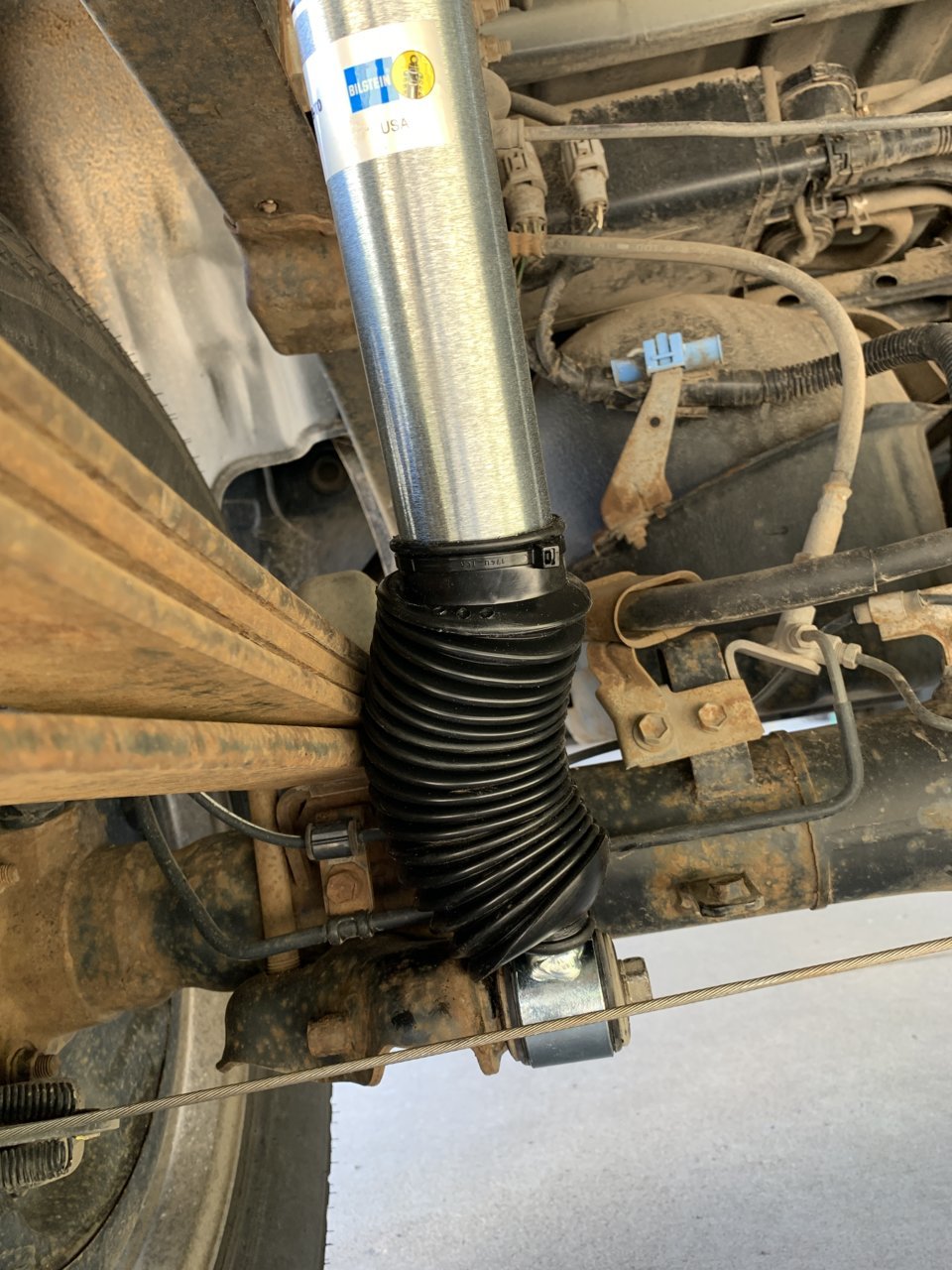

    The boot is extremely compressed and so close to the leaf springs that it is going to get torn at some point. Is this right?

    IMG_0557.jpg IMG_2075.jpg

  2. Jun 20, 2020 at 9:04 AM
    #2
    Sig45

    Sig45 Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81045
    Messages:
    22,024
    Gender:
    Male
    First Name:
    Mark
    Maine
    Vehicle:
    2011 Tacoma TRD OR 4x4 & 2021 Tundra SR5 DC 4x4
    AVS in-channel window visors Husky Mud Guards Husky Liners X-act Contour Floor Liners Cooper Discoverer AT3 LT- 265/75/16 C Toyota 16" Black TRD Trail Team Edition Wheels Truxedo Lo Pro Tonneau Cover OEM Bed mat OEM Running Boards Marathon custom fit seat covers Front window tint Rear Leaf Spring 4 Pack - TSB Front - 5100's with stock springs set at .85" Rear - 4600's
    Seems like plenty of room to slide the boot up.

    StevenP, jammer and Ritchie like this.
  3. Jun 20, 2020 at 9:29 AM
    #3
    yourrealdad

    yourrealdad [OP] Well-Known Member

    Joined:
    Aug 13, 2015
    Member:
    #161668
    Messages:
    249
    Colorado
    Vehicle:
    2007 Red Tacoma DCLB TRD Sport 4x4
    I think there is a little groove that it sits in at the top though?

  4. Jun 20, 2020 at 9:30 AM
    #4
    Sig45

    Sig45 Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81045
    Messages:
    22,024
    Gender:
    Male
    First Name:
    Mark
    Maine
    Vehicle:
    2011 Tacoma TRD OR 4x4 & 2021 Tundra SR5 DC 4x4
    AVS in-channel window visors Husky Mud Guards Husky Liners X-act Contour Floor Liners Cooper Discoverer AT3 LT- 265/75/16 C Toyota 16" Black TRD Trail Team Edition Wheels Truxedo Lo Pro Tonneau Cover OEM Bed mat OEM Running Boards Marathon custom fit seat covers Front window tint Rear Leaf Spring 4 Pack - TSB Front - 5100's with stock springs set at .85" Rear - 4600's
    Not sure about the first gen shocks. But when I had 5100's on rear, there was no groove.

    jammer likes this.
  5. Jun 20, 2020 at 9:30 AM
    #5
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,784
    I don’t recall there being any groove. It’s just zip tied in place.

    jammer and Sig45 like this.
  6. Jun 20, 2020 at 9:42 AM
    #6
    yourrealdad

    yourrealdad [OP] Well-Known Member

    Joined:
    Aug 13, 2015
    Member:
    #161668
    Messages:
    249
    Colorado
    Vehicle:
    2007 Red Tacoma DCLB TRD Sport 4x4
  7. Jun 20, 2020 at 9:43 AM
    #7
    Sig45

    Sig45 Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81045
    Messages:
    22,024
    Gender:
    Male
    First Name:
    Mark
    Maine
    Vehicle:
    2011 Tacoma TRD OR 4x4 & 2021 Tundra SR5 DC 4x4
    AVS in-channel window visors Husky Mud Guards Husky Liners X-act Contour Floor Liners Cooper Discoverer AT3 LT- 265/75/16 C Toyota 16" Black TRD Trail Team Edition Wheels Truxedo Lo Pro Tonneau Cover OEM Bed mat OEM Running Boards Marathon custom fit seat covers Front window tint Rear Leaf Spring 4 Pack - TSB Front - 5100's with stock springs set at .85" Rear - 4600's
    I don't believe that's related to the boot.

  8. Jun 20, 2020 at 9:44 AM
    #8
    yourrealdad

    yourrealdad [OP] Well-Known Member

    Joined:
    Aug 13, 2015
    Member:
    #161668
    Messages:
    249
    Colorado
    Vehicle:
    2007 Red Tacoma DCLB TRD Sport 4x4
    Perfect then I will carefully snip the zip tie and stretch the boot.

  9. Jun 20, 2020 at 9:47 AM
    #9
    Wsidr1

    Wsidr1 Well-Known Member

    Joined:
    Jul 11, 2018
    Member:
    #259004
    Messages:
    3,037
    Gender:
    Male
    Indiana
    Vehicle:
    2 x 95.5 Ext 2.7L & 3.4L A/T 4x4
    Look on the inside of the boot and make sure there are no molded in tabs that are supposed to seat in those indentations you are showing on the old shock.

  10. Jun 20, 2020 at 9:50 AM
    #10
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    70,890
    Gender:
    Male
    Stock
    Just slide the boot up a little; overthinking it.

    Don't use an impact on those bolts. Someone will post the torque rating but it isn't very high.

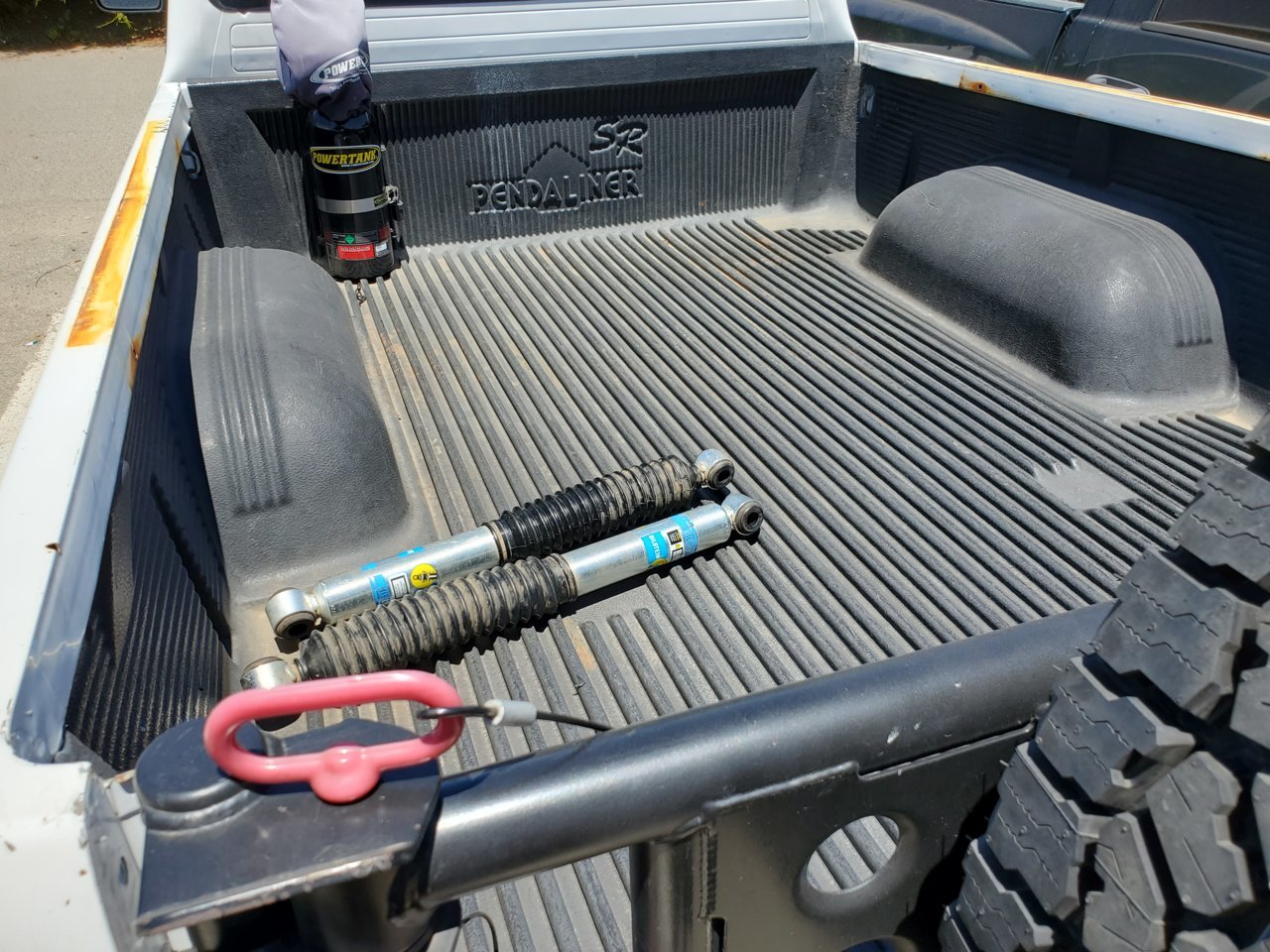

    Just yanked off my 5100s to let someone borrow them 2 days ago


    boston23 and boogie3478 like this.
  11. Jun 20, 2020 at 9:51 AM
    #11
    yourrealdad

    yourrealdad [OP] Well-Known Member

    Joined:
    Aug 13, 2015
    Member:
    #161668
    Messages:
    249
    Colorado
    Vehicle:
    2007 Red Tacoma DCLB TRD Sport 4x4
    Auto parts store only has a M12x25mmx1.25 grade 8 bolt. Will this suffice?

  12. Jun 20, 2020 at 9:54 AM
    #12
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    70,890
    Gender:
    Male
    Stock

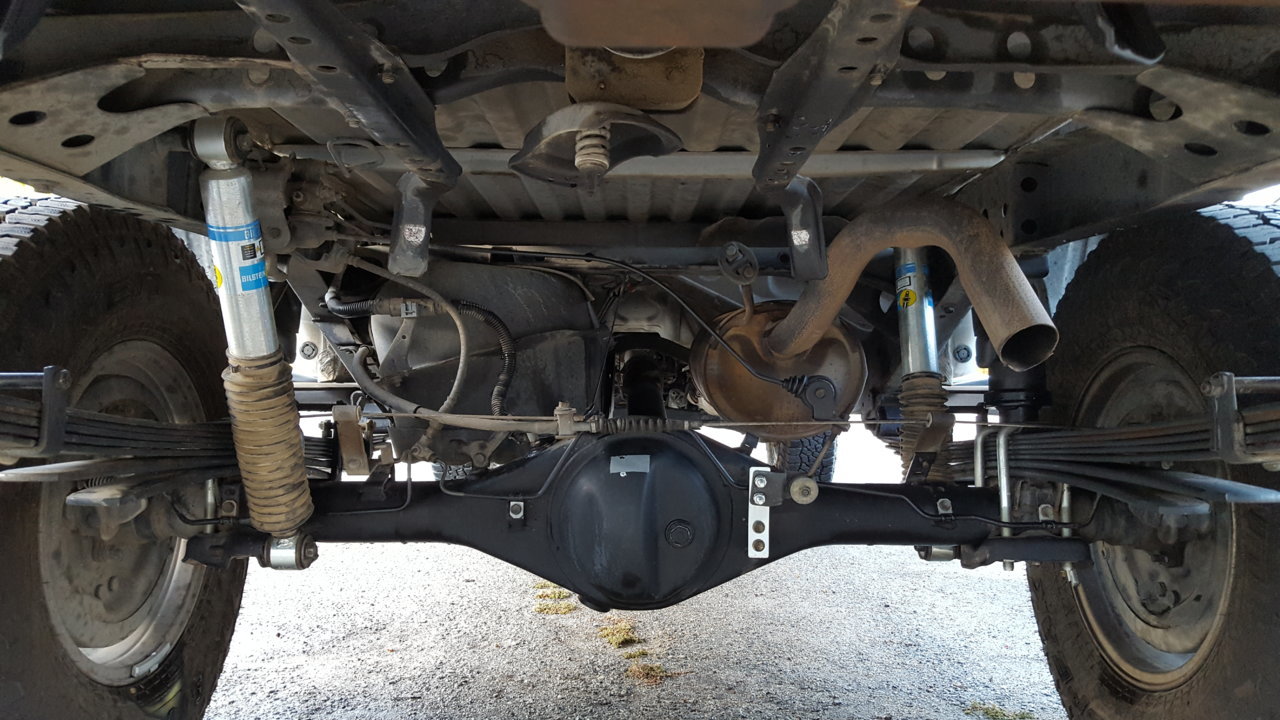

    Just found an old pic to compare -


  13. Jun 20, 2020 at 9:55 AM
    #13
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    70,890
    Gender:
    Male
    Stock
    Ace, Orchard, Lowes, Home Depot, etc.

    Hamer95USA likes this.
  14. Jun 20, 2020 at 9:59 AM
    #14
    yourrealdad

    yourrealdad [OP] Well-Known Member

    Joined:
    Aug 13, 2015
    Member:
    #161668
    Messages:
    249
    Colorado
    Vehicle:
    2007 Red Tacoma DCLB TRD Sport 4x4
    Will grade 8 work though or do I need 10?

  15. Jun 20, 2020 at 10:02 AM
    #15
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    70,890
    Gender:
    Male
    Stock
    Grade 8 will more than suffice

    It's what metric is anyway

    Tac0maSteve and boston23 like this.
  16. Jun 20, 2020 at 10:04 AM
    #16
    yourrealdad

    yourrealdad [OP] Well-Known Member

    Joined:
    Aug 13, 2015
    Member:
    #161668
    Messages:
    249
    Colorado
    Vehicle:
    2007 Red Tacoma DCLB TRD Sport 4x4
    Yeah, I just can't tell what this bolt is. Just has two lines on it, which is usually a SAE marking.

  17. Jun 20, 2020 at 11:02 AM
    #17
    devinzz1

    devinzz1 Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    6,613
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    95 extended cab sr5
    cxr turbo, fic6, methanol injection, king coilovers, jba uca, skyjacker leafs, rear 12" 5125s, no-slip rear locker, 35" grabber x3, magnaflow muffler, retrofit headlights, trans cooler, bed lined exterior, etc...
    alot of people keep the boots off. they can hold mud and dirt inside them. i ended up cutting mine off to prevent this

    boston23 and Digiratus like this.
  18. Jun 20, 2020 at 12:48 PM
    #18
    jammer

    jammer 2003 Toyota PreRunner 3.4L

    Joined:
    Jan 23, 2014
    Member:
    #121272
    Messages:
    1,281
    Gender:
    Male
    First Name:
    Ben
    Bentonville, AR
    Vehicle:
    2003 Lunar Mist Tacoma PreRunner 3.4l
    OME Coils/Bilstein 5100's front / 5125's rear 105 Amp Denso Alternator
    I agree, looks like the boot needs to be pulled up. I have the Bilstein 5125’s on the rear and when I have the tires rotated, I have to slide the boot back up because it’s compressed like your first pic.
    Also, mine does not have a groove, etc., for the upper part of the boot. Just a zip tie.

  19. Jun 20, 2020 at 1:54 PM
    #19
    Blue92

    Blue92 Well-Known Member

    Joined:
    Aug 26, 2017
    Member:
    #228071
    Messages:
    16,347
    Gender:
    Male
    First Name:
    Daniel
    North Carolina
    Vehicle:
    2004 4x4 2.7L
    I cut mine off. Doesnt hurt anything, looks cleaner, and it prevents mud from getting in there and building up.

    Torque on those bolts is only 53 lb. ft if I remember correctly.

    Hamer95USA likes this.
  20. Jun 20, 2020 at 4:45 PM
    #20
    TWJLee

    TWJLee Well-Known Member

    Joined:
    Dec 7, 2018
    Member:
    #275158
    Messages:
    542
    Gender:
    Male
    First Name:
    Jay
    Midwest
    Vehicle:
    2001 Tacoma 4X4 2.7 5spd access cab 2020 Tundra DC LmTD 2020 F150 5.0
    2020 Tundra GFC 33’s Borla Pro XS FOX 2.0 2020 F150 33’s Magnaflow FOX 2.0 2001 Tacoma 4x4 2.7 5spd access cab new frame 217k 2” lifted Always for sale.
    Debatable on whether they are upside down..?.. but yeah it looks a little squished, slide the boot up a bit
