Why LEDs should not be run in Halogen reflectors

Discussion in 'Lighting' started by crashnburn80, Oct 6, 2016.

  1. Jan 18, 2018 at 10:26 PM
    #61
    kata_batic

    kata_batic Member

    Joined:
    Jul 22, 2017
    Member:
    #224762
    Messages:
    24
    Gender:
    Male
    Edmonton, AB
    Vehicle:
    2017 AC OR
    So.. I'm one of those guys who wanted more light, and slapped some LED's in. They're brighter, but the light is so scattered and has no real decent projection down range :annoyed:. I wasn't really sure what was going on until I read OP's post. Makes perfect sense now. Just going to get some decent halogens: PIAA or Philips or something. Thanks OP!

  2. Jan 18, 2018 at 11:20 PM
    #62
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,718
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Check out the ‘Other Bulbs’ section at the end of this thread:
    https://www.tacomaworld.com/threads/the-ultimate-h4-headlight-upgrade-not-led-or-hid.398066/

    I’d recommend the Philips Xtreme +130 if looking for a stock wattage replacement.

    MattCowsmasher likes this.
  3. Jan 25, 2018 at 4:54 PM
    #63
    Toms 17

    Toms 17 Well-Known Mumbler

    Joined:
    Sep 22, 2017
    Member:
    #230753
    Messages:
    216
    Gender:
    Male
    First Name:
    Tom
    Central Ohio
    Vehicle:
    17 MGM DCSB TRD Sport
    crashnburn80 [OP] likes this.
  4. Feb 9, 2018 at 5:12 PM
    #64
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,718
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    That is a 2016+ (3rd gen) which use a projector, not a reflector as covered in this thread. The 3rd gens do use reflectors in their fogs and high beams.

    Projectors have light shields to give clean cut off regardless of the light source used, but cut offs are only one part of the light equation. Even with a projector you can actually see in the video the loss of the low beam hot spot comparing the halogen to the LED, which will result in loss of light distance projection or what people like to call “throw”. Clear as day. Also note the loss in the lower portion of the LED low beam with a large dark region in the center, this is due to the side firing LEDs mounted on a rod in the housing not uniformly lighting the projector as it was designed for an omni-directional halogen light source. You also have upward glare on the sides which should have clean cut offs like the halogen, again thanks to the side firing LEDs. In short that beam is a mess.

    Last edited: Feb 9, 2018
    Norton and steelhd like this.
  5. Feb 10, 2018 at 3:36 PM
    #65
    jamestkirk

    jamestkirk Well-Known Member

    Joined:
    Aug 15, 2012
    Member:
    #84864
    Messages:
    166
    Gender:
    Male
    Moab Utah
    Vehicle:
    1999 Pre Runner 2017 TRD OR
    You're not addressing the HB demonstration in which the LED bulb performed better than the halogen in a reflector lens.

    Kirk Out

  6. Feb 16, 2018 at 2:25 PM
    #66
    steelhd

    steelhd Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118650
    Messages:
    2,918
    Gender:
    Male
    Eastern WA
    Vehicle:
    2011 DCSB TRD OR
    So how about you share the link?

  7. Feb 16, 2018 at 8:29 PM
    #67
    jamestkirk

    jamestkirk Well-Known Member

    Joined:
    Aug 15, 2012
    Member:
    #84864
    Messages:
    166
    Gender:
    Male
    Moab Utah
    Vehicle:
    1999 Pre Runner 2017 TRD OR
    The link is right there in crashnburn80's post. Right above my post. In the quoted text....the vid by headlight revolution...Kirk Out

  8. Apr 4, 2018 at 3:11 PM
    #68
    GrantF

    GrantF Active Member

    Joined:
    Feb 22, 2018
    Member:
    #245287
    Messages:
    38
  9. Apr 4, 2018 at 6:21 PM
    #69
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,718
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    No, but good question. The omnidirectional light is only part of the issue. The reflector housing is designed to redirect and project light emitting from the very precise point of a halogen filament. It is a high precision geometry game. That style bulb you link has light coming from all sorts of different places, none of which is where the reflector is designed to take the light source from.

    Imagine a game of pool, where your ball is at one end of the table and you make a precise shot bouncing it off the wall and into a pocket at the other end of the table. Now redo the shot at the exact same angle and direction but put the ball in a completely different spot on the table. It won’t make the pocket because your previous shot was based on the balls starting point, much how moving the light source will no longer correctly bounce it off the reflector to form the beam pattern. And with that light you linked you’re now firing 27 different shots all from wrong locations. It results in a mess.

    Also note those style bulbs are dangerous as they put out practically no usable light. Raw lumen spec is about 600, meaning actual lumens is likely less than 300. The stock bulb is 1,300 lumens. If you read the fine print there is even a warning on the site that the bulbs won’t work as a fog light and should be used for cosmetics only. Combined with the bad reflector optics it would put almost no usable light on the road.

    Norton and steelhd like this.
  10. Apr 4, 2018 at 10:15 PM
    #70
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    4,640
    Gender:
    Male
  11. Apr 5, 2018 at 9:26 AM
    #71
    GrantF

    GrantF Active Member

    Joined:
    Feb 22, 2018
    Member:
    #245287
    Messages:
    38
    Thanks for the reply.

    I understand the importance and minimal tolerance of the lighting geometry but wasn’t sure if a 360 degree bulb would negate that. I remember seeing a nice diagram online somewhere (maybe on a Jeep forum about a similar topic) that showed the emission pattern of incandescent, led, and hid bulbs to show that the light sources are very different. The point of it was to show that the incident angles of the light rays varied quite a bit between the three.

    To Tony2018, I think you would have the same issue because of how the light is emitted from an HID compared to halogen/incandescent.

    crashnburn80 [OP] likes this.
  12. Apr 5, 2018 at 9:36 AM
    #72
    GrantF

    GrantF Active Member

    Joined:
    Feb 22, 2018
    Member:
    #245287
    Messages:
    38

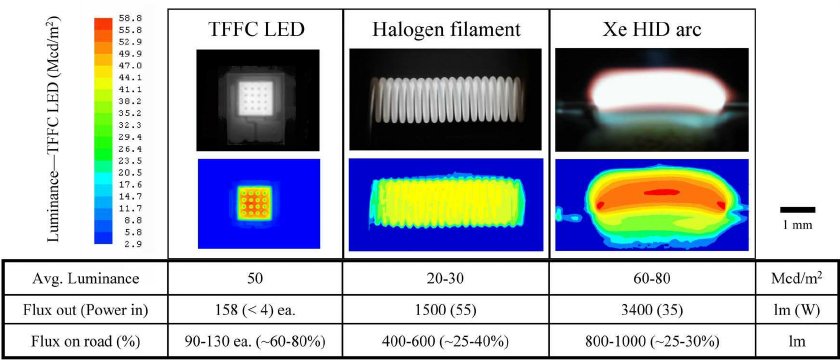

    Here's a similar diagram

    Comparison-of-a-TFFC-white-LED-against-conventional-halogen-and-HID-lamps-used-for.jpg

    crashnburn80 [OP] likes this.
  13. Apr 7, 2018 at 9:02 AM
    #73
    MattCowsmasher

    MattCowsmasher TTC #0010

    Joined:
    Apr 7, 2017
    Member:
    #215629
    Messages:
    21,094
    Gender:
    Male
    Temple, TX
    Vehicle:
    2015 sporty dcsb 4wd
    Lifted, armored, lumenz w/ switches, positraked, scuba ready, pizza cuttin tires, debadged with a hood skewp.
    Here’s my pic of stock halogen compared to a set of quality leds on my garage in a Holgen housing didn’t think much of it at the time. I saw brighter light from lens an thought better, till I learned about how it reflects an now I know better.


    crashnburn80 [OP] likes this.
  14. Apr 7, 2018 at 9:05 AM
    #74
    MattCowsmasher

    MattCowsmasher TTC #0010

    Joined:
    Apr 7, 2017
    Member:
    #215629
    Messages:
    21,094
    Gender:
    Male
    Temple, TX
    Vehicle:
    2015 sporty dcsb 4wd
    Lifted, armored, lumenz w/ switches, positraked, scuba ready, pizza cuttin tires, debadged with a hood skewp.

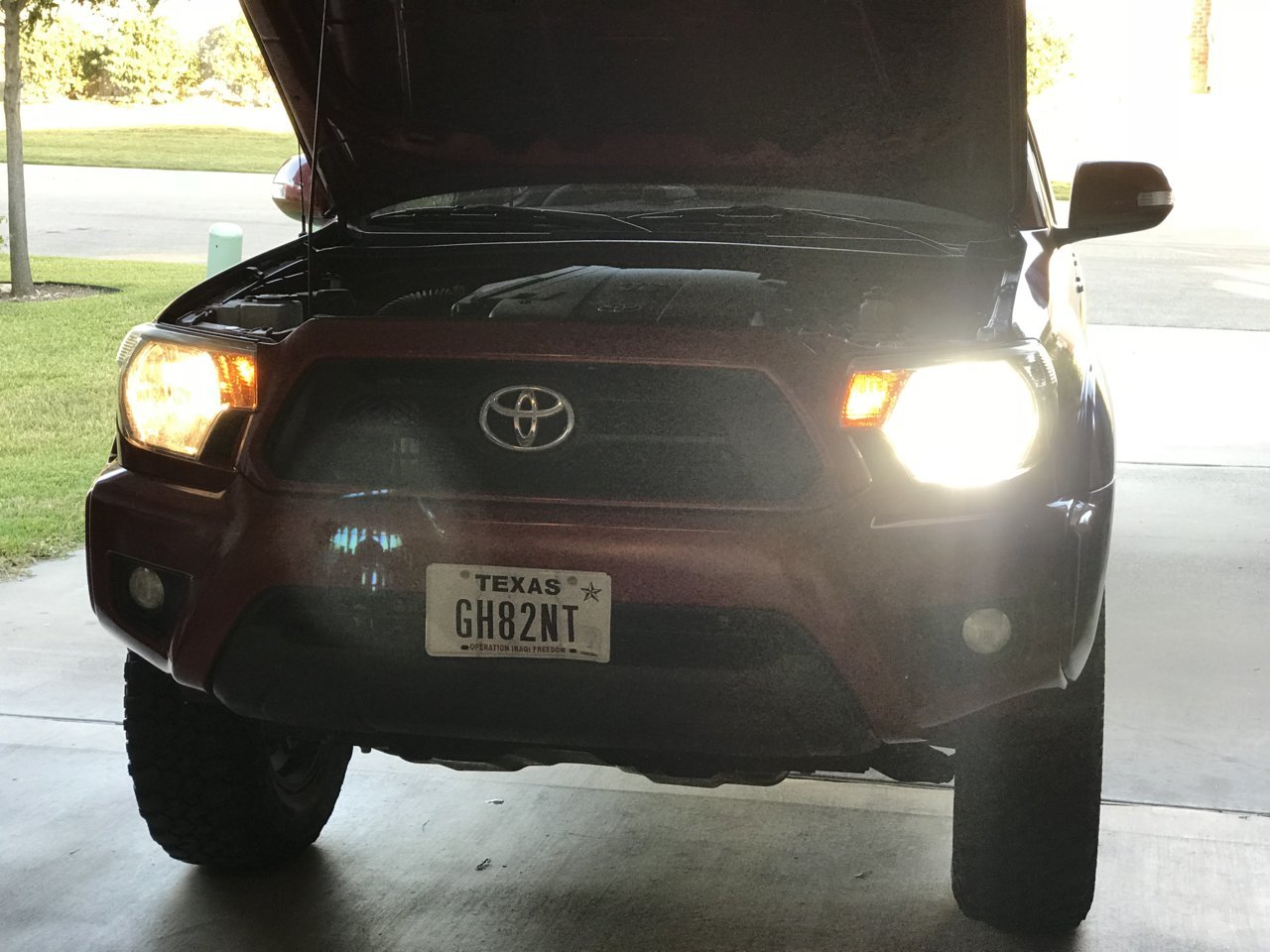

    Here’s a pic of just the headlights with harness an osram 90/100w bulbs.


    This photo is of leds you can see how it reflects off the signs even worse for other drivers

    crashnburn80 [OP] likes this.
  15. Apr 7, 2018 at 9:40 AM
    #75
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,718
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Unfortunately most see the hyper reflective signs and attribute it to their lights must be super bright, not their lights must not be controlling the beam pattern.

    Short wavelength light of LEDs also refracts more, causing surface glare. Surface glare does not illuminate things better, it just means the light bounces and scatters back at the driver. Which is why LEDs do not do as well in rain/snow/fog, but it also causes street signs to be reflected more intensely.

    Norton likes this.
  16. Apr 7, 2018 at 9:52 AM
    #76
    MattCowsmasher

    MattCowsmasher TTC #0010

    Joined:
    Apr 7, 2017
    Member:
    #215629
    Messages:
    21,094
    Gender:
    Male
    Temple, TX
    Vehicle:
    2015 sporty dcsb 4wd
    Lifted, armored, lumenz w/ switches, positraked, scuba ready, pizza cuttin tires, debadged with a hood skewp.
    I was one of those till I read your thread an it made crystal clear sense to me.

    crashnburn80 [OP] likes this.
  17. Apr 21, 2018 at 2:57 AM
    #77
    smitherooni06

    smitherooni06 New Member

    Joined:
    Apr 21, 2018
    Member:
    #251191
    Messages:
    3
    Gender:
    Female
    New Braunfels, TX
    Vehicle:
    2010 White Tacoma SR5 Off-Road TRD Prerunner
    So glad I found this info. before spending more of my money. I've been pissed trying to figure out what is wrong with my crappy reflection and after reading this it makes perfect sense now. I am taking my LED's out and getting Halogens in again. Thanks man:bowdown:

  18. Apr 21, 2018 at 9:43 PM
    #78
    Driftns2k

    Driftns2k Well-Known Member

    Joined:
    Feb 9, 2016
    Member:
    #177631
    Messages:
    72
    Gender:
    Male
    First Name:
    C
    Vehicle:
    Corvette ls2
    Built and blown
    Good info! Thanks!

    crashnburn80 [OP] likes this.
  19. Apr 30, 2018 at 10:33 AM
    #79
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    5,098
    Gender:
    Male
    SAN FRANCISCO BAY
    Vehicle:
    '02 040 TRD DC 3.4 Runner
    OME 881|Dakars w/AAL|Nitros|SPC UCAs|255/85s on 3rd Gen 4Runner 5 Star Wheels | ARB Bull Bar Bumper|Cheap eBay Snorkel ARB knockoff|Leer 100r Cap with a modded Yakima Loadwarrior basket|Diff Breather Extension|
    I switched back to halogen nearly 2 years ago - due to op's first post creating this thread (i ordered my halogens on 10/16/16). I was not going to be responsible for a family plowing into someone because my 'cool' LED headlights blinded them.

    FFWD to today. I am also now re-thinking my taillight/brakelight choice. Going back to halogen there as well. I have been running these since May 2016 (no longer available):

    https://www.amazon.com/gp/product/B01B7L19LE

    While I was thrilled back when I installed them, it has always 'bugged me' a little that they were REALLY bright. I can't stand blinding brake lights, really gets to me. Time to not be that a-hole as well. So, will replace them with Halogen or some more conventional LED but probably halogen. Will keep reverse lights LED. Rear turn will probably leave as well. In front, I did the turn signal to DRL/turn using a switchback LED so that will stay as well.

    @crashnburn80 - excellent thread. Two years ago you helped to throw some light (lol no pun intended) on LED use. Thanks sir.

    Norton and crashnburn80 [OP] like this.
  20. Apr 30, 2018 at 10:55 AM
    #80
    BlackWagon

    BlackWagon Well-Known Member

    Joined:
    Jan 15, 2018
    Member:
    #241301
    Messages:
    115
    Gender:
    Male
    First Name:
    Ronju
    South East PA
    Vehicle:
    2018 Black TRD Off Road DCSB MT
    This is great info and should be posted on all car forms, the amount of modified cars with upgraded lights (done incorrectly) that blind other people is a danger to everyone around them. Thanks OP for the easy to read and understand information!!

    crashnburn80 [OP] likes this.
