Why the numbers don't add up!

Discussion in 'Wheels & Tires' started by SuperD, Jan 13, 2009.

  1. Jan 13, 2009 at 8:03 PM
    #1
    SuperD

    SuperD [OP] Mall Cruiser Pilot

    Joined:
    Dec 26, 2008
    Member:
    #11923
    Messages:
    153
    Gender:
    Male
    Texas
    Vehicle:
    '09 White TRD Sport DC LB 4x4
    ProComp 6" Stage II, 18x9 Moto Metal 955's, Cooper Discoverer STT 305/60R18, K&N FIPK, Go-Rhino Stainless side steps, Redline Elite hood struts, Magnaflow muffler, Delta Alum. Toolbox, Husky Liners F/R, Window tint
    It seems there has been some confusion lately as to how wheel specs are derived. I know I'm confused! :confused: The evil specs I am talking about are backspace and offset. I posed the question directly to the Tirerack. Even though they have some help files out there, it seemed that some data was still missing and things still didn't add up. So, here's how they come up with the numbers and hopefully explain where the missing digits are hiding.

    Wheel width - is the width between the inner wheel mounting lips, or the inner verticle area where the tire bead seats. It is not the overall width if the wheel.

    Centerline - is the line directly in the center of the wheel width.

    OFFSET is measured in realtion to the centerline
    If the wheel mounting flange is more toward the front of the wheel, compared to centerline, the offset is positive.
    If the wheel mounting flange is more toward the rear of the wheel,
    compared to centerline, the offset is negative.

    BACKSPACE is measured from the wheel mounting flange to the most rearward part of the wheel.

    I think this is where the numbers get messed up, at least how it was explained to me. If the rear wheel lip is THICK, this could account for missing digits comparing offset to backspace. Especially in the perfect condition of an 8" wheel w/ 4.5" backspace w/ 0 offset. This simply means that the rear wheel lip is .5" or 12.7mm thick.

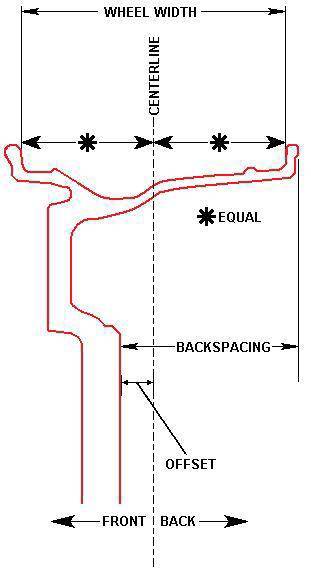

    Here's a picture to help explain :wink:
    [​IMG]

  2. Jan 13, 2009 at 8:05 PM
    #2
    jolayiv

    jolayiv Carolina Alliance

    Joined:
    Aug 25, 2008
    Member:
    #8757
    Messages:
    1,131
    Gender:
    Male
    First Name:
    Jim
    New Bern NC
    Vehicle:
    07 DC TRD 4x4 Off-Road
    Revenge-Fab Sliders, AVS Vent Guards, Rear TSB, Hose clamp MOD, Locker MOD, Flowmaster 40 Series Delta Flow, Midland Radio, Wilson 1000 antenna, Rear Diff breather MOD, Weathertech liners, Maglite mount, Bed Divider, LEER 100XR, Pop&Lock
    good post

  3. Jan 15, 2009 at 9:13 AM
    #3
    EnolaGaia

    EnolaGaia Well-Known Member

    Joined:
    Sep 9, 2006
    Member:
    #9
    Messages:
    1,129
    Gender:
    Male
    Midwest USA
    Vehicle:
    '01 & '04 S-Runners
    01 SR: Double Cab conversion, S/C, lowered.
    You are correct ... The single most common error in calculating wheel dimensions and fitment is failing to take the lip width into account.

  4. Jan 15, 2009 at 9:19 AM
    #4
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,594
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    4Runner Trail
    for reference the image in post 1 has a positive off-set (wheel mounting surface is on the front side of the wheels center line). This creates a larger backspacing, siting your wheel further inside the wheel well.
