WILDlandTACO Build

(How to tune cb found this online )

So, you’ve wrestled your CB radio into the dashboard and you’ve got your antenna mounted on a space with decent ground plane. Everything is connected and ready to go, right? Wrong. It’s vital that you tune your antenna before using your new CB radio. If you’re not familiar with the concept behind SWR or the necessity of adjusting it, let us give you fair warning: improper tuning of your antenna has the potential to cause much worse than a weak broadcast signal – it can end the life of your radio before you get a chance to enjoy it.

The good news is that this article will walk you through the process of properly tuning your antenna (a.k.a., adjusting the SWR). It’s not a terribly difficult process, as long as you can follow directions and are patient enough for a little trial-and-error. Assuming that everything else in your system is properly installed, the only additional equipment necessary is a short length of coaxial cable (known as a jumper lead), an SWR meter, and something on which to record your readings.

*

The first thing you need to do is find a suitable location to park your vehicle. There should be no obstructions, such as trees or buildings, within 10 to 15 meters of your antenna. Neither you nor your buddies should be hanging out around the car, either. Make sure that you’re inside with the doors and windows closed to ensure an accurate reading.

The next step is to hook up the SWR meter. First, disconnect the coaxial cable from the back of the radio. Reconnect this end of the cable, which is going to the antenna, to the SWR meter in the connector marked “antenna” or “ANT.” Next, use the jumper lead to connect your radio and the SWR meter through the connection marked “transmitter” or “XMIT.”

Now you are ready to measure the SWR on a few different channels. Remember, throughout this process it's important to keep the microphone the same distance from the meter for each test.

Set the switch on the SWR meter to “FWD.”

Turn the radio to channel 1.

Key the microphone (depress the button and hold it).

Turn the knob on the SWR meter labeled “SET” or “ADJUST” until the needle reaches the setting position at the end of its range.

While still keying the microphone, flip the switch on the SWR meter to the “REF” or “SWR” position.

Quickly record the reading given by your SWR meter and release the transmit key on your microphone.

You are now going to repeat this process for channel 40. Follow steps 4 through 9.

The objective behind tuning your antenna is to make these two readings as close as possible. Getting down to a 1.5:1 ratio or below makes for a passable broadcast signal. There are two basic points to understand before adjusting the length of your antenna:

If the SWR on channel 40 is higher than that on channel 1, your antenna is too long.
If the SWR on channel 1 is higher than that on channel 40, your antenna is too short.
*

If your antenna is too long, it is necessary to reduce its physical length. There are several methods for shortening an antenna which vary by manufacturer. Consult your owner’s manual for detailed instructions on how to shorten your antenna. While many antennas feature a “tunable tip” that uses a small screw, some antennas may need to be cut to be shortened. Do so in 1/4" increments and then get new readings to determine your progress.

If your antenna is too short, it is necessary to increase its physical length. Most instances where the antenna length is too short are caused by a lack of ground plane. In modern antennas, there's usually a method for adding length built in to the antenna. Other options, such as adding a spring, are also legitimate.

Dual antenna installations: If you're tuning dual antennas, you'll want to adjust both antennas the same amount each time. As a starting point, it's best to put the tuning screw either all the way in or out, so each antenna is the same length. Then, based on your SWR readings, length or shorten BOTH antennas the same amount each time. Re-measure SWR and continue to re-adjust as with a single antenna, making sure to make incremental changes that are as close as possible to both antennas.

Readings on both channels that are less than 2.0 mean that your radio is safe to operate, but transmission may not be optimal. If readings on these channels are in the red zone on your SWR meter or above 3.0, do not attempt to use your radio. This problem must be remedied before attempting to use your radio.

Let’s review the most common problems that cause your SWR meter to register danger on all channels: poor grounds, a short in the coaxial connectors, or an improperly installed mounting stud.

*

A large percentage of high SWR readings are caused by ground plane problems. It's a good idea to run ground straps from the body of your vehicle to the frame, doors, trunk -- everything except your dog. Running the shortest possible ground strap from the antenna to the chassis or your vehicle is generally a good solution for ground plane problems. Simply put, grounding everything that can be ground together will improve ground plane.

It is essential that your mount is properly grounded. Most improperly grounded mounts are connected to places on your vehicle that themselves are not thoroughly grounded. Any part of your vehicle that has a plastic or nylon bushing separating it from the chassis is probably not grounded. Also, chassis paint can often prevent a mount from being properly grounded. You can check the grounding of suspect parts with a voltage meter.

A short in the coaxial connectors may also be the culprit behind abnormally high SWR readings. Issues with the coaxial cables are often identifiable by eye, such as severe bends or pinches. You should know that it's essential to use 50-ohm coax for single antennas and 75-ohm for dual. When all else fails, sometimes it's necessary to replace the coax cable because there's a failure inside the line.

By following the steps outlined in this article, you should be able to successfully tune your antenna for optimal performance and transmission.



I figured out how to tune cb it's actually easy I gotta show you in person



Here's another thing


Problematic CB Antenna Mounting Locations
Was This Helpful? Please Like and Share It!

SWR readings between 2.0 and 3.0 indicate a poor antenna mounting location on your vehicle. Although SWR of 3.0 across all channels usually indicates an installation mistake or faulty equipment, it can also occur due to a poor mounting location.

Mounting situations or locations that can lead to high SWR include:

If the antenna is surrounded by metal
If the antenna is sandwiched between two surfaces (i.e., between a pick-up bed and the cab)
If the majority of the antenna is blocked or boxed in by some part of the vehicle
If the entire antenna is below the roof of the vehicle
In situations like these, the mounting location can make it hard or impossible to tune your antenna. If you've followed all the previously discussed troubleshooting advice to no avail, and your mounting location is similar to one mentioned above, we'd recommend moving your antenna to a different location on the vehicle. Before completing a second permanent installation, we'd suggest doing a "dummy tune" -- tuning your antenna while someone else holds it in place in the new location. This way, if it still doesn't tune up properly, you haven't wasted time and effort on a worthless installation. When doing a "dummy tune," make sure that the mounting surface receives a good ground or you won't be able to tune properly.

For information on picking a suitable mounting location, please see our article, Choosing the Best CB Antenna.



Sweet. Gorman trip it is .



Haha and I also saw a YouTube video it showed how to use the swr meter that have that's simpler and yours the good thing about yours you can see how much power your giving out



i still havent tuned mine, i couldnt really hear you over cb, but i could hear bobber bill really clearly over the cb, i dont know why? haha he had the same antenna as me also



Bobber tuned his that's why you can hear him. You tube I found a good video. To help tune cb and also right now I think I have a bad ground so it's reading to high and if it's not the ground I guess my antenna is to short from what I've read



i originally had a 4' fire stick...i didnt want to deal with the ground so i just got a wilson haha



Gotcha I'll see when we got to Gorman ill check it out and maybe figure it out.

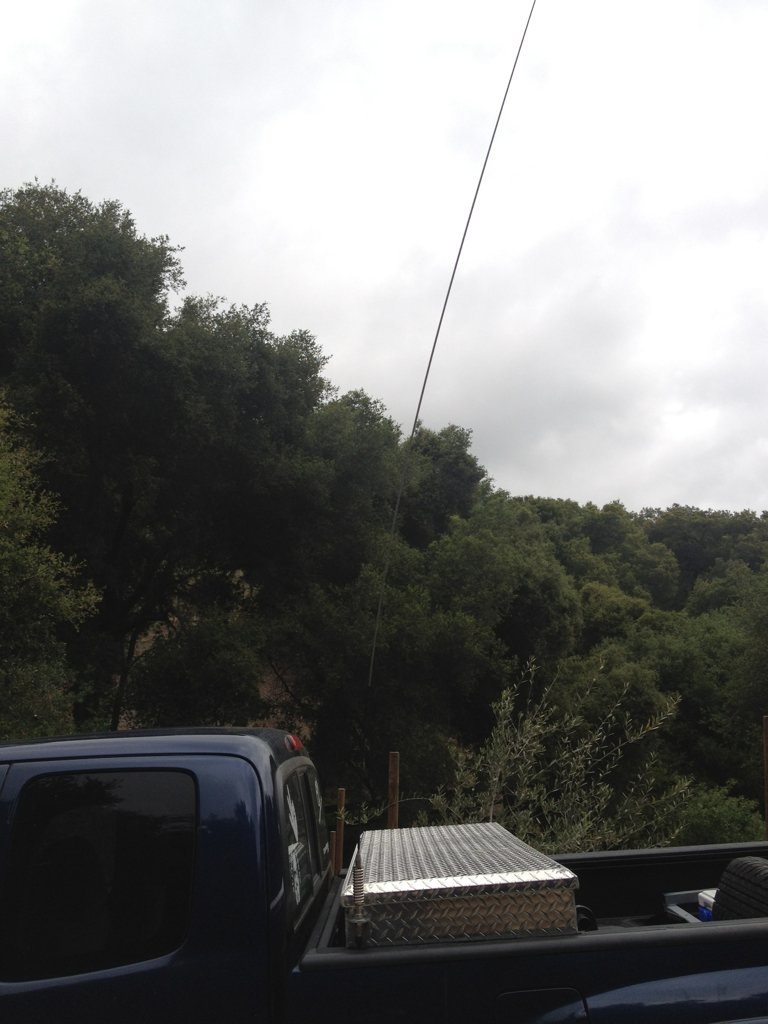

I forgot I had this antenna laying around its my 8 foot whip antnenna and I hooked up my swr meter to know its doing the correct reading next add a ground to it and see if that helps



That is freaking long holy cow.



It's so freakin brap



I like being brap to



You should get 2 of them there 20 bucks at radio shack that still sell cb



dude all the radio shack around here sux i doubt they have anything



Really that's suck same in my area only a one or two still sell CB there the only place that actually sells these



yea it does the closest place to me with cb radio is Fry's. That like easy 20-30 minutes.



Dam that sucks I wana get one of the ham radio there a good store that sells them in Burbank but there so god dam expensive



Need a bigger antenna?



bro
