Will these Summit Racing Legend Wheels fit my 2010 Sport?

[FONT=&quot]
[/FONT]
http://www.summitracing.com/parts/sum-141-7883c0/overview/


I understand Stock wheels are:

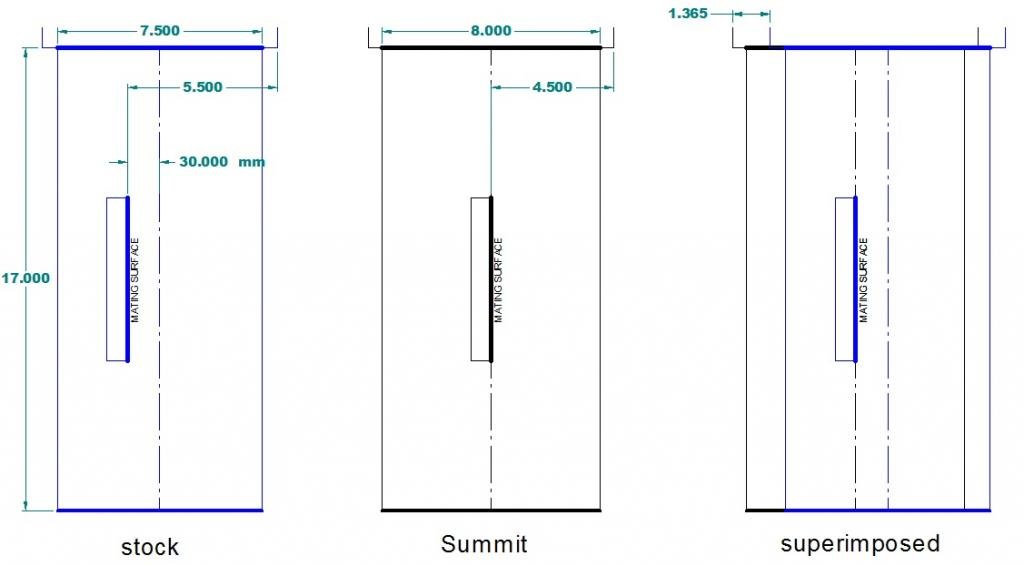

TRD Sport Alloy Wheels: 17x7.5, +30 mm offset, 5.5" backspacing, 6x5.5" bolt pattern, 108 mm hub bore

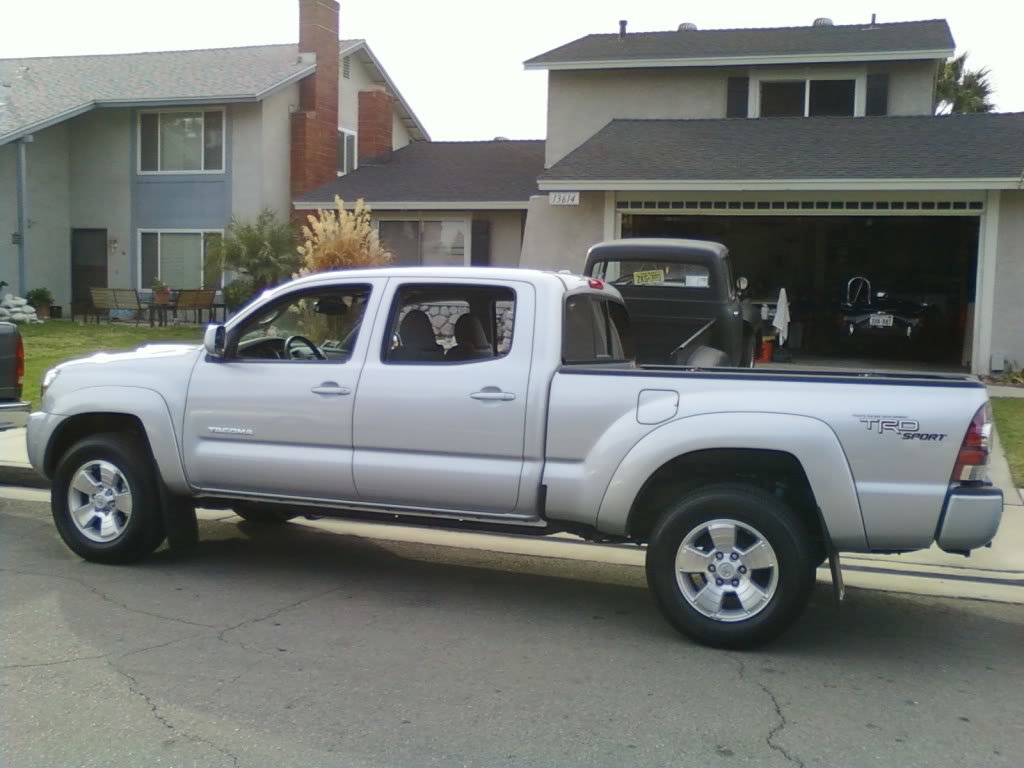

Looking for more a sporty look with my 2010 4x4 Sport, with 265/70/17 & white Michelin white letter tires. No lift. I know you can go 8” wide + 4.5” offset, with maybe removing the front mud flaps.

I don’t really understand “hub bore” and what is described in the Summit wheels: center bore, and 60 degree conical seat lug nuts.

and how do i know if they clear the brakes?

Please help, you can’t sort by vehicle on Summit.



Yes they will fit as long as the hub bore is above 108mm.



the spec of the wheel lists: Center Bore Diameter (mm): 87.10mm

what's the difference between hub bore and center bore?



bump

ttt

need help!



They won't fit. The hub is what the rim is centered on and these are way to small!



got it!

still learning....

thank you
