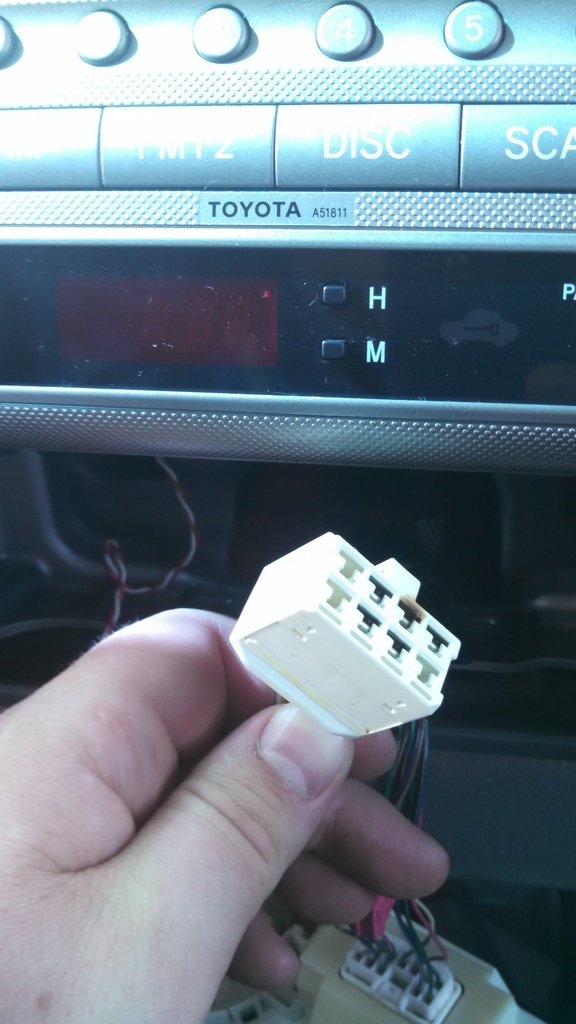

    Need some help figuring out how to release connectors from this plug...can anyone walk me through it?




    08TRDOFFROAD, Jun 8, 2015
    #1
  2. Jun 8, 2015 at 4:18 PM
    #2
    Up2NoGood

    #2
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    What kind of terminals are in it? If it is spade (looks like it may be) there should be a small lock tab that needs to be pushed up with a mini flathead screwdriver or something similar. Many terminals have a tab that needs to be depressed, some more complicated ones you do need special tools though or some ingenuity.

    Up2NoGood, Jun 8, 2015
    #2
  3. Jun 8, 2015 at 5:13 PM
    #3
    landphil

    #3
    landphil Fish are FOOD, not friends!

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    3,201
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    Fan switch connector?

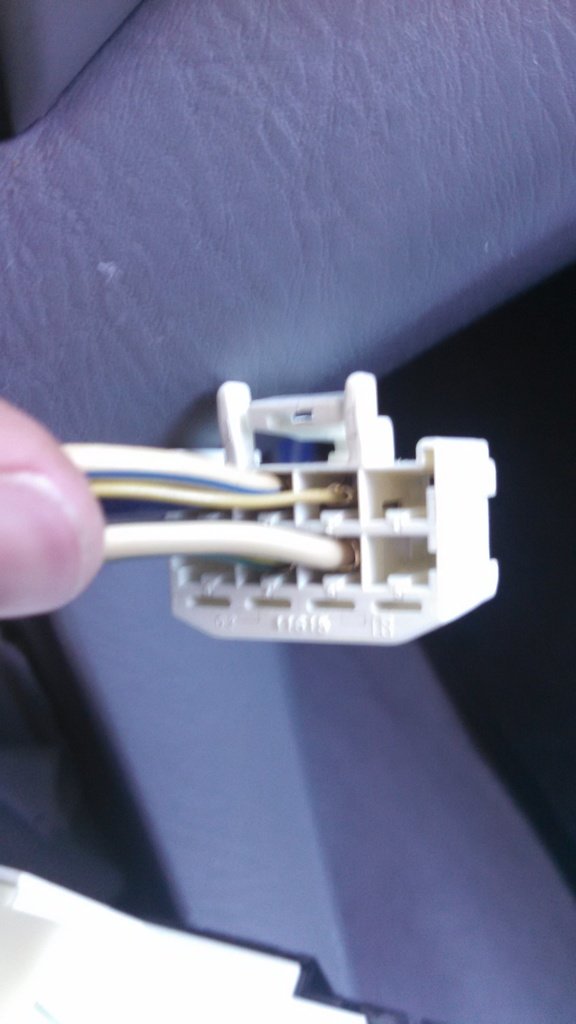

    Looking at your second photo, on the long side facing the camera (directly above your thumb nail) there is a secondary lock that almost blends in with the rest of the white plastic connector body. Pry that outward - it should slide straight out the side and protrude almost 1/8" when fully released. Once it stops, don't pry any more.

    Then down beside each pin there will be a plastic lock tab - kind of a one way pawl. Look into one of the open sockets to see what I mean - then carefully pry it back while pulling gently on the wire - the wire and pin should slip out the back side of the connector body.

    To assemble, slip the pin in from the back in reverse order, the when all pins are in place, push the plastic secondary lock back into place flush with the side of the body.

    landphil, Jun 8, 2015
    #3
  4. Jun 8, 2015 at 11:34 PM
    #4
    08TRDOFFROAD

    #4
    08TRDOFFROAD [OP] Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    4,435
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    21' Tundra Platinum & 08' TRD Offroad DCSB 4x4
    Bilstein 5100's w/front's set at 1.75", TRD exhaust, Colormatched grill, Illuminated 4wd selector switch, BAMF Bolt on Sliders w/kickout.
    Yep. It is the fan connector. I released the secondary lock and inserted a small flat head screw driver in the front of the connector but couldn't get it to let go. Maybe the screw driver was just to big and couldn't get in the connector far enough to release the pin. Any suggestions on what I might use to release it and where exactly I should be trying to release it from on the front of the connector?

    I guess I will just have to give it another try it n the morning.

    08TRDOFFROAD, Jun 8, 2015
    #4
  5. Jun 9, 2015 at 4:17 AM
    #5
    fixer5000

    #5
    fixer5000 the logical one

    Joined:
    Aug 7, 2011
    Member:
    #61293
    Messages:
    893
    Gender:
    Male
    First Name:
    Steve
    massachusetts
    Vehicle:
    2018 4runner limited in nautical blue
    you can try cutting a pc of shim stock narrow enough to slip in there. put tape on one end so you can protect your fingers and be able to push on it

    fixer5000, Jun 9, 2015
    #5
  6. Jun 9, 2015 at 7:39 AM
    #6
    landphil

    #6
    landphil Fish are FOOD, not friends!

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    3,201
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    A flat "jeweler's" screwdriver should work very well - were you able to locate the plastic tabs inside the open sockets?

    landphil, Jun 9, 2015
    #6
  7. Jun 9, 2015 at 7:58 AM
    #7
    127.0.0.1

    #7
    127.0.0.1 AKA ::1

    Joined:
    Dec 24, 2012
    Member:
    #93641
    Messages:
    3,915
    Gender:
    Male
    /etc/hosts
    Vehicle:
    2013 NBM AC 4.0 4x4 Auto OR
    fold a piece of packing tape over itself so it makes a little plastic sheet
    roll that around the wire and clip and jam it in, it may work

    127.0.0.1, Jun 9, 2015
    #7
  8. Jun 9, 2015 at 10:11 AM
    #8
    landphil

    #8
    landphil Fish are FOOD, not friends!

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    3,201
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    [​IMG]

    landphil, Jun 9, 2015
    #8
  9. Jun 9, 2015 at 11:39 AM
    #9
    BlueT

    #9
    BlueT Well-Known Member

    Joined:
    Mar 30, 2009
    Member:
    #15341
    Messages:
    5,615
    Gender:
    Male
    NorthEast
    Vehicle:
    07 Dbl Cab LB with LSD
    I moded 1999 Taco so much it had turned to Land Cruiser
    /this\ You can use needle to do this.

    BlueT, Jun 9, 2015
    #9
  10. Jun 9, 2015 at 1:09 PM
    #10
    08TRDOFFROAD

    #10
    08TRDOFFROAD [OP] Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    4,435
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    21' Tundra Platinum & 08' TRD Offroad DCSB 4x4
    Bilstein 5100's w/front's set at 1.75", TRD exhaust, Colormatched grill, Illuminated 4wd selector switch, BAMF Bolt on Sliders w/kickout.
    Yeah, I googled last night until my fingers bled (not really) and couldn't find a new connector. If anyone can locate one and send me the link I would be grateful.

    Thanks for the help all! It looks like I had the right idea, my technique was just a bit off. Hopefully I can get it apart tonight when I get home to tighten up the connections.

    Last edited: Jun 9, 2015
    08TRDOFFROAD, Jun 9, 2015
    #10
  11. Jun 9, 2015 at 1:22 PM
    #11
    TruKnight

    #11
    TruKnight Well-Known Member

    Joined:
    Jul 31, 2010
    Member:
    #41036
    Messages:
    1,388
    Gender:
    Male
    First Name:
    Tru
    Arkansas
    Vehicle:
    Autobot Mall Crawler
    read build thread
    you need a molex extractor tool.

    I may actually have an 8 pin ac connector laying around. if you want it let me know.

    TruKnight, Jun 9, 2015
    #11
  12. Jun 9, 2015 at 1:26 PM
    #12
    08TRDOFFROAD

    #12
    08TRDOFFROAD [OP] Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    4,435
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    21' Tundra Platinum & 08' TRD Offroad DCSB 4x4
    Bilstein 5100's w/front's set at 1.75", TRD exhaust, Colormatched grill, Illuminated 4wd selector switch, BAMF Bolt on Sliders w/kickout.
    Found a part number for the connector. Thought I would share. Haven't tried ordering one yet though. So no guarantees we can even get it.

    90980-11615

    http://parts.toyotaofdallas.com/oe-toyota/9098011615

    08TRDOFFROAD, Jun 9, 2015
    #12
  13. Jun 9, 2015 at 1:28 PM
    #13
    Up2NoGood

    #13
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    Pricing seems good if that is the right connector. Although you will need to figure out how to extract the terminals so they can be transferred over and that 1 burnt it would of course be a good idea to replace.

    Up2NoGood, Jun 9, 2015
    #13
  14. Jun 9, 2015 at 1:38 PM
    #14
    08TRDOFFROAD

    #14
    08TRDOFFROAD [OP] Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    4,435
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    21' Tundra Platinum & 08' TRD Offroad DCSB 4x4
    Bilstein 5100's w/front's set at 1.75", TRD exhaust, Colormatched grill, Illuminated 4wd selector switch, BAMF Bolt on Sliders w/kickout.
    How much? Is it just the connector or are there pigtails from the five wires attached as well?

    08TRDOFFROAD, Jun 9, 2015
    #14
  15. Jun 9, 2015 at 1:46 PM
    #15
    TruKnight

    #15
    TruKnight Well-Known Member

    Joined:
    Jul 31, 2010
    Member:
    #41036
    Messages:
    1,388
    Gender:
    Male
    First Name:
    Tru
    Arkansas
    Vehicle:
    Autobot Mall Crawler
    read build thread
    pigtail. had it leftover from my ac swap mod. im not sure where it is tho, ill have to look and see if I still have it. if I do you can have it for 5$ shipped.

    TruKnight, Jun 9, 2015
    #15
  16. Jun 9, 2015 at 1:48 PM
    #16
    08TRDOFFROAD

    #16
    08TRDOFFROAD [OP] Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    4,435
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    21' Tundra Platinum & 08' TRD Offroad DCSB 4x4
    Bilstein 5100's w/front's set at 1.75", TRD exhaust, Colormatched grill, Illuminated 4wd selector switch, BAMF Bolt on Sliders w/kickout.
    Ok. Let me know if you track it down!

    08TRDOFFROAD, Jun 9, 2015
    #16
  17. Jun 15, 2015 at 8:47 AM
    #17
    maykevin5

    #17
    maykevin5 Well-Known Member

    Joined:
    Mar 4, 2012
    Member:
    #74205
    Messages:
    225
    Gender:
    Male
    First Name:
    Kevin
    Carbondale Illinois
    Vehicle:
    2012 Tacoma SR5
    3 inch lift, stainless steps, JL/Focal audio sound system
    maykevin5, Jun 15, 2015
    #17
  18. Jun 15, 2015 at 9:49 PM
    #18
    08TRDOFFROAD

    #18
    08TRDOFFROAD [OP] Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    4,435
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    21' Tundra Platinum & 08' TRD Offroad DCSB 4x4
    Bilstein 5100's w/front's set at 1.75", TRD exhaust, Colormatched grill, Illuminated 4wd selector switch, BAMF Bolt on Sliders w/kickout.
    Thanks to TruKnight for supplying a replacement plug and everyone else that posted in this thread, I was able to replace my problem plug and tighten up the connections tonight!!:cheers:

    08TRDOFFROAD, Jun 15, 2015
    #18
  19. Jun 16, 2015 at 10:11 AM
    #19
    maykevin5

    #19
    maykevin5 Well-Known Member

    Joined:
    Mar 4, 2012
    Member:
    #74205
    Messages:
    225
    Gender:
    Male
    First Name:
    Kevin
    Carbondale Illinois
    Vehicle:
    2012 Tacoma SR5
    3 inch lift, stainless steps, JL/Focal audio sound system
    I have a favor to ask, I just did the same fix on mine. After running the blower on high for about 30 min i checked the wiring and back of the fan speed switch for heat and noticed the back of the switch housing is warm. I'm wondering if yours and all of them get warm when on high for a long period of time. It just has me paranoid after dealing with the burnt wire connector. Mine only gets warm on high. I just want to know if it is normal to get warm.

    maykevin5, Jun 16, 2015
    #19
  20. Jun 16, 2015 at 11:23 AM
    #20
    08TRDOFFROAD

    #20
    08TRDOFFROAD [OP] Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    4,435
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    21' Tundra Platinum & 08' TRD Offroad DCSB 4x4
    Bilstein 5100's w/front's set at 1.75", TRD exhaust, Colormatched grill, Illuminated 4wd selector switch, BAMF Bolt on Sliders w/kickout.
    I will check mine when I get home. I have about a 45 min commute and I will probably have to run the ac on high the whole way. I will report back later today.

    08TRDOFFROAD, Jun 16, 2015
