Wires on switch panel

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Arrow2013, Jul 9, 2019.

  1. Jul 9, 2019 at 5:11 AM
    #1
    Arrow2013

    Arrow2013 [OP] Active Member

    Joined:
    Jun 17, 2019
    Member:
    #296571
    Messages:
    41
    Gender:
    Male

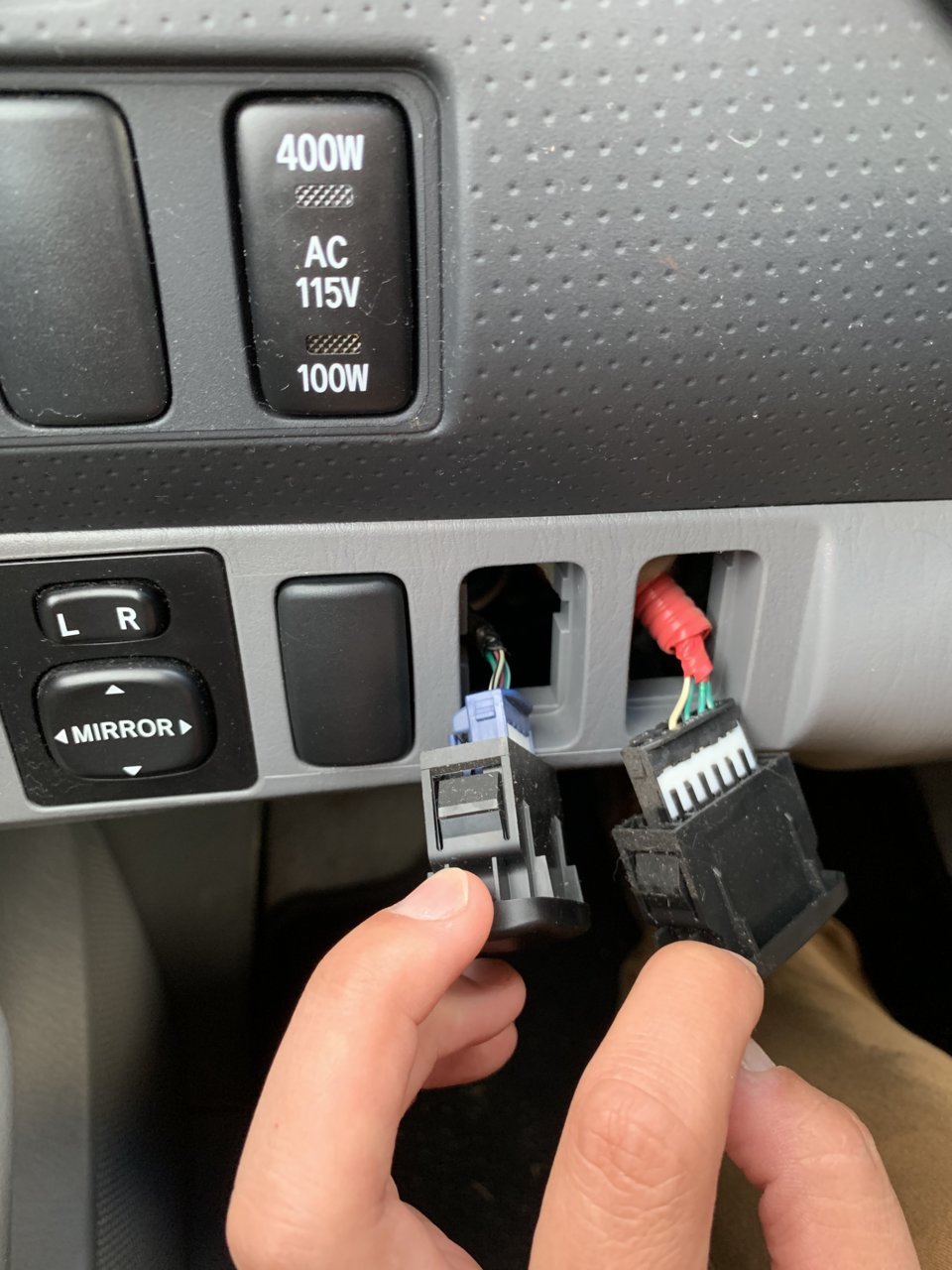

    Was installing lights last night and found 2 slots on my switch panel to have wires attached to them. Any ideas what they can be for? There's no switch but just covers.


  2. Jul 9, 2019 at 5:41 AM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

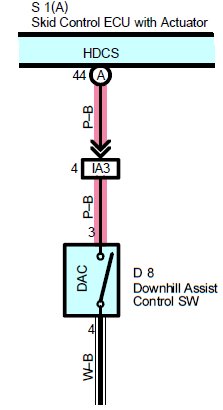

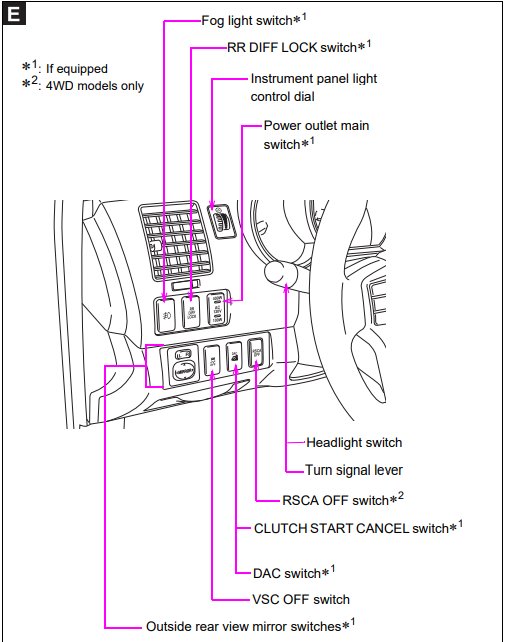

    And, No, you can't add the missing switch to have that system/circuit work.:rolleyes:o_O:D

    Minimag95 likes this.
  3. Jul 9, 2019 at 6:12 AM
    #3
    Arrow2013

    Arrow2013 [OP] Active Member

    Joined:
    Jun 17, 2019
    Member:
    #296571
    Messages:
    41
    Gender:
    Male

    Thanks for answering me second question also . I assume I can unplug the wires from the covers and use the slots for other switches.

  4. Jul 9, 2019 at 7:05 AM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

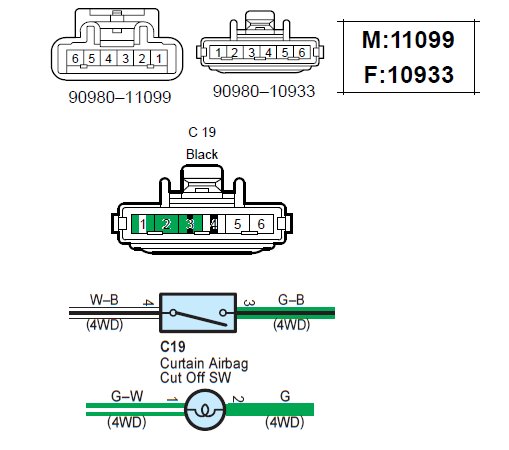

    Of course you can. You also "might" have an ACC source and switch illumination source.

    The one next to it, DO NOT MESS the green with black runner wire in connector.
    Remove the other blanks, see what's behind.

    Last edited: Jul 9, 2019
  5. Jul 9, 2019 at 7:21 AM
    #5
    Gonzo1982

    Gonzo1982 Well-Known Member

    Joined:
    Apr 1, 2019
    Member:
    #288763
    Messages:
    312
    Gender:
    Male
    Tullahoma, TN
    Vehicle:
    2013 MG DCLB TRD Sport
    5100, OME 885, 1.5” Icon AAL, KO2 275/75/17

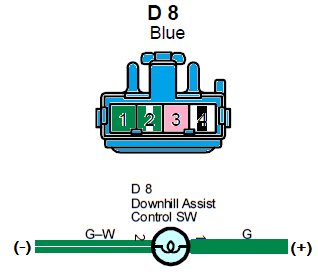

    Green and Green+White cables are the switch illumination source. If your switches illuminate you can use these cables to power them.

  6. Jul 9, 2019 at 7:31 AM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    So you don't cut the connector, if you're going to use the illumination wires and ground.
