Wiring aftermarket Fog Light Switch

Discussion in '2nd Gen. Tacomas (2005-2015)' started by WestCoastBestCoast, Jan 19, 2020.

  1. Jan 19, 2020 at 9:14 PM
    #1
    WestCoastBestCoast

    #1
    WestCoastBestCoast [OP] Well-Known Member

    Joined:
    Jul 12, 2018
    Member:
    #259158
    Messages:
    678
    Gender:
    Male
    First Name:
    Wyn
    Portland, OR
    Vehicle:
    2005 SWB TRD 6MT 4x4
    So originally bought this aftermarket switch to light up the foglight switch, because I was under the impression that the OEM switch came un-illuminated.

    Found out that there actually is a bulb in there? That somehow most people also are unaware comes illuminated from factory.

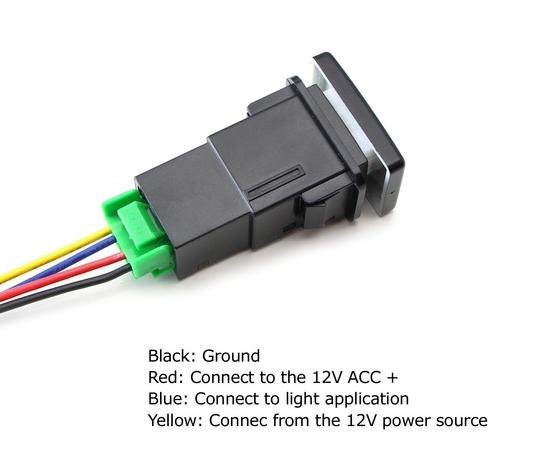

    Anyways before I try to replace the OEM bulb, I figured I might try to figure out how to wire this one. The issue I am running into is the switch either is only always illuminated, or off. Pic attached of the wiring of aftermarket switch.

    I bought it off Amazon (
    $10 iJDMTOY Factory Style 4-Pole 12V Push Button Switch w/LED Background Indicator Lights Compatible with Fog Lights, DRL, LED Light Bar, etc (39mm Standard Size)
    this), has anybody purchased this one or a similar one? How did you wire it to get it to be illuminated with headlights, and the "window" to turn on when the switch is pushed?

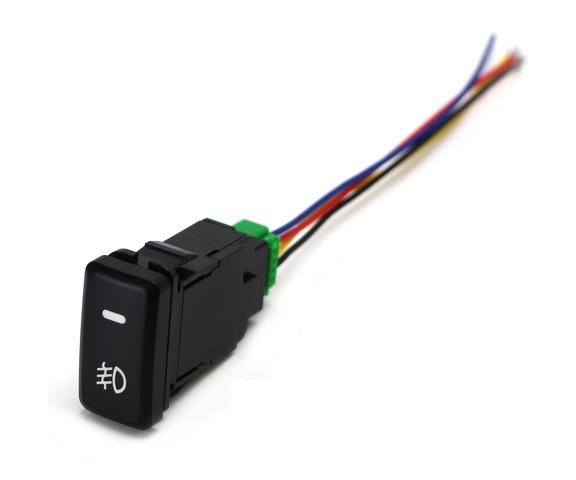

    switch colors.jpg swithc face.jpg

    WestCoastBestCoast, Jan 19, 2020
    #1
  2. Jan 20, 2020 at 3:05 AM
    #2
    Philby

    #2
    Philby Active Member

    Joined:
    Jul 18, 2008
    Member:
    #8002
    Messages:
    28
    Gender:
    Male
    Cairns Australia
    Vehicle:
    Hilux SR5 4x4 TRD S/C
    Philby, Jan 20, 2020
    #2
  3. Jan 20, 2020 at 7:00 AM
    #3
    Larzzzz

    #3
    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,842
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 350+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,

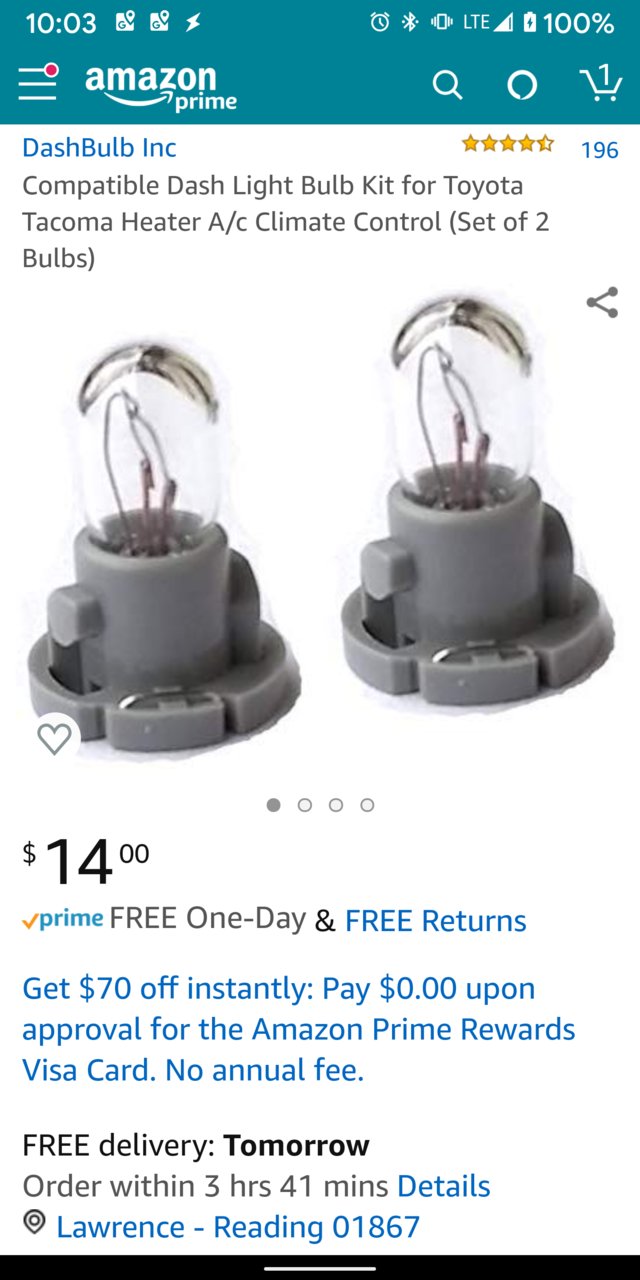

    Pop the switch out. You'll see something round, 3/8-1/2" diameter with a skinny screwdriver slot. 1/4 turn ccw and pull it out.
    The ones I've seen were brown or gray. They're not cheap though.


    Larzzzz, Jan 20, 2020
    #3
  4. Jan 20, 2020 at 8:13 AM
    #4
    Muddinfun

    #4
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,491
    You can’t do it. The aftermarket switches are wired differently internally than the OEM switches. The aftermarket switches send positive voltage to a relay. The OEM switch supplies a ground for the relay. The way the LEDs are connected in the aftermarket switch, it won’t work right if you try to make the switch complete the circuit to ground. If you want a switch with an indicator using the OEM wiring, get the 6 terminal FJ switch and 6 terminal connector. Then you’ll need to add 2 wires.

    Muddinfun, Jan 20, 2020
    #4
  5. Jan 20, 2020 at 9:04 AM
    #5
    themanbearpig012

    #5
    themanbearpig012 Well-Known Member

    Joined:
    Feb 4, 2017
    Member:
    #209621
    Messages:
    1,249
    Gender:
    Male
    First Name:
    Rudy
    Nipomo, Ca
    Vehicle:
    2015 DCSB TRD SPORT
    Fox 2.5 Factory Series Coil-Over Reservoir (Front) Fox 2.0 Performance Series IFP (Rear) Method "Mesh" 17x8.5|6x5.50|0/4.75" wheels
    thanks for the vid link

    themanbearpig012, Jan 20, 2020
    #5
  6. Jan 20, 2020 at 7:12 PM
    #6
    WestCoastBestCoast

    #6
    WestCoastBestCoast [OP] Well-Known Member

    Joined:
    Jul 12, 2018
    Member:
    #259158
    Messages:
    678
    Gender:
    Male
    First Name:
    Wyn
    Portland, OR
    Vehicle:
    2005 SWB TRD 6MT 4x4
    Awesome video. I'll definitely use it if I go through with the wiring. I'm concerned about the whole positive vs ground switch of OEM vs aftermarket.

    I just put those in my shopping cart, just in case.

    I was worried the OEM supplied a ground for the relay. I was primarily hoping that I wouldn't have to drop $70 for the FJ Switch and wiring.

    Dang! Looks like now I have to decide between the FJ switch or just the bulb.

    WestCoastBestCoast, Jan 20, 2020
    #6
  7. Jan 20, 2020 at 7:23 PM
    #7
    Muddinfun

    #7
    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,491
    I'll bet Foster Auto Parts has some FJs.

    I don't like dealing with Bent & Rusty. (B&R)

    Muddinfun, Jan 20, 2020
    #7
