Wiring an Aux Fuse Block, Relays and Switches in a 2016

Discussion in '3rd Gen. Tacomas (2016-2023)' started by nevadabugle, Nov 15, 2015.

Page 4 of 11
  1. Aug 2, 2016 at 9:09 AM
    #61
    captain.cardinal1

    #61
    captain.cardinal1 instagram @e11lfd

    Joined:
    Jan 29, 2010
    Member:
    #30287
    Messages:
    681
    Gender:
    Male
    First Name:
    chad
    louisville, ky
    Vehicle:
    2016 trdorsb inferno FTMFW
    Pelfreybilt front aluminum bumper, full Pelfreybilt skid set, Pelfreybilt sliders, hondo garage phone vent mount, icon stage 3 lift, scs rays 10, 285-70-17 ridge grappler, c4 fab mid height bed rack (currently getting powder)
    sub'd, late

    captain.cardinal1, Aug 2, 2016
    #61
  2. Aug 2, 2016 at 10:08 AM
    #62
    Toynado

    #62
    Toynado Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166816
    Messages:
    1,393
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 TRD OR DCSB Quicksand
    EXTERIOR: Toytec Boss 2.0 Dakar CS047R Leaf Springs Tailpipe chopped Pelfreybilt Front full hoop front bumper w/ Pelfrey fairlead Pelfreybilt Rear standard bumper Pelfreybilt Aluminum IFS, Mid, Rear (exhaust reroute) & Gas tank skids Pelfreybilt Fuseplate w/ 12 circuit fuse block All-Pro Apex Sliders ProComp 7036 17"x9" -6 offset BFG 275/70R/17 KO2's Warn VR10000-S winch Baja Designs S8 light bar & Squadron sports amber pods in front bumper Baja Designs S2 flush pods in rear bumper Baja Designs Squadron Pro amber pods on Caliraised ditch light brackets @rrentrop reflective black tailgate inserts RSI LED's for regular & high beams Prinsu Cabrac Custom Tradesman Truck Top by Access Manufacturing w/ Powertank 8"propane tank mount & Yakima tracks on the roof INTERIOR: Warrior Products door sill protectors Husky Weather Beater floor mats front & rear Coverking arid multicam seat covers in the front Midland 75-822 CB w/ 4' Firestick antenna on C4 Fabrication tailgate mount Consolevault Hondo Garage iPhone mount

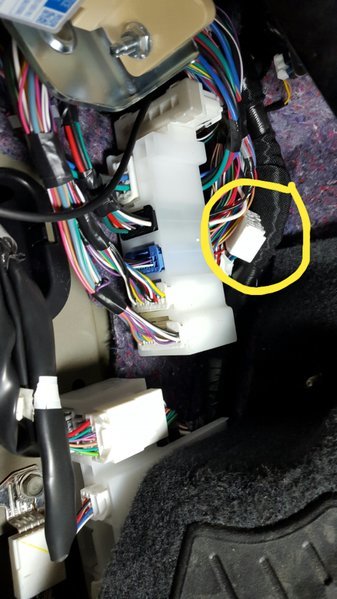

    Just to confirm, is this the harness you tapped into? Did you put the T-taps near the harness where there is a few cm of exposed wires or did you go further up?


    Last edited: Aug 2, 2016
    Toynado, Aug 2, 2016
    #62
  3. Aug 2, 2016 at 10:42 AM
    #63
    nevadabugle

    #63
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Negative. Mine was a loose wire loom behind the left kick panel. I taped in a half inch or so above the white plug.

    nevadabugle, Aug 2, 2016
    #63
  4. Aug 2, 2016 at 11:19 AM
    #64
    nevadabugle

    #64
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand

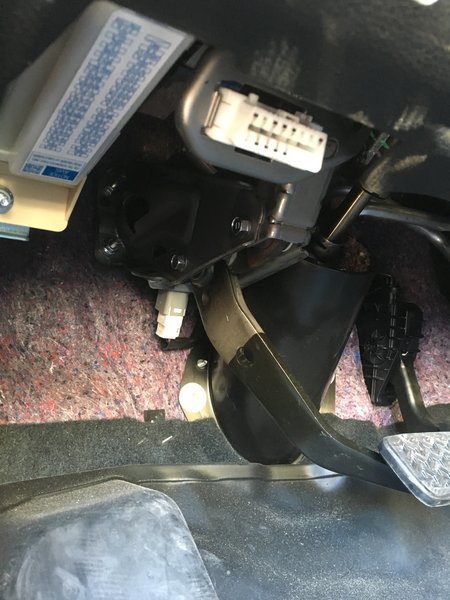

    Just so everyone knows, I believe the harness in Toynados photo is the OBD connector. I would NOT recommend tapping into it.

    nevadabugle, Aug 2, 2016
    #64
    NathanG223, Corneeeeelius, MoQS and 1 other person like this.
  5. Aug 2, 2016 at 11:56 AM
    #65
    MoQS

    #65
    MoQS Well-Known Member

    Joined:
    Jan 28, 2011
    Member:
    #183045
    Messages:
    573
    Gender:
    Male
    First Name:
    Merel
    Missouri
    Vehicle:
    MGM OR DCSB
    Or maybe the trailer brake controller?

    MoQS, Aug 2, 2016
    #65
    Toynado likes this.
  6. Aug 2, 2016 at 12:37 PM
    #66
    vinkon235

    #66
    vinkon235 Well-Known Member

    Joined:
    Jun 25, 2016
    Member:
    #190492
    Messages:
    92
    Gender:
    Male
    First Name:
    vince
    steubenville oh
    Vehicle:
    2016 white tacoma trdor access cab
    opt7 cree series fog lights busman aux relay box viair 450c oba opt7 fluxbeam led headlights
    Looks good and should work well for you!

    vinkon235, Aug 2, 2016
    #66
  7. Aug 2, 2016 at 1:59 PM
    #67
    nevadabugle

    #67
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    I do not believe so. Looking at the shape it appears to be an OBD connection.

    nevadabugle, Aug 2, 2016
    #67
    Noch and MoQS[QUOTED] like this.
  8. Aug 2, 2016 at 2:06 PM
    #68
    MoQS

    #68
    MoQS Well-Known Member

    Joined:
    Jan 28, 2011
    Member:
    #183045
    Messages:
    573
    Gender:
    Male
    First Name:
    Merel
    Missouri
    Vehicle:
    MGM OR DCSB
    Sorry nevadabugle I was referring to the post attached. I should have been more specific.

    MoQS, Aug 2, 2016
    #68
  9. Aug 2, 2016 at 2:13 PM
    #69
    nevadabugle

    #69
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Ha! Sorry about that. Yes, I believe I tapped into the break controller. I just don't want to be the cause of someone tapping into the OBD.

    nevadabugle, Aug 2, 2016
    #69
    MoQS[QUOTED] likes this.
  10. Aug 11, 2016 at 7:47 PM
    #70
    harbrown

    #70
    harbrown Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193686
    Messages:
    118
    Gender:
    Male
    First Name:
    Harold
    Daphne AL
    Vehicle:
    2016 Tacoma Off Road 4x4
    where did you get that clear box to put everything in. BTW, GREAT idea and GREAT JOB!

    harbrown, Aug 11, 2016
    #70
  11. Aug 11, 2016 at 8:21 PM
    #71
    paranoid56

    #71
    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,389
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    NNNNNNNNNOOOOOOOOOOOOOOOOOOOOOOOOOOo
    Please do not ever use vammpire clips. such a bad way to do things. You would void warranty by using these bad tabs. as they always actually cut the wires when you use them. so now you just cut part of your wire.

    paranoid56, Aug 11, 2016
    #71
    NathanG223 and 2016Tacoman like this.
  12. Aug 11, 2016 at 9:18 PM
    #72
    nevadabugle

    #72
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Any idea of a better technique on how to tap into these wires on the trailer brake harness?

    nevadabugle, Aug 11, 2016
    #72
  13. Aug 11, 2016 at 9:20 PM
    #73
    nevadabugle

    #73
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    It is a box I bought at home depot. It is Husky branded.

    nevadabugle, Aug 11, 2016
    #73
    harbrown[QUOTED] likes this.
  14. Aug 12, 2016 at 6:17 AM
    #74
    harbrown

    #74
    harbrown Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193686
    Messages:
    118
    Gender:
    Male
    First Name:
    Harold
    Daphne AL
    Vehicle:
    2016 Tacoma Off Road 4x4

    cool thanks, you should have a youtube channel showing all your mods. I want to copy a few things you did, like the switches in the sunglass holder, freakin brilliant.

    harbrown, Aug 12, 2016
    #74
    NathanG223 likes this.
  15. Aug 12, 2016 at 6:24 AM
    #75
    nevadabugle

    #75
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Wait till you see the onboard water set up im about to tackle....when done I will have running water in the bed of the truck

    nevadabugle, Aug 12, 2016
    #75
    69TACO16 and Toynado like this.
  16. Aug 12, 2016 at 6:25 AM
    #76
    harbrown

    #76
    harbrown Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193686
    Messages:
    118
    Gender:
    Male
    First Name:
    Harold
    Daphne AL
    Vehicle:
    2016 Tacoma Off Road 4x4
    OMG, your setup is off the grid...

    harbrown, Aug 12, 2016
    #76
    Corneeeeelius likes this.
  17. Sep 2, 2016 at 9:29 PM
    #77
    i8boots

    #77
    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    247
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, RSI EvoA, fully custom fuse box, Husky mudflaps, white interior LEDs, Morimoto xB v2 Headlights, Bilstein 6112/5160, Sumo Springs, Meso puddle pods and overhead lights, anytime backup mod, light out in reverse mod, ac drain mod, Calirased CAT protectors, ARB Dual Air in bed.
    Can you give me the dimensions? I can get a clear project box from Amazon and get it all-in-one purchase.

    i8boots, Sep 2, 2016
    #77
  18. Sep 2, 2016 at 9:49 PM
    #78
    MikeyMcFly

    #78
    MikeyMcFly This is heavy, Doc.

    Joined:
    Aug 11, 2012
    Member:
    #84551
    Messages:
    5,983
    Gender:
    Male
    I'm a Masshole
    Vehicle:
    2016 TRD Off-Road 6MT / 1999 Corvette 6MT
    Building a Broja
    Not the original person you quoted, but I've had great luck with Posi-Tap brand connectors setting up a LED DRL kit on my wife's Mazda CX-5. I actually read a DIY that had the wiring colors backwards so I had to swap wires and was able to quickly remove the connector without any issue.

    Looks good! I had a Blue Sea setup on my last two trucks and need to get on the ball to get one into my new truck. It was so easy to wire auxiliary items with that in place.

    MikeyMcFly, Sep 2, 2016
    #78
  19. Sep 3, 2016 at 12:48 PM
    #79
    harbrown

    #79
    harbrown Well-Known Member

    Joined:
    Aug 3, 2016
    Member:
    #193686
    Messages:
    118
    Gender:
    Male
    First Name:
    Harold
    Daphne AL
    Vehicle:
    2016 Tacoma Off Road 4x4
    harbrown, Sep 3, 2016
    #79
  20. Sep 3, 2016 at 6:17 PM
    #80
    nevadabugle

    #80
    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,992
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Yep that's the one.

    nevadabugle, Sep 3, 2016
    #80
