Wiring an Aux Fuse Block, Relays and Switches in a 2016

Discussion in '3rd Gen. Tacomas (2016+)' started by nevadabugle, Nov 15, 2015.

  1. Jan 18, 2017 at 10:43 AM
    #121
    tpm4819

    tpm4819 Member

    Joined:
    Jan 3, 2017
    Member:
    #206461
    Messages:
    11
    Gender:
    Male
    Vehicle:
    2017 Toyota Tacoma TRD Pro
    Do you mind if i still this setup?

    nevadabugle [OP] and TWTaco like this.
  2. Jan 18, 2017 at 8:20 PM
    #122
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,944
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    "Still" *Steal away sir. That's why I posted it.

    303tacoma likes this.
  3. Jan 18, 2017 at 9:03 PM
    #123
    Harbormaster

    Harbormaster Active Member

    Joined:
    Oct 2, 2016
    Member:
    #198802
    Messages:
    39
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Pro DCLB
  4. Jan 19, 2017 at 5:12 AM
    #124
    tpm4819

    tpm4819 Member

    Joined:
    Jan 3, 2017
    Member:
    #206461
    Messages:
    11
    Gender:
    Male
    Vehicle:
    2017 Toyota Tacoma TRD Pro
    Dam autocorrect! Making me look dumb. Thanks!

    nevadabugle [OP] likes this.
  5. Jan 19, 2017 at 2:08 PM
    #125
    FiaCobra

    FiaCobra Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206640
    Messages:
    102
    Gender:
    Male
    This is a great thread !

    nevadabugle [OP] likes this.
  6. Jan 21, 2017 at 7:10 PM
    #126
    nevadabugle

    nevadabugle [OP] Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,944
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
  7. Jan 23, 2017 at 12:45 AM
    #127
    Argo98

    Argo98 Well-Known Member

    Joined:
    Jan 23, 2017
    Member:
    #208355
    Messages:
    752
    Gender:
    Male
    First Name:
    Argo
    Vehicle:
    2017 Toyota Tacoma TRD-Sport 4x4
    Rough Country 3" spacer lift w/ shocks 285 KO2's wrapped around 16' ProComp Series 7069 Misc. bibbidybob lights
    Hey guys, sorta new here, just got my Tacoma this past Friday... I ordered this light bar https://www.amazon.com/gp/product/B00MLI6TWM/ref=od_aui_detailpages00?ie=UTF8&psc=1 but I cant wrap my head around how the wiring is going to go up to the bar itself, I can figure out on my own how to get the switch inside the cab though. Also, which fuse do I siphon off of for the light bar? (I only know this much as we installed a PA system in my friends car and wired it to his horn fuse)

  8. Feb 2, 2017 at 5:43 PM
    #128
    mcg658

    mcg658 New Member

    Joined:
    Nov 6, 2016
    Member:
    #201710
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2017 Inferno Double Cab
    Anyone know of a switched +12 in the main fuse box 2017 Tacoma?
    And what is difference between Radio #1 and Radio #2?
    Are do all the fuses in this box feed relays?

  9. Feb 24, 2017 at 11:56 AM
    #129
    cmccbham

    cmccbham Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206611
    Messages:
    134
    Gender:
    Male
    First Name:
    Corey
    Birmingham, AL
    Vehicle:
    2018 Inferno Tacoma TRD 4x4 Short Bed
    First I want to say yours and OPs set up is awesome!
    I do have some qustions/comments though:

    If you go put everything in a case why would you use such an expensive fuse block?
    I get its still under or roughly $100 but money is money. Is there a particular reason to use a blue sea block?
    They look very well made so I'll give you that.

    Also, do you think its worth having a 4 or 6 awg quick connect? I'm designing my set up and thought it might make things easier.

    Also part 2, is there any issue with over heating in the case?

    Thanks and it still looks very well done.

    Last edited: Feb 24, 2017
  10. Feb 24, 2017 at 12:53 PM
    #130
    i8boots

    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    183
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, Bak X2 Tonneau, custom breaker box, Husky mudflaps, white interior LEDs
    - I used mine specifically for the amps and because it's not really a "sealed" box. Water could get in so I wanted the marine fuse box and breaker.

    - See above.

    - What are you thinking? I designed mine so that I could take the whole thing out easily if needed, with the only major pains being removing the battery cable bolts.

    I haven't even checked for any. I run power for my LED strips (hood and bed), my USB ports (Dashcam and rear seat outlets), and my new mini-airhorn.

  11. Feb 24, 2017 at 1:38 PM
    #131
    OdiN1701

    OdiN1701 Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,716
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
  12. Mar 2, 2017 at 7:51 AM
    #132
    cmccbham

    cmccbham Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206611
    Messages:
    134
    Gender:
    Male
    First Name:
    Corey
    Birmingham, AL
    Vehicle:
    2018 Inferno Tacoma TRD 4x4 Short Bed
    Thanks for the input. I did pretty much the same set-up you and OP did. I figured I wont regret spending some extra cash if I know it works and don't have to worry about. I haven't actually built it yet as all the parts should arrive today.

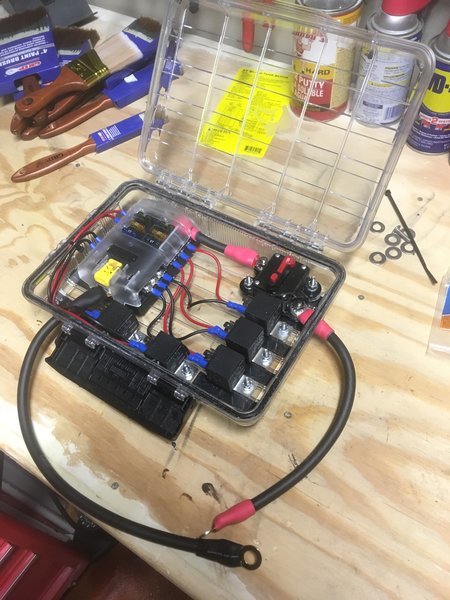

    I was thinking something like this. But I can understand how just undoing the battery connections would work too.

    [​IMG]

    Spare Parts and nevadabugle [OP] like this.
  13. Mar 2, 2017 at 11:07 AM
    #133
    breader3

    breader3 2016 TRD Off-Road 4x4

    Joined:
    Dec 28, 2015
    Member:
    #173380
    Messages:
    512
    Gender:
    Male
    First Name:
    Brad
    Las Vegas
    I'm going to be doing the same thing. There's actually a company that makes single quick connects that I'll be using on mine though. (The name escapes me currently)

    nevadabugle [OP] likes this.
  14. Mar 2, 2017 at 12:17 PM
    #134
    i8boots

    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    183
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, Bak X2 Tonneau, custom breaker box, Husky mudflaps, white interior LEDs
    I bought who of these kits after the discussion, and will get them Friday:
    https://powerwerx.com/anderson-powerpole-connectors-120amp

    [​IMG]

    Once installed I'll take pictures. I wasn't going to before, but I think it's important now because then every circuit in my box will be setup so that the box can be quick removed for access to the fuse panel underneath.

  15. Mar 2, 2017 at 12:35 PM
    #135
    cmccbham

    cmccbham Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206611
    Messages:
    134
    Gender:
    Male
    First Name:
    Corey
    Birmingham, AL
    Vehicle:
    2018 Inferno Tacoma TRD 4x4 Short Bed

    Why do the singles? The double is the same price and its just less parts to deal with. Unless you will have a different place for your ground. Then I could see that.

  16. Mar 2, 2017 at 12:40 PM
    #136
    i8boots

    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    183
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, Bak X2 Tonneau, custom breaker box, Husky mudflaps, white interior LEDs
    I already have separate power and ground wire locations. My red comes into the box at the top right, and the black / ground leaves at the bottom left, so I'd have to pull the stiff 4ga wires together to put them in a joined connector, then cut new power and ground wires and run them to a connector. It's easier to just cut the wires I have, and put the single pole connectors in.

  17. Mar 2, 2017 at 12:41 PM
    #137
    cmccbham

    cmccbham Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206611
    Messages:
    134
    Gender:
    Male
    First Name:
    Corey
    Birmingham, AL
    Vehicle:
    2018 Inferno Tacoma TRD 4x4 Short Bed


    Yep that makes sense.

  18. Mar 3, 2017 at 4:45 AM
    #138
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,496
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it

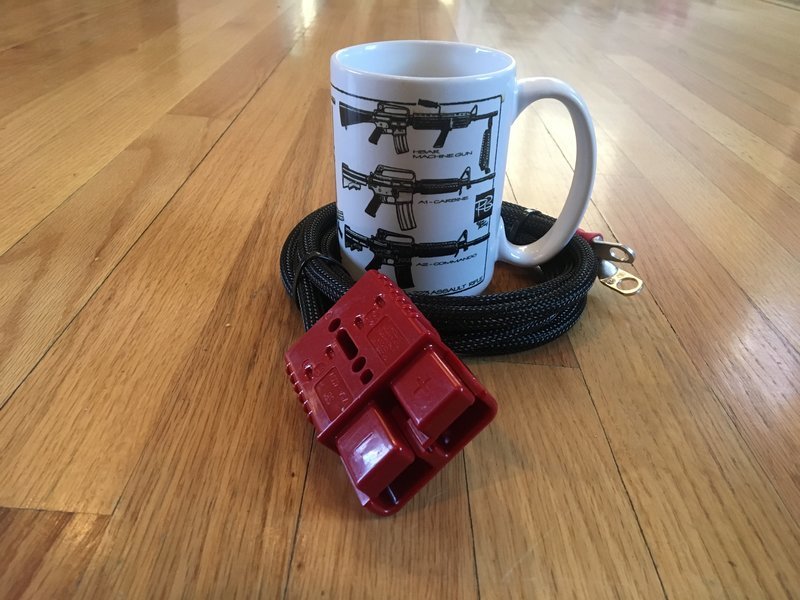

    Matt at offgrid 4x4 made me this and an excellent set of Anderson jumper cables for a very reasonable price.


  19. Mar 3, 2017 at 5:53 AM
    #139
    cmccbham

    cmccbham Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206611
    Messages:
    134
    Gender:
    Male
    First Name:
    Corey
    Birmingham, AL
    Vehicle:
    2018 Inferno Tacoma TRD 4x4 Short Bed
    That is a nice cable there.

    I got everything in yesterday but the small wire. I ordered the 12 slot blue sea fuse block with negatives. Turns out that it makes everything pretty tight. I think I'm going to return it and get the 8, maybe even the 6. My thinking behind it was that I could also run the switches though the fuse block as well. I also thought about using the lid of the husky 11" box for the relays and any terminals but I'm not sure how everything will fit even doing that.

  20. Mar 4, 2017 at 10:30 AM
    #140
    i8boots

    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    183
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, Bak X2 Tonneau, custom breaker box, Husky mudflaps, white interior LEDs

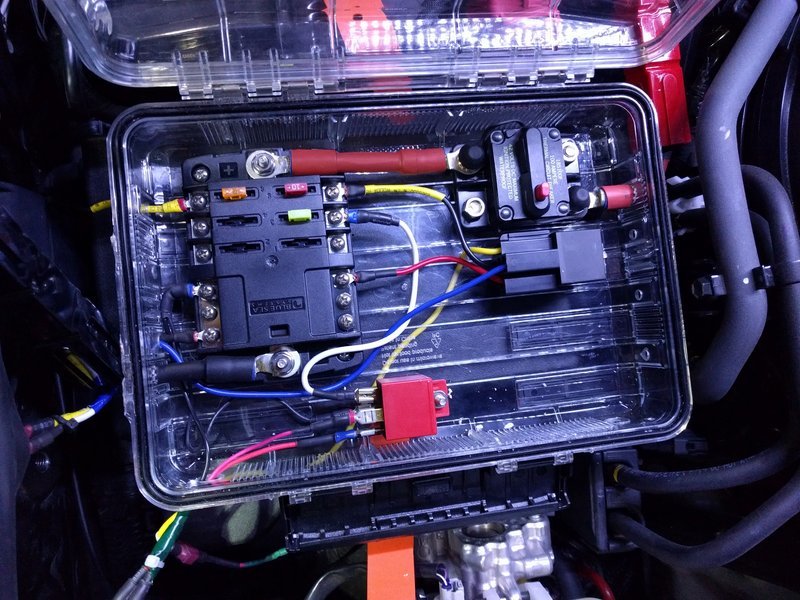

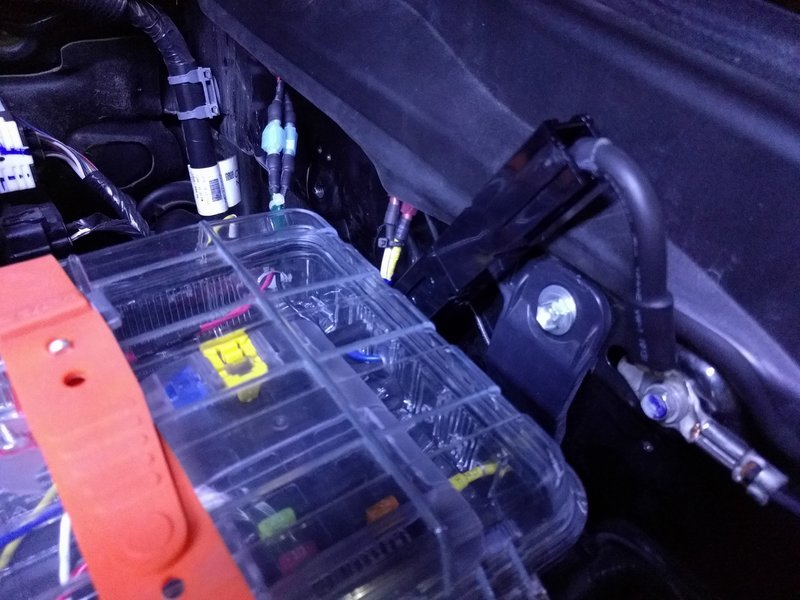

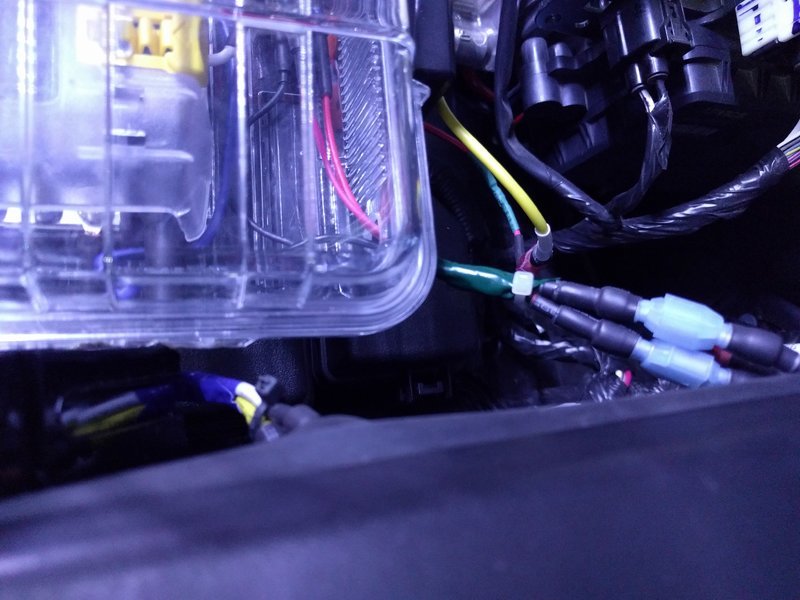

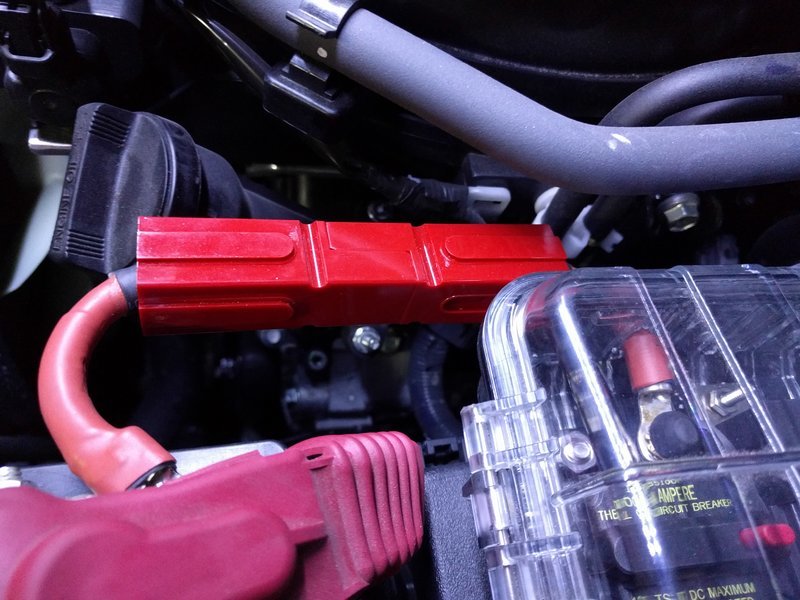

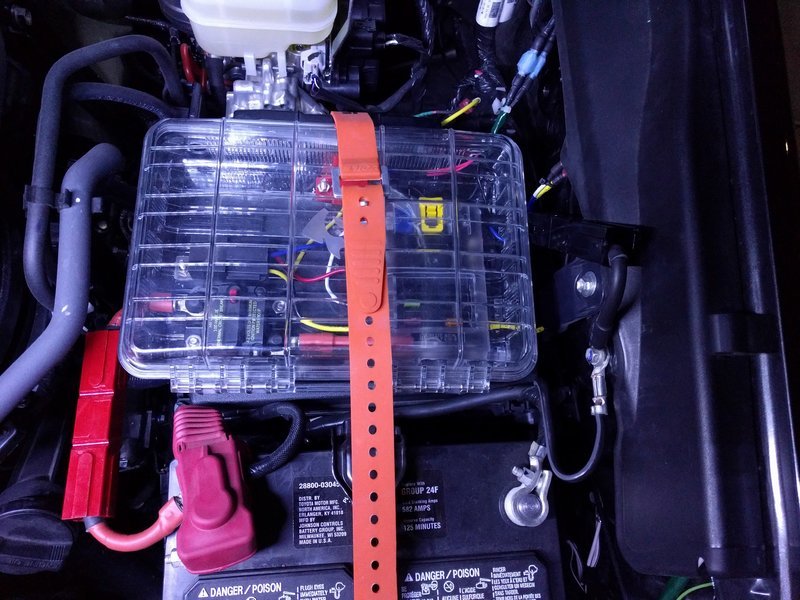

    I finally got time to add the power connectors, and I'm impressed with how simple / sturdy they are. Here are the only pics I've taken, and this is lit only by my under-hood LED strips and an energizer head lamp at 2 am. It's inserting as thumbnail so you can click on it to expand, I think.

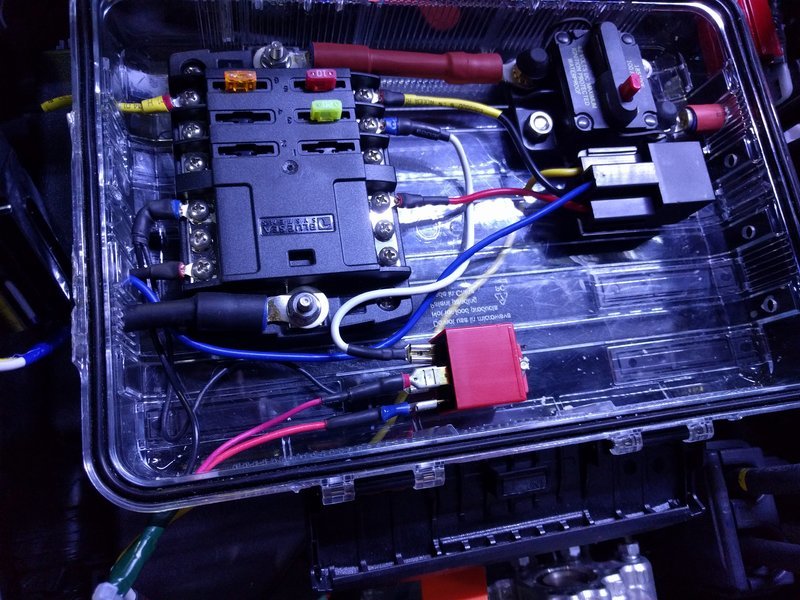

    And for an explanation, the black relay controls the 10 amp wire I have going into the cab that powers my Dashcam/headliner 3A5V USB port and also my 4.2 A rear USB sockets.
    The red relay came with my Nautilus mini air horn and that's what it's for.
    The non-relay'd circuit powers my under hood and bed lights that I got from mattgecko https://www.tacomaworld.com/members/mattgecko.59337/


    IMG_20170304_011344.jpg IMG_20170304_011353.jpg IMG_20170304_011400.jpg IMG_20170304_011410.jpg IMG_20170304_011433.jpg IMG_20170304_011439.jpg

    nevadabugle [OP] and cmccbham like this.
