Wiring dual fuse block.

Discussion in '3rd Gen. Tacomas (2016-2023)' started by LTG4087, Oct 8, 2019.

Page 2 of 2
  1. Oct 10, 2019 at 10:19 AM
    #21
    caribe makaira

    #21
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,714
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

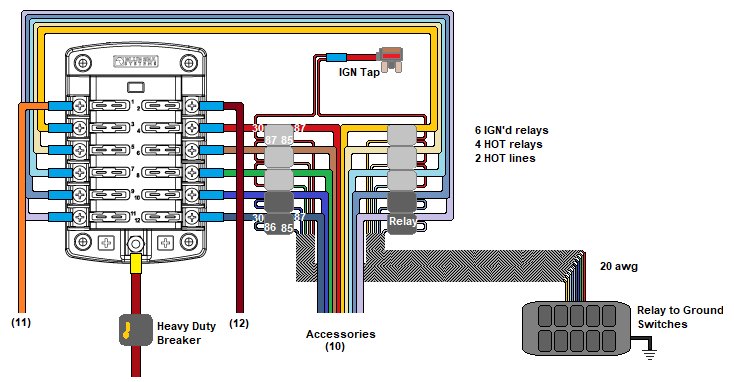

    Any circuit above 10A to relay...higher amps closer to battery feed, lower amps away from battery feed wire. Relays (85's) to cab switch to ground. In this example you have 4 relays ON anytime and 6 relays only available after IGN. (10a INJ fuse) Two (2) spots for miscellaneous (HF radio?):anonymous:

    caribe makaira, Oct 10, 2019
    #21
  2. Oct 10, 2019 at 3:08 PM
    #22
    SSG (03)TACOMA

    #22
    SSG (03)TACOMA SSG TACOMA

    Joined:
    Dec 17, 2016
    Member:
    #205045
    Messages:
    449
    Gender:
    Male
    Vehicle:
    2023 DOUBLE CAB V6 TRD SPORT 4x4

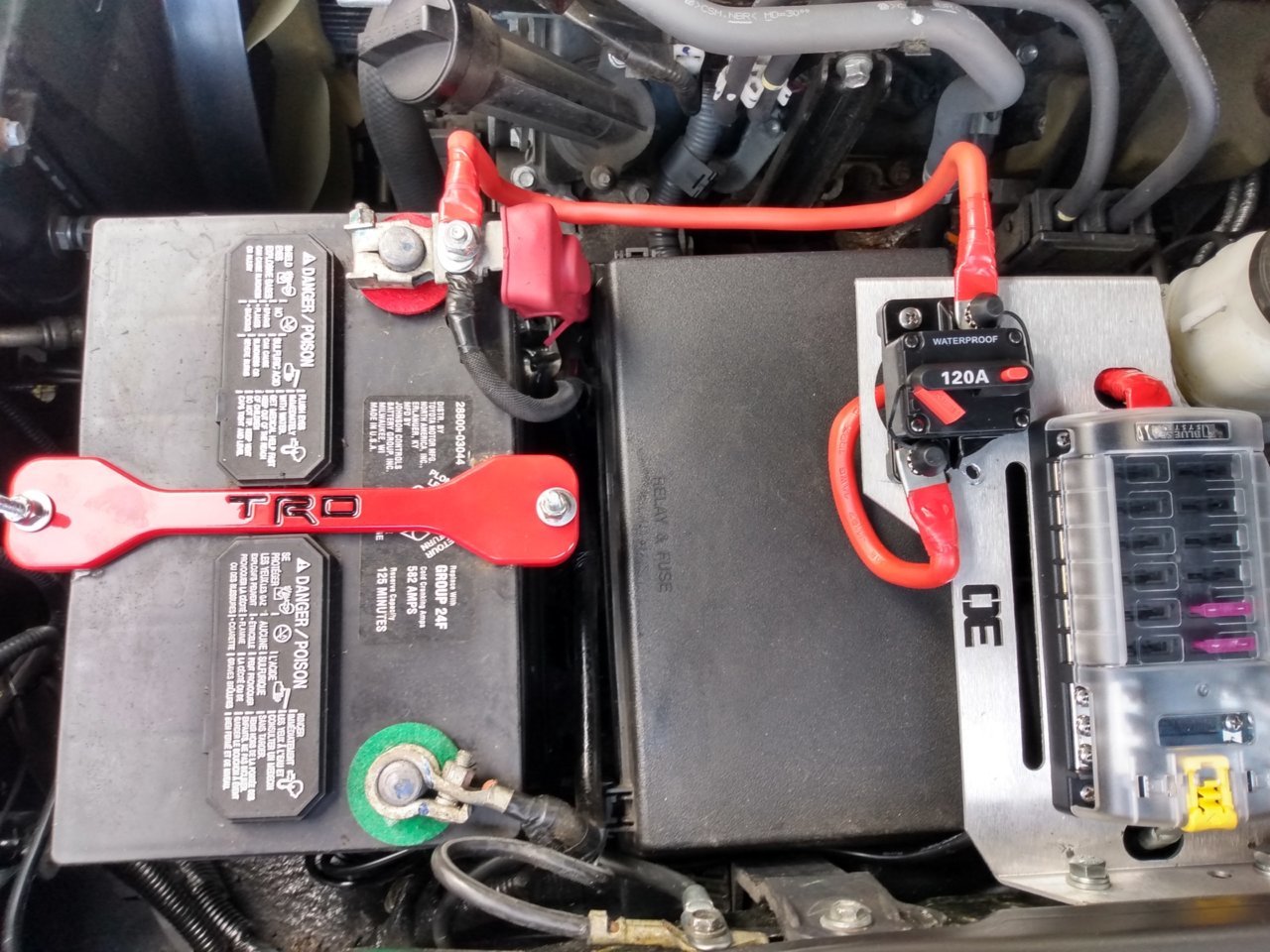

    IMG_20191010_120105765_HDR.jpg this is my set-up

    SSG (03)TACOMA, Oct 10, 2019
    #22
  3. Sep 5, 2024 at 7:14 AM
    #23
    pineapple_taco

    #23
    pineapple_taco Member

    Joined:
    Aug 13, 2024
    Member:
    #455054
    Messages:
    7
    Gender:
    Male
    First Name:
    James
    Vehicle:
    21 Taco TRD Sport
    400 watt inside cab AC
    Two questions for you:
    What sub panel / relay mount is that? I was about to fab my own.

    And how on earth do you keep your engine bay so sparkly clean! Looks amazing.

    pineapple_taco, Sep 5, 2024
    #23
