Wiring fog lights to factory switch?

Discussion in 'Lighting' started by devenob, May 23, 2013.

  1. May 23, 2013 at 12:22 AM
    #1
    devenob

    devenob [OP] Active Member

    Joined:
    Jan 30, 2013
    Member:
    #96442
    Messages:
    32
    Gender:
    Male
    First Name:
    Deven
    MA
    Vehicle:
    09 TRD SPORT DBL CAB
    stock
    Ok before you bash me about using he search function, I did and couldn't find anyone that wants to do what I want to. Hence me making this thread lol.

    Now what I want to do is put a set of lights probably Hellas behind my grill. I was wondering if it is possible to use the same switch as my factory fog lights? But leave the factory fog lights hooked up? So use one switch the factory switch to control two sets of lights? (The already wired factory fog lights plus the after market lights) I figure I probably could but want to see what you guys have to say

  2. May 23, 2013 at 1:37 AM
    #2
    BlueSteel

    BlueSteel Well-Known Member

    Joined:
    Mar 26, 2009
    Member:
    #15179
    Messages:
    363
    Gender:
    Male
    First Name:
    James
    Houston, Tx
    Vehicle:
    09 Magnetic Grey Doublecab TRD Sport Debadged
    Camburg 4" Spindles, Front FOX 2.5" Reservoir CO's, Rear FOX 2.0" Reservoir shocks, Total Chaos Upper/Lower CAs, All Pro Rear Expedition Leafs, Timbren Bumpstops, 5" SS Brakelines, 285/65/18 Nitto Terra on 18" KMC Monsters, Grill Craft Black Mesh Upper/Lower, HIDs Upper/Lower, Hella 700 HID conversion grill lights, Predator Running Boards, All Pro Rear Bumper and Hitch, Wet Okole Covers, Toyota Roof Rack, Limo Tint, TRD CAI, TRD Exhaust, Toyota Skid Plate w/Line X, Weathertech Mats, Redline Hood Struts, Red Top Odyssey battery, BDF Light Bar, Foglight anytime Mod, Strion LED Streamlight Console Mod, Lo Pro QT Truxedo Tonneau cover, Rocky Mount Bike Pegs,
    If your Hella wiring is going to be separate from the factory fogs it shouldn't be a problem because you would just tie in one wire coming from the kit relay to the factory fog light switch. If you are wanting to piggy back off the factory wiring for the Hella install, I wouldn't recommend it just because the factory gauge wiring size. Any kind of off-road light will most likely exceed the factory wiring amp/current load for the factory gauge wiring. The factory fog lights alone are rated between 35W-55W and somewhere around 10-15amps current draw. If you add another set of lights (say Hella 500s 55w) that will double your current to 20-30amps for the factory wiring and you will most likely start frying your wiring.

    In the diagram you will just connect the Load/ green wire (or whatever color) to the factory fog switch load side. Also, I like to tie in all my grounds to one location or run it directly to the battery.

    wiring diagram.jpg

    Last edited: May 23, 2013
  3. May 23, 2013 at 1:56 AM
    #3
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    605
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    http://www.tacomaworld.com/forum/lighting/253374-how-extra-lights-brights-2g.html

    I did what you want and also to turn on another pair of spot lights when you hit the brights... This how to is written explaining the install of the spot when hitting the brights...

    The only difference is the "signal" of the fog lights (you can see where i took the signal from the fog relay)... Hope i explained myself...

  4. May 23, 2013 at 2:50 AM
    #4
    devenob

    devenob [OP] Active Member

    Joined:
    Jan 30, 2013
    Member:
    #96442
    Messages:
    32
    Gender:
    Male
    First Name:
    Deven
    MA
    Vehicle:
    09 TRD SPORT DBL CAB
    stock
    Ya I will run seperate wires, thanks guys! Will get pics up soon hopefully!

  5. May 23, 2013 at 3:31 AM
    #5
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,329
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5

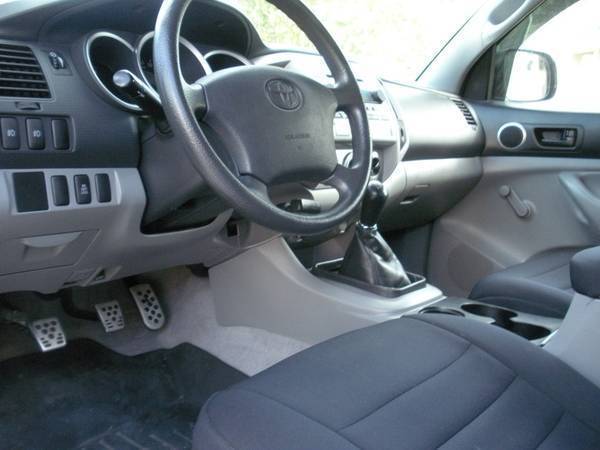

    I used seperate wiring harnesses for my fogs and Hellas hooked to factory switches. Truck had no fogs or wiring when I got it. Was simple. Used ebay fog harness for both sets hooked to factory switches. Fogs are 35w 5000k HID and Hellas converted to 35w 3000k HID.

    [​IMG]
    [​IMG]
    [​IMG]

  6. Jun 6, 2013 at 8:18 PM
    #6
    devenob

    devenob [OP] Active Member

    Joined:
    Jan 30, 2013
    Member:
    #96442
    Messages:
    32
    Gender:
    Male
    First Name:
    Deven
    MA
    Vehicle:
    09 TRD SPORT DBL CAB
    stock
    lights~!

    grill with lights night .jpg
    grill with lights.jpg

  7. Jun 6, 2013 at 10:31 PM
    #7
    Chepo

    Chepo Tankoma!

    Joined:
    Sep 8, 2011
    Member:
    #63159
    Messages:
    605
    Gender:
    Male
    Mexico City
    Vehicle:
    '11 TRD Sport
    ARB front bumper, Custom Rear Bumper, Safari Snorkel, Led Lights all over, OME Lift
    Nice! Well done sir!

  8. Jul 15, 2013 at 11:21 PM
    #8
    crooks420

    crooks420 Well-Known Member

    Joined:
    Oct 11, 2009
    Member:
    #24135
    Messages:
    70
    Gender:
    Male
    First Name:
    Jesse
    San Gabriel
    Vehicle:
    05 AC Prerunner SR5, 12 DC LB 4x4, 70 FJ40
    I want to do this to my 2012!!!!!!!!

    Did you tie in the aux. lights at the factory fog switch? Can you explain/show exactly how you did this?

    Jesse

  9. Jun 10, 2014 at 10:19 PM
    #9
    GreaseMonkeyNerd

    GreaseMonkeyNerd Well-Known Member

    Joined:
    Mar 26, 2014
    Member:
    #126283
    Messages:
    60
    Gender:
    Male
    First Name:
    Danny
    Los Angeles


    Can you explain more on how you did this? my truck doesn't have fog and i also want to put fog with factory switch

  10. Jun 11, 2014 at 3:27 AM
    #10
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,329
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Sure, got factory switches on ebay and one off here. Got pigtail wires for them from dealer. Wired them into harnesses and parking light wiring for illumination. Harnesses had relays and fuses already and used add-a-circuit to pull power from 2 different fuses in the panel by left knee. Used switched pwr for both so no way to leave them on when key is out. Somewhere in here there is a thread with the wiring diagram for the switch. The diagram above is good for everything except oem switch has extra wire to splice into parking lights for switch illumination. It illuminates with dash lights but does not light up any differently when lights are on. There is a different oem switch that does IIRC. Not sure what vehicle it is from tho - Tundra, 4runner or FJ maybe. Only 1 wire for each set of lights needs to come thru firewall. Just snuck them in thru exisiting grommet on driver's side. Not much else to it.

    Last edited: Jun 11, 2014
