Wiring harness terminal source?

The website I normally source my wiring terminals from - TE Connectivity - is down and I’m struggling to find the terminals I need.

Where do you guys find terminal ends at? I don’t wanna buy repair wires at 10$+ a piece.

I’m in the process of finally wiring up the back up camera from the rear view to the the head unit. I have the plug but I need the pins to finish the harness.

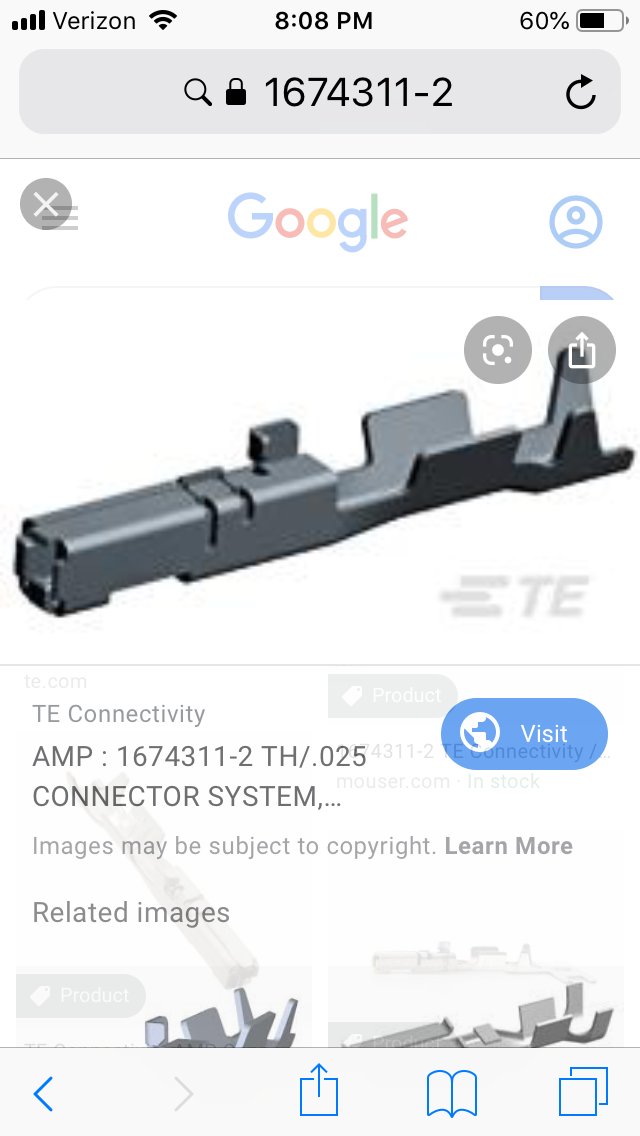

These



All the other places they have em the minimum order is 3000 of them. I only need 6.

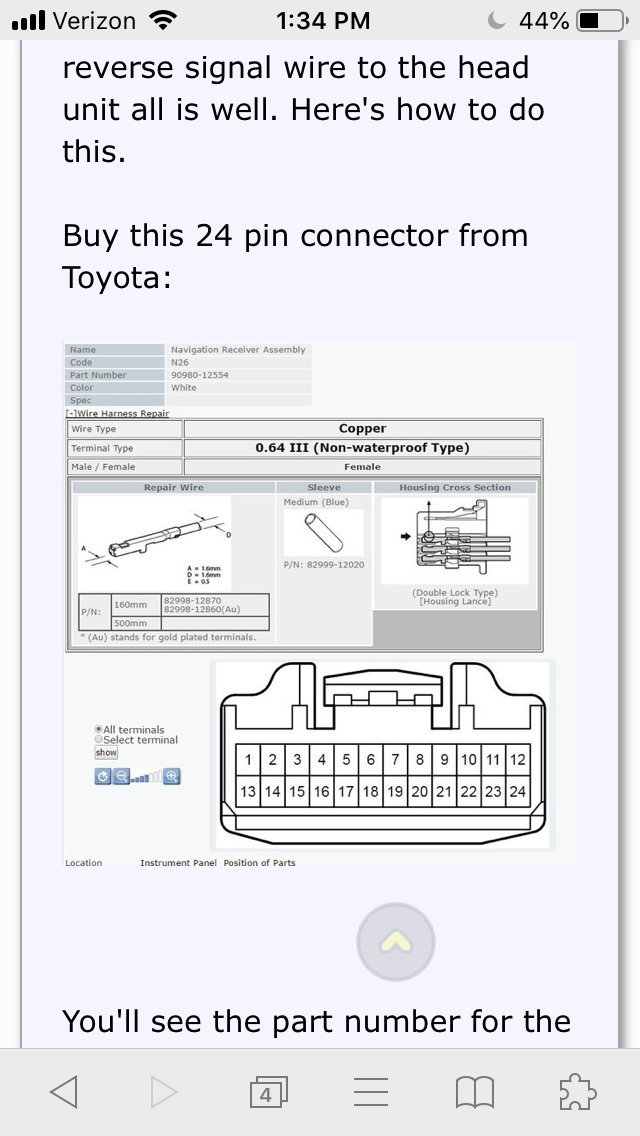

Here's the complete connector to plug into the tailgate harness.

https://www.bmotorsports.com/shop/product_info.php/products_id/4191



Wrong end. I’m building a harness from the plug at the fuseblock to the 24 pin plug on the back of the radio.



Oh, OK. They have a lot of connectors, but they don't have everything. Look around the site. I've bought from them before. You can search connectors by number of terminals or by OEM Toyota part numbers for the connector housing.



They have a couple very similar looking pins. I may orders handful to try



Here's 451 pages of everything you ever wanted to know about Toyota connectors.

https://www.toyota-tech.eu/wire_harness_rm/RM06H0E.pdf

The chart that begins on page 380 has the pigtail part numbers for each connector housing part number. You might be able to do some cross referencing to figure out which terminals you need.



OOPS! I guess the chart actually begins on page 328.



http://www.easternbeaver.com/Main/Elec__Products/Connectors/Sealed/SMTS/smts.html



Nice!



I buy all my Toyota connectors through eastern beaver. They even carry 1st gen truck connectors.



Is this the TE site you are referring to?
https://www.te.com/usa-en/store.htm...MIpcvyxMiN5wIVRr7ACh2_ngf0EAAYASACEgJ1jvD_BwE



That’s the site.



Share plug part number...



Here ya go.

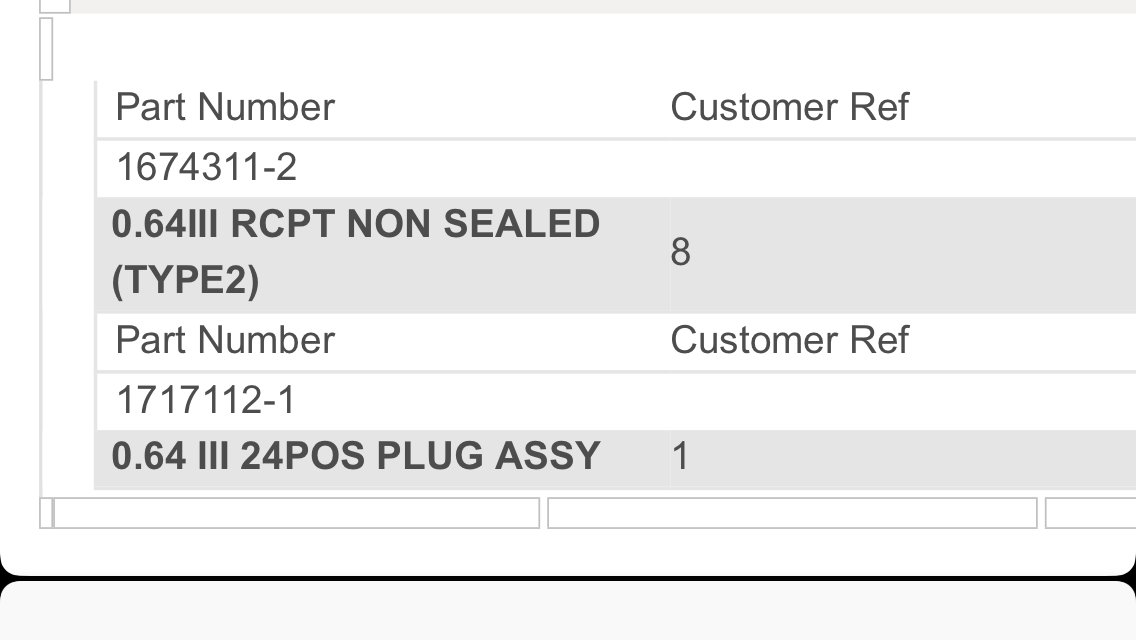

Here’s the TE PN



And Toyota PN
