Wiring help

Discussion in '2nd Gen. Tacomas' started by Utard, Aug 18, 2012.

  1. Aug 18, 2012 at 3:21 PM
    #1
    Utard

    Utard [OP] Well-Known Member

    Joined:
    Nov 5, 2011
    Member:
    #66532
    Messages:
    3,141
    Gender:
    Male
    First Name:
    Mark
    Nyssa, Oregon
    Vehicle:
    2012 DC LB 4WD TRD SPORT NAVI
    ------------------------------------------------------------ Stabilus.EZDown.Tailgate http://www.ezdown.com/home.php ----------------------------------------------- Tekonsha.Primus.IQ.Trailer.brake http://www.tekonsha.com/content/default.aspx---------------------------------------------------------------- Leer 180 CC http://www.leer.com/Truck-Caps#------------------------------------------------ Firestone Air Rite Air Bags--------------------------------------Kargomaster Rack
    I am putting in a air bag controller/compressor.

    It is saying to hook up to the "Un-fused side of the ignition powered auxiliary fuse". It will have a fuse for it own power so couldn't I just hook to the battery?

    Any one know where this is? Here is a photo of the fuse boxes.

    Its a 2012 if that matters.

    Thanks

    fuse box.jpg

  2. Aug 18, 2012 at 3:23 PM
    #2
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,871
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    My Compressor is hooked straight to the battery with an inline fuse.

  3. Aug 18, 2012 at 3:33 PM
    #3
    Utard

    Utard [OP] Well-Known Member

    Joined:
    Nov 5, 2011
    Member:
    #66532
    Messages:
    3,141
    Gender:
    Male
    First Name:
    Mark
    Nyssa, Oregon
    Vehicle:
    2012 DC LB 4WD TRD SPORT NAVI
    ------------------------------------------------------------ Stabilus.EZDown.Tailgate http://www.ezdown.com/home.php ----------------------------------------------- Tekonsha.Primus.IQ.Trailer.brake http://www.tekonsha.com/content/default.aspx---------------------------------------------------------------- Leer 180 CC http://www.leer.com/Truck-Caps#------------------------------------------------ Firestone Air Rite Air Bags--------------------------------------Kargomaster Rack

    My only concern with doing this is I got an air lift wireless air controller. If there was ever a problem in the air system it would run with the truck turned off and trash the battery.

    And I was thinking it might have a draw on the battery because it automatically keeps the air bags that the set psi.

  4. Aug 18, 2012 at 3:37 PM
    #4
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,871
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner

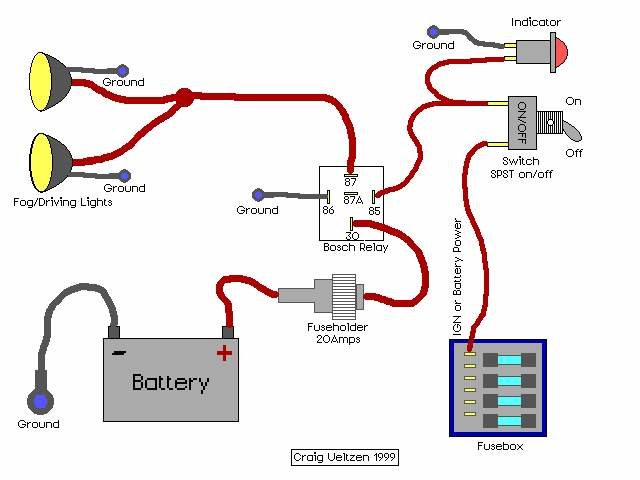

    Ah I missed that run an add a circuit to the box under the dash behind the coin tray thing and run that to the relay and still run to the battery for your main power. That way only way power goes thru the relay is if ignition is on...

    [​IMG]

    Not sure where the wire less controller goes but I would guess where the switch is on this one.

  5. Aug 18, 2012 at 3:46 PM
    #5
    Utard

    Utard [OP] Well-Known Member

    Joined:
    Nov 5, 2011
    Member:
    #66532
    Messages:
    3,141
    Gender:
    Male
    First Name:
    Mark
    Nyssa, Oregon
    Vehicle:
    2012 DC LB 4WD TRD SPORT NAVI
    ------------------------------------------------------------ Stabilus.EZDown.Tailgate http://www.ezdown.com/home.php ----------------------------------------------- Tekonsha.Primus.IQ.Trailer.brake http://www.tekonsha.com/content/default.aspx---------------------------------------------------------------- Leer 180 CC http://www.leer.com/Truck-Caps#------------------------------------------------ Firestone Air Rite Air Bags--------------------------------------Kargomaster Rack
    So would that be the same as using the "Un-fused side of the ignition powered auxiliary fuse" per what the installation diagram says to do?

    And is there one in the engine bay fuse boxes?

  6. Aug 18, 2012 at 3:49 PM
    #6
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,871
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    I am not sure on the 12's but on my 09 I run all ignition powered on the box inside the cab.

    And the wording of that is confusing. Did they give you a diagram?

  7. Aug 18, 2012 at 3:59 PM
    #7
    Utard

    Utard [OP] Well-Known Member

    Joined:
    Nov 5, 2011
    Member:
    #66532
    Messages:
    3,141
    Gender:
    Male
    First Name:
    Mark
    Nyssa, Oregon
    Vehicle:
    2012 DC LB 4WD TRD SPORT NAVI
    ------------------------------------------------------------ Stabilus.EZDown.Tailgate http://www.ezdown.com/home.php ----------------------------------------------- Tekonsha.Primus.IQ.Trailer.brake http://www.tekonsha.com/content/default.aspx---------------------------------------------------------------- Leer 180 CC http://www.leer.com/Truck-Caps#------------------------------------------------ Firestone Air Rite Air Bags--------------------------------------Kargomaster Rack
    I guess on the electrical schematic it just says "ignition source"? That means it wont have power it the key is out?

    So in the cab? What fuse # would be the best to tap into?

  8. Aug 18, 2012 at 6:46 PM
    #8
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,871
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    An add a circuit has 2 fuses so whatever you tap into stays the same then your ignition wore to the relay would also be fused...
