Wiring in a voltmeter

Discussion in '1st Gen. Tacomas (1995-2004)' started by WVTaco12, Sep 30, 2017.

  1. Sep 30, 2017 at 5:46 PM
    #1
    WVTaco12

    #1
    WVTaco12 [OP] Well-Known Member

    Joined:
    Jul 15, 2014
    Member:
    #133971
    Messages:
    140
    Gender:
    Male
    First Name:
    Cody
    West Virginia
    Vehicle:
    2013 TX Baja
    Hey all, I know this is a topic that's been covered, but I can't find an answer to my question.

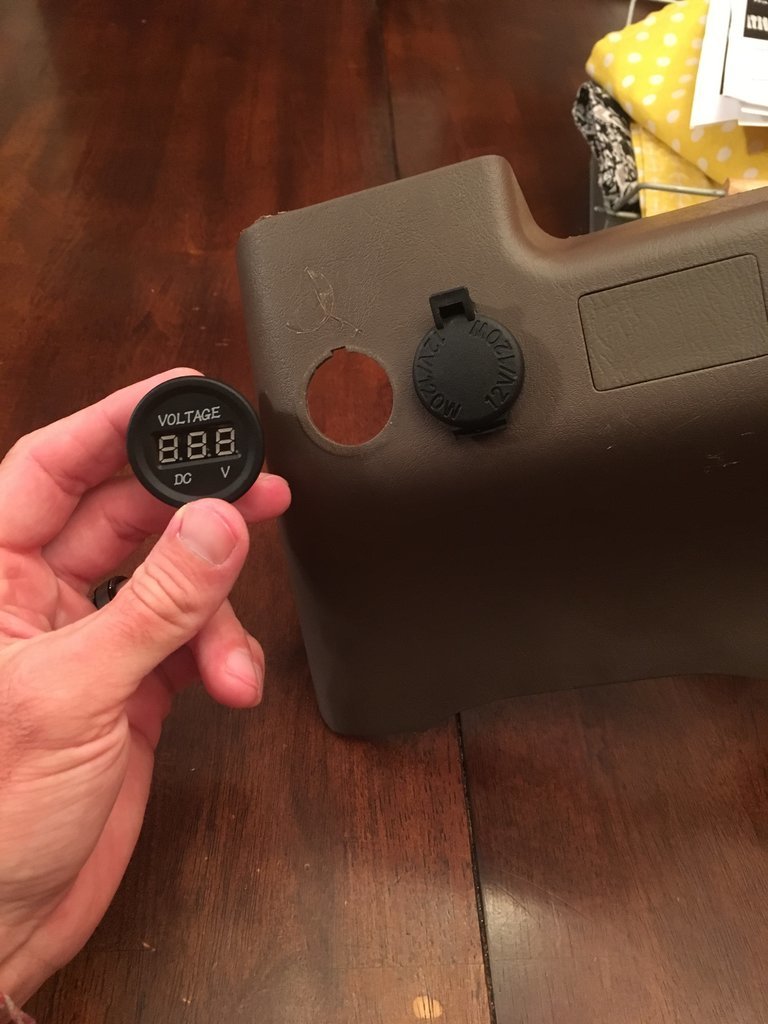

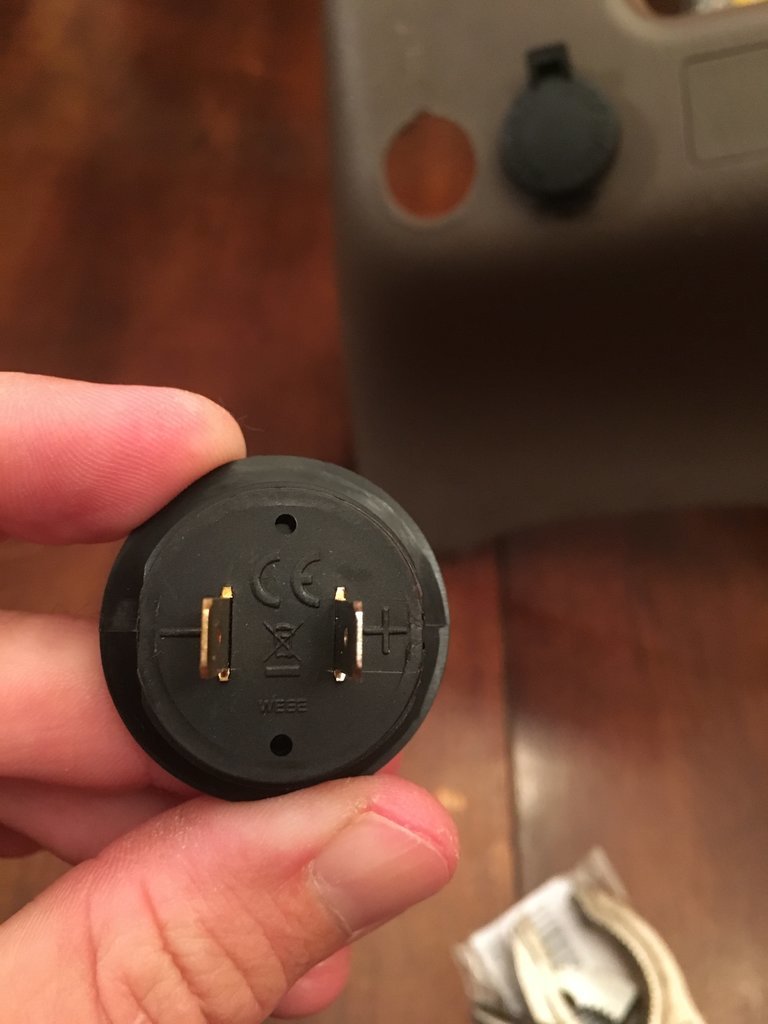

    I bought a round voltmeter to stick in my '02 DC. I'm planning on removing one of the lower 12v openings and using a Dremel to open it up slightly bigger and drop this in. The 12v plugs are fed by 3 wires. My voltmeter has only 2 posts. Anyone know how to wire this up?

    Thanks for any help!


    WVTaco12, Sep 30, 2017
    #1
  2. Oct 1, 2017 at 7:08 AM
    #2
    Indy

    #2
    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    2,582
    Gender:
    Male
    Your plugs are likely fed by 2 and the 3rd is jumping power to another place. Positive to switched positive, ground to gound.

    Indy, Oct 1, 2017
    #2
  3. Oct 1, 2017 at 1:18 PM
    #3
    cruisedon66

    #3
    cruisedon66 Well-Known Member

    Joined:
    May 9, 2016
    Member:
    #186469
    Messages:
    672
    Gender:
    Male
    First Name:
    Pete
    Near St. Louis
    Vehicle:
    2003 Tacoma Extra Cab 2WD A/T
    Defrost mirrors, compass/temp display rear view mirror, rear wiper on camper shell, trans.cooler.
    See youtube.

    cruisedon66, Oct 1, 2017
