Wiring LED lightbar to high beams

Discussion in 'Lighting' started by chipnoreo, Jul 20, 2013.

  1. Jul 24, 2013 at 1:45 PM
    #21
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    I think this one might work, it's the only one I can find with a pin-out.

    V6DAF66B
    [​IMG]


    • SPDT ON/OFF/ON rocker switch.
    • Two incandescent lights
    • Upper light independently wired.
    • Lower light ON in down position from Terminal #3.
    • Rear barrier between terminals.
    • Rated 20A @ 12V.

    Only thing I'm not sure about is the "lower light on in down position from Term. #3"

    The other switch I know will prob be best is the V6D2U66B but there is no picture. Waiting for OTRATTW to get back with me.

    • SPDT ON/OFF/ON rocker switch.
    • Two incandescent lights
    • Upper and lower lights are independently wired.
    • Lights have separate grounds.
    • No rear barrier between terminals. VC1-01 rear connector housings and packard *terminals can be used, or use insulated terminals
    • Rated 20A @ 12V.

    Last edited: Jul 24, 2013
  2. Jul 24, 2013 at 3:54 PM
    #22
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,973
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Single pole, double throw should mean the lights will be 'on' in the direction the switch is toggled. I had to jumper 5 to 2 in order to make my lights work since I bought a double throw. Then you need to ground the switch for the lights to work (ground 6 and 7). I'm not overly familiar with the internals of the SPDT switch though. It's planning on the power coming in, then being separated to go out one of 2 ways. In this instance, you have 2 power sources coming in and one output. Depending on how it's wired, it might not work, you'd need a diagram like the one I have on the previous page to confirm how the internals of the switch work.

    Last edited: Jul 24, 2013
  3. Jul 24, 2013 at 7:13 PM
    #23
    chipnoreo

    chipnoreo [OP] Ready for snow!

    Joined:
    Oct 4, 2012
    Member:
    #88331
    Messages:
    2,351
    Gender:
    Female
    First Name:
    Anna
    Alaska
    Vehicle:
    Fox Mid-Travel TRD Sport BSP 4x4 AC
    Fox 2.5 COs W/ TC UCAs + Fox 2.0 RR rears W/ Dakars, Brute Force Fab Sliders, BHLM, auto start, Redline hood struts, AVS bug deflector, thin lip satoshi, behing the grill 20in lightbar, cobra 29 CB, interior awesomness
    Awesome. Diagrams! :D.

    Im gonna try adapting this to the SPDT switch and see if i can get it to work.

    Thanks!

  4. Jul 25, 2013 at 6:37 AM
    #24
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    I talked to OTRATTW and asked them what switch would work best in this situation and they suggested a DPDT switch. The one they suggested (VJD2UHTB) is a 10 terminal switch, I'm guessing bc both lights each have a power and ground since they're independent of each other. Would this work better?


  5. Jul 25, 2013 at 7:04 AM
    #25
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,973
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod

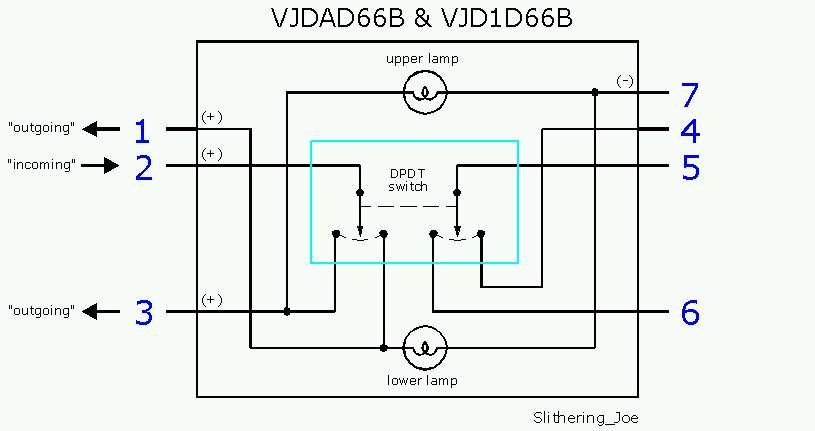

    I used a 7 terminal DPDT switch and it worked perfectly. The 7 pin DPDT switch diagram is the one I posted earlier and was easy to work with. The 10 terminal could be made to work but is more complicated than you need.
    [​IMG]
    If you're using a DPDT, here's how to make the lights work so they come on when the switch is in that postion:
    Pin 4 is incoming power from the headlight circuit
    Pin 6 is incoming power from the battery
    Pin 5 is outgoing power to the relay and also jumpered to Pin 2
    Ground pin 7
    Cap pins 1 and 3.

    If you want to get fancy, you could take power from the dash and feed it to pin 2 instead and ground pin 7 to the dash ground, that would allow the switches to be controlled by the factory dimmer when the lights are on.

  6. Jul 25, 2013 at 9:14 AM
    #26
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    ^ Winner Winner, that's what I will do. Only thing that sucks is that DPDT switch only comes in standard bulbs and I have the contura v rockers.

    Last edited: Jul 25, 2013
  7. Jul 25, 2013 at 9:25 AM
    #27
    VE7OSR

    VE7OSR 'interfering with Darwin since 1990'

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    2,849
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Front Suspension: Revtek 3" lift replaced with -> OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Rear Suspension: Revtek blocks replaced with -> All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, PIAA bulbs, LED bulbs all around, modified flasher unit for LEDs Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. Metal Tech Sliders w/ kickout and dimple die filler plates. swaybar relocate blocks (build my own)
    one solution:
    for the DPDT
    Reverse the incoming and outgoing. the Center pole of the switch (2) is connected to your relay/lights. (outgoing) The upper (1) and lower (3) connections choose which power source is going to run your light, either from the hi-beam
    (so your lights are street legal, turning off when you turn off your hi-beams) or from a power source (ACC PWR) so you can turn the lights on whenever you want to (Off-road mode).

    You can use the other half of the switch to connect the - pole (7) to either (4) or (6) and connect (6) to ground. The down side here is that both the indicator lights would come on when the switch is in your chosen on position.

  8. Jul 25, 2013 at 9:25 AM
    #28
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,457
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Perfect setup for what he was looking for. Thanks for getting to this for him. I have tried to get the time to look all of this up for him, but have just been swamped. OP, do us a favor if you could and take a few pics of the work and post those, plus the results when you get it. It would be helpful to others who may be looking for doing the same thing on their lights.

  9. Jul 25, 2013 at 9:34 AM
    #29
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,973
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I gotta give credit where it's due though. My head was spinning when I was trying to get my switches set up like that and PSUTaco85, caribe makaira and Drunknsloth were a HUGE help. I've had that setup for a while now and it's working perfectly!
    Installed pic:
    [​IMG]

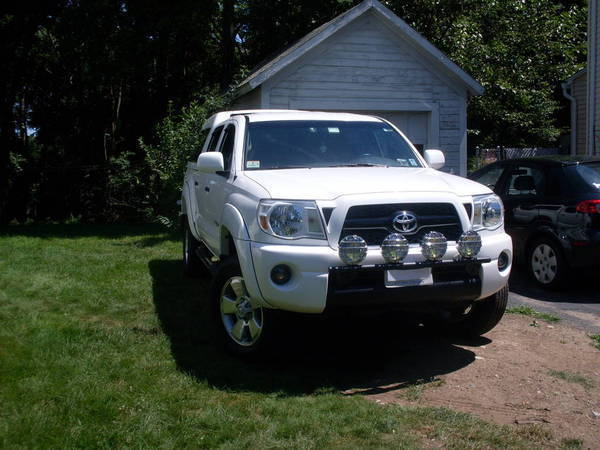

    What they're controlling:
    [​IMG]
    One switch controls the inside pair, the other controls the outside pair. Up turns them on with the high beams, down turns them on when the ignition is on. So far, so good :thumbsup:

  10. Jul 25, 2013 at 9:53 AM
    #30
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    I wasn't the OP but I'll update when I get this done. My LED bar is already wired to a relay and SPST switch so all I really have to do is run a tap for the brights circuit, split the power for the relay and switch like suggested, and finally swap switches. Should be easy for me. I just wish the bulbs in carling switches were interchangeable. I think I'm going to try and use some adhesive colored tint film on the back of the rockers to give some color to my switches.

  11. Jul 25, 2013 at 7:47 PM
    #31
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,457
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Just remember if you want the highbeam/off/on-by-switch option, you will need a SPST or DPDT switch with the on/off/on switch positions.

  12. Jul 25, 2013 at 11:01 PM
    #32
    chipnoreo

    chipnoreo [OP] Ready for snow!

    Joined:
    Oct 4, 2012
    Member:
    #88331
    Messages:
    2,351
    Gender:
    Female
    First Name:
    Anna
    Alaska
    Vehicle:
    Fox Mid-Travel TRD Sport BSP 4x4 AC
    Fox 2.5 COs W/ TC UCAs + Fox 2.0 RR rears W/ Dakars, Brute Force Fab Sliders, BHLM, auto start, Redline hood struts, AVS bug deflector, thin lip satoshi, behing the grill 20in lightbar, cobra 29 CB, interior awesomness


    Ill put some pics up when i do it! :). And im aure everyone else with te same question will too

    Thanks a lot guys! :D

  13. Aug 2, 2013 at 9:14 AM
    #33
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    Switch came in yesterday.. Will be out of town most of the weekend but If I get a chance on sunday to do it I'll post up the outcome.

  14. Aug 14, 2013 at 5:08 PM
    #34
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    I'm in the middle of wiring this up at the moment.. I'm confused bc one person said pin 3 is for the high beam tap and another said pin 4. I don't exactly know which wire is for the high beam so I tried all 3 at the 3 prong connector and put one by one on pin 4. One did nothing, guessing it was ground, one made the light bar come on no matter high beam or not, and one had no effect on the light bar but controlled the high and low beam on the headlight. I'm lost? Do I need to be tapping on to a different spot of the high beam circuit?

    Last edited: Aug 14, 2013
  15. Aug 15, 2013 at 2:13 PM
    #35
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    bump...

    I also tapped into each terminal one by one on the headlight relay. Then the other side to pin 4. Did not work.

  16. Aug 15, 2013 at 7:16 PM
    #36
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,973
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Are you wired like this ^^

    How do you have things run and which switch did you get?

  17. Aug 15, 2013 at 8:23 PM
    #37
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    I have everything ran just like the diagram. Everything on the independent portion of the light works and relay is connected correctly. I just can't get the light bar to come on when the brights are activated. I have the VJD1D66B. Where did you tap into your high beams at?

    Last edited: Aug 15, 2013
  18. Aug 16, 2013 at 5:18 AM
    #38
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,973
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I tapped in up by the bulb, I used a tester to determine which of the 3 wires leading to the headlight powers the high beams.

  19. Aug 16, 2013 at 5:55 AM
    #39
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,389
    Gender:
    Male
    First Name:
    Waldo
    Central Arkansas
    Vehicle:
    99 4Runner LTD
    I did the same thing, minus using a meter to test.. I just did one by one. One caused the light bar to come on no matter what, one did nothing all together, and one did nothing for the light bar but was controlling the high and low beam on my headlights. I dunno what gives. I do have HID's but I don't know where that would cause any problems.

  20. Aug 16, 2013 at 6:01 AM
    #40
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,973
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Sounds like you might have an issue with how everything else is wired. At the headlamp, there are 3 wires, one is a ground, one is low beam power, one is high beam power. If you had everything wired correctly, the ground wire shouldn't have done anything, the low beam wire should have made the bar come on when the low beams are on and the high beam wire should have made the bar come on when the high beams are on. It sounds like your issue lies in how the switch is wired. Nothing you have wired should be able to control your headlights, you shouldn't have power backfeeding like that. Something is seriously wrong and you need to recheck your wiring before you cause damage to your electrical system.
