wiring question.. soldering wires?

Discussion in 'Audio & Video' started by campagna, Oct 11, 2011.

  1. campagna

    campagna [OP] Member

    Joined:
    Oct 1, 2011
    Member:
    #64443
    Messages:
    13
    Gender:
    Male
    anyone have a picture of what its suppose to look like? i have the pioneer Pioneer AVH-P2300DVD
    im trying to do the wiring i have the adapter.. is it just doing color to color then installing or is there more to it.. plus do you have solder them

  2. enjm10

    enjm10 Well-Known Member

    Joined:
    May 2, 2010
    Member:
    #36364
    Messages:
    575
    Gender:
    Male
    First Name:
    Eric
    NM
    Vehicle:
    07 V6 4x4 Silver Streak
    20% tint all around, 5100s all four corners w rear aal, step bars, windshield visors, foglight anytime mod, front black lip, door emblems blacked out, satoshi grill, avid light bar, dash light mod blue, also did my own stereo led mod
    Color to color u can use crimp caps to make it easier. Unless u feel like soldering n taping em

  3. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,671
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Solder and heat shrink > Crimped connections

    Don't use electrical tape as your only form of wire insulation. I made that mistake once and my deck shorted out.

  4. jasonvelocity

    jasonvelocity Active Member

    Joined:
    Sep 18, 2011
    Member:
    #63710
    Messages:
    40
    Gender:
    Male
    First Name:
    Jason
    Palmer Lake, CO
  5. My68ur8trd

    My68ur8trd Well-Known Member Vendor

    Joined:
    Oct 7, 2007
    Member:
    #2961
    Messages:
    1,532
    Gender:
    Male
    First Name:
    Justin
    Williamsburg, VA
    Vehicle:
    2007 TRD OR Dcab 4x4
    URD Catback | TRD CAI | TRD S/C | APR X-1 | DTLT | APR 2.85" Pulley |Fabtech 6" | Icon C/O | Alcan Leafs | 33 Grabber AT2 | 17" XD Addicts

    if you do use electrical tape. you can use a small zip tie to hold prevent the tape from loosening over time.

    A zip tie gun is also helpful here too

    but heat shrink is the best.

    one note, let the heat pull the solder through the connection. ie heat the backside and put the solder to the opposite side of the wire and the heat will pull the solder through. you dont just want it on the outside of the connection (cold solder)

    Personally, I solder everything, but some quick connects are nice, most cheap ones suck

    Justin

  6. brian

    brian Another Traitor

    Joined:
    Apr 15, 2009
    Member:
    #16011
    Messages:
    7,555
    Gender:
    Male
    Roseville, CA
    Vehicle:
    I own a tank
    I didn't look at your link, but I wanted to throw my two cents in really quick before I go back to work.

    Soldering is not flexible, it will break it you try to bend it. Basically you increase your risk for failure down the road. That being said, I'd do it, but I have special Raychem splices that heat shrink and reinforce the connections.


    I'd suggest a good butt connector, and one with some thick heatshrink. Standard heat shrink can wear away over time, risking a short.

  7. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,671
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Soldering only gives you maybe 1" of an entire wire that can't be bent around. Wires behind a stereo shouldn't be moving a bunch anyways and if you get solder completely through both wires, it's tough to break them apart. Seems like the Raychems are just a crimp joint with heat shrink around them, no?

  8. campagna

    campagna [OP] Member

    Joined:
    Oct 1, 2011
    Member:
    #64443
    Messages:
    13
    Gender:
    Male
    thanks guys! useful info!!

  9. ffirg

    ffirg Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57975
    Messages:
    4,301
    Gender:
    Male
    First Name:
    mike
    Anchorage, Alaska
    Vehicle:
    2002 Tacoma SR5 TRD 4X4
    Deckplate mod, grey wire mod, Moromoto Mini H1 projectors, 20'' Blitzpro LED bar, two 6'' Blitzpro LED bars, ultra gauge, rhino lined bed, LED dome light in camper shell, and more to come...
    I've installed a few stereos using butt connectors made of heatshrink and have had no issues. Looks clean and has lasted many years. They are made by Ancor.

  10. brian

    brian Another Traitor

    Joined:
    Apr 15, 2009
    Member:
    #16011
    Messages:
    7,555
    Gender:
    Male
    Roseville, CA
    Vehicle:
    I own a tank

    Theres many kinds of raychems. There are solder splices that are generally made for shielded wires, and then the barrel type crimps. Either way, when you shrink them down, the barrel becomes quite solid, completely environmentally sealed, and strong enough to resist nicks that normal heat shrink would fail on.


    It may be overkill, but I like to do it the right way the first time instead of the slight risk. You never know when the swiss cheese model will line up and bam, you smoke check something. I'm always working on my stereo it seems, my decks come in and go out, wires get pinched all the time because at one point I had so much crap behind the dash.



    Also, when splicing, stagger your connections, it will make it much easier to fit all the wire back in :)

  11. enjm10

    enjm10 Well-Known Member

    Joined:
    May 2, 2010
    Member:
    #36364
    Messages:
    575
    Gender:
    Male
    First Name:
    Eric
    NM
    Vehicle:
    07 V6 4x4 Silver Streak
    20% tint all around, 5100s all four corners w rear aal, step bars, windshield visors, foglight anytime mod, front black lip, door emblems blacked out, satoshi grill, avid light bar, dash light mod blue, also did my own stereo led mod
    I have always used crimp caps n they worked fine, had installed all my stereos in my vehicles. Never once had a problem.

  12. Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,145
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    I also seem to be adding/modifying my stereo stuff a couple times a year. "asbestos undies on" But I've used wire nuts for 20+ years on car stereo installs and have never had one pull out, nor had a bad connection. Certainly eases adds/modifies/deletes.....

  13. campagna

    campagna [OP] Member

    Joined:
    Oct 1, 2011
    Member:
    #64443
    Messages:
    13
    Gender:
    Male
    also where is the best place to put the ground wire?

  14. ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,511
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Anywhere that grounds to the chassis. There should already be a ground pin in the main harness so you should use that. No reason to get fancy.

  15. campagna

    campagna [OP] Member

    Joined:
    Oct 1, 2011
    Member:
    #64443
    Messages:
    13
    Gender:
    Male
    im not seeing it.. is there a picture someone can show me? everywhere is plastic.

  16. Warhorseforever

    Warhorseforever Will The Thrill

    Joined:
    May 3, 2011
    Member:
    #56023
    Messages:
    4,825
    Gender:
    Male
    First Name:
    Will
    Sand Lapper
    Vehicle:
    2001 Toyota Tacoma Pre-Runner SR5
    Kenwood KDC-348U HU Kicker DS65 Front Doors Only 2 Polk Audio MM840 Kenwood KAC 8105D for subs SuperCrewSound.com behind rear seat sub box
    Soldering is better than crimping but if you do crimp at least use some shrinking crimps and shrink the edges around the wire. I did that in my S10 and it held up fine just make sure you have a good crimp on the wires.

  17. enjm10

    enjm10 Well-Known Member

    Joined:
    May 2, 2010
    Member:
    #36364
    Messages:
    575
    Gender:
    Male
    First Name:
    Eric
    NM
    Vehicle:
    07 V6 4x4 Silver Streak
    20% tint all around, 5100s all four corners w rear aal, step bars, windshield visors, foglight anytime mod, front black lip, door emblems blacked out, satoshi grill, avid light bar, dash light mod blue, also did my own stereo led mod

    I had a wire harness from Crutchfield and connected my stereo harness into my harness adapter from Crutchfield n connected the ground wire through both harnesses eliminating the use of trying to find a ground. Just tap the wire into the ground of the trucks harness.

  18. campagna

    campagna [OP] Member

    Joined:
    Oct 1, 2011
    Member:
    #64443
    Messages:
    13
    Gender:
    Male

    so put into the harness? i dont have jbl if that makes a difference..

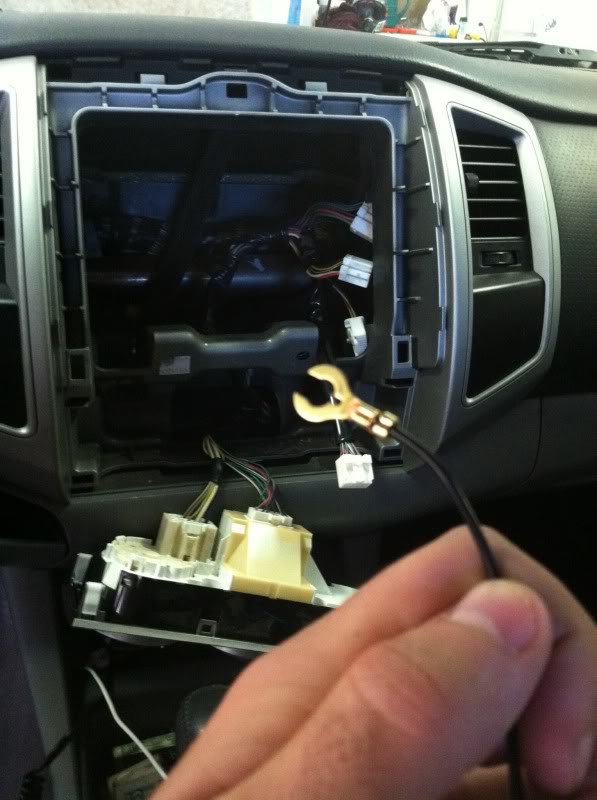

    [​IMG] so am i suppose to hook that into the wires behind?

  19. wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    6,751
    Gender:
    Male
    First Name:
    Ryan Mathis
    Lives: Fountain, Colorado/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    i pretty much use crimps with enviromental sheilding. I mean if its good enough to use on a 24million dollar ah-64D apache that sees more stress and oil and hydralic fluid than any car i have ever driven, then it is good enough for my 30k dollar toyota

  20. wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    6,751
    Gender:
    Male
    First Name:
    Ryan Mathis
    Lives: Fountain, Colorado/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    there should be a ground wire in the wiring harness adapter that plugs into the factory harness. cut the semi ring connector u are holding in the pic of and splice/solder/glue/whatever u want to use, to connect to that wire.
