Woah! Another retrofitsource.com group buy! Lets get 25!

Yup installed exactly like that...followed this manual to a T: http://www.theretrofitsource.com/pdf/trs_tech/Morimoto_Mini_D2S_Retrofit.pdf



Damn, That sucks. I hope you get it resolved.



Ditto



Bump!



Commander you are making me nervous. I am getting the mini's to put in my 2012. Do you have any pics of your installation?



^^ please. Interested in doing this at the same time I do my BHLM, but not if there are issues with the 2012 housing/mounting.



IMO, take off the alignment ring and adjust the horizontal yourself with a pair of channel locks. They are there to help but you don’t really need them. I had one twist on me when I went to go tighten so I just took it off. Maybe you received the incorrect alignment ring but I doubt it Morimotos should be a direct bolt in plug and play for H4. Hope this helps. You won’t have to take the lens off to take the ring off either...



wow.... (on the 2012 mini... )

hopefully i hear from TRS soon to clear some clarification



/\ I agree we need some clarification for the 2012 tacoma's! SOON



I just received communication from Matt and he confirmed the following:

Secondly, he authorized this group buy, the code is R4TacomaWorld25 -- please go ahead and place your orders.

I say, nice holiday gift! Thanks Matt!



Just want to confirm this is correct before I place my order.



Thanks for the link Commander. As I asked, could this be specific to the '12's and up?!?



Now let's see those 25 placed orders!

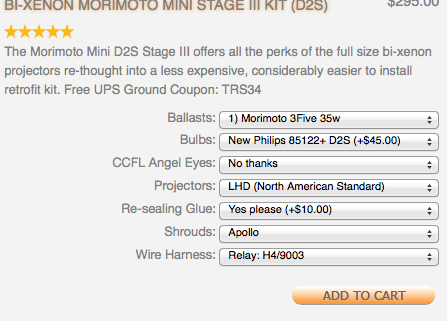

#1. TheDan - Bi-xenon Morimoto Mini Stage III Kit (D2S)
#2 Holyfield19-Bi-xenon Morimoto Mini stage III D2S
#3 kogary - Bi-xenon Morimoto Mini Stage III Kit (D2S)
#4 Nightstr- FX-R stage III
#5 GoDeacsWFU23 - Bi-xenon Morimoto Mini Stage III (D2S)
#6 Knine00 - Bi-xenon Morimoto Mini Stage III Kit (D2S)
#7 shweller - FX-R Stage III / 100mm CCFL / 55W ballasts / Gatling Gun
#8 CalgaryRider - Bi-Xenon FX-R Stage III Kit
#9 fishntaco-Bi-xenon Morimoto Mini Stage III Kit (D2S)
#10 07334 - FX-R stage III kit
#11 Eatstone - FX-R stg 3 kit
#12 Eatstone - FX-R stg 3 kit
#13 davidpick - FX-R stg 3 kit
#14 bigd23 - FXR kit stg 3 kit
#15 RRnold - Bi-xenon Morimoto Mini Stage III Kit (D2S)
#16 RedComrade - Bi-xenon Morimoto Mini Stage III Kit (H1): ORDERED
#17 GoDeacsWFU23 - Blazer Fog kit
#18 CalgaryRider - Blazer Fog kit
#19
#20
#21
#22
#23
#24
#25



In all honesty guys there may in fact be something off with the 2012 housings but I don't know...Matt says he's tested a few and they line up perfect and my alignment notch is in the 12 O'clock position which is where it needs to be but both beam patterns are not aligned...installation went perfect and I followed the instructions here: http://www.theretrofitsource.com/pdf/trs_tech/Morimoto_Mini_D2S_Retrofit.pdf

I am overall not satisfied with the light output or the "quick" install and if I was to do it again I think I would go with FXR's > H1's > D2S kit. The additional work for the FXR isn't actually that much once you've already gone to the work to pull everything apart.

Unfortunately I do not have any pictures of the installation process as my time was limited. I did want to do a DIY but I can help anyone with quick tips on removing the lights...its stupid easy on the 2012's...unsure how the older tacoma installation was so I can't compare.

To remove the front grille...2 Silver 10mm bolts on the top near the hood release and 2 plastic rivets on the top next to each headlight. Now pull the bottom of the grille towards the front of the car as there are notches that hold it to the bumper. Should pop right out.

For the plastic piece under each headlight pull the side with the green rivet (look behind) out towards the front (it will pop out)...then pull the other end sideways towards the opposite side of the truck and it will pop out of its slot.

Headlights have two 10mm silver bolts on top. The bottom has a clip that they will pop out of on the side closest to the center of the truck...the side closest to the fender has a tricky 10mm bolt that you will need to reach under with your arm and feel for. This is the only tricky part of the installation. Once you have that bolt removed you need to manipulate the headlight into the correct position so that it pulls out without damaging components...you will see it takes a bit of play.

Hope that helps.



my order has been placed! coupon code worked flawlessly (unfortunately, you can't use both the TW discount code and the free shipping code, as the system only accepts one or the other)... got an email saying they will charge/ship the product when we meet the 25 orders minimum.

let's get this going!



I don’t think Matt has set up the code yet... We usually get 25 people on the list, they set up the code and then we buy...



Just did a prcatice run on seperating the headlight unit on one of the headlights i removed the other day, EASY! no problems. 275 for 8 min.



My bad didnt see the post above...



25Tacomaworldr4 is the coupon code! Thanks to Holyfield for notifying me that Matt setup the code so we still need 25 but should be faster now that the coupon code is setup



OK penguins some orders have been placed so the water is safe everybody go ahead and jump on in, we need 25 so lets get going!!!
