Wonder if 1st Gen Tundra Struts will work...

Discussion in '5 Lug' started by ISUGrad05, Apr 26, 2012.

  1. Apr 26, 2012 at 4:44 PM
    #1
    ISUGrad05

    ISUGrad05 [OP] Public Servant Enemy #1

    Joined:
    Dec 6, 2010
    Member:
    #47262
    Messages:
    273
    Gender:
    Male
    Wichita, KS
    Vehicle:
    2012 4x4 5.7 Tundra DoubleCab
    I was looking around Monroes website and noticed that the 1st gen Tundra front struts seems very similar to 2nd gen 5 lug Tacos.

    Tundra struts:
    [​IMG]

    Body Type: SS2, Body Length: 13.120", Compressed Length: 13.620", Extended Length: 17.930", Travel Length: 4.310",
    5 lug Taco struts:
    [​IMG]
    Body Type: SS2, Body Length: 11.496", Compressed Length: 12.519", Extended Length: 16.437", Travel Length: 3.918",
    The advantage would be about 1 - 1.5 inch lift. The extra bracket on the Taco strut is to mount the brake line, which could be easily relocated.

  2. Apr 26, 2012 at 5:42 PM
    #2
    ISUGrad05

    ISUGrad05 [OP] Public Servant Enemy #1

    Joined:
    Dec 6, 2010
    Member:
    #47262
    Messages:
    273
    Gender:
    Male
    Wichita, KS
    Vehicle:
    2012 4x4 5.7 Tundra DoubleCab
    Here are the stats for Gen 1 Tundra 5100s

    Part Number: 24-188265
    Setting: 5100 Series (Ride Height Adjustable)
    Position: Front
    Descriptor: Front Lifted Height: 0-2"
    *Collapsed Length (IN): 13.23
    *Extended Length (IN): 18.68
    *Collapsed Length (MM): 336
    *Extended Length (MM): 474.5
    Old Part Number: F4-BE5-6929-H1

  3. Apr 26, 2012 at 6:13 PM
    #3
    ISUGrad05

    ISUGrad05 [OP] Public Servant Enemy #1

    Joined:
    Dec 6, 2010
    Member:
    #47262
    Messages:
    273
    Gender:
    Male
    Wichita, KS
    Vehicle:
    2012 4x4 5.7 Tundra DoubleCab

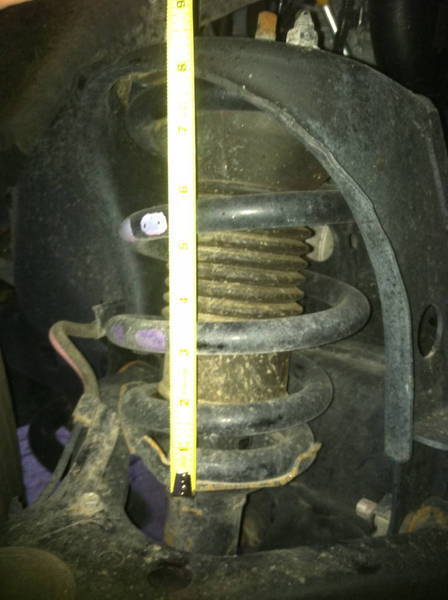

    I took some measurements of my truck and the 5 lug springs are tapered where as the tundra springs are not. Unsure of the the length of tundra springs, but the 5 lugs are about 8". It could be an issue with tundra springs hitting the upper control arm on our trucks. Anyone know the measurements of the Tundra springs? Perhaps the Tundra 5100 bilstiens and springs would work with Total Chaos UCAs. That would be a significant cost savings over Sway A Way coilovers.
    [​IMG]

  4. Apr 26, 2012 at 6:15 PM
    #4
    jhu616

    jhu616 Well-Known Member

    Joined:
    Oct 17, 2011
    Member:
    #65370
    Messages:
    242
    Gender:
    Male
    First Name:
    Tripp
    GA
    Vehicle:
    08 4x4 6-Speed TRD Off-Road
    Magnaflow Exhaust, Bilstein 5100s, Eibach Coils, Toytec AAL, Black Baja Wheels, Ipod Hookup, Diff breather
    :popcorn: Don't mind me....just curious what you find out!

  5. Apr 26, 2012 at 6:16 PM
    #5
    cmack

    cmack Impeach Chris4x4!

    Joined:
    Jun 7, 2009
    Member:
    #18119
    Messages:
    5,233
    Gender:
    Male
    Old man dougie has 1st gen tundra struts on his 2000 tacoma...6lug 4x4

  6. Apr 26, 2012 at 6:25 PM
    #6
    ISUGrad05

    ISUGrad05 [OP] Public Servant Enemy #1

    Joined:
    Dec 6, 2010
    Member:
    #47262
    Messages:
    273
    Gender:
    Male
    Wichita, KS
    Vehicle:
    2012 4x4 5.7 Tundra DoubleCab
    Yeah, the 1st gen 6 lug Taco and 1st gen Tundra struts are only about half inch different. 2nd gen 6 lugs are quite a bit longer.

  7. Apr 26, 2012 at 7:53 PM
    #7
    Joels98taco

    Joels98taco Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52782
    Messages:
    2,337
    Gender:
    Male
    First Name:
    joel
    chino hills
    Vehicle:
    98 5 lug tacoma
    fabtech 3" spindles, icon aal, 10" bilstein 7100 rear shocks, daystar coil spacers, AFE Pro Dry-s drop in filter, sony head unit, 2 12" pioneer subs, pioneer 6.5s all around, custom 1.25 lift shackles, custom lower ball joint brackets fabbed by me
    i dont think it would work too well since the top plates are fairly different

  8. Apr 26, 2012 at 9:40 PM
    #8
    ISUGrad05

    ISUGrad05 [OP] Public Servant Enemy #1

    Joined:
    Dec 6, 2010
    Member:
    #47262
    Messages:
    273
    Gender:
    Male
    Wichita, KS
    Vehicle:
    2012 4x4 5.7 Tundra DoubleCab
    The 2nd gen 6 lug Taco uses a special "top hat" style mount, but the 5 lug and 1st gen Tundra both have a flat top mount that looks the same.

  9. Apr 26, 2012 at 9:43 PM
    #9
    Joels98taco

    Joels98taco Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52782
    Messages:
    2,337
    Gender:
    Male
    First Name:
    joel
    chino hills
    Vehicle:
    98 5 lug tacoma
    fabtech 3" spindles, icon aal, 10" bilstein 7100 rear shocks, daystar coil spacers, AFE Pro Dry-s drop in filter, sony head unit, 2 12" pioneer subs, pioneer 6.5s all around, custom 1.25 lift shackles, custom lower ball joint brackets fabbed by me
    unless the top plates have the same pattern it most likely wont work

  10. Apr 26, 2012 at 9:44 PM
    #10
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,409
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Don't do it, wont work without a shit load of work, not worth it, talk to RyanJboutin

    spring hitting UCA (which is waaay narrower ) Top plate totally diff.

    Fuck I'm getting sick just thinking about it

  11. Apr 26, 2012 at 9:58 PM
    #11
    Joels98taco

    Joels98taco Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52782
    Messages:
    2,337
    Gender:
    Male
    First Name:
    joel
    chino hills
    Vehicle:
    98 5 lug tacoma
    fabtech 3" spindles, icon aal, 10" bilstein 7100 rear shocks, daystar coil spacers, AFE Pro Dry-s drop in filter, sony head unit, 2 12" pioneer subs, pioneer 6.5s all around, custom 1.25 lift shackles, custom lower ball joint brackets fabbed by me
    thanks doug i needed the backup :rolleyes:

  12. Apr 26, 2012 at 10:00 PM
    #12
    ISUGrad05

    ISUGrad05 [OP] Public Servant Enemy #1

    Joined:
    Dec 6, 2010
    Member:
    #47262
    Messages:
    273
    Gender:
    Male
    Wichita, KS
    Vehicle:
    2012 4x4 5.7 Tundra DoubleCab
    Yeah, after looking at the stock uca i can see where it would hit, but I'm curious if it would clear the Total Chaos uca seeing how they clear those beefy Sway A Way 2.5 coilovers.

  13. Apr 26, 2012 at 10:04 PM
    #13
    Joels98taco

    Joels98taco Well-Known Member

    Joined:
    Mar 10, 2011
    Member:
    #52782
    Messages:
    2,337
    Gender:
    Male
    First Name:
    joel
    chino hills
    Vehicle:
    98 5 lug tacoma
    fabtech 3" spindles, icon aal, 10" bilstein 7100 rear shocks, daystar coil spacers, AFE Pro Dry-s drop in filter, sony head unit, 2 12" pioneer subs, pioneer 6.5s all around, custom 1.25 lift shackles, custom lower ball joint brackets fabbed by me
    ryan was running custom uniball ucas..

  14. Oct 26, 2012 at 1:39 PM
    #14
    DriverSound

    DriverSound Señor Member

    Joined:
    Mar 29, 2009
    Member:
    #15329
    Messages:
    2,255
    Gender:
    Male
    SoCal
    Vehicle:
    TRD Gen2 DCLB-S 4x4
    2011 TRD CAI 1.0, URD maf Calibrator, AFE Pro Dry-S, Spintech Muffler, Magnaflow resonator, 5100's, Toytech 1/4" spacer, Dakar 1.5" AAL, TSB Springs, SPC UCA's, OME 885X, Yellow Wire Mod, VSC/ABS switch mod, Fog Light Mod~~~ Also in the HH. 2006 FJ 4x4 2009 Tacoma AC-OR 2010 4Runner 4x4 SR5
    What's the advantage of using Tundra 5100's on a 1st Gen? Stiffer? If the top plate is different, I assume Taco coils and top plates are used? Approximate lift of the settings?
