Write-Up: BFLM (Black Fog Light Mod)

Discussion in 'Lighting' started by Lentsnh, May 24, 2009.

  1. May 24, 2009 at 10:12 PM
    #1
    Lentsnh

    Lentsnh [OP] Well-Known Member

    Joined:
    Nov 22, 2008
    Member:
    #10953
    Messages:
    9,546
    Gender:
    Male
    Vehicle:
    2007 Hummer H3 Tactical Edition
    None yet- Future: HIDs, Tinted tails, LED interior lights,
    I give all the credit to 05 X-Runner. I copied and pasted this over from XRU. I think its a great mod to go with the BHLM.

    Read all of these install instructions prior to attempting this fog light modification. I cannot be held responsible for any damages or personal harm resulting from this modification…Hopefully this small article will help you as well as others feel more confident about tackling this relatively simple modification... This is only intended as a guide for others, so please treat it as such.


    First I'd like to thank Kev and Lenie for the help they gave me while completing this fog light mod. Secondly I'd like to say this is my first write up so bare with me I tried my best to explain how to do this mod. Last but not least we tried a few different ways to do this mod and the below way was the best way that we found to complete this mod.

    Tools
    pliers (I used needle nose)
    dremel or similar type of rotary tool w/ a cut off blade
    some sort of prying tool
    knife
    painters tape
    paint
    silicone

    Steps

    1) Take your fog lights off your truck. I did this by first taking the light bulbs out and then using the needle nose pliers to un clip the adjuster screw from it's bracket and then gently pushing out the fog light from the back so that it popped out from the front of the truck.

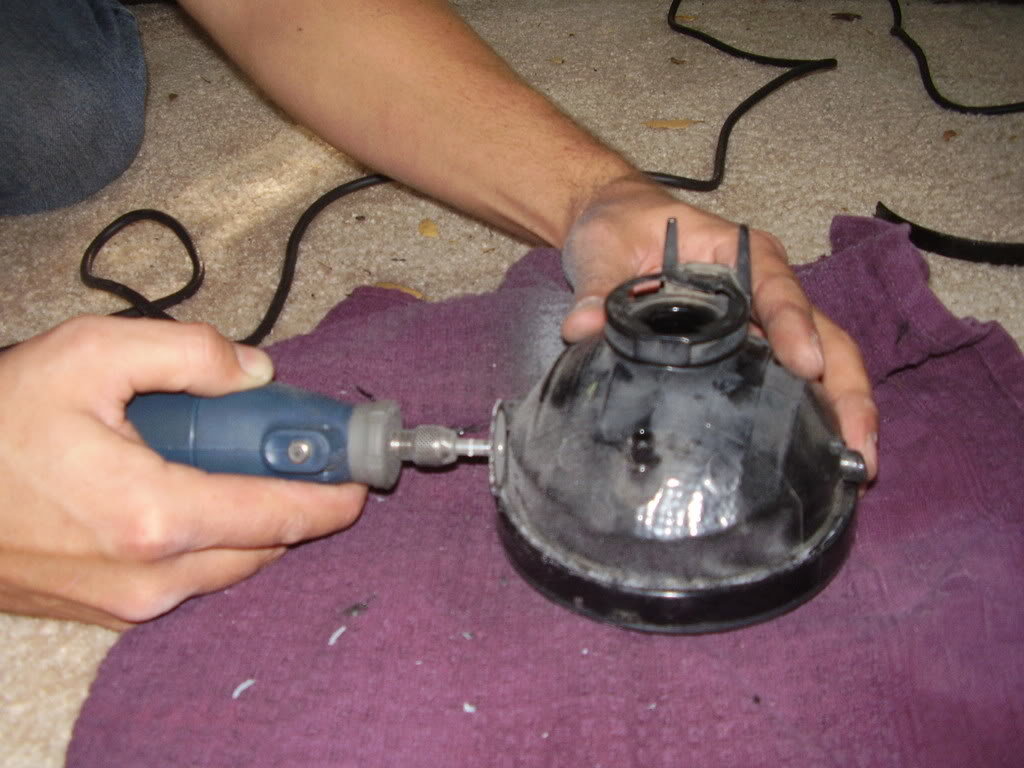

    2) Use the dermel and cut around the bottom lip of the black fog light housing. Be careful not to cut to deep because you do not want to cut the lens cover. (see picture)

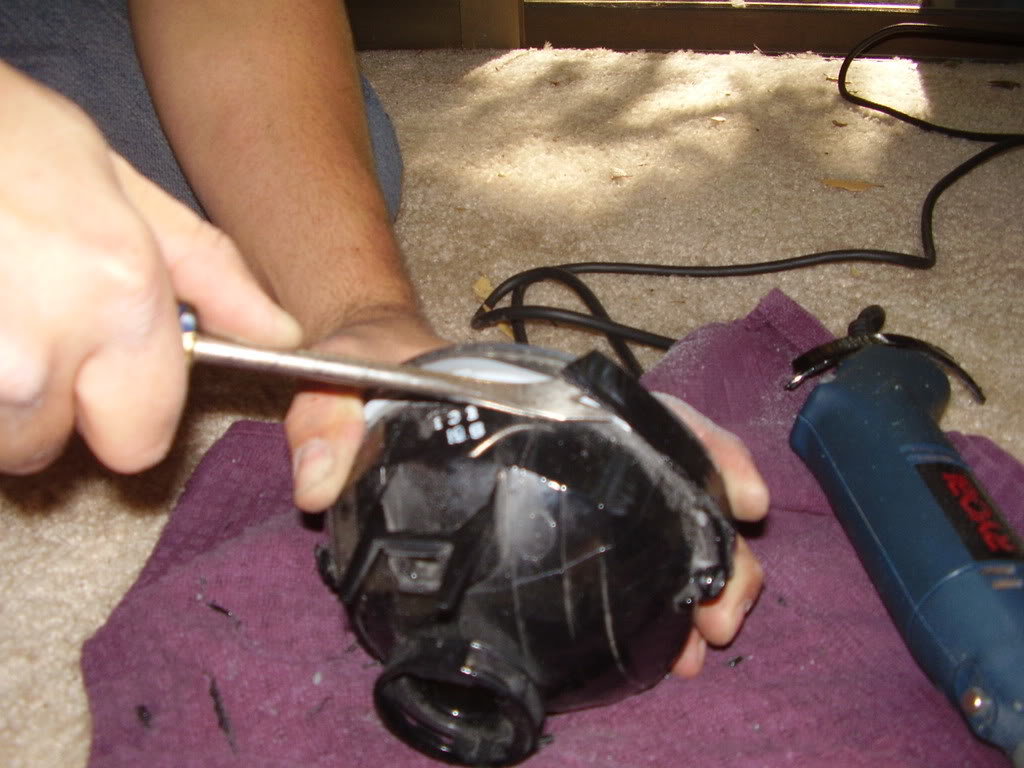

    3) Use the prying tool and pry off the lip from the housing that you just cut.

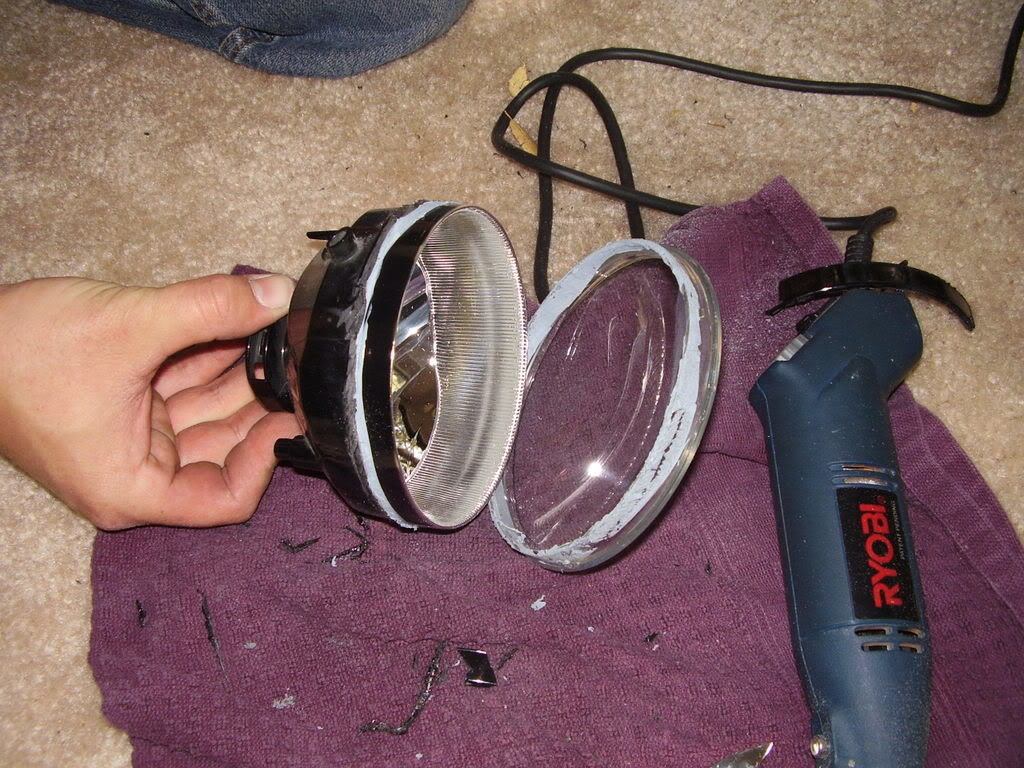

    After step three your fog light should look close to this.

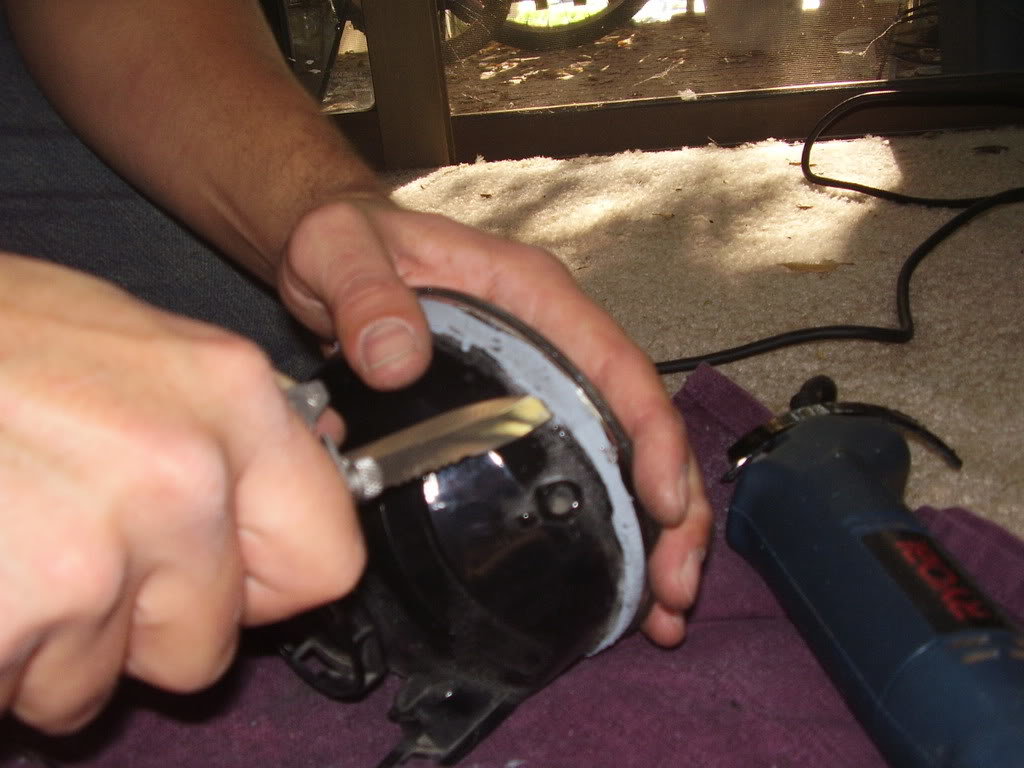

    4) Take the knife and cut in between the lens cover and the black housing to cut the remaining silicone. About halfway to three quarters of the way around you will be able to pop the lens cover off fairly easy.

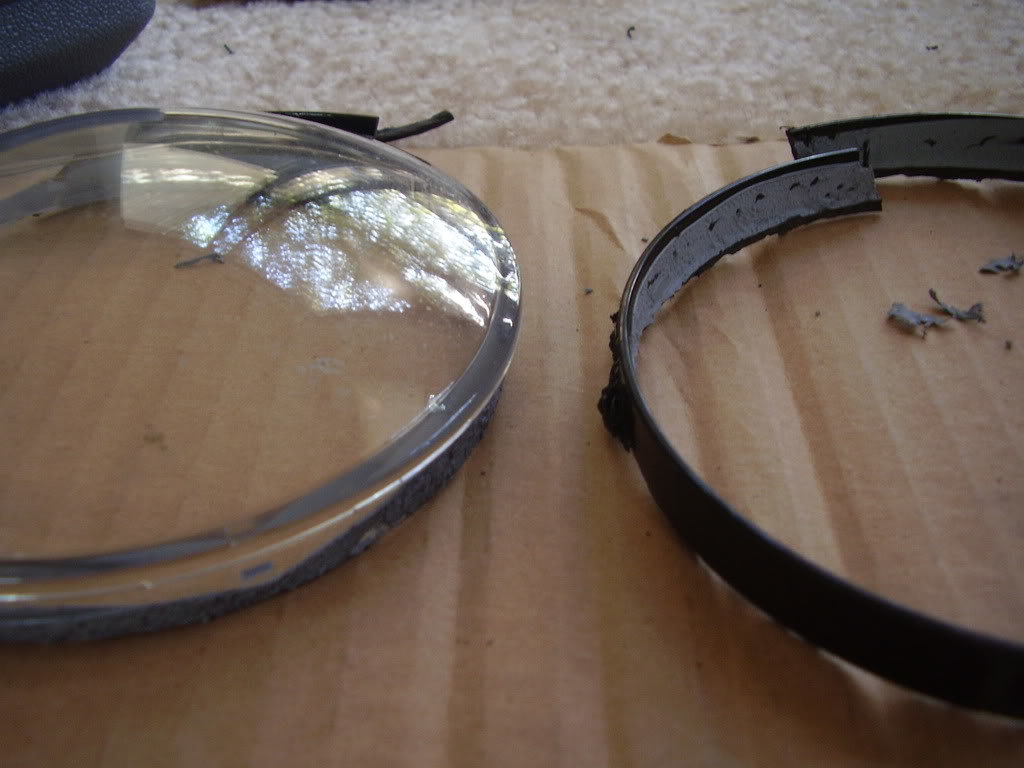

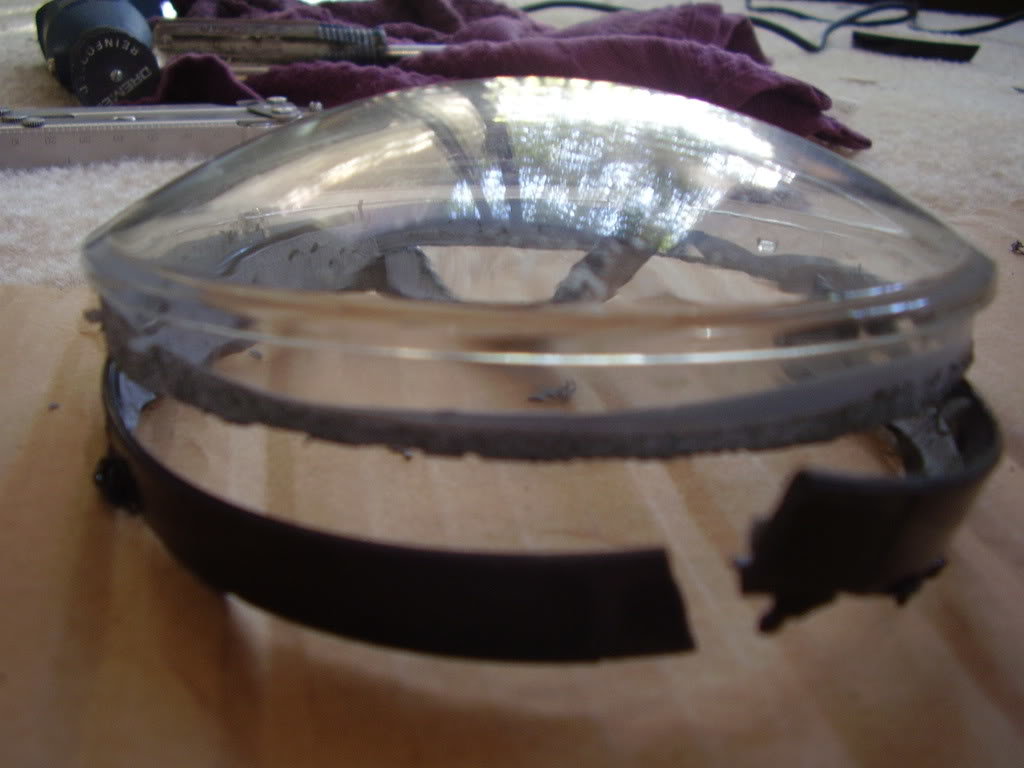

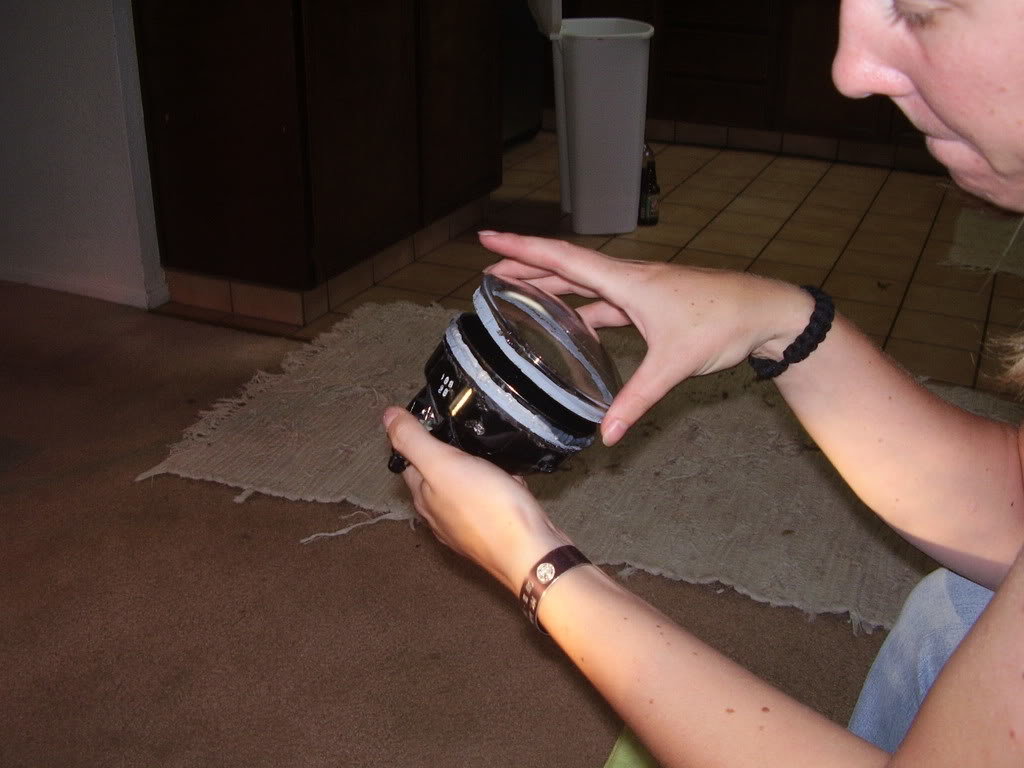

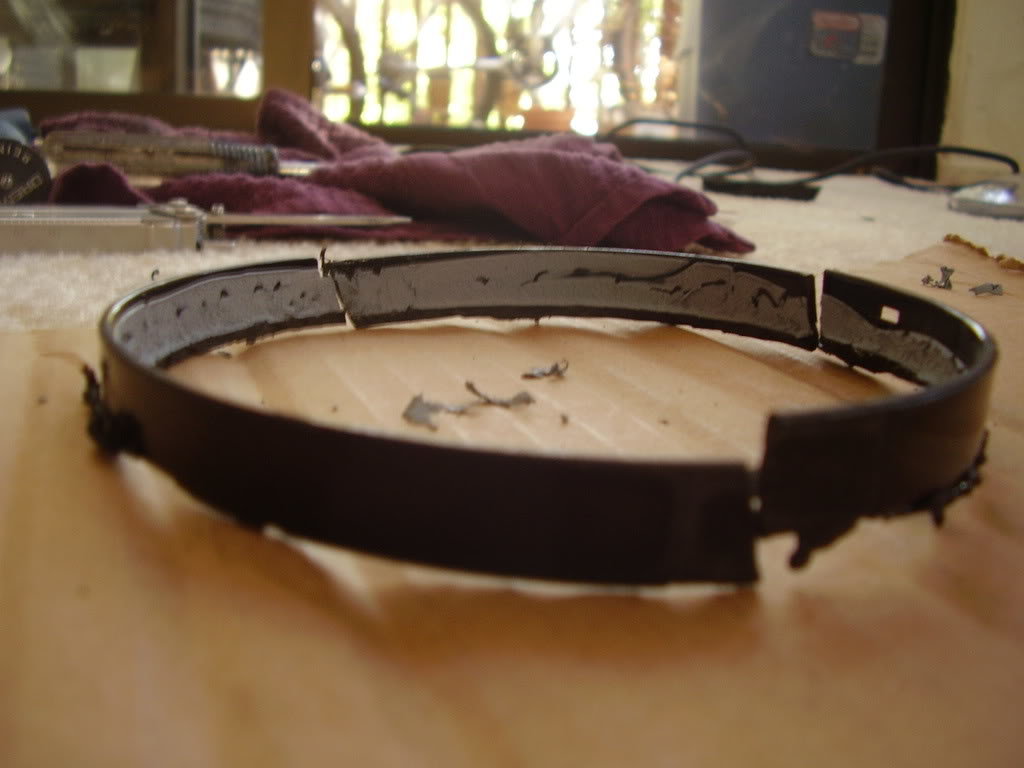

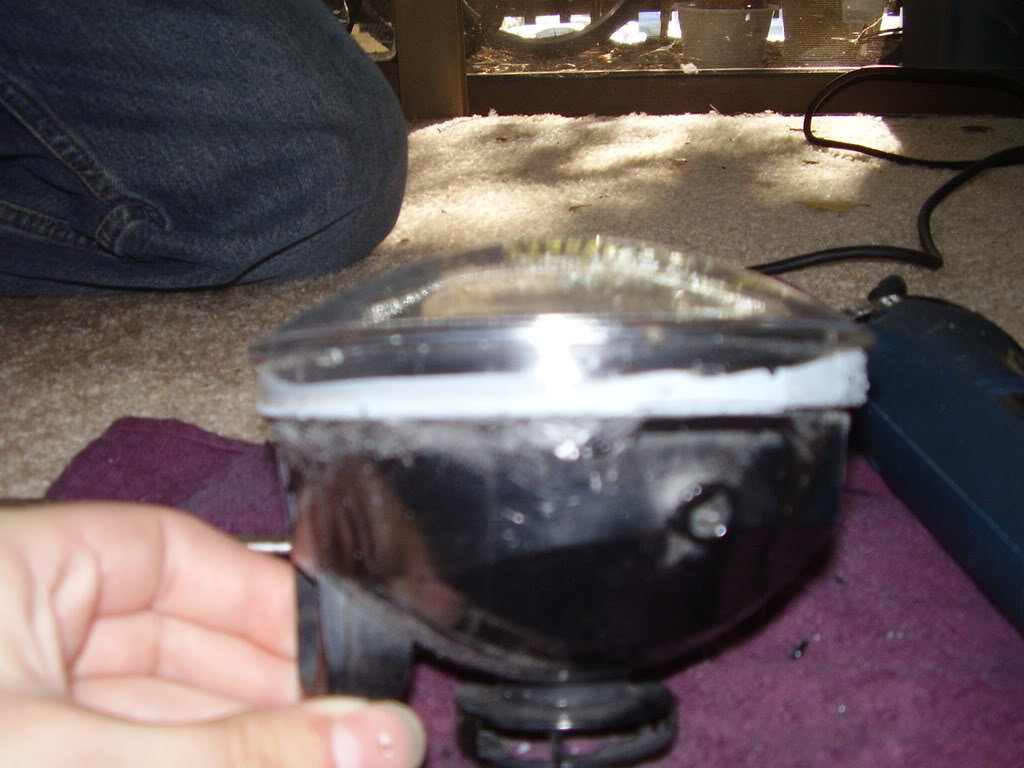

    Side note: here are some pictures of what we cut off the housing and the lens cover after it was off to give you all a better idea of what we cut and how deep we cut.

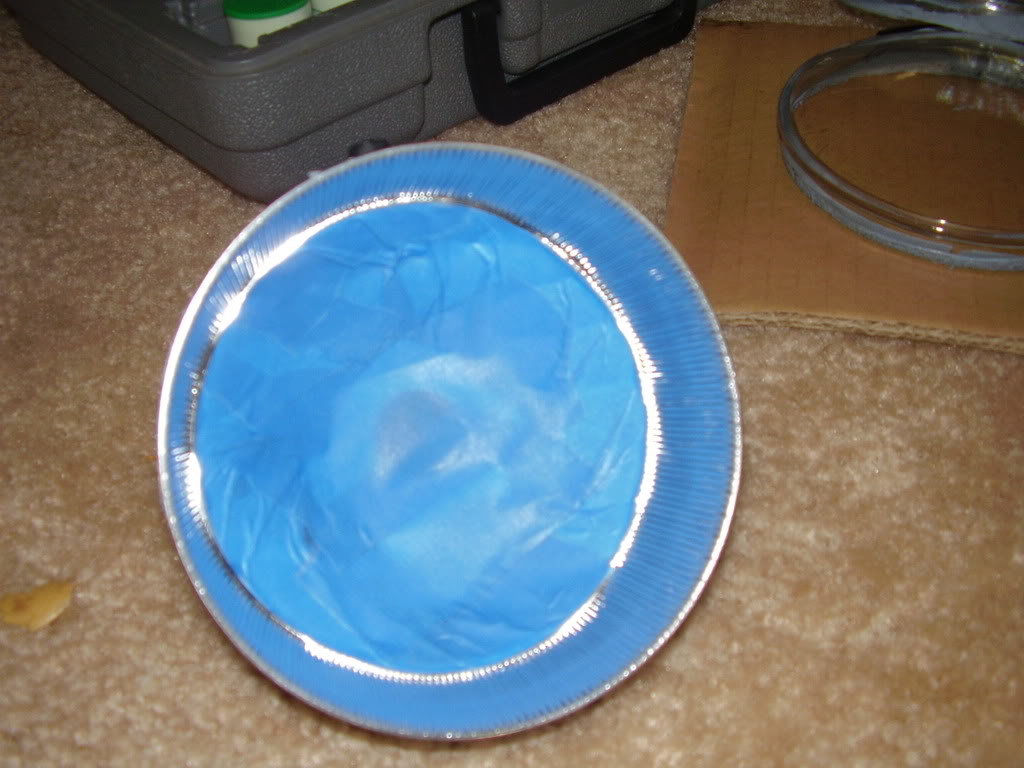

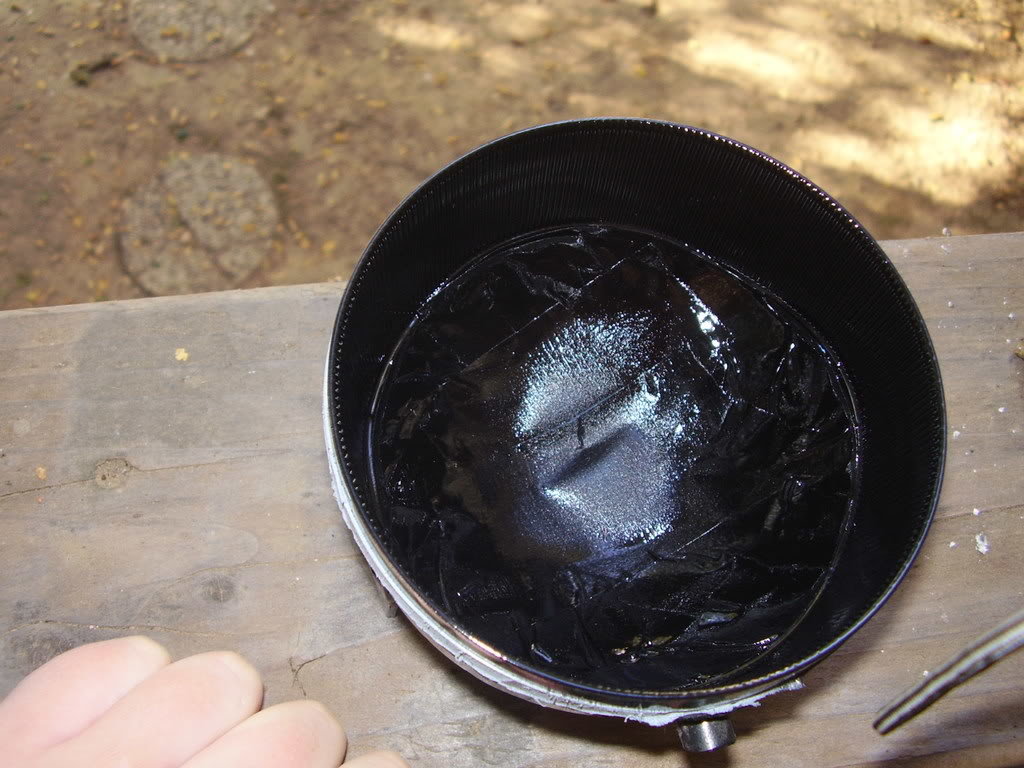

    5) Tape off the inside of the fog light with the painters tape



    6) Paint the rim of the fog light and let it dry.

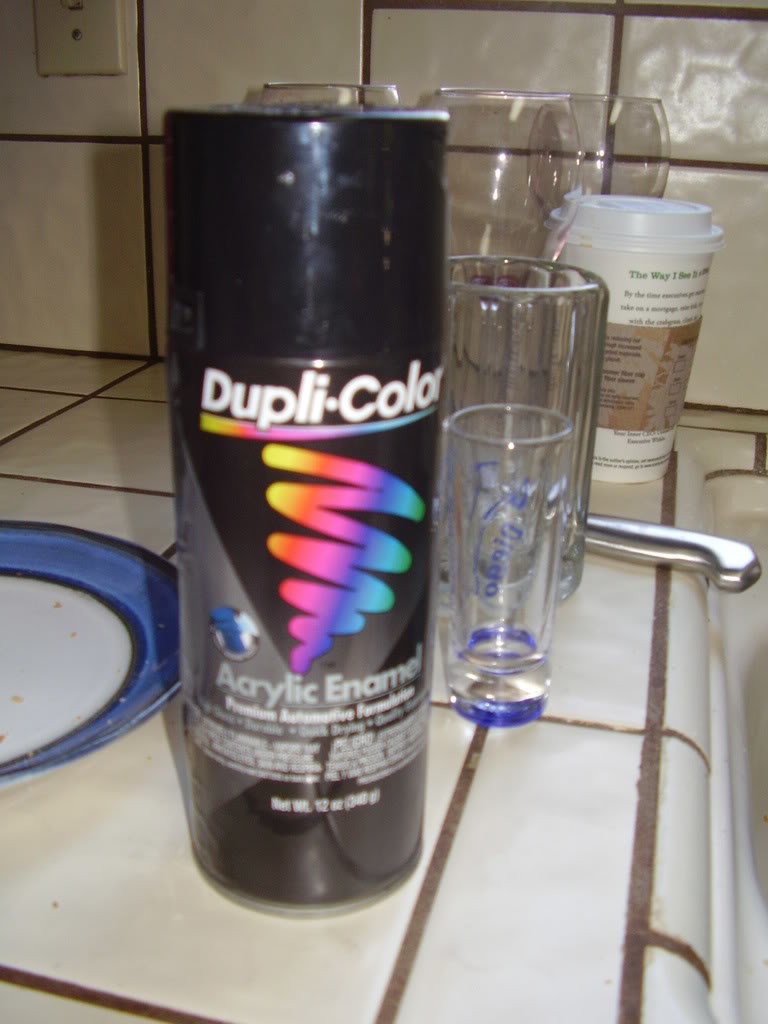

    We used this type of black paint

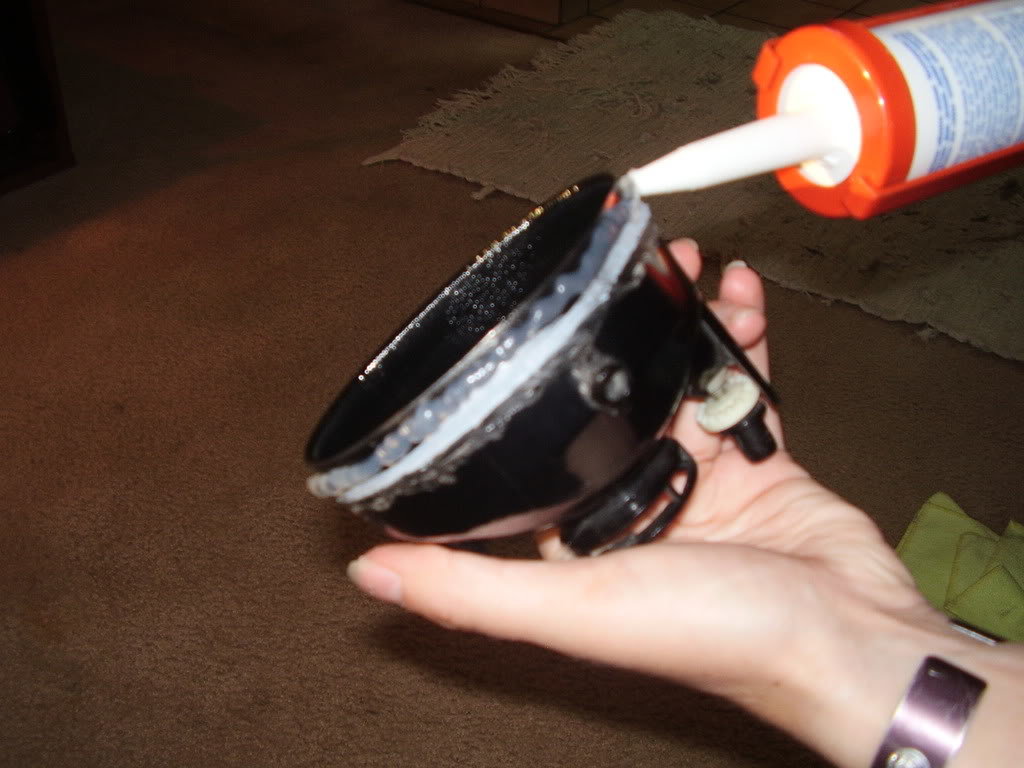

    7) After the paint is dry take out the painters tape and put a bead of silicone around the outside of the housing .



    8) Slide the lens cover back on to the housing.



    9) Smooth out the silicone and put additional silicone if needed so the there is a nice leak free bead of silicone. Then let the silicone dry completely



    10) Once the silicone is dry reinstall your fog lights on your truck and enjoy.

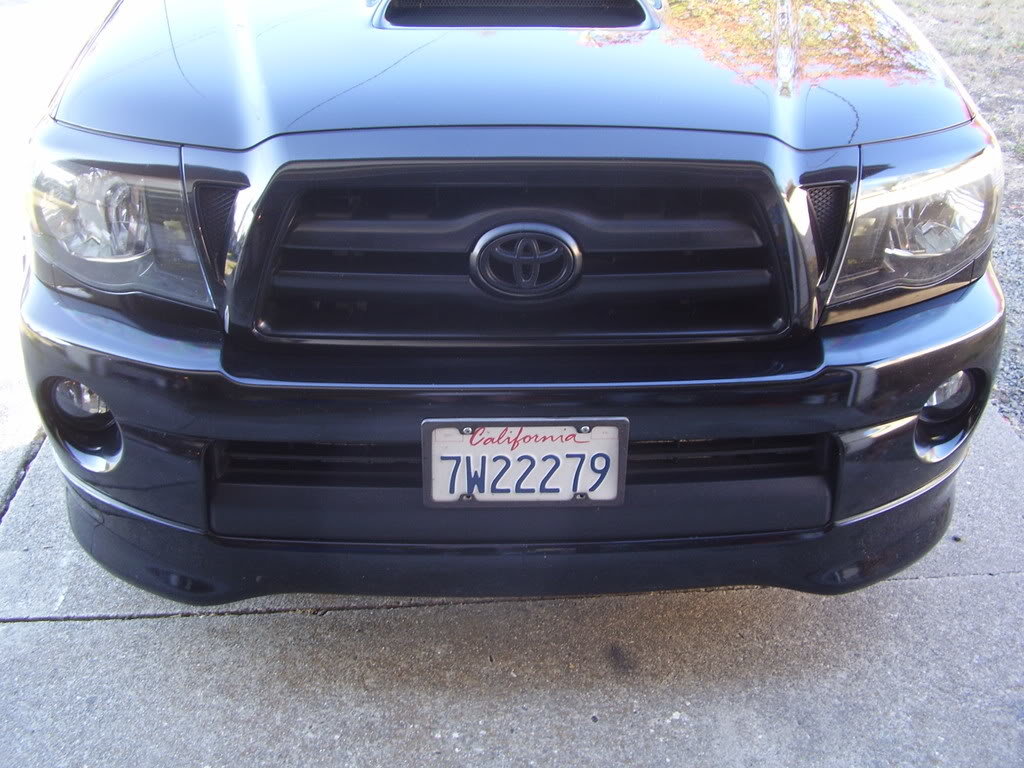

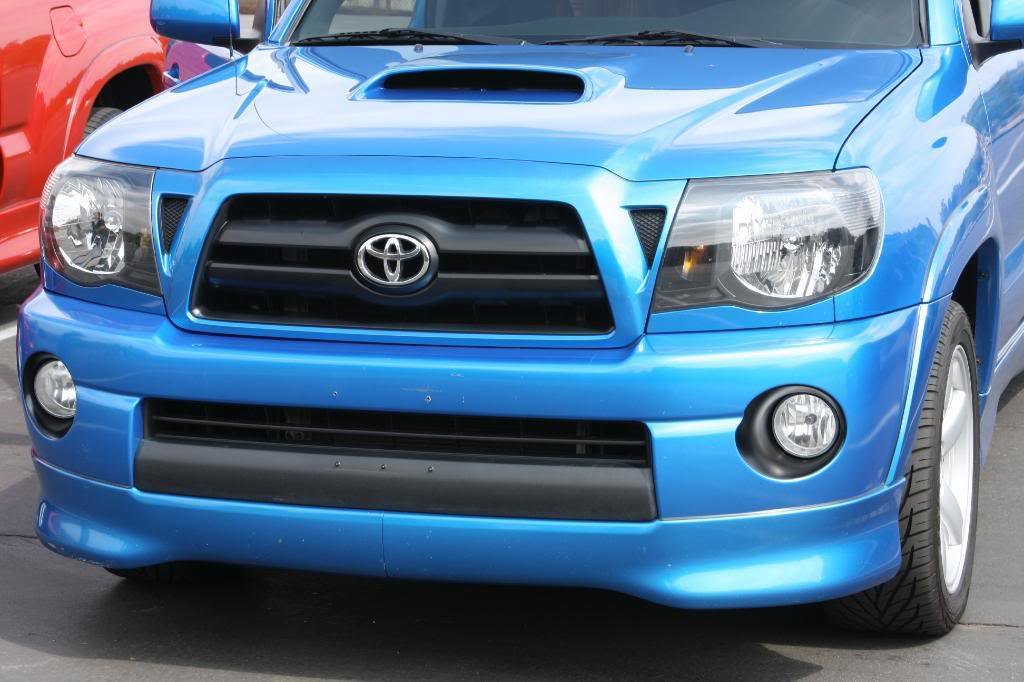

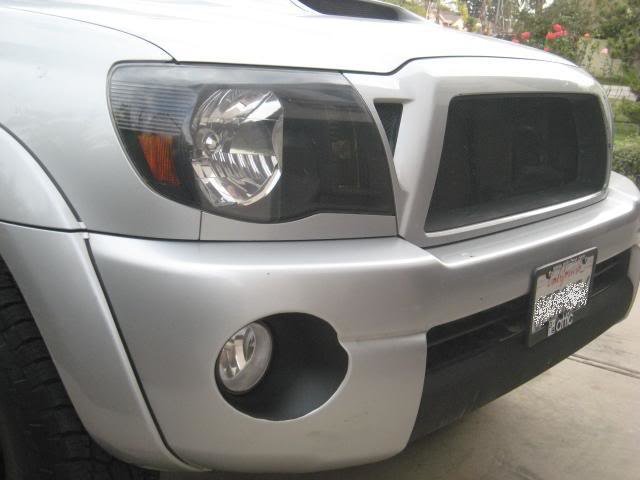

    Here is before and after shots of this mod on my truck.

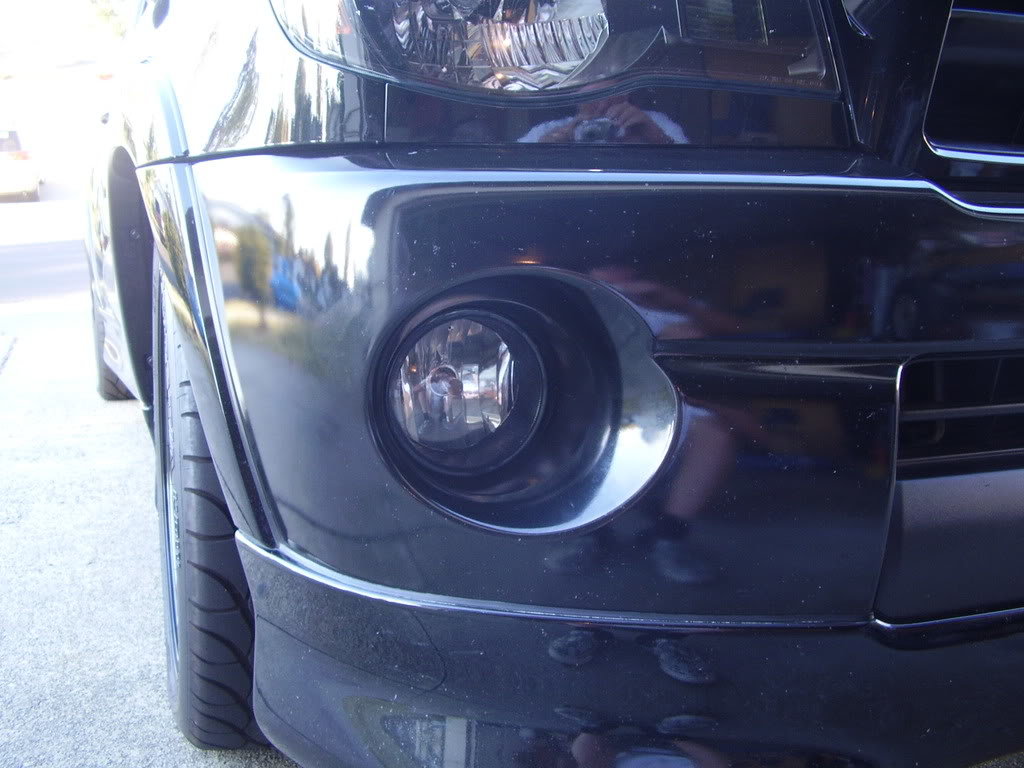

    Before:

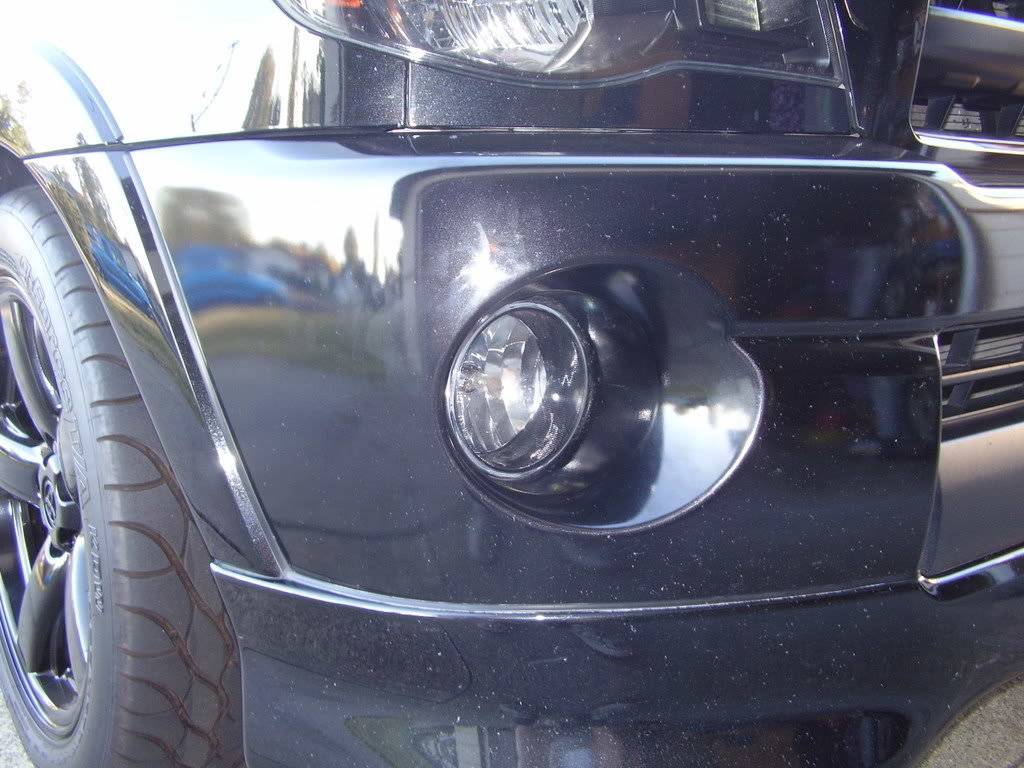

    After:






    After completing this mod the light output seemed the same as before it. (just incase you were wondering)
