Write up: I finally had it with my SQUEAKY A/C!

Discussion in 'Technical Chat' started by BradleyScottETC, Apr 25, 2010.

  1. Apr 25, 2010 at 2:47 PM
    #1
    BradleyScottETC

    BradleyScottETC [OP] Class IV Category 8 Elite VIP Member (Only)

    Joined:
    Aug 2, 2009
    Member:
    #20521
    Messages:
    1,754
    Gender:
    Male
    First Name:
    Bradley
    Lake County, FL
    Vehicle:
    10 4.0 AC 4x4
    I was driving back from the beach today and was ready to rip my A/C controls out and throw them out the window. My Blower motor is RIDICULOUSLY obnoxious on the two lower speeds, so I when I got home I thought I'd do a write up on it. You can also use this information to replace a defective blower as well.

    Just a quick disclaimer: I am a commercial A/C technician by day, so I'm experienced but I don't necessarily work on vehicle equipment. On one hand, I worry that this advice might void your warranty on this equipment (and if you are too and you're not confident in your ability to do this, don't), but on the OTHER hand, this is a really easy fix that's well worth it to me. The dealer, and most any technician, would simply replace this part and charge you for it, the mark-up AND an inflated labor time. If you do this yourself, it's free.

    Sorry, the pictures are a bit blurry... taken with my phone they look pretty good to ME! :D

    All you need:
    1.) WD-40, spray lubricant or bearing oil
    2.) A 5.5mm (7/16") socket or nutdriver
    3.) A phillips screw driver.

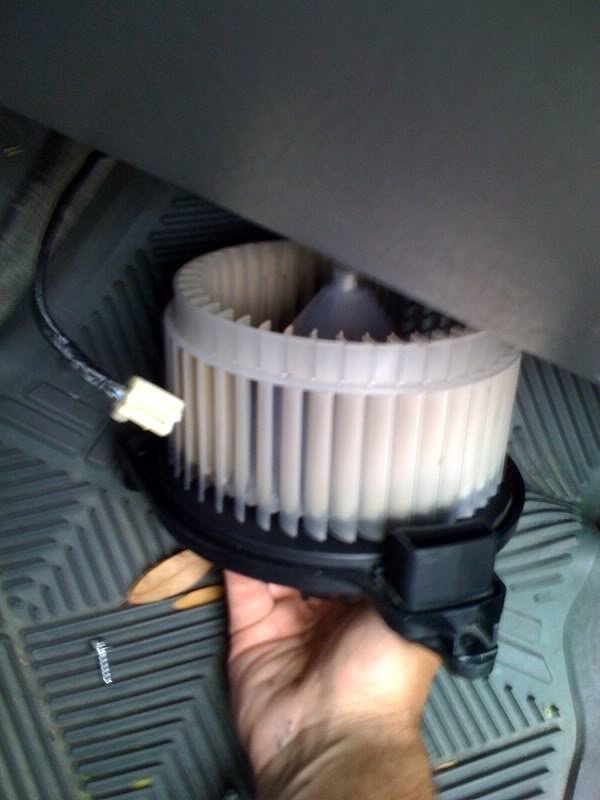

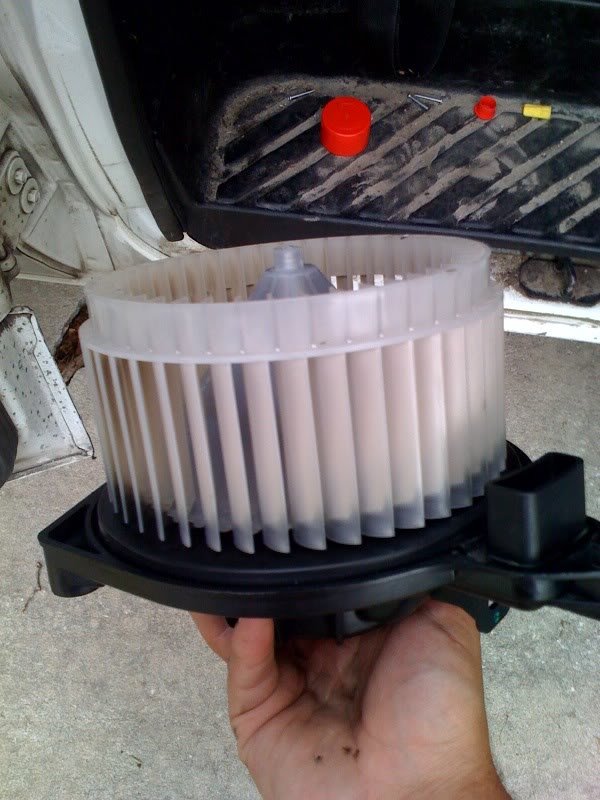

    First, you must remove the blower assembly. It's located behind your glove box and held up by 3 of the 5.5 mm screws. Just unplug (gently) and remove these screws with your 5.5mm or 7/16" socket. You can remove the glove box to make it a little easier, but I didn't bother. All my crap would spill out everywhere. :D

    [​IMG]

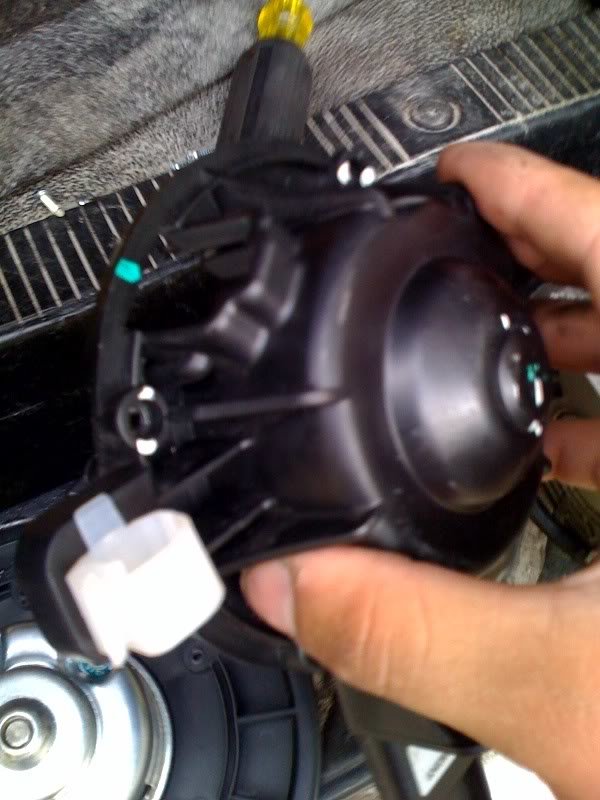

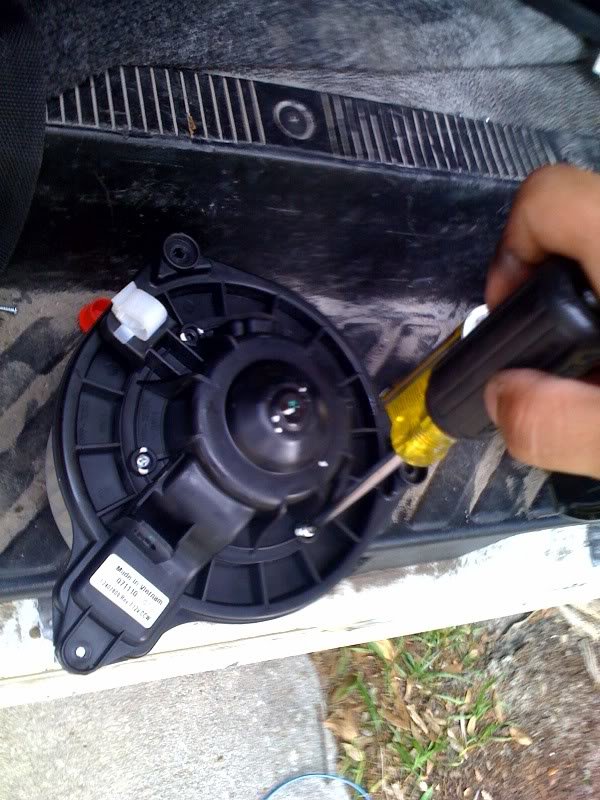

    Then, once you've got it out, there are 4 phillips screws that hold the back cover on. Remove these to get to the actual blower motor.

    [​IMG]

    [​IMG]

    [​IMG]

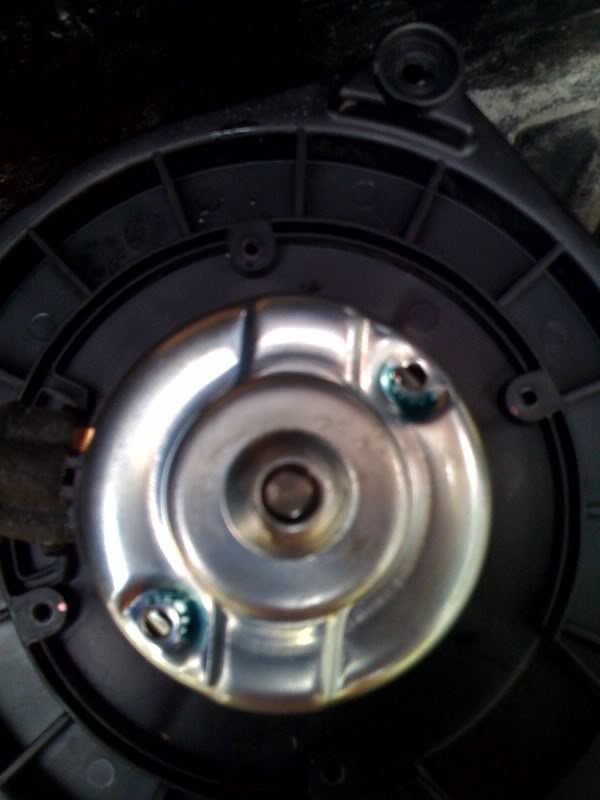

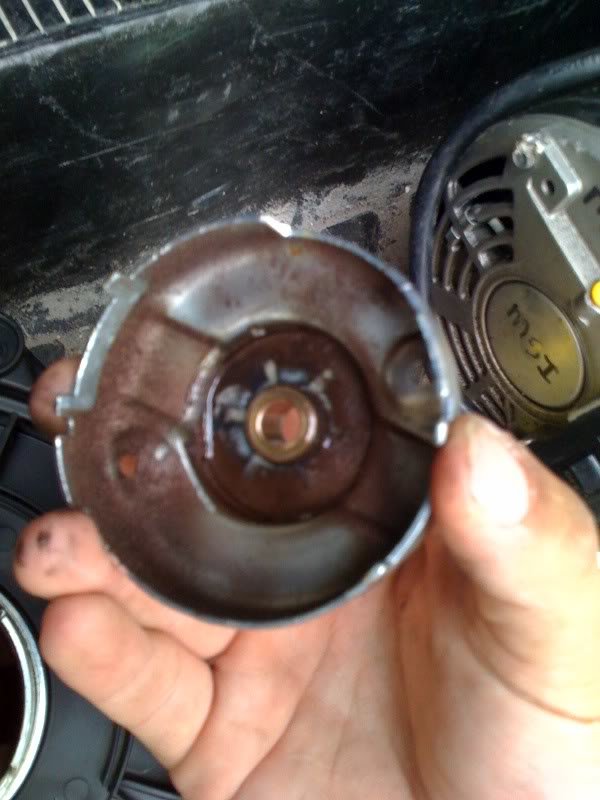

    The end bell is now exposed. You can remove the two phillips screws holding this on and gently remove it, revealing the bearings and motor windings.

    [​IMG]

    [​IMG]

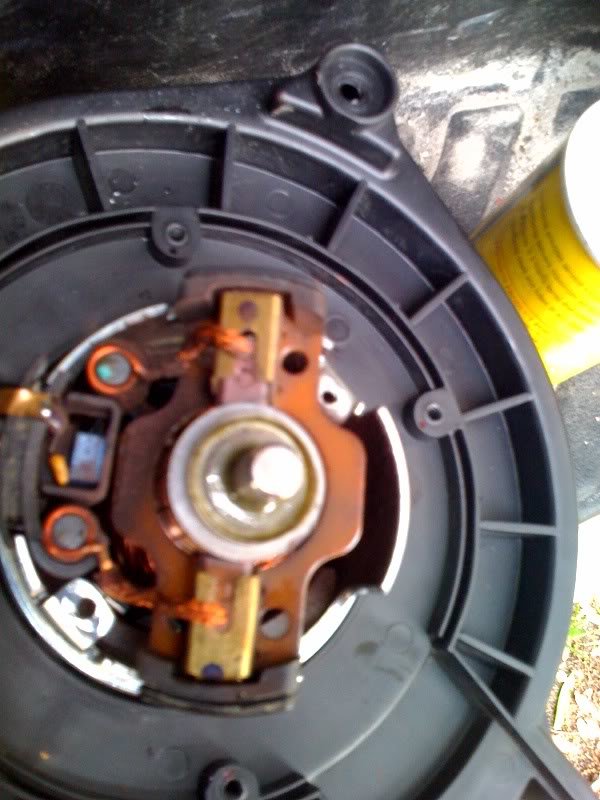

    Now, carefully oil the bearings. You can also clean the end-bell out if you'd like. Be CAREFUL not to get anything on the windings of the motor than could be conductive enough to short the windings. You'll go from a squeaky motor to one that just wont turn at all. I only oiled the bearings closest to me, in effort to avoid this. This was enough repair the problem, however.

    [​IMG]

    Now, replace the end-bell and cover and reinstall by repeating the steps in reverse. If everything went well, you shouldn't have any more SQUEAKING!

  2. May 1, 2010 at 5:33 PM
    #2
    Cortland

    Cortland THIS IS AMERICA!!!

    Joined:
    Mar 25, 2010
    Member:
    #33948
    Messages:
    1,508
    First Name:
    Cortland
    Arizona
    Vehicle:
    Clifford aka Big Red
    Camburg 4" Spindles, 5100's All Around, All-Pro 1.5" Leaf Pack, All-Pro U-Bolt Flip Kit, Avid Sliders, AFE Pro Dry Filter, Wicked Flow 18" Muffler
    I'm gonna have to try this in the next day or so.

  3. Aug 24, 2010 at 7:58 PM
    #3
    DevL

    DevL Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #31952
    Messages:
    1,923
    Gender:
    Male
    THANK YOU!!!! PLUS 1 TO REP THIS WAS DRIVING ME NUTS on the lowest 2 settings... usually when the temp got lower it would start. I pulled the filter and touched the fan and figured it must be the bearing to that fan but didnt know how to access it. Im still under warranty but even after I get it replaced I now know how to fix the most annoying squeak (chirp, chirp, chirp) since my leaf springs.

  4. Aug 24, 2010 at 8:01 PM
    #4
    SlurpeeBlueMetallic

    SlurpeeBlueMetallic FFFFFFUUUUUUUUUUUUUUU...

    Joined:
    Jun 23, 2009
    Member:
    #18825
    Messages:
    1,660
    Gender:
    Male
    I'm waiting for it to cool off later this year to see if my A/C squeak returns. I'll check here but I also saved this thread for if I have to tackle it since it goes even a bit further.

  5. Oct 10, 2010 at 9:50 AM
    #5
    Beary

    Beary New Member

    Joined:
    Oct 10, 2010
    Member:
    #44456
    Messages:
    1
    Gender:
    Male
    Vehicle:
    TRD Off-Road
    Thanks for the post and your pics get the point across. I used Liquid Wrench White Lithium Grease in a spray can...the straw (like WD40) helps direct the lubricant...just be careful to not go crazy with it. I just completed the procedure (as described here and in another post) and it's quietly purring at low fan speeds now...I just hope it lasts...other posts seem to indicate that lubrication might only work for a while, and that bearings might need to be replaced eventually...
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/28355-blower-motor-squeek-chirp-low-fix-2.html

  6. Oct 25, 2010 at 6:48 PM
    #6
    larryde09

    larryde09 Well-Known Member

    Joined:
    Jul 3, 2010
    Member:
    #39759
    Messages:
    560
    Gender:
    Male
    First Name:
    Larry
    Rochester, NY
    Vehicle:
    (Traded-in) 06 2.7L 5-spd SR5 4x4
    K&N Intake, Magnaflow Cat-back Exhaust, Altezza Tail Lights, Pop&Lock Tailgate Lock, Extang Trifecta Tonneau Cover, PIAA foglights with stock switch, DrawTite Hitch, OBX Shift Knob, Hood Protector, Vent Visors, DIY step bars/sliders/running boards, DIY Bed Lights, DIY Running Board/Ground Lights, DIY Tailgate Electrical Box (12V socket, voltage and current gauges), DIY Internal Lighting (coming soon), Aftermarket switches in stock dash blanks, Sony Head Unit, Illuminated 4x4 switch mod
    Thanks for the info. Using your post and another similar post, the job only took about a half our. Now I won't go nuts this winter. +1

  7. Dec 26, 2010 at 12:58 AM
    #7
    evil_umbrellacorp

    evil_umbrellacorp Noob

    Joined:
    Aug 30, 2010
    Member:
    #42504
    Messages:
    55
    Gender:
    Male
    First Name:
    Steve
    Victoria BC
    Vehicle:
    Taco SR5 4banger
    Hula girl on dash, that's it.
  8. Dec 26, 2010 at 1:23 AM
    #8
    lookylookitzadam

    lookylookitzadam Retrofit Club!

    Joined:
    Jul 16, 2009
    Member:
    #19777
    Messages:
    713
    Gender:
    Male
    First Name:
    Adam
    San Diego
    Vehicle:
    07 DC OffRoad
    A Lot of my friends who got the TSB done have had the issue return. Just follow the write up and use some white lithum grease and you are golden. (at least I have had 3 months and counting ::fingers crossed;::)

  9. Dec 26, 2010 at 5:59 AM
    #9
    05RedTaco

    05RedTaco Nom Nom Nom

    Joined:
    Sep 20, 2010
    Member:
    #43521
    Messages:
    1,672
    Gender:
    Male
    First Name:
    Tony
    Scottsdale
    Vehicle:
    2000 Tacoma XtraCab 2.7L 4x4
    Thank you sir! I am doing this today!

    I will try some Lock lubricant. WD-40 wears off therefore there is a chance of the squeaking returning. Lock lubricant doesn't wear off :)

  10. Dec 26, 2010 at 7:18 AM
    #10
    Biff

    Biff What could go wrong?

    Joined:
    Oct 9, 2009
    Member:
    #24021
    Messages:
    116
    Gender:
    Male
    Winnipeg
    Vehicle:
    07 SR5 Doublecab
    Bilstein 5100's all around, fronts set to 1.75, 18" Method Race Wheels, 285/60/18 Cooper Zeon LTZ
    Awesome....i will be trying this on my week off. Thank you.

  11. Nov 1, 2012 at 1:07 PM
    #11
    KTMTaco2011

    KTMTaco2011 Member

    Joined:
    Jun 20, 2012
    Member:
    #81002
    Messages:
    9
    Gender:
    Male
    First Name:
    Andrew
    North Carolina
    Vehicle:
    '11 4x4 Access Cab
    Great thread excellent write up.. Fixed that darn squeaking that's been going on since I bought the truck.

  12. Nov 19, 2012 at 1:20 PM
    #12
    fj40taz

    fj40taz Well-Known Member

    Joined:
    Oct 12, 2012
    Member:
    #88845
    Messages:
    337
    Gender:
    Male
    First Name:
    Carl
    Williamstown, NJ
    Vehicle:
    10 Toyota Tacoma
    Flowmaster Exhaust
    very cool i have to do this to my 2010...

  13. Oct 2, 2013 at 5:30 PM
    #13
    cholzer

    cholzer Well-Known Member

    Joined:
    Dec 17, 2012
    Member:
    #93264
    Messages:
    45
    Gender:
    Male
    First Name:
    Chris
    Colorado
    Vehicle:
    '10 4x4 SR5 Access Cab
    OME 886 coils, N140S struts, N182 rear shocks, OME carrier bearing drop kit, Westin ultimate push bar, DERP'D black front grille and badges with white devil horns by Andres, custom fab'ed hi-lift jack mounts and 48" hi-lift jack, Clarion double din DVD/NAVI head unit, ECGS front diff bushing, map lights on with dome light Mod, throwout bearing upgrade by URD. Future ECGS 3rd with 4 10 gears
    Worked great thanks for the write up. I will only say its a 7/32" socket (5.5mm) rather than 7/16" not nit picking though as you saved from driving anymore aggressively :D:cool:

  14. Oct 4, 2013 at 1:48 PM
    #14
    tacoma guy

    tacoma guy Well-Known Member

    Joined:
    Jul 8, 2010
    Member:
    #39944
    Messages:
    1,243
    Gender:
    Male
    First Name:
    Joe
    Phoenix Az.
    Vehicle:
    2011 Tacoma Prerunner TRD
    Bilstein 5100's set @ 0 with OME 883x coils up front . Alcon leaf springs. Viper Alarm. Wet Okole seat covers. WeatherTech Floor liners front and back. Oem Toyota chrome exhaust tip.
    Great write up. I am going to do this after I am done healing from shoulder surgery. Thank you for the awesome info. Mine just started .

  15. Nov 28, 2013 at 6:11 AM
    #15
    OKJC

    OKJC Well-Known Member

    Joined:
    Jul 31, 2013
    Member:
    #109508
    Messages:
    514
    Gender:
    Male
    First Name:
    Justin
    NWArkansas
    Vehicle:
    '10 SC 4x4 TRD Sport
    Sounds like i've got a pissed off cricket in the heater of my 2010 with nearly 90k miles. I'll be doing this today! Happy Thanksgiving everyone!

  16. Feb 6, 2014 at 8:50 PM
    #16
    bowhunter1994

    bowhunter1994 Member

    Joined:
    Nov 29, 2013
    Member:
    #117530
    Messages:
    17
    Gender:
    Male
    Good write up

  17. Feb 7, 2014 at 9:13 PM
    #17
    JT Class

    JT Class Can't spell class without...

    Joined:
    Apr 29, 2012
    Member:
    #77889
    Messages:
    348
    Gender:
    Male
    First Name:
    JT
    Sept-Iles, Canada
    Vehicle:
    09 DC TRD Sport
    Aries bull bar, Tonneau pro box cover, TrailFX hood deflector, Sleeper lids, US Speedo speedometer gauge (white), more to come...(3incher bilsteins 5100+f/coils+aal w/285 or 265?)
    Just what I was looking for!! Was about to torch the whole dash to kill that damn hamster! ... Always running on his little squeeky wheel...

    thx! +1
