Write-Up: LED Lights w/ Door Trigger (The Hella Easy Way)

Discussion in 'Lighting' started by Kelson, Jun 2, 2011.

  1. Jun 2, 2011 at 12:36 AM
    #1
    Kelson

    Kelson [OP] My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    Can't see your feet at night? Do you want to see them? Do you want to see them when you open your door? Then this mod is for you.

    Instead of using a relay like some other methods, this way utilizes a three way switch to switch the ground for your LEDs from the door trigger ground (on when you open the door(s)), Chassis Ground (always on), no ground (off). simple. easy. no need mess around with a relay. therefore, more awesome.

    Parts/Supplies Needed:

    GSW-45 Rocker Switch - Scion OEM Style- 3 way Switch (On/Off/On)- Fits in the dash opening with shaving- http://www.oznium.com/gsw-45

    [​IMG]

    LED/Cathodes of your choice; I used these in 1 Foot lengths: http://www.oznium.com/led-ribbon

    Wire
    Assorted Terminals
    Crimps
    Heat Shrink Wrap or electrical tape
    Crimper and/or Soldering Iron
    Zip Ties
    Hands

    Step One: Find the door trigger leads, located underneath the left and right side trim panels underneath the doors. Door trigger wires may vary from truck to truck, so check first before you make a splice. Double cab trucks, check the wiring diagram and make sure you check the lead. I don't know what color the rear doors will be. The door trigger leads are negative.

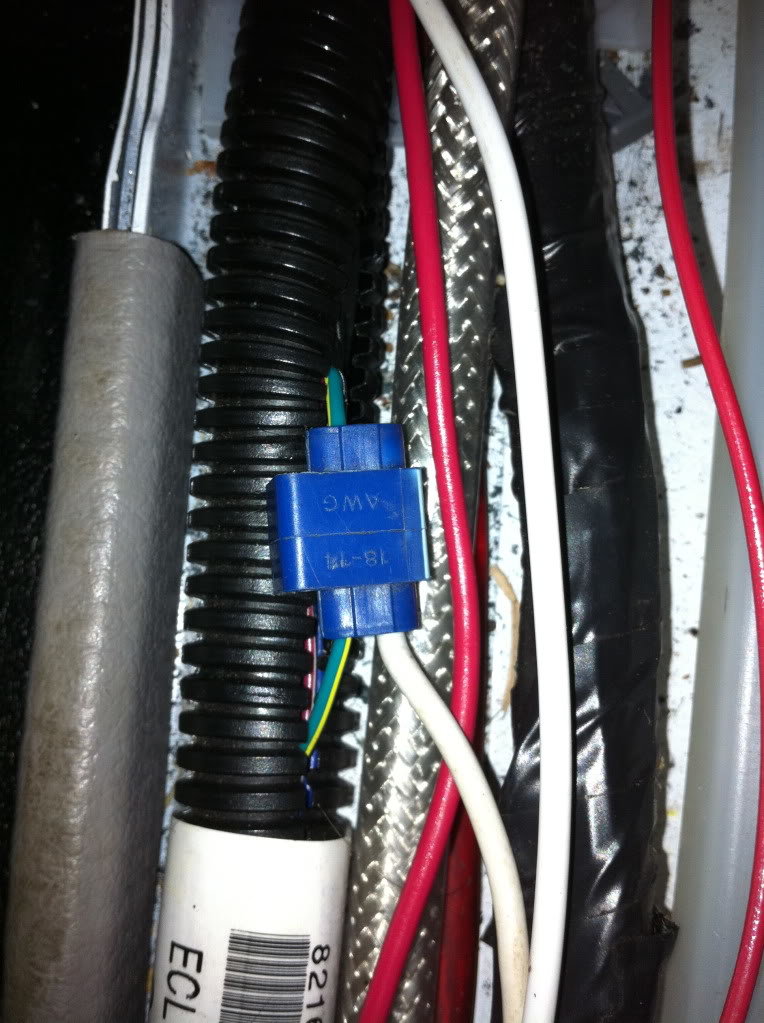

    Driver Side:
    [​IMG]

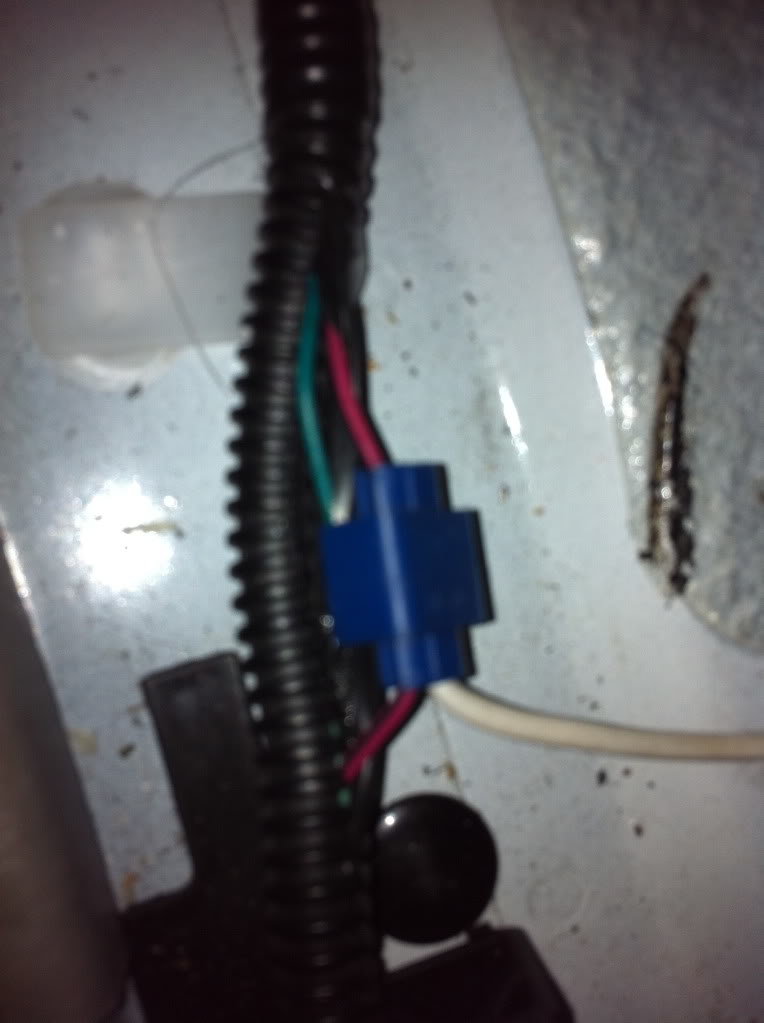

    Passenger Side:
    [​IMG]

    Step Two: Run wire from the door trigger wires to your switch. (ON Top)

    Step Three: Run wire from Switch (ON Bottom) to chassis, for ground.

    Step Four: Run wire from your switch (Off Middle) to your NEGATIVE lead on your LEDs/Cathodes.

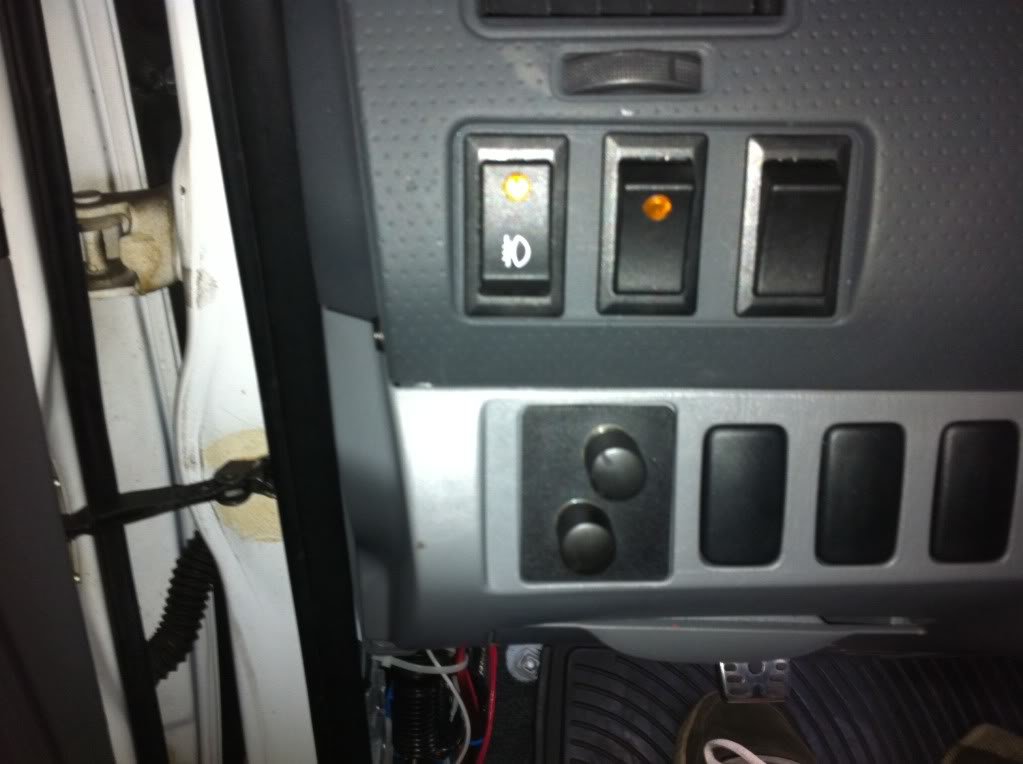

    Switch:
    [​IMG]

    Step Five: Using either an add a fuse, or a wire directly from the battery, run wire and connect your POSITIVE lead on your Light source to this. Make sure whatever method you use, fuse appropriately.

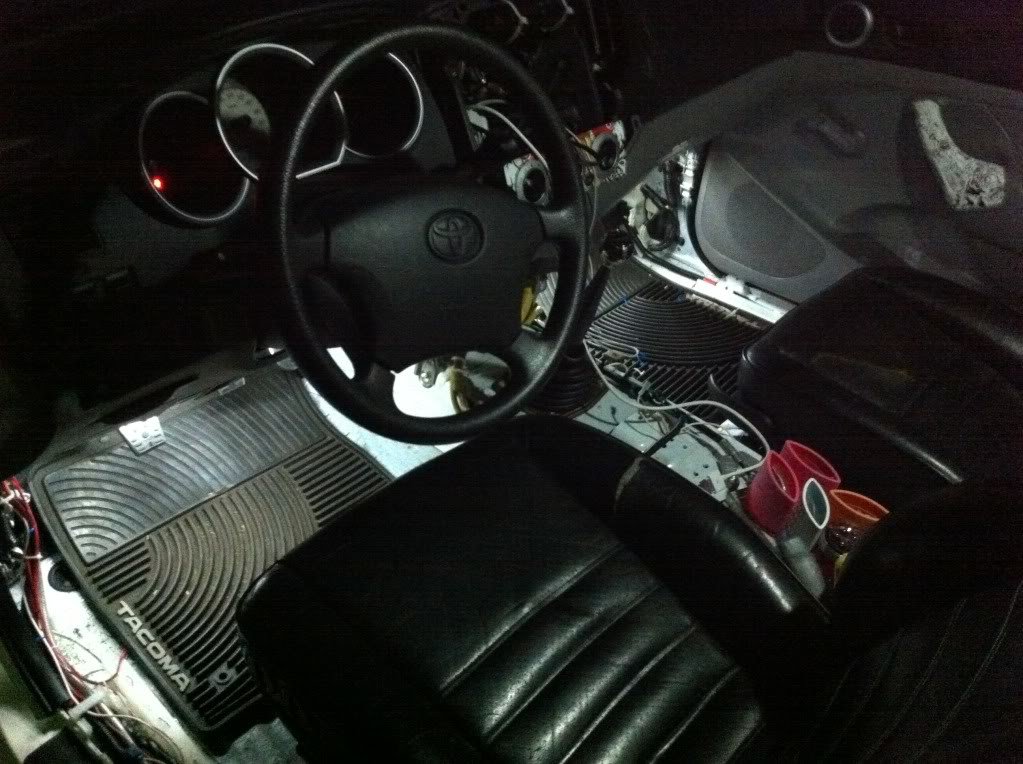

    Step Six: Mount LEDs where you want, and Enjoy!

    [​IMG]

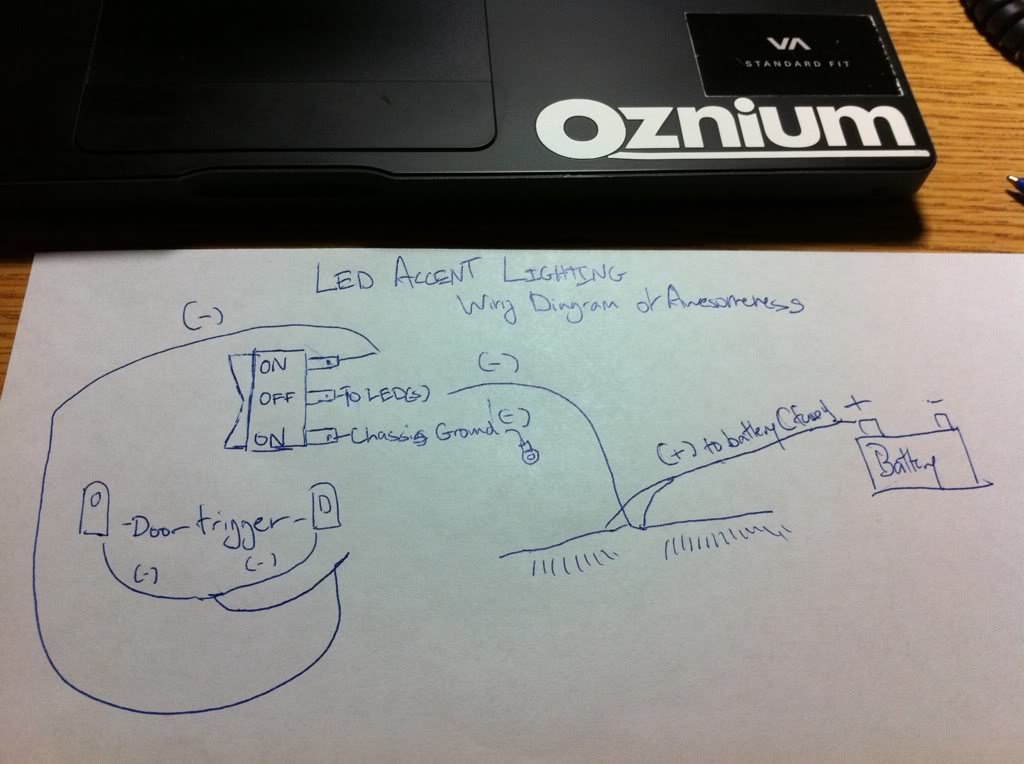

    Wiring Diagram:
    [​IMG]

  2. Jun 2, 2011 at 12:36 AM
    #2
    Kelson

    Kelson [OP] My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
  3. Jun 2, 2011 at 12:37 AM
    #3
    Kelson

    Kelson [OP] My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    Reserved for Pics W/ Interior back in lol

  4. Apr 15, 2013 at 7:21 PM
    #4
    adalex

    adalex New Member

    Joined:
    Apr 15, 2013
    Member:
    #102158
    Messages:
    1
    Gender:
    Male
    Hi, I sent you a message on facebook but I was wondering if you might be able to help me with an issue I'm having, your the only one whos done what I'm trying to do with the same switch. I have a 99 camry and as it stands now I can't get the lights to stay on all the time, only the off (middle position) and on when doors are open/off when their closed (bottom position) to work. I know the wiring is different but if you might have any idea what to tap in to I could figure out the correct wire.
    heres a link to my thread
    http://www.toyotanation.com/forum/1...7-2001/505433-need-gen-4-electrical-help.html

    basically per your diagram, I have the dome light + hooked to a inline fuse that is hooked into the + wire that I ran around the car.

    I have the - wire for the dome hooked to the top position on the switch
    I have the - wire hooked to the - wire of the main wire.
    I tried hooked the last wire to a ground by my kick plate but it doesn't do anything and the led that I got to work on the front works whether the ground is hooked to the switch or not. I thought I could use + for the dome wire instead of tapping into the battery but not sure.

    again I'd appreciate any suggestions to at least point me in the correct direction :)

  5. Apr 30, 2013 at 12:13 AM
    #5
    calebdnehus

    calebdnehus Well-Known Member

    Joined:
    Jun 28, 2011
    Member:
    #59015
    Messages:
    370
    Gender:
    Male
    First Name:
    Caleb
    Arkansas
    Vehicle:
    '98 Prerunner V6--2004 Tacoma facelift
    K&N cold air intake FPIK, FlowMaster 40 series muffler, Euro Diamond clear headlights, 2003 tacoma tailights, bixenon HID headlights, 4 inch lift, pioneer headunit w/kicker door speakers(amped w/Rockford four channel), 2004 facelift, led dash light mod, painted needles, black auto shifter, leather steering wheel, ultra gauge. Plenty to come... Still
    could this be done with a two position switch? could you run the door trigger wire to the switch positive power prong, the positive wire on the lights to the acc power pong on the switch, and the ground on the switch to the cab along with the ground from the lights?

  6. Nov 6, 2013 at 12:02 PM
    #6
    avenger619

    avenger619 Active Member

    Joined:
    Nov 6, 2013
    Member:
    #116027
    Messages:
    42
    Gender:
    Male
    San Diego
    Vehicle:
    2010 Tacoma TRD Spot
    TRD Skid Plate Hood Lights
    Hi new to the forum here, this is a mod am currently working to get kick started for my undercarriage lights that I hope to get them to come on when door opens, alarm is clicked, and at anytime like with what you have done.

    My questions is can I use this same wiring diagram concept but tapping into the dome wire? because otherwise I assume the trigger method I would have to tap into all four door triggers so all doors turn on, is this correct?:confused:

  7. Nov 6, 2013 at 12:13 PM
    #7
    Boogyman

    Boogyman SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    6,341
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    i wired mine directly to the dome light. i ran the wires up the pillar under the headliner and into the dome light. it has its own inline fuse but its still probably not the safest but works great for my use and fades off like the dome light when i lock the doors or start the truck. looks like it came from the factory that way!

  8. Nov 6, 2013 at 12:22 PM
    #8
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,885
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    :thumbsup:I approve of this:thumbsup: The three way switch is perfect for when you want to leave your doors open and not run your battery dead.

    2 things I did different when I had done mine.

    1. I used a Carling switch (personal preference, customizable covers)
    2. I used the dimmer ground for the dome light, from the same driver side location you are using. The foot lighting operates the same as the dome light, fades on when unlocked, fades off when locked, fades on when doors are opened.

    No need to run them all the way to the roof. The dome ground wire can be located in the same location OP is using.

  9. Nov 6, 2013 at 12:26 PM
    #9
    Boogyman

    Boogyman SOS concepts shop bitch

    Joined:
    Aug 17, 2012
    Member:
    #84975
    Messages:
    6,341
    Gender:
    Male
    First Name:
    Phoenix
    Charleston, South Carolina
    Vehicle:
    BSP 06 4x4 SR5
    Fox 2.0 IFPs, superbumps, LR UCA, "king" 5100s and Dakars
    yeah i kinda wish i had found this thread before doing all that but it wasn't really that much of a PIA

  10. Nov 6, 2013 at 12:35 PM
    #10
    avenger619

    avenger619 Active Member

    Joined:
    Nov 6, 2013
    Member:
    #116027
    Messages:
    42
    Gender:
    Male
    San Diego
    Vehicle:
    2010 Tacoma TRD Spot
    TRD Skid Plate Hood Lights
    SandMan, you mentioned you used the dimmer ground for the dome light, do you recall what color wire you tapped into?

    last time I checked my dome light there was 3 wires
    1. Blue
    2. White.
    3. I don't recall if it was black or white w/black stripe.

  11. Nov 6, 2013 at 12:46 PM
    #11
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,885
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I believe it's the Blue, check it with a meter. I'm trying to find the thread.

    [Edit: It's the Blue one!]

    Last edited: Nov 6, 2013
  12. Nov 6, 2013 at 12:53 PM
    #12
    avenger619

    avenger619 Active Member

    Joined:
    Nov 6, 2013
    Member:
    #116027
    Messages:
    42
    Gender:
    Male
    San Diego
    Vehicle:
    2010 Tacoma TRD Spot
    TRD Skid Plate Hood Lights
    Awesome! I appreciate everyone feedback on this.

    Oh, before I forget last question, is inline fuse necessary? and what amp fuse to use? How about a tap a fuse type adapter to what fuse in cab fuse box?

    Thanks

    Last edited: Nov 6, 2013
  13. Nov 6, 2013 at 12:58 PM
    #13
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,885
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    :threadjacked: End, Sorry if this wasn't helpful to your intentions OP. I tried to provide links to the other threads to keep the confusion down.

  14. Nov 6, 2013 at 1:09 PM
    #14
    THNKTWCE

    THNKTWCE FNG

    Joined:
    Oct 23, 2013
    Member:
    #115115
    Messages:
    56
    Gender:
    Male
    Awesome!! Now I know what I will be doing next.
