Write Up: OTW Mod - One Touch Windows

Discussion in 'Technical Chat' started by babyboi2284, Sep 5, 2011.

  1. Sep 5, 2011 at 4:19 PM
    #1
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    DISCLAINER, PLEASE MOD YOUR TRUCK AT YOUR OWN RISK. I AM IN NO WAY LIABLE FOR ANY DAMAGE CAUSED BY YOU ATTEMPTING THIS MOD. DO SO AT YOUR OWN RISK AND RESPONSIBILITY :top:

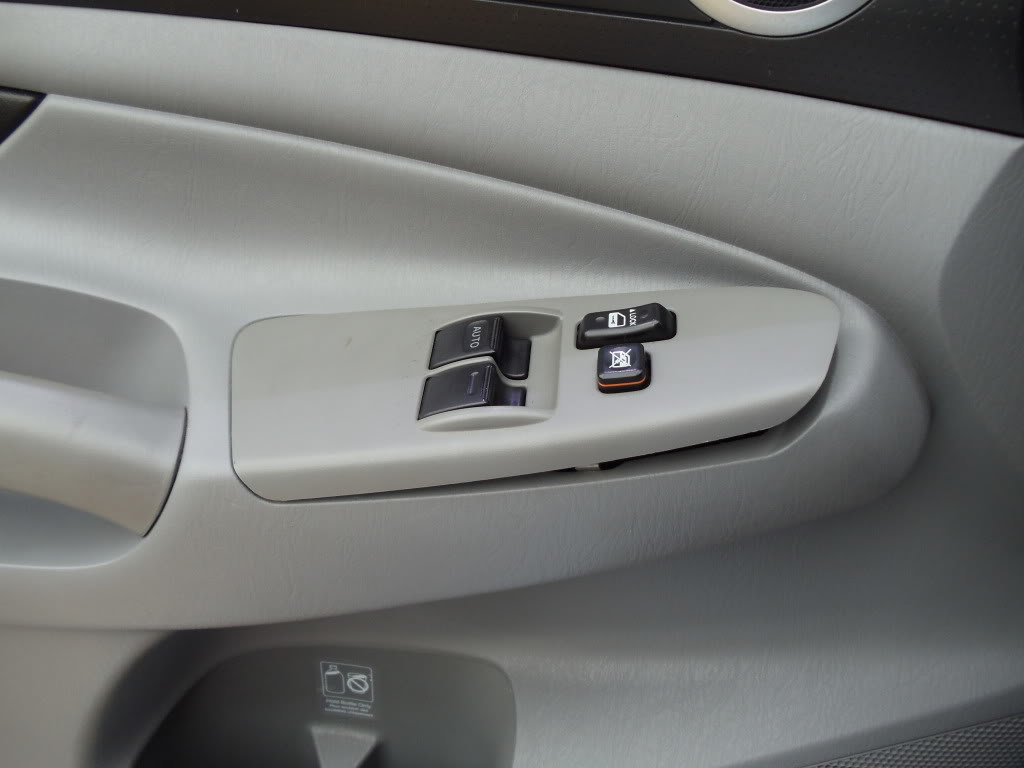

    Ok so everyone knows that XR's only come stock with auto down on the driver door window which is weak on toyotas end but this will give you auto up and down on both doors. This unit can be used independently or with most aftermarket alarms to crack windows to vent cab, roll up when armed and down when disarmed.

    **This write up is for access cab only. You CAN do this on double cabs but i dont have access to one to get the wiring layout for it.

    ITEMS NEEDED:
    1. "DEI 530T WINDOW AUTOMATION SYSTEM" unit---amazon, ebay or google for a good price
    2. Wire cutter/strippers :blurock:
    3. Soldering iron/solder.......or butt connectors if you dont want to solder
    4. One T-tap connector
    5. Small flathead screwdriver
    6. Philips screwdriver
    7. Drill
    8. Heat shrink tubing
    9. Self tapping screws to mount unit to door
    10. zip ties for wiring

    You do NOT have to remove the door panel to install this. At first i had it connected with butt connectors and everything was tucked into the door via the master switch opening but i chose to do it the "right way" lol

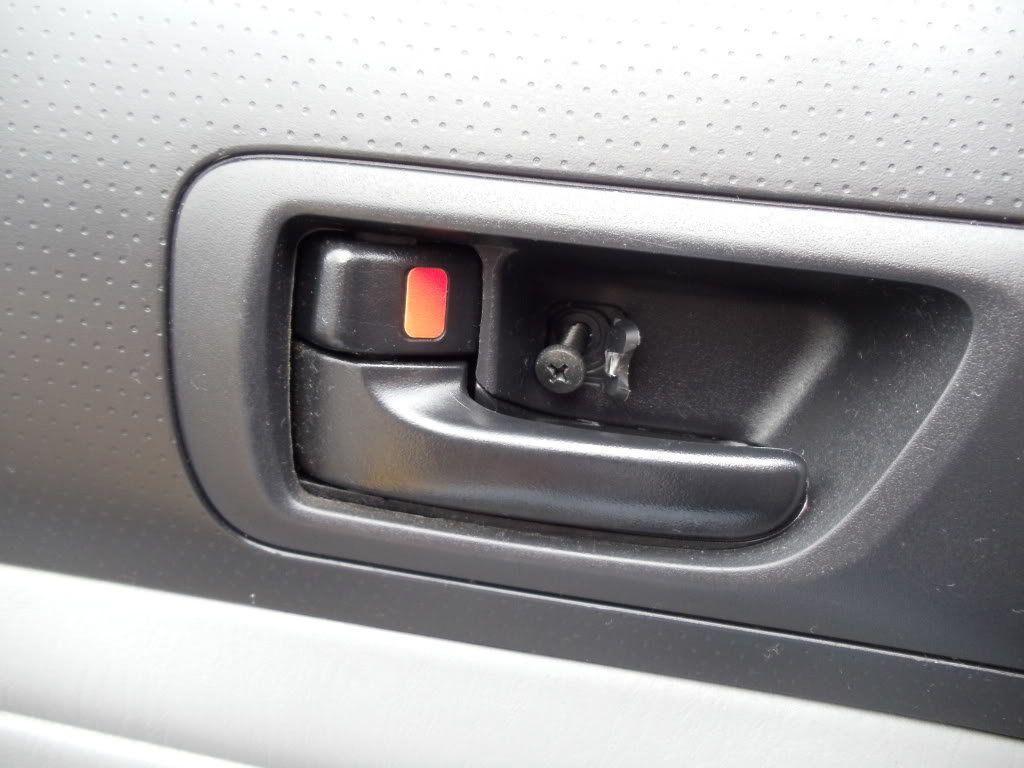

    First off is to remove the door panel. There are two philips screws and one push pin (i dunno what the exact name for it is) and the triangle panel above the door panel. One screw is behind a small cover just above the door open handle. Use a small flat head screwdriver to lift the cover and remove the screw.

    [​IMG]

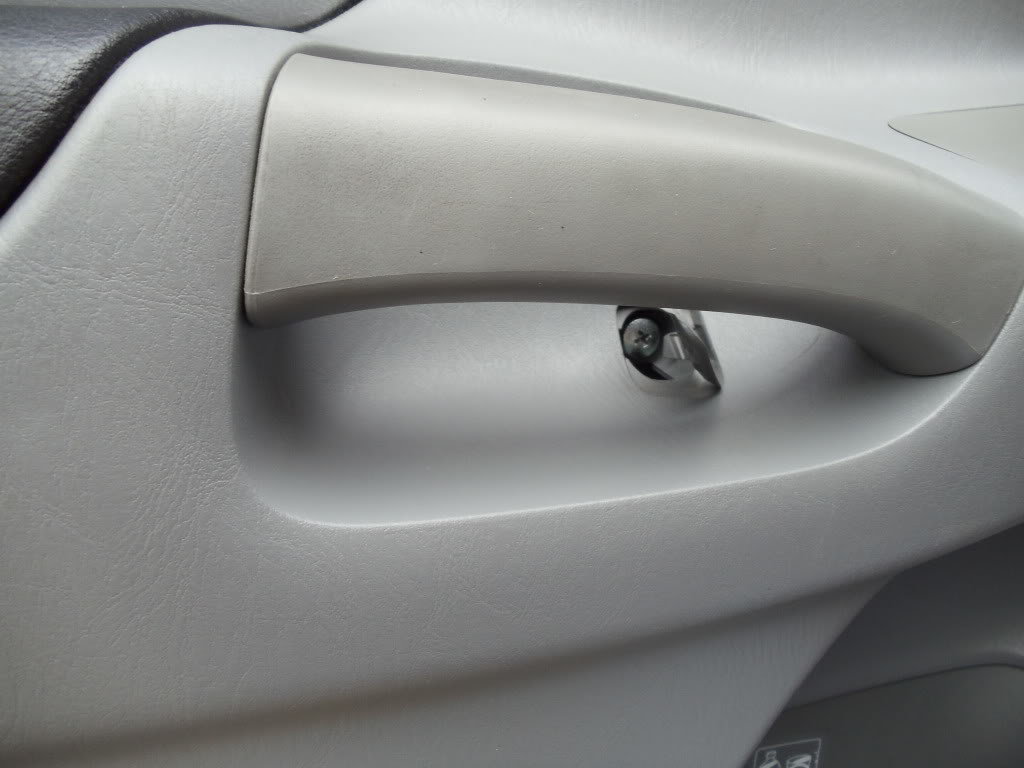

    And the other screw is behind a small cover behind the door pull handle. Use a small flat head screwdriver to life the cover and remove the screw.

    [​IMG]

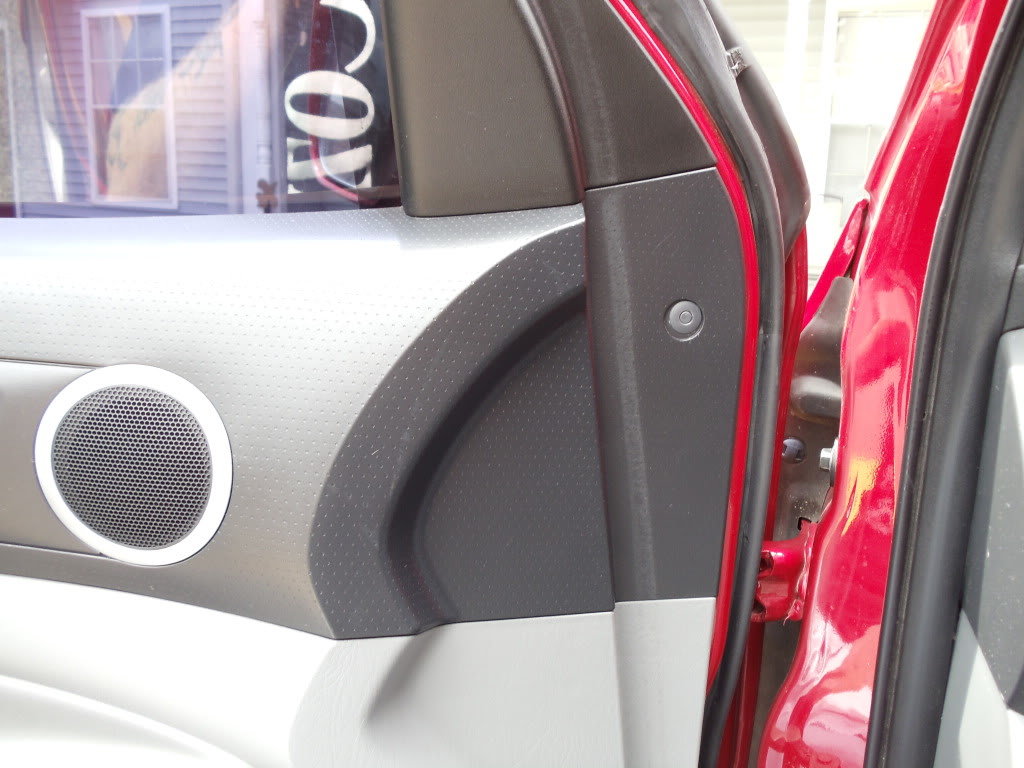

    For the push pin.....just push the round center pin in and pull the clip out.

    [​IMG]

    And in the above pic there is the triangle cover that needs to be removed. Just grab it anywhere and pull it away from the door. There are three small plastic clips that hold it to the door. If they dont come off when the piece is removed then they need to be put back on the cover.

    Next is to take out the master switch on the door. Pull up on the end towards the front of the truck then slide it out of the door panel.

    [​IMG]

    Last thing is to grab the bottom of the door panel and pull away from the door to seperate the plastic clips. If there are any clips that stayed in the door they need to be pulled out and installed back on the door panel and just set the panel aside.

    **NEXT IS THE WIRING**

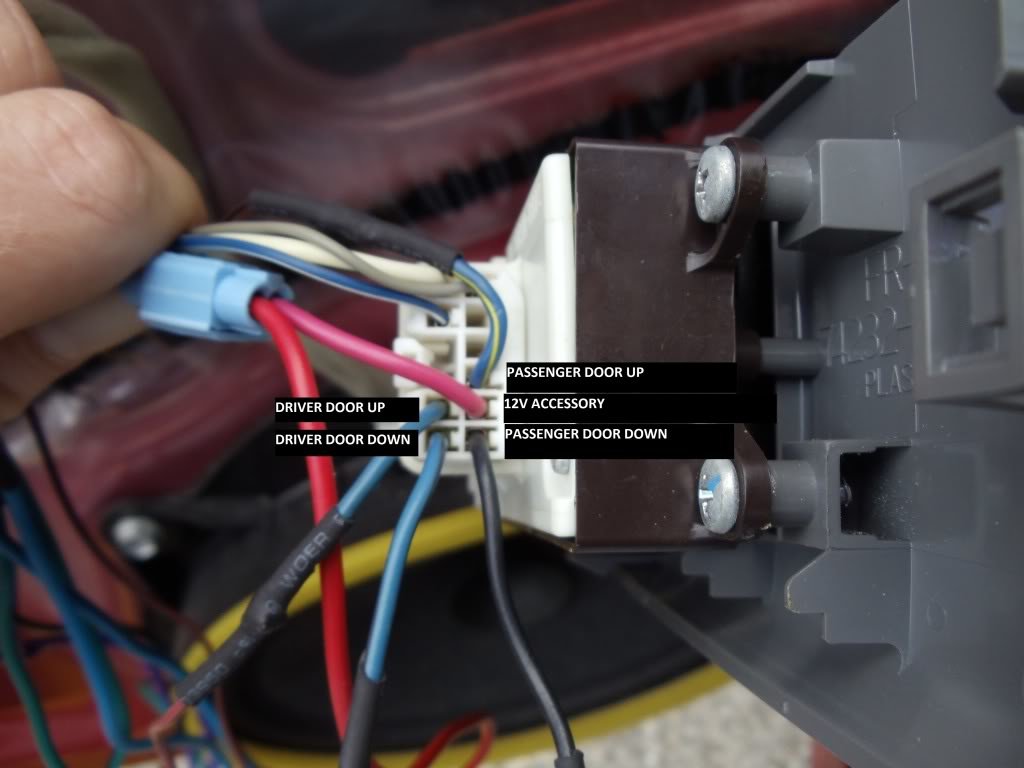

    I found out that the wiring is layed out pretty easy in the master switch connector. The bottom 5 wires are for the windows and the wires at the top are for the door locks.

    [​IMG]

    This is the layout from my 09 XR in the above pic
    DRIVER DOOR UP-Blue
    DRIVER DOOR DOWN-Blue/Black stripe
    PASSENGER DOOR UP-Blue/Yellow stripe
    PASSENGER DOOR DOWN-Black
    12v ACCESSORY-Pink

    There are 12 wires from the 530T unit that you will use without an aftermarket alarm. I didnt use the wires for an alarm so i wont cover that part in the write up.

    Once you cut a wire you will have two ends...one on the switch side and one on the motor side. Each end will be connected to a wire on the 530T unit.

    Truck----------------------------------------------------------------------530T
    Driver up-Blue-SWITCH SIDE------------------------------------------Light gauge brown wire
    Driver down-Blue/Black stripe-SWITCH SIDE--------------------------Light gauge white wire​

    Driver up-Blue-MOTOR SIDE-------------------------------------Heavy gauge blue wire
    Driver down-Blue/Black stripe-MOTOR SIDE-------------------------Heavy gauge green wire​

    Passenger up-Blue/Yellow stripe-SWITCH SIDE--------Light gauge Brown/Black stripe wire
    Passenger down-Black-SWITCH SIDE-----------------Light gauge White/Black stripe wire​

    Passenger up-Blue/Yellow stripe-MOTOR SIDE----------Heavy gauge Blue/Black stripe wire
    Passenger down-Black-MOTOR SIDE-------------------Heavy gauge Green/Black stripe wire​

    Ground--------------------------------------------------------------------Heavy gauge Violet wire
    Ground------------------------------------------------------Heavy gauge Violet/Black stripe wire
    Ground---------------------------------------------------------------------Heavy gauge Black wire
    12v Accessory on switch-Pink-Ttap connector-----------------Heavy gauge 20amp fused Red wire​

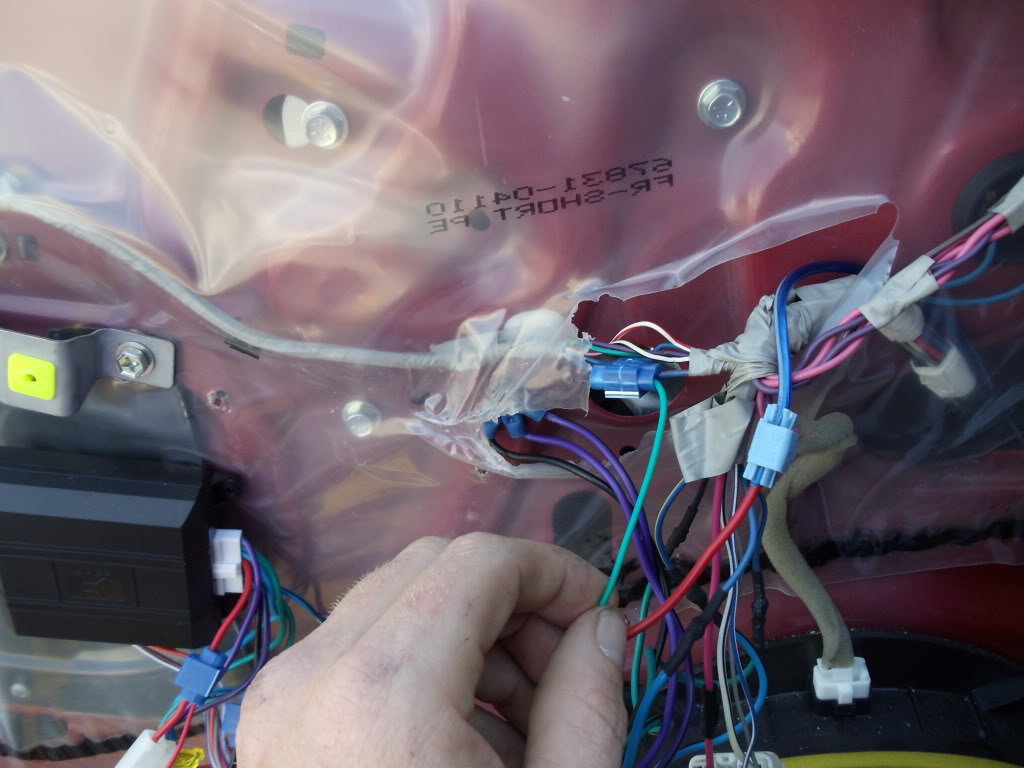

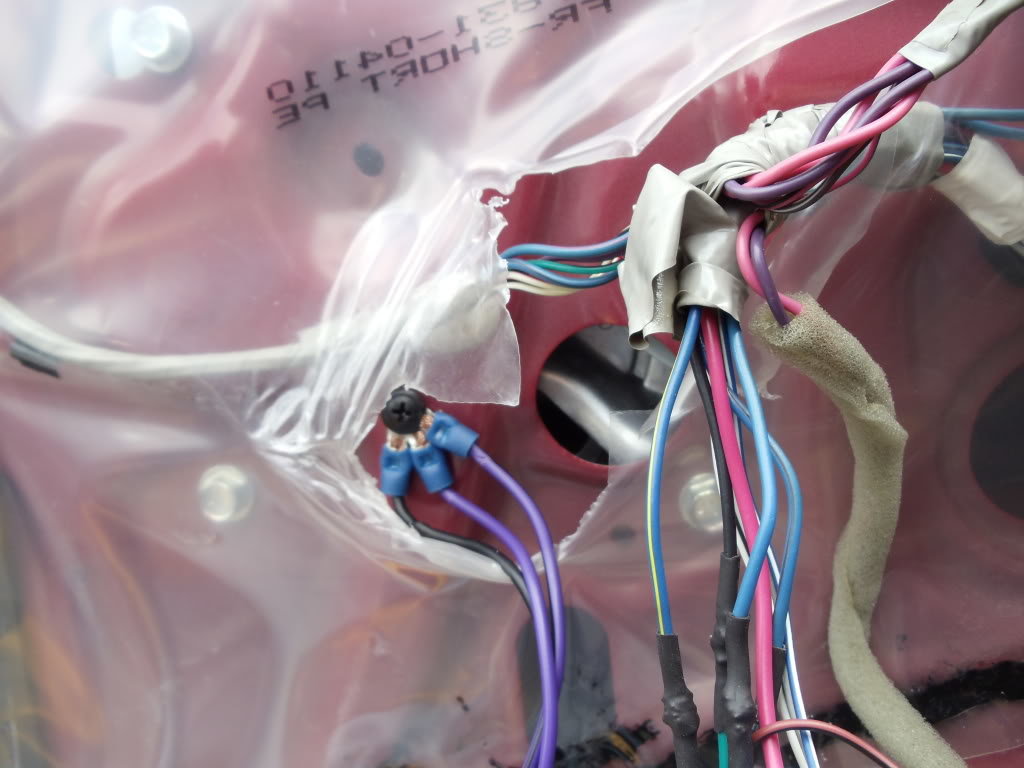

    I used a self tapping screw to ground the three wires to the door frame. You can use one of the factory bolts but i personally didnt do it.​

    [​IMG]

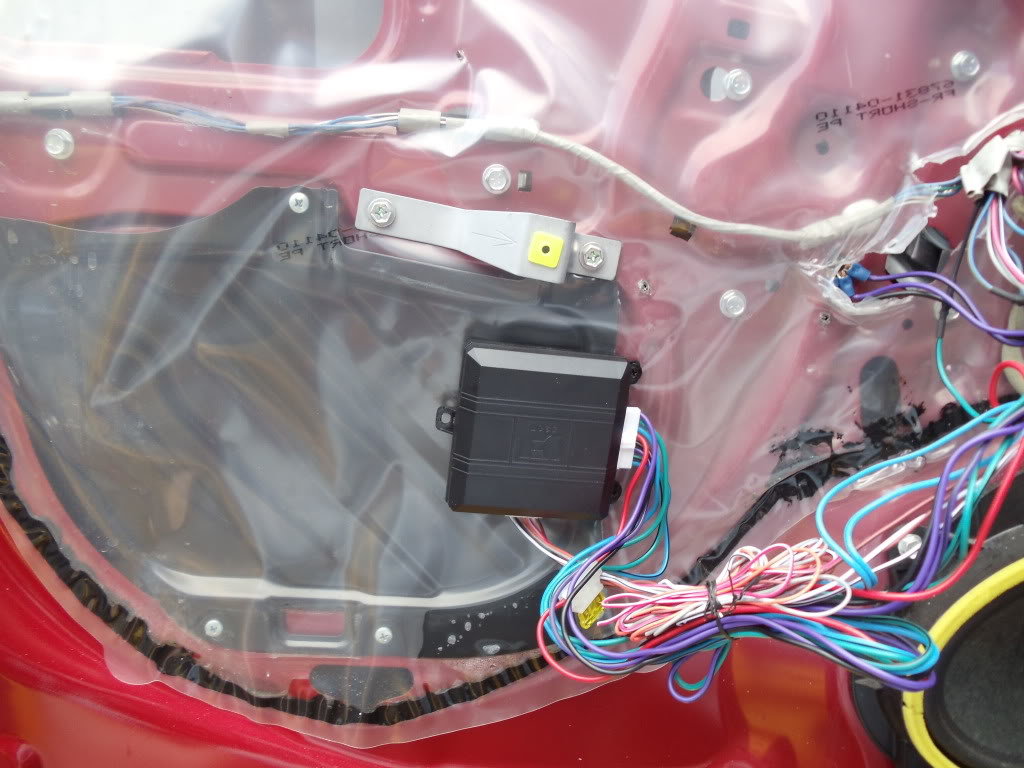

    Last thing to do is to mount the unit to the door frame. The spot i mounted mine seems to be the best place to mount it to the door frame. You can use double sided tape to mount it to the door panel but it might rattle or come loose.​

    [​IMG]

    After you have everything wired up and mounted you can reinstall the door panel and enjoy your one touch windows mod :top:​



    MODDING CONTINUED-- KEY FOB AUTO UP AND DOWN WINDOWS

    ITEMS NEEDED--

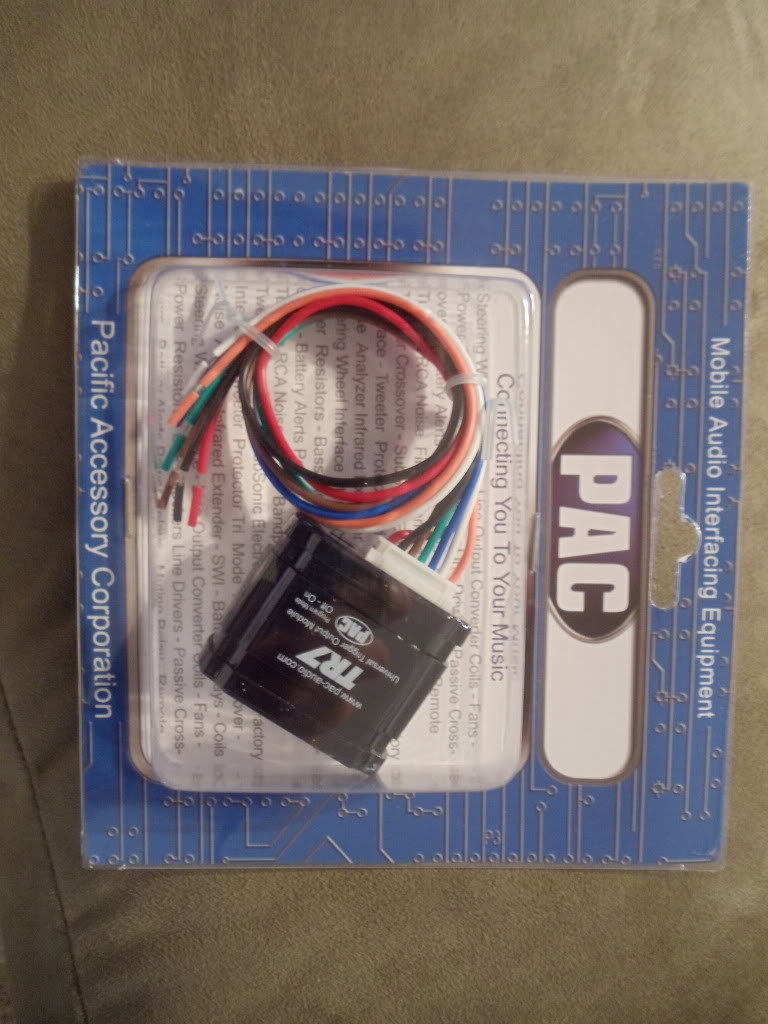

    1. (2) PAC AUDIO TR7 UNIVERSAL TRIGGER OUTPUT MODULES.... 1 FOR UP, AND 1 FOR DOWN
    2. WIRE TAPS
    3. 4FT OF SPEAKER WIRE
    4. "ADD A CIRCUIT" FUSE TAP
    5. WIRE "FISHING" TOOL
    6. VELCRO TO MOUNT TR7 MODULES

    [​IMG]


    I wanted to have the auto up and down feature for a while but i also wanted to take it a step further by adding the ability to control the windows from outside the car. To do this I used the TR7 to watch for door lock pulses. This way when you lock or unlock the car the TR7 will read the number of pulses and then output a constant + and - signal. We use the - signal to the 530t and the + signal to the door locks.

    For this add-on mod you will need to install the DEI 530T for this to work. And you have to connect the 530T power wire to a 12v constant wire instead of the 12v accessory wire in the write up above. This willl allow you to roll the windows up and down from your stock key fob when you lock or unlock the doors from outside the truck. And it will also roll both the windows up and down if your in the truck just by pressing the lock(2x)/unlock(3x) switch if inside the truck.

    Here are the instructions to program the "lock TR7".....the process is the basically the same thing for the second "unlock TR7" but the differences are explained below. I just popped the hood and used my truck battery to program it. You need to hook up the power and ground first before doing anything. Then you use the brown wire to "pulse" a negative input.

    1. Switch programming switch to on and hook up power and ground.
    2. Pulse Brown wire to - 15 times to indicate option 15. Unit will slow flash 15x.
    3. Pulse Brown wire 2x to indicate 2 pulse input. Unit will flash 2x. (this will be 3 for the second TR7).
    3. Pulse Brown one time after flash to continue to inputting time.
    4. Unit will flash once very quickly. Ignore this one as it is for the minute place on the timer. X:xx
    5. Unit will flash 2x quickly again you ignore this one as it is for the 10 sec place. x:Xx
    6. Unit will flash 3x quickly for single secs. Now u will pulse the brown 5 times for 5 secs. x:xX
    7. Unit will flash a bunch more times indicating programming is complete. Disconnect power and turn programming switch off.

    You are now ready to test. If you hook up the power leads and pulse the brown to - you will see the light on the box come on for 5 secs and you should see a - and + signal on the outputs during that time.

    TR-7 Instructions
    http://www.pac-audio.com/PACProductD...ons_010505.pdf

    Ok now we are ready to install the TR7.

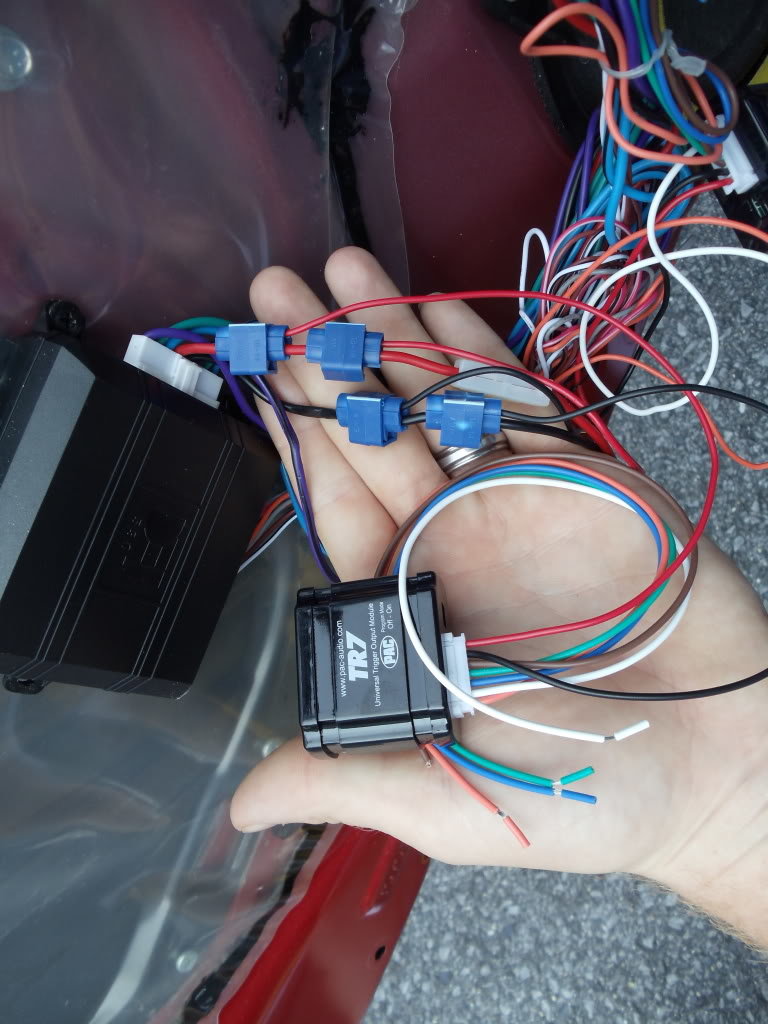

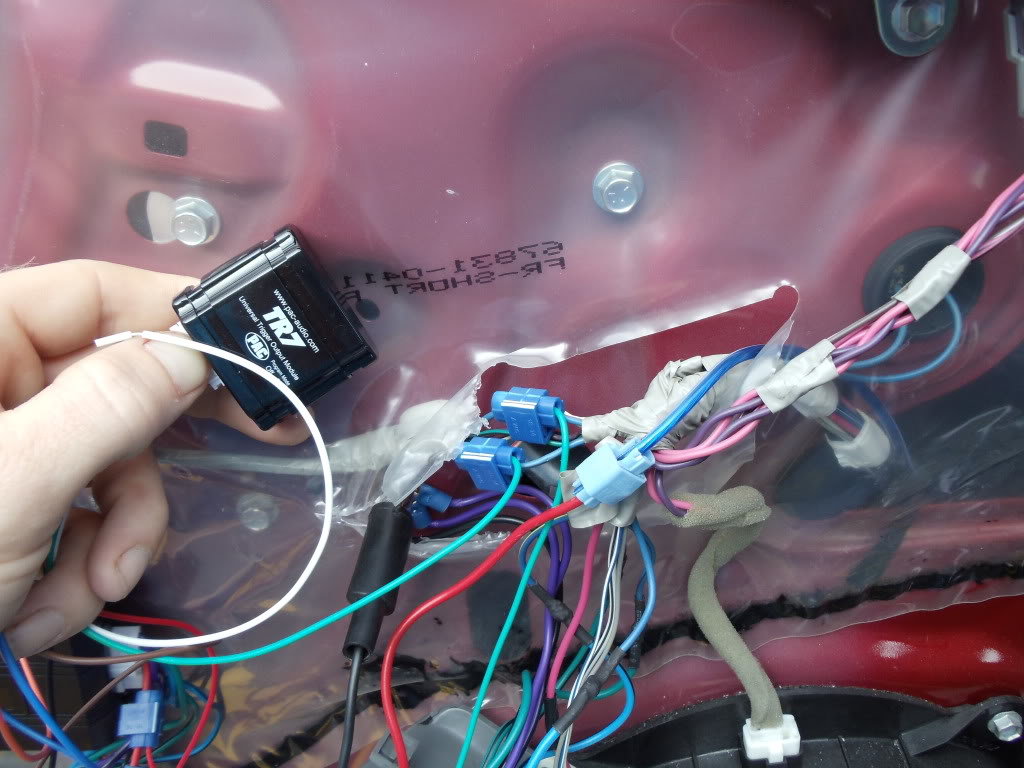

    You need to tap the red wire from the TR7s to the 530T harness between the fuse and 530T for more safety. Do the same for the black wire and tap the 530T harness anywhere.

    [​IMG]

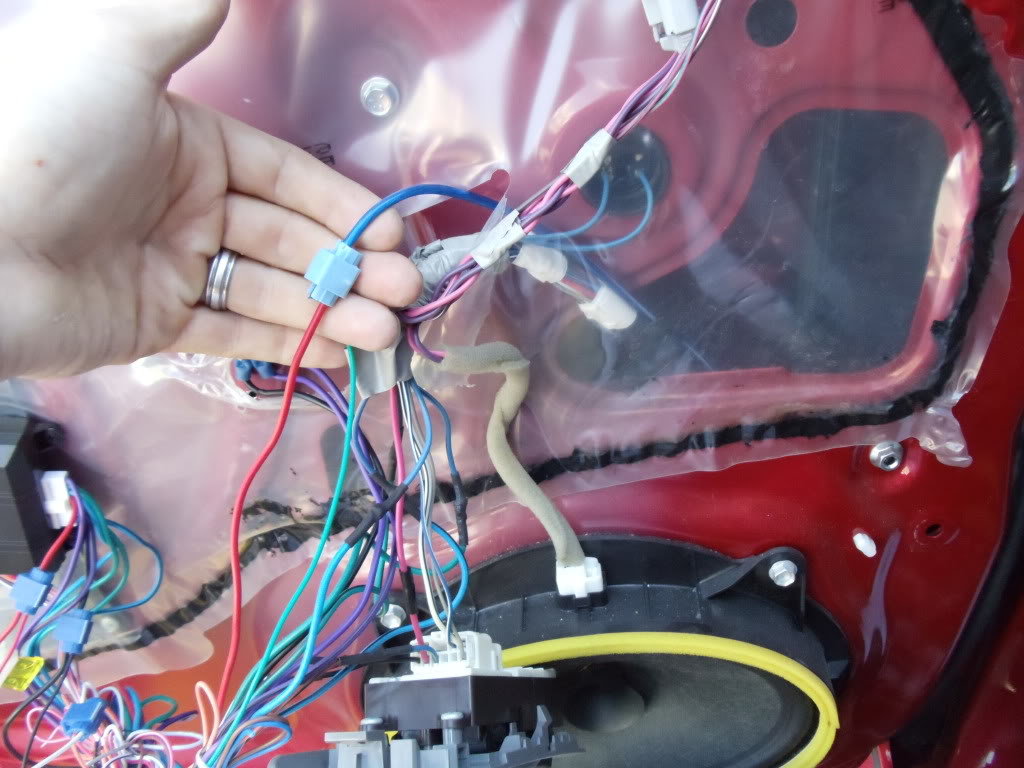

    For the Lock TR7 you will tap the door lock wire which is Blue/Red stripe. If you are unsure of this take out your multimeter and lock/unlock the doors. You should see it jump to +12v momentarily when pressing lock. Tap the Green wire from the TR7 to this wire.
    [​IMG]

    For the unlock TR7 you will tap the door lock wire which is Blue/Black stripe. If you are unsure of this take out your multimeter and lock/unlock the doors. You should see it jump to +12v momentarily when pressing lock. Tap the Green wire from the TR7 to this wire.

    [​IMG]

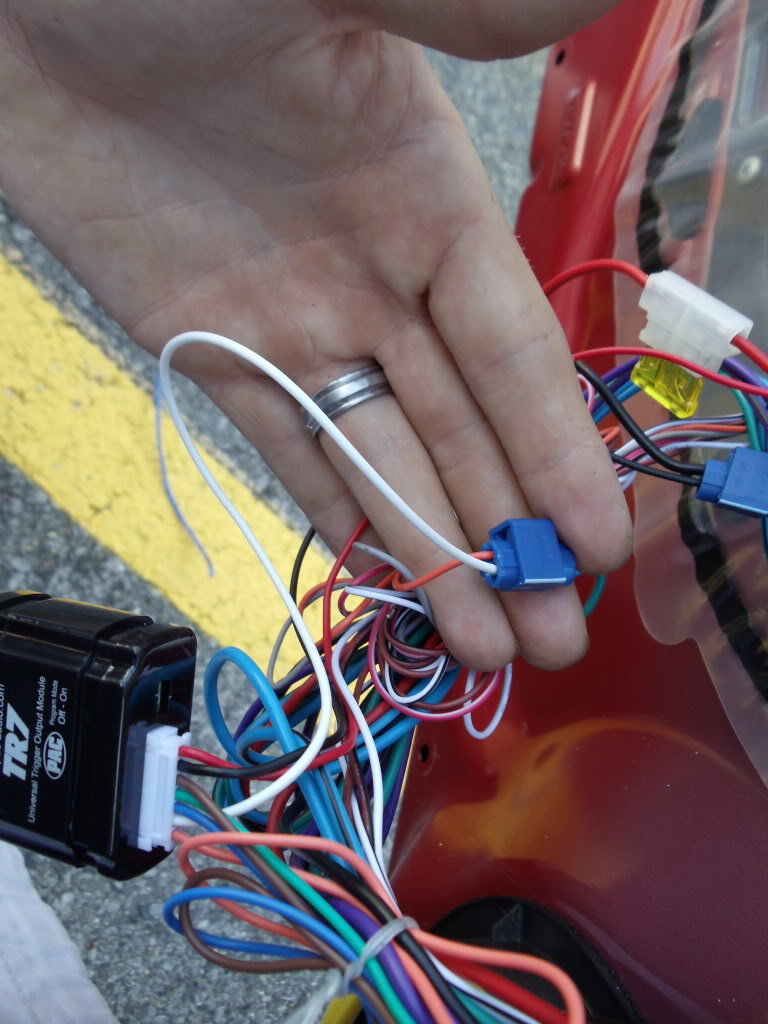

    Next you will hook up the - output (White) from the Lock TR-7 to the orange wire for the 530t.
    [​IMG]

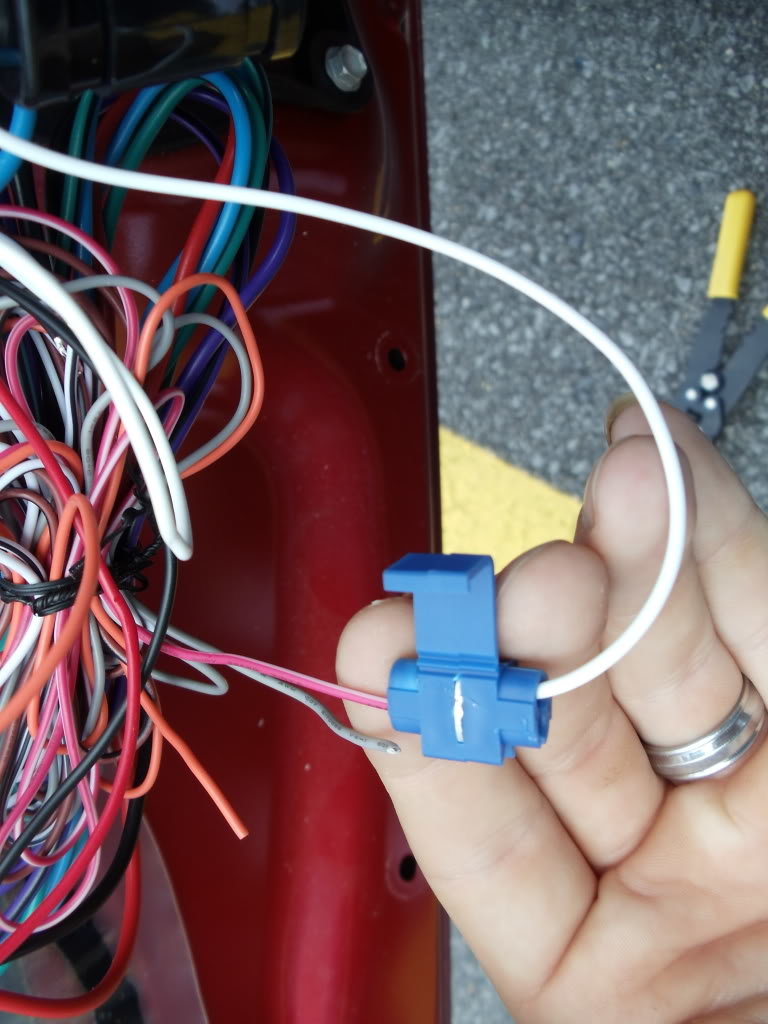

    Then you will hook up the - output (White) from the unock TR-7 to the Red/White striped wire for the 530t.

    [​IMG]

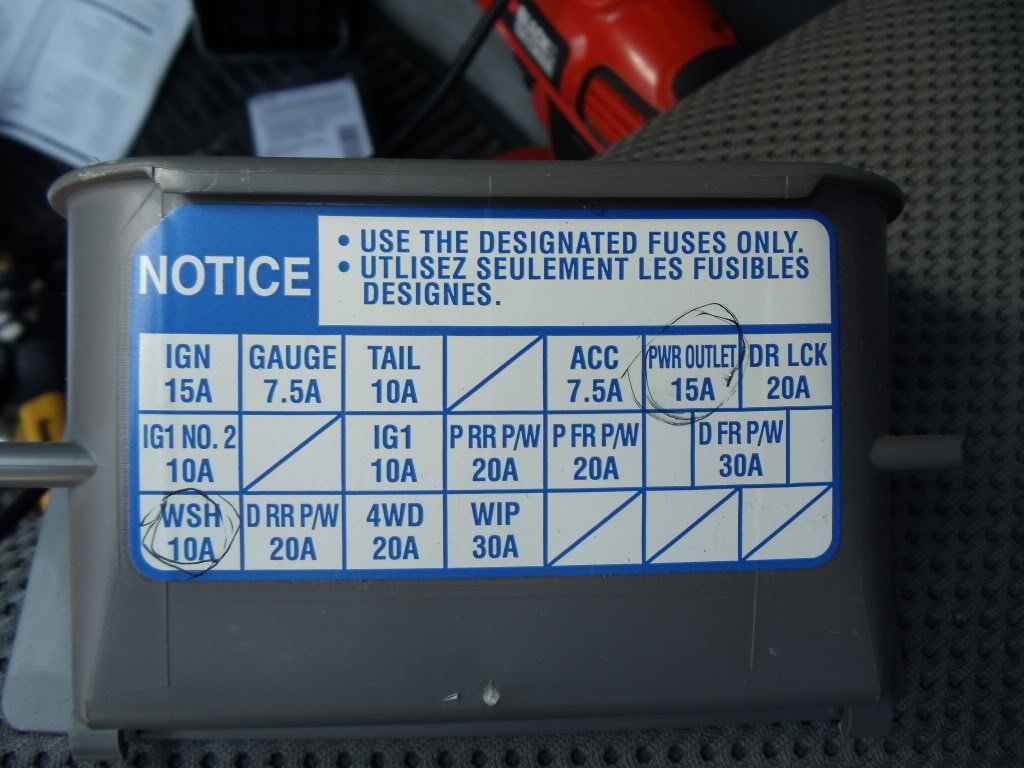

    Now for the 12v constant wire i ran the speaker wire from inside the door to the cab and used an add a curcuit tap into the "power outlet" fuse. This will be way easier to do with a wire "fishing" tool to pull the wire through the rubber cover thats between the door and cab.
    [​IMG]

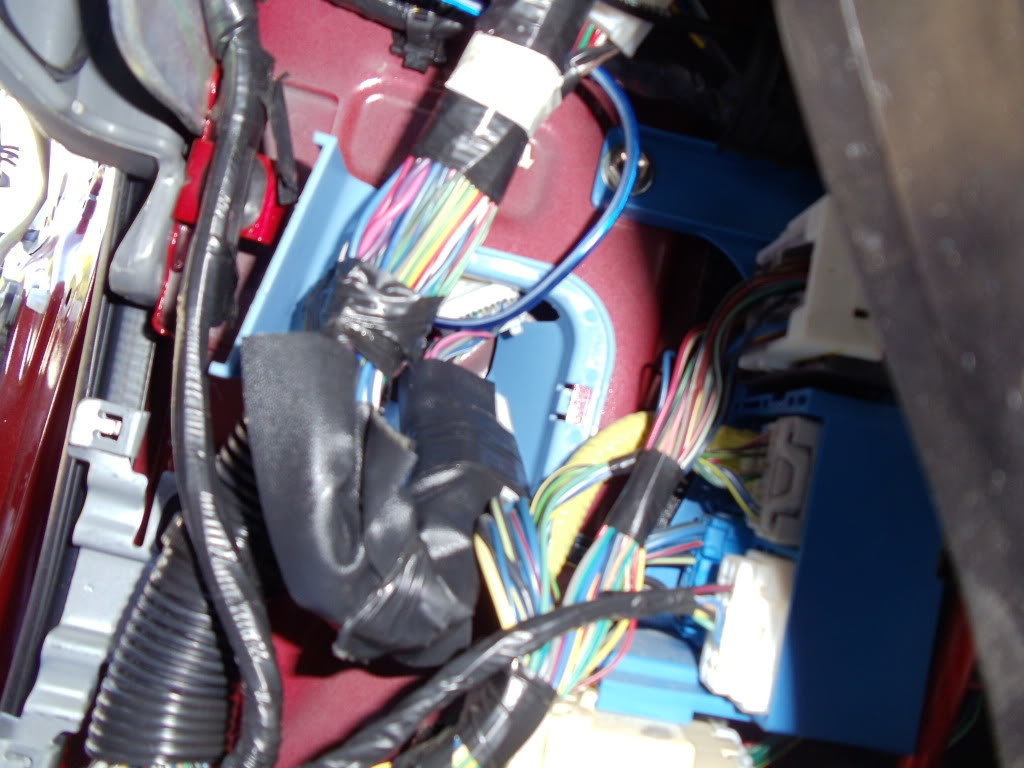

    Under the dash behind the kick panel
    [​IMG]

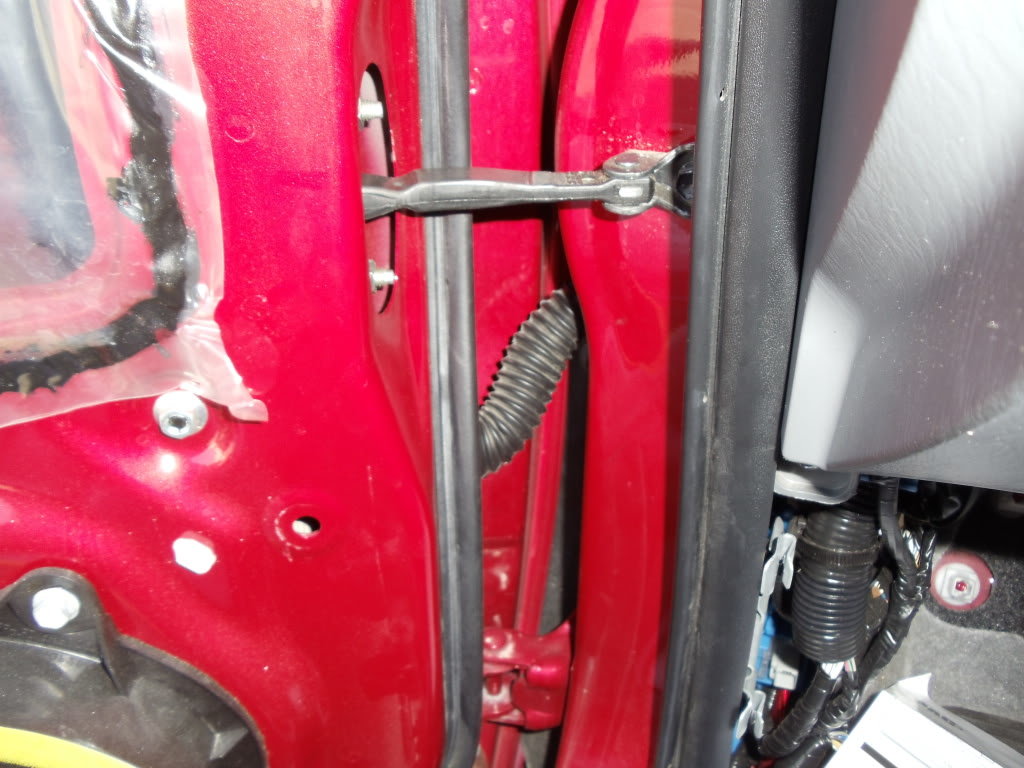

    The rubber part between the door and cab
    [​IMG]

    [​IMG]


    With all of the above done this is the outcome.....

    http://www.youtube.com/watch?v=6epvbZtr4sw

    Noahs2015Taco and Norton like this.
  2. Sep 8, 2011 at 8:09 AM
    #2
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    I have an additional unit that I will add to the DEI 530T that will allow me to remotely roll the windows up and down from the key fob. If everything works out with it then I will add it to this write up.

  3. Sep 10, 2011 at 5:38 PM
    #3
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
  4. Sep 10, 2011 at 5:42 PM
    #4
    Blackshirts

    Blackshirts Well-Known Member

    Joined:
    Feb 24, 2010
    Member:
    #32057
    Messages:
    3,962
    Gender:
    Male
    First Name:
    Mike
    TX
    Vehicle:
    09 PreRunner
    Headlight mod, sound system. MB Motor Sport Rims. Black Tails. 5100's, 885, grill craft, Fogs, N-Fab Step Sides. BFG TKO Tires, Wet Oks, LED map lights and dome, LED gauge mod
    That's sweet

  5. Sep 10, 2011 at 5:45 PM
    #5
    yotamikez

    yotamikez Street glide or die

    Joined:
    Nov 27, 2010
    Member:
    #46777
    Messages:
    3,594
    Gender:
    Male
    First Name:
    Mike
    Valrico
    Vehicle:
    04 civic & 08 Street glide
    Killer write up man! +1 for you.

  6. Sep 10, 2011 at 5:54 PM
    #6
    tc98tacoma

    tc98tacoma Well-Known Member

    Joined:
    Nov 5, 2010
    Member:
    #45752
    Messages:
    4,204
    Gender:
    Male
    First Name:
    Nik
    San Antonio, Texas
    Vehicle:
    98tacoma4x4
    3inch toytec coils 5100's, aal(soon to be replaced), 33/12.5 km2s, + a money hole...
    I wish I had power windows :/

  7. Sep 17, 2011 at 2:59 PM
    #7
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    Has anyone tried this yet on their truck?

  8. Sep 19, 2011 at 9:07 AM
    #8
    fbconvert

    fbconvert Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    400
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Brought this wreck back from the dead, killed it, then revived it, still going strong.
    I haven't done it on my truck yet but I am going to seriously consider this when I install the windows in my 1965 Mustang. Thanks for the write up, +1 for you sir. :thumbsup:

  9. Sep 20, 2011 at 3:13 PM
    #9
    monoman

    monoman Time to get dirty!

    Joined:
    Aug 18, 2008
    Member:
    #8607
    Messages:
    997
    Gender:
    Male
    First Name:
    Dave
    Exotic, San Jose, Cal.
    Vehicle:
    2003 Tacoma Dbl Cab 4X4
    Great job! Nice write up too! :thumbsup:

  10. Sep 20, 2011 at 3:20 PM
    #10
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    Thanks for the kudos everyone. Now will someone do this mod so I can feel like I contributed something lol

  11. Sep 20, 2011 at 3:25 PM
    #11
    monoman

    monoman Time to get dirty!

    Joined:
    Aug 18, 2008
    Member:
    #8607
    Messages:
    997
    Gender:
    Male
    First Name:
    Dave
    Exotic, San Jose, Cal.
    Vehicle:
    2003 Tacoma Dbl Cab 4X4
    Man, I wish I could but I don't have an alarm or a 2nd gen.:(

  12. Sep 20, 2011 at 3:25 PM
    #12
    T-rev

    T-rev Resident Mall Crawler

    Joined:
    Apr 8, 2008
    Member:
    #5837
    Messages:
    1,367
    Gender:
    Male
    Tempe, AZ
    Vehicle:
    2017 TRD Offroad
    Just put this on my to-do list.. Great write up.

  13. Sep 20, 2011 at 3:30 PM
    #13
    chadderkdawg

    chadderkdawg Don't ask questions you don't want the answer to..

    Joined:
    Apr 29, 2011
    Member:
    #55763
    Messages:
    8,163
    Gender:
    Male
    Des Moines, Iowa
    Vehicle:
    09 FX4 F150
    Subbed like a mother heffer

  14. Sep 20, 2011 at 5:17 PM
    #14
    Doc.SS

    Doc.SS ︻╦╤─

    Joined:
    Oct 6, 2009
    Member:
    #23899
    Messages:
    4,348
    Gender:
    Male
    First Name:
    Frank
    O'side
    Vehicle:
    T|X Baja
    Supercharged
    On the wish list if things to do

  15. Sep 20, 2011 at 5:37 PM
    #15
    Relik

    Relik Well-Known Member

    Joined:
    Nov 8, 2010
    Member:
    #45891
    Messages:
    602
    Gender:
    Male
    First Name:
    Eddy
    Thousand Oaks, CA
    Vehicle:
    '11 TRD Sport PreRunner-Auto-Magnetic Gray
    Bilstein 5100s (Front & ext. Rear), Eibach coils @ 0, MaxTrac 4" Spindles, Light Racing UCAs, 1/4" lean spacer, All-Pro 3" Standard leafs, u-bolt flip kit, SpiderTrax 1.25" wheel spacers, 33" (285/70/17) TreadWright Warden A/T tires, extended lines
    Looks like a lot of steps you can miss, I'd be interested in same just without the key control, just the features inside....maybe that cuts this in half? lol

  16. Sep 20, 2011 at 5:52 PM
    #16
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    I know it seems like a lot but believe me this is very easy to do.

  17. Sep 20, 2011 at 5:54 PM
    #17
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    I wanted to add that if any of you actually uses the key to unlock the door instead of the key fob it will also roll the windows up if you lock the doors twice (with the TR7 installed) and if your inside and press the lock switch twice from the driver AND passenger door.

    And if you set the resistance to low then the windows will stop going up if something blocks them...but will manually have to be rolled back down.

  18. Sep 20, 2011 at 5:54 PM
    #18
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,773
    Gender:
    Male
    First Name:
    Colton
    Gillette, WY
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    Yeah, I gots boost
    Subbed... Definitely on my short list

  19. Sep 20, 2011 at 5:56 PM
    #19
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,773
    Gender:
    Male
    First Name:
    Colton
    Gillette, WY
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    Yeah, I gots boost
    Wait, so can I just crack my windows then? Or does this make them auto-up down always?

  20. Sep 20, 2011 at 6:08 PM
    #20
    babyboi2284

    babyboi2284 [OP] Well-Known Member

    Joined:
    Dec 31, 2010
    Member:
    #48525
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Lockport, Louisiana
    Vehicle:
    09 Barcelona Red X-Runner
    LS 6k projectors w/ white halos, 6k fogs, T-Rex Angry Lids, NST SSK, Coupe Shift Knob, BHLM, LFM, DLM, FLM, JL 500/1 amp, JL 10"w6v2, subX wanna be made by me, Magnaflow muffler, 5% tint, k&n drop in filter, Craven Speed Stubby, map light mod
    Are you referring to if your inside or outside your truck?

To Top
