Write Up: Working Airbags and Occupant Detection System with Aftermarket Seats

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Kelson, Jun 7, 2011.

  1. Jun 7, 2011 at 12:50 AM
    #1
    Kelson

    Kelson [OP] My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    How To get the Airbag system working w/ aftermarket seats.

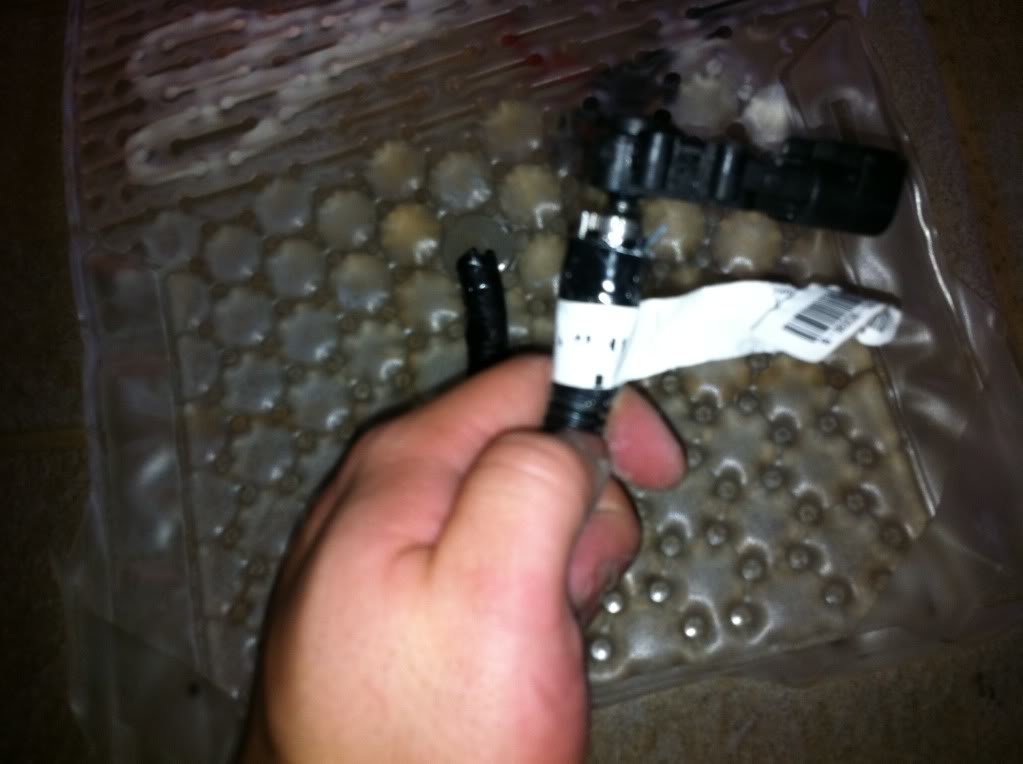

    Step One: Flip bench over to reveal airbag wires. The wires are all in a loop, it’s just a matter of removing clips and zip-ties. You must disconnect the plug for the occupant detection system on the passenger side. Label EVERYTHING!
    [​IMG]
    Step Two: Using a Phillips screwdriver, remove the passenger occupant detection computer.
    [​IMG]

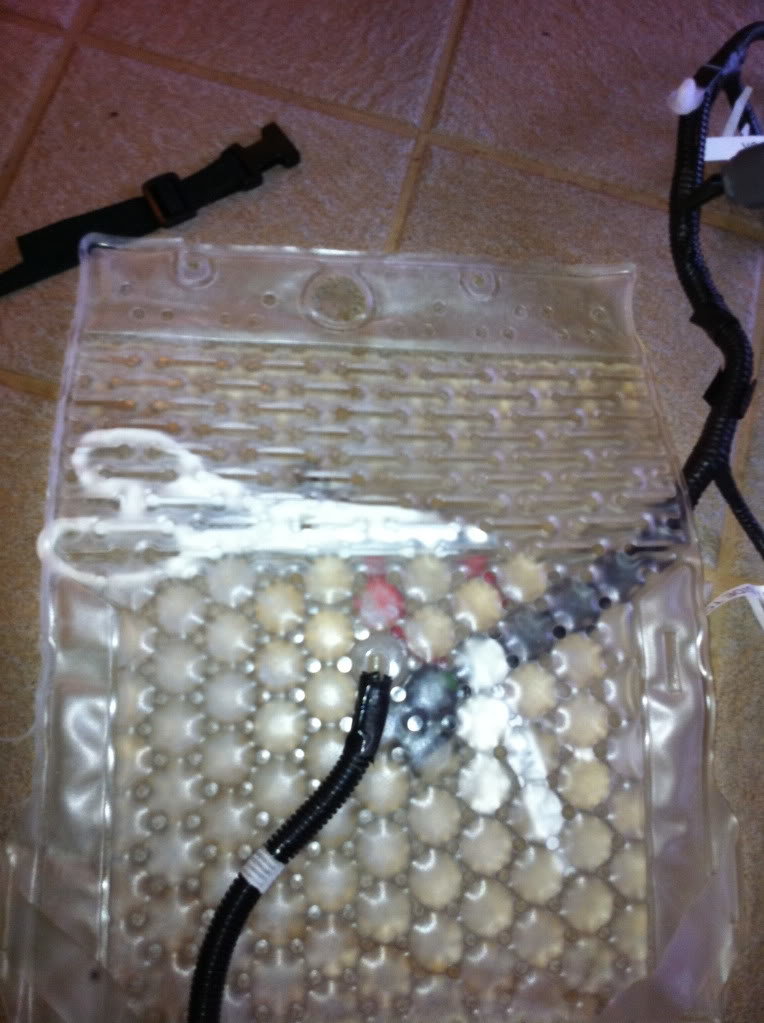

    Step Three: Remove the occupant detection thing. It’s a thin plastic air bladder that sits in between the cushion, a hard plastic layer, insulation and the metal support springs for the seats. Reach in between the plastic hard plastic layer and the air bladder and feel towards the front of the seat. There should be two plastic clips holding the air bladder. Reach for them and rip dat faka out. It is possible to take it out without ripping the small top portion off, but not nessecary as it has nothing to do with the actual occupant detection system; it’s just there to hold it in place.

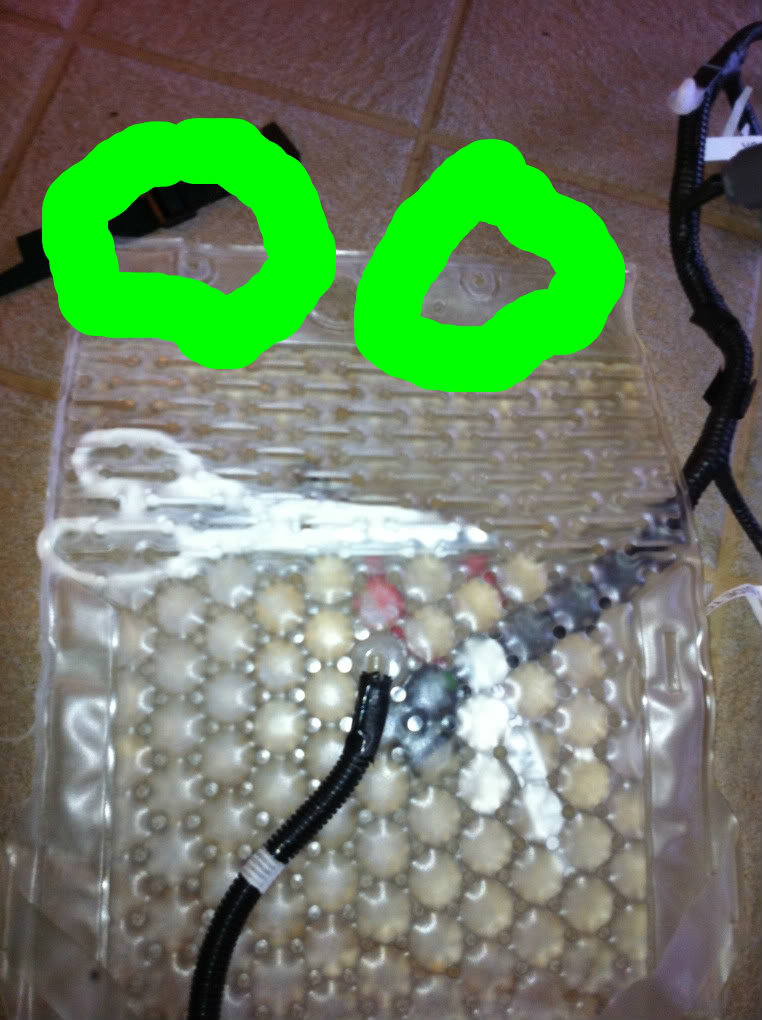

    Picture of the occupant detection system. The two connection points to the seat are circled in green
    [​IMG]
    Undoctored photograph
    [​IMG]

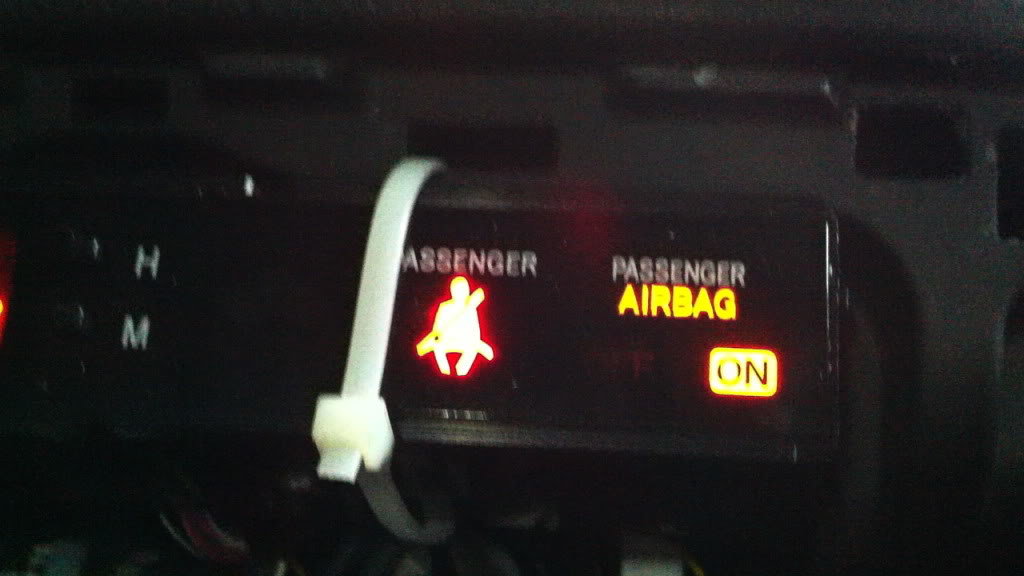

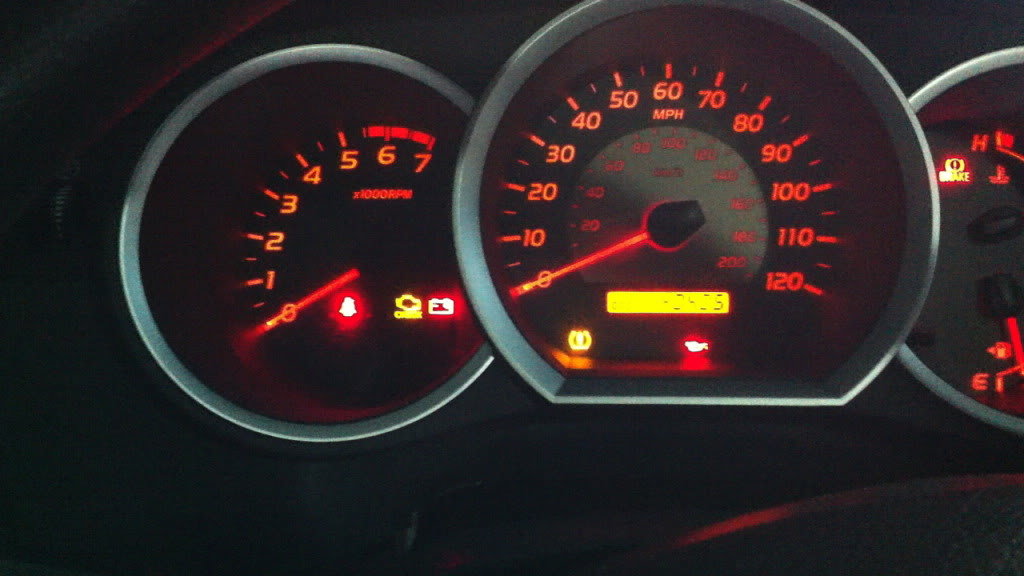

    Step Four: Re connect all harnesses to their appropriate locations, seatbelts, to the truck, occupant sensor and its computer. There are also two grounds that need to be grounded.
    [​IMG]
    Step Five: Hide underneath carpet, or do whatever you want with the gaggle of wires you now have. Find a place to mount the occupant detection system. I chose to put it on top of the passenger seat as they will be covered in the future.
    Step Six: Enjoy your working airbags and passenger occupant detection systems!

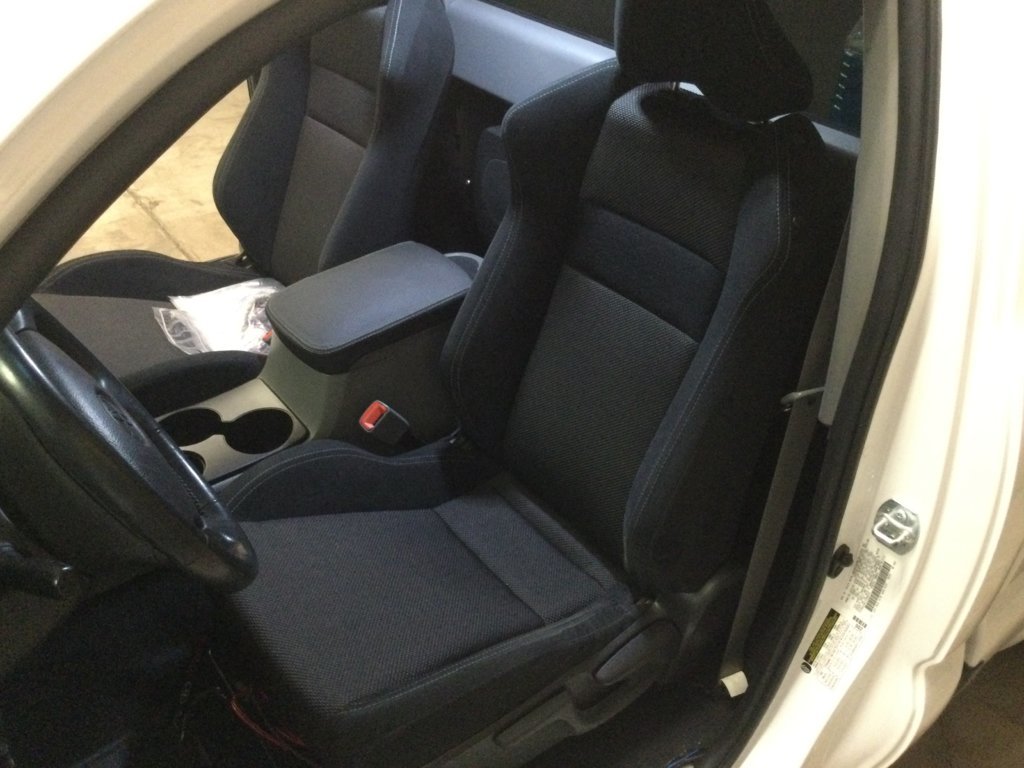

    [​IMG]
    [​IMG]

  2. Jun 7, 2011 at 2:22 AM
    #2
    daggertats

    daggertats Well-Known Member

    Joined:
    Jul 2, 2010
    Member:
    #39720
    Messages:
    544
    Gender:
    Male
    arden nc
    Vehicle:
    2010 tacoma 4x4 reg cab
    undercover tonneau ,bug deflector, removal of all tacoma emblems added a set of component speakers behind the rear seat egr in channel window visors
    great write up

  3. Jun 7, 2011 at 2:43 PM
    #3
    weazleburger

    weazleburger Well-Known Member

    Joined:
    Dec 19, 2010
    Member:
    #47924
    Messages:
    100
    Gender:
    Male
    Baton Rouge, LA
    Vehicle:
    07 base reg cab 5-speed
    man that is awesome! great step by step write up!

    now to find some seats

  4. Jun 7, 2011 at 6:09 PM
    #4
    Boring

    Boring This space intentionally left blank.

    Joined:
    Apr 27, 2010
    Member:
    #36129
    Messages:
    328
    Gender:
    Male
    Arizona
    Vehicle:
    5-lug
    Yes.
    So, this probably applies to 05-08 regular cabs without bucket seats...

    Thanks for the writeup Kelson.

    I did not know there was a butt computer too. Gah! Thanks Toyota. :rolleyes: No freaking wonder the buckets cost $2,000+ each. I was flirting with the idea of trying to transfer buckets into mine too. Now I'm less sure than I was before. I'm really tempted to just sell it and get the extended cab with the buckets already installed. The bench makes me fidget like a 2 year old on drugs.

  5. Jun 8, 2011 at 1:01 AM
    #5
    Kelson

    Kelson [OP] My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,592
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    lol i'm pretty sure if you can find 09+ buckets with the airbags, there probably is a way of swapping them. but prob pretty hard, as im sure there are more sensors in them then the 05-08 seats without the airbags, as they only have seatbelt and ass detectors lol

  6. Nov 16, 2011 at 10:28 PM
    #6
    F16TACO

    F16TACO Well-Known Member

    Joined:
    Apr 16, 2011
    Member:
    #55021
    Messages:
    826
    Gender:
    Male
    First Name:
    LUKE
    CO Springs
    Vehicle:
    '14 Reg Cab 4X4
    the bladder for the passenger occupant system is not full of air either. its full of a fluid like jelly crap. i found out the hard way when i pulled the hose off the connector on the bottom of the bladder. it leaked oily jelly all over and now the bladder is useless. just info if anyone is doing this. DO NOT disconnect the tube!!!

  7. Nov 16, 2011 at 10:35 PM
    #7
    TacomaBuzz

    TacomaBuzz Manual Transmission Enthusiast

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,178
    Gender:
    Male
    First Name:
    Matt
    Connecticut
    Vehicle:
    2011 RegCab Manual 5 lug
    Hose clamp mod, Bench>Buckets swap,6-Speed center console,Secondary air filter removed,AFE pro dry s,Weathertech mats,TRD seat covers,Sirius,Pop N Lock, Bed Mat,Int Wiper switch, Bugflector,Yellow Fog lights,Ventvisors,back-rack.
    I did the same thing bro, I'm trying to locate an OEM passenger airbag on/off switch/plastic so I can bypass the stupid passenger seat bladder. The bladder is filled with an oil, when you sit on it, it puts back pressure on the switch which activates the passenger airbag. I'm going to splice those wires and use the OEM passenger airbag on/off switch instead!!

  8. Nov 16, 2011 at 10:40 PM
    #8
    F16TACO

    F16TACO Well-Known Member

    Joined:
    Apr 16, 2011
    Member:
    #55021
    Messages:
    826
    Gender:
    Male
    First Name:
    LUKE
    CO Springs
    Vehicle:
    '14 Reg Cab 4X4
    yeah i saw that on your bucket seat swap thread. i think im gonna look into the switch for that stupid bladder and see if i can rig it to just keep the airbag on all the time.

  9. Nov 16, 2011 at 10:46 PM
    #9
    TacomaBuzz

    TacomaBuzz Manual Transmission Enthusiast

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,178
    Gender:
    Male
    First Name:
    Matt
    Connecticut
    Vehicle:
    2011 RegCab Manual 5 lug
    Hose clamp mod, Bench>Buckets swap,6-Speed center console,Secondary air filter removed,AFE pro dry s,Weathertech mats,TRD seat covers,Sirius,Pop N Lock, Bed Mat,Int Wiper switch, Bugflector,Yellow Fog lights,Ventvisors,back-rack.
    the earlier 2nd gen tacoma's came factory with the keyed passenger airbag on /off switch which was replaced with the bladder. I already installed the resistors to bypass the side curtain airbags and transplanted the computer occupant detection system wires/ seat buckles/ sensors. the only thing I need is that switch . I destroyed the bladder trying to remove it, oil all over the floor, LOL.

  10. Nov 16, 2011 at 10:51 PM
    #10
    F16TACO

    F16TACO Well-Known Member

    Joined:
    Apr 16, 2011
    Member:
    #55021
    Messages:
    826
    Gender:
    Male
    First Name:
    LUKE
    CO Springs
    Vehicle:
    '14 Reg Cab 4X4
    I am gonna run back to the junk yard tomorrow and see if i can get that switch off the 05 i got the seats from. ill see what i can do with that also.

  11. Nov 16, 2011 at 10:56 PM
    #11
    TacomaBuzz

    TacomaBuzz Manual Transmission Enthusiast

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,178
    Gender:
    Male
    First Name:
    Matt
    Connecticut
    Vehicle:
    2011 RegCab Manual 5 lug
    Hose clamp mod, Bench>Buckets swap,6-Speed center console,Secondary air filter removed,AFE pro dry s,Weathertech mats,TRD seat covers,Sirius,Pop N Lock, Bed Mat,Int Wiper switch, Bugflector,Yellow Fog lights,Ventvisors,back-rack.
    Sounds good man, keep me posted and vice versa! We'll get this sorted out seeing as we both have the same dilemma.

  12. Nov 16, 2011 at 11:31 PM
    #12
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    510
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    • The dual–stage SRS airbag system has been used for the driver and front passenger airbags. This system controls the optimal airbag inflation by judging the extent of impact, seat position (driver seat), whether or not the seat belt is fastened (driver seat) and information from the front passenger occupant classification system.







    • The front passenger occupant classification system judges whether the front passenger seat is occupied by an adult or child (with child seat) or is unoccupied, according to the load applied to the front passenger seat and whether the seat belt is buckled. Based on the results, it restricts the deployment of the front passenger airbag, front passenger side airbag, and front passenger seat belt pretensioner. In addition, the system informs the driver of the result of the judgment through the use of the AIRBAG ON/OFF indicator lights.

  13. Nov 16, 2011 at 11:55 PM
    #13
    TacomaBuzz

    TacomaBuzz Manual Transmission Enthusiast

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,178
    Gender:
    Male
    First Name:
    Matt
    Connecticut
    Vehicle:
    2011 RegCab Manual 5 lug
    Hose clamp mod, Bench>Buckets swap,6-Speed center console,Secondary air filter removed,AFE pro dry s,Weathertech mats,TRD seat covers,Sirius,Pop N Lock, Bed Mat,Int Wiper switch, Bugflector,Yellow Fog lights,Ventvisors,back-rack.
    ^ Pretty much says everything we already know, Can't expect Toyota to write a DIY on how to bypass airbag hardware, LOL

  14. Jul 23, 2012 at 9:45 PM
    #14
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,839
    Gender:
    Male
    you never show re-installing the bladder in the new seats.where did you place them?

  15. Aug 19, 2013 at 6:04 AM
    #15
    Kavik

    Kavik Kavik

    Joined:
    Jan 30, 2012
    Member:
    #71810
    Messages:
    3,147
    Gender:
    Male
    First Name:
    Rylan
    Texas, DFW
    Vehicle:
    2005 Toyota Tacoma
    3 inch drop blocks (Beefed Taco),Satoshi Grill, Morimoto bi-xenon H1 Retrofitted headlights, Flowmaster exhaust, Blue LED interior and exterior, blue LED dome light, Anzo black LED taillights, Hifonics Brutus 1100w Mono Block, Bazooka 300w Amp, LED license plate lights.
    subed

  16. Mar 1, 2014 at 4:00 PM
    #16
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    1,213
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DBCB SB 4x4
    Yes
    Saving

  17. Jan 15, 2015 at 8:17 AM
    #17
    xaqori

    xaqori I need gas money

    Joined:
    Jun 10, 2012
    Member:
    #80410
    Messages:
    1,796
    Gender:
    Male
    First Name:
    Zac
    Marietta, Georgia
    Vehicle:
    '06 4x4 Limo
    ARB lockers and 4.88s front and rear, OME 886s, Dakars, etc., Safari Snorkel, 17"Fuel Revolvers w/ 35x12.50r17 KM2s, fenders cut 3" all around, Pioneer AVH-P4400BH w/ Backup cam, CB/PA (PA Installed), Weathertech Digis, Foglight anytime, AP: front bumper, skids, and pack rack, custom sliders, Warn 9.5XP, dual VIAIR 480Cs with a 2.5gal tank, OTRATTW switches galore, URD y-pipe, RCI skids, LF 240s, etc.
    So how can we override the seat airbags completely? I really want Corbeaus but I have OEM in-seat airbags...and I didn't see anything here to transplant the airbag, just the occupant sensor :notsure:
