Discussion in '1st Gen. Tacomas (1995-2004)' started by fukthacubs, Nov 15, 2008.

  1. Nov 15, 2008 at 1:43 AM
    #1
    fukthacubs

    fukthacubs [OP] Well-Known Member

    Joined:
    Apr 7, 2008
    Member:
    #5815
    Messages:
    56
    wisconsin
    Vehicle:
    v6 sr5 4x4 5 speed
    Metric sockets
    Phillips screwdriver
    New clip from Toyota -i think it was like 12 buks
    Jack Daniels

    1 shot of jack

    2 detach seat belts, the plastic covers just pop off. its just 1 bolt on each of the belts the housing stays together. then i popped off the little inserts that guide the belts into the recoil. this gave me leverage to pop the panel off.

    3 shot of Jack

    4 after clip is removed attach the new one to the window first then bolt her down and button everything back up.

    5 shot of jack

    hope this helps some one i had to wing it and was kinda nervous, but no worries it only took about a half hour.

    Doug


  2. Aug 6, 2009 at 8:13 PM
    #2
    Mootsman

    Mootsman Active Member

    Joined:
    Jun 13, 2009
    Member:
    #18418
    Messages:
    44
    Gender:
    Male
    Gunnison, Colorado
    Vehicle:
    02 Tacoma SR5
    3" Fabtech Lift
    Alright, I got mine done. It was pretty straight forward as these instructions say. The only thing I would add is that you also have to remove the little coat hanger that sits at the top of the wall panel.

  3. Aug 7, 2009 at 6:13 AM
    #3
    STLharry

    STLharry Lube: It's the key to penetration.

    Joined:
    Oct 11, 2008
    Member:
    #9899
    Messages:
    1,911
    Gender:
    Male
    First Name:
    Harry
    VT
    Vehicle:
    Yeti Rescue Package with 240k miles
    '95-'97 camouflaged, ARB bull bar, RAT Products skid plate kit, sliders, Green Mountain Customs rear tube bumper and overland bed rack, King coilovers with Icon neoprene covers, defenestrated sway bar, OME Rear Suspension: CS046R leafs + AAL/5125 shocks/NWOR greasable hardware/U-bolt flip kit; S13WL Tundra calipers/pads/rotors, IPF H4 lenses and bulbs, IPF 968 DCG 100W lights, clapped out CB radio, Aussie-spec FJ60 inclinometer, ARB CKMA12 compressor, Superwinch S9000 with 12V Guy clock switch, 4' Hi-Lift, deckplate mod/grey wire mod/dif breather extensions, Duratrac tires, Sockmonkey bedside decals, boat cupholder, Dakine bike pad
    Is the Jack Daniels OEM for toyota?

  4. Aug 7, 2009 at 6:30 AM
    #4
    Mootsman

    Mootsman Active Member

    Joined:
    Jun 13, 2009
    Member:
    #18418
    Messages:
    44
    Gender:
    Male
    Gunnison, Colorado
    Vehicle:
    02 Tacoma SR5
    3" Fabtech Lift
    I didn't follow that portion of the instructions and everything worked just fine.

  5. Nov 13, 2009 at 3:31 PM
    #5
    BagoBuds

    BagoBuds New Member

    Joined:
    Nov 13, 2009
    Member:
    #25898
    Messages:
    1
    Gender:
    Male
    portland
    Vehicle:
    04 taco 4x4
    i cant find the screws to take the seatbealt covers

  6. Nov 13, 2009 at 4:58 PM
    #6
    Mootsman

    Mootsman Active Member

    Joined:
    Jun 13, 2009
    Member:
    #18418
    Messages:
    44
    Gender:
    Male
    Gunnison, Colorado
    Vehicle:
    02 Tacoma SR5
    3" Fabtech Lift
    I may not be remembering this right, but I think the covers just pop off, then there is a bolt under it.

  7. Nov 13, 2009 at 5:57 PM
    #7
    tacoman101

    tacoman101 Well-Known Member

    Joined:
    Jul 11, 2009
    Member:
    #19550
    Messages:
    1,074
    Gender:
    Male
    First Name:
    scott
    vermont
    Vehicle:
    2001 Tacoma sr5 xtra cab 4wd
    blue led headlights, 285/75/16 grabber AT2's, custom pedals, custom shifter, flowmaster 40 series muffler, bedlinered fender flares, 2.5" lift kit via shackles and spacers, custom exhaust out the back, chrome exhaust tip, and Herculined bed, Weathertech floormats, Cabelas Trail Gear Camo Seat Covers ... Nice thing was I got the truck for $4000
    I gotta get around to fix my latch, I think they tend to break alot on 1st gens

  8. Nov 15, 2009 at 6:32 PM
    #8
    derekp

    derekp giddy up!

    Joined:
    May 16, 2009
    Member:
    #17281
    Messages:
    437
    Gender:
    Male
    First Name:
    Derek
    Grand Forks, ND
    Vehicle:
    2001 X-Cab 4x4 TRD V6 5Spd
    Deck plate, Flowmaster Delta-Flow 40 series, 265/75-16 Wrangler TDs, more to come...
    Has anyone found a source for this part, other than the dealer? Do other makes/models share the same part? (junk yard donor ideas?)

  9. Nov 16, 2009 at 7:39 AM
    #9
    sirsaechao

    sirsaechao Well-Known Member

    Joined:
    May 29, 2009
    Member:
    #17772
    Messages:
    2,930
    Gender:
    Male
    First Name:
    Tim
    Commifornia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD 3.4L 4X4 V6
    To much to list...see sig for more...
  10. Nov 16, 2009 at 11:27 AM
    #10
    cadman

    cadman Well-Known Member

    Joined:
    Jan 13, 2009
    Member:
    #12538
    Messages:
    83
    Gender:
    Male
    Pensacola, Florida
    Vehicle:
    TRD PreRunner
    the easiest way to replace the latch is to remove the hinge pin at the attachment point of the latch to the metal fastner.

    (See the first picture in the first post, see the hole on top of the latch?
    that's where the pin is located.)

    you just need to push the pin out...takes all of 5 mins per side...i pushed the pin out with a small nail. inserted the pin and with a pair of pliers and a towel (or your plastic latch protection of choice) and pushed the pin in place. no need to remove seatbelt. push the pin out on your new latch assembly to see how easy the pins are to remove.

    once the pin is out you will have to remove the screw holding the latch to the glass. be careful because there is a rubber seal and you do not want to mess it up when you retighten the screw




    cadman

  11. Nov 17, 2009 at 2:43 PM
    #11
    scocar

    scocar Scouting the perimeter for weakness

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    31,430
    Gender:
    Male
    First Name:
    Dick
    In close proximity to an undisclosed location
    Vehicle:
    2015 DCLB 4x4 SR5
    Back to square one after the 2001. So...
    Those billet hinges look like the way to go. A few days ago I was looking at my busted hinge and had the exact same thought: a little billet deal would solve this forever. I was at the dealer yesterday getting new bottom window trim, and I asked about the hinges. They only sell the full latch assembly for $42 each. And then they'll break again. Assured revenue for Toyota. I'm going to order these billets.

  12. Nov 18, 2009 at 9:46 AM
    #12
    sirsaechao

    sirsaechao Well-Known Member

    Joined:
    May 29, 2009
    Member:
    #17772
    Messages:
    2,930
    Gender:
    Male
    First Name:
    Tim
    Commifornia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD 3.4L 4X4 V6
    To much to list...see sig for more...
    Order them. I did...so easy to install...a small hammer and a allen wrench can push the pins out and push them back with pliers and you are good to go. No need to take the seat belts off and pull the panel to get to it.

  13. May 2, 2010 at 8:42 PM
    #13
    pyrate

    pyrate Active Member

    Joined:
    Apr 19, 2010
    Member:
    #35618
    Messages:
    33
    Gender:
    Male
    Bought a set for me '03. One latches okay. The other latches but can be forced open (driver's side). Any suggestions? Is it possible the part that attaches to the inside of the truck (under the plastic) has been bent (forced open)?

    Thanks.

  14. May 3, 2010 at 5:49 AM
    #14
    sirsaechao

    sirsaechao Well-Known Member

    Joined:
    May 29, 2009
    Member:
    #17772
    Messages:
    2,930
    Gender:
    Male
    First Name:
    Tim
    Commifornia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD 3.4L 4X4 V6
    To much to list...see sig for more...
    One of mine is easier to open then the other one (from the inside...less resistance/force). As far as forced open...I tried it from the outside and they seem solid. If anyone is going to pry that open they might as well take the easy route and break the window to the door vs a small side window. I hope you installed it right. If it bothers you that much...contact jsim and see if they can send a replacement.

  15. May 4, 2010 at 7:32 AM
    #15
    pyrate

    pyrate Active Member

    Joined:
    Apr 19, 2010
    Member:
    #35618
    Messages:
    33
    Gender:
    Male
    It is in there correct, flipped from the way the other side is installed, and it opens EASILY. That is my concern.

    Right now I have a velcro strap around it. This weekend I am going to see if the bracket that mounts to the inside is bent which could change the angle and might be part of the problem. I did contact JSI - haven't heard back yet but it has only been a day.

    Thanks.

  16. May 4, 2010 at 1:34 PM
    #16
    shitroc

    shitroc Master of War

    Joined:
    Oct 14, 2009
    Member:
    #24315
    Messages:
    1,406
    Gender:
    Male
    First Name:
    Ant
    New Brunswick, Canada
    Vehicle:
    2002 Tacoma TRD 4X4
    Listed in sig.......
    both the latches have been broken on mine since i got it but ive never gotten around to fixin it because toyota wants like 50$ per side, i know theyd just break again.these billet ones dont look bad though.

  17. May 5, 2010 at 12:25 PM
    #17
    mudpuppet

    mudpuppet Must pay wife for safe passage

    Joined:
    Apr 10, 2010
    Member:
    #34971
    Messages:
    212
    Gender:
    Male
    First Name:
    Mark
    Somewhere between where Arizona blows and Texas su
    Vehicle:
    Lunar Mist Metallic 03 Taco, X-CAB 4X4 TRD
    American Racing 16X8 Bully Nerf Bars, Toytec 3" w/ Eibach Coils 5100's, Dakars, Poly steering bushings, billet x-cab window latch, XM, trenz billet upper grille, billet lower grille, TRD Skid Plate
    Had this happen to me a few years ago. Assumed it was going to be very difficult. Paid Toyota $125 to fix it. Now I know it really isn't a big deal. The plastic clip piece seems to break easily.

  18. May 5, 2010 at 12:51 PM
    #18
    sirsaechao

    sirsaechao Well-Known Member

    Joined:
    May 29, 2009
    Member:
    #17772
    Messages:
    2,930
    Gender:
    Male
    First Name:
    Tim
    Commifornia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD 3.4L 4X4 V6
    To much to list...see sig for more...
    Im not gonna lie, it was a bitch to install a replacement one until I got these billet ones and was told to just take the two pins out vs pulling the rear quarter panels off.

  19. Sep 10, 2013 at 2:46 PM
    #19
    cdub2002

    cdub2002 Active Member

    Joined:
    Jul 1, 2011
    Member:
    #59163
    Messages:
    26
    Gender:
    Male
    First Name:
    Chris
    Gresham-Corvallis Oregon
    Vehicle:
    White 2002 Tacoma SR5 trying to be TRD worthy
    Bullet Grill, Hella 500ffs, 3" suspension lift, 33" goodyear wranglers, Flowmaster 40 series, Cobra CB, debadged, Kenwood cd, infinity sound, 12" sub. husky tool box...
    Here are a few helpful pictures. Everyone likes pictures
    Doest matter what order you take the pins out or in. Just get them out and then back in without breaking anything lol I used a channel lock, hammer and a small bolt about the same diameter of the pins to use to "suggestively" remove the pins. Hammer worked the best, I was careful doing that. So don't smack it too hard or you'll probably be buying the entire latch...

    [​IMG]

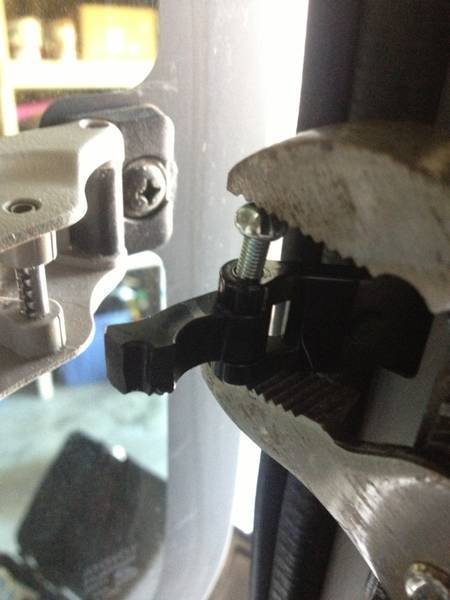

    First I used a the bolt and channel lock to begin sliding the pin out, and finished it the rest of the way with the hammer once the bolt I used could sit inside the pins home. (Yes, I said home, its were it lives, and you will give it small tap taparoos with the hammer till it goes back home later)

    [​IMG]

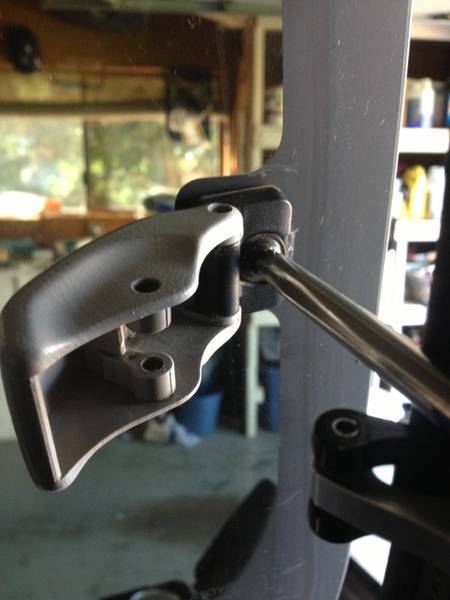

    I put the pin back in with the new billet hinge using the hammer (tap tap tap) and channel locks. Then to make it easier I removed the part from the window and took it to the work bench to get the other pin out (More tap tap taparoos). Once I got that pin out I put it back on the window.

    [​IMG]

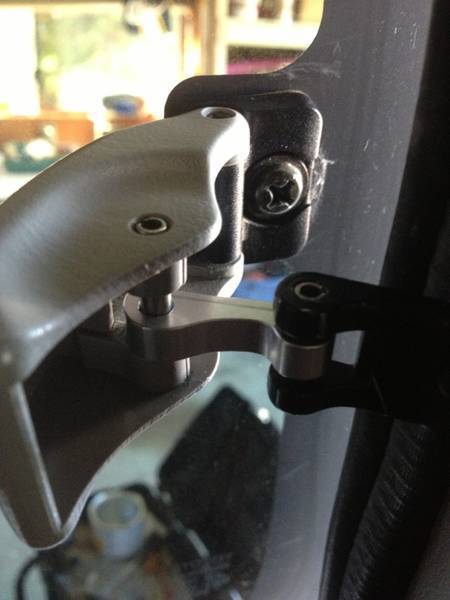

    Line up the new billet hinge with the holes of the latch from the window. Slide the pin down using your hands and make sure its all lined up. Then finish it off with your channel locks.

    [​IMG]

    There you have it. I opened and closed mine a few times. It seems to work great, I was never fortunate enough to know how the stock ones felt. Bought this truck a while back and they were already broken. But I like it a lot. Now I wont yell at my friends when they open those up haha

    Hope this helps for any of you thinking of doing this. Doesn't take long at all and I bought these off Amazon for $9.99 a pair. @ http://www.amazon.com/Billet-Aluminum-Pivots-Tacoma-Quarter/dp/B00877TP4K
