XPOTRPR build & BS

Discussion in '2nd Gen. Builds (2005-2015)' started by XPOTRPR, Oct 16, 2011.

  1. Oct 16, 2011 at 8:33 PM
    #1
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    This build is dedicated to my Dad.

    James "Lex" Moses

    1957-2013

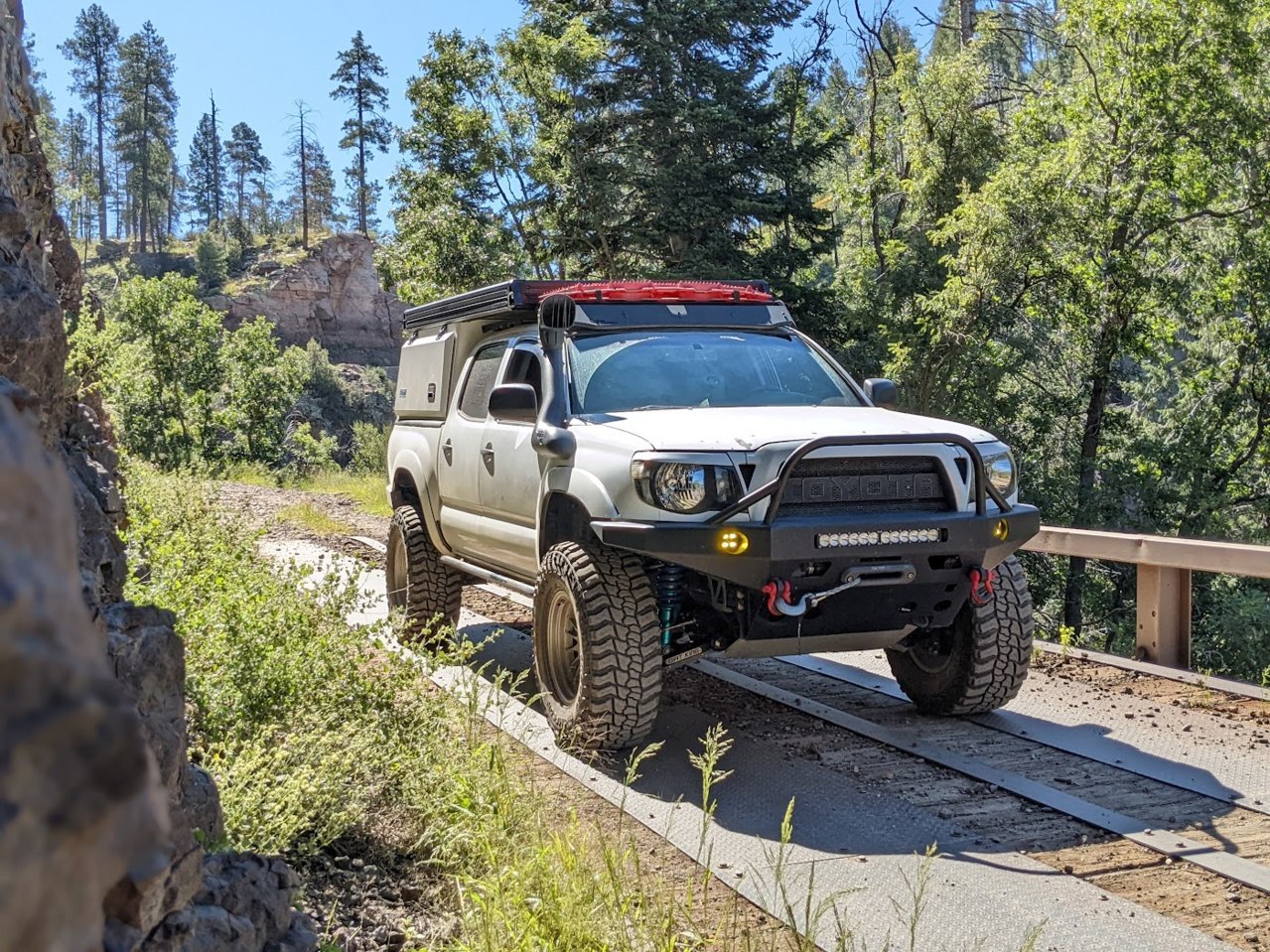

    Truck:
    -2009 Superwhite DCSB TRD O/R 4x4 1GR-FE Auto

    AS OF: 9-3-22

    DrmKrtPpWcy_BVYJIxc_y7JM7WRloxQpvMnrx2BA_5200b795b088c78a063c70afc711e05934b474e5.jpg

    Suspension:

    Front:
    -King 2.5" 700# ext. travel w/ Resi's
    -Dirt King Performance LCA's
    -Camburg 1" Uniball UCA's
    -RC Fab Total Chaos Gusseted Spindles
    -Total Chaos UCA Gussets
    -Total Chaos Cam Tab Gussets

    -Poly Performance Taco Tabs
    -Superbumps bump stops

    -Sway Bar Delete
    -DRT CMR
    -Energy Poly Steering Rack Bushings



    Rear:
    -King 2.5" ext. travel w/ Resi's
    -Toytec BOSS leaf pack w/ custom arch

    -DRT Shackle Hangers
    -Superbumps bump stops
    -Wheelers Red Extended Brake lines


    Wheels/Tires/Brakes:
    -(5) 17x9 -25mm Summit Dakar Matte Gunmetal
    -(5) 35x12.50R17LT Mickey Thompson Baja Boss MT (load range D)
    -Wilwood Forged Superlite 6 Piston Big Brake Kit - PN: 140-14577-R

    -Wilwood Stainless Brake lines


    Drivetrain/Performance:
    -Nitro 4.56 Gears (Front and Rear w/ E-Locker)
    -Safari Airflow Snorkel
    -K&N drop in filter
    -TRD Supercharger
    -Smoothflow 2.5 Pulley on Pulleyboys Hub

    -NST Full Lightweight Pulley + Lightweight S/C Crank Pulley
    -Solid Off-road Solid Motor Mounts
    -Solid Off-road Solid Trans Mount
    -HP Tuners Tuned (justDSM tune)
    -Removed Boost bypass Jet
    -IPT Valve Body Upgrade (Shift Kit)
    -URD 160* Thermostat

    -URD Spec-U Equal Length Headers
    -URD o2 Sims
    -DeatschWerks 255 Fuel Pump
    -Full Cat Delete
    -Custom 2.25" High Clearance Y-Pipe
    -Custom 3" exhaust dumped over axle
    -Resonator
    -Magnaflow Muffler
    -ZZ Performance Coupler
    -Generic Oil Catch Can
    -TRD Rad Cap
    -IEDLS carrier bearing
    -ECGS Needle Bearing
    -Energy Poly Body mounts
    -Energy Poly Radiator mounts
    -ABS killswitch mod
    -Locker anytime mod

    -Diff breather mod
    -Fumoto f103s drain valve


    Exterior:
    -Pelfreybilt Aluminum Single Hoop front bumper w/ frame reinforcements
    -BAMF HC Dual Swingout w/ 2x tables, single Jerry Can, 5lb Propane, and Spare tire mounts
    -Pelfreybilt Aluminum Skids (IFS, Mid, T-Case & Gas Tank)

    -Smittybilt x20 Winch w/ Synthetic line
    -Factor55 Fairlead
    -Fenders cut (Sheetmetal 2.5"/ Flares 2")
    -Prinsu Roof Rack (Custom Cut)
    -CBI Ditch Mounts
    -Custom Homer Raptor grill
    -Redline Hoodstruts
    -Debadged
    -Color matched rear bumper

    -Limo Tint
    -Satin black roof wrap
    -KM Fab Weld on Sliders
    -Scratches, Dings & Dents

    Interior:
    -Weathertech floor liners
    -Black Bartact seat covers
    -Black interior details
    -White interior details
    -Red/White Interior LEDs
    -Sound Deadened back wall
    -AEM AFR and Boost Gauges
    -Custom White Gauge Cluster Face
    -Mod Armor Mag mount
    -Salex center console organizer
    -Maglight mod


    Electronics/Audio/Comms:
    -Bluesea Fuse Block
    -Switch-Pro flush mounted on shifter console w/ custom mount

    -Pioneer AVH W4400NEX headunit​
    -Alpine PDX-V9 5 channel amp
    -Alpine Type R SPR-60C Components (front)
    -Alpine Type R S65 Coaxials (rear)
    -Sundown SD-2 10"
    -Dual 10" custom enclosure
    -Uniden 520xl CB
    -4' Firestik II
    -Midland Handheld
    -Garmin DriveTrack GPS
    -Rugged Radio 5H5R + Ducky



    Lighting:
    -Black Housing headlights w/ 100w Halogen Ultimate Headlight Upgrade & LED Turn Signals
    -Baja Designs 20" OnX6+
    -Baja Designs SAE Squadron Fog Lights
    -Black Housing LED Tail lights

    -White License Plate LEDs
    -Foglight anytime mod


    Gear:
    -Super Pacific X1 Wedge Camper - Build #139
    -Dometic CF80
    -Tortuga XL Off-Road Fridge Slide
    -13 Gallon Ironman 4x4 Watertank w/ 12v water pump + accumulator & faucet
    -5lb Flamemaster propane tank w/ mount
    -Action Packers for Gear
    -Fire Extinguisher w/ Homemade Quick Release Mount
    -Maxsa Escaper Buddy Ramps
    -10lb Poly Performance Co2 tank w/ mount
    -ARB Digital gauge
    -Trasharoo
    -Misc Adventure/Camp Gear in assorted Molle bags


    Upcoming mods:

    -Mishimoto Radiator and HD Transmission cooler w/ E-fan
    -DRT Hangers
    -Solid Offroad Trans mount
    -Digital Rearview mirror
    -Leather steering wheel wrap
    -Headlight hoops and flush mount ditch lights to front bumper + fresh PC
    -OGE Dual Battery + solar

    Wishlist:

    -Remote Start
    -SHOCK TUNING

    MAINTENANCE
    LOG:


    OIL: Castrol Syn 5W-30

    71,600/11-21-15 - Oil Change (Castrol Syn 5w-30)
    72,200/12-19-15 - New Battery (Die Hard Advanced Gold AGM 34R)

    76,954/5-7-16 - Oil Change (Castrol Syn 5w-30) & Cabin Filter Change
    79,859/7-30-16 - New Tires (285/70/17 Cooper ST Maxx)
    81,600/9-24-16 - New Alternator & S/C Belt
    82,378/10-15-16 - Oil Change (Castrol Syn High Mileage 5w-30) and Tire Rotation
    82,700/10-5-16 - New Torque Converter/Fluid & IEDLS Carrier Bearing
    84,981/1-2-17 - Re-Arched Toytec BOSS leaf pack
    86,520/2-12-17 - New CV's/Hubs/Seals/EBC Rotors/Green Stuff Pads/Brake Lines
    87,800/4-2-17 - Oil Change (Castrol Syn High Mileage 5w-30)
    90,873/6-10-17 - F/R Diff & T-Case Fluid(Mobil 1)/New Plugs/SC Oil/K&N Filter
    91,175/6-28-17 - Balance/Rotation
    91,183/6-29-17 - Inner & Outer Tierods
    91,189/6-30-17 - Serp Belt/Upper & Lower Idler Pulley's/Alignment
    93,000/7-13-17 - Nitro 4.56's/Fluids/Seal
    93,056/7-15-17 - Oil Catch Can/Oil Change (Castrol Syn High Mileage 5w-30)
    93,364/7-22-17 - Dayco S/C Belt/Tensioner Pulley/3rd Idler Pulley/AC Resistor
    93,507/7-29-17 - 650# King Coils and new spherical bearings
    98,330/11-28-17 - Oil Change (Castrol Syn High Mileage 5w-30)
    100,534/12-27-18 - Pulleyboys 2.6" s/c pulley
    101,786/1-21-18 - New Black Housing Headlights & Yellow Fogs (Ditched all HID)
    101,866/3-5-18 - New ZZ Performance S/C Coupler
    102,325/4-28-18 - New Steering Rack w/ Poly Bushings/New LCA's/Tierods/TC Gussets
    104,127/5-14-18 - Oil Change (Castrol Syn High Mileage 5w-30)
    104,213/5-16-18 - New Tires (285/70/17 Falken Wildpeak MT)
    104,456/6-16-18 - New Battery (Die Hard Advanced Gold AGM 34R) - Warranty
    109,800/9-19-18 - Driveshaft Re-Tube/New U-joints/Balance
    109,825/9-21-18 - Oil Change/ECGS Needle Bearing/Coolant Flush/URD 160 T-Stat
    114,681/4-24-19 - New Steering Rack Bushings/Driver Side UCA Rebuild & New LCA
    117,360/6-15-19 - Oil Change/Cleaned Filter/MAF/Throttle Body/Installed Fumoto
    119,754/12-21-19 - Pelfreybilt Aluminum bumper w/ Smittybilt x20 Winch/Baja Designs SAE Squadrons
    121,485/2-5-20 - King Rebuild (seals, uniballs, spacers, oil, nitrogen, 700# coils)
    121,537/2-17-20 - New Camburg Sealed Uniball UCAs/New LCAs/New Inner & Outer Tierods/New CVs
    122,354/5/1/20 - Full NST lightweight Pulley Kit + lightweight S/C crank pulley/New oil pan gasket/Oil Change/New Wheelers Superbumps/2.5 Pulleyboys SC pulley
    127,234/1/29/21 - Dirt King LCA's/New OEM Inner & Outer Tierods
    128,215/2/6/21 - New HD CV on passenger side
    128,784/3/25/21 - Solid Offroad Motor Mounts/New Upper Oil Pan/New Starter
    128,853/5/28/21 - New RC Fab TC Gusseted Spindles/New Wheel Bearings/New Battery(DieHard Platinum AGM 24F)
    128,976/7/24/21 - Wilwood BBK and Brake Fluid Flush/Fill/17x9 -25 Summit Dakars/35x12.5r17 Mickey Thompson Baja Boss
    129,675/10/30/21 - New NGK Ruthenium Spark Plugs PN 95125/Cleaned MAF, TB, Air Filter
    130,024/11/16/21 - New Power Steering Pump
    130,167/11/22/21 - Super Pacific X1 Wedge Camper
    133,587/12/30/21 - Oil Change/SC Oil Change
    134,244/1/07/22 - BAMF rear dual swing out
    134,357/1/22/22 - Re-Arched Toytec BOSS pack
    138,674/6/10/22 - New Blower Motor/Resistor/Pigtail(PN's 87138-040070 & 82141-04Q80)
    138,867/8/1/22 - Oil Change/New K&N Cabin Filter
    138,912/8/27/22 - Poly Taco Tabs + Alignment(max caster rear, neutral front)
    140,382/12/22/22 - New upper idler S/C Pulleys/New upper and lower Radiator hoses/New oil cooler hoses/New 160 Motorad Tstat.

    Youtube Channel:
    https://www.youtube.com/user/bamfota88

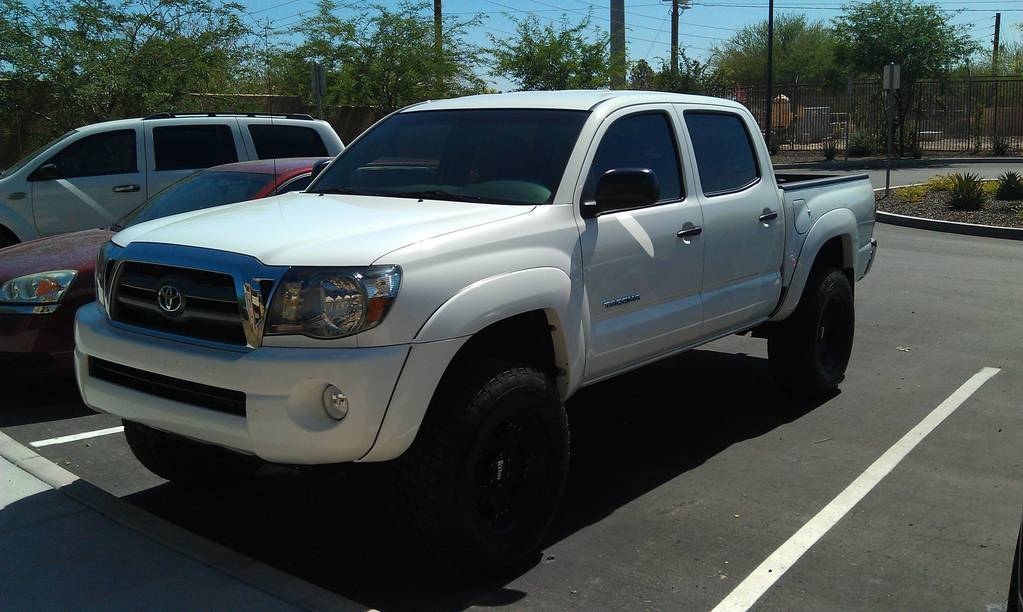

    The day I brought it home:


    [​IMG]

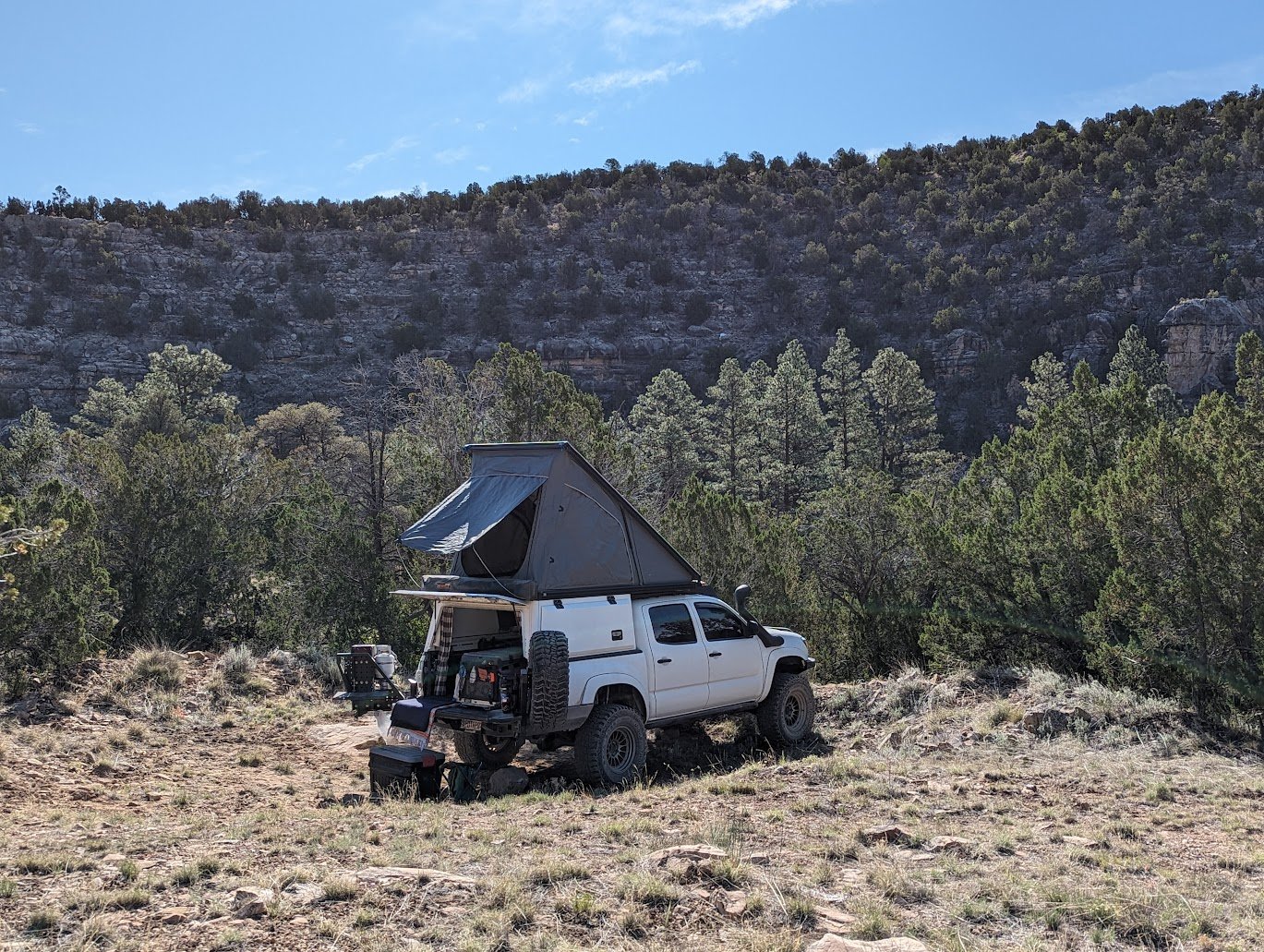

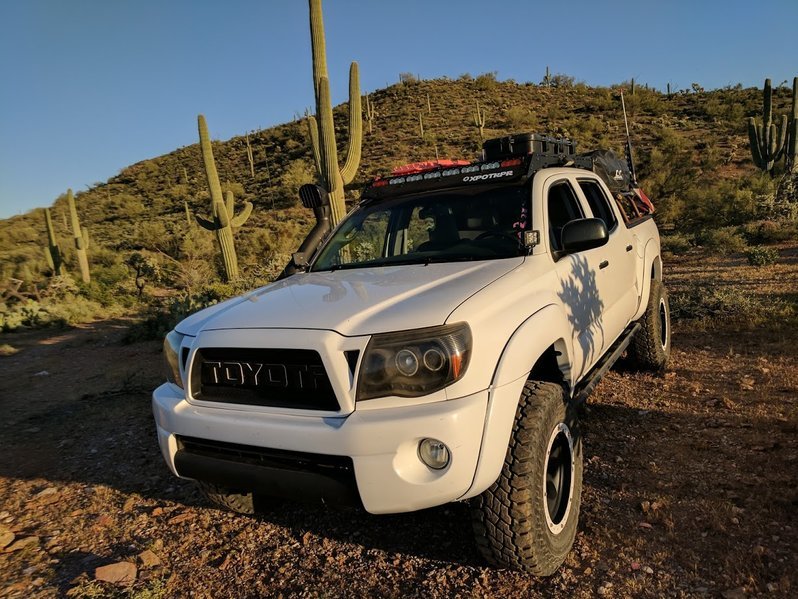

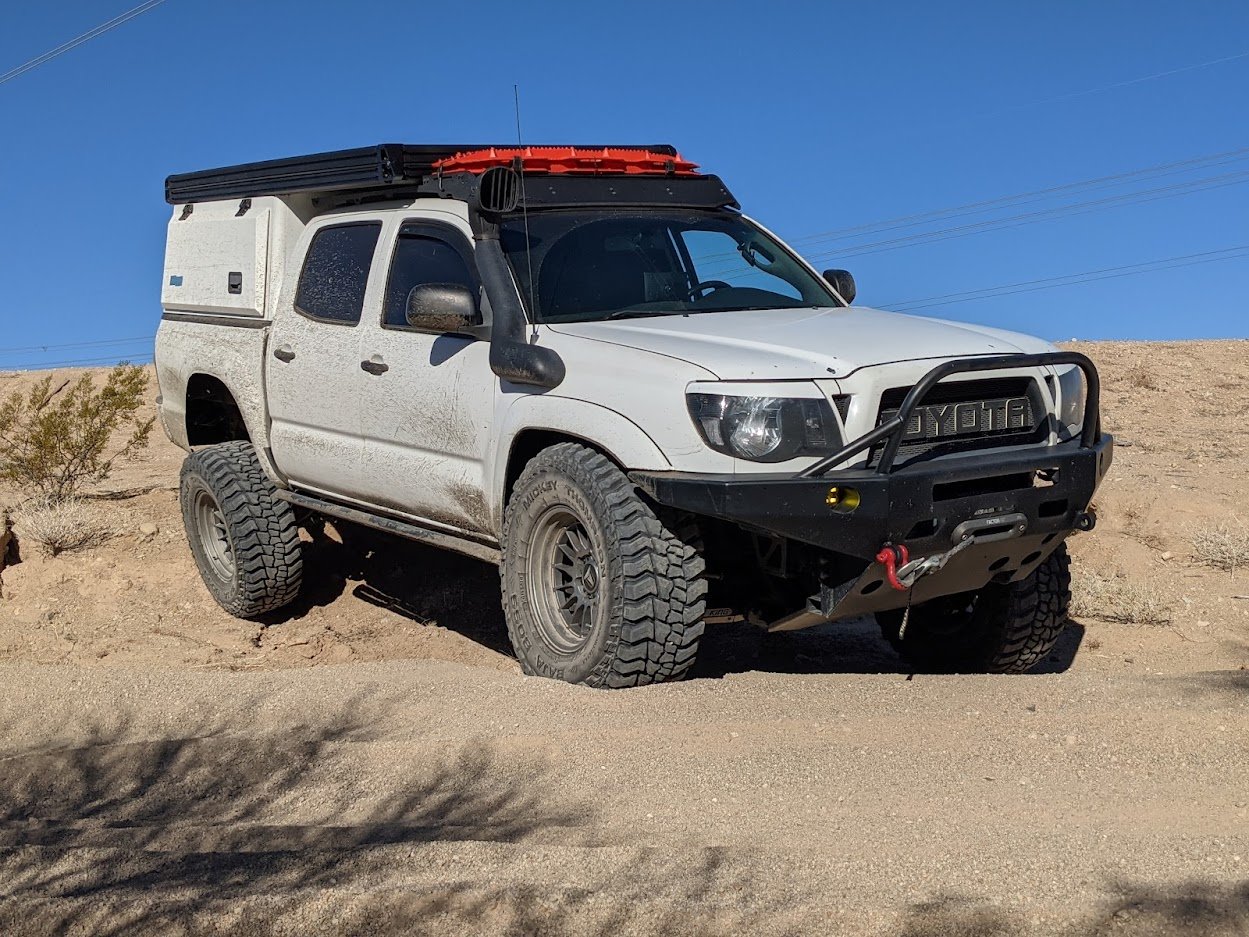

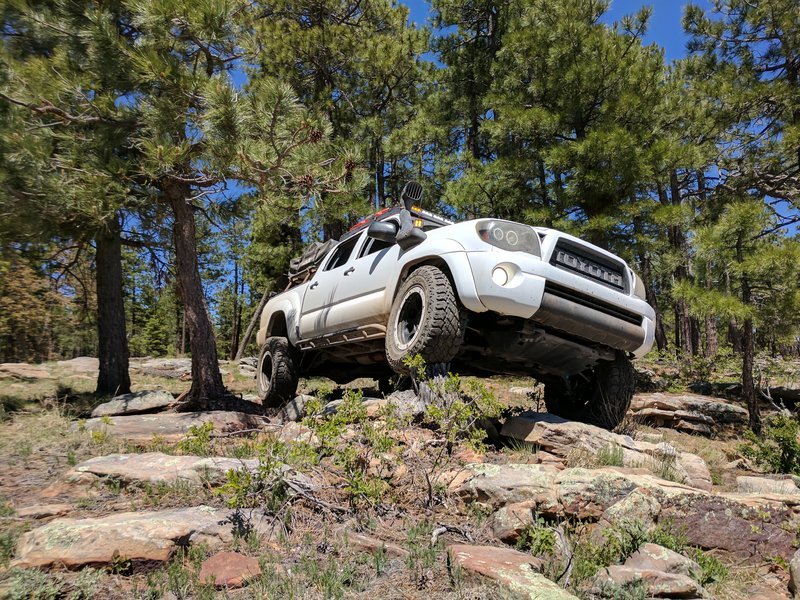

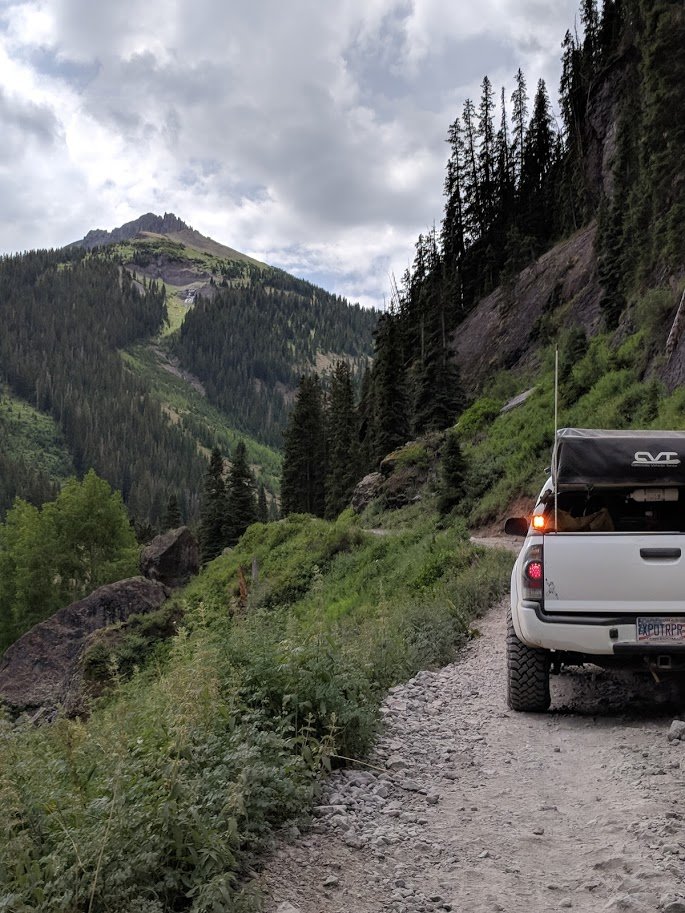

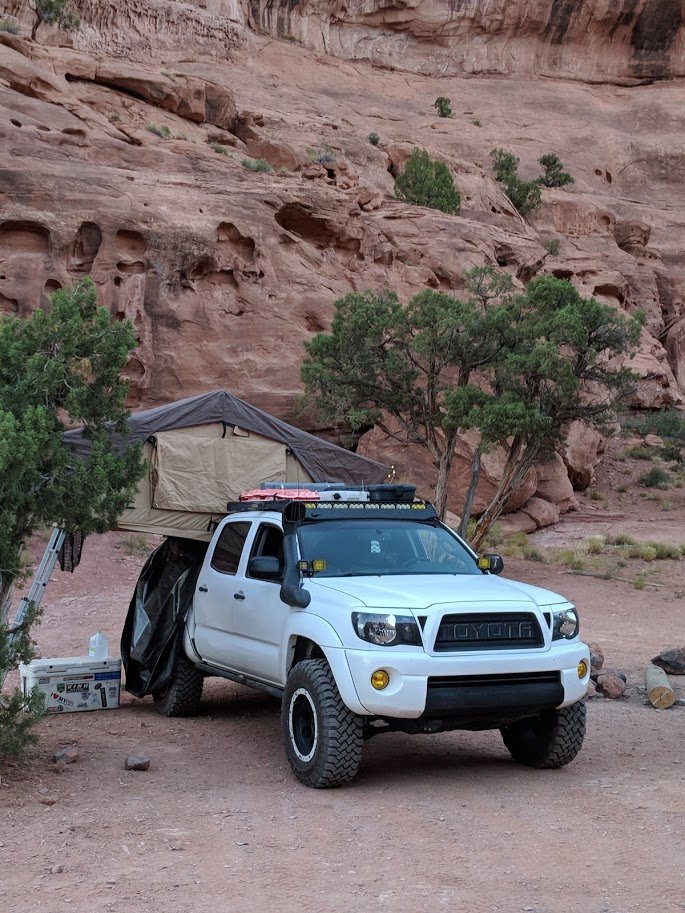

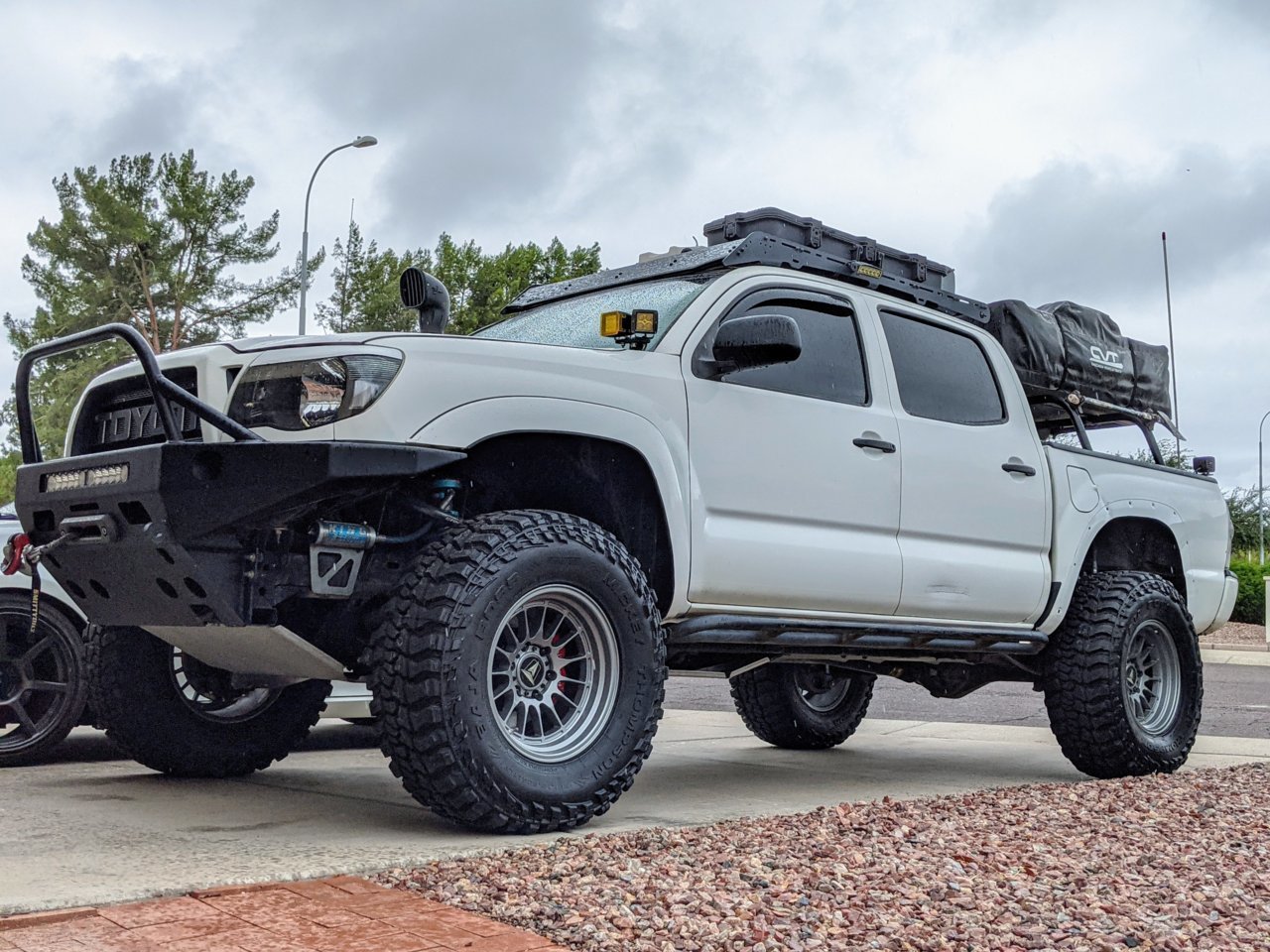

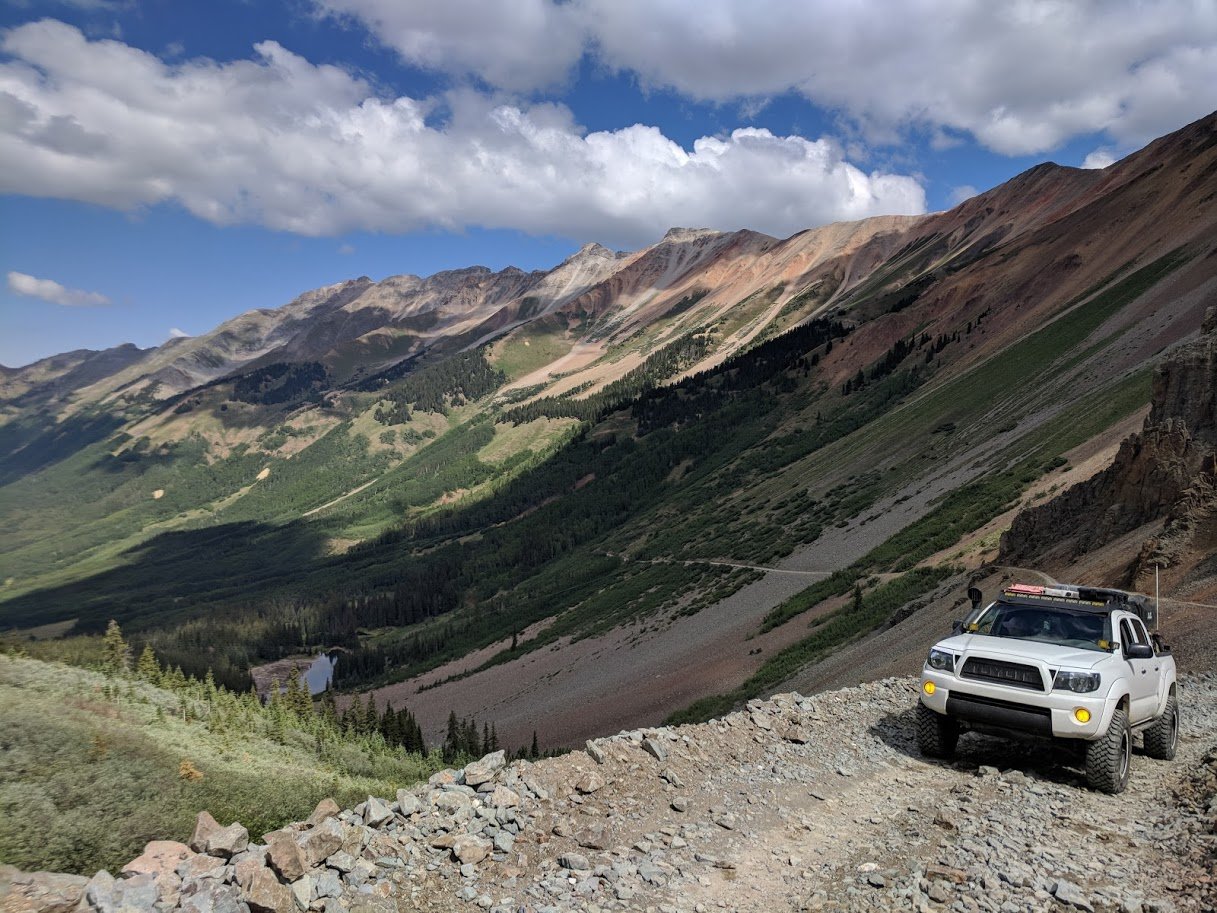

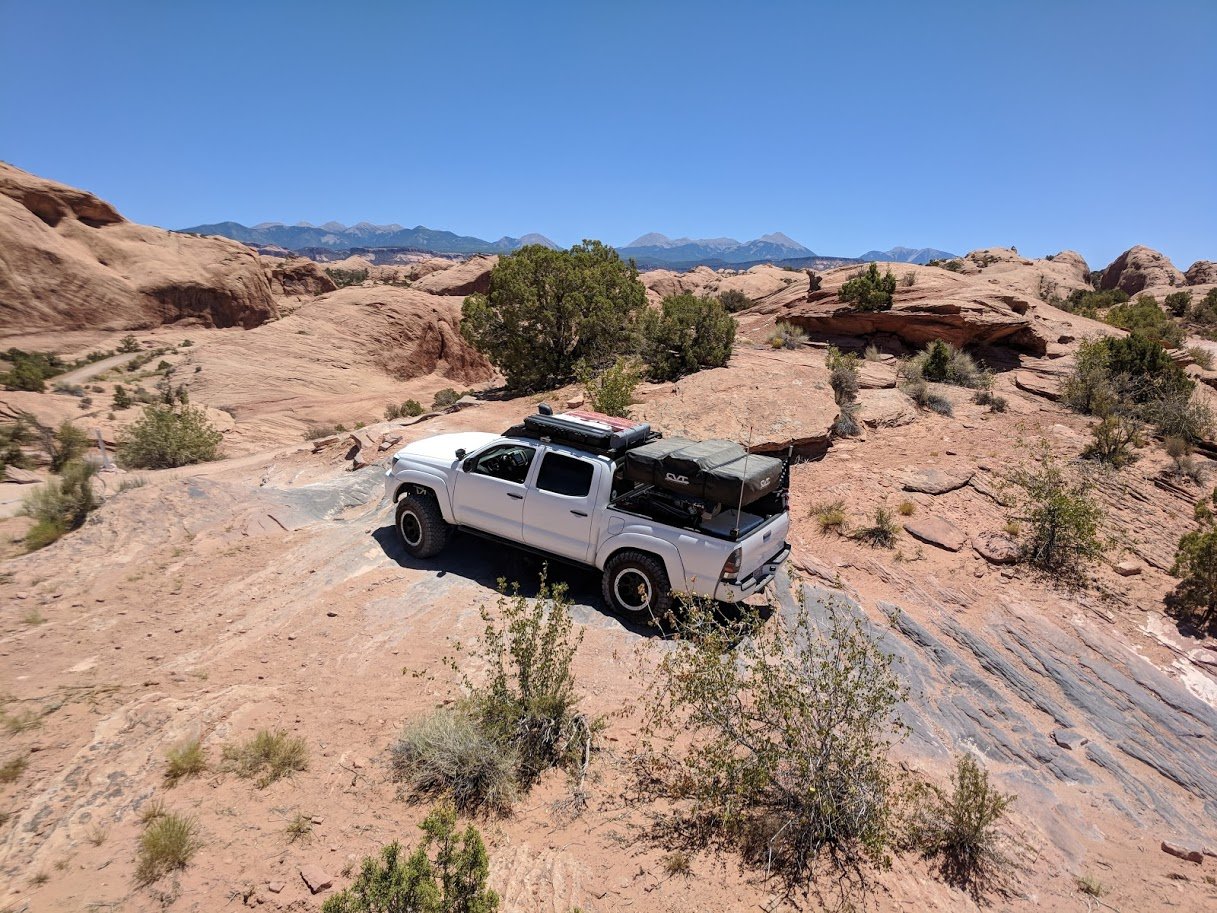

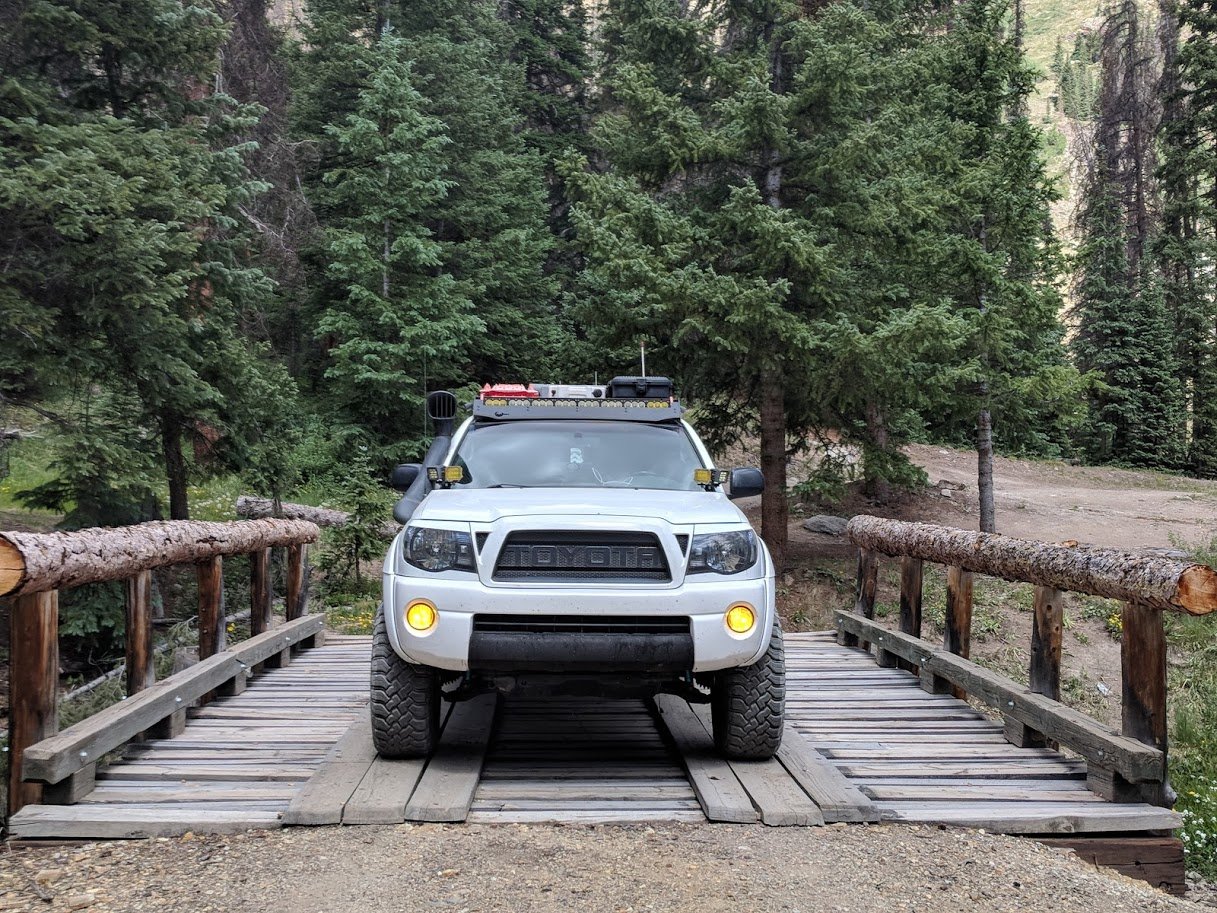

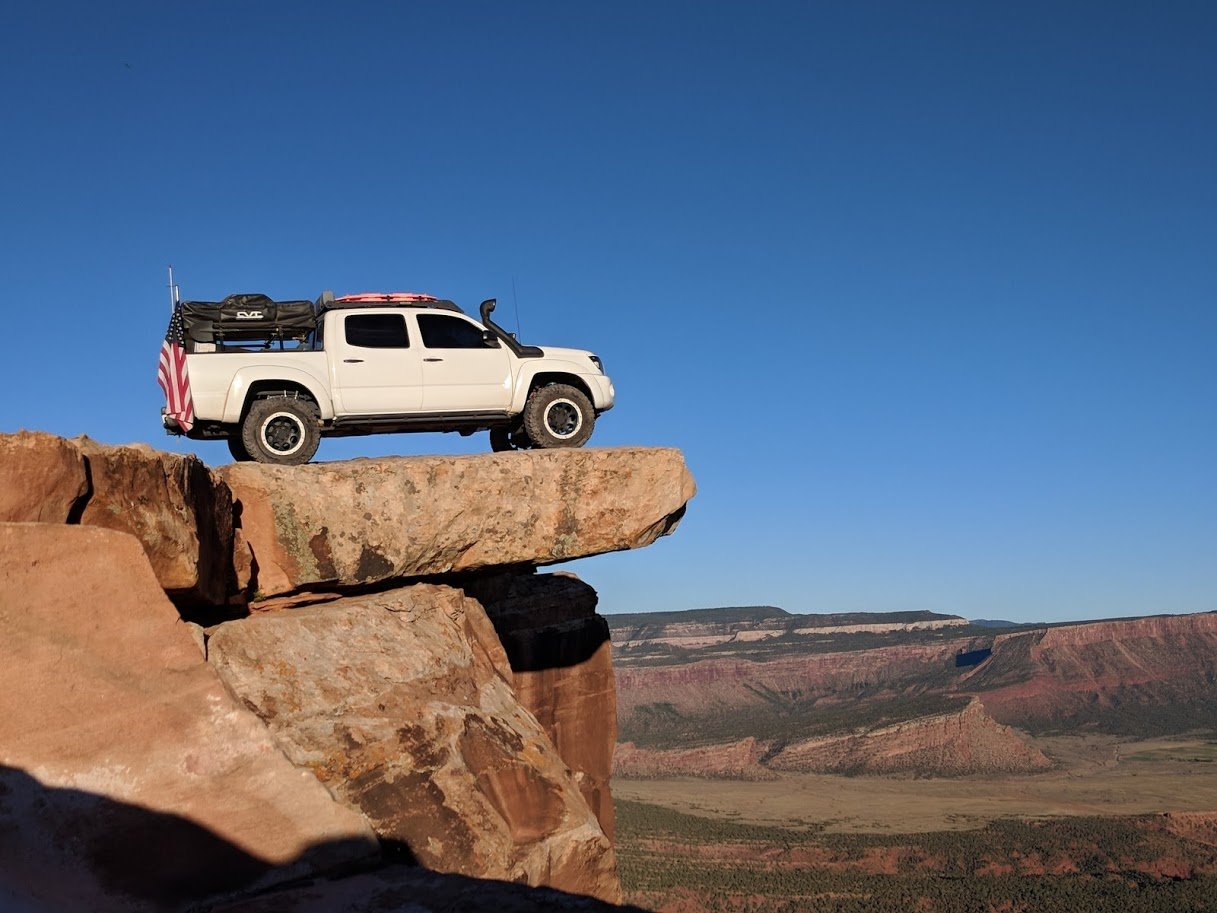

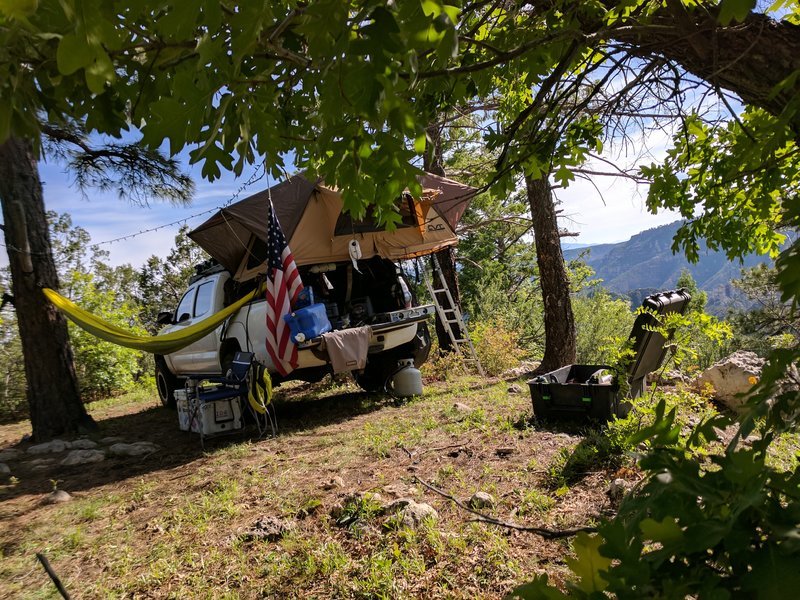

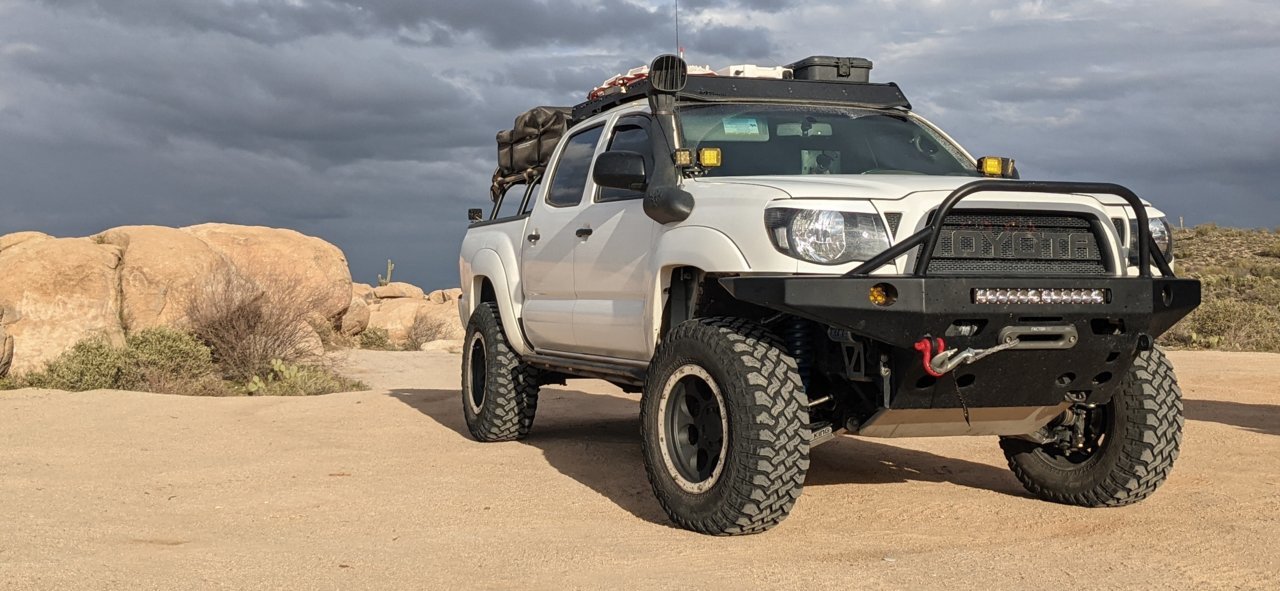

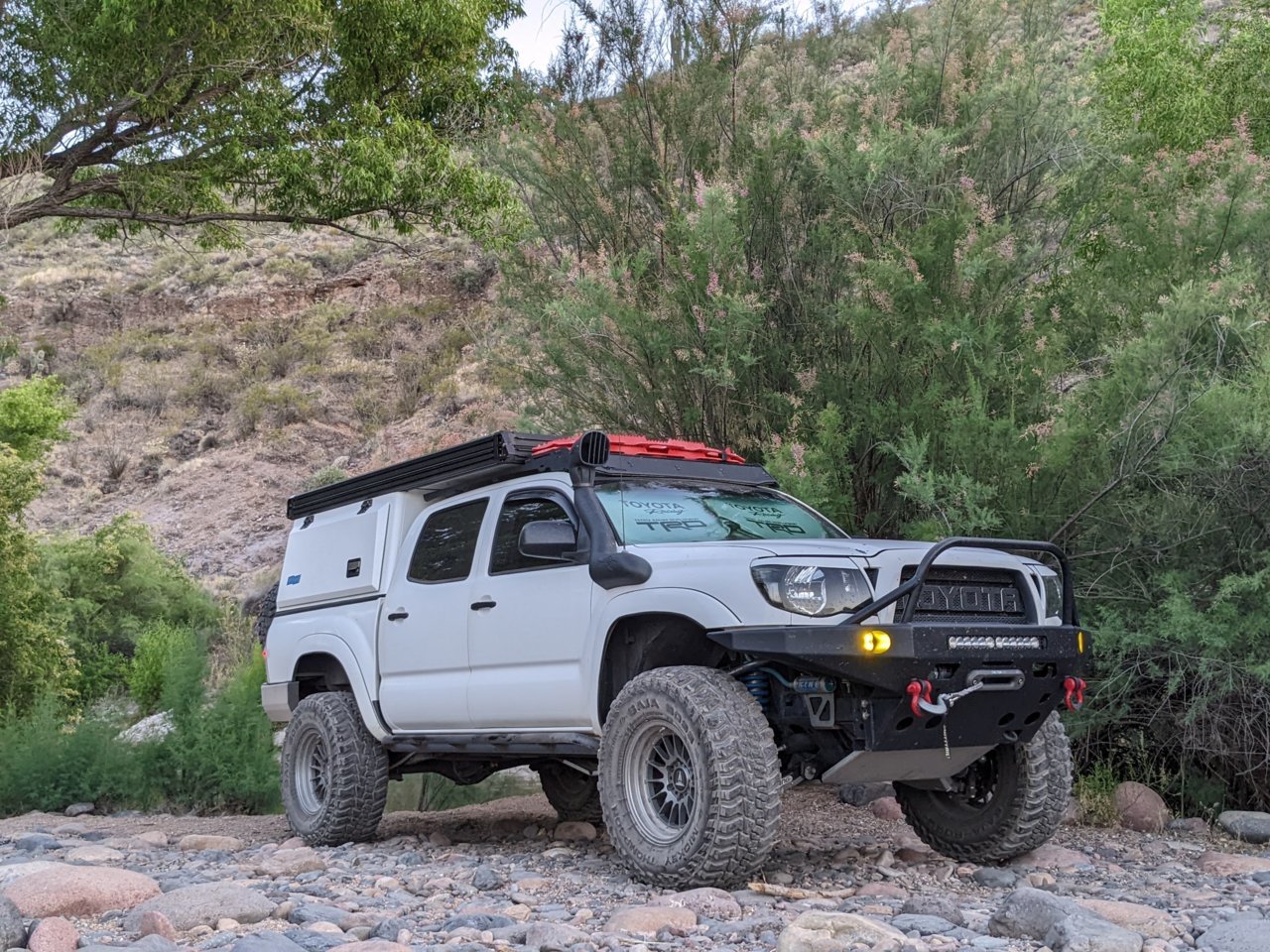

    It's journey there after:

    b1dxZOa3zejNe6yOclxZ2NxqxLwTLX9ozbnQ8iiE_db9c792056bf2dcd5a6c0841c3c63e0ae20d21ca.jpg

    UXVLBRNI8BvXCOmCa3WF0WgEN_HaYmQvl-kw6Nbb_71318e36c9a6c3e6db3438faca37d973b17b72a4.jpg
    9cxuRAck1ZQ8u6Dxtawt0l0DY9qxGWC_XHv2RLmC_70764b716595ac902045988264e6682a5e7bd876.jpg

    w77DV7usctGbI_cJCKioBN9dV-vZpwq7Al6r1t0T_a2cd4d7d637a37cd07128dbd2fd2e0ff789abc6b.jpg
    PXKIVQZeli1OSnytB6hVqsly1us-q7qj5pATHKC1_96fd3410433a29c5a5ce6ccf3cc29520090e0e9d.jpg
    A7i0Eo_5L_ygC5qlYSY7F5JIHsuJi2RrFu5lmUwO_8803c4f0be1a03c33283211f24f72ed6bf1f338e.jpg
    SD5NWS-TgXLK4KXDODx2yZqdGNnPAL2l8ZiXBFMj_4651a84c8c747498e8397ae423033e794af513f3.jpg


    Attached Files:

    Last edited: Jan 26, 2023 at 8:59 AM
  2. Oct 16, 2011 at 8:34 PM
    #2
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS

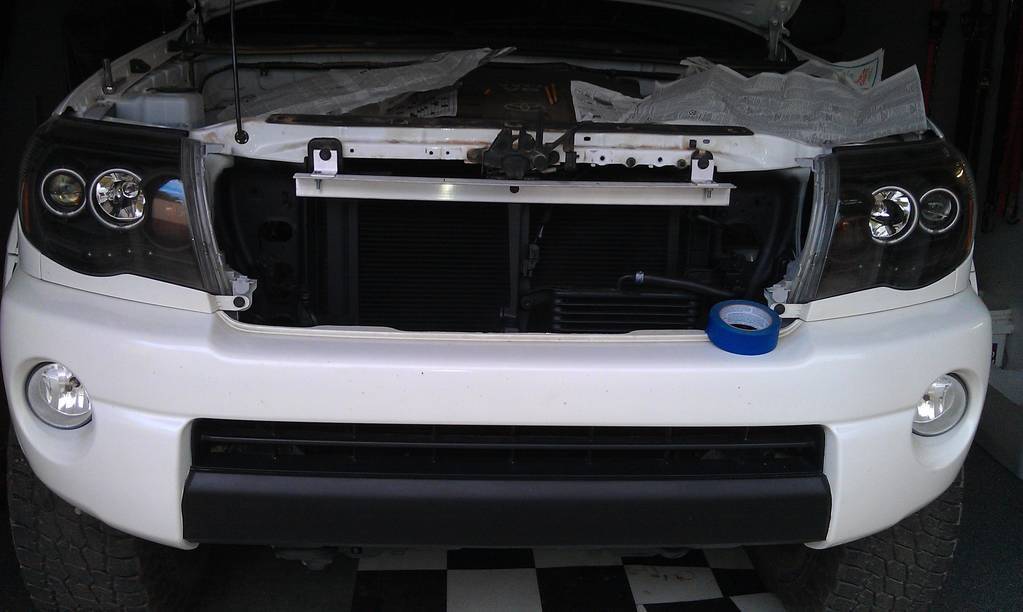

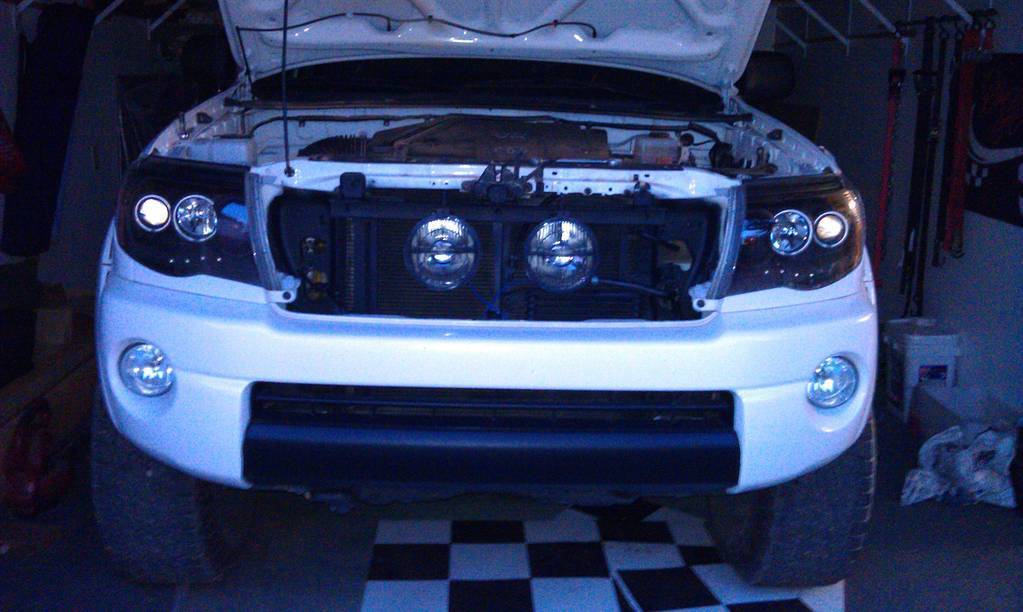

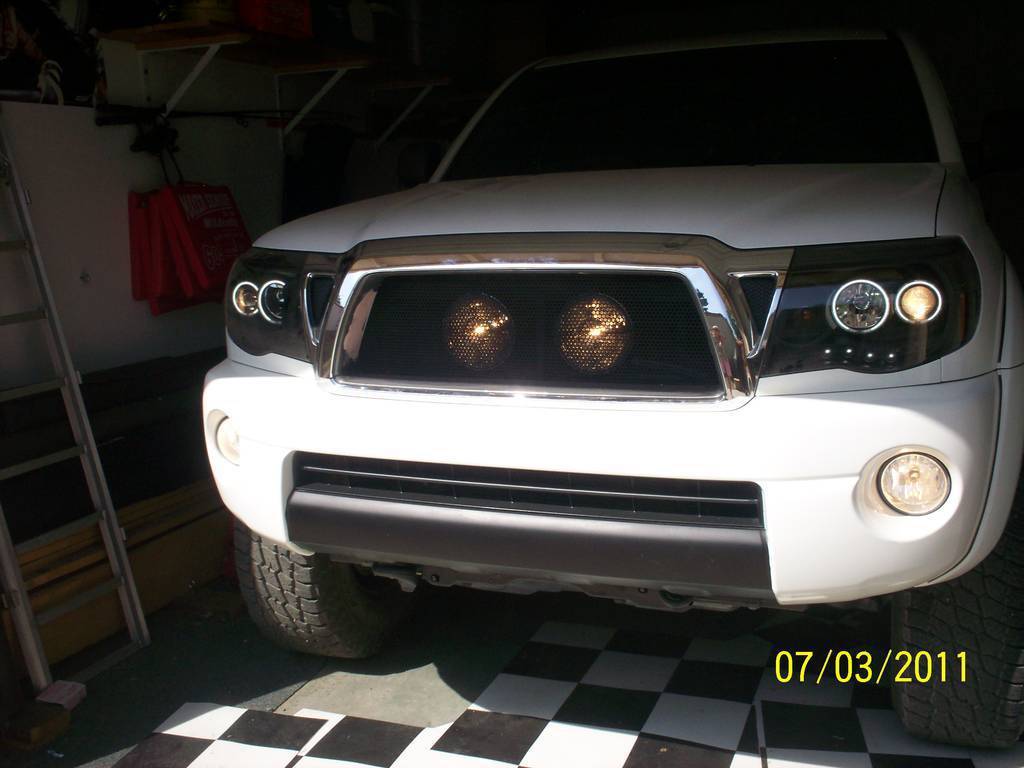

    adding the Satoshi and Hellas behind the grill. I used some angle aluminum for the light mount and high temp black paint to paint behind the grill along with the mesh for the satoshi.
    [​IMG]
    [​IMG]

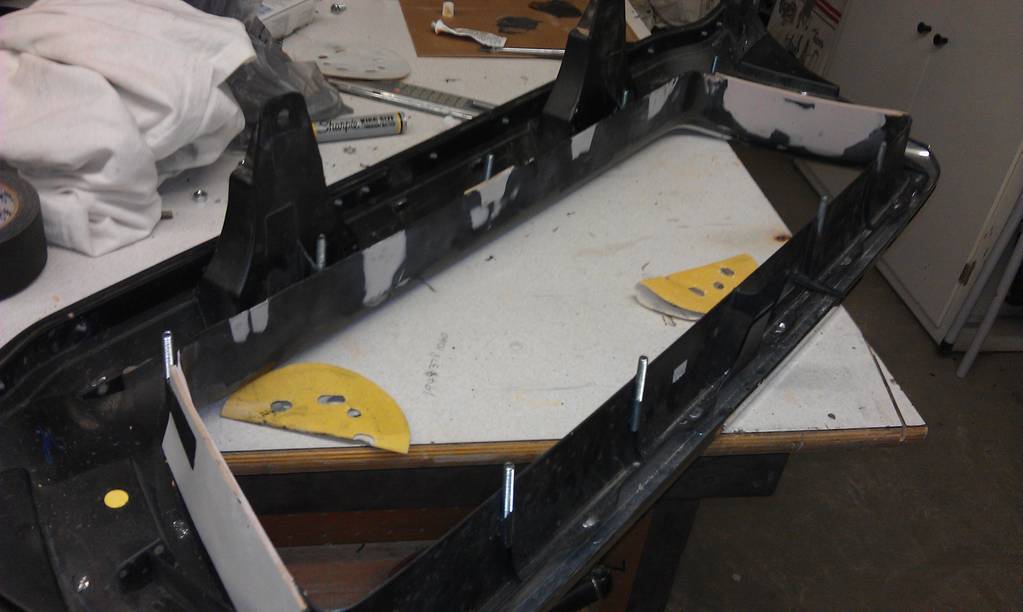

    When making the Satoshi, instead of using fiberglass, or plastic from the grill itself, i used some 1/4" particle board type stuff i had laying around, and epoxy'd it to the grill. It actually allowed me to sand the board to get the perfect curve for the mesh to sit on.
    [​IMG]

    I then filled in the dip with bondo and sanded and sanded. I used epoxy and threaded studs to mount the mesh to the surround. Then, had it colored matched super white, including the inner surround. overall, for my first time cutting, using bondo, etc.. it came out pretty good I think.
    [​IMG]

    PreTaco170, ChadsPride and kgarrett11 like this.
  3. Oct 16, 2011 at 8:34 PM
    #3
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS

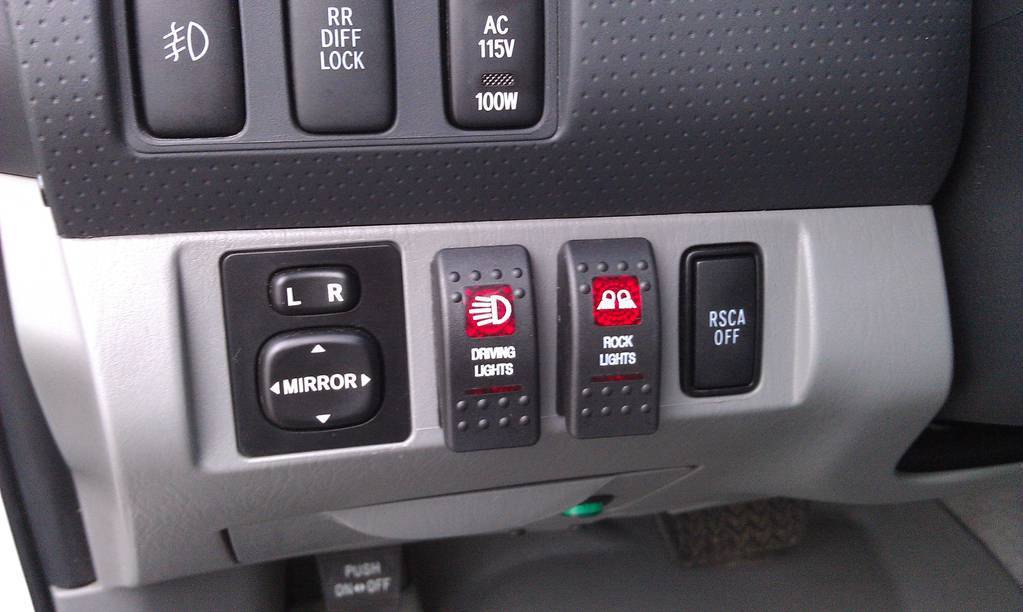

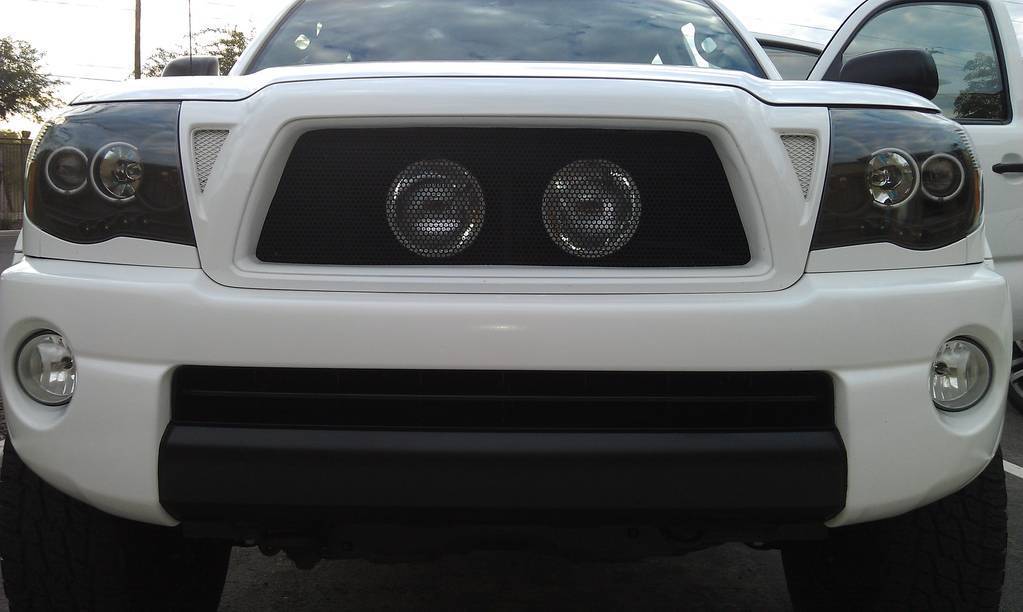

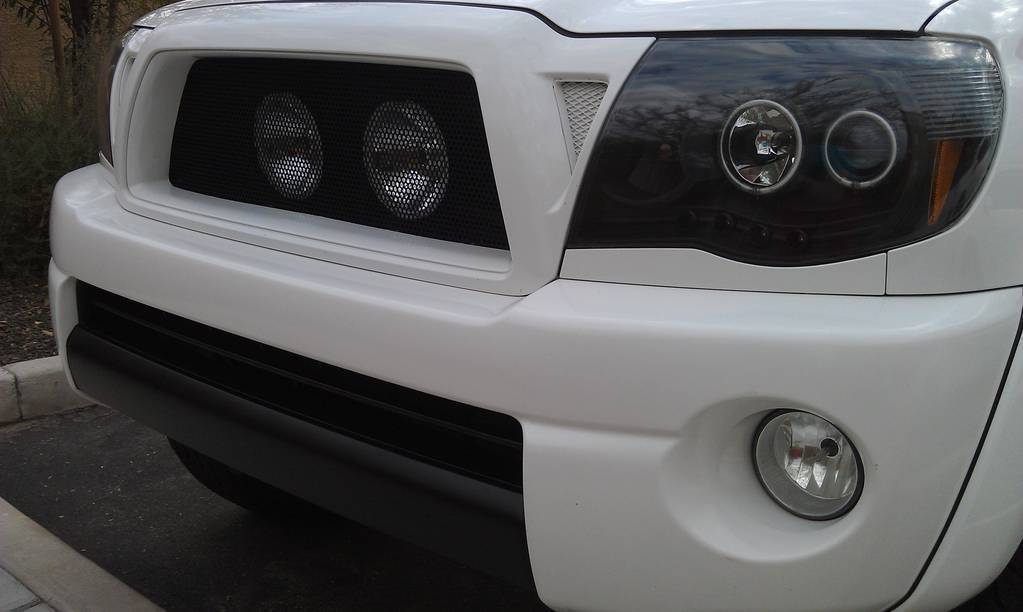

    New Lighting and switches. Ordered some Hella 500's with 4.3K 35w HID's. Added some rocker switched from Sierra Expeditions. I just need to wire up the rock lights and change out my headlights and foglights to 4.3K.

    [​IMG]
    [​IMG]
    [​IMG]

  4. Oct 16, 2011 at 9:27 PM
    #4
    Greensystemsgo

    Greensystemsgo 1 owner with clean car fox.

    Joined:
    Jun 13, 2011
    Member:
    #58216
    Messages:
    3,691
    Gender:
    Male
    First Name:
    Dirty Nickers
    Peoria, AZ
    Vehicle:
    18 year old black taco...
    Bone Stock.
    sub';d


    WTF did you do to the blue one?

    what happened to red?

  5. Oct 16, 2011 at 9:29 PM
    #5
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,958
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2017 Toyota Tundra Crewmax ProKiller
    Kings, Toyos, Baja Designs, TC, SDHQ
    What a beast!

  6. Oct 16, 2011 at 9:46 PM
    #6
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    Blue got in a fight with a yellow sand filled barrel on the freeway... and lost. lol

    Red gor traded in for Blue. lol I do miss that truck tho.. just HAD to have the newer one :rolleyes:

    thanks man! love the new bumper BTW!

    ChadsPride likes this.
  7. Oct 16, 2011 at 9:48 PM
    #7
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,958
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2017 Toyota Tundra Crewmax ProKiller
    Kings, Toyos, Baja Designs, TC, SDHQ
    Oh man you need to see the glossy powder coat in person. Sooo sick

  8. Oct 16, 2011 at 9:50 PM
    #8
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    right on man.. sometime soon we will switch out the grills too.

  9. Oct 16, 2011 at 10:07 PM
    #9
    pancho

    pancho Go home Nubbs, street lights are off!

    Joined:
    May 6, 2011
    Member:
    #56192
    Messages:
    1,353
    Gender:
    Male
    First Name:
    Pancho
    Southern California
    Vehicle:
    18 Cement OR 4x4 DCSB
    Black out emblems. TRD Pro grille.
    I really like your tail lights. did you make em like that or bought some?

  10. Oct 16, 2011 at 10:20 PM
    #10
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    Bought them online. Ebay. $130. No issues with them at all either.

  11. Oct 17, 2011 at 6:37 AM
    #11
    97yota4wd

    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    12,840
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    cute build:D

    haha but seriously, finally you made one

  12. Oct 17, 2011 at 3:08 PM
    #12
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    Right on. Lol. Do you just use a computer program or something. I'm horrible with pictures. Lol that ones not even by me.. Hell, most of them are by you or Jason. Lol.

  13. Oct 17, 2011 at 3:15 PM
    #13
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    Yeah I stole that one a while ago. lol. Don't need to upload it now. Haha. Love that picture!

  14. Oct 17, 2011 at 3:24 PM
    #14
    RenoTacoma

    RenoTacoma Petrol head

    Joined:
    Jun 1, 2010
    Member:
    #38185
    Messages:
    1,016
    Gender:
    Male
    First Name:
    Sloan
    Reno, nevada
    Vehicle:
    09 Base 4x4 Tacoma
    3.5" lift 285/70/17
    where did you get those black tail lights? :bowdown:

  15. Oct 17, 2011 at 7:30 PM
    #15
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,884
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    Awwww a fellow stormtrooper! Now u just need the sticker from sockmonkey like me. its funny I was look at the second gen build heard page and there were 6 super whites and one right after the next hahaha

  16. Oct 17, 2011 at 10:07 PM
    #16
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    hell yeah man.. UNITE!! lol

  17. Oct 22, 2011 at 9:02 AM
    #17
    Underdog777

    Underdog777 Well-Known Member

    Joined:
    Dec 8, 2010
    Member:
    #47357
    Messages:
    2,920
    Gender:
    Male
    First Name:
    Matt
    Gilberz
    Vehicle:
    '06 Stuckrunner
    Camburg LT.
    Sub'd. Good to see you made a build page (finally). Your build page is so neat and organized. Almost motivates me to fix mine up a bit, but I'm gonna go get drunk now, and help Spezzy put his all pro leave springs on.

  18. Oct 22, 2011 at 9:54 AM
    #18
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,452
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    Josh, you should go help. Your a superstar with rear leaf springs now. LoL

  19. Oct 22, 2011 at 10:10 AM
    #19
    XPOTRPR

    XPOTRPR [OP] CNC Programmer/Machinist

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    29,709
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    [09 Mid-Travel Boosted Expo Taco] & [86 22r Minitruck]
    CHECK BUILDS
    Road trip anyone? Lol

    Thanks Matt!

  20. Oct 22, 2011 at 10:14 AM
    #20
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,452
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    1500 miles, Where the hell is he?


Products Discussed in

To Top
