Discussion in '1st Gen. Tacomas (1995-2004)' started by Desiel, Oct 14, 2010.

  1. May 13, 2020 at 5:26 PM
    #1701
    Cattywampus

    Cattywampus Splitter of CV Boots

    Joined:
    Nov 7, 2017
    Member:
    #235284
    Messages:
    58
    Gender:
    Male
    First Name:
    Mark
    Baltimore, MD
    Vehicle:
    2004 Tacoma 4WD TRD Ext Cab
    Fox 2.5 C/O, Deaver Leafs w/ Bilstien 5100, ARB Bumper, Warn M8000, 255/85R16 Copper Discoverer S/T, Custom Rear Bumper
    Well it is the backup light indicator.... perhaps an FU to the person tailgating me. It was all part of the plan of course.... [​IMG]

    [​IMG]

  2. May 13, 2020 at 11:22 PM
    #1702
    drewmo

    drewmo Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283965
    Messages:
    133
    Gender:
    Male
    Vehicle:
    1995.5 4x4 Taco
    I've been working on a temperature sensor kit for my differentials, just something to tinker on that I thought would be a cool mod to have. Going to make an OLED gauge to mount somewhere on the cluster to show front and rear temps and flash if they get too high.

  3. May 14, 2020 at 9:13 AM
    #1703
    Yetimetchkangmi

    Yetimetchkangmi Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106605
    Messages:
    2,952
    Gender:
    Male
    First Name:
    Benjamin
    Newcastle, WA
    Vehicle:
    03 Tacoma 4x4 The Yeti
    ARB front locker, Custom high clearance rear bumper, Custom plate front bumper, mile marker winch PE8, safari snorkel, Deck Plate Mod Fox 2.5 rr DSC, Camburg UCA, squeaky Dakar leafs, 5125 10" and custom 7.5" shackles, thee finest PNW pinstripes, MT-R, Nissan crew cab roof rack??? wtf is that about??? Allpro skids, Rigid duallys President McKinley CB with PA Recaro SRD with Wedge Engineering Morimoto retrofits Champion Rad Tundra brakes
    1st Gen specific?

  4. May 14, 2020 at 9:59 AM
    #1704
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,296
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    I always wanted to try and integrate the cluster from the column shift tacoma that has the shift indicator lights there, but that would require some custom wiring and tapping into the shift position sensor.

  5. May 14, 2020 at 1:24 PM
    #1705
    Cattywampus

    Cattywampus Splitter of CV Boots

    Joined:
    Nov 7, 2017
    Member:
    #235284
    Messages:
    58
    Gender:
    Male
    First Name:
    Mark
    Baltimore, MD
    Vehicle:
    2004 Tacoma 4WD TRD Ext Cab
    Fox 2.5 C/O, Deaver Leafs w/ Bilstien 5100, ARB Bumper, Warn M8000, 255/85R16 Copper Discoverer S/T, Custom Rear Bumper
    That would be cool. When I moved to Maryland, I had to get my rig safety inspected. They failed me because I was "missing a shifter position indication in the cluster". Took me 10 minutes of convincing the "safety inspector" that there never was that in the cluster, nothing was actually missing, and the shift position indicator was next to the shifter. That's my story.... then I found $20 dollars.

    Colchicine and nzbrock like this.
  6. May 15, 2020 at 4:11 PM
    #1706
    drewmo

    drewmo Well-Known Member

    Joined:
    Feb 21, 2019
    Member:
    #283965
    Messages:
    133
    Gender:
    Male
    Vehicle:
    1995.5 4x4 Taco
    I was thinking that it would be only for 1st gens at first but after looking into it the trucks use the same filler plugs all the way up to 2019. I don't have a solution to read the temp from any stock sensors yet. So if your truck already has a transmission temp sensor I would need to have an OBDII connection but that is not planned for the first version.

  7. May 15, 2020 at 8:35 PM
    #1707
    Empty_Lord

    Empty_Lord Wallet abuser

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    18,661
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    2001 Tacoma, 2005 Tundra, 2006 Corolla and Avalon
    Almost 300k! Doug Thorley headers magnaflow cats & cat-back airaid intake tube color matched grille and mirrors front icon coilovers rear icon absorbers with deaver leafs total chaos upper control arms fj trail team wheels with 265/75r16 cooper discoverer st maxx Soon to be built engine with supercharger soon to be built a340f
    Fancy
    i dont believe it would be too hard. but you would need to find a cluster that had the center shift lights and then wire up the connector. and swap the tach if it was a 4 cylinder and you have a v6.

  8. May 15, 2020 at 9:03 PM
    #1708
    Yetimetchkangmi

    Yetimetchkangmi Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106605
    Messages:
    2,952
    Gender:
    Male
    First Name:
    Benjamin
    Newcastle, WA
    Vehicle:
    03 Tacoma 4x4 The Yeti
    ARB front locker, Custom high clearance rear bumper, Custom plate front bumper, mile marker winch PE8, safari snorkel, Deck Plate Mod Fox 2.5 rr DSC, Camburg UCA, squeaky Dakar leafs, 5125 10" and custom 7.5" shackles, thee finest PNW pinstripes, MT-R, Nissan crew cab roof rack??? wtf is that about??? Allpro skids, Rigid duallys President McKinley CB with PA Recaro SRD with Wedge Engineering Morimoto retrofits Champion Rad Tundra brakes
    Just the crappy A/T temp that turns RED when its too late.

  9. May 15, 2020 at 10:30 PM
    #1709
    betterbuckleup

    betterbuckleup Well-Known Member

    Joined:
    Jun 26, 2017
    Member:
    #222483
    Messages:
    1,200
    Gender:
    Male
    First Name:
    Ian
    Concord, CA
    Vehicle:
    2000 Tacoma 2.7 4x4 5spd
    How would you swap the tach? I thought you had to swap the whole cluster to change it.

  10. May 15, 2020 at 10:31 PM
    #1710
    Empty_Lord

    Empty_Lord Wallet abuser

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    18,661
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    2001 Tacoma, 2005 Tundra, 2006 Corolla and Avalon
    Almost 300k! Doug Thorley headers magnaflow cats & cat-back airaid intake tube color matched grille and mirrors front icon coilovers rear icon absorbers with deaver leafs total chaos upper control arms fj trail team wheels with 265/75r16 cooper discoverer st maxx Soon to be built engine with supercharger soon to be built a340f
    the stepper motor board can be swapped pretty easily. you have to take the gauge faces off and i think 3 screws.

  11. May 15, 2020 at 10:38 PM
    #1711
    betterbuckleup

    betterbuckleup Well-Known Member

    Joined:
    Jun 26, 2017
    Member:
    #222483
    Messages:
    1,200
    Gender:
    Male
    First Name:
    Ian
    Concord, CA
    Vehicle:
    2000 Tacoma 2.7 4x4 5spd
    well damn! Didn't know that.
    I ended up using the Dakota Digital SGI-100BT to fix it. Does the speedo too which is cool.
    Probably would have been cheaper to just replace it with a junkyard stepper motor, but it got the job done in the end.

  12. May 15, 2020 at 10:58 PM
    #1712
    Empty_Lord

    Empty_Lord Wallet abuser

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    18,661
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    2001 Tacoma, 2005 Tundra, 2006 Corolla and Avalon
    Almost 300k! Doug Thorley headers magnaflow cats & cat-back airaid intake tube color matched grille and mirrors front icon coilovers rear icon absorbers with deaver leafs total chaos upper control arms fj trail team wheels with 265/75r16 cooper discoverer st maxx Soon to be built engine with supercharger soon to be built a340f
    whatever works, works!

    the MR2 v6 swap scene avalon tachs are put into the mr2 clusters to adjust for the signal. wouldnt surprise me if the avalon tach fits taco clusters too

    betterbuckleup likes this.
  13. May 16, 2020 at 6:01 AM
    #1713
    Cattywampus

    Cattywampus Splitter of CV Boots

    Joined:
    Nov 7, 2017
    Member:
    #235284
    Messages:
    58
    Gender:
    Male
    First Name:
    Mark
    Baltimore, MD
    Vehicle:
    2004 Tacoma 4WD TRD Ext Cab
    Fox 2.5 C/O, Deaver Leafs w/ Bilstien 5100, ARB Bumper, Warn M8000, 255/85R16 Copper Discoverer S/T, Custom Rear Bumper

    If you could find lights small enough, you could potentially add them yourself. One of the issues I ran into with those indicators is they were a bit too large and long. In the cluster, there are boxes for additional lights. I bet Toyota uses the same casing for different vehicles and adds lights, gauges, etc. as needed. If you could find the lights to fit here you could do it. Of course, finding a cluster with them already in it would prob be easier. This is what it looks like to give you an idea:

    IMG_0703.jpgCover and Cluster. As you can see there are 6 wedge type bulb cut outs in the center of the cluster for potentially a P, R, N, D, 2, 1 scheme. I used the 4th and 6th position to place in some indicator lights. Mine lights were too big to fit right next to each other so I had to leave a space in between.

    Back side of cluster, you can see the wedge cut outs in the center

    This is how I mounted the lights. I cut small holes to in the circuit board (making sure not to break any circuit paths) to allow the wires to pass thru and provide a little clearance for the bulb stems.

    Hope that clears some stuff up.

    Colchicine, jubei and SwampYota like this.
  14. May 16, 2020 at 8:57 AM
    #1714
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,296
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    Yea that’s the easy part. Figuring out where to wire to get the shift position signal is harder.

  15. May 17, 2020 at 4:49 PM
    #1715
    Cattywampus

    Cattywampus Splitter of CV Boots

    Joined:
    Nov 7, 2017
    Member:
    #235284
    Messages:
    58
    Gender:
    Male
    First Name:
    Mark
    Baltimore, MD
    Vehicle:
    2004 Tacoma 4WD TRD Ext Cab
    Fox 2.5 C/O, Deaver Leafs w/ Bilstien 5100, ARB Bumper, Warn M8000, 255/85R16 Copper Discoverer S/T, Custom Rear Bumper

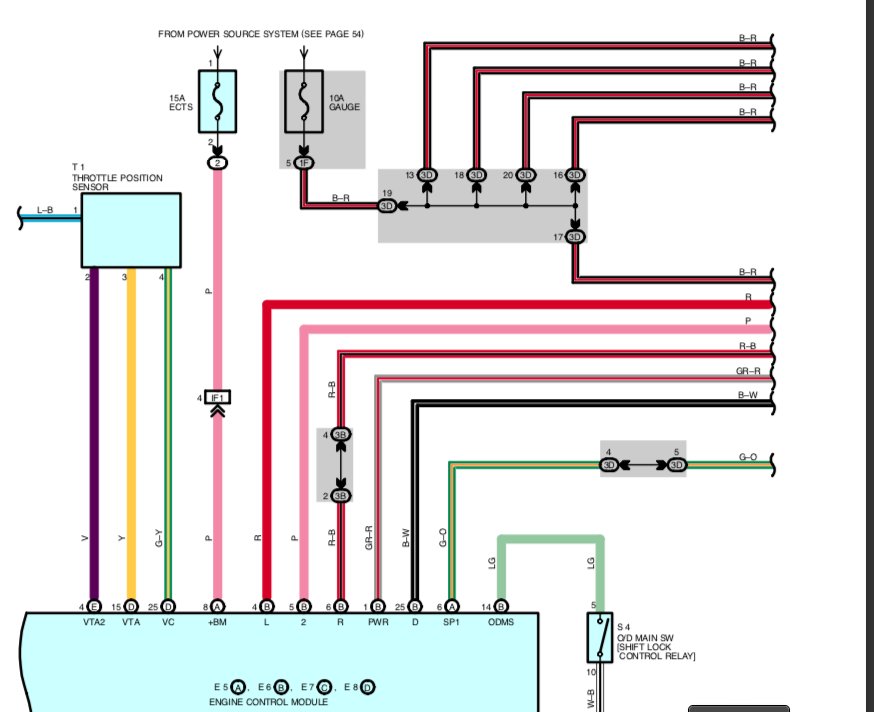

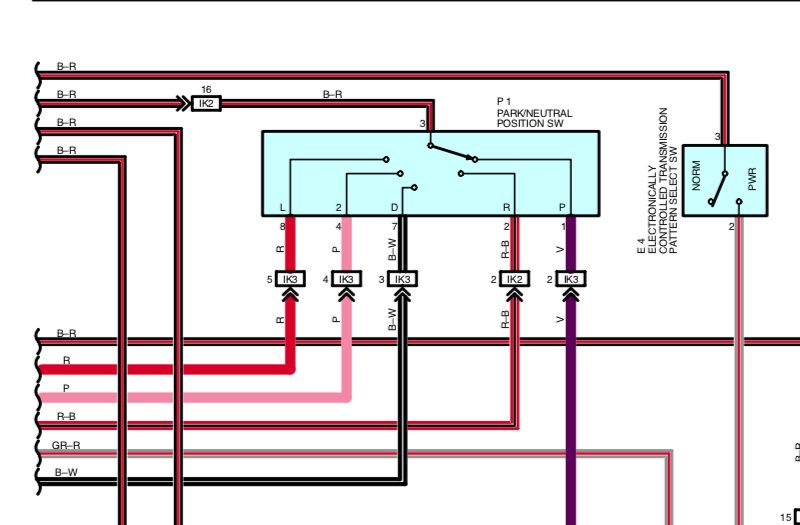

    This might help. This is from a '03 Wiring manual. To me it looks like the shifter receives 12V from the circuit with the "GAUGE" fuse. Then the shifter outputs 12V to the respective shift positions inputs on the Engine Control Module (P R D 2 L), each fed by it's own wire. Perhaps those lines could be tapped for the power side of an LED?

    ECT - 5VZ - Shifter Signals.jpg ECT - 5VZ - Shifter Signals (2).jpg

  16. May 17, 2020 at 5:13 PM
    #1716
    Empty_Lord

    Empty_Lord Wallet abuser

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    18,661
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    2001 Tacoma, 2005 Tundra, 2006 Corolla and Avalon
    Almost 300k! Doug Thorley headers magnaflow cats & cat-back airaid intake tube color matched grille and mirrors front icon coilovers rear icon absorbers with deaver leafs total chaos upper control arms fj trail team wheels with 265/75r16 cooper discoverer st maxx Soon to be built engine with supercharger soon to be built a340f
    the EWD for the trucks that had the cluster lights should point you in the right direction. typically they go through a junction block that you can add more wires too to get the signal where you want it

  17. May 18, 2020 at 10:30 AM
    #1717
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,296
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    Yes I have the one for a 99. If you look at the attached diagram everything with a *3 is for column shift. There is a resistor pictured between the P and D indicators within the combination meter. I'm not sure why that is, maybe to make one brighter than the other?

    the ECT wire signal also comes from the A/T indicator switch, so those wires could already be near the console shifter.
    Everything seems to be at IK3, which is under the right kick panel. I just don't know if they get any closer to the combination meter or not.


    Attached Files:

  18. May 18, 2020 at 5:55 PM
    #1718
    Cattywampus

    Cattywampus Splitter of CV Boots

    Joined:
    Nov 7, 2017
    Member:
    #235284
    Messages:
    58
    Gender:
    Male
    First Name:
    Mark
    Baltimore, MD
    Vehicle:
    2004 Tacoma 4WD TRD Ext Cab
    Fox 2.5 C/O, Deaver Leafs w/ Bilstien 5100, ARB Bumper, Warn M8000, 255/85R16 Copper Discoverer S/T, Custom Rear Bumper
    Interesting. Is the 'D' indicator a different color? Like white instead of amber color filter or something like that. Maybe that would explain the resistor. Like you said, to dim it to keep it from overpowering the rest of the illumination.

  19. May 19, 2020 at 6:46 AM
    #1719
    Sebz13

    Sebz13 Coconut Expert

    Joined:
    Jun 25, 2018
    Member:
    #257493
    Messages:
    1,554
    First Name:
    Shane
    Maui Hawaii
    Vehicle:
    03 Reg Cab, 04 Ext Cab
    a dropped one and a rusty 4wd one.
    cannot unsee cock light.

    Plkyone and betterbuckleup like this.
  20. May 19, 2020 at 6:49 AM
    #1720
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    17,840
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L
    Yup, it's forever there.

    betterbuckleup likes this.
