03 Supercharged with URD 7th Injector Wideband & Boost Readings? (Pics)

Discussion in 'Performance and Tuning' started by indetrucks, Nov 3, 2017.

  1. Nov 3, 2017 at 5:42 PM
    #1
    indetrucks

    indetrucks [OP] Well-Known Member

    Joined:
    Aug 5, 2016
    Member:
    #193810
    Messages:
    298
    Gender:
    Male
    First Name:
    Christian
    Southern CA
    Vehicle:
    2003 TRD Tacoma 4x4 Xtra Cab 5spd
    Truck:
    Stock 2003 V6 Tacoma 4X4 Manual 150,000 miles & at sea level (Southern CA)

    Installed:
    -Gen 2 Magnuson Supercharger
    -URD 7th Injector w/PCU
    -AEM No-Weld Wideband sensor mount

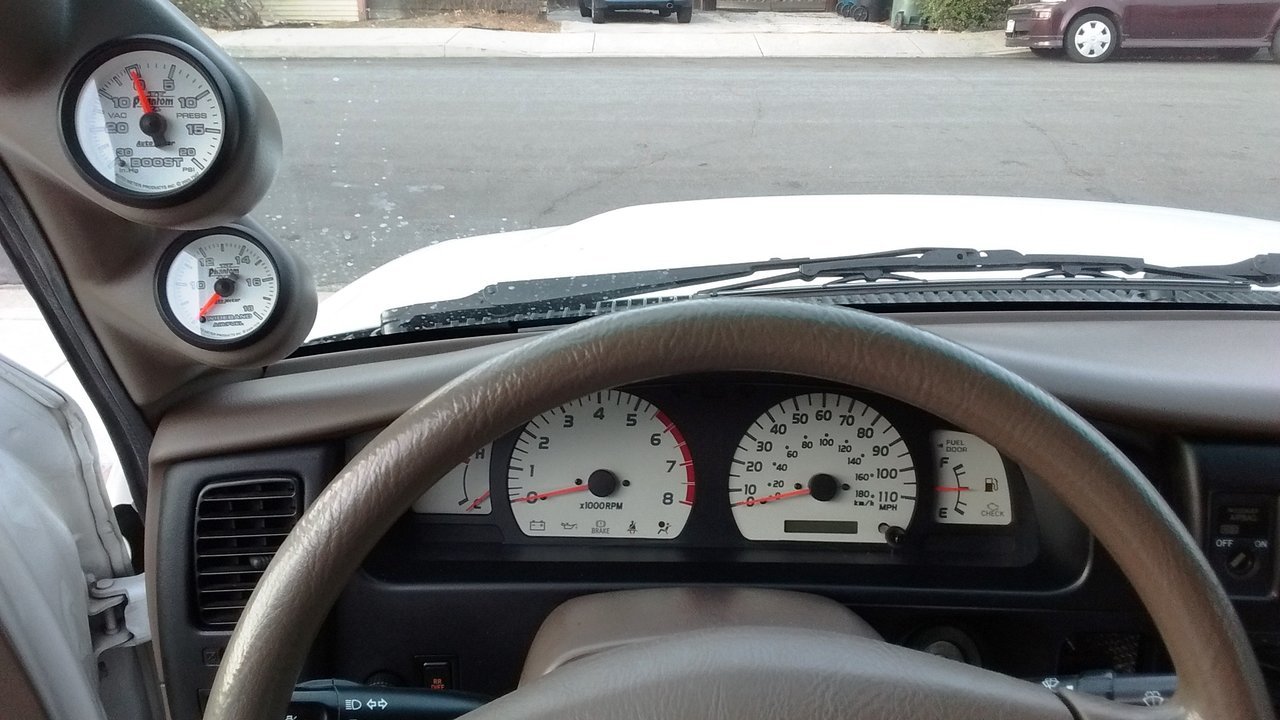

    -Autometer Phantom II Wideband A/f Gauge (sensor installed before first CAT)
    -Autometer Phantom II Boost Gauge
    -Lotek gauge pod
    -Stant 170 Degree Thermostat & Water Wetter with Toyota coolant
    -Lower temp Spark Plugs & high pressure fuel pump (came with supercharger)

    I have not had a chance to do any tuning with the Split Second software yet, but I did just finish installing a wideband gauge as well as a boost gauge today (installed Supercharger & URD 7th injector a month ago).

    Here are my readings from the gauges during a test run:

    Idle:
    Wideband 14.7:1
    Boost -26lbs

    WOT anywhere between 2-3k RPMs in 3rd gear:
    Wideband 11:1
    Terrible Ping

    WOT anywhere after 3k RPMs in 3rd gear:
    Wideband 12:1
    Boost 7lbs
    No ping above 3k RPM

    The truck pings heavily if I floor it anywhere in the 2-3k RPM range in 2nd gear +

    What A/F readings are ideal under boost?


    Last edited: Nov 4, 2017
    Jerry311SD likes this.
  2. Nov 4, 2017 at 1:39 AM
    #2
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    16,918
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Which grade octane?

    Is the 7th injector working, or just installed and awaiting tuning?

    Sounds like you need to pull a few degrees of timing in the area you described.

  3. Nov 4, 2017 at 6:32 AM
    #3
    indetrucks

    indetrucks [OP] Well-Known Member

    Joined:
    Aug 5, 2016
    Member:
    #193810
    Messages:
    298
    Gender:
    Male
    First Name:
    Christian
    Southern CA
    Vehicle:
    2003 TRD Tacoma 4x4 Xtra Cab 5spd
    91 (highest available here)

    It's 100% installed, never tuned by me. I understand they come tuned from URD

    I think thats happening during the closed loop operation, can that be done with the Split Second software?

  4. Nov 4, 2017 at 6:49 AM
    #4
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    Your afrs look pretty good. Like stated pull few degrees timing down low. You may need a meth injection kit if you can't tune it out.

    Torspd likes this.
  5. Nov 4, 2017 at 8:41 AM
    #5
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    16,918
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Can you unplug your 7th injector, and do a careful run to make sure it is changing your AFR's? Or are you certain that it is working?

    Dalandser likes this.
  6. Nov 4, 2017 at 8:52 AM
    #6
    indetrucks

    indetrucks [OP] Well-Known Member

    Joined:
    Aug 5, 2016
    Member:
    #193810
    Messages:
    298
    Gender:
    Male
    First Name:
    Christian
    Southern CA
    Vehicle:
    2003 TRD Tacoma 4x4 Xtra Cab 5spd
    I am not certain it's working. I might do just that and see what the AFR's show.

    How do I remove timing at the lower RPM's with the split second software?

    Last edited: Nov 4, 2017
  7. Nov 4, 2017 at 9:22 AM
    #7
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    16,918
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Look up the U-tune guide by Gadget @ Gadget online, or look up instructions from Split Second.

    Dalandser likes this.
  8. Nov 4, 2017 at 12:24 PM
    #8
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    I think your 7th is working. If seen people hit 13s without. I would add fuel. I like 11.5 afr under boost.

    indetrucks [OP] and Torspd like this.
  9. Nov 6, 2017 at 8:32 AM
    #9
    indetrucks

    indetrucks [OP] Well-Known Member

    Joined:
    Aug 5, 2016
    Member:
    #193810
    Messages:
    298
    Gender:
    Male
    First Name:
    Christian
    Southern CA
    Vehicle:
    2003 TRD Tacoma 4x4 Xtra Cab 5spd
    Thanks for the tip.
    After doing some testing yesterday, I was able to get rid of the ping at 2,500 and above at full boost (7psi) by retarding the timing at lower RPM's.
    Have not touched the fuel yet. At WOT my AFR is just below 12:1

    Man, this would be MUCH easier with a Dyno. I feel bad beating on my truck trying to tune it though :(

    Still getting a little ping at under 2,500 RPM and above 5psi boost. Think I need to take out even more timing down low.

    JayRolla likes this.
  10. Nov 6, 2017 at 8:50 AM
    #10
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp 32s on MK6 17s
    I would try to take some more timing and see if it helps. Also shoot for 11.5-11.8 afr under boost and wot. This may help you get rid of the knock.

    You can jack stand tune. Put her up on stands. Hold brake and hit gas. You can fine tune that way without driving. Of course safety 1st.

    Torspd likes this.
  11. Nov 30, 2017 at 8:35 AM
    #11
    elnip

    elnip Well-Known Member

    Joined:
    Sep 7, 2012
    Member:
    #86436
    Messages:
    448
    Gender:
    Male
    LC,NM
    Vehicle:
    '98 Tacoma TRD S/C'd / '16 T4R Trail w/JFR EL Y-pipe
    SC'd, fuel mods, Supra TT MAF, TRD headers, WI, Tundra Brake upgrade
    What does your Map B look like?

  12. Nov 30, 2017 at 9:19 AM
    #12
    indetrucks

    indetrucks [OP] Well-Known Member

    Joined:
    Aug 5, 2016
    Member:
    #193810
    Messages:
    298
    Gender:
    Male
    First Name:
    Christian
    Southern CA
    Vehicle:
    2003 TRD Tacoma 4x4 Xtra Cab 5spd
    I don't remember which map is the Timing and which is the fuel for the 7th injector, but I have not touched my fuel map AT ALL, only played with the timing map.
    If map B is the timing map, I would have to take a screen shot for ya.

  13. Nov 30, 2017 at 9:42 AM
    #13
    elnip

    elnip Well-Known Member

    Joined:
    Sep 7, 2012
    Member:
    #86436
    Messages:
    448
    Gender:
    Male
    LC,NM
    Vehicle:
    '98 Tacoma TRD S/C'd / '16 T4R Trail w/JFR EL Y-pipe
    SC'd, fuel mods, Supra TT MAF, TRD headers, WI, Tundra Brake upgrade
    That is the timing map, if you can take a screen shot. I just want to see how you have the values dispersed and what values you have in there.
