05+ DRL Enable/Disable Switch

Discussion in 'Technical Chat' started by 007Tacoma, Nov 23, 2008.

  1. Jun 10, 2011 at 1:09 PM
    #21
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,191
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    Thread revival!! I also noticed a little melting on my lights as well. I'm going to do the switch mod to turn them on and off as I please.:D

  2. Aug 17, 2011 at 3:46 PM
    #22
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,191
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    Okay I finally got some time this past weekend to do this mod. This is for anyone that might have knowledge or can help me out. I'm pretty sure I know what I did but just want some confirmation. I cut the red/green wire like posted and added a toggle switch with an LED light indicator. For power for the LED light I just used an add-a-fuse line and tapped into the fuse block. Now....I think I wired something backwards on the switch and I turned on the DTRL's and they worked for a few seconds then shut off. After that the DTRL's wouldnt work at all even without the switch. Is it possible I fried the flasher relay (small black box the wiring harness plugs into)?? Thats what I think I did. Or do you think its the wiring harness itself? Everything else up front works, turn signals and hazards, just no DTRL's.:eek:

  3. Jan 18, 2012 at 7:36 PM
    #23
    thebottomline

    thebottomline Well-Known Member

    Joined:
    Nov 15, 2010
    Member:
    #46203
    Messages:
    582
    Gender:
    Male
    Pac NW
    Vehicle:
    11 sport

    Just curious for an update, did you figure out what happened?

  4. Jan 18, 2012 at 8:37 PM
    #24
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,191
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    Yeah I actually got a new relay and harness and that wasnt the issue because my DTRL's still didnt work so I'm pretty sure I fried something else when I wired it backwards, just never figured out what I fried. I ended up taking it all out and selling the DTRL kit here on TW.:eek: Plus I just said forget it cause the DTRL's were fading out my rear reflectors from the heat of the light bulbs.

  5. Mar 14, 2012 at 7:37 PM
    #25
    2010TRD

    2010TRD Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74467
    Messages:
    3,083
    Gender:
    Male
    First Name:
    Thomas
    Waldo, FL
    Vehicle:
    2010 MGM trd offroad DCSB
    Billistein 5100 front/rears, Toytec 2" AAL Custom grill, All Pro rear bumper, All Pro sliders, Anytime elocker/foglights, Rear diff vent relocated, W/O seat covers, weathertech mats/visors, nfab tire racK, cobra 75 stealth CB, Custom engine/trans skids 3/8", Hella and HID behind grill, LED bar backup light, LED pods under cab (rocklights)
    thanks for the pics seems like the easiest method of disabling them.

  6. Jul 22, 2012 at 4:35 AM
    #26
    foreman

    foreman Member

    Joined:
    Mar 25, 2012
    Member:
    #75545
    Messages:
    12
    Gender:
    Male
    First Name:
    Bill
    Missouri
    Vehicle:
    2011 Toyota tacoma
    Hi all,
    I am new to this site so I'm not sure what to do here!! So after following the treads on DRL I would like to turn them off on my 2011 Taco. Does cutting the red/green wire apply to my vehical also???

  7. Sep 7, 2012 at 9:10 PM
    #27
    Gus 524

    Gus 524 Well-Known Member

    Joined:
    Apr 22, 2012
    Member:
    #77417
    Messages:
    492
    Gender:
    Male
    First Name:
    Justin
    MN
    Vehicle:
    09 tacoma SR5 4WD 4-cylinder
  8. Oct 9, 2012 at 6:07 PM
    #28
    west467

    west467 Active Member

    Joined:
    Jan 7, 2009
    Member:
    #12340
    Messages:
    44
    Gender:
    Male
    Vehicle:
    Two Black Tacos..03 and 09

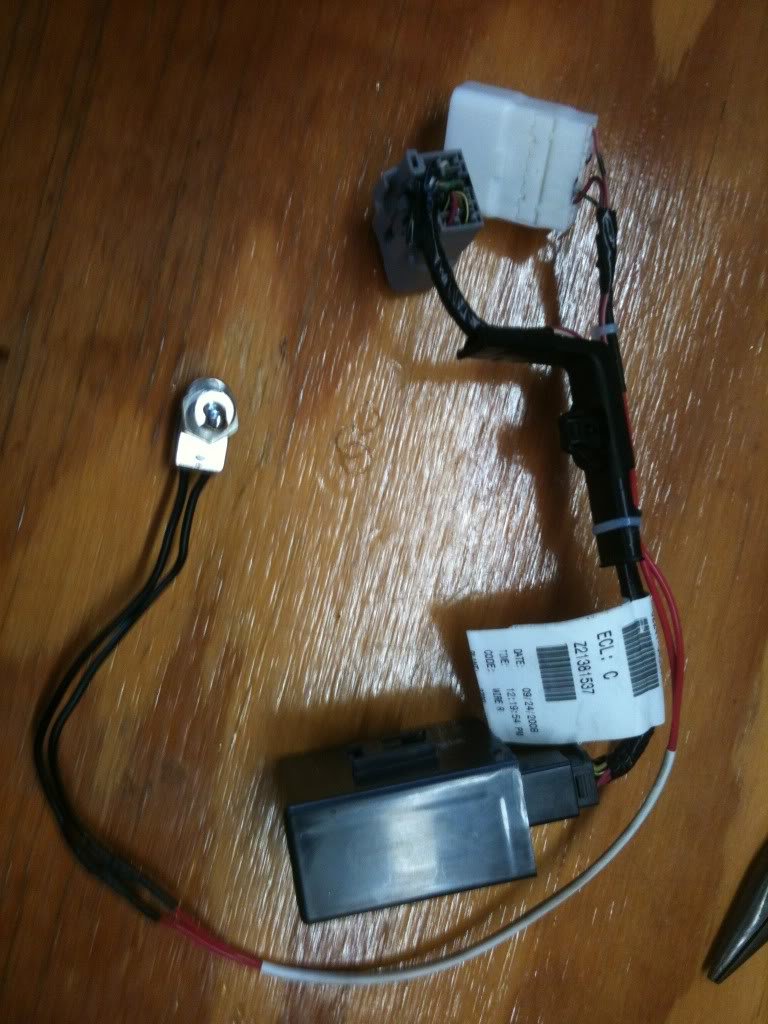

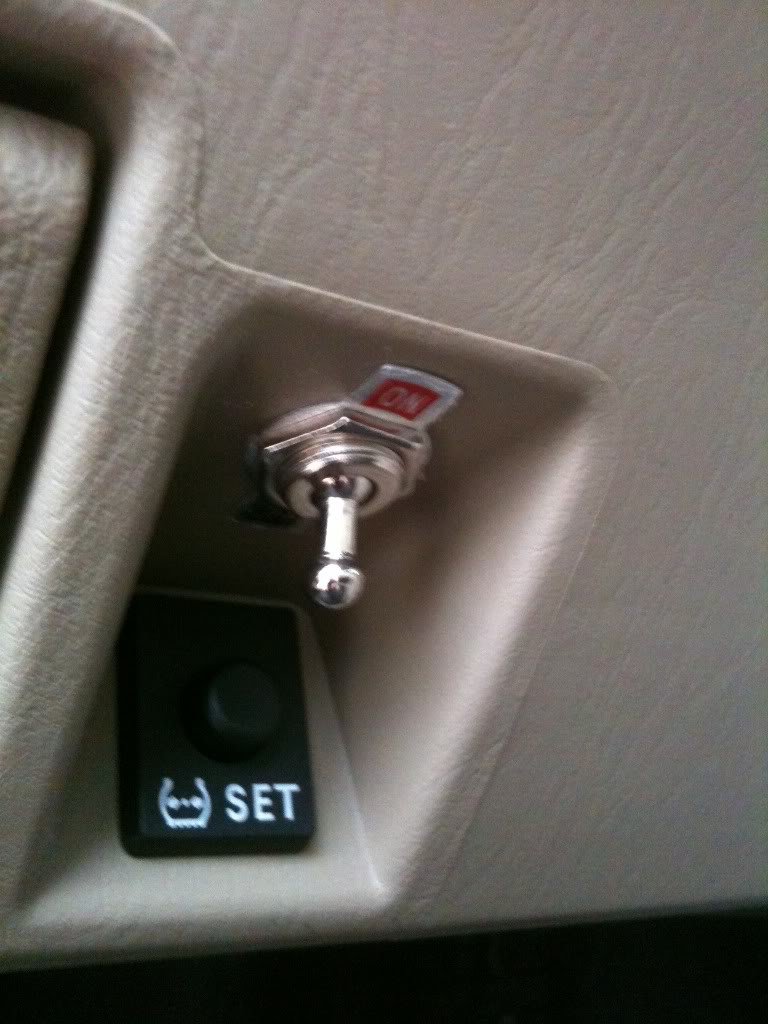

    Quick and easy mod to turn off and on DRLs. Thanks to the OP for posting the DRL mod and then this mod.

    A six dollar switch and a little wiring and solder allready in the toolbox:

    [​IMG]

    [​IMG]

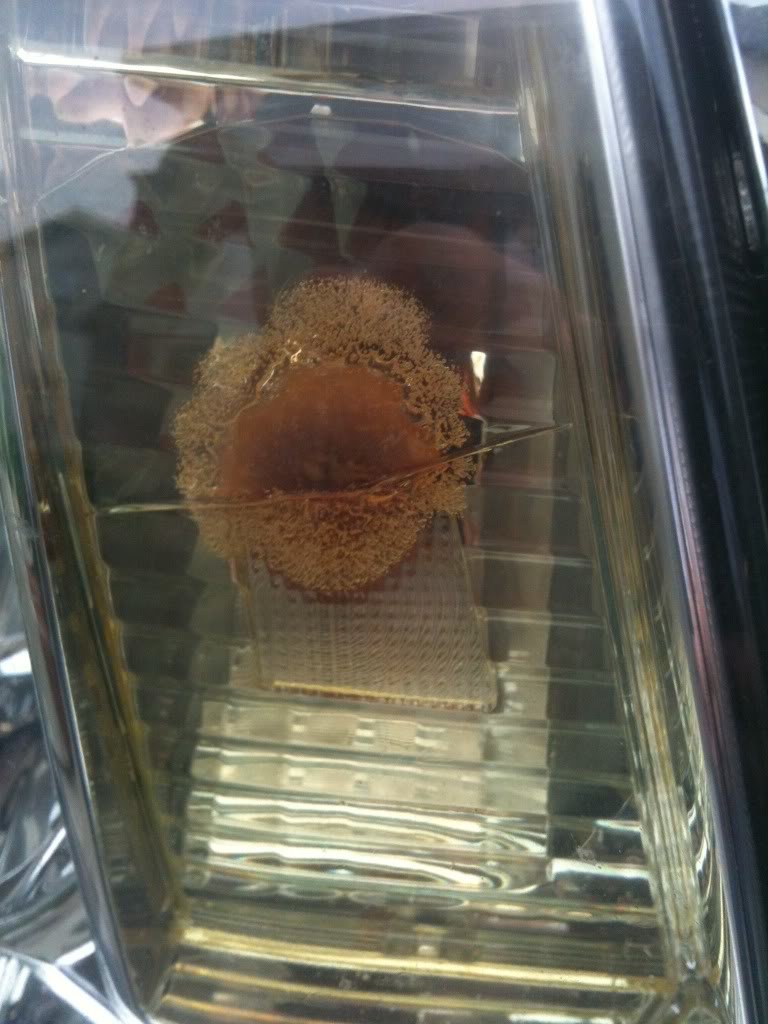

    Hopefully it will stop this from getting worse:

    [​IMG]

  9. Jul 6, 2013 at 7:16 PM
    #29
    Got2ryde

    Got2ryde Well-Known Member

    Joined:
    May 1, 2012
    Member:
    #77982
    Messages:
    556
    Gender:
    Male
    First Name:
    Ryder
    Maryland
    Vehicle:
    AC OR 6spd silverstreak
    Off Road tow pac. GTCovers wetskinz seat covers, Direct wired Escort 9500xi, Leer 180 w/ARB awning, bed mat, extra d-rings, rear dif breather relocated, Weathertec mats, Elite front with Warn M8000-s and Rigid D2's, BAMF sliders, ABS killswitch, Kicker Hideaway sub, UltraGauge, ATO rear with flush mount duallys, FJ Trail Team black rims w/Duratracs.
    Sub for later

  10. Dec 27, 2013 at 8:22 AM
    #30
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    7,952
    Gender:
    Male
    First Name:
    Nam
    St. Petersburg, Florida
    Vehicle:
    2006 SR5 DCSB
    15000K HID headlights 3000K HID fogs LED Front Side Marker Bulbs LED License Plate Bulbs LED Front Turn Signals Color Matched Grille Color Matched Side Mirrors and Door Handles CB radio and PA speaker Overhead Compass and Temperature Window Tint Anytime Fog Light Mod Bakflip G2 Westin Stainless Bull Bar Pop N Lock PL5300 UltraGauge K&N Intake Stant Locking Gas Cap Color Matched Rear Bumper Jet Throttle Body Spacer
    hi all, quick question about the wiring. Does the wire from the black plastic clip or white plastic clip go to the power post, and which one goes to the accessory post of the switch, thanks! or does it not matter?

  11. Dec 28, 2013 at 11:57 PM
    #31
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    7,952
    Gender:
    Male
    First Name:
    Nam
    St. Petersburg, Florida
    Vehicle:
    2006 SR5 DCSB
    15000K HID headlights 3000K HID fogs LED Front Side Marker Bulbs LED License Plate Bulbs LED Front Turn Signals Color Matched Grille Color Matched Side Mirrors and Door Handles CB radio and PA speaker Overhead Compass and Temperature Window Tint Anytime Fog Light Mod Bakflip G2 Westin Stainless Bull Bar Pop N Lock PL5300 UltraGauge K&N Intake Stant Locking Gas Cap Color Matched Rear Bumper Jet Throttle Body Spacer
    bump? :notsure:

  12. Jan 14, 2014 at 7:27 PM
    #32
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    7,952
    Gender:
    Male
    First Name:
    Nam
    St. Petersburg, Florida
    Vehicle:
    2006 SR5 DCSB
    15000K HID headlights 3000K HID fogs LED Front Side Marker Bulbs LED License Plate Bulbs LED Front Turn Signals Color Matched Grille Color Matched Side Mirrors and Door Handles CB radio and PA speaker Overhead Compass and Temperature Window Tint Anytime Fog Light Mod Bakflip G2 Westin Stainless Bull Bar Pop N Lock PL5300 UltraGauge K&N Intake Stant Locking Gas Cap Color Matched Rear Bumper Jet Throttle Body Spacer
    has anybody wired their drl to a lighted switch, my switch works perfectly, but i can't get my switch to light up by grounding it, I was thinking is there the possibility that there is not enough power coming from the drl relay?

  13. Jul 16, 2014 at 11:57 AM
    #33
    Boomtacoma01

    Boomtacoma01 Well-Known Member

    Joined:
    Dec 7, 2009
    Member:
    #27162
    Messages:
    858
    Gender:
    Male
    First Name:
    Chris
    Houston
    Vehicle:
    09 BSP SR5 DC 4x4
    285/70/17 Dynapro MTs, Shrockworks front bumper, Armortech rear bumper
    Bump.

    Doing this mod this weekend. tired of burning out the lenses and plug sockets on my 09. Third set of headlights and 4 plug sockets later.

    You will need 12V power from another source. There is not enough power to run the LED on the switch from the DRL circuit.

    Thanks again to the previous posters for the wiring information.

    Last edited: Jul 16, 2014
  14. Jul 16, 2014 at 12:06 PM
    #34
    luka

    luka Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58428
    Messages:
    2,699
    Gender:
    Male
    First Name:
    Mike
    Kailua, HI
    Vehicle:
    Prerunner -> 4WD Converted
    Pelfreybilt Bumper & IFS+Mid skid, Warn Zeon 10-S, BAMF Sliders & LCA/Diff Skids, DTRL toggle on/off, FJ OEM Fog/Aux Light switches, 2012 lower center console swap, wired in auto-dimming rear view mirror, Wet-Okole inside, Weathertech Liners & Vent Visors, Rigid Duallys fogs, 35%/5% front/rear tint, Roto-Pax, Bestop SuperTop, OME 90000/886 Front, OME Dakars+AAL/extended 5100 Rears, Extended SS brake lines, TRD TX Pro/Baja Graphite 16" Rims
    I ran my DTRL switch into a fog light switch (used FJ roof light switch) with a relay

    its a 5 wire switch and also lights up with the night light. check my build or pm me and i'll remember to dig out how I did the wiring.

  15. Aug 17, 2014 at 10:11 AM
    #35
    CowboyTaco

    CowboyTaco Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41928
    Messages:
    1,299
    Gender:
    Male
    North Texas
    Vehicle:
    11 TRD Sport
    Ironman Lift w/ Dakar Leaf Pack, Relentless Rock Sliders, AllPro IFS Skid Plate, WeatherTech Floor Liners and LampGards.
    Alright, I'm banging my head on my dash hard on this one. I'm hoping that I'm just missing something simple. Here's what I did:

    I followed this write-up pretty closely. (http://www.tacomaworld.com/forum/lighting/85326-dtrl-toggle-switch-mod-stealth-mode.html)

    First, I ordered a 3-pin fin wire extension cable, cut the wires in the middle and connected it to itself. I can take a picture of that if it's confusing in any way.

    I found the green/red wire and cut it. Then stripped a little off the end, twisted the stripped cable with some of the new extension wire that had been stripped together. I wrapped the connections with electrical tape to help keep them from getting pulled and keep them protected.

    I then soldered the other half of the extension cable to the switch. I connected the two ends and nothing.

    My ultimate objective was to turn off the DTRLs, which happened, so I left it like that for a while. Now, I'm cleaning up some projects that I've left unfinished so I'm trying to get this one so that it works.

    I thought maybe the switch was bad, so i cut the wire and twisted it together. No DTRLs, so not the switch. Then I figured I needed to check the connections under the dash since they are hard to reach. They were in tact. So I figured the only other point of failure would be the connection in the middle.

    I have some 20ga. wire from another project. I decided to eliminate the 3-pin extension cable all together. I put quick connectors on one end to connect to the switch and a butt plug connector on the other end. I crimped the connector onto the other end of the 20ga. wire and made sure it was tight. I then went under the dash and got it connected to the green/red wire. Still nothing.

    As of right now, I'm relatively certain that I have good connections under the dash. I'm even more certain that I have good connection to the switch. There is no quick disconnect in the middle of the wire.

    Any thoughts or suggestions are welcome!

  16. Aug 17, 2014 at 11:08 AM
    #36
    west467

    west467 Active Member

    Joined:
    Jan 7, 2009
    Member:
    #12340
    Messages:
    44
    Gender:
    Male
    Vehicle:
    Two Black Tacos..03 and 09
    If you are pretty sure of the wiring, take the switch out. Connect the wires.
    The DRLs should be working.

  17. Aug 17, 2014 at 12:51 PM
    #37
    CowboyTaco

    CowboyTaco Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41928
    Messages:
    1,299
    Gender:
    Male
    North Texas
    Vehicle:
    11 TRD Sport
    Ironman Lift w/ Dakar Leaf Pack, Relentless Rock Sliders, AllPro IFS Skid Plate, WeatherTech Floor Liners and LampGards.
    I tried that with the old wires. I suppose I should test with the new ones.

  18. Aug 17, 2014 at 1:02 PM
    #38
    DrFunker

    DrFunker PhD, DVM, MPH, MS, MMA, Esq, XYZ, 123, blahblah

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    2,887
    Gender:
    Male
    First Name:
    Dr. (I just play one on TV)
    NorthEast
    Vehicle:
    11-DC-SB-OR
    The Gray Ghost
    Cowboy - not to be a smart ass but, is the e brake on?
    I did this :facepalm:
    That is why I ask.

  19. Aug 17, 2014 at 2:16 PM
    #39
    CowboyTaco

    CowboyTaco Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41928
    Messages:
    1,299
    Gender:
    Male
    North Texas
    Vehicle:
    11 TRD Sport
    Ironman Lift w/ Dakar Leaf Pack, Relentless Rock Sliders, AllPro IFS Skid Plate, WeatherTech Floor Liners and LampGards.
    I don't think you're being a smart ass at all. Does the e-brake kill the DTRL somehow?

    I think I pushed it in while I was checking the wires under the dash. I then pulled my truck into the driveway, and I usually push the e-brake there too since its on a slight incline.

    I'm going to go test this now!

  20. Aug 17, 2014 at 2:24 PM
    #40
    CowboyTaco

    CowboyTaco Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41928
    Messages:
    1,299
    Gender:
    Male
    North Texas
    Vehicle:
    11 TRD Sport
    Ironman Lift w/ Dakar Leaf Pack, Relentless Rock Sliders, AllPro IFS Skid Plate, WeatherTech Floor Liners and LampGards.
    I cut the quick connectors off an twisted the wire together. No luck. However, the e-brake was on....still not sure if that affects it.

    E-brake was on. However, I took it off and had the same result. This is after putting the switch back in though.
