05 Tacoma SAC and 4.7 V8 Swap

Discussion in 'Solid Axle Suspension' started by canadian bum, Nov 11, 2017.

  1. Nov 11, 2017 at 8:29 AM
    #1
    canadian bum

    canadian bum [OP] Well-Known Member

    Joined:
    Nov 11, 2017
    Member:
    #235682
    Messages:
    115
    Gender:
    Male
    First Name:
    John
    Alberta, Canada
    Vehicle:
    2005 SAC DCLB
    Spacer lift with 42s
    Well this isn't my first SAC Tacoma, but unfortunately my first one was totalled after hitting some ice and piling into a tree. I decided to get basically the same truck I had before and rebuild and improve on the first build.

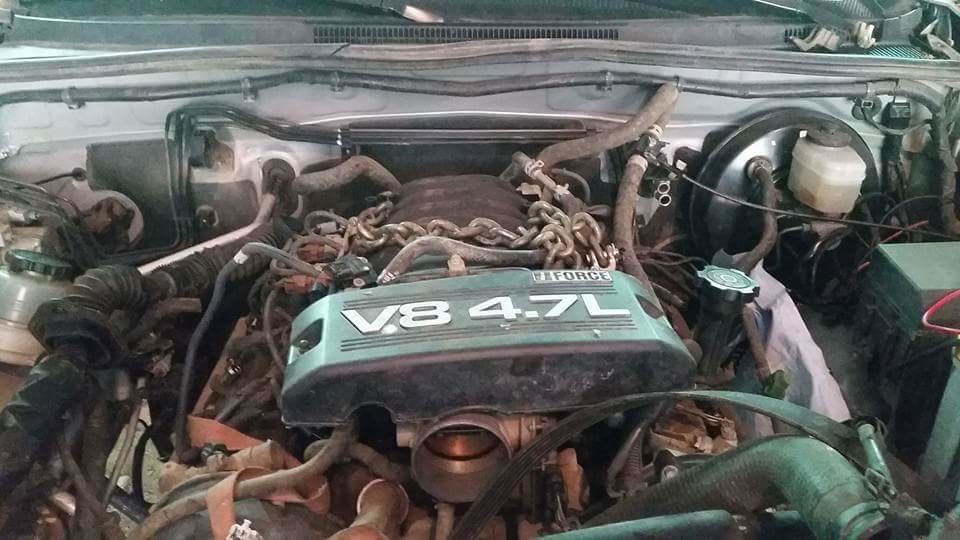

    I originally had a 4.7 from a 2002 Tundra however I decided to get a 2005 engine since it uses the same transmission as the 4.0 V6 and would make it easier to swap in. For those thinking what's the point of doing the 4.7 swap it's the torque numbers I'm after. And I'll be doing some other mods to improve on the V8 as well.

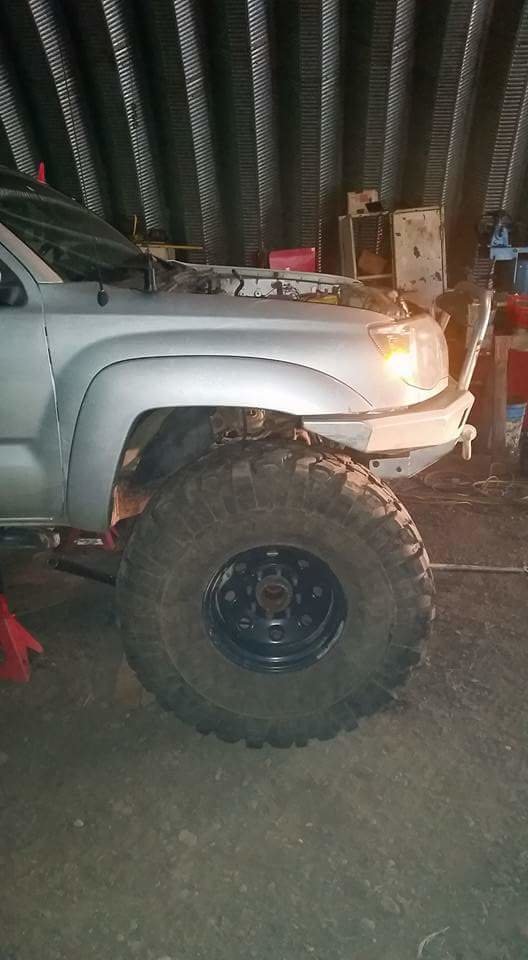

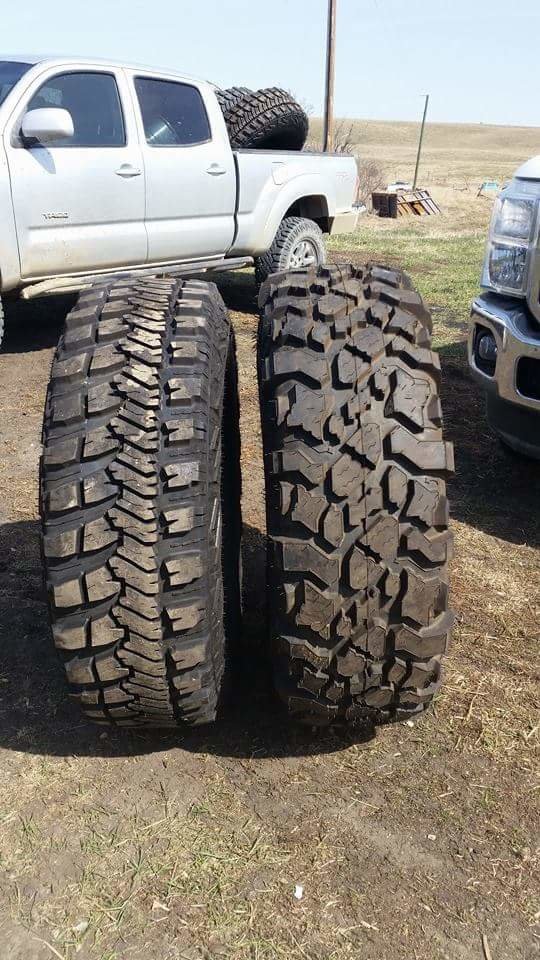

    Originally I had some 40" MTR's but having heard of tire failures decided to change it up to 41.5" Pitbull Rockers. Also I was motivated to upsize because of the loss of ground clearance. My previous Tacoma ran 37s on a HP Dana 44 and Tacoma rear. Under the pumpkins going to tons I lost a bit of ground clearance even being on 40s.

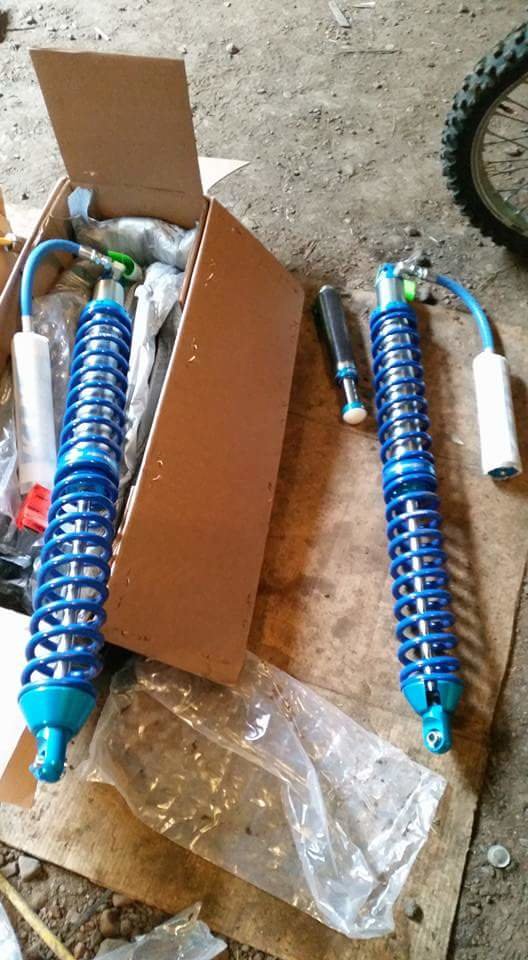

    For front coil overs I went with 16" Kings and some spaced bump stops to 3".

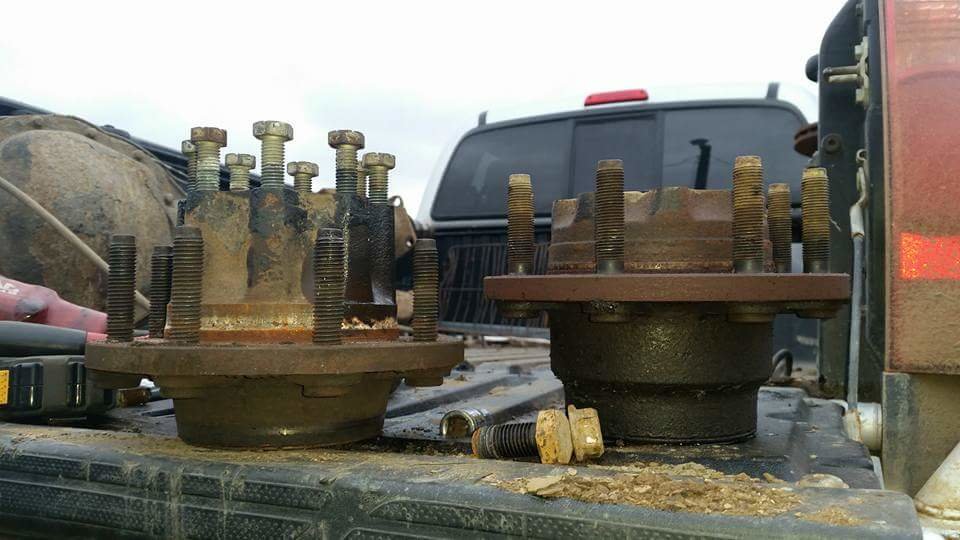

    Originally I was running the early Super Duty Dana 60 front and Sterling 10.5 however it made more sense to upgrade to the stronger 2005 and up front axle. The brakes are bigger, the knuckles are bigger, and the unit bearings are also bigger. Having already set up the rear axle with 5.13 gears and ARB I just added the parts off the newer rear axle to gain the extra width to match the front. For the most part it is bolt on. However the weld on Caliper mounts have to be ground and rewelded to work with the new style hubs and rotors.

  2. Nov 11, 2017 at 8:46 AM
    #2
    canadian bum

    canadian bum [OP] Well-Known Member

    Joined:
    Nov 11, 2017
    Member:
    #235682
    Messages:
    115
    Gender:
    Male
    First Name:
    John
    Alberta, Canada
    Vehicle:
    2005 SAC DCLB
    Spacer lift with 42s

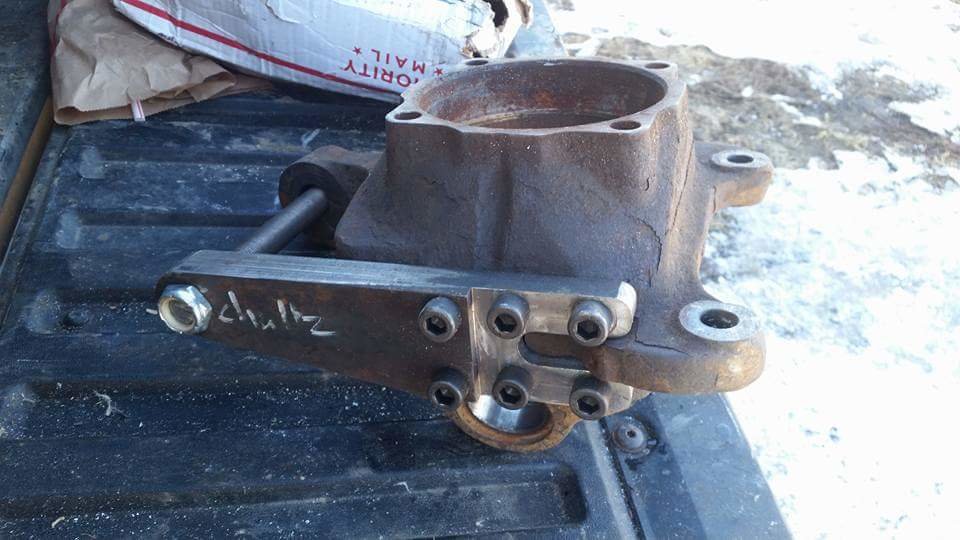

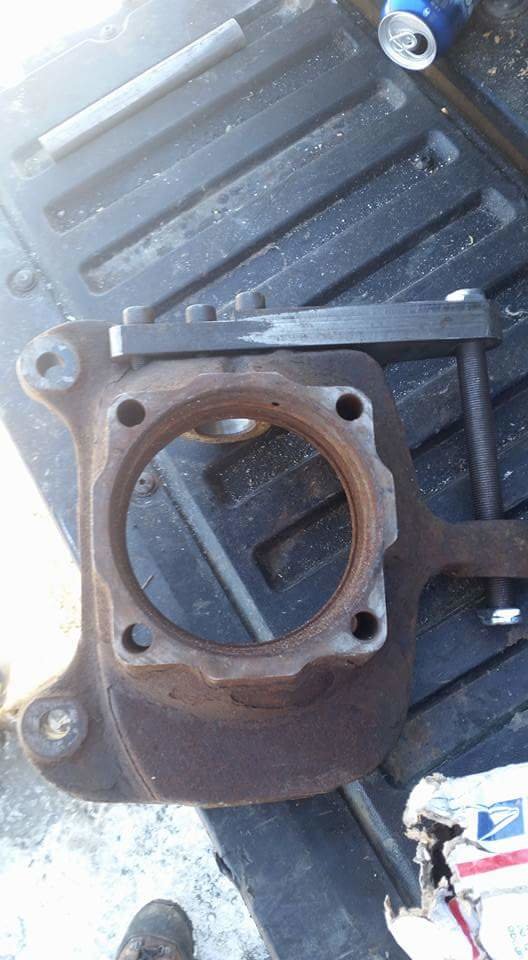

    I sent off the knuckles to get some machining and some beefy high steer put on. In the end the truck will have a 8" double ended ram hydro assist set up.

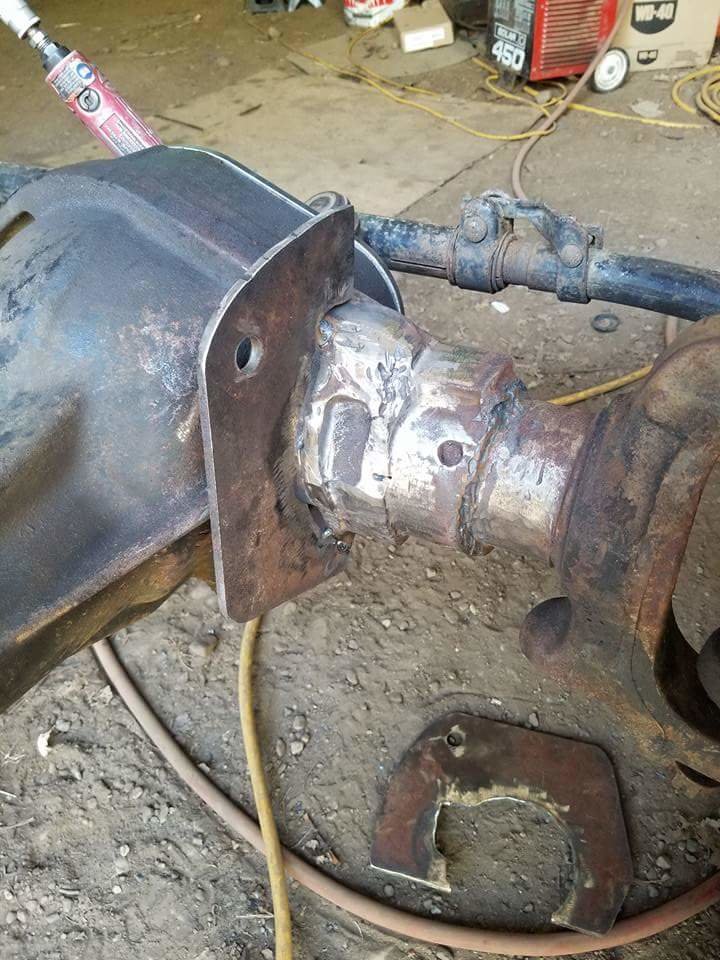

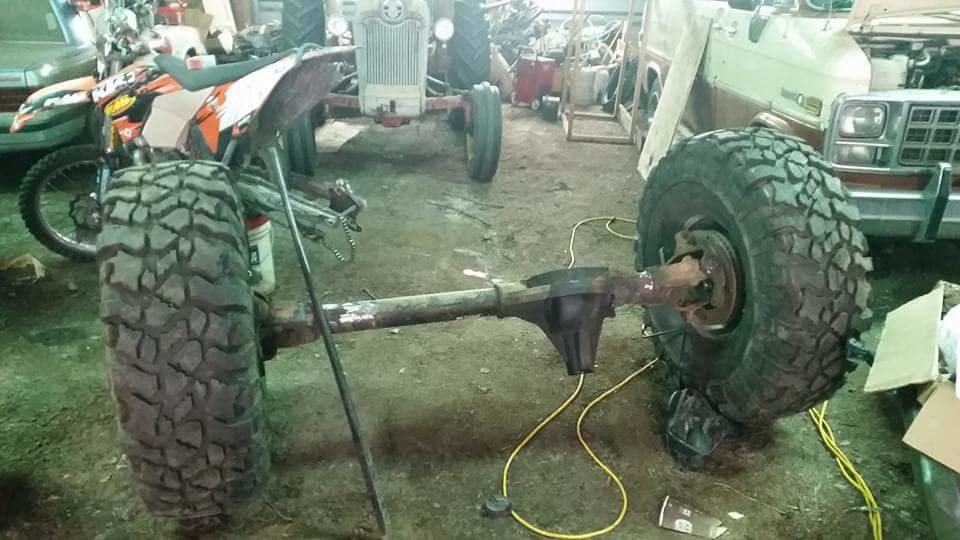

    The rear clearly is much wider than stock of 65" my previous build ran a full size 78 F250 Dana 44 converted to 6 lug with 10 bolt parts. The newer full size diffs are much wider than the older full size diffs. The rear axle is set up with 5.13 gears with a solid pinion spacer and ARB locker.

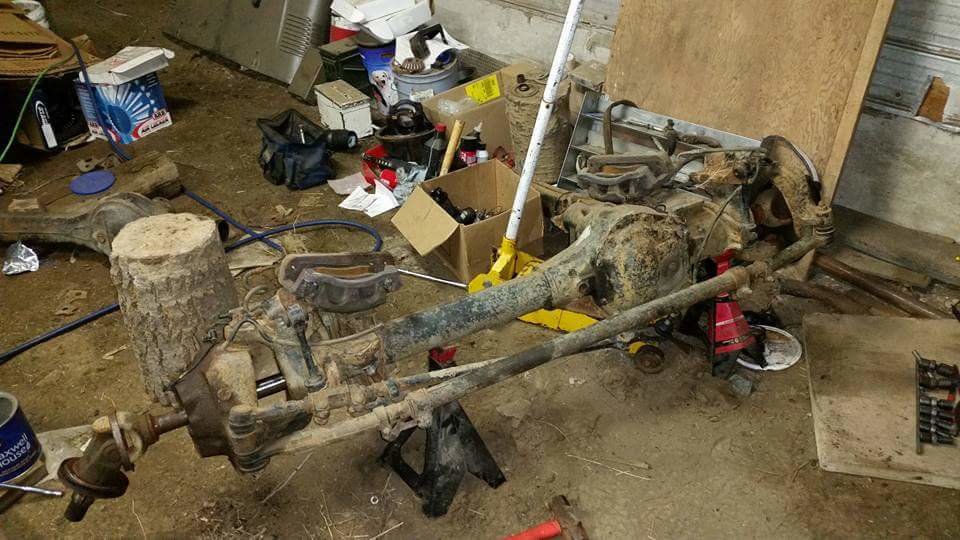

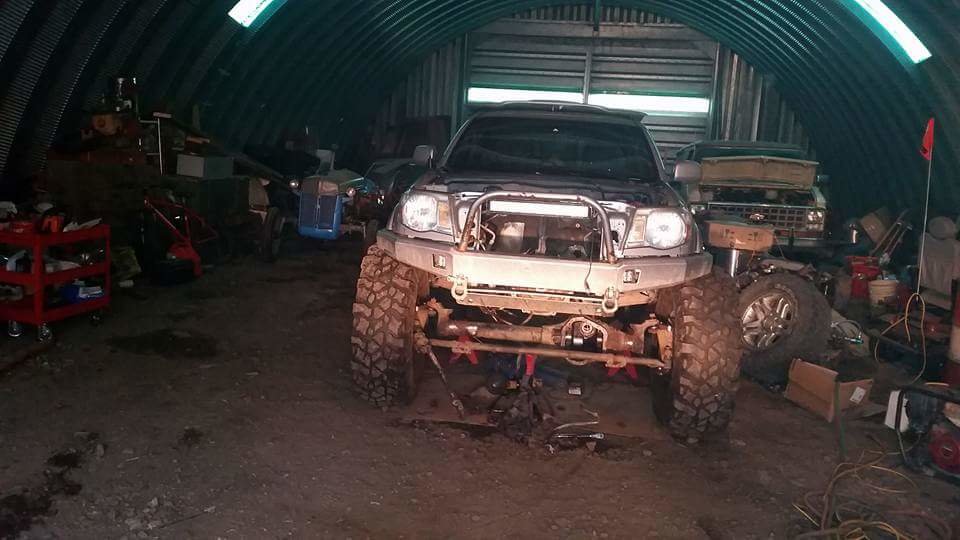

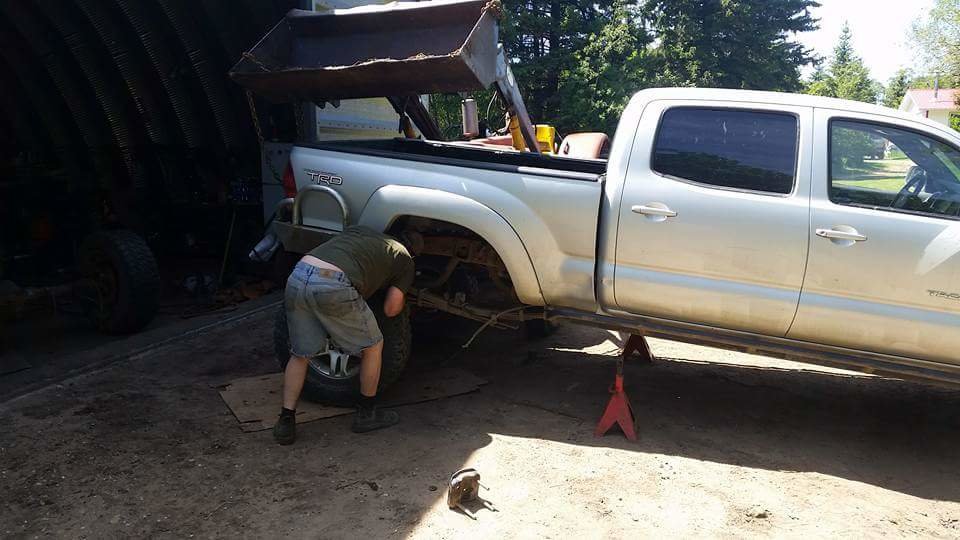

    Got the front IFS all cut out which is fairly painless and can all be easily removed in one chunk. Next put the cleaned up front axle in place to get an idea as to where things are going to sit. The front bumper is going to have to be trimmed and I'll be ordering up some fiberglass fenders to hopefully not get hassled on the highway as much...

    Andy oil, darkyota33, Arailt and 8 others like this.
  3. Nov 11, 2017 at 9:17 AM
    #3
    canadian bum

    canadian bum [OP] Well-Known Member

    Joined:
    Nov 11, 2017
    Member:
    #235682
    Messages:
    115
    Gender:
    Male
    First Name:
    John
    Alberta, Canada
    Vehicle:
    2005 SAC DCLB
    Spacer lift with 42s

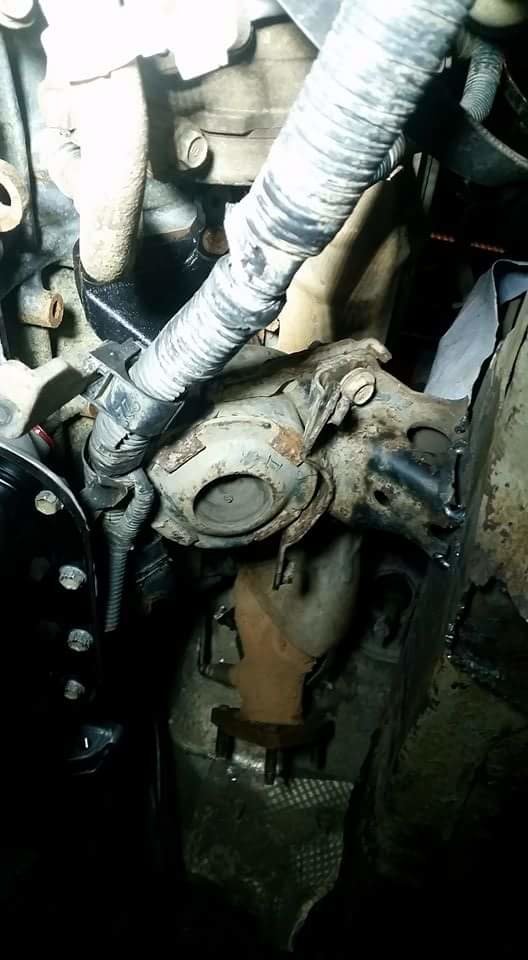

    The engine I needed the pan assembly from a 100 series Land Cruiser to move the sump to the rear for clearance. I also got engine mounts off of 4runner hoping that the engine would bolt into the Tacoma without issue. Unfortunately the frame engine mounts have to be relocated but they do bolt up the V6 is just further back. The transmission is the same other than the torque converter and bellhousing. But a quick swap from the one that came with the engine and it was good to go. The wiring is the same to the trans and the tcase so that was beneficial in moving up to the 2005 engine. The interface to the truck wiring for the most part looks to be plug and play. There will be some changing of plugs from the V6 for 4x4 actuation and minor things like that. The V8 computer the plugs all plug in from the truck but I will cross reference pin locations to make sure everything is where it should be.

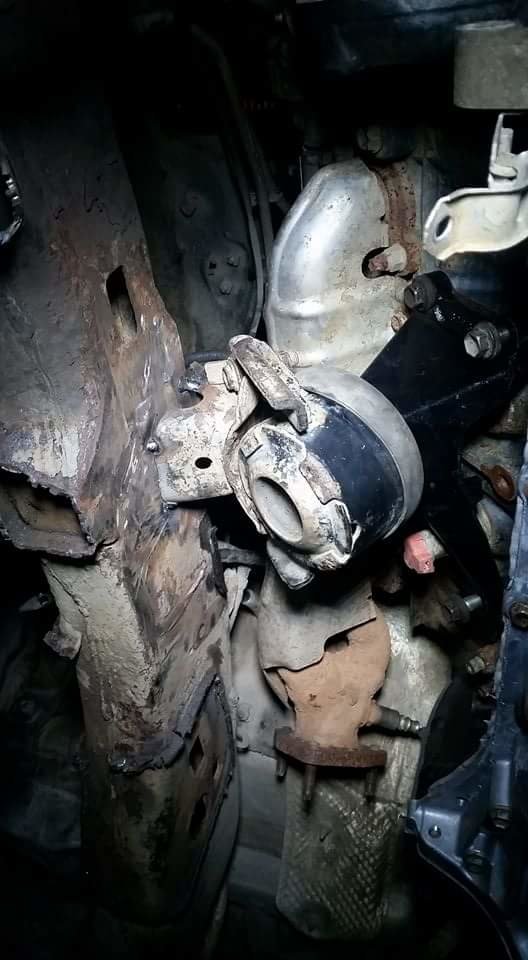

    Here are the mounts tacked into place in the new location. Next I need to measure up a rad from a V8 4runner to see if it will bolt into the Tacoma. The coolant outlets are completely opposite of where they need to be from V6 to V8. Also I have to start completely over since my truck had a rust hole in the frame I got a new frame from Toyota with the recall. It's a nice bonus to be having a clean fresh new slate to work with and to properly coat once all the fab work is completed.

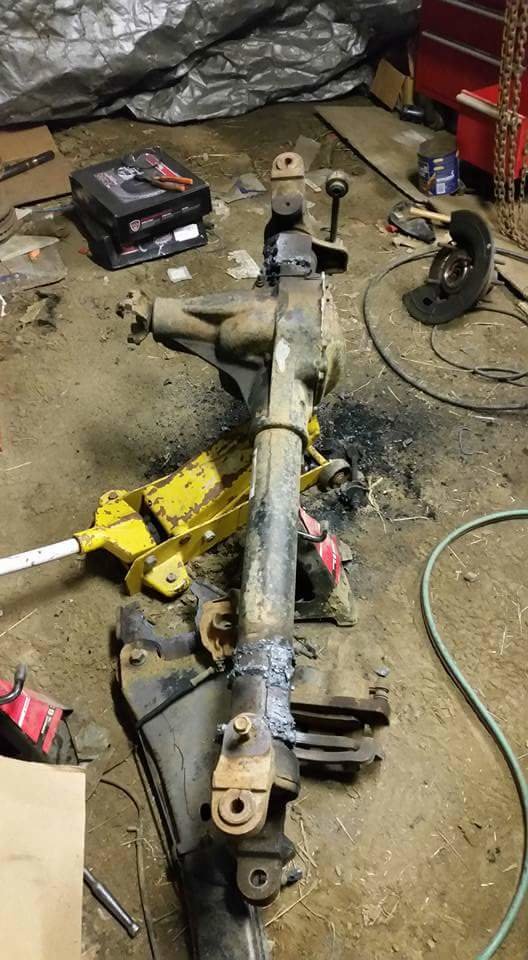

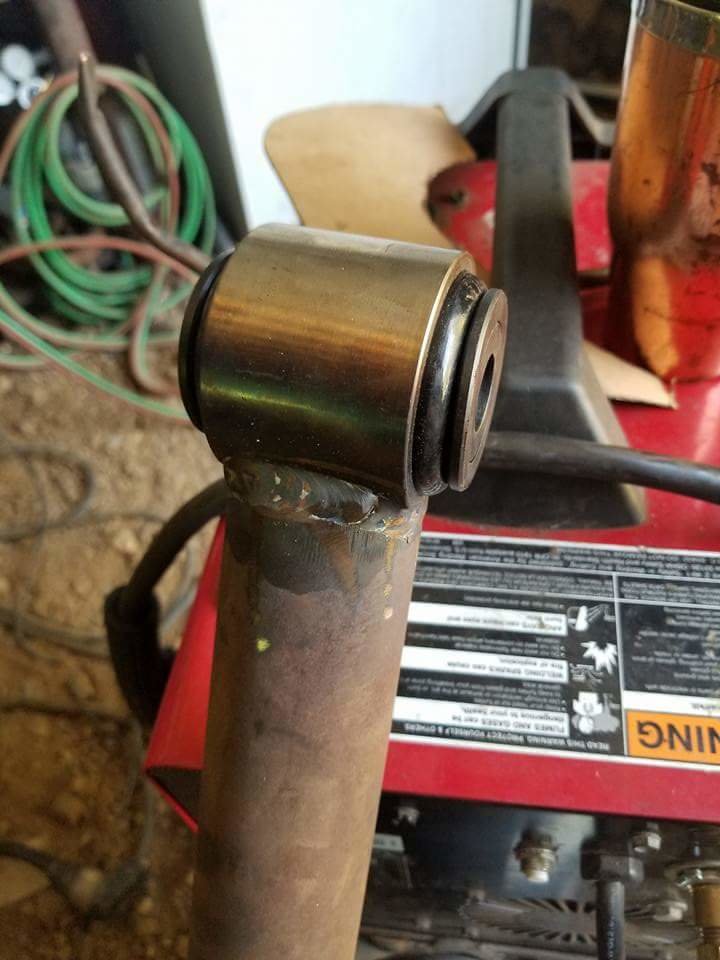

    Shaved quite a bit of weight off the front axle. And because the cast stretches so far there isn't much tube exposed. However the cast will be able to hold a decent weld without failure due to the steel it's made from thankfully. With the proper welding procedure it will be plenty strong to hold up without ripping apart. Also using all EMF large rod ends and bushings for the links. Really nice high quality parts and basically just down the road from me.

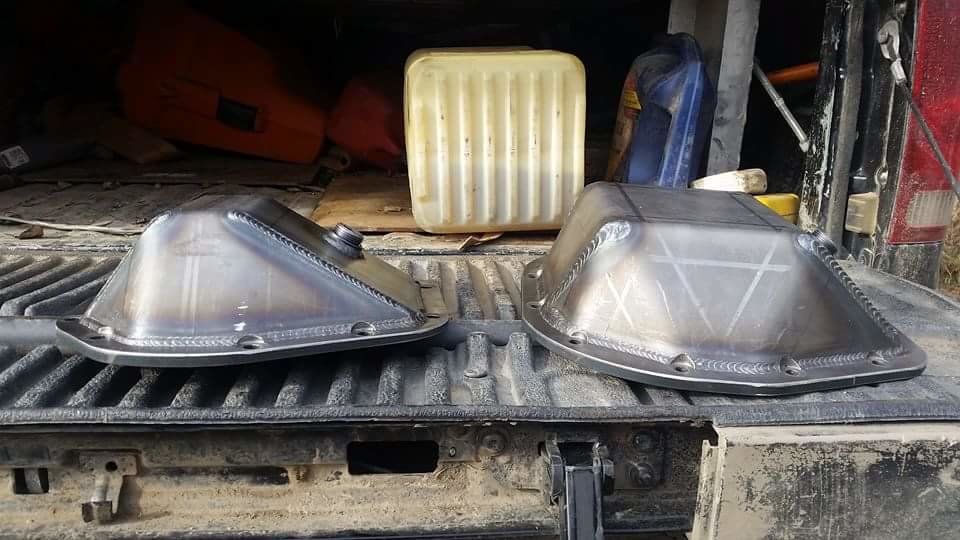

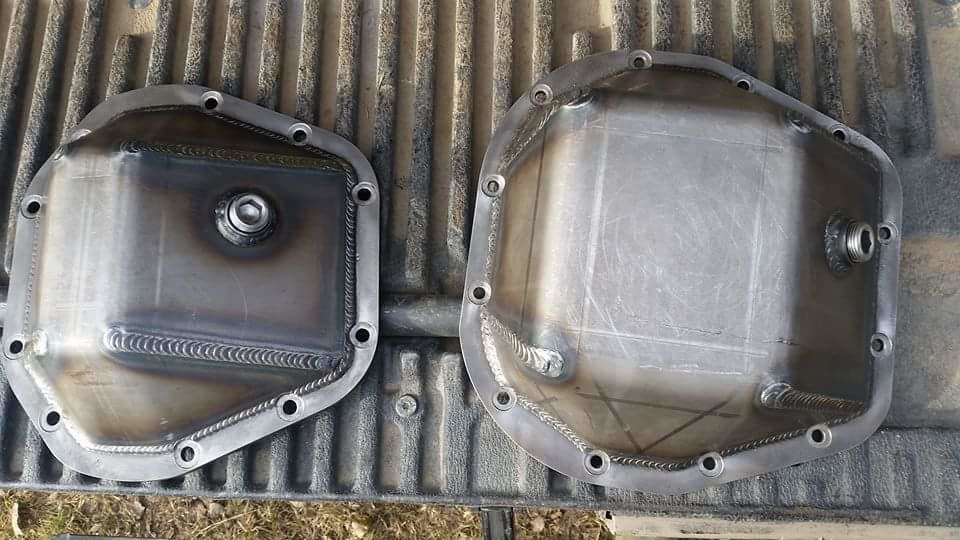

    I got some ruffstuff diff covers when they were on sale, they should protect the expensive parts of the axles quite nicely. I definitely don't have to worry about denting these at all.

    I haven't really been documenting this build as well as I have with previous builds but plan on now getting on top of that with more pictures and more detail as to what is going on moving forward.

  4. Nov 11, 2017 at 9:45 AM
    #4
    Oreo Cat

    Oreo Cat Certified Alcoholic

    Joined:
    Sep 19, 2016
    Member:
    #197755
    Messages:
    3,998
    California
    Vehicle:
    2006 With 2015 engine
    Much want

  5. Nov 11, 2017 at 9:47 AM
    #5
    Bogg

    Bogg Well-Known Member

    Joined:
    Apr 16, 2011
    Member:
    #55035
    Messages:
    600
    Gender:
    Male
    Surrey, Canada
    Vehicle:
    07 TRD Sport 4x4
    Welcome to TW. Excited to see this build unfold :popcorn:

  6. Nov 11, 2017 at 12:00 PM
    #6
    1999RegCab

    1999RegCab Well-Known Member

    Joined:
    Apr 4, 2014
    Member:
    #127007
    Messages:
    1,348
    Gender:
    Male
    Cacti Land, AZ
    Vehicle:
    1999 Reg Cab, 2.7, 5 speed
    3-link SAS
    Damn...1 ton SAS PLUS engine swap.

    This is gonna be awesome!

  7. Nov 11, 2017 at 12:05 PM
    #7
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    7,641
    Gender:
    Male
    First Name:
    Chris
    Menifee, Ca -> Tucson, Az -- April
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
  8. Nov 11, 2017 at 12:08 PM
    #8
    bullaculla

    bullaculla IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,159
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Subbed.

    nfs257 likes this.
  9. Nov 11, 2017 at 1:36 PM
    #9
    slander

    slander Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    6,873
    Gender:
    Male
    Hickory, NC
    Vehicle:
    02 Tacoma, fixed with curse words.
    11TRDTX and beertimecontinuum like this.
  10. Nov 11, 2017 at 1:48 PM
    #10
    beertimecontinuum

    beertimecontinuum What's outside the simulation?

    Joined:
    Dec 29, 2013
    Member:
    #119461
    Messages:
    9,919
    Gender:
    Male
    First Name:
    Everett
    Ky,Earth,SolarSystem,MilkyWay,VirgoSupercluster
    Vehicle:
    10 Pyrite DCSB VEEEEEE 1.618
    FoxShox, Dirt King Heims, Chevy63s, 2UZ-FE V8 Flowmaster 40, Demello Front/DYF Rear w/Swigouts, BAMF sliders, DYFAF
    11TRDTX likes this.
  11. Nov 11, 2017 at 2:13 PM
    #11
    Toyoland66

    Toyoland66 Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103918
    Messages:
    370
    Gender:
    Male
    Colorado
    Vehicle:
    09 GX470
    5100s, OME 885/895, 255/80r17 Toyo AT2
    This has my interest on both conversions. I eventually want to swap a 2uz/a750 into my FJ40.

    canadian bum [OP] likes this.
  12. Nov 11, 2017 at 2:35 PM
    #12
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    21,158
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    All in!

    nfs257 likes this.
  13. Nov 11, 2017 at 2:53 PM
    #13
    canadian bum

    canadian bum [OP] Well-Known Member

    Joined:
    Nov 11, 2017
    Member:
    #235682
    Messages:
    115
    Gender:
    Male
    First Name:
    John
    Alberta, Canada
    Vehicle:
    2005 SAC DCLB
    Spacer lift with 42s

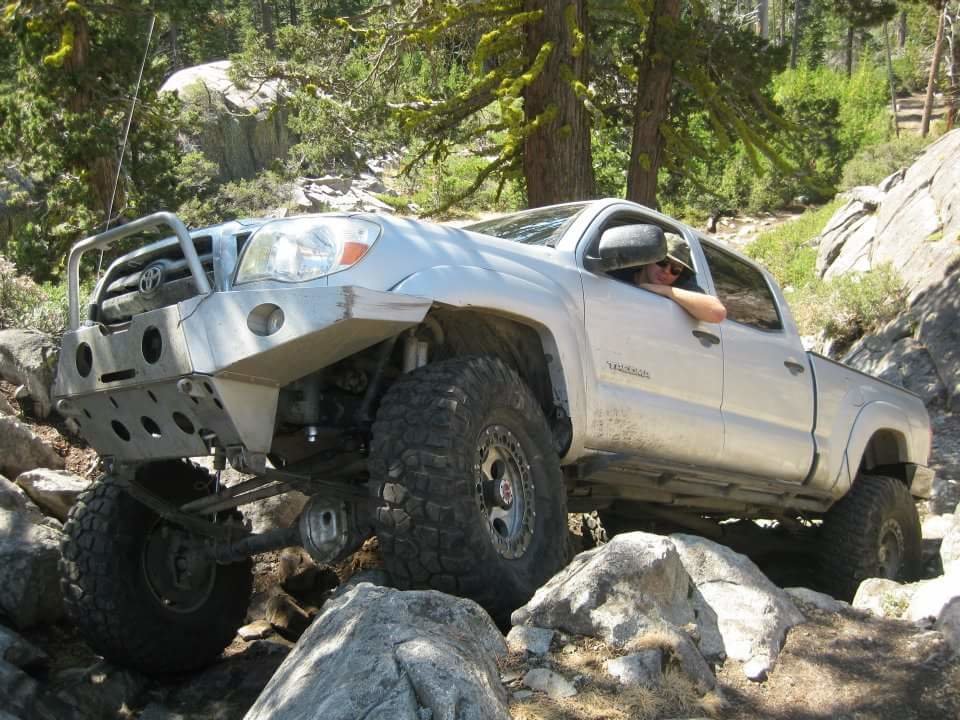

    Thanks for all the welcomes. I'm looking forward to getting this truck done so I can get some wheeling in back in California as well as make a trip to Utah. Here is a before and after of the old truck.





    Nice, I have a 40 and 45 I've been working on as well that I'll get back at once this one is wrapped up but I've got a couple 1HDT diesels for them that I'll be swapping in.

    Holloman likes this.
  14. Nov 11, 2017 at 5:51 PM
    #14
    allenfab

    allenfab I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,299
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    95 Tacoma Single Cab 3.4 V6
    3-link SAS, Detroit's f/r, 37 RAZR's, Atlas 4
    I remember your old build, I believe on TTORA. Welcome!

  15. Nov 11, 2017 at 6:31 PM
    #15
    canadian bum

    canadian bum [OP] Well-Known Member

    Joined:
    Nov 11, 2017
    Member:
    #235682
    Messages:
    115
    Gender:
    Male
    First Name:
    John
    Alberta, Canada
    Vehicle:
    2005 SAC DCLB
    Spacer lift with 42s
    Yeah that's where it was. Doesn't really look like TTORA is as lively anymore what's the story on that?

  16. Nov 11, 2017 at 6:36 PM
    #16
    allenfab

    allenfab I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,299
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    95 Tacoma Single Cab 3.4 V6
    3-link SAS, Detroit's f/r, 37 RAZR's, Atlas 4
    Some company bought the forum (Vertical Scope I believe, same people that have since bought Pirate4x4), and it just fell apart and people stopped using it. It's a shame too, it was a great forum with loads of good info/write-ups.

  17. Nov 11, 2017 at 6:41 PM
    #17
    SoCOTaco

    SoCOTaco Well-Known Moron

    Joined:
    Jul 20, 2016
    Member:
    #192494
    Messages:
    1,004
    Gender:
    Male
    First Name:
    Mitch
    Monument, CO
    Vehicle:
    2006 Tacoma TRD Off Road 6MT 4X4
    King Shocks, RCI and Pelfreybilt Armor, SCS Wheels
    Soooooo sub'd for the awesomeness to come! Must have been a hard hit on the old truck to push a steel bumper in like that, hope you came out from that one ok.

  18. Nov 11, 2017 at 6:44 PM
    #18
    canadian bum

    canadian bum [OP] Well-Known Member

    Joined:
    Nov 11, 2017
    Member:
    #235682
    Messages:
    115
    Gender:
    Male
    First Name:
    John
    Alberta, Canada
    Vehicle:
    2005 SAC DCLB
    Spacer lift with 42s
    Really? That's a bummer, I haven't been on either forum for a while. I check out Ih8mud from time to time but haven't been on the forums as much as I used to be. Looking to get back into it more.

  19. Nov 11, 2017 at 6:45 PM
    #19
    canadian bum

    canadian bum [OP] Well-Known Member

    Joined:
    Nov 11, 2017
    Member:
    #235682
    Messages:
    115
    Gender:
    Male
    First Name:
    John
    Alberta, Canada
    Vehicle:
    2005 SAC DCLB
    Spacer lift with 42s

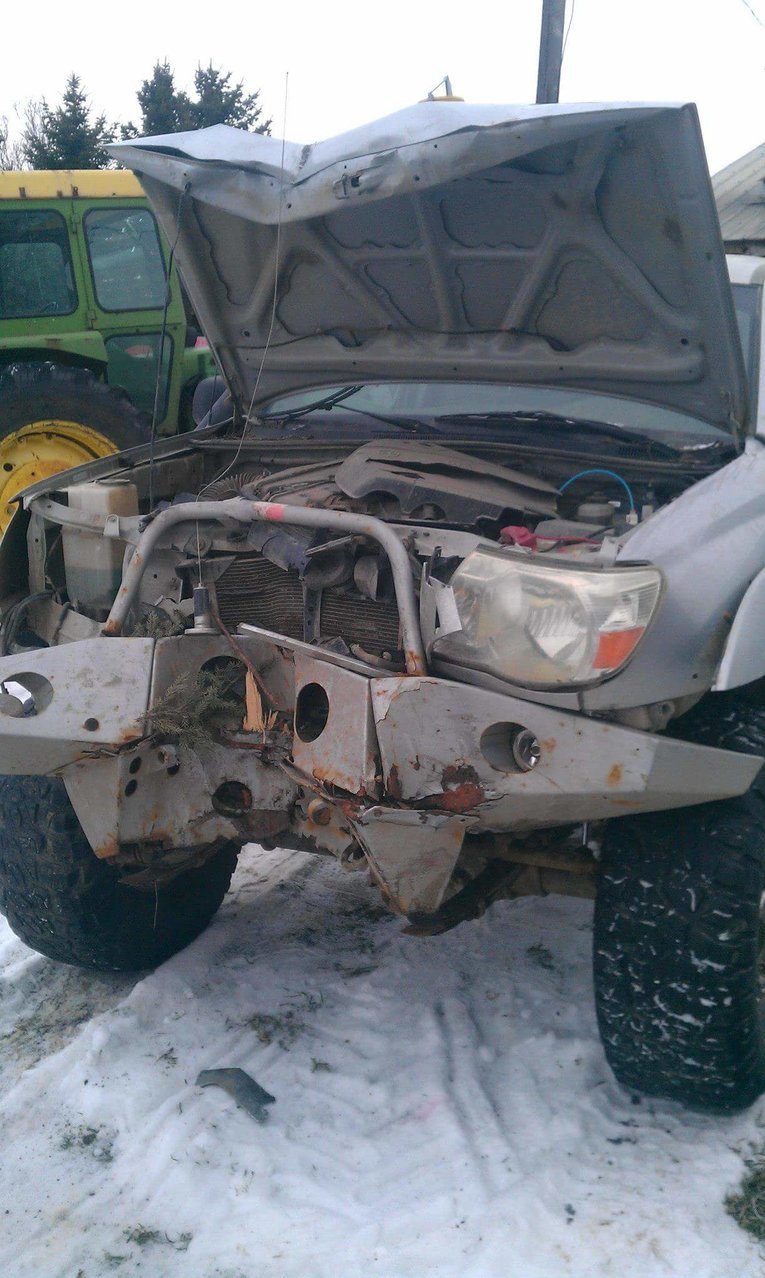

    Yeah I was fine. And it was quite the hit. Even bent the nose of the crank.
