09 Always-On Rear View Camera

Discussion in '2nd Gen. Tacomas' started by Aalders, Jun 28, 2009.

  1. Aalders

    Aalders [OP] Well-Known Member

    Joined:
    Jan 30, 2009
    Member:
    #13129
    Messages:
    209
    Gender:
    Male
    First Name:
    Logan
    Dover, Delaware
    Vehicle:
    2009 Double Cab TRD off road
    Pop-n-Lock Tlailgate handle, TSB Rear Leafs, 12V bed outlet, Back up camera in mirror mod, Roof Rack, TRD Exhaust, Front Skid Plate, Running Boards, 4 100w KC SlimLites, Westin brush guard, Fog lights in the bed pockets, extra D rings in the bed, Fog light mod, seat belt chime mod, 75,000 candlepower StreamLight rechargeable flashlight
    Note:This mod is for the Independent operation of the rear view camera from the Reverse position of the transmission.

    I finally got the time to sit down and finish this mod. so here it is from start to finish.

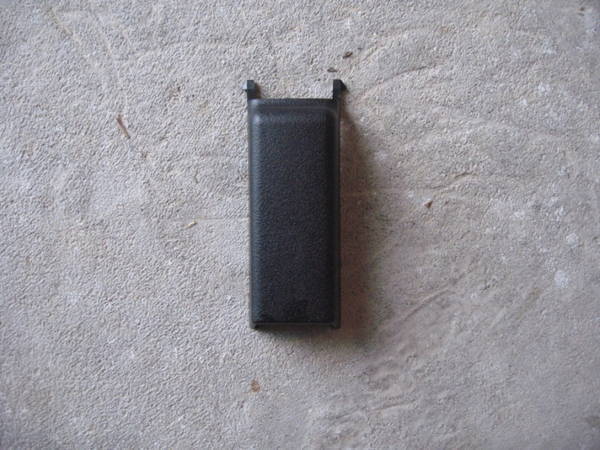

    First thing i did was remove the peace of trim that goes over the connector for the mirror.

    [​IMG]

    here is what it looks like.

    [​IMG]

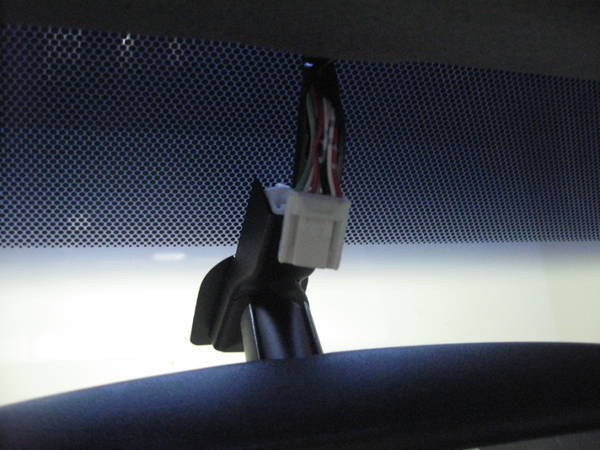

    then you need to disconnect the mirror. notice the first row of wires. wire 1 (green), wire 2 (wight), and wire 3 (red). you will be tapping into wire 1 for your +12v and then use the switch to feed the power to wire 3.

    [​IMG]

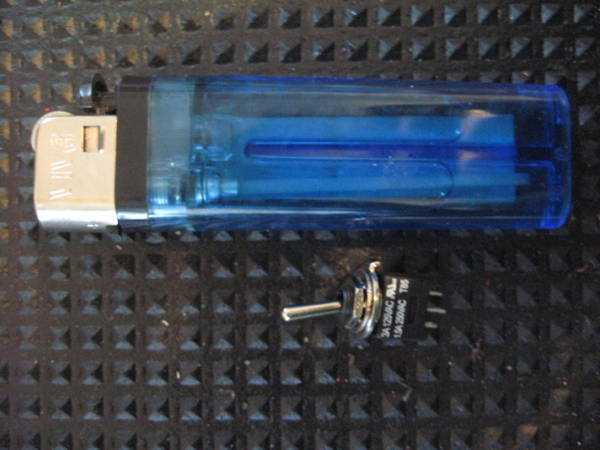

    this is the switch i used. i picked it up from Radio Shack for around $3. Notice that it has three posts on the back side. post 1 is for input #1, post 2 is the common (or the output to the mirror), and post 3 is input #2. your splice into wire 1(green) goes to ether post 1 or 3 depending on what position you want your switch to be in when your camera is always on. when you cut wire 3 (red) the lead that goes to the clip is soldered to post 2 (because that goes directly to the mirror). last you put the other end of wire 3 (red) to the last post (1 or 3 depending on what post is left after you connect wire 1 (green) to the switch)

    [​IMG]

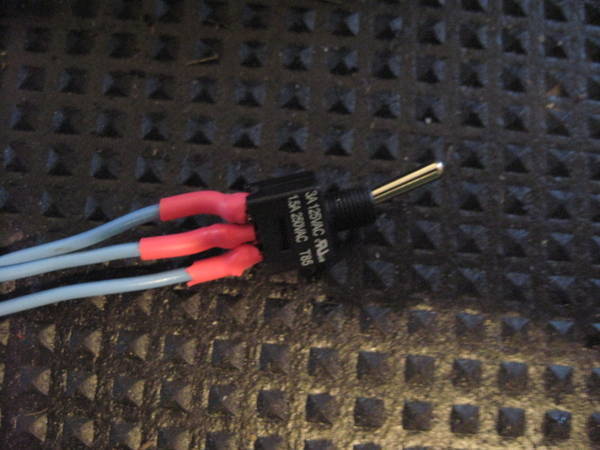

    this is my extensions i added to the switch

    [​IMG]

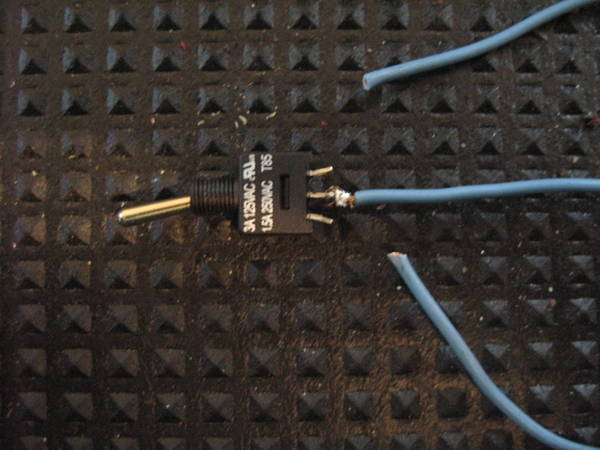

    I soldered all three wires on then used shrink tube to ensure they didn't short

    [​IMG]

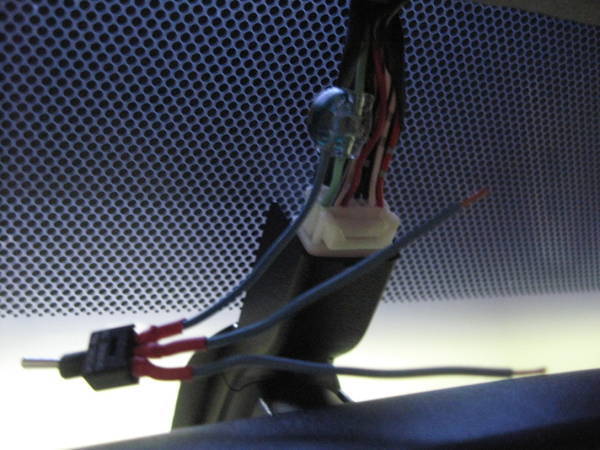

    this is the splice into wire 1 (green). i used a phone line tap from Radio Shack. Note: if you are not familiar with these there is no need to strip the green wire or the wire your using to tap off of wire 1. these wire taps cut into the isolation just enough to do the job and they do it well.

    [​IMG]

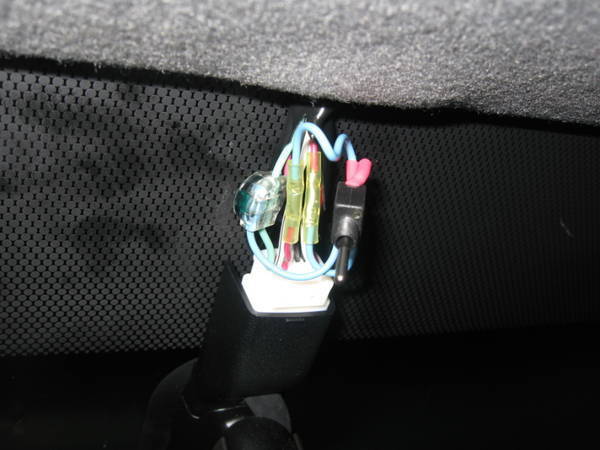

    here is what it looks like after all the wiring is finished. i used small crimp connectors to tie in the red wires. i also got these at Radio Shack.

    [​IMG]

    my next step was to drill the hole for the switch and the notch for the plate that keeps the switch orientated in the right direction.

    [​IMG]

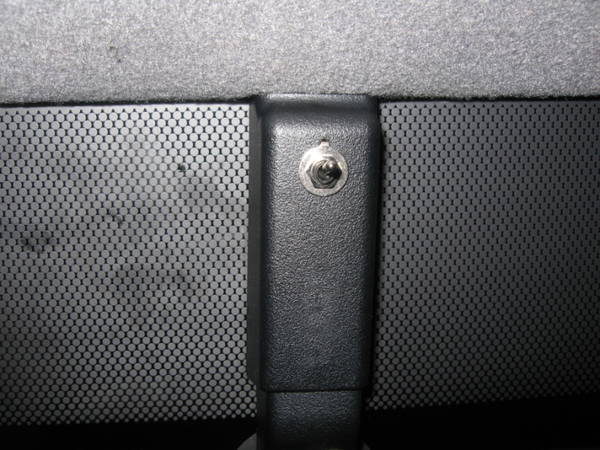

    the last thing to do is install it!

    [​IMG]

    PM me with your email if you want a Video of it working... i cant figure out how to put it on here.

    here it is:
    http://www.youtube.com/watch?v=-y2O9MDViSU


    in position #1 the switch functions like its not even there, it turns on the camera when the car is in reverse. in position #2 it functions as a always on feature for the camera so that it will operate while in drive, neutral, park... whatever
